Thank you for purchasing a SHARP air conditioner. Please read this manual carefully
before operating the product.

CONTENTS

• PRECAUTIONS ...........................................E-1

• ADDITIONAL NOTES ON OPERATION .....E-3

• TIPS ON SAVING ENERGY........................E-3

• PART NAMES..............................................E-4

• USING THE REMOTE CONTROL ..............E-6

• BASIC OPERATION ....................................E-8

• ADJUSTING THE AIR FLOW DIRECTION .E-10

• FULL POWER OPERATION .......................E-11

• ONE-HOUR OFF TIMER .................... E-11

• TIMER OPERATION........................... E-12

• AUXILIARY MODE ............................. E-14

• POWER SELECTOR .......................... E-14

• OPTION KIT........................................ E-14

• MAINTENANCE.................................. E-15

• BEFORE CALLING FOR SERVICE ... E-16

PRECAUTIONS

WARNINGS FOR USE

Do not pull or deform the power supply cord. Pulling and misuse of the power supply cord

1

can result in damage to the unit and cause electrical shock.
Be careful not to expose your body directly to the outlet air for a long time. It may affect

2

your physical conditions.
When using the air conditioner for infants, children, elderly, bedridden, or disabled people

3

make sure the room temperature is suitable for those in the room.
Never insert objects into the unit. Inserting objects can result in injury due to the high

4

speed rotation of internal fans.

ENGLISH

Ground the air conditioner without fail. Do not connect the grounding wire to gas pipe,

5

water pipe, lightning rod or telephone grounding wire. Incomplete grounding may cause
electric shock.

If anything is abnormal with the air conditioner (ex. a burning smell), stop the operation

6

immediately and turn the circuit breaker OFF.
Follow local rules and regulations for power supply cord cabling. Improper cable

7

connection can cause the power supply cord, plug and the electrical outlet to overheat
and cause fire.

Use only the manufacture-specified power cord for replacement. Replacement should be

8

performed by a qualified technician or a service person.

WARNINGS FOR INSTALLATION / REMOVAL / REPAIR

• Do not attempt to install/remove/repair the unit by yourself. Incorrect work will cause electric
shock, water leak, fire etc. Consult your dealer or other qualified service personnel for the
installation/removal/repair of the unit.

This equipment complies with the requirements of Directives 89/336/EEC and 73/23/
EEC as amended by 93/68/EEC.

E-1

PRECAUTIONS

CAUTIONS FOR USE

Open a window or door periodically to ventilate the room, especially when using gas

1

appliances. Insufficient ventilation may cause oxygen shortage.
Do not operate the buttons with wet hand. It may cause electric shock.

2

For safety, turn the circuit breaker off when not using the unit for an extended period of

3

time.
Check the outdoor unit mounting rack periodically for wear and to make sure it is firmly

4

in place.
Do not put anything on the outdoor unit nor step on it. The object or the person may fall

5

down or drop, causing injury.
This unit is designed for residential use. Do not use for other applications such as in a

6

kennel or greenhouse to raise animals or grow plants.
Do not place a vessel with water on the unit. If water penetrates into the unit, electrical

7

insulations may deteriorate and cause electric shock.
Do not block the air inlets nor outlets of the unit. It may cause insufficient performance

8

or troubles.
Be sure to stop the operation and turn the circuit breaker off before performing any

9

maintenance or cleaning. A fan is rotating inside the unit and you may get injured.
Do not splash or pour water directly on the unit. Water can cause electrical shock or

10

equipment damage.
This appliance is not intended for use by young children or infirm persons without

11

supervision.
Young children should be supervised to ensure that they do not play with the appliance.

CAUTIONS FOR LOCATION / INSTALLATION

• Make sure to connect the air conditioner to power supply of the rated voltage and
frequency.

Use of a power supply with improper voltage and frequency can result in equipment
damage and possible fire.

• Do not install the unit in a place where inflammable gas may leak. It may cause fire.
Install the unit in a place with minimal dust, fumes and moisture in the air.

• Arrange the drain hose to ensure smooth drainage. Insufficient drainage may cause wetting
of the room, furniture etc.

• Make sure a leak breaker or a circuit breaker is installed, depending on the installation
location, to avoid electrical shock.

E-2

ADDITIONAL NOTES ON OPERATION

OPERATING TEMPERATURE RANGE

INDOOR TEMP. OUTDOOR TEMP.

COOLING

HEATING

(AY-X08CR/AY-X10CR/
AY-X13CR only)

D.B. = Dry-bulb W.B. = Wet-bulb

upper limit

lower limit

upper limit

lower limit

32˚C D.B. 43˚C D.B.
23˚C W.B. -

21˚C D.B. 21˚C D.B.
15˚C W.B. -

27˚C D.B. 24˚C D.B.

- 18˚C W.B.
20˚C D.B. -8.5˚C D.B.

- -9.5˚C W.B.

• The built-in protective de­vice may prevent the unit
from operating when used
out of this range.

• Condensation may form on
the air outlet if the unit op­erates continuously in the
COOL or DRY mode when
humidity is over 80 percent.

WHEN POWER FAILURE OCCURS

This air conditioner has a memory function to store settings when a power failure occurs.
After power recovery, the unit will automatically re-start in the same settings which were active before the power
failure, except for timer settings.
If the timers were set before a power failure, they will need to be re-set after power recovery.

NOTES FOR MODELS AY-X08CR/AY-X10CR/AY-X13CR

PREHEATING FUNCTION

In the HEAT operation, the indoor fan may not start for two to five minutes after the unit is turned on to prevent
cold air from blowing out of the unit.

DE-ICING FUNCTION

• When ice forms on the heat exchanger in the outdoor unit during the HEAT operation, an automatic de-icer
provides heat for about 5 to 10 minutes to remove the ice. During de-icing, the inside and outside fans stop
operating.

• After de-icing is completed, the unit automatically resumes operation in the HEAT mode.

HEATING EFFICIENCY

• The unit employs a heat pump that draws heat from the outside air and releases it into the room. The outside
air temperature therefore greatly affects the heating efficiency.

• If the heating efficiency is reduced due to low outside temperatures, use an additional heater.

• It takes time to warm up and heat the entire room because of the forced air circulation system.

TIPS ON SAVING ENERGY

Below are some simple ways to save energy when you use your air conditioner.

ENGLISH

SET THE CORRECT TEMPERATURE

• Setting the thermostat 1°C higher than the desired temperature in the COOL mode (and 2°C lower in the
HEAT mode with models AY-X08CR/AY-X10CR/AY-X13CR) will save approximately 10 percent in power
consumption.

• Setting the temperature lower than necessary during cooling operation will result in increased power
consumption.

BLOCK DIRECT SUNLIGHT AND PREVENT DRAFTS

• Blocking direct sunlight during cooling operation will reduce power consumption.

• Close the windows and doors during cooling opeation (and heating operation with models AY-X08CR/AY­X10CR/AY-X13CR).

SET PROPER AIR FLOW DIRECTION TO OBTAIN THE BEST AIR
CIRCULATION

KEEP FILTER CLEAN TO ENSURE THE MOST EFFICIENT OPERATION
MAKE MOST OF THE TIMER OFF FUNCTION
DISCONNECT THE POWER CORD WHEN THE UNIT IS NOT USED FOR AN

EXTENDED PERIOD OF TIME

• The indoor unit still consumes a small amount of power when it is not operating.

E-3

PART NAMES

INDOOR UNIT

1

2

3

4

5

6

7

8

9

1 Inlet (Air)
2 Open Panel
3 Air Filters
4 POWER SELECTOR SWITCH

(only for AY-X13CR/AH-X13CR)

5 AUX. Button
6 RECEIVER Window
7 Power Supply Cord
8 Indicator Panel
9 Vertical Adjustment Louvres
0 Horizontal Adjustment Louvres

OUTDOOR UNIT

ECO POWER

0

q

w

e
r
t
y
u
i

o

p

a

q Outlet (Air)
w Remote Control
e POWER MONITOR
r TEMPERATURE INDICATOR
t OUTDOOR Temp. Lamp

(green

y ROOM Temp. Lamp (green )
u TIMER Lamp (orange )
i OPERATION Lamp (red )

o Inlet(Air)
p Refrigerant Tube and

Interconnecting Cord

a Drainage Hose

)

s

NOTE: Actual units might vary slightly from those shown above.

E-4

s Outlet(Air)

REMOTE CONTROL

1

C

2

AM
PM

AM
PM

3

DISPLAY

FULL
POWER

4

5
6

7
8

MODE

SWING

SET/C

FAN

1h

9
0
q

w
e

r

+-

t
y
u

(The heat mode symbol is provided only on
models AY-X08CR/AY-X10CR/AY-X13CR)

1 TRANSMITTER
2 DISPLAY (Liquid Crystal Display)
3 THERMO. (Thermostat) Button
4 FULL POWER OPERATION Button
5 DISPLAY Button
6 ON/OFF Button
7 MODE Button
8 FAN Button
9 TIMER OFF Button (for setting the timer)
0 SWING Button
q ONE-HOUR OFF TIMER Button
w TIMER SET/CANCEL Button
e TIMER ON Button (for setting the timer)
r TIME ADVANCE Button
t CLOCK Button
y Indicates BATTERY COMPARTMENT is

below this mark

u TIME REVERSE Button

ENGLISH

L.C.D. REMOTE CONTROL DISPLAY

i THERMOSTAT SETTING FOR AUTO AND DRY

MODES

o TEMPERATURE SYMBOL
p TRANSMITTING SYMBOL
a MODE SYMBOLS

: AUTO : DRY
: HEAT : FAN ONLY

(only for AY-X08CR/
AY-X10CR/AY-X13CR)

: COOL

s TEMPERATURE INDICATOR
d FULL POWER OPERATION MODE SYMBOL
f FAN SPEED SYMBOLS

: AUTO : LOW
: HIGH : SOFT

E-5

i
o

C

p
a

AM
PM

AM
PM

(The heat mode symbol
is provided only on models
AY-X08CR/AY-X10CR/AY­X13CR)

g TIMER ON INDICATOR/CLOCK

Indicates the on timer preset time or
current time.

h TIMER OFF INDICATOR

Indicates the preset time for off timer or
one-hour off timer.

s

d
f

g
h

USING THE REMOTE CONTROL

LOADING BATTERIES Use two size-AAA (R03) batteries.

Remove the remote control

1

cover.
Insert batteries in the compart-

2

ment, making sure the ± and

— polarities are correctly

aligned.

• The display indicates "AM
6:00" when batteries are prop­erly installed.

Remote control
cover

Reinstall the cover.

3

+

-

­+

NOTES:

• The battery life is approximately one year in normal use.

• When you replace the batteries, always change both batteries, and make sure

they are the same type.

• If the remote control does not operate properly after replacing the batteries, take
out the batteries and reinstall them again after 30 seconds.

• If you will not be using the unit for a long time, remove the batteries from the
remote control.

HOW TO USE THE REMOTE CONTROL

Point the remote control towards
the unit’s signal receiver window
and press the desired button. The
unit generates a beep when it re­ceives the signal.

• Make sure there is no curtain or other
object between the remote control and
the unit.

• The remote control can send signals
from up to 7 metres away.

E-6

CAUTION

• Do not allow the signal receiver window to receive strong direct sunlight, since it can
adversely affect its operation. If the signal receiver window is exposed to direct sunlight,
close a curtain to block the light.

• Using a fluorescent lamp with a quick starter in the same room may interfere with
transmission of the signal.

• The unit can be affected by signals transmitted from the remote control of a television,
VCR or other equipment used in the same room.

• Do not leave the remote control in direct sunlight or near a heater. Also, protect the unit
and remote control from moisture and shock which can discolour or damage them.

SET CURRENT CLOCK TIME

ENGLISH

There are two clock modes:
12-hour mode and 24-hour
mode.

MODE

|

{

(The heat mode symbol is
provided only on models AY­X08CR/AY-X10CR/AY-X13CR)

FAN

1h

SWING

SET/C

+-

{

|

3

1
2

Example: 5 o'clock in the afternoon

Clock Display

12-hour mode PM 5:00
24-hour mode 17:00

To set to the 12-hour mode, press the

1

CLOCK button once in the first step.
To set to the 24-hour mode, press the

CLOCK button twice in the first step.
Press the TIME ADVANCE or REVERSE

2

button to set the current time.

• Keep the button pressed to advance
or reverse the time display quickly.

Press the SET/C button.

3

• The colon (:) blinks to indicate that the
clock is functioning.

NOTE:

• The current time cannot be set when the
timer is operating.

E-7

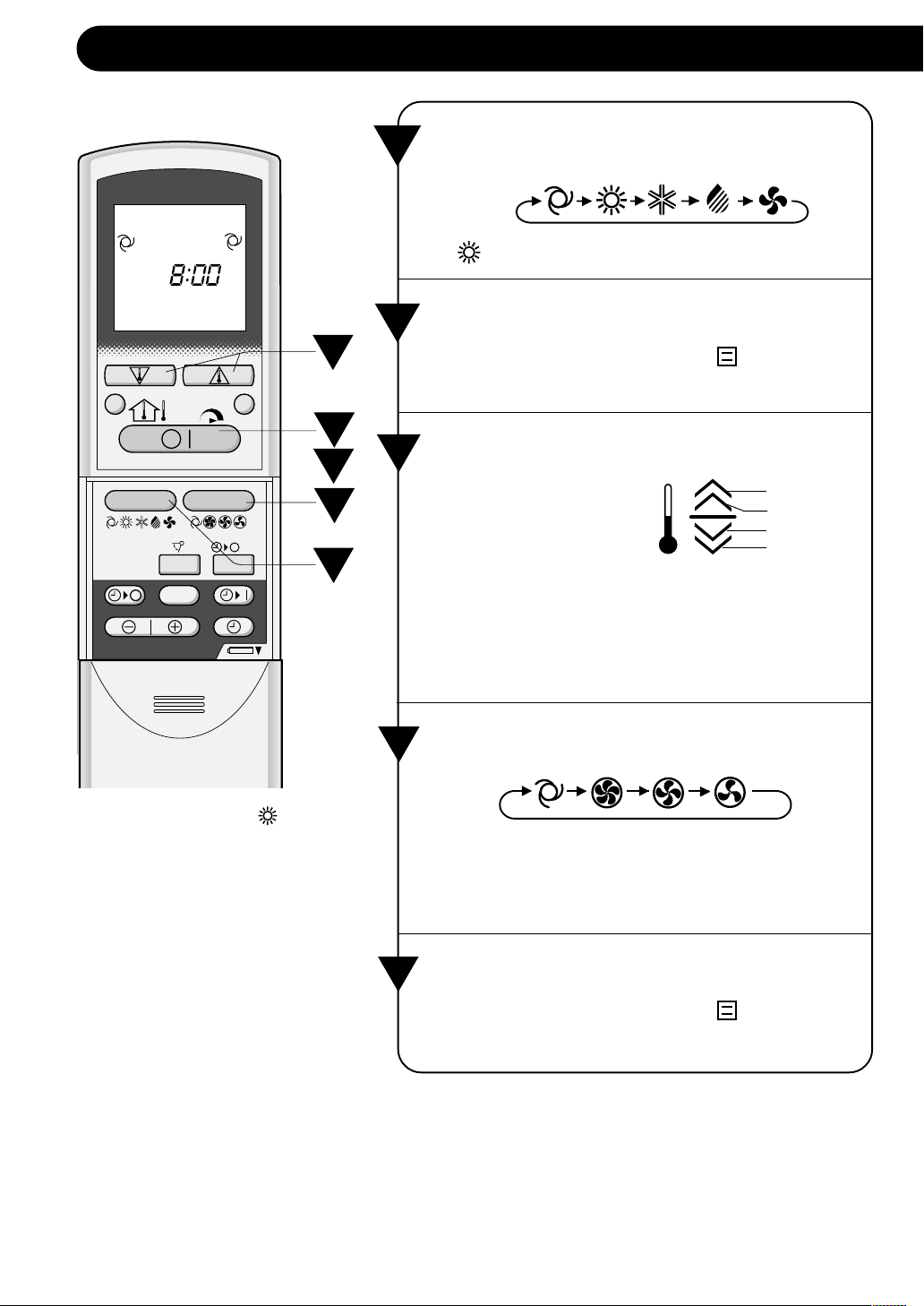

BASIC OPERATION

1

AM

2

3

DISPLAY

MODE

|

FULL
POWER

SWING

SET/C

FAN

1h

+-

{

2
5

3

4

1

Press the MODE button to select the op­eration mode.

AUTO HEAT COOL DRY FAN ONLY

HEAT

(

is only for AY-X08CR/AY-X10CR/AY-X13CR)

Press the ON/OFF button to start opera­tion.

• The red OPERATION lamp ( ) on the unit
will light.

Press the THERMO. button to set the de­sired temperature.

• In the AUTO and DRY
mode, the indicator
bars represent
changes in tempera­ture.

• In the COOL (and HEAT for AY-X08CR/AY­X10CR/AY-X13CR) mode, the temperature
can be set within the range of 18 to 32 °C

• In the FAN ONLY mode, the temperature
setting cannot be made.

2°C higher
1°C higher
1°C lower
2°C lower

{

(The heat mode symbol is
provided only on models AY­X08CR/AY-X10CR/AY-X13CR)

|

Press the FAN button to set the desired fan

4

speed.

AUTO HIGH LOW SOFT

• In the DRY mode, the fan speed is preset to
AUTO and cannot be changed.

• In the FAN ONLY mode, the fan speed can­not be set to AUTO.

To turn off the unit, press the ON/OFF but-

5

ton again.

• The red OPERATION lamp ( ) on the unit
will turn off.

E-8

TIPS ABOUT AUTO MODE

In the AUTO mode, the temperature setting and mode are automatically selected according to
the room temperature and outdoor temperature when the unit is turned on.

Modes and Temperature Settings for Models
AH-X08CR/AH-X10CR/AH-X13CR

outdoor

(¡C)

28 34

Cool

(24¡C)

29

Dry

Room Temp.

()

-2¡C

21

indoor temp.

(¡C)

the figures in ( ) are temperature
settings

Cool

(25¡C)

temp.

Cool

(26¡C)

Modes and Temperature Settings for Models
AY-X08CR/AY-X10CR/AY-X13CR

outdoor
temp.

Fan

29

Heat

Heat

21

indoor temp.

(¡C)

(23¡C)

(24¡C)

the figures in ( ) are temperature settings

Cool

(24¡C)

Dry

Room Temp.

()

-2¡C

Heat

(22¡C)

281810034

Cool

(25¡C)

Cool

(26¡C)

(¡C)

During operation, if the outdoor temperature changes, the temperature settings will automati­cally slide as shown in the chart.

MODE CHANGEOVER (only for models AY-X08CR/AY-X10CR/AY-X13CR)

During seasons when you need COOLING at daytime and HEATING at night, or if the room
temperature should become extremely higher than the temperature setting, due to supplemen­tary heating equipment, the mode will automatically switch between HEAT and COOL mode to
keep the comfortable room temperature.

TIPS ABOUT INDICATOR PANEL

The indicator panel will change each time you press
the DISPLAY button in the following manner.

DISPLAY

FULL
POWER

ENGLISH

Room Temp. Lamp

Outdoor Temp. Lamp

Temperature
Indicator

ECO

POWER MONITOR

ECO

The room temperature and
POWER MONITOR are displayed.

The outdoor temperature and
POWER MONITOR are displayed.

No display.

POWER MONITOR

When the room temperature or the outdoor temperature is displayed, the POWER MONITOR
will light up in 4 levels (3 levels for DRY mode), to indicate the operation power.
When the air conditioner is operating at maximum power in the COOL (and HEAT for AY­X08CR/AY-X10CR/AY-X13CR)mode,"Power" will light and "Eco" will turn off on the indicator
panel.

NOTES:

• The displayed temperatures are rough estimates and may vary from the actual temperatures.

• Temperature display ranges

Room temperature: 0°C ~ 40°C ( is displayed when less than 0°C and when higher
than 40°C)
Outdoor temperature: -9°C ~ 45°C ( is displayed when less than -9°C and when higher
than 45°C)

• is displayed during the first minute of operation while the temperatures are being detected.

• Only the room temperature can be displayed when the unit is not in operation.

E-9

ADJUSTING THE AIR FLOW DIRECTION

VERTICAL AIR FLOW DIRECTION

The air flow direction is automatically preset in each mode as follows for optimum
comfort:

COOL and DRY mode Horizontal air flow
FAN ONLY (and HEAT for AY-X08CR/AY-X10CR/AY-X13CR) mode

HOW TO ADJUST THE AIR FLOW DIRECTION

Diagonal air flow

Press the SWING button on the
remote control once.

• The vertical adjustment louvre
will change its angle continu­ously.

COOL and DRY mode

Adjustment range

Press the SWING button again
when the vertical adjustment
louvre is at the desired position.

• The louvre will stop moving within
the range shown in the diagram.

• The adjusted position will be
memorized and will be automati­cally set to the same position
when operated the next time.

The adjustment range
is narrower the SWING
range in order to pre­vent condensation from
dripping.

HORIZONTAL AIR FLOW DIRECTION

Hold the horizontal adjustment
louvre as shown in the diagram
and adjust the air flow direction.

FAN ONLY (and HEAT for
AY-X08CR/AY-X10CR/AY­X13CR) mode

The range is wide so the
air flow can be directed
toward the floor.

CAUTION

Never attempt to adjust the vertical adjustment louvres manually.

• Manual adjustment of the vertical adjustment louvre can cause the unit to malfunction
when the remote control is used for the adjustment.

• When the vertical adjustment louvre is positioned at the lowest position in the COOL or
DRY mode for an extended period of time, condensation may result.

E-10

FULL POWER OPERATION

In this operation, the air conditioner works at maximum power to makes the room
cool (or warm with models AY-X08CR/AY-X10CR/AY-X13CR) so rapidly that you can
use it just after you come home.

To activate the FULL POWER operation, press

1

the FULL POWER button during operation.

• The remote control will display .

• the temperature display will go off.

PM

TO CANCEL

Press the FULL POWER button again.

• FULL POWER operation will also be cancelled when
the operation mode is changed, or when the unit is
turned off.

FULL

DISPLAY

POWER

NOTES:

1

• You cannot use the FULL POWER operation during the
FAN ONLY mode.

• You cannot set the temperature during the FULL POWER
operation.

ONE-HOUR OFF TIMER

When the ONE-HOUR OFF TIMER is set, the unit will stop operating after one hour.

Press the ONE-HOUR OFF TIMER button.

1

• The remote control displays “1 h”.

• The orange TIMER lamp ( ) on the unit will light up.

• The unit will stop operating after one hour.

ENGLISH

TO CANCEL

Press the TIMER CANCEL (SET/C) button.

• The orange TIMER lamp ( ) on the unit will turn off.

Or, turn the unit off by pressing the ON/OFF button.

MODE

(The heat mode symbol is provided only on
models AY-X08CR/AY-X10CR/AY-X13CR)

SWING

FAN

• The red OPERATION lamp ( ) and the orange TIMER

lamp ( ) on the unit will turn off.

1h

1

NOTES:

• The ONE-HOUR OFF TIMER operation has priority over TIMER ON and TIMER OFF
operations.

• When the ONE-HOUR OFF TIMER is set while the unit is not operating, the unit will
operate for an hour with the formerly set condition.

• If you wish to operate the unit for another hour before the ONE-HOUR OFF TIMER
activiates, press the ONE-HOUR OFF TIMER button again during operation.

• If TIMER ON and/or TIMER OFF are set, TIMER CANCEL button cancels every setting.

E-11

TIMER OPERATION

NOTE:

Before setting the timer, make sure the clock is properly set with the current time.

TIMER OFF

Press the TIMER OFF ( ) button.

1

The TIMER OFF indicator will blink; press the

2

TIME ADVANCE or REVERSE buttons to set
the desired time. (The time can be set in 10-

AM

DISPLAY

MODE

SWING

SET/C

FULL
POWER

FAN

1h

1
3

minute increments.)
Point the remote control at the signal receiver

3

window on the unit and press the TIMER SET
(SET/C) button.

• The orange TIMER lamp (

) on the unit will

light.

• The unit will generate a beep when it re­ceives the signal.

+-

(The heat mode symbol is provided only on models
AY-X08CR/AY-X10CR/AY-X13CR)

TIPS ABOUT TIMER OFF OPERATION

2

When the TIMER OFF mode is set, the
temperature setting is automatically
adjusted to prevent the room from
becoming excessively hot or too cold
while you sleep. (Auto Sleep function)

COOL/DRY MODE:

• One hour after the time operation begins,
the temperature setting rises 1°C higher
than the original thermostat setting.

HEAT MODE: (only for models AY-X08CR/

AY-X10CR/AY-X13CR)

• One hour after the timer operation
begins, the temperature setting drops
3°C lower than the original thermostat
setting.

NOTE:

• The Auto Sleep function will not acti­vate during the FAN ONLY mode.

TO CANCEL TIMER MODE

Press the TIMER CANCEL (SET/C) button.

• The orange TIMER lamp (

) on the unit

will turn off.

• The current clock time will be displayed on
the remote control.

MODE

SWING

SET/C

FAN

1h

+-

(The heat mode symbol
is provided only on models
AY-X08CR/AY-X10CR/AY­X13CR)

NOTE:

• If any TIMER ON, TIMER OFF and ONE­HOUR OFF TIMER are set, the TIMER
CANCEL button cancels all settings.

TO CHANGE TIME SETTING

Cancel the TIMER seting first, then set it
again.

E-12

TIMER ON

Press the TIMER ON ( ) button.

1

The TIMER ON indicator will blink; press the TIME

2

ADVANCE or REVERSE buttons to set the de-

AM

FULL

DISPLAY

POWER

MODE

SWING

SET/C

FAN

1h

+-

3

1
2

(The heat mode symbol is provided only on
models AY-X08CR/AY-X10CR/AY-X13CR)

sired time. (The time can be set in 10-minute
increments.)

Point the remote control at the signal receiver

3

window on the unit and press the TIMER SET
(SET/C) button.

• The orange TIMER lamp (
light.

• The unit will generate a beep when it receives
the signal.

Select the operation condition.

4

• The unit will turn on prior to the set time to allow
the room to reach the desired temperature by
the programmed time. (Awaking function)

ENGLISH

) on the unit will

COMBINED USE OF ON AND OFF TIMERS

You can use the ON and OFF timers in combination.

Example:

To stop operation at 11:00 p.m. and resume operation
(With the same mode and temperature settings) to
bring the room temperature to the desired level by
7:00 a.m.

Set the TIMER OFF to 11:00 p.m. during opera-

1

AM

PM

tion.
Set the TIMER ON to 7:00 a.m.

2

The arrow (
indicator and the TIMER OFF indicator shows which
timer will activate first.

or ) between the TIMER ON

NOTES:

• You cannot programme the ON-TIMER and OFF-TIMER to operate the unit at
different temperatures or other settings.

• Either timer can be programmed to activate prior the other.

E-13

AUXILIARY MODE

Use this mode when the remote control is not available.

TO TURN ON

Lift the front panel of the indoor unit and press the AUX.
button on the operation panel.

• The red OPERATION lamp (
the unit will start operating in the AUTO mode.

• The fan speed and temperature setting are set to AUTO.

TO TURN OFF

Press the AUX. button on the operation panel again.

• The red OPERATION lamp (

NOTE:

If the AUX. button is pressed during normal operation, the
unit will turn off.

) on the unit will light and

) on the unit will turn off.

AUX.

POWER SELECTOR (only for models AY-X13CR/AH-X13CR)

When installing the air-conditioner to a residence with small
electrical current capacity, switch the POWER SELECTOR to
"L". The air conditioner will operate with reduced power, and
the circuit breaker tripping or fuse blowing caused by excess
power consumption can be avoided.

• COOLING or HEATING (for model AY-X13CR) capacity
will be reduced when operating at "L" setting.

• Consult your dealer or qualified technician if continuous
breaker tripping or fuse blowing is experienced even by
switching to "L" setting.

AH-X13CR AY-X13CR

Maximum ampere
at "H" setting

Maximum ampere
at "L" setting

9A 12A
7A 8A

AUX.

OPTION KIT

Air Purifying Filter

During operation of the air conditioner, the air purifying filter
removes dust and tobacco smoke from the air and discharges
clean air.
The apatite antibacterial material used in the air purifying filter
suppresses activities of adsorbed viruses and other germs.
The replacement period for the disposable type is approximately
3~6 months.
Contact your dealer for the purchase of this option.

Type AZ-F900B

H

L

E-14

MAINTENANCE

CAUTION

Be sure to disconnect the power cord from the wall outlet or turn off the circuit
breaker before performing any maintenance.

CLEANING THE FILTERS

1

2

3

2

1

3

The air filters should be cleaned every two weeks.

TURN OFF THE UNIT

1

REMOVE THE FILTERS

2

1 Lift the open panel.
2 Push the air filters up slightly to unlock them.
3 Pull the air filters down to remove them.

CLEAN THE FILTERS

3

Use a vacuum cleaner to remove dust. If the
filters are dirty, wash them with warm water
and a mild detergent. Dry filters in the shade
before reinstalling.

REINSTALL THE FILTERS

4

1 Reinstall the filters in the original positions.
2 Close the front panel.
3 Push the center part of the panel firmly to

lock it in place.

CLEANING THE UNIT AND THE REMOTE CONTROL

ENGLISH

CAUTION

• Wipe them with a soft cloth.

• Do not directly splash or pour water on them. We can cause electrical shock or

equipment damage.

• Do not use hot water, thinner, abrasive powders or strong solvents.

MAINTENANCE AFTER AIR
CONDITIONER SEASON

Operate the unit in the FAN ONLY

1

mode for about half a day to allow
the mechanism to thoroughly dry.

Stop the operation and unplug the

2

unit. Turn off the circuit breaker, if
you have one exclusively for the
air conditioner.

Clean the filters, then reinstall

3

them.

MAINTENANCE BEFORE
AIR CONDITIONER SEASON

Make sure that the air filters are

1

not dirty.
Make sure that nothing obstructs

2

the air inlet or outlet.

CAUTION

Check the outdoor mounting rack

3

periodically for wear and to make
sure it is firmly in place.

E-15

BEFORE CALLING FOR SERVICE

The following conditions do not denote equipment malfunctions

UNIT DOES NOT OPERATE

The unit will not operate if it is turned on
immediately after it is turned off. The unit will not
operate immediately after the mode is changed.
This is to protect the internal mechanisms. Wait 3
minutes before operating the unit.

UNIT DOES NOT SEND OUT WARM AIR

(Models AY-X08CR/AY-X10CR/AY-X13CR)

The unit is preheating or de-icing.

ODORS

Carpet and furniture odors that entered into the
unit and the air conditioner's inner component
odors at the early stage of installation may be
sent out from the unit.

SWISHING NOISE

The soft, swishing noise is the sound of
the refrigerant flowing inside the unit.

WATER VAPOUR

• In the COOL and DRY operation, wa­ter vapour can sometimes be seen at
the air outlet due to the difference
between the room air temperature and
the air discharged by the unit.

• In the HEAT operation, water vapour
may flow out of the outdoor unit dur­ing de-icing. (Only in models AY­X08CR/AY-X10CR/AY-X13CR)

THE OUT DOOR UNIT DOES NOT
STOP

CRACKING NOISE

The unit may produce a cracking noise. This sound
is generated by the friction of the front panel and
other components expanding or connecting due to
a temperature change.

After stopping the operation, the out­door unit will rotate its' fan for about a
minute to cool down the unit.

If the unit appears to be malfunctioning, check the following points before calling for
service.

IF THE UNIT FAILS TO OPERATE

Check to see if the circuit breaker has tripped or the fuse has blown.

IF THE UNIT FAILS TO COOL (OR HEAT) THE ROOM EFFECTIVELY

Check the filters. If dirty,
clean them.

Make sure windows and
doors are closed tightly.

Check the outdoor unit to
make sure nothing is blocking
the air inlet or outlet.

A large number of people in
the room can prevent the unit
from achieving the desired
temperature.

Check the thermostat is
proper setting.

Check whether any heat­generating appliances are
operating in the room.

IF THE UNIT FAILS TO RECEIVE THE REMOTE CONTROL SIGNAL

Check whether the remote
control batteries have be­come old and weak.

Please call for service when OPERATION Lamp, TIMER Lamp and TEMPERATURE INDICATOR
on the indicator panel blink.

Try to send the signal again
with the remote control
pointed properly towards the
unit’s signal receiver window.

Check whether the remote
control batteries are in­stalled with the polarities
properly aligned.

E-16

ENGLISH

Printed in Thailand

SHARP CORPORATION

OSAKA, JAPAN

TINSEA296JBRZ TL 01LO 1
