SHARP AH-AP09CF/AP12CF User Manual

MODELS

AH-AP09CF AH-AP12CF

INDOOR UNIT

SPLIT TYPE ROOM AIR CONDITIONER

OPERATION MANUAL

OUTDOOR UNIT

AU-A 09BF AU-A 12BF

E-1

Thank you for purchasing a SHARP air conditioner. Please read this manual carefully before operating the product.

• PRECAUTIONS ............................................... E-1

• ADDITIONAL NOTES ON OPERATION ......... E-3

• TIPS ON SAVING ENERGY............................E-3

• PART NAMES.................................................. E-4

• USING THE REMOTE CONTROL .................. E-6

•

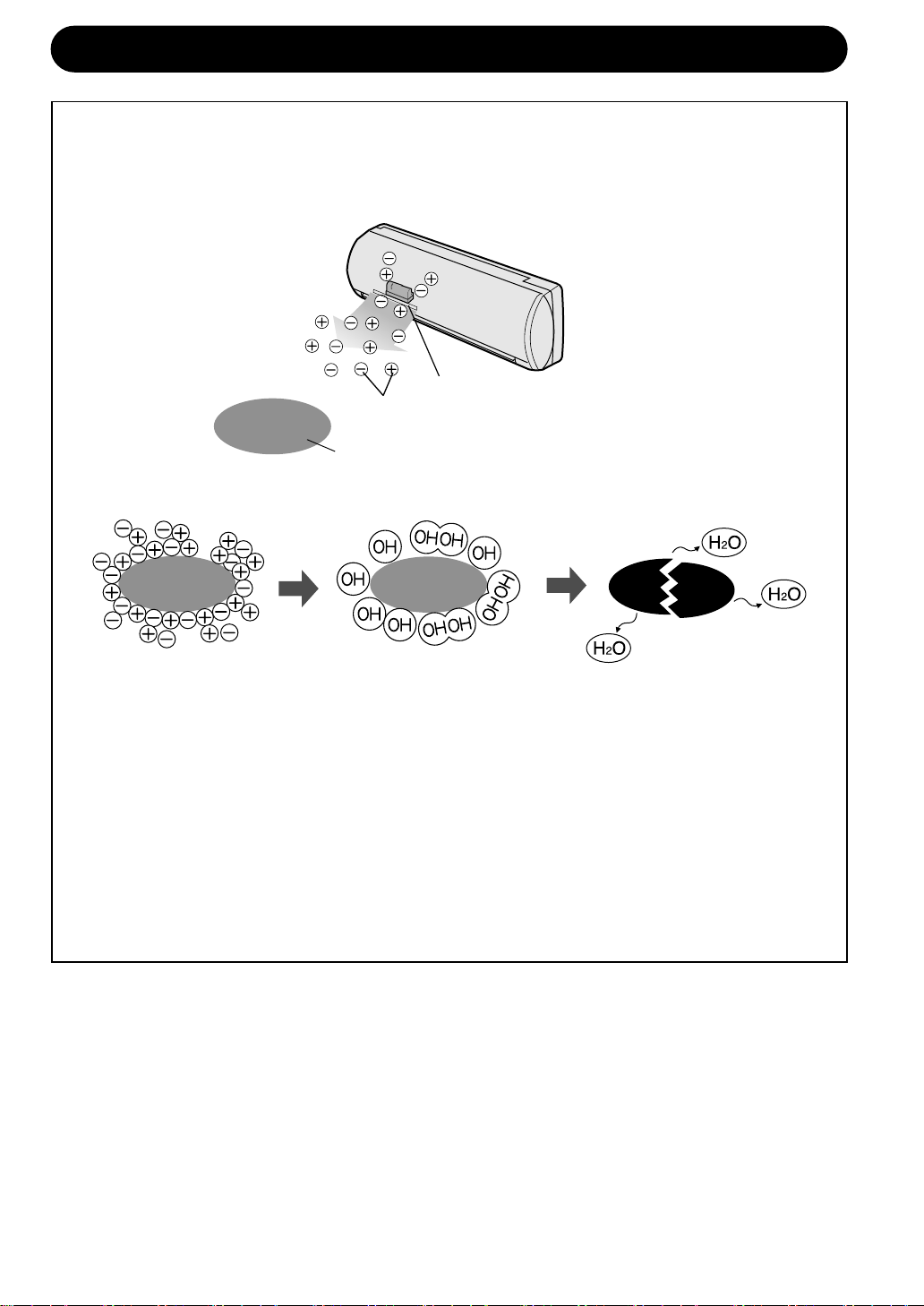

TIPS ABOUT PLASMACLUSTER OPERATION.

E-7

• BASIC OPERATION ........................................ E-8

•

ADJUSTING THE AIR FLOW DIRECTION .........

E-10

CONTENTS

• PLASMACLUSTER OPERATION ............. E-11

• ONE-HOUR OFF TIMER ........................... E-11

• TIMER OPERATION.................................. E-12

• AUXILIARY MODE .................................... E-14

• MAINTENANCE.........................................E-15

• BEFORE CALLING FOR SERVICE .......... E-16

• SPECIFICATIONS ..................................... E-17

PRECAUTIONS

WARNINGS FOR USE

Do not pull or deform the power supply cord. Pulling and misuse of the power supply cord can result in damage to the unit and cause electrical shock.

Be careful not to expose your body directly to the outlet air for a long time. It may affect your physical conditions.

When using the air conditioner for infants, children, elderly, bedridden, or disabled people make sure the room temperature is suitable for those in the room.

Never insert objects into the unit. Inserting objects can result in injury due to the high speed rotation of internal fans.

Ground the air conditioner without fail. Do not connect the grounding wire to gas pipe, water pipe, lightning rod or telephone grounding wire. Incomplete grounding may cause electric shock.

If anything is abnormal with the air conditioner (ex. a burning smell), stop the operation immediately and turn the circuit breaker OFF.

Follow local rules and regulations for power supply cord cabling. Improper cable connection can cause the power supply cord, plug and the electrical outlet to overheat and cause fire.

Use only the manufacture-specified power cord for replacement. Replacement should be performed by a qualified technician or a service person.

WARNINGS FOR INSTALLATION / REMOVAL / REPAIR

• Do not attempt to install/remove/repair the unit by yourself. Incorrect work will cause electric shock, water leak, fire etc. Consult your dealer or other qualified service personnel for the installation/removal/repair of the unit.

This equipment complies with the requirements of Directives 89/336/EEC and 73/23/ EEC as amended by 93/68/EEC.

PRECAUTIONS

CAUTIONS FOR USE

Open a window or door periodically to ventilate the room, especially when using gas appliances. Insufficient ventilation may cause oxygen shortage.

Do not operate the buttons with wet hand. It may cause electric shock.

For safety, turn the circuit breaker off when not using the unit for an extended period of time.

Check the outdoor unit mounting rack periodically for wear and to make sure it is firmly in place.

Do not put anything on the outdoor unit nor step on it. The object or the person may fall down or drop, causing injury.

This unit is designed for residential use. Do not use for other applications such as in a kennel or greenhouse to raise animals or grow plants.

Do not place a vessel with water on the unit. If water penetrates into the unit, electrical insulations may deteriorate and cause electric shock.

Do not block the air inlets nor outlets of the unit. It may cause insufficient performance or troubles.

Be sure to stop the operation and turn the circuit breaker off before performing any maintenance or cleaning. A fan is rotating inside the unit and you may get injured.

Do not splash or pour water directly on the unit. Water can cause electrical shock or equipment damage.

This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.

CAUTIONS FOR LOCATION / INSTALLATION

• Make sure to connect the air conditioner to power supply of the rated voltage and frequency.

Use of a power supply with improper voltage and frequency can result in equipment damage and possible fire.

• Do not install the unit in a place where inflammable gas may leak. It may cause fire. Install the unit in a place with minimal dust, fumes and moisture in the air.

• Arrange the drain hose to ensure smooth drainage. Insufficient drainage may cause wetting of the room, furniture etc.

• Make sure a leak breaker or a circuit breaker is installed, depending on the installation location, to avoid electrical shock.

E-2

INDOOR TEMP. OUTDOOR TEMP.

COOLING

upper limit

32˚C D.B. 43˚C D.B. 23˚C W.B. -

lower limit

21˚C D.B. 21˚C D.B. 15˚C W.B. -

ADDITIONAL NOTES ON OPERATION

OPERATING TEMPERATURE RANGE

• The built-in protective device may prevent the unit from operating when used out of this range.

• Condensation may form on the air outlet if the unit operates continuously in the COOL or DRY mode when humidity is over 80 percent.

D.B. = Dry-bulb W.B. = Wet-bulb

TIPS ON SAVING ENERGY

Below are some simple ways to save energy when you use your air conditioner.

WHEN POWER FAILURE OCCURS

This air conditioner has a memory function to store settings when a power failure occurs. After power recovery, the unit will automatically re-start in the same settings which were active before the power failure, except for timer settings. If the timers were set before a power failure, they will need to be re-set after power recovery.

E-3

SET THE CORRECT TEMPERATURE

• Setting the thermostat 1°C higher than the desired temperature in the COOL mode will save approximately 10 percent in power consumption.

• Setting the temperature lower than necessary during cooling operation will result in increased power consumption.

BLOCK DIRECT SUNLIGHT AND PREVENT DRAFTS

• Blocking direct sunlight during cooling operation will reduce power consumption.

• Close the windows and doors during cooling opeation.

SET PROPER AIR FLOW DIRECTION TO OBTAIN THE BEST AIR CIRCULATION

KEEP FILTER CLEAN TO ENSURE THE MOST EFFICIENT OPERATION MAKE MOST OF THE TIMER OFF FUNCTION DISCONNECT THE POWER CORD WHEN THE UNIT IS NOT USED FOR AN

EXTENDED PERIOD OF TIME

• The indoor unit still consumes a small amount of power when it is not operating.

PART NAMES

1 Inlet (Air) 2 Open Panel 3 Air Filters 4 AUX. Button 5 RECEIVER Window 6 Power Supply Cord 7 Indicator Panel 8 Vertical Adjustment Louvres 9 Horizontal Adjustment Louvres 0 Outlet (Air) q Remote Control

w AUTO FAN SPEED Lamp

(green

)

e FAN SPEED Lamp (green

)

r PLASMACLUSTER Lamp

(blue,green)

t TIMER Lamp (orange

)

y OPERATION Lamp (red

)

OUTDOOR UNIT

NOTE: Actual units might vary slightly from those shown above.

INDOOR UNIT

u Inlet(Air) i Refrigerant Tube and

Interconnecting Cord

o Drainage Hose p Outlet(Air)

E-4

w e r t y

REMOTE CONTROL

1 TRANSMITTER

2 DISPLAY (Liquid Crystal Display)

3 ON/OFF Button

4 THERMO. (Thermostat) Button

5 DISPLAY Button

6 MODE Button

7 TIMER ON Button (for setting the timer)

8 ONE-HOUR OFF TIMER Button

9 TIMER OFF Button (for setting the timer)

0 FAN Button

q TIMER CANCEL Button

w SWING Button

e PLASMACLUSTER Button

E-5

r MODE SYMBOLS

: AUTO : COOL : DRY : FAN ONLY

t FAN SPEED SYMBOLS

: AUTO : Manual setting

y PLASMACLUSTER SYMBOL u TEMPERATURE AND TIMER COUNT DOWN

INDICATOR

i TRANSMITTING SYMBOL o TIMER ON/TIMER OFF INDICATOR

Indicates when timer on or timer off is set.

L.C.D. REMOTE CONTROL DISPLAY

5 6 7 8

9 0

q w e

y u i

MODE

DISPLAY MODE

FAN1h

SWING

CANCEL

TEMP.

FAN TIMER
