Sharp 902 User Manual

Introduction

Congratulations on your new 3G/UMTS 902SH phone.

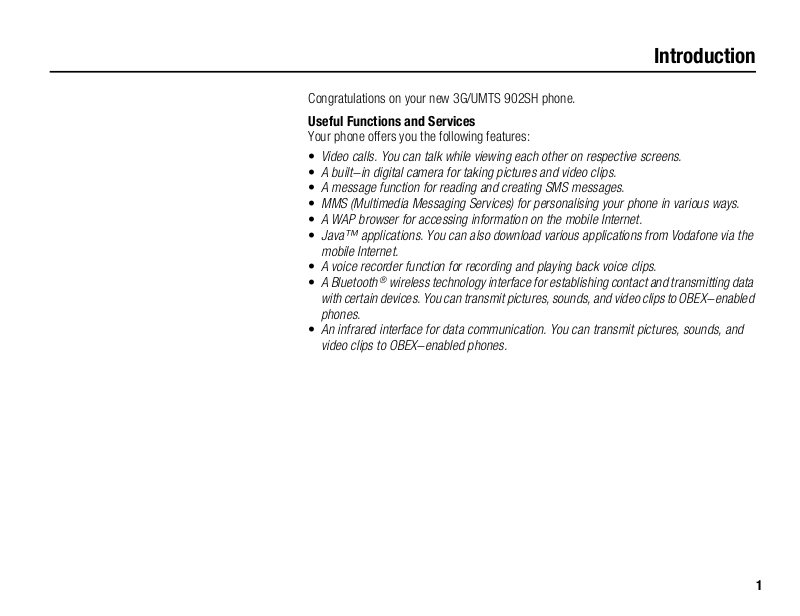

Useful Functions and Services

Your phone offers you the following features:

• Video calls. You can talk while viewing each other on respective screens.

• A built-in digital camera for taking pictures and video clips.

• A message function for reading and creating SMS messages.

• MMS (Multimedia Messaging Services) for personalising your phone in various ways.

• A WAP browser for accessing information on the mobile Internet.

• Java™ applications. You can also download various applications from Vodafone via the

mobile Internet.

• A voice recorder function for recording and playing back voice clips.

• A Bluetooth

with certain d evices. You can transmit p ictures, sounds, and video clips to OBEX-enabled phones.

• An infrared interface for data communication. You can transmit pictures, sounds, and

video clips to OBEX-enabled phones.

wireless technology interface for establishing contact and transmitting data

Introduction

• A schedule alarm for creating and sending schedule entries with alarm settings.

• Video output. You can connect your phone to other devices, such as TVs or videos set to

output, and display Java™ data, images, or video clips.

• Barcode scanner. With the built-in digital camera, you can read texts and barcodes, and

create QR codes.

• Playback of the downloaded sound and video clip files.

• SD memory card slot that expands connectivity with a PC using the memory card.

Introduction

About This User Guide

This user guide is carefully designed to help you learn about your phone’s features and operations quickly and effectively.

NOTICE

• We strongly recommend that you keep separate permanent written records of all

important data. Data may be lost or altered in virtually any electronic memory product under certain circumstances. Therefore, we assume no responsibility for data lost or otherwise rendered unusable, whether as a result of improper use, repairs, defects, battery replacement, use after the specified battery life has expired or any other cause.

• We assume no responsibility, directly or indirectly, for financial losses or claims from third

parties resulting from the use of this product and any of its functions, such as stolen credit card numbers, the loss or alteration of stored data, etc.

• All company and/or product names are trademarks and/or registered trademarks of their

respective holders.

• Screen layout may differ from that illustrated in this user guide.

The information described in this user guide is subject to change without notice.

• All the functions described in this user guide may not be supported by all networks.

• We assume no responsibility for downloaded contents, information, etc. from the

network.

• Occasionally, a few black or bright pixels may appear on the screen. Please note that this

will not have any impact on any of the features or on performance.

Introduction

According to copyright laws, the reproduction, alteration and use of material which is protected by copyright (music, pictures, etc.) is only permitted for personal or private use. If the user is not in possession of more extensive copyright or has not received the explicit permission from the copyright owner to reproduce, alter or use a copy which has been made or modified in this way, this is considered to be a violation of the copyright laws and gives the copyright owner the right to claim for damages. For this reason, avoid the illegal use of material which is protected by copyright.

Windows is a registered trademark of Microsoft Corporation in the United States and/or other countries.

Powered by JBlend™ Copyright 1997-2004 Aplix Corporation. All rights reserved. JBlend and all JBlend-based trademarks and logos are trademarks or registered trademarks of Aplix Corporation in Japan and other countries.

Licensed by Inter Digital Technology Corporation under one or more of the following United States Patents and/or their domestic or foreign counterparts and other patents pending, including U.S. Patents: 4,675,863: 4,779,262: 4,785,450: 4,811,420: 5,228,056: 5,420,896: 5,799,010: 5,166,951: 5,179,571 & 5,345,467

/Micro3D Edition™

is a registered trademark of HI Corporation

T9 Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928, and 6,011,554; Australian Pat. No. 727539; Canadian Pat. No. 1,331,057; United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No. HK0940329; Republic of Singapore Pat. No. 51383; Euro. Pat. No. 0 842 463 (96927260.8) DE/DK, FI, FR, IT, NL,PT.ES,SE,GB; Republic of Korea Pat. Nos. KR201211B1 and KR226206B1; and additional patents are pending worldwide.

SD logo is a trademark.

Bluetooth is a trademark of the Bluetooth SIG, Inc.

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sharp is under license. Other trademarks and trade names are those of their respective owners.

Contains Macromedia Copyright © 1995-2004 Macromedia, Inc. All rights reserved. Macromedia, Flash, Macromedia Flash, and Macromedia Flash Lite are trademarks or registered trademarks of Macromedia, Inc. in the United States and other countries.

Flash™ technology by Macromedia, Inc.

Introduction

Licensed by QUALCOMM Incorporated under one or more of the following United States Patents and/or their counterparts in other nations ; 4,901,307 5,490,165 5,056,109 5,504,773 5,101,501 5,506,865 5,109,390 5,511,073 5,228,054 5,535,239 5,267,261 5,544,196 5,267,262 5,568,483 5,337,338 5,600,754 5,414,796 5,657,420 5,416,797 5,659,569 5,710,784 5,778,338

CP8 PATENT

Introduction

This product is licensed under the MPEG-4 Visual Patent Portfolio License for the personal and non-commercial use of a consumer to (i) encode video in compliance with the MPEG-4 Video Standard (“MPEG-4 Video”) and/or (ii) decode MPEG-4 Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a licensed video provider. No license is granted or implied for any other use. Additional information may be obtained from MPEG LA. See http://www.mpegla.com.

This product is licensed under the MPEG-4 Systems Patent Portfolio License for encoding in compliance with the MPEG-4 Systems Standard, except that an additional license and payment of royalties are necessary for encoding in connection with (i) data stored or replicated in physical media which is paid for on a title by title basis and/or (ii) data which is paid for on a title by title basis and is transmitted to an end user for permanent storage and/or use. Such additional license may be obtained from MPEG LA, LLC. See http://www.mpegla.com for additional details.
