SHARP 8M-B120C Quick Start Guide

SHARP CORPORATION

LCD MONITOR MONITEUR LCD MONITOR LCD

Setup Guide Guide d’installation

Guía de conguración

ENGLISH

8M-B120C

FRANÇAISESPAÑOL

Printed in China Imprimé en Chine Impreso en China

(1)

IMPORTANT:

To aid reporting in case of loss or theft, please record the product’s model and serial numbers in the space provided. The numbers are located in the rear of the product.

Supplier’s Declaration of Conformity

SHARP LCD MONITOR, 8M-B120C

Model No.:

Serial No.:

U.S.A. ONLY

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Responsible Party:

SHARP ELECTRONICS CORPORATION 100 Paragon Drive, Montvale, NJ 07645 TEL: 1-800-BE-SHARP www.sharpusa.com

U.S.A. ONLY

ENGLISHDEUTSCH ESPAÑOLITALIANO FRANÇAISРУССКИЙPOLSKI

IMPORTANT INFORMATION

WARNING:

FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

U.S.A. ONLY

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

To maintain compliance with EMC regulations, use shielded cables to connect to the following terminals: HDMI input terminal and analog RGB terminal.

The lightning ﬂash with arrowhead symbol, within a triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufﬁcient magnitude to constitute a risk of electric shock to persons.

The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

EN 1

DEAR SHARP CUSTOMER SAFETY PRECAUTIONS

Thank you for your purchase of a SHARP LCD product. To ensure safety and many years of trouble-free operation of your product, please read the Safety Precautions carefully before using this product.

SAFETY PRECAUTIONS

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or ﬁre. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your LCD product, please read the following precautions carefully before using the product.

1. Read instructions — All operating instructions must be read and understood before the product is operated.

2. Keep this manual in a safe place — These safety and operating instructions must be kept in a safe place for future reference.

3. Observe warnings — All warnings on the product and in the instructions must be observed closely.

4. Follow instructions — All operating instructions must be followed.

5. Cleaning — Unplug the power cord from the AC outlet before cleaning the product. Use a dry cloth to clean the product. Do not use liquid cleaners or aerosol cleaners. Do not use dirty cloths. Doing so may damage the product.

6. Attachments — Do not use attachments not recommended by the manufacturer. Use of inadequate attachments can result in accidents.

7. Water and moisture — Do not use the product near water. Do not install the product in a place where water may splash onto it. Be careful of equipment which drains water such as an air-conditioner.

8. Ventilation — The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufﬁcient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a sofa, rug or other similar surface, since they can block ventilation openings. Do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer’s instructions are followed.

9. Power cord protection — The power cords must be routed properly to prevent people from stepping on them or objects from resting on them.

10. The LCD panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the LCD panel breaks.

11. Overloading — Do not overload AC outlets or extension cords. Overloading can cause ﬁre or electric shock.

12. Entering of objects and liquids — Never insert an object into the product through vents or openings. High voltage ﬂows in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do not spill water or liquid on the product.

13. Servicing — Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous conditions. Request a qualiﬁed service person to perform servicing.

14. Repair — If any of the following conditions occurs, unplug the power cord from the AC outlet, and request a qualiﬁed service person to perform repairs. a. When the power cord or plug is damaged. b. When a liquid was spilled on the product or when objects have fallen into the product. c. When the product has been exposed to rain or water. d. When the product does not operate properly as described in the operating instructions.

Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualiﬁed technician.

e. When the product has been dropped or damaged.

f. When the product displays an abnormal condition. Any noticeable abnormality in the product indicates

that the product needs servicing.

15. Replacement parts — In case the product needs replacement parts, make sure that the service person uses replacement parts speciﬁed by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in ﬁre, electric shock and/or other danger.

16. Safety checks — Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition.

17. Wall mounting — When mounting the product on a wall, be sure to install the product according to the method recommended by the manufacturer.

18. Heat sources — Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating products (including ampliﬁers).

19. Batteries — Incorrect use of batteries may cause the batteries to burst or ignite. A leaky battery may corrode the equipment, dirty your hands or spoil your clothing. In order to avoid these problems, make sure to observe the precautions below:

•Use the speciﬁed batteries only.

•Install the batteries with due attention to the plus (+) and minus (-) sides of the batteries according to the

instructions in the compartment.

•Do not mix old and new batteries.

•Do not mix batteries of different types. Voltage speciﬁcations of batteries of the same shape may vary.

•Replace an exhausted battery with a new one promptly.

•If you will not use the remote control for a long time, remove the batteries.

•If leaked battery ﬂuid gets on your skin or clothing, rinse immediately and thoroughly. If it gets into your

eye, bathe your eye well rather than rubbing and seek medical treatment immediately. Leaked battery ﬂuid that gets into your eye or your clothing may cause a skin irritation or damage your eye.

20. Usage of the Monitor must not be accompanied by fatal risks or dangers that, could lead directly to death, personal injury, severe physical damage or other loss, including nuclear reaction control in nuclear facility, medical life support system, and missile launch control in a weapon system.

21. Do not stay in contact with the parts of the product that become hot for long periods of time. Doing so may result in low-temperature burns.

22. Do not modify this product.

23. Do not place vases or any other water-ﬁlled containers on this product.

WARNING:

To prevent the spread of ﬁre, keep candles or other open ﬂames away from this product at all times.

WARNING:

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. An apparatus with CLASS I construction shall be connected to a MAIN socket outlet with a protective earthing connection.

Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

EN 2

ENGLISHDEUTSCH ESPAÑOLITALIANO FRANÇAISРУССКИЙPOLSKI

TIPS AND SAFETY INSTRUCTIONSWARNING

STABILITY HAZARD

If a Monitor is not positioned in a sufﬁciently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using ﬁxing devices like wall mount brackets recommended by the manufacturer.

• Only using furniture that can safely support the Monitor.

• Ensuring the Monitor is not overhanging the edge of the supporting furniture.

• Not placing the Monitor on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the Monitor to a suitable support.

• Not standing the Monitor on cloth or other materials placed between the Monitor and supporting furniture.

• Educating children about the dangers of climbing on furniture to reach the Monitor or its controls.

• This equipment is not suitable for use in locations where children are likely to be present unsupervised.

Especially for child safety

– Don’t allow children to climb on or play with the Monitor. – Don’t place the Monitor on furniture that can easily be used as steps, such as a chest of drawers. – Remember that children can become excited while watching a program, especially on a “larger than

life” Monitor. Care should be taken to place or install the Monitor where it cannot be pushed, pulled over, or knocked down.

– Care should be taken to route all cords and cables connected to the Monitor so that they cannot be

pulled or grabbed by curious children.

TIPS AND SAFETY INSTRUCTIONS

– The TFT color LCD panel used in this Monitor is made with the application of high precision technology.

However, there may be minute points on the screen where pixels never light or are permanently lit. Also, if the screen is viewed from an acute angle there may be uneven colors or brightness. Please note that these

are not malfunctions but common phenomena of LCDs and will not affect the performance of the Monitor. – Do not display a still picture for a long period, as this could cause a residual image. – Never rub or tap the Monitor with hard objects. – Please understand that SHARP CORPORATION bears no responsibility for errors made during use by

the customer or a third party, nor for any other malfunctions or damage to this product arising during use,

except where indemnity liability is recognized under law. – This Monitor and its accessories may be upgraded without advance notice. – Do not use the Monitor where there is a lot of dust, where humidity is high, or where the Monitor may come

into contact with oil or steam. Do not use in an environment where there are corrosive gases (sulfur dioxide,

hydrogen sulﬁde, nitrogen dioxide, chlorine, ammonia, ozone, etc.). As this could lead to ﬁre. – Ensure that the Monitor does not come into contact with water or other ﬂuids. Ensure that no objects such

as paper clips or pins enter the Monitor as this could lead to ﬁre or electric shock. – Do not place the Monitor on top of unstable objects or in unsafe places. Do not allow the Monitor to receive

strong shocks or to strongly vibrate. Causing the Monitor to fall or topple over may damage it. – Do not use the Monitor near heating equipment or in places where there is likelihood of high temperature, as

this may lead to generation of excessive heat and outbreak of ﬁre. – Do not use the Monitor in places where it may be exposed to direct sunlight. – Please be sure to constantly remove dust and garbage that has attached to the ventilation opening. If dust

collects in the ventilation opening or the inside of the Monitor, it may lead to excessive heat, outbreak of ﬁre,

or malfunction.

Please request a cleaning of the inside of the Monitor from an authorized SHARP servicing dealer or service

center. – Continuous operating time and warranty. This product is designed for a maximum daily use of 16 hours.

Continual use in excess of 16 hours per day is not covered by the warranty. – The AC outlet shall be installed near the equipment and shall be easily accessible.

The Power Cord

– Use only the power cord supplied with the Monitor. – Do not damage the power cord nor place heavy objects on it, stretch it or over bend it. Also, do not add

extension cords. Damage to the cord may result in ﬁre or electric shock.

– Do not use the power cord with a power tap.

Adding an extension cord may lead to ﬁre as a result of overheating. – Do not remove or insert the power plug with wet hands. Doing so could result in electric shock. – Unplug the power cord if it is not used for a long time. – Do not attempt to repair the power cord if it is broken or malfunctioning. Refer the servicing to the service

representative.

LED Backlight

• The LED backlight in this product has a limited lifetime. * If the screen gets dark or does not turn on, it may be necessary to replace the LED backlight. * This LED backlight is exclusive to this product and must be replaced by an authorized SHARP servicing

dealer or service center. Please contact an authorized SHARP servicing dealer or service center for assistance.

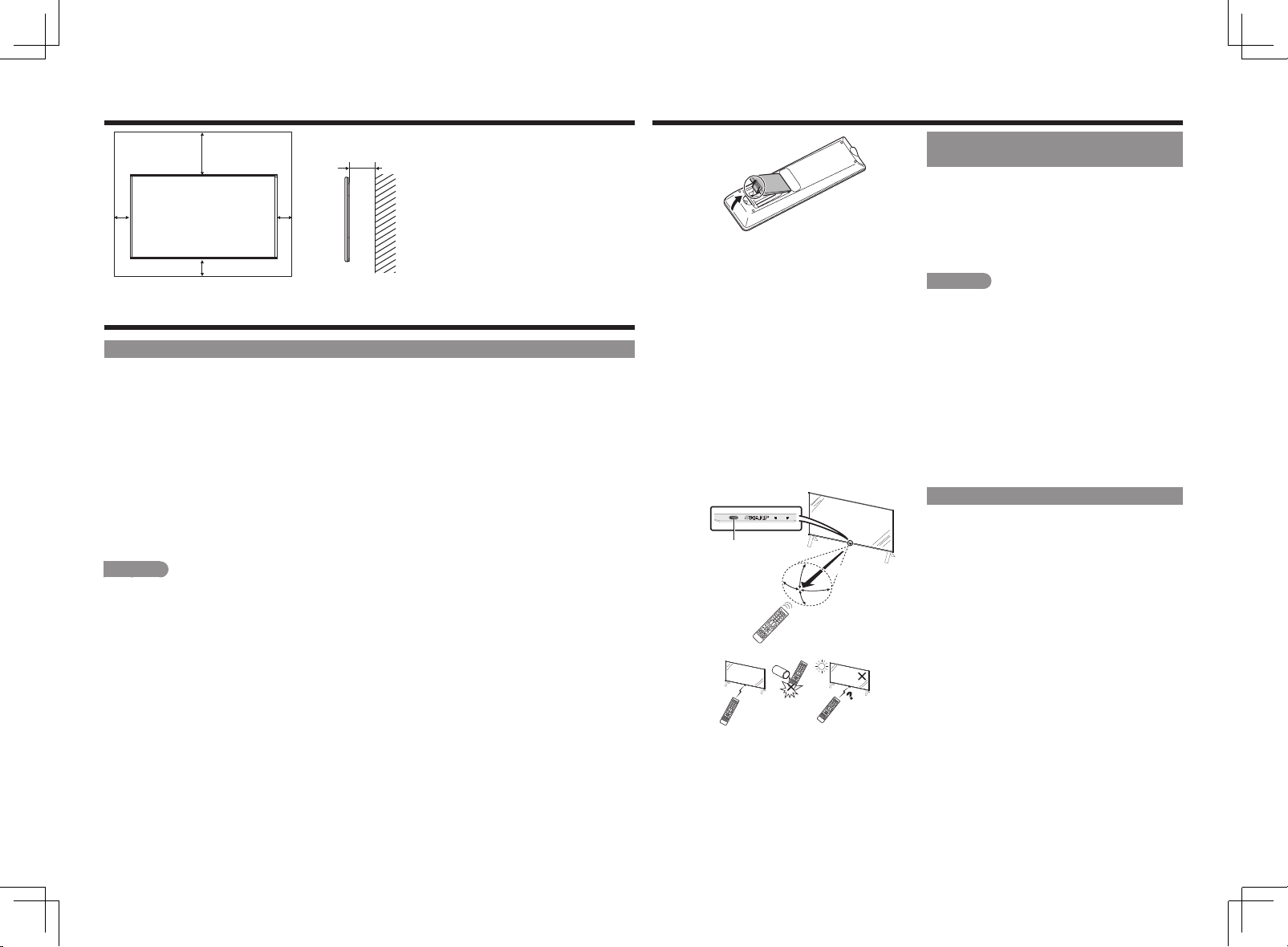

MOUNTING PRECAUTIONS

• This product is for use indoors.

• Since the Monitor is heavy, consult your dealer before installing, removing or moving the Monitor.

• Mounting the Monitor on the wall requires special expertise and the work must be performed by an authorized SHARP dealer. You should never attempt to perform any of this work yourself. Our company will bear no responsibility for accidents or injuries caused by improper mounting or mishandling.

• Use the Monitor with the surface perpendicular to a level surface.

• This Monitor should be used at an ambient temperature between 32°F (0°C) and 104°F (40°C). Provide enough space around the Monitor to prevent heat from accumulating inside.

• If it is difﬁcult to provide sufﬁcient space for any reason such as the installation of the Monitor inside a housing, or if the ambient temperature may be outside of the range of 32°F (0°C) to 104°F (40°C), install a fan or take other measures to keep the ambient temperature within the required range.

• Temperature condition may change when using the Monitor together with the optional equipments recommended by SHARP. In such cases, please check the temperature condition speciﬁed by the optional equipments.

• Do not block any ventilation openings. If the temperature inside the Monitor rises, this could lead to a malfunction.

• Do not place the Monitor on a device which generates heat.

Unit: inch [mm]

5-5/16 [135]

EN 3

[50]

7-7/8 [200]

2 [50]

[50]

Accessories

Preparation and How to Use Remote Control Unit

Supplied Accessories

Make sure the following accessories are provided with the product.

• Remote control unit (x 1)

• Remote control unit battery (x 2)

• AC cord for 200-240 V (x 1)

• AC cord for 100-120 V (x 1)

• AV terminal conversion cable (x 1)

• Cable clamp (x 5)

• Setup Guide (this document) (x 1)

• Stand (x 1 set)*

• Wall mounting bracket (x 1 set)*

• Eyebolt cover (x 2)*

• Eyebolt cover attachment screw (x 2)*

* Consult your dealer for installation of the stand or wall

mounting bracket.

* For environmental protection!

Do not dispose of batteries in household waste. Follow the disposal instructions for your area.

NOTE

• The supplied AC cord is dedicated for this product. Do not use it for other equipment.

Remote control light

receiving section

Inserting Batteries into the Remote Control Unit

Place your ﬁnger on the part marked with the s,

and then pull the cover off. See the instructions in the compartment and put

in the batteries (R03 or LR03 (“AAA” size) x 2) with

(+)

their plus

Close the cover.

NOTE

• Do not apply impact on the remote control unit. Avoid water and do not place the product in areas with high humidity.

• If the remote control unit occasionally does not respond, the batteries may be running out. Replace them ahead of time. The supplied batteries may run out in a short period of time depending on the storage condition.

• Use manganese or alkaline batteries only.

• Check the cell batteries of the remote control unit once in six month for abnormality such as leakage and distortion. The remote control may not function properly after a leakage occurs.

and minus

(-)

sides oriented correctly.

Range of Remote Control Operation

• Check the range and distance of both the remote control unit and the Monitor, and press one button on

30°

17´ (5 m)

30°

18°

the remote control unit at a time.

CAUTION

Do not place objects in the area under the Monitor. Obstacles may interrupt the receiver of the remote control and may result in misoperation.

EN 4

ENGLISHDEUTSCH ESPAÑOLITALIANO FRANÇAISРУССКИЙPOLSKI

Connecting an 8K Video Device/Quad-screen display (4K or less)

• To connect the product to an 8K output (with 7680 x 4320 resolution) compatible device, use four Premium HDMI Cables.

• Connect the devices properly so that the output signal from the device can be displayed at the appropriate position. The display positions for the HDMI input terminals are shown on the below. (default)

• Multi-screen display by using 8K signal is not supported.

• In MODE2, 8K display is possible whenever any input signal to INPUT 7 (A to D) is synchronized.

• By factory default, the Monitor uses the audio to INPUT7-A.

• To change the setting, after switching to INPUT7, go to the Setup menu, select Setup > setting > INPUT7 audio setting, and then select a terminal to input audio.

• Also refer to the operating instructions of the device to be connected.

• Commercially available Premium HDMI Cables are necessary.

Mode1 (4K x1)

Mode2 (8K)

(Option) > Terminal

INPUT7-A INPUT7-B

INPUT7-A/B/C/D

INPUT7-C INPUT7-D

Mode3 (4K x4) Mode4 (4K x4)

INPUT7-A INPUT7-B

INPUT7-A

INPUT7-B

INPUT7-C

INPUT7-C INPUT7-D

INPUT7-D

Rear side of Monitor

INPUT7

To reduce loads on the terminals and prevent breakage, thread the HDMI cables through the cable clamps to secure.

8K output compatible device*

Premium HDMI cable

(Commercial Item)

* In Mode2.

In Mode1/3/4, connect to each device.

EN 5

Connecting an 8K Video Device/Quad-screen display (4K or less) (Continue)

Connecting with Another Device

Supported format in Mode2

• 7680 x 4320 (24Hz, 25Hz, 30Hz, 50Hz, 60Hz)

How to switch

• Press INPUT on the remote control unit. While the menu for input switching is displayed, use p/q to select “INPUT7” and press ENTER.

Indication when 8K video input is used

• When 8K signal synchronized with INPUT7 (A to D) is input, “4320p” is indicated as the video information.

NOTE

• If a signal that is not supported by this Monitor is input, “Out of range” is indicated. If this is the case, refer to the operating instructions of your PC or other devices to set an input signal supported by the Monitor.

• If the input signals are not synchronized, video images are not displayed properly.

Supported audio signal

• Type: Linear PCM

• Sampling frequency: 48kHz/44.1kHz/32kHz

How to change the mode

• Each time you press PIP/PbyP, the Mode changes in the following order.

Mode1 " Mode2 " Mode3 " Mode4 " Mode1...

How to change the display in Mode1

• Press the button for the input you want to display.

INPUT7-A:F1, INPUT7-B:F2, INPUT7-C:F3, INPUT7-D:F4

How to change the display position in Mode3/4

• In mode 3, press the button for the input you want to display at the top left. The display position of the selected screen and the upper left screen change.

• In mode 4, press the button for the input you want to display at the left side. The display position of the selected screen and the left side screen change.

INPUT7-A:F1, INPUT7-B:F2, INPUT7-C:F3, INPUT7-D:F4

• To return initial display position, press CLEAR.

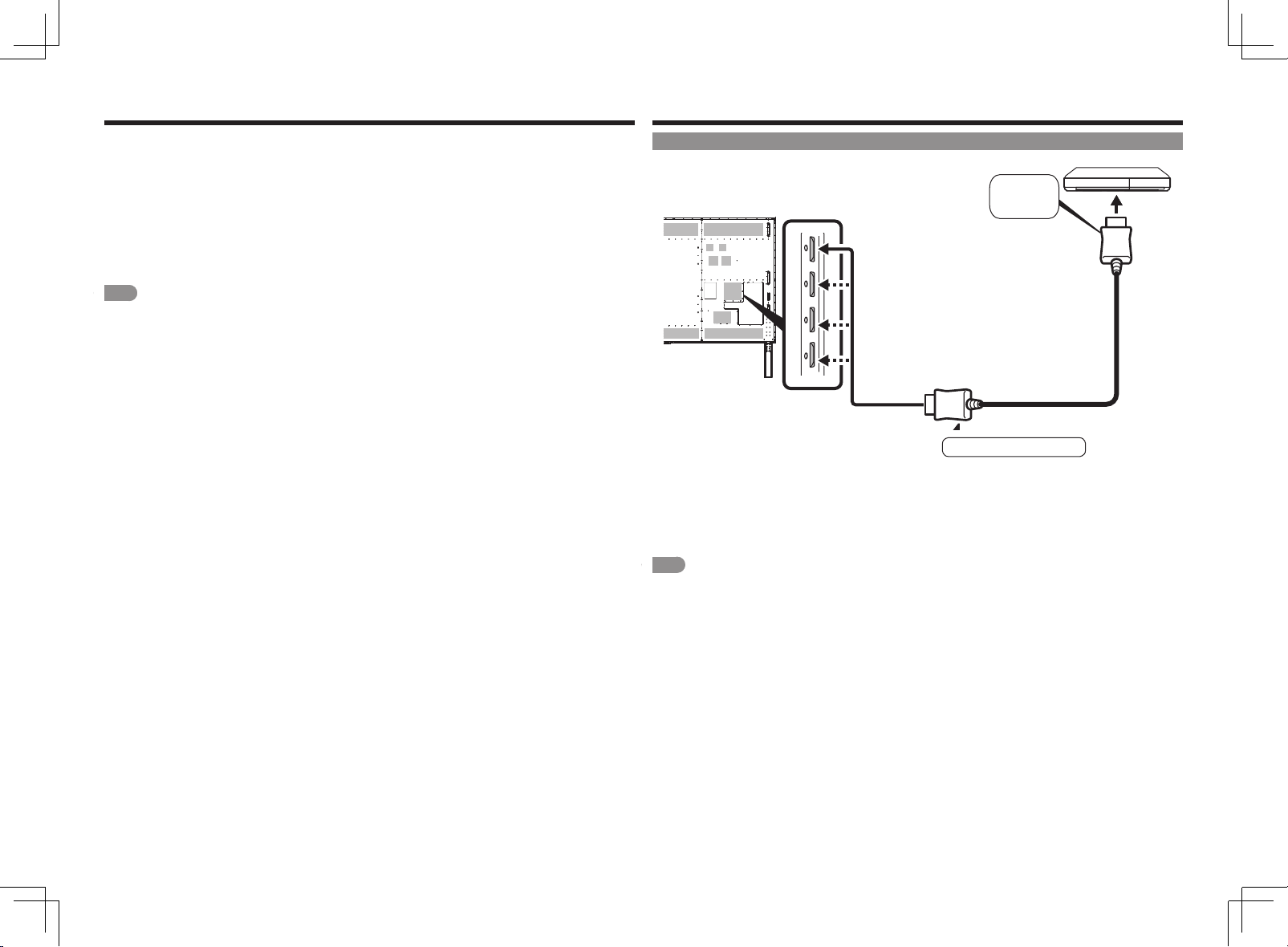

Connecting with an HDMI Cable

HDMI output terminal-equipped device

To HDMI

Rear side of Monitor

Input 1, input 2, input 3, input 4 terminals

Connected to an HDMI terminal

Be sure to use a commercially available certiﬁed HDMI cable (high-speed type) that meets the standards.

• Connect a 4K compatible device to input 1 of the Monitor. To view 4K 60p HDR/SDR video, connect with a Premium HDMI Cable. If a cable that does not meet the standards is used, image display, audio output, and HDMI CEC may not be performed properly or noises may occur in images.

NOTE

• See page EN 5 to connect to an 8K output compatible device.

output terminal

HDMI cable (commercial item)

EN 6

ENGLISHDEUTSCH ESPAÑOLITALIANO FRANÇAISРУССКИЙPOLSKI

Connecting AC Cord

Choosing a AC cord

This monitor is supplied with 2 AC cords for 200-240 V and 100-120 V.

CAUTION

• Use the appropriate AC cord for the power outlet.

NOTE

• If you are not sure of which type to use, contact your local service personnel.

• When using this monitor at 100-120 V, brightness will be decrease.

Connecting AC Cord

Do not turn on the power before completing connection.

IMPORTANT

• Connect the plug of the AC cord securely so that it is not dislocated.

• Do not disconnect the power plug or turn off the power supply suddenly while the product is in use. It may result in product damage.

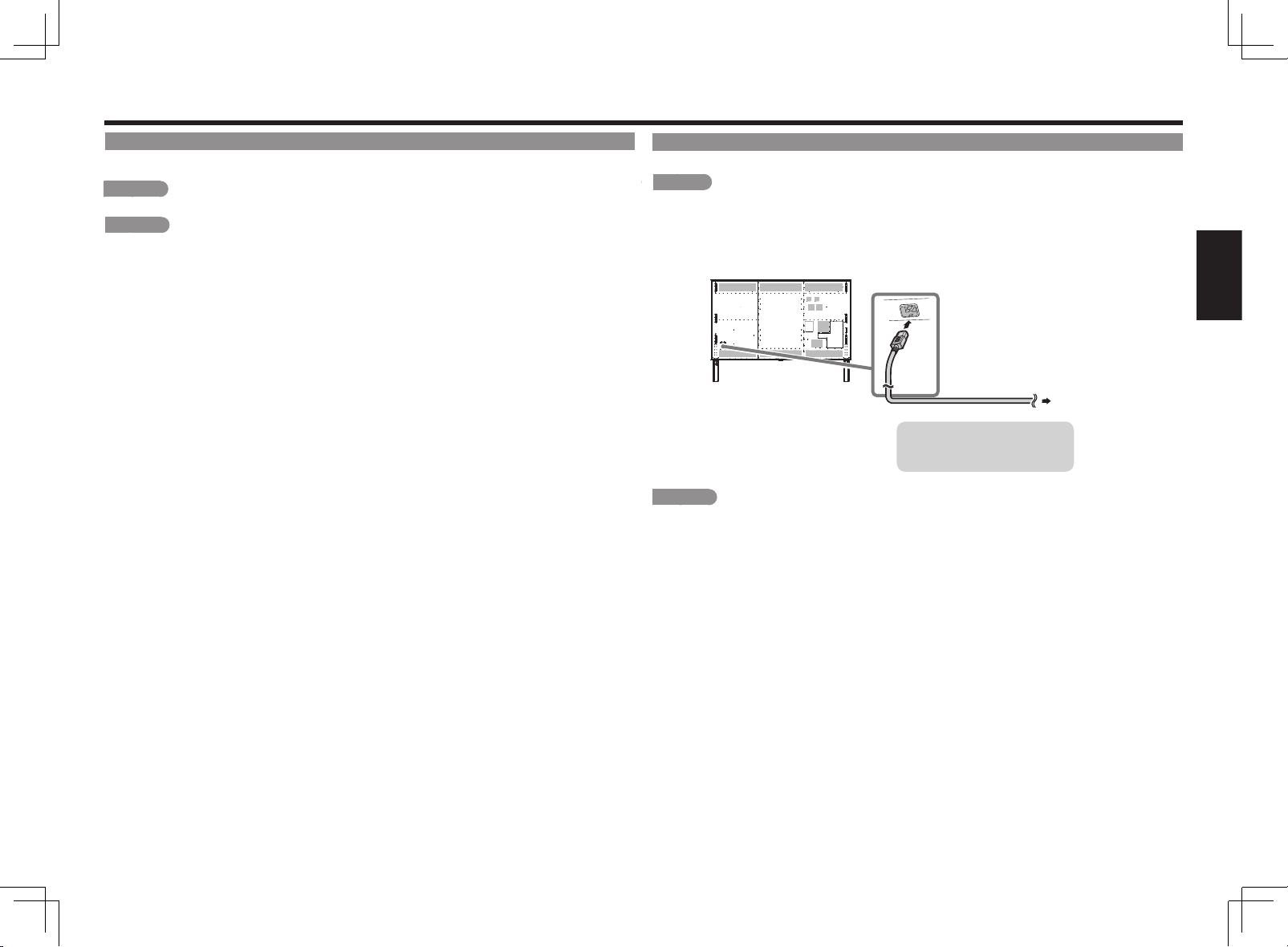

Connect the supplied AC cord to “AC IN” of the Monitor, and connect the plug into the power outlet.

Rear side of Monitor

NOTE

• Turning off the power of the Monitor may take a while. (This time is required for storing the Monitor’s internal information to the memory.)

• For a complete electrical disconnection, pull out the main plug.

Power consumption

• There is small power consumption while the AC cord is connected even after power has been turned off by the power button of the Monitor.

Power input terminal

• Place the Monitor in a location near a power outlet and make sure the power plug can be reached easily.

For power outlet

EN 7

Introduction

Viewing the Built-in Operation Manual

Initial Installation

Perform the following steps before you press POWER on the remote control unit.

Insert the batteries into the remote

control unit.

Plug in the AC cord to the AC outlet.

Easy Setup

When the monitor is turned on for the ﬁrst time after being shipped from the factory, the setting screen will be displayed. Conﬁgure the settings according to the screen.

You can display the built-in operation manual by selecting “Option” > “Option for view” > “Manual” from the menu screen.

EN 8

ENGLISHDEUTSCH ESPAÑOLITALIANO FRANÇAISРУССКИЙPOLSKI

Part Names

Parts of the Monitor

QFront

Remote control light receiving section => Page EN 4

• Point the remote control unit toward this part.

QMain body controls

Power button

MENU button

INPUT button

• On the Setup menu => “Enter” button

POWER lamp

• White: ON

• Off: Power OFF

QRear

Input8 (HDMI)

• 8K signal terminal

Headphone jack (φ3.5 stereo mini jack)

• Audio can be output from the speakers even when headphones are connected. (Refer to “Menu Operation” in the built-in Operation Manual.)

USB1 terminal

• Use this terminal to view photos, music, and video stored in USB memory.

USB2 terminal

Input 1 to 4 (HDMI) Analog audio output terminal

(φ3.5 stereo mini jack)

Input 7 A~D (HDMI x 4)

• 8K signal terminal

∧ forward/∨ backward buttons

• On the Setup menu => “Upward/Downward cursor” button

∧” button functions as “Upward cursor”, and

• “

∨” button functions as “Downward cursor”.

“

Volume (+/-) buttons

• On the Setup menu => “Right/Left cursor” button

• “+” button functions as “Right cursor”, and “-” button functions as “Left cursor”.

Input 6

Digital audio output terminal (optical)

Input 5

• AV INPUT

• AUDIO IN FOR INPUT1/INPUT6/INPUT7/INPUT8

LAN terminal (10BASE-T/100BASE-TX)

• Use this terminal for IP control, etc.

EN 9

Part Names

Troubleshooting

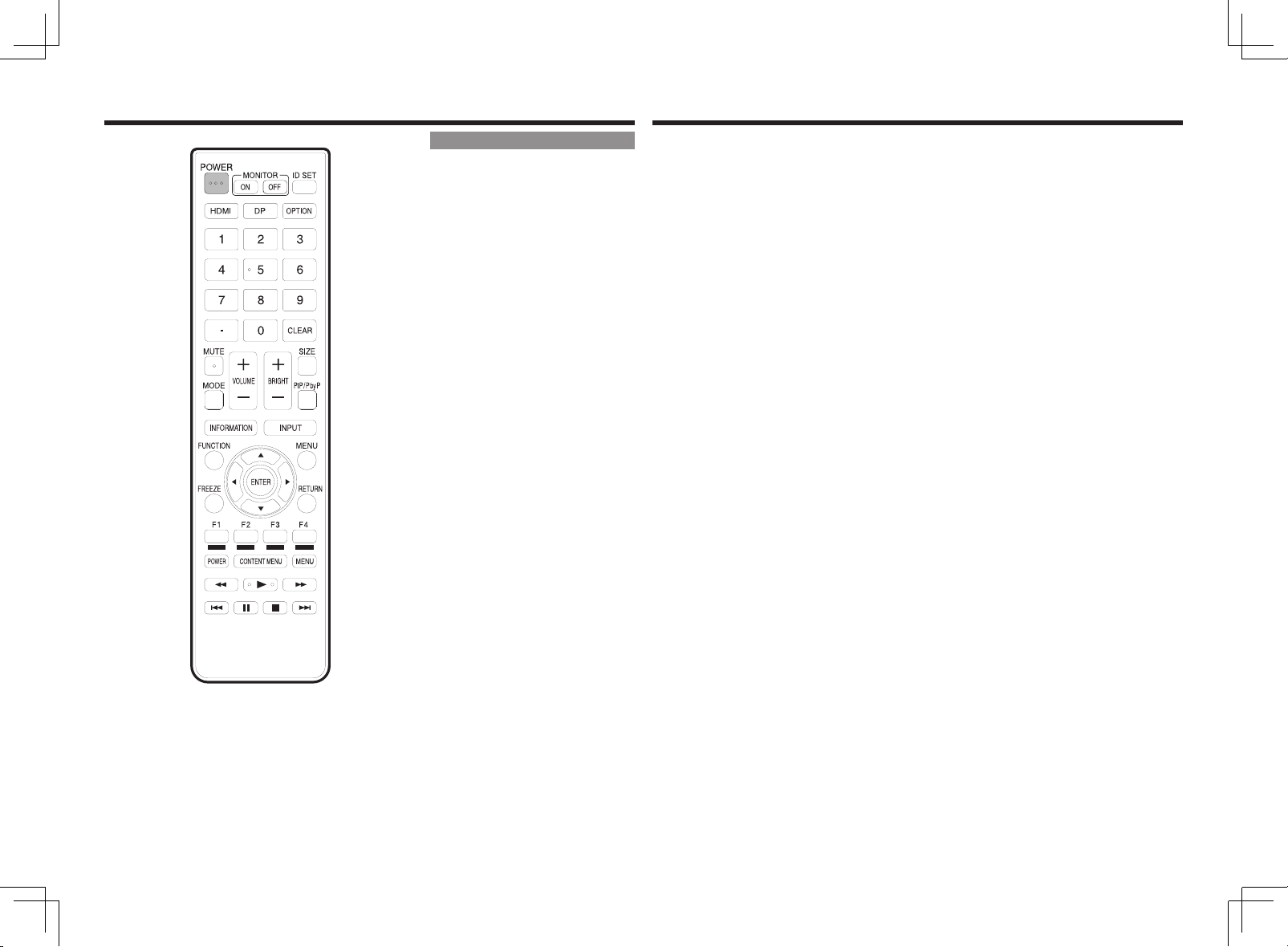

Remote Control Unit

1 Signal transmitter 2 Operation buttons

Check the following before requesting repairs.

Problem Possible Solution

• Power is not turned on. • Check if the AC cord is connected properly and plugged securely into the

• An indication Temperature or Temperature of Monitor blinks, and power is turned off automatically.

outlet.

• When the lamp is not lit, turn on the power using the power button on the main body.

• The temperature of the Monitor has risen. Get rid of the causes of the increased temperature (such as direct sunlight or hot air).

• Check if the Monitor is installed in a condition or location where the temperature rise occurs easily. Do not cover the ventilation opening on the back of the main body when installing.

• Frequently remove dust from internal equipment or ventilation opening if it can be removed from the outside. For removing dust inside the equipment, consult your dealer.

EN 10

+ 26 hidden pages
