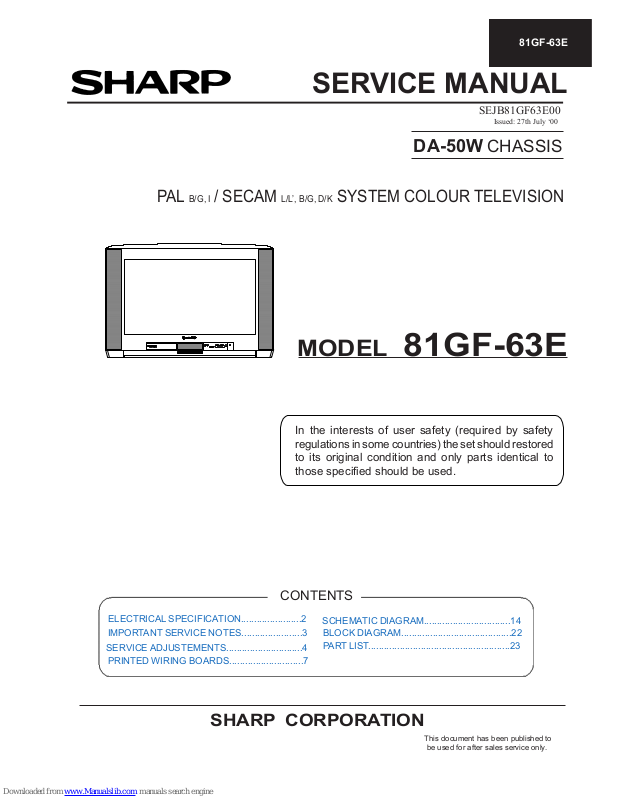

Page 1
1
81GF-63E
MODEL 81GF-63E
SHARP CORPORATION
CONTENTS
ELECTRICAL SPECIFICATION.......................2
IMPORTANT SERVICE NOTES.......................3
PRINTED WIRING BOARDS............................7

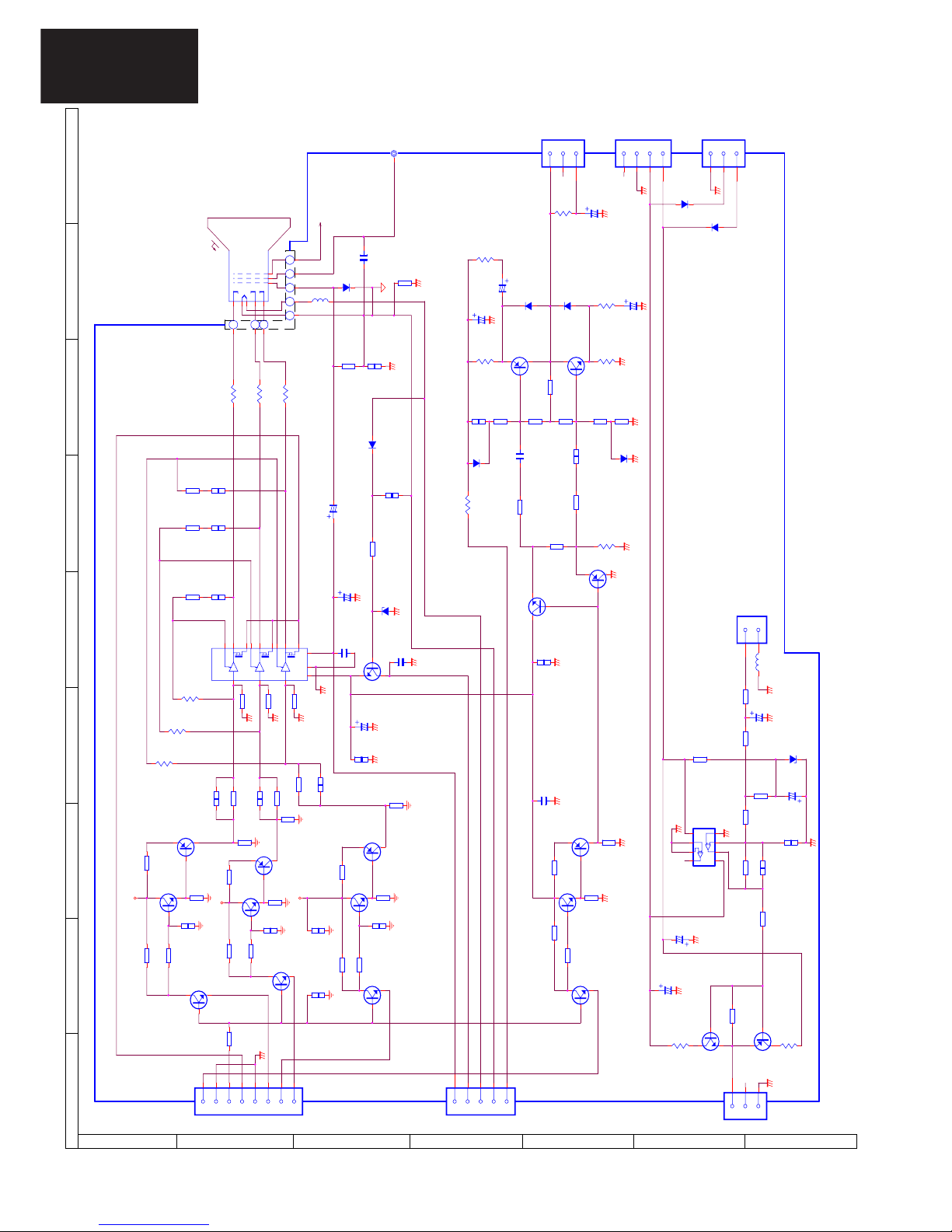

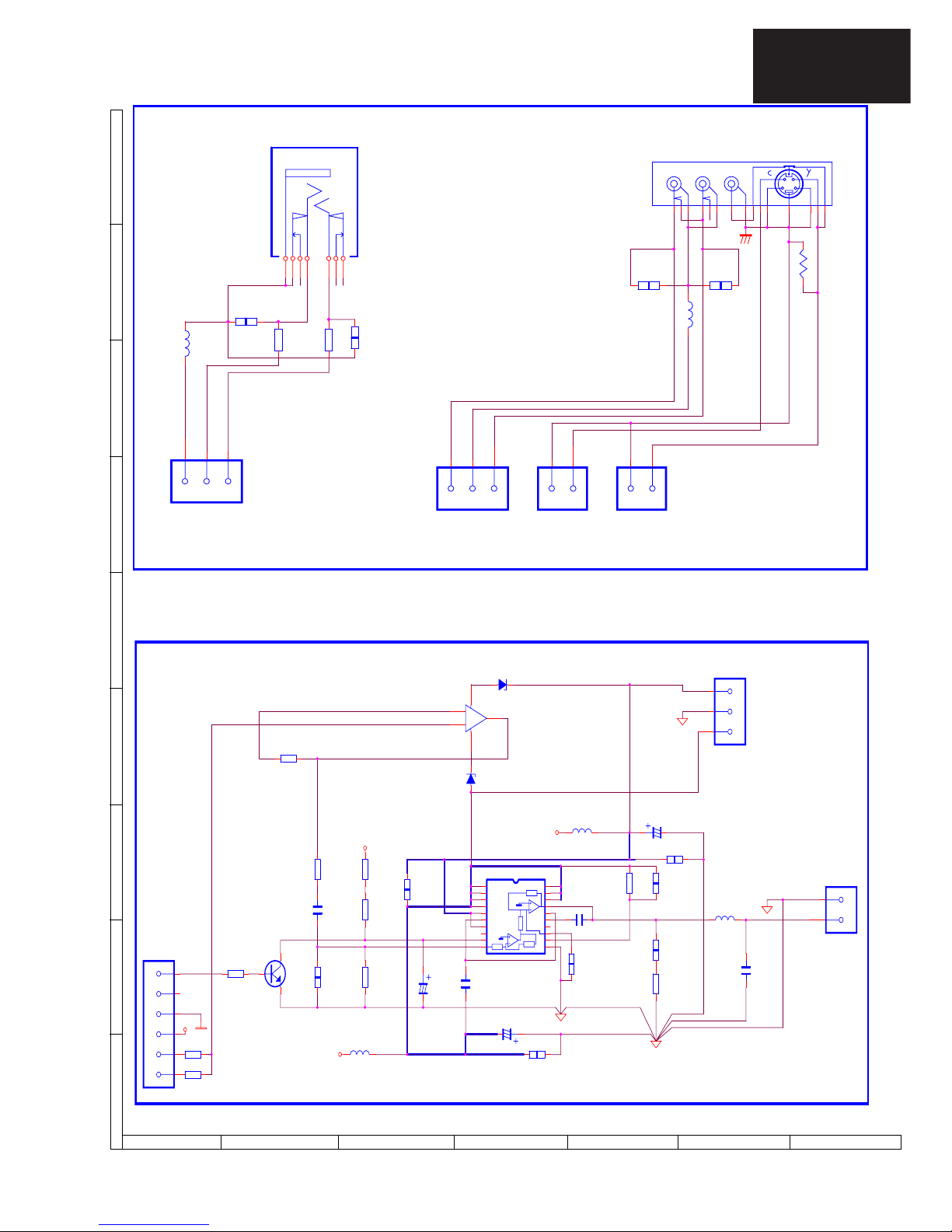

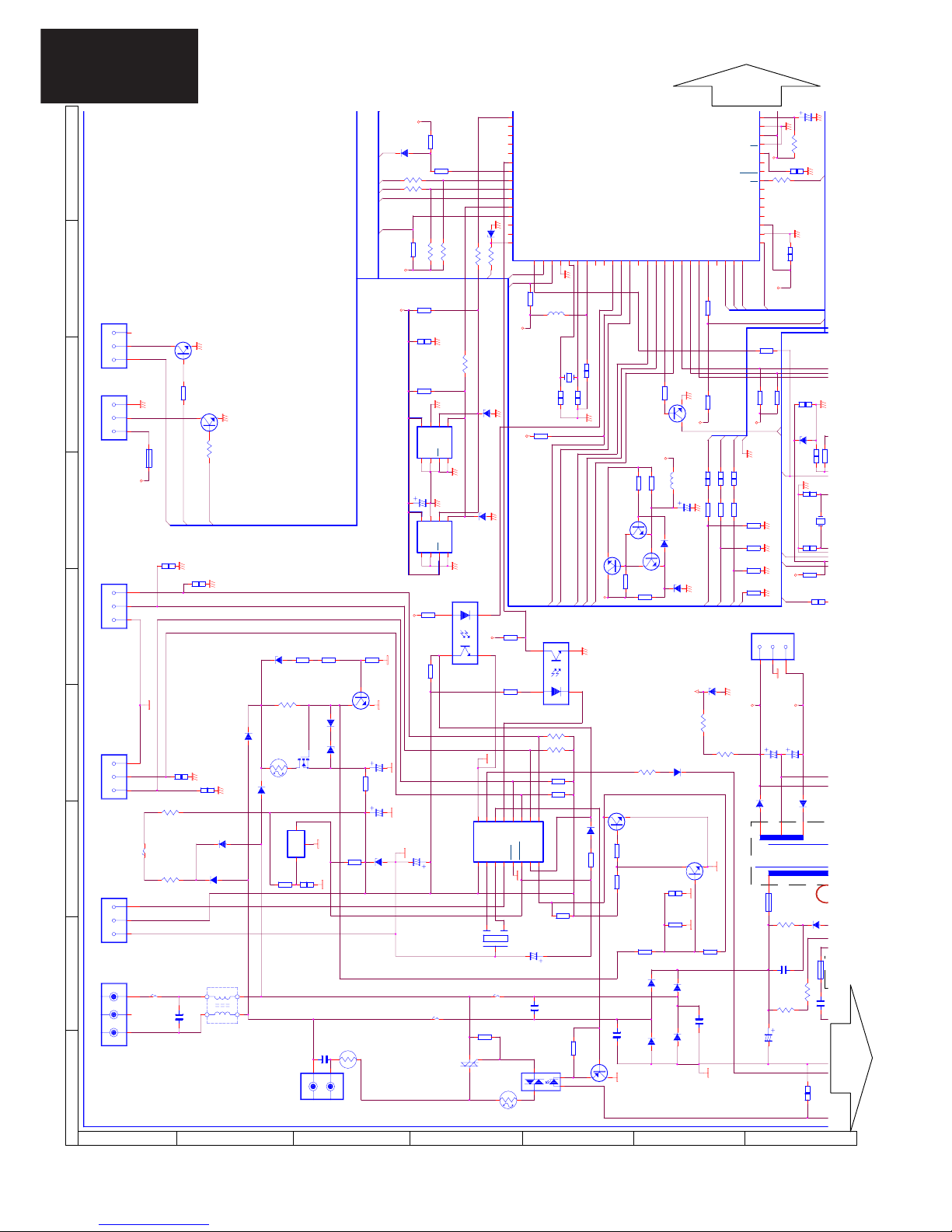

SCHEMATIC DIAGRAM.................................14
PART LIST......................................................23

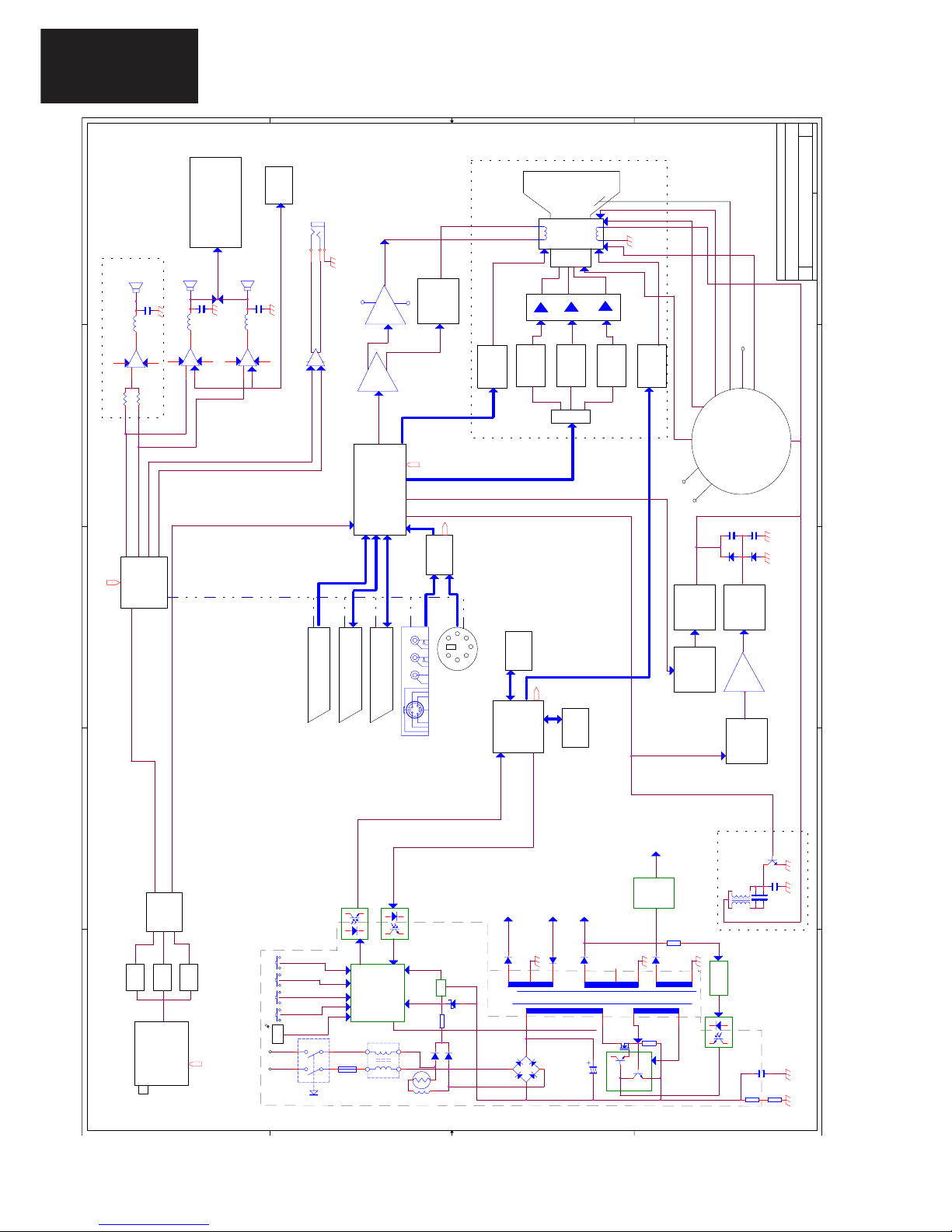

BLOCK DIAGRAM..........................................22
PAL B/G, I / SECAM L/L’, B/G, D/K SYSTEM COLOUR TELEVISION
SEJB81GF63E00
DA-50W CHASSIS
SERVICE MANUAL
In the interests of user safety (required by safety regulations in some countries) the set should restored to its original condition and only parts identical to those specified should be used.
Issued: 27th July ‘00
This document has been published to be used for after sales service only.
Page 2
2
81GF-63E
ELECTRICAL SPECIFICATIONS
•Power Input .......................220V-240 Volts AC 50Hz
•Power Consumption
•Audio Power Output Rating
Speakers
Left / Right.........................8
Ω 12W, 6 x 12cm
•Aerial Input Impedance
•Tuning Ranges..............45.75MHz thru 855.25 MHz
•Intermediate Frecuencies
•Adjacent Sound Carrier Trap
•Sound Carrier Trap
L’..........................................................33.9MHz
L, B/G, D/K, I.......................................38.9MHz
L’..........................................................40.4MHz
L, D/K...................................................32.4MHz
B/G.......................................................33.4MHz
VHF/UHF...........................75 ohm Unbalanced
CATV Special Channels
Normal Operating....................................92W
Stand-by Operating...................................1W
Internal Left Speaker.....................10W (MPO)
Internal Right Speaker..................10W (MPO)
Internal Centre Speaker...........10W (MPO)
Centre................................7
Ω 12W, 6 x 12cm
•White Level
Set brightness control to get total picture tube cathode current of 600 milliamperes under no signal condition. Maximum necessary correction of each picture tube cathode current to get 8550 degrees K+1MPCD screen temperature should not exceed 15% of its original value.
X=0.290 Y=0.300
WARNING
The chassis in this receiver is partially hot. Use an isolation transformer between the line cord plug and power receptable, when servicing this chassis. To prevent electric shock, do not remove cover. No user-serviceable parts inside. Refer servicing to qualified sercice personnel.
Convergence.........................Self Converging System
Focus....................................Bi-Potencial Electrostatic
Sweep Deflection...........................................Magnetic
L’..........................................................32.4MHz
L, D/K, B/G..........................................40.4MHz
•Adjacent Picture Carrier Trap
L’..........................................................41.9MHz
L, D/K, I................................................30.9MHz
B/G.......................................................31.9MHz
Specifictions are subject to change without prior notice.
I............................................................32.9MHz
I...........................................................40.9MHz
Page 3
3
81GF-63E
IMPORTANT SERVICE NOTES
SERVICING OF HIGH VOLTAGE SYSTEM AND PICTURE TUBE
Maintenance and repair of this receiver should be done by qualified service personnel only.
When servicing the high voltage system, remove static charge from it by connecting a 10K ohm resistor in series with an insulated wire (such as test probe) between picture tube ground tag and high voltage lead. (AC line cord should be disconnected from AC outlet).
1. Picture tube this receiver employs Integral Implosion protection.
2. Replace with tube of the same type number for continued safety.
3. Do not lift picture tube by the neck.
4. Handle the picture tube only when wearing shatterproof goggles and after discharging the high voltage completely.
X-RAY
This receiver is designed so that any X-Ray radiation is kept to an absolute minimum. Since certain malfunctions are servicing may produce potentially hazardous radiation with prolonged exposure at close range, the following precautions should be observed:
1. When repairing the circuit, be sure not to increase the high voltage to more than 33 KV, (at beam 1600µΑ) for the set.
2. To keep the set in a normal operation, be sure to make it function on 32KV
±1KV (at beam 1600µΑ)
in the case of the set. The set has been factory - adjusted to the above mentioned high voltage. If there is a possibility that high voltage fluctuates as a result of the repairs, never forget to check for such high voltage after the work.
3. Do not substitute a picture tube with unauthorized types and/or brands which may cause excess X-Ray radiation.
BEFORE RETURNING THE RECEIVER
In addition to the checks necessary as a result of a repair having been carried out, the following additional safety checks should also be made before returning the units to the user.
1. Inspect all lead dress to make certain that leads are not pinched or that hardware is not logged between the chassis and other metal parts in the receiver.
2. Inspect all protective devices such as non-metallic control knobs, insulating fish papers, cabinet backs, adjustment and compartment covers or shields, insolation resistor-capacity networks, mechanical insulators etc.
Page 4
4
81GF-63E

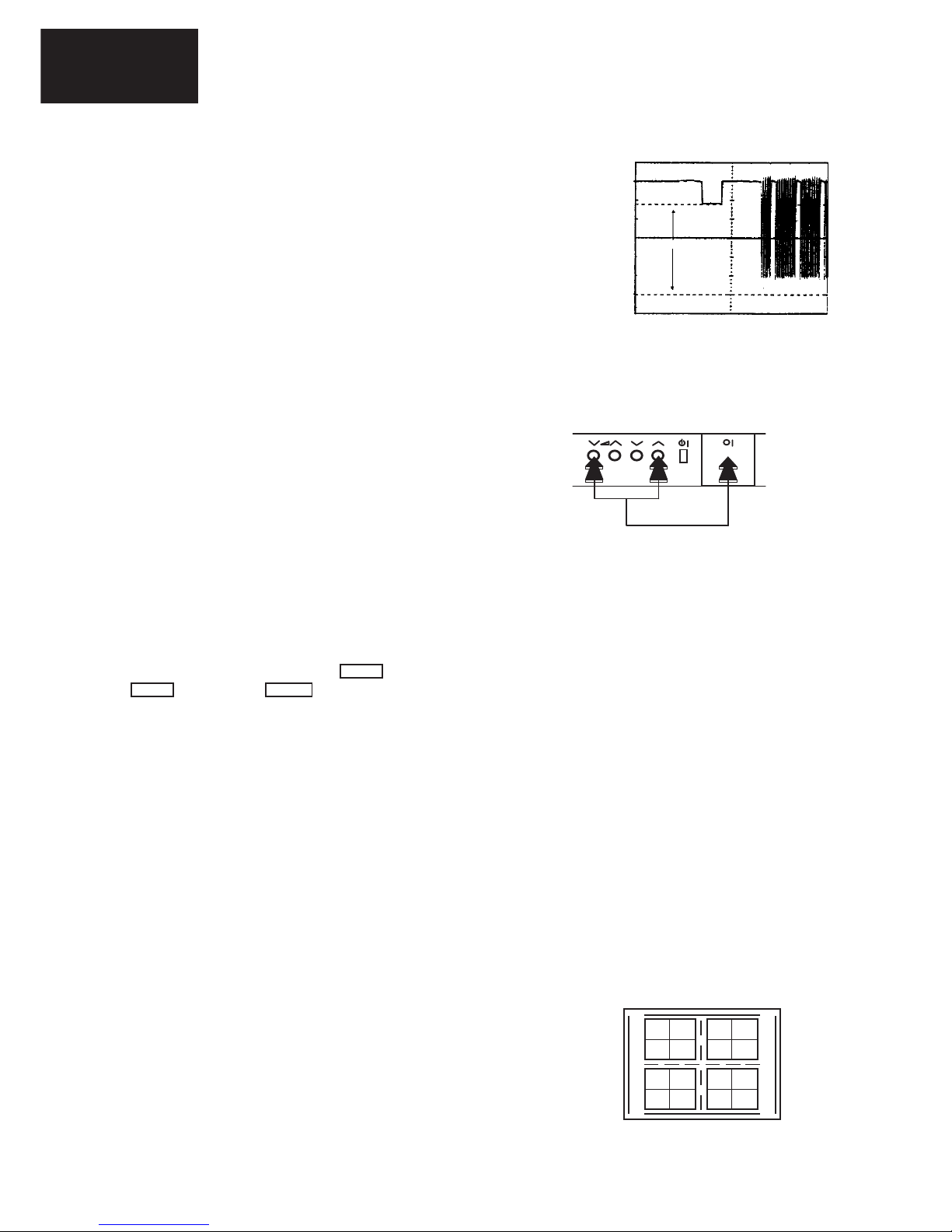

SERVICE ADJUSTMENTS
All the adjustments required for this chassis will be done in Service Mode, except G2 and Focus.
••
••
• G2 ADJUSTMENT
1.Receive cross hatch pattern signal.
2. Set contrast to 80/100 and brightness to 40/100.
3. Connect the oscilloscope to the red cathode and adjsust G2 to read 140V on the sensor pulse as in the drawing:
NOTE: Oscilloscope should be adjusted for vertical TV field trigger and synchronized with wideo signal.
••
••
• SERVICE MODE FUNCTION
This mode function is provided to assist with the settings of those adjustments that may vary from one Picture Tube to another, or between models.
In order to use the Service Mode:
1. Connect Test Pattern signal to antenna terminal.
2. Press main switch to «OFF».
3. Press volume-down and channel-up buttons and main switch to «ON» simultaneously.
4. Service mode is now entered.
The required adjustments can then be made from the Remote Control Unit. The only buttons required are the following: Up/Down-channel for movement in adjustment options menu; Up/Down-volume are used to carry out an adjustment in said menu; ON/OFF is used to memorize a new adjustment.
Adjustment menu is as follows:
-GREEN GAIN.
-GREEN CUT OFF.
-BLUE CUT OFF.
-ALTER NVM PAGE / ALTER NVM POSITION / ALTER NVM VALUE.
-TELETEXT MIX MODE CONTRAST.
-TELETEXT CONTRAST.
-OSD CONTRAST.
-DVCO ADJUSTMENT (Only PAL).
-DVCO ADJUSTMENT (Only NTSC).
-AGC ADJUSTMENT.
-AFT ADJUSTMENT.
-OPC VALUE (Not Available in this model). AUTOINSTALLATION ON/OFF.
To exit service mode, press main switch ot OFF.
Adjustment menu is as follows:
Horizontal:
-Adjust HORIZONTAL SHIFT.
-Adjust E-W WIDTH.
-Adjust PIN PHASE.
-Adjust PIN AMPLITUDE.
-Adjust UPPER CORNER CORRECTION.
-Adjust LOWER CORNER CORRECTION.

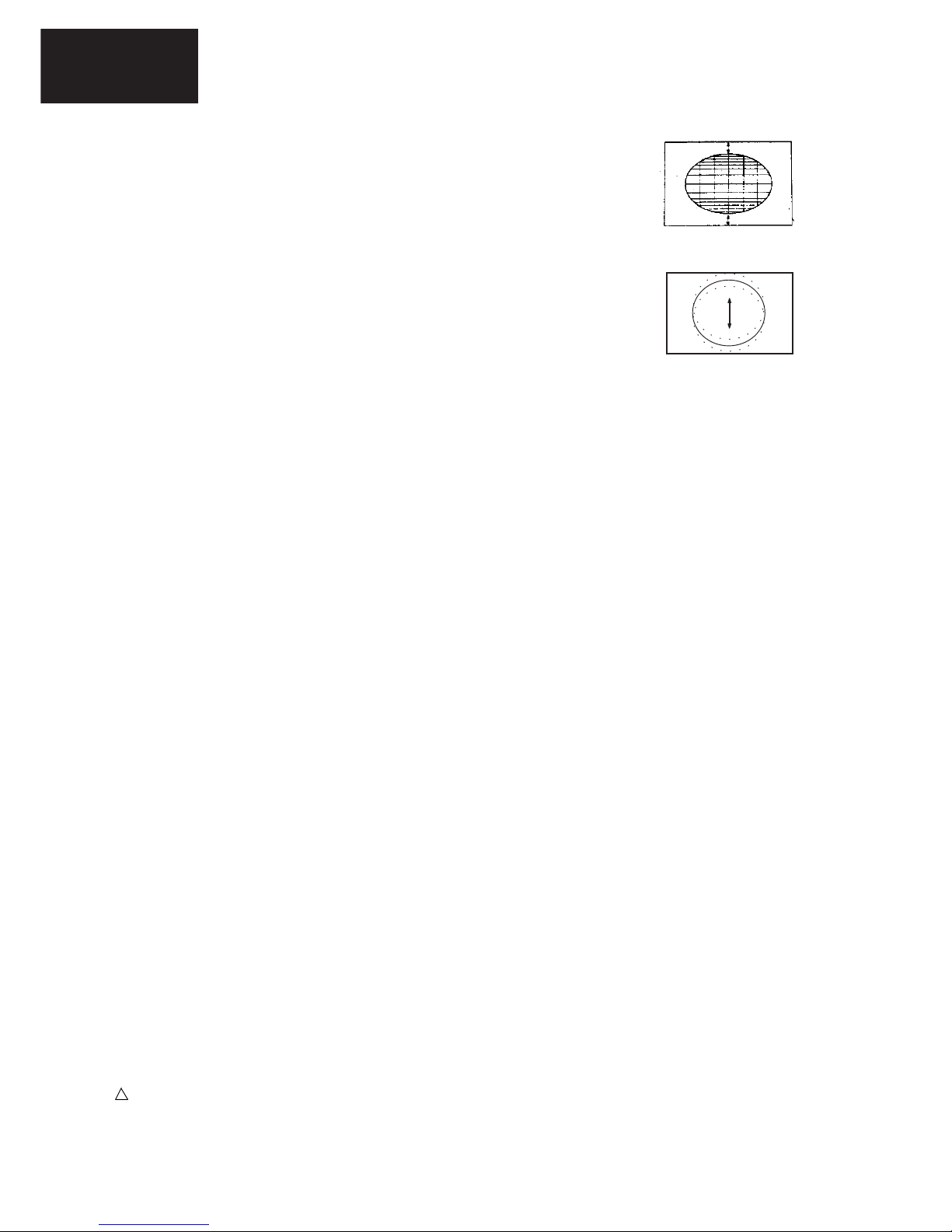

All adjustments for Geometries are based on internal pattern (fig.1) The procedure for making adjustments is as follows:
Vertical:
-Adjust VERTICAL AMPLITUDE.
-Adjust S-CORRECTION.
-Adjust VERTICAL SHIFT.
-Adjust VERTICAL LINEARITY.
Fig.1
-SERVICE SOFTWARE AND HEXADECIMAL COUNTER DISPLAY: «SW ON XXXX SW OFF XXXX HOURS ON XXXX
-HORIZONTAL SHIFT.
-EAST WEST WIDTH.
-PIN PHASE.
-PIN AMP.
-UPPER CORNER CORRECTION.
-LOWER CORNER CORRECTION.
-VERTICAL LINEARITY.
-VERTICAL AMPLITUDE.
-S CORRECTION.
-VERTICAL SHIFT.
-RED GAIN.
CH
1
2
140 V
CH1 gnd
Page 5
5
81GF-63E

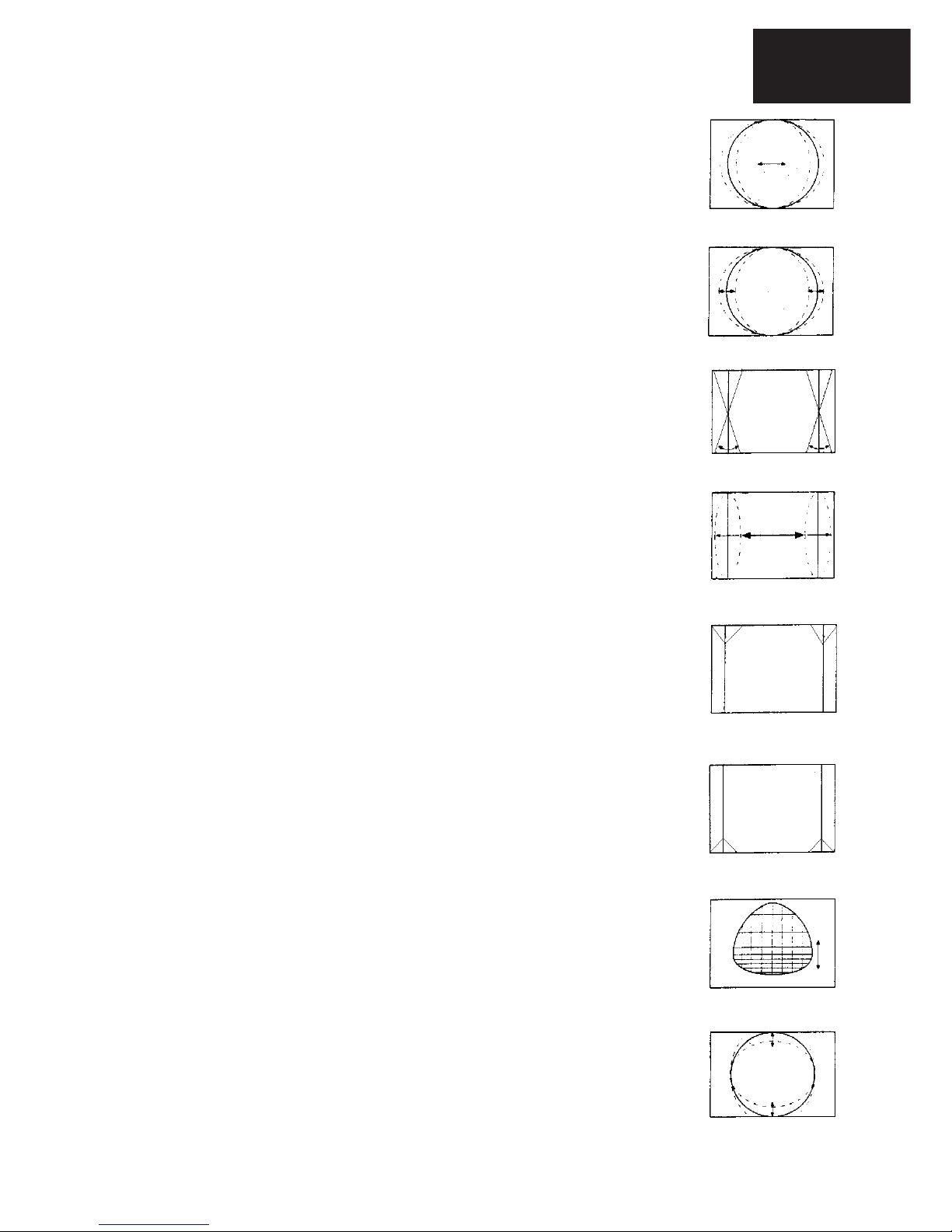

Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 9
Fig. 8
Fig. 7
1− 1−
1− 1−
1− HORIZONTAL SHIFT
a) Internal pattern signal will be displayed. b) When volume-up button is pressed, picture moves to the left. c) When volume-down button is pressed, picture moves to the right. d) Adjust the horizontal location to obtain picture centering (fig. 2).
2− 2−
2− 2−
2− E-W WIDTH
a) Internal pattern signal will be displayed. b) When volume-up button is pressed, horizontal scanning increases. c) When volume-down button is pressed, horizontal scanning decreases. d) Adjust the horizontal amplitude to obtain 9% overscan (fig. 3).
3− 3−
3− 3−
3− PIN PHASE
a) Internal pattern signal will be displayed. b) When volume-up button is pressed, slide pincushion changes. c) When volume-down button is pressed, slide pincushion changes. d) Adjust the PIN PHASE to obtain condition as in (fig. 4).
4− 4−
4− 4−
4− PIN AMPLITUDE
a) Internal pattern signal will be displayed. b) When volume-up button is pressed, slide pincushion changes from pincushion to barrel shape. c) When volume-down button is pressed, slide pincushion changes from pincushion to barrel shape. d) Adjust the PIN AMPLITUDE to obtain condition as in (fig. 5).
a) Internal pattern signal will be displayed. b) When volume-up button is pressed, slide pincushion changes from pincushion to barrel shape. c) When volume-down button is pressed, slide pincushion changes from pincushion to barrel shape. d) Adjust the UPPER CORNER CORRECTION to obtain condition as in (fig.
6).
6− 6−
6− 6−
6− LOWER CORNER CORRECTION
a) Internal pattern signal will be displayed. b) When volume-up button is pressed, slide pincushion changes from pincushion to barrel shape. c) When volume-down button is pressed, slide pincushion changes from pincushion to barrel shape. d) Adjust the LOWER CORNER CORRECTION to obtain condition as in (fig. 7).
7− 7−
7− 7−
7− VERTICAL LINEARITY
a) Internal pattern signal will be displayed. b) When volume-up button is pressed, upper picture scanning decreases and lower picture scanning increase. c) When volume-down button is pressed, upper picture scanning increases and lower picture scanning decrease. d) Adjust the vertical symmetry to obtain symmetry scanning between upper and lower picture (fig. 8).
8− 8−
8− 8−
8− VERTICAL AMPLITUDE
a) Internal pattern signal will be displayed. b) When volume-up button is pressed, vertical size of picture increases. c) When volume-down button is pressed, vertical size of picture decreases. d) Adjust the vertical size to obtain overscan (fig. 9).
Page 6
6
81GF-63E
9− 9−
9− 9−
9− S-CORRECTION
a) Internal pattern signal will be displayed. b) When volume-up button is pressed, upper and lower scanning decreases, and center scanning increases. c) When volume-down button is pressed, upper and lower scanning increases, and center scanning decreases. d) Adjust the S-CORRECTION to obtain a balance between upper, lower and center (fig. 10).
10− 10−
10− 10−
10− VERTICAL SHIFT
a) Internal pattern signal will be displayed. b) When volume-up button is pressed, picture moves up. c) When volume-down button is pressed, picture moves down. d) Adjust the horizontal location to obtain picture centering (fig. 11).
COLOUR ADJUSTMENT
The following adjustments are only required when Picture Tube, IC801 or IC1801 are changed:
1. RED CUT OFF / GREEN CUT OFF / BLUE CUT OFF
2. RED GAIN / GREEN GAIN / BLUE BAIN
ACCESS TO NVM
a) Receive Philips pattern signal. b) When Stand-by button is pressed (Remote Control Unit), start
DVCO ADJUSTMENT (PAL)
Up/Down volume buttons are used to adjust the contrast of the following items:
-TELETEXT MIX MODE CONTRAST.
-TELETEXT CONTRAST.
-OSD CONTRAST.
CONTRAST ADJUSTMENT
DVCO ADJUSTMENT (NTSC)
Adjust not required.
AUTO INSTALLATION OFF/ON
When ON is selected, the TV will perform the autoinstallation sequence as soon as service mode is removed.
a) Connect Test Pattern signal to antenna terminal. b) Press main switch to OFF. c) Press volume-down and channel-up buttons and main switch to ON simultaneously. d)»Service Software Vxx.xx» appears o screen. e)Press main switch to OFF.
PROTECTIONS CANCEL
AGC ADJUSTMENT
a) Tune the TV into CH10 (pattern generator).
b) Adjust the signal strength to 57dB
µV
c) Press the stand-by button on the Remote Control (red button). The TV will perform automatically the AGC.
AFT ADJUSTMENT PAL BG - I, SECAM L
a) Tune the TV into CH69 (pattern generator). b) Press the stand-by button on the Remote Control (red button). The TV will perform automatically the AFT.
1.1 Adjust G2.
1.2 Tune a white card.
1.3 Adjust colour to minimum.
1.4 Position colourimeter in the center of screen.
1.5 Adjust brightness and contrast to obtain a luminance of ≈20 NITS.
1.6 Operate in Service Mode and select location RED CUT OFF / GREEN CUT OFF / BLUE CUT OFF, to obtain colour coordinates:
X=0.290 ± 0.015 Y=0.300 ± 0.015
To increase press volume-up button and to decrease press volume down button.
RED CUT OFF alter «X» coordinate. GREEN CUT OFF alter «Y» coordinate. BLUE CUT OFF alter «X» and «Y» coordinate.
2.1 Using brightness and contrast buttons, select a luminance of ≈120 NITS.
2.2 Operate in Service Mode and select location RED GAIN / GREEN GAIN / BLUE GAIN, to obtain colour coordinates:
X=0.290 ± 0.015 Y=0.300 ± 0.015 To increase press volume-up button and to decrease press volume down button.
RED CUT OFF alter «X» coordinate.
GREEN CUT OFF alter «Y» coordinate.
BLUE CUT OFF alter «X» and «Y» coordinate.
2.3 Exit Service Mode and check colour coordinates «X» and «Y» at 20 and 120 NITS. It may be necessary to repeat procedure 1 and 2 of COLOUR ADJUSTMENT.
Fig. 10
Fig. 11
Press CH ∧ to move in the following sequence:
ALTER NVM PAG⇒ALTER NVM POS ⇒ALTER VNM VAL to alter presseting adjustments, press up/down-
volume buttons on ALTER NVM VAL.
CAUTION: Do not change NVM VALUE to avoid
risk of serious damages to TV set.
AFT ADJUSTMENT SECAM L’
a) Tune the TV into CH04 (pattern generator). b) Press the stand-by button on the Remote Control (red button). The TV will perform automatically the AFT.
Page 7
7
81GF-63E
ESPA¥A
T1602
C1603
C1602
C1601
(FF)
1
2
3
4
55
4
3
2
1
(F)
E
B
C
Q1601
F7314BMN0 .
FOCO
DYN.INPUT GND
K7314BM
1
(EW)
R1602
R1603
D1601
R1601
D1602
C1604
+
1
I
H
G
F
E
D
C
B
A
2
3
4 567

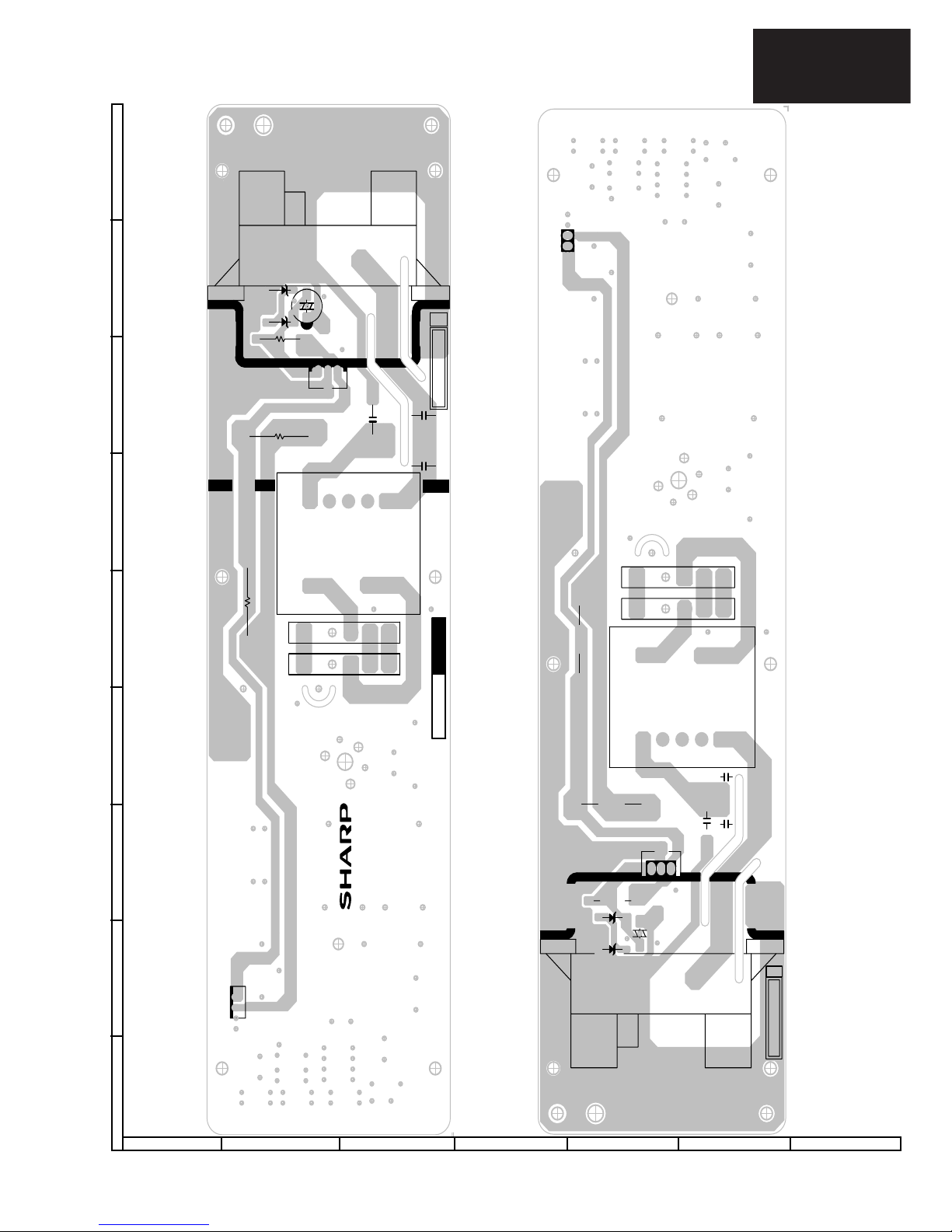

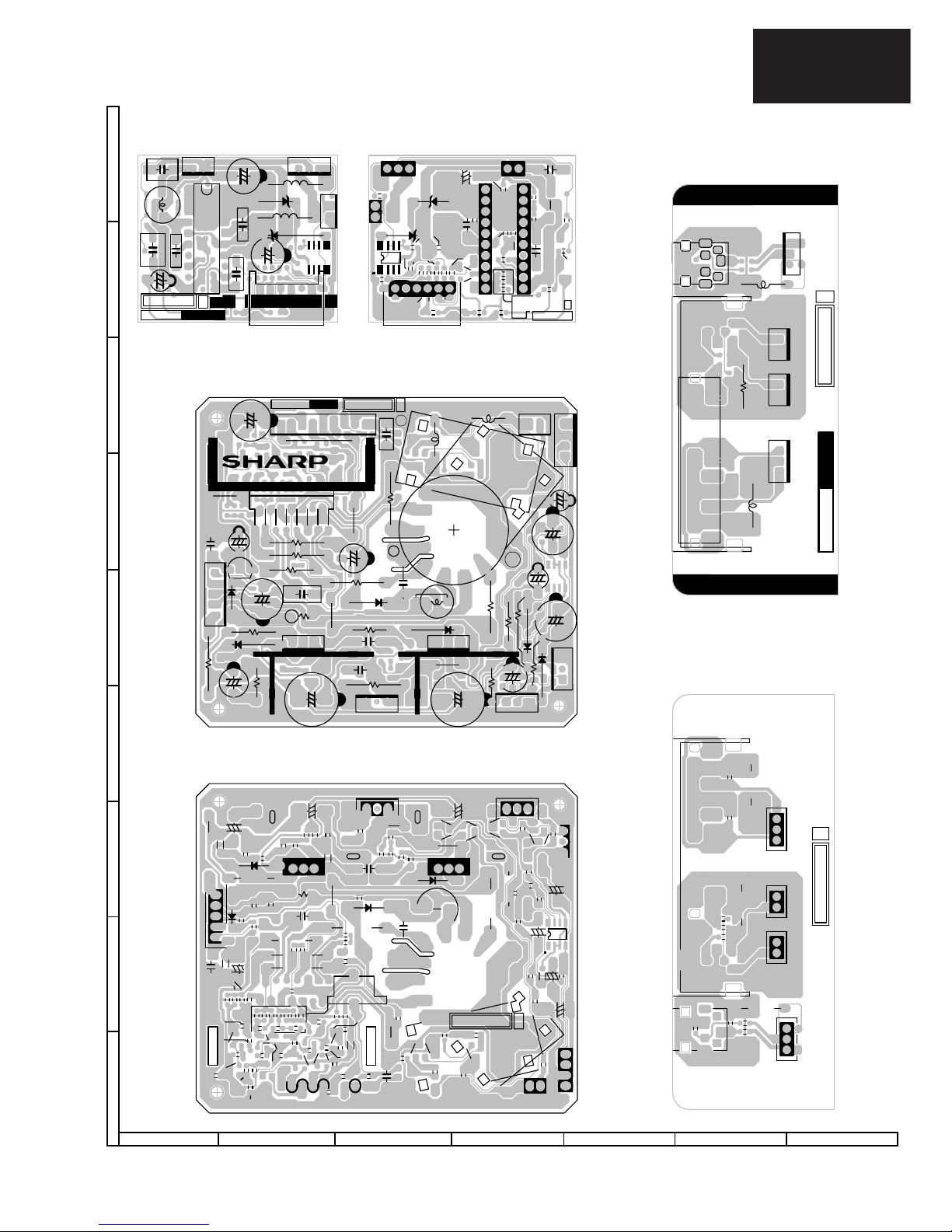

DINAMIC FOCUS UNIT PRINTED WIRING BOARDS.
T1602
C1603
C1602
C1601
(FF)
1
2
3
4
5
5
4
3
2
1
(F)
Q1601
.
FOCO
GND
DYN.INPUT
F7314BMN0
1
(EW)
R1602
R1603
D1601
R1601
D1602
C1604
+
Page 8
8
81GF-63E

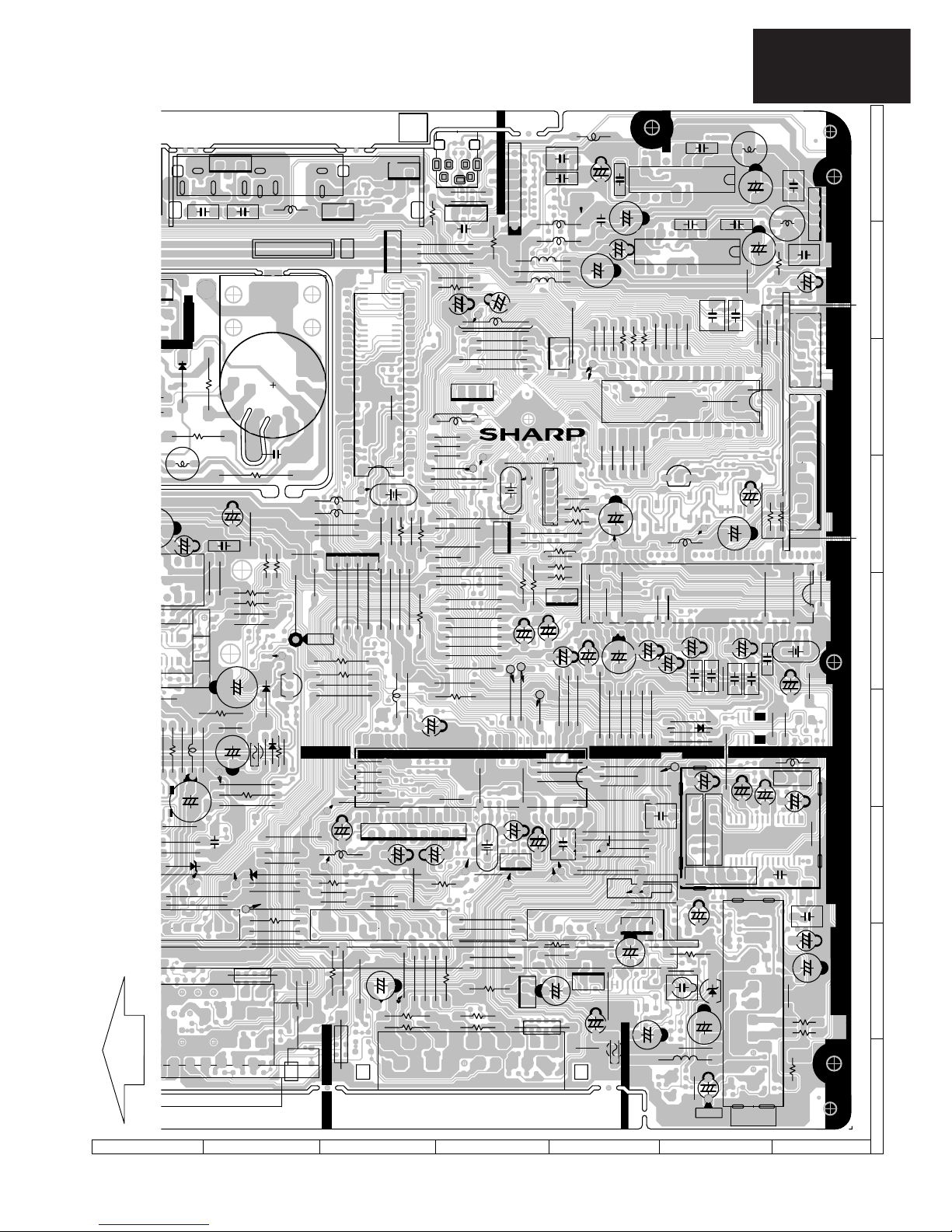

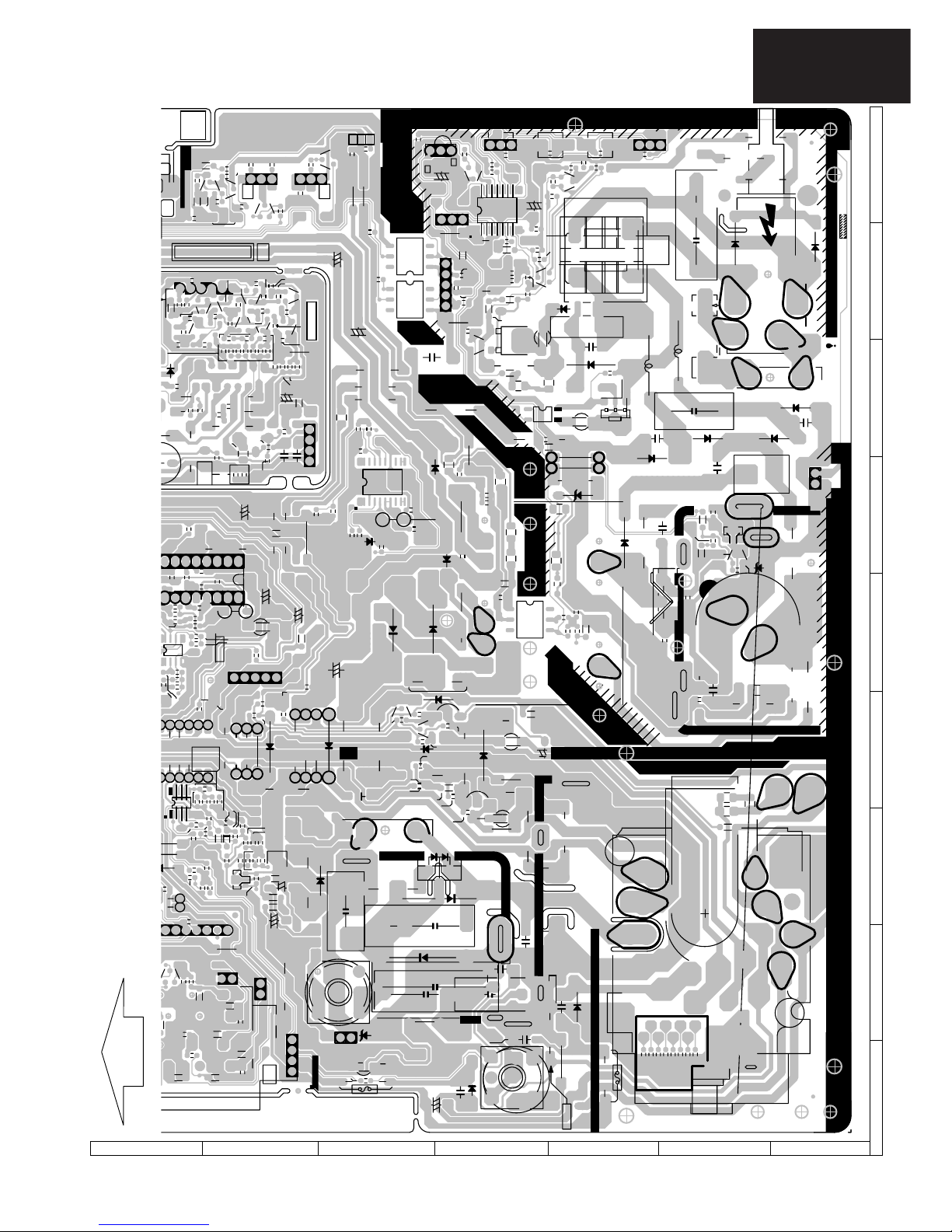

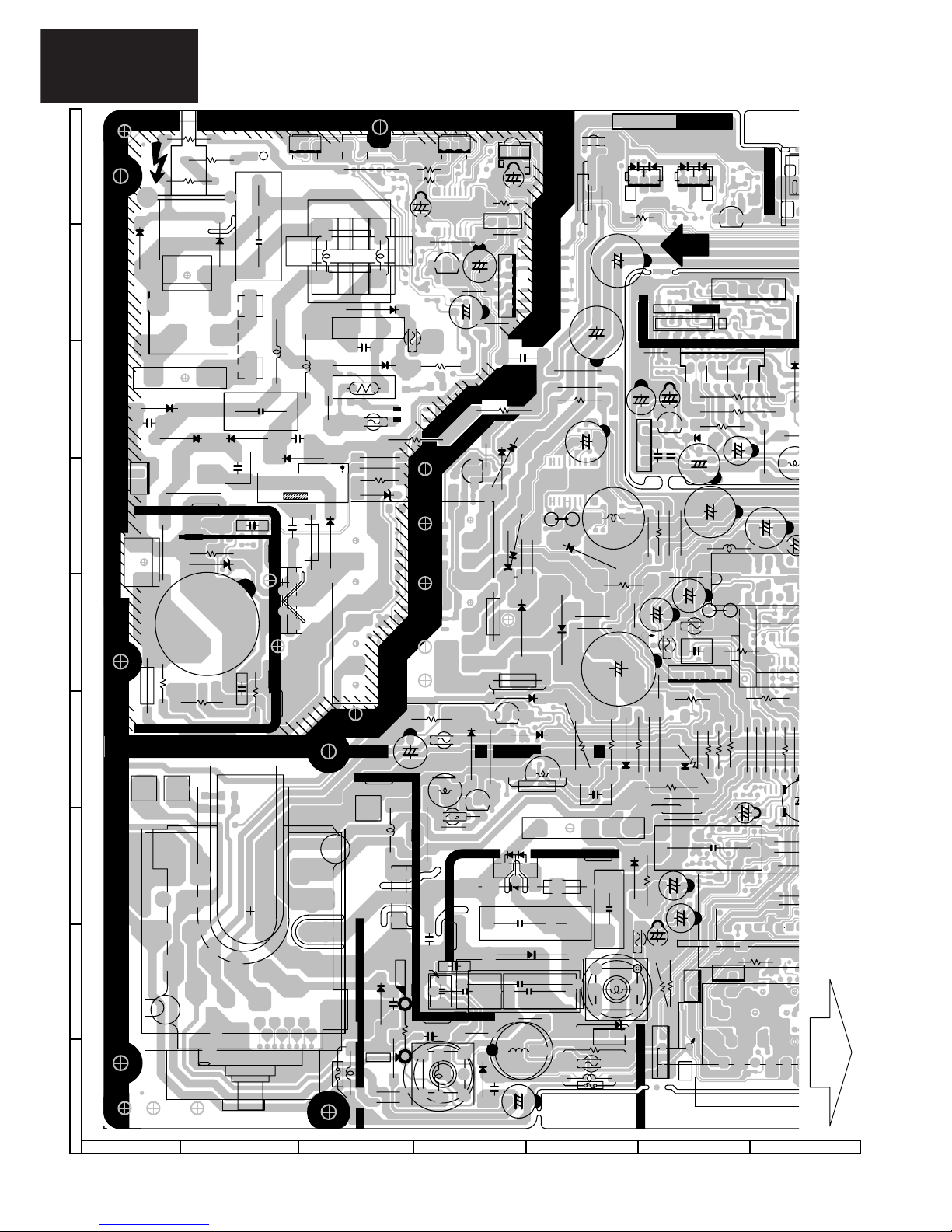

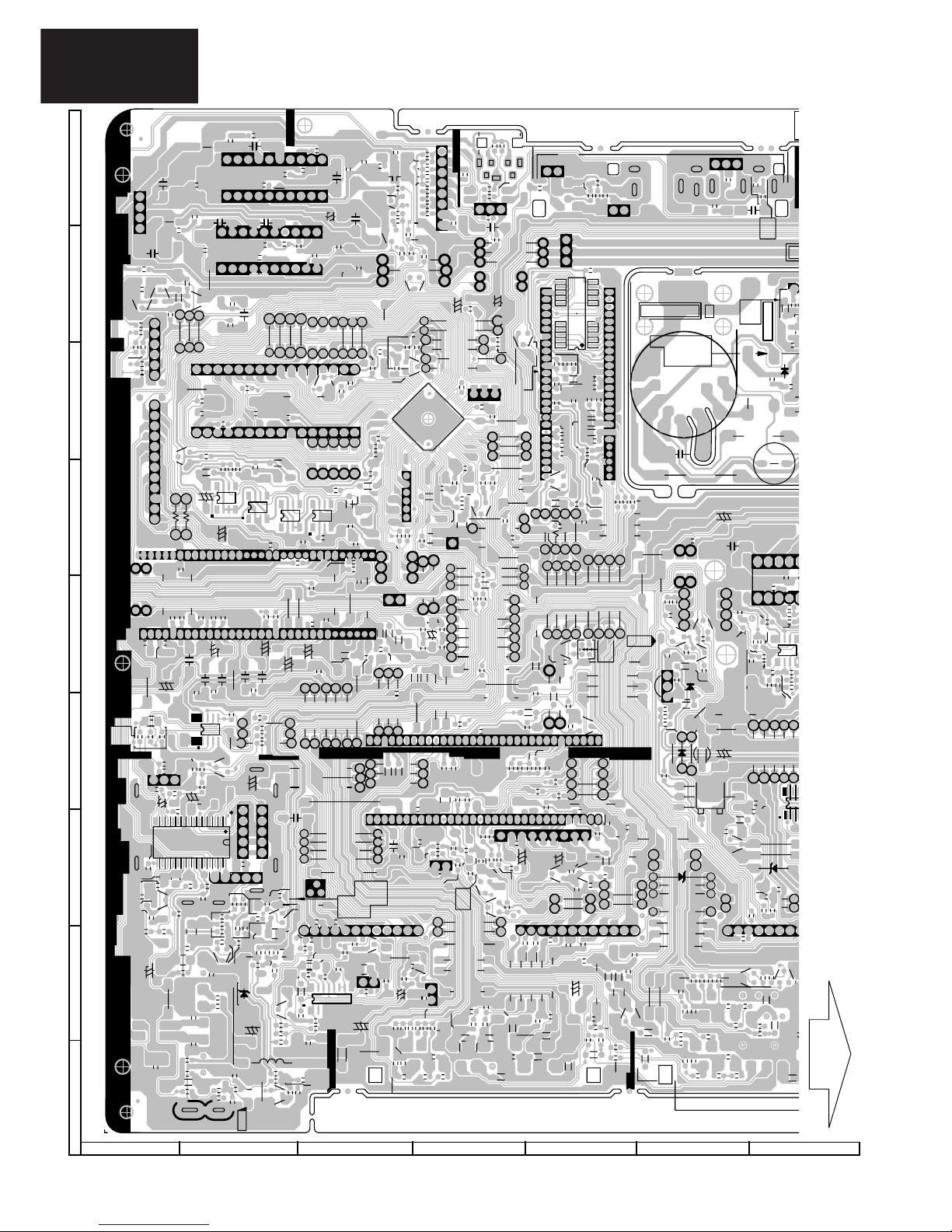

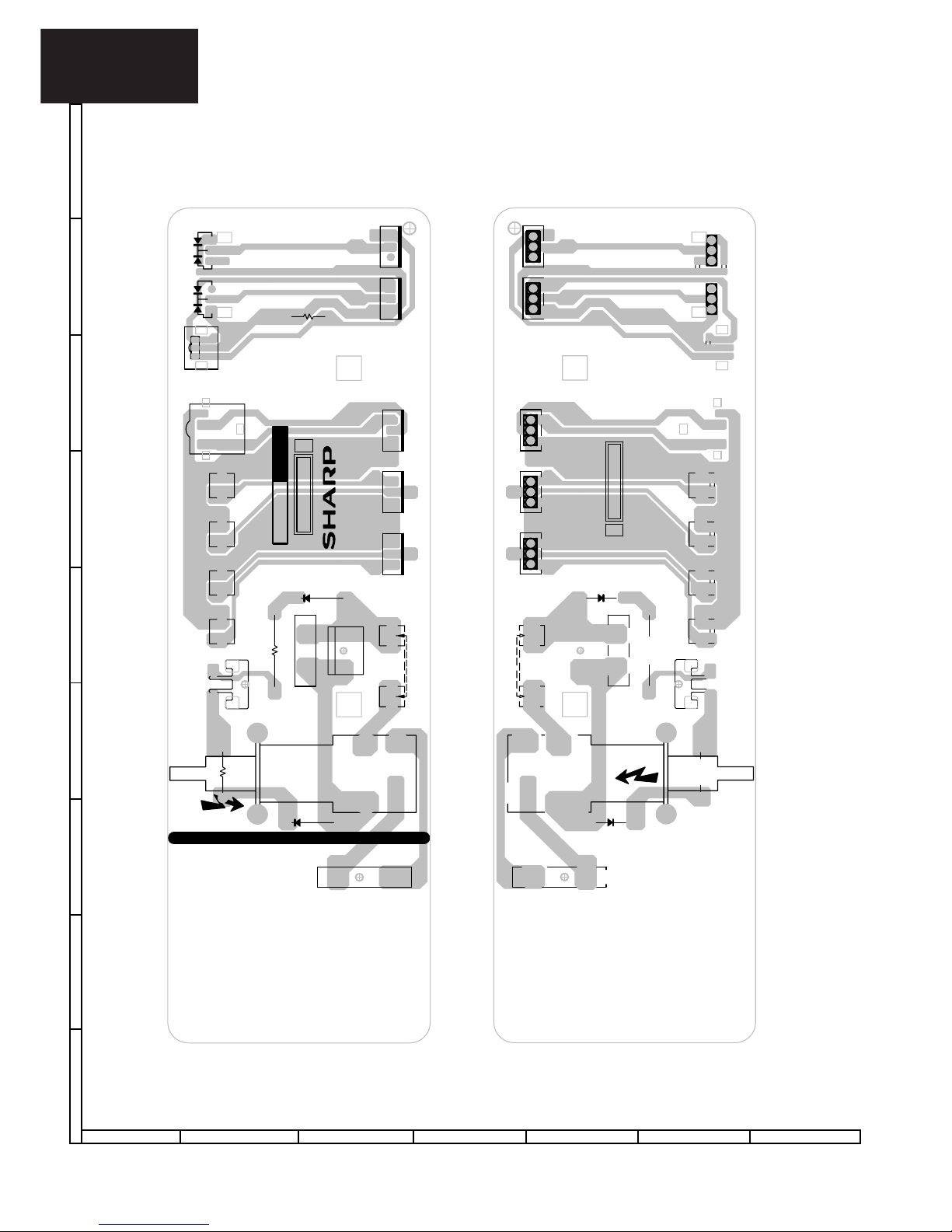

MOTHER UNIT PRINTED WIRING BOARD. Component side.
1
I
H
G
F
E
D
C
B
A
234567
Page 9
E
Q912
C
D1804
C1825
C1824
+
C1811
+
C1812
J70
D623
R770
C739
+
J344
R771
R703
R778
R721
D734
D731
J17
IC701
L702
C704
D704
D703
POR701
5
1
(STB2)
C632
+
L605
JF50
JF51
R619
J317
J334
+
C721
J321
D722
FB703
FB704
F701
C701
13
(AA)
L611
R614
C637
L612
C638
R536
(H)
5
J326
JF48
FB1002
C1823
+
J327
C713
D720
+
C720
C631
R1
JL2.
D716
C501
+
C723
+
C641
C611
C642
FB501
R503
R643
C509
+
(A)
321
C526
+
C707
+
K7240BM
F7241BMNF
K7241BM
TP602
TP601
L502
J244
J226
D718
R1820
R1822
R1821
C770
L609A
J207
L609
R501
L603
C714
C711
FB702
D711
J69
20
IC501
R1036
R742
IC706
J67
R723
+
C706
R790
R791
J210
J209
J208
54321
(F)
E
C
B
Q601
E
Q602
B
L701
Q701
12
6
MODULO_DIGITAL
T601
12
11
10
9
8
7
6
5
4
3
2
1
T701
1
9
10
18
S702
S703
LP701
D1002D1001
S704
S705
20
21
21
20
G
D
S
S701
4
3
2
1
(CW)
1
D605
D604
C601
D603
FB601
R612
D613
C613
J211
JF10
J178
R716 D712
C705
R714
J5
J6
C
IC1801
15
1
2
14
(K).
IC1008
(L2)
(YC)
DIP
QKIT
JF1
Q605
J171
L606
D621
R623
D606
R641
R609
J172
R624
+
C718
J33
J99
R728
C719
+
R613
C610
J173
C615
T3.15AH
(H).
1
C
Q711
E
IS INDICATED WITH
THE ACTIVE SECTION
CAUTION
THE " " SYMBOL
J68
1
CF701
J4
C
+
R533
J177
J176
J175
J174
R616
D610
J134
J133
J101
+
C616
D702
C703
R715
C710
R741
J10
R792
M1000
D608
JF9 JF8
D609
J306
C634
JF29
J316
R603
R518
L604
R553
C504
(PW)
3
1
J284
JL14.
R408
(AV).
D612
+
C607
R617
R606
D1809
C528
+
C620
+
J264
+
C619
R610
+
C1807
D719
R611A
JL1
J100
J320
R608
R628
(SW1)
(SW2)
(RC)
(OPC) (ST)
(L4)
R730
R713
FB701
(L5)
4
(MO)
1
J300
J288
D516
R763
JL17
C611A
C618
F602
F601
D714
R727
J85
J86
JF28
FB705
L705
JF53 JF54
.
1
2
(G)
C702
D707
C724
+
D701
D708
C746
L703
JF57
JF56
(EW)
D611
JF55
R604
FB603
C648
Page 9
9
81GF-63E
MOTHER UNIT PRINTED WIRING BOARD. Component side.
8 9 10 11 121314
I
H
G
F
E
D
C
B
A
Page 8
JL31
JL31.
D803
J319
JL7.
JL10.
C802
+
L801
J214
J307
JL28.
JL26.
JL27.
JL29.
JL29
J349
J348
J347
JL18
L1801
D206
C373
J30
C370
C382
C378
+
L353
C368
D623
R1064
JL19
(L2)
J337
R1018
J121
R1059
R1058
1
(STB4)
3
(STB3)
1
J122
50Hz
50Hz
JL2..
J343
J323
J269
J270
R1022
J304
1
(RT)
R1003
AV
1
J331
C433
+
R464
R418
+
C422
J255
1
(S)
4
3
(HD)
1
C341
R315
J130
L318
J93
31
IC1005
J82
J81
J80
J79
J78
JL6
C372
+
C352
C351
+
L352
C363
+
C361
R359
J87
+
C536
J260
J248
+
C426
C825
+
+
C1001
JL11
J180
J185
J190
R519
J212
R1832
X2401
R620
R229
J140
J119
J311
J71
C342
+
J159
JL2.
J322
C822
JL12,
501
J224
J28 J42
J43
(RGB)
J192 J193 J194
J106
J88
L2402
L2401
J115
J114
J113
J318
JF35
JF34
JF33
JF32
J139
J138
J312
R420
J206
J243
JL7
J75 J72
J61
J117
J39
C362
J223
J203
J202
1
(FV).
(FV)
1
TP201
TP701
J252
FB303
R1027
J40 J41
J92
J95
J118
J74
J244
J226
R1836
C415
+
J250
R451
J236
J251
J63
C219
+
J253
J152
J156
D510
C520
+
R501
J50
J49
J48
J157
C323
C322
J136
JF6
JF14
J163
C211
+
J146
J147
J150
J164
J165
J166
J167
J168
J125
+
C220
R307
R306
J198
51
SF202
SF201
15
J231 J232
64
33
32 1
IC801
C358
IC304
1
8
J127
J128
J129
IC305
1
32
33
64
C218
+
J266
J265
FB301
L501
1
6
12
16
12
6
1
IF2
IF1
33V
B+
DA CL
AS
TU AGC
TH201
71 3
5
6
2
4
CN3
(AV)
1
2
2
1
R424
R425
11
J179
L503
J178
J274
IC240112627
52
20
10
1
IC301
+
J131
J230
1
CF202
C206
+
SF203
15
J278
J275
+
C215
IC203
L350
L351
61
(SB)
(SA)
16
12
IC1002
C329
+
C326
+
C315
C325
C324
J169
L201
C311
+
C314
+
C313
+
J191
R541
J8
J9
L317
J246
R455
+
C343
L803
J151
J162
J161
J160
C210
+
J189
J145
C430
C431
J142
J155
J154
J153
J144
J143
J141
5
6
7
8
9
10
11
12
GND
TRC
(K).
C1814
(YB) (YA)
F7240BMNF
ESPA¥A
ITP7240BMNF
C376
J47
R508
J102
J103
J187
J401
C815
+
+
C365
J137
C514
J158
JF19
+
5
J216
R419 R426
J280
C228
R233
R232
+
C209
J225
C204
+
C205
J301
+
C332
J83
J12 J13 J14
L301
J46
J45
R1047
J31
J305
J32
J242
J241
J222
J221
C820
R231
C821
C524
R534
C511
+
J314
J64
J249
R533
R436
L203
JL6.
+
C1031
JL11..
J303
R230
Q502
X801
+
C818
+
1
C812
C437
+
JL15
FB302
JL12..,
JL12.,
GND
GND
GND
J94
J116
J297
R618
JL12.
100Hz
D1809
R1834
(L3)
R1050
J27
L315
L316
J60
JF31
J91
R1008
J90
R550
R526
11
10
IC302
J199
J200
J201
J309
L1001
L1002
J44
JL2
R1055
J271
C229
+
3
(SS)
1
1
(CC)
J170
X301
R234
D622
J183
R530
+
C644
JL12,,
J24
+
C1032
JL1.
C1027
+
J62
C353
J300
J288
JL17.
X1002
R1020 R1019
J120
JL11.
(STB1)
C377
+
3
(VS)
1
.
.
R650
C356
C381
C306
+
+
C305
(SC)
JL10
JL12
JL28
JL26
JL27
R814
C804
+
J234
J228
R815
19
(K)
JL14
Page 10
10
81GF-63E
MOTHER UNIT PRINTED WIRING BOARD. Copper side.
1
I
H
G
F
E
D
C
B
A
2
3
4567
Page 11
C447
D803
J319
R809
C824
J332
R801
+
C802
L801
C801
J214
R406
R404
C405
D1007
K
J354
R405
C411
C413
C412
J219
R804 R803
R1028
C809
R805
C814
R622
K
D801
C316
C318
C317
C328
JF7
C327
C333
C330
K
D413
K
D412
R452
C321
R516
R502
R512
R421
C446
D406
K
C445
R422
D408
K
C444
R423
D407
K
J349
J348
J347
R1046
C1033
C1005
J353
L1801
C813
R469
R259
R378
R357
C375
C373
C379
R360
J30
C370
R372
C382
C378
+
L353
C367
C368
D623
R218
D205
K
R210
R215
R1060
R1035
C443
C438
C2409
Q2401
R2403
K
D1011
J336
C1021
J337
R1018
J121
J338
J339
R1059
R1058
(STB4)
(STB3)
J122
R1023
JF44
FB801
J325
J324
J343
J323
J269 J270
J98
D1004
K
R1022
C1020
C1019
Q1005
J304
K
D2404
K
D2402
R1043
Q1007
R1057
1
(RT)
R1053
R1042
C1018
C1034
R1003
C451
AV
J331
R463
R203
Q201
C433
+
R464
R418
+
C422
Q403R437
C427
J255
J9
R358
K
D301
14
(S)
C359
R316
R317
(HD)
C341
R315
D204
R1052
R1051
C2405
R2401
C2407
C2403
C2401
C643
R644
J130
C636
Q606
C1030
L318
R448
C428
R447
Q1006
J93
K
D1010
R1056
C1028
IC1005
J82
J81
J80
J79
J78
R1044
R1001
R1002
Q1004
D1005
K
R806
C372
+
C352
+
C351
C364
R353
L352
C363
+
C361
Q304
R359
C811
C817
C816
R807
J87
+
C536
R445
J260
R467
D418K
C819
J248
C535
JF12
+
C426
R466
C825
+
C807
R802
C1001
+
R2409
J180
J185
J190
C531R519
J212
R1832
X2401
D618
K
R620
R229
J140
J119
J311
C2402
J71
R2407
R1054
Q208
R238
R225
Q207
C212
C214
K
D1006
D1008
K
C342
+
J159
J322
C822
J310
R626
C501
R521
J224
JF39
JF38
J28
J42
J43
C1002
R376
C803
Q801
C1025
C1024
C1023
J192 J193 J194
J106
J88
L2402
L2401
R2404
J115
J114
J113
J318
JF35
JF34
JF33
JF32
J139
Q505
J138
R528
Q507
C533
R552
R522
C515
J312
C436
C435
C434
R420
R209
J206
R253
R208
J286
R239
C225
C224
R242
R241
C223
C532
R551
R535
R248
R252
R251
J243
J75 J72
J61
J117
J39
K
D601
R532
J307
J223
J203
J202
(FV).
(FV)
TP201
TP701
J252
R449
FB303
R375
C357
R1027
J40 J41
R1041
J92
J95
J118
J74
L50
J244
J226
R1822
R1821
R1836
R1806
C1802
R1817
R1823
R1824
C1803
R1818
C415
+
J250 R451
J236
J251
J63
R247
C219
+
R205
J253
J152
J156
F7241BMNF
R514
D510
C512 R517 R507
C520
+
R501
R2408
J50
J49
J48
J157
C323
C322
R323
R318
C523
J136
F
IC2401
QKITP7240BMNF
C216
C217
C507
JF6
JF14
J163
R321
R322
C211
+
J147
J150
J164
J165
J166
J167
J168
J125
R2405
IC202
1
4
5
8
+
C220
C227
R237
R307
R306
11
IC501
J198
SF202
SF201
J231 J232
64
32
1
IC801
C310
C309
C358
IC304
8
J127
J128
C331
J129
IC305
1
64
C2408
C218
+
J279
D203
K
Q406
K
D414
R415
J266
J265
C403
FB301
R453
R457
R511
Q405
R434
R450
Q404
MODULO_DIGITAL
K
D405
C416 R428
C418
C419
R40
TH201
TU
AS
CL
DA
B+
IF1
IF2
C402
R414
C410
R412
C409
R403
R429
JF3
JF2
K
D409
R424
R425
28
1
IC201
K
D411
C406
R413
C401
C404
J211
J179
L503
J178
R456
IC401
C421
R431
R433
R430
C420
R432
J274
C417
R244
R243
Q209
1
26
27
52
5
13
14
IC2402
C337
C336
20
11
IC301
R352
+
C362
C354 C350
J131
J230
C334
C335
CF202
C206
+
R217
JF5
C208
SF203
J278
J275
+
C215
IC203
L350
L351
(SB)
J341 J342
(SA)
IC1002
1
16
17
32
R1024
C329
+
C326
+
C315
C325
C324 J169
L201
L205
R219
R228
C213
R227
C312
C311
+
C314
+
C313
+
J191
R541
C339R314
J8
L317
R311
C338
R308
J246 R455
R417
+
C343
D617 K
L803
J151
J162
J161
J160
C210
J189
C226
J145
C430
C431
J142
J155
J154
J153
J144
J143
J141
R236
R235
GND
5
67
8
9
10
11
12
TRC
C1814
(YB)(YA)
R427
K
D410
R462
R460
C502
J281
C376
L202
J47
R508
J102
J103
J187
J401
C503
R510
R544
R515
K
D420
R411
C617
C815
+
+
C365
R548
J137
Q503
C514
J289
J158
R810
R545
R549
C521
JF19
+
C615
75
26
25
1
IC1001
J216
R419
R426
R410
R416
J280
Q
R1804
R1801
C1801
R1835
R1802
Q501
D507
K
R506
R505
C228
C207
R246
C221
R233
R232
+
C209
R220
JF4
J225
C204
+
R216
R240
R249
C205
J301
+
C332
J83
C1014
J65
R1025
J12
J13 J14
L301
J46
J45
R1047
Q607
R1021
J31
J305
J32
C432
J242
J241
J222
J221
C820
R1004
R231
C821
Q408
K
D419
+
C524
R534
R504
+
C511
J314
J64
C1029
J283
J249
R533
J177
D508
K
R436
L203
R1811R1810
C1821
C1822
J126
IC1003
IC1007
IC1006
IC1004
+
C1031
JF30
J303
C823
R230
Q502
E
B
R312
R313
C320
R309
R310
C319
C414
L204
C222
C808
J220
X801
C812
+
C818
+
JL14
J240
R465
JF37
C437
+
FB302
R1840
R204
J94
J116
J297
Q608
R618
K
D615
D1809
R
C1809
R1834
R1050
J27
L315
L316
D2401
K
C2404
J60
C2406
R1031
JF31
J91
R1008
J90
C1017
R2406
R2402
R1029
D2403
K
C606
J218
R550
R526
R554
R808
R319
R320
D303
K
20
11
IC302
R356
C374
C369
C366
R374
C371
R542
FB802
J199
J200
J201
J309
D802 K
R1049
J44
R1045
R1055
Q210
C230
R254
R258
R245
J271
C229
+
R257
R256
R255
R2412
R2410
R2411
(SS)
C429
(CC)
C529
R211
J170
X301
R234
D622
J183
R530
+
C644
J24
+
C1032
Q1001
C1027
+
R1026
J62
J302
C353
C360
C516
R64
J300
J288
R547
K
D416
D417
K
R1033
R226
R1030
D1810
K
C203
C1022
X1002
FB1001 R1020 R1019
J294
J335
D1003
K
R1032
R1005
C1026
D1009
K
J120
(STB1)
Q302
Q303
R361
C377
+
(VS)
.
.
C4
C439
C440
C441
R1061
JF21
JF22
JF20
J345
R373
R354
R355
Q306
R350
R363
R362
Q305
R351
C356
C381
J2
R377
R459
JF11
R461
R458
R468
R304
R301
C306
+
C305
+
R303
R302
D305
K
K
D304
D302
K
(SC)
C383
IC503
C340
J350
R454
J146
JF52
J51
J352
J351
C380
R470
R812
R813
R814
Q802
R811
Q803
C804
+
J234
J228
R815
Q804
Q805
R817
R816
C826
R818
K
D804
(K)
D422
K
K
D415
Page 11
11
81GF-63E
MOTHER UNIT PRINTED WIRING BOARD. Copper side.
8 9 10 11 121314
I
H
G
F
E
D
C
B
A
Page 10
R502
R512
C540
R539
R562
R561
C640
J346
R1830
E
C
Q912
C1815
D1804
C1825
C1824
R1839
C1813
R1841
+
R1837
+
C1812
J70
R615
K D509
R642
D404
K
C739
K
D710
R712
K
D729
R775
R774
K
D733
K D732
R777
R770
R776
Q717
+
R787
Q708
R738
C725
R737
J344
R771
R703
R778
R721
D734
D731
R708J17
C728
R732
IC701D706
K
R740
Q714
J313
R788
R789
C704
D704
D703
POR701
5
(STB2)
C632
+
L605
JF50
JF51
R619
J317
R735
J334
+
C721
J321
D722
FB703
FB704
F701
C701
L611
R614
C637
L612
C638
R536
(H)
J326
JF48
K
D502
C1810
R722
D715
K
FB1002
C1015
C738
C1823
+
C1806
C1804 R1819 R1825
J327
D712
R716
R719
Q703
K
D730
C713
Q702
R720
D720
C720
+
C631
R762
R768
D727
K
D716
C501
+
R509
C723
+
D721
K
R520
C641
C611
C642
C639
C715
FB501
R503
R643
C509
+
C515
3
21
(A)
R750
R744
R634
C633
C526
+
C707
+
2
D724
K
TP602
TP601
C530
L502
D718
R743
R1820
22
R1831
C770
L609A
J207
L609
B
E
R540
L603
C506
C714
C711
FB702
D711
J69
F7240BMNF
C522
C510
1
R1037
R1036
C513
R513
R1039
R1040
R1038
R1048
R742
IC706
J67
J68
R723
C716
C717
J132
6
4
3
1
IC705
6
4
3
1
IC704
IC703
1
3
4
6
+
C706
R790
R791
9
81
IC702
R733
IC502
R511
L501
J210
J208
21
(F)
Q601
Q602
L701
Q701
Q404
R435
IGITAL
C408
R409
12
11
10
9
8
7
6
5
4
3
2
1
T601
T701
1
9
10
18
S702
S703
LP701
D1002
D1001
S704
S705
(AV)
S701
4
3
2
1
C712
(CW)
1
D605
D604
C601
C610
D603
FB601
R612
D613
C613
11
JF10
J178
C705
R714
K
D713
R1012
J5
J6
Q1002
Q1003
J701
(K).
R717
J209
(YC)
JF1001
JF1002
JF1003
JF1004
JF1005
JF1006
JF1007
JF1008
KD403
J281
JF1
Q605
E
B
J171
L606
D621
Q604
R623
D606
R641
R609
J172
JF16
0
C718
J33
J99
R728
C719
K
D420
R407
R613
R749
J173
+
R1808
Q906
Q905
Q902
R1804
R1803
Q901
R1813
Q909
R1815
C1808R1835
R1816
Q908
R1802
(H).
1
R752
Q711
R754
Q712
Q710
R755
R751
K
D725
R758
C731
C732
C733
IS INDICATED WITHTHE ACTIVE SECTION
CAUTION
THE " " SYMBOL
CF701
R736
R739
J4
+
K
D620
R533
J177
J176
J175
J174
R616
D610
J134
J133
J101
+
C616
C505
C508
C534
D702
C703
R715
C710
R741
T702
J10
R1017
R792
L703
L702
M1000
Q904
R1807
Q907
R1812
R1814
C1805
C1820
Q903
R1809
R1805
2
D608
JF9
JF8
D609
J306
C634
JF29
R724
R718
J316
R603
R518
C635
L604
R765 R766
KD726
R553
C504
J284
JL14.
R402
R408
D402
K
K
D401
R401
(AV).
1
R1840
D612
+
C607
R617
K
D614
R606
D1809
R1833
+
C620
+
J264
KD504
+
C619
R610
D1805
K
+
C1807
D719
R611A
R611
J100
J320
D421
K
C528
D728
K
C737
K
D619
JF15
R608
R628
R607
R605
C730
JF47
JF46
529
R625
L601
R627
R730
R713
FB701
(MO)
C516
C517
R527
K
D506
D515
K
C525
K
D503
R646
C646
R648
R647
C645
D516
Q709
6
4
3
1
IC708
R763
C611A
C618
C740
R707
IC707
18
9
16
R748
R711
J340
D714
C722
R706
R727
J85
J86
JF28
FB705
L705
C735
C741
R747
C742
JF53
JF54
.
.
(G)
12
C702
R769
D707
R767
C724
+
Q715
D701
D708
C745
C442
C527
C746
R746
R745
C743
JF57
JF56 D624
K
(EW)
1
D611
R601
JF55
FB603
Q603
JF24
R538
R537
R560
R525
Q506
R558
C538
R556
C518
R524
R557 C537
R555
R559
C539
3
C648
C1811
422
D415
Page 12
12
81GF-63E
1
I
H
G
F
E
D
C
B
A
2
3
4567
POWER SWITCH UNIT PRINTED WIRING BOARDS.
AF7305BMN0
K7305BM
IC6701
LP6701
OPC ST
R6751
S6701
D6751 D6752
S6705
S6703S6702
R6701
R6702
D6702
1
2
3
(H)
F6701
(PW)
3
1
(A)
21
D6701
RCSW2SW1
S6704
OPC1
ESPA¥A
A
F7305BMN0
LP6701
OPC
ST
R6751
S6701
D6751
D6752
S6705 S6703 S6702
R6701
R6702
D6702
(H)
1
2
3
F6701
21
(A)
D6701
RC SW2
SW1
C6702
C6703
C6705
S6704
C6704
R6739
R6738
C6715
Page 13
13
81GF-63E
1
I
H
G
F
E
D
C
B
A
234567
FRONT A/V UNIT PRINTED WIRING BOARDS.
CENTRAL SPEAKER UNIT PRINTED WIRING BOARDS.
R449
JF3
JF2
JF1
C429
C428
(FV)(CC)
(SS)
L318
J401
C336
C337
R317
R316
CN4
L317
(J)
1
3
F7306BMN0 A
A
31
(VS)
+
C1306
C1313
C1309
R1311
R1307
R1304
R1308
IC1300
C1310
+
C1302
Q1301
R1312
C1312
C1307
1
(SB)
6
IC1302
1
C1311
R1313
(SF)
1
JF1
R1309
10
R1303
L1303
D1303
D1304
L1302
C1315
R1302
R1301
JF2
JF3
(CS)
C1304
C1314
R1315
C1316
L1301
C1317
J1
C1303 R1310
C1308
J2
R1314
+
C1305
F7285BMN1
A
3
(VS)
1
+
C1306
C1310
+
C1302
1
(SB)
6
IC1302
10
(SF) 1
K7285BM
F7285BMN1
L1303
D1303
D1304
L1302C1315
1
(CS)
C1314
C1316
L1301
+
C1305
C1309
Q904
R1807
Q907
R1812
C1820
J79
C1801
J78
R1801
R1840
J77
Q1603
R1622
Q1604
Q5405
(Q)
C1805
C1807
+
C1824
R1833
R1835
C1810
R1831
C1808
J76
R5426
F7273BMN2
Q5410
R5431
C5405
A
L1604
R1834
CRT
12
11
10
9
8
7
6
5
4
R5423
R5428
R5415
R5422
R1805
K
D1607
R1617
+
C1613
+
J74
J71
R1804
R1802
C1822 D1810
K
(B)
C5411
J70
D1809
R1821
R1822
R1832
C1814
R1836
C5414
D5405
R5425
Q5407 BE
K
D1805
C1821
R1809
Q903
R1810R1811
R1814
+
C1811
Q908
R1816 R1815
Q909
R1813
Q901
R1803
Q902
Q905
Q906
R1808
R1818
C1803
R1824
R1823
R1817
C1802
R1806
J327
R1825
R1819
C1804
C1806
+
C1823
Q912
C
E
R1830
C1815
R1841
R1839C1813
5
(H)
9
(K)
1
L1801
C5412
+
R5416
(MO)
R5417
C5408
R5418
R5419
C5410
K
D5410
R5413
J75
R5414
R1618
C1611
R1615
R1624
C5409
R5412
1
IC1601
C1609
+
C1809
D5404
R5420
R5424
E
B
Q5408
C5415
J73
Q5406
C5417
D5403
K
R5421
(PU)
13
R1619
C1608
+
R5434
Q5412
R5432
L1603
Q5411
R5433
R5435
R1620
C1812
+
C1825
R1837
C1610
R1616
+
A
J78
R1623
(Q)
1
D5412
D5411
R1621
F7273BMN2
K7273BM
C1807
+
C1824
ESPA¥A
R5426
C5405
L1604
R1834
(RT)
CRT
4
10
11
12
9
8
6
7
5
R5423
R5428
R5422
(L2)
+
C1612
C1613
+
J72
1
(B)
J70
D1809
R1821
R1822
R1832
C1814
G2
R1836
C5414
D5405
R5425
Q5407
BE
(L3)
+
C1811
R1820
J327
+
C1823
C
Q912
E
D1804
R1841
5
(H)
9
(K)
1
L1801
C5412
+
(MO)
C5408
14
2
1
15
IC1801
C1609
+
D5404
R5420
EB
Q5408
C5415
J73
C5417
R5421
1
(PU)
3
C1608
+
L1603
(L2)
C1812
+
C1825
+
C5413
CRT MODULE UNIT PRINTED WIRING BOARDS.
R449
(FV) (CC)(SS)
L318
J401
K7306BM
CN4
426
5317
L317
(J)
F7306BMN0 A
Page 14
14
81GF-63E

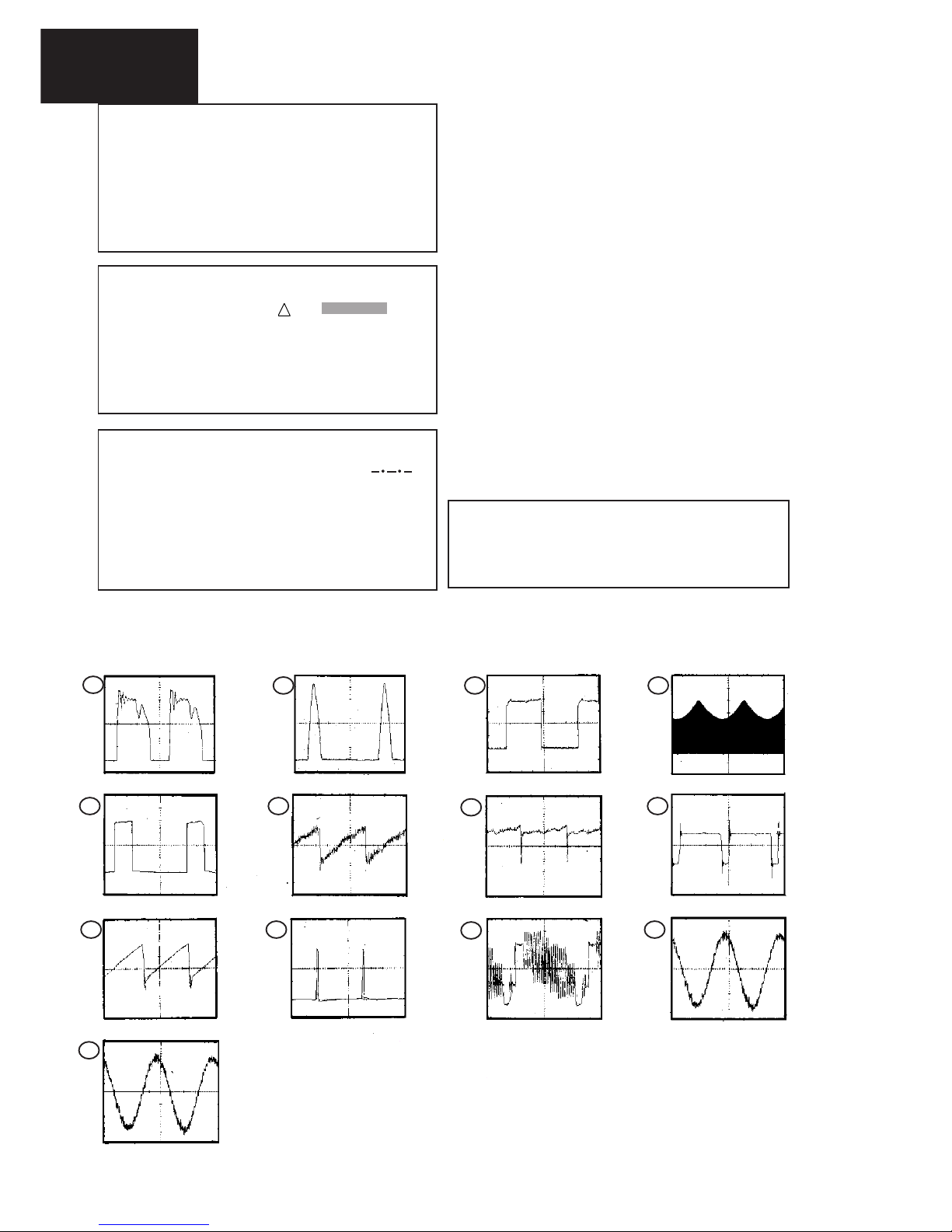

DESCRIPTION OF SCHEMATIC DIAGRAM
1. The unit of resistance «ohm»is omitted (K=1000 ohms. M= Megaohm).
2. All resistors are 1/8 watt. unless otherwise noted.
3. All capacitors are
µF, unless otherwise noted
(P=
µµF).
4. The capacitor with Part No. RC-FZ9XXXBMNJ is designed to with stand 63V.
NOTE:
SAFETY NOTE:
1. DISCONNECT THE AC PLUG FROM THE AC OUTLET BEFORE REPLACING PARTS.
2. SEMICONDUCTOR HEAT SINKS SHOULD BE REGARDED AS POTENTIAL SHOCK HAZARDS WHEN THE CHASSIS IS OPERATING.
IMPOTANT SAFETY NOTE:
PARTS MARKED WITH « » ( ) ARE IMPORTANT FOR MAINTAINING THE SAFETY OF THE SET. BE SURE TO REPLACE THESE PARTS WITH SPECIFIED ONES FOR MAINTAINING THE SAFETY AND PERFORMAN­CE OF THE SET.
SERVICE PRECAUTION:
THE AREA ENCLOSED BY THIS LINE ( ) IS DIRECTLY CONNECTED WITH AC MAINS VOLTAGE. WHEN SERVICING THE AREA, CONNECT AN ISOLATING TRANSFORMER BETWEEN TV RECEIVER AND AC LINE TO ELIMINATE HAZARD OF ELECTRIC SHOCK.
CAUTION This circuit diagram is original one, therefore there may be light difference from yours.
215 Vp-p 50Hz
45 Vp-p 113 KHz FM
WAVEFORM MEASUREMENT CONDITION:
Colour bar genetator signal of 70 dB from RF input.
1
2
3
4
5
6
7
8
9
10
11
12
13
580V
1.3 KV 15.625KHz
4 Vp-p 15.625KHz
41 Vp-p 15.625KHz 1.8 Vp-p 50Hz
3.3V 50Hz
19V 50Hz
20.5 Vp-p 50Hz
400Hz1.15 Vp-p
15.625KHz
400Hz
Page 15
15
81GF-63E
1
I
H
G
F
E
D
C
B
A
234567
DINAMIC FOCUS UNIT SCHEMATIC DIAGRAM.
POWER SWITCH UNIT SCHEMATIC DIAGRAM.
12
345
54321
(F)
0505
(FF)
0505
C1602 470pF
2Kv
C1601
330pF
2Kv
T1602
NZ0575BM
R-Z0001BM
C1603 1000 pF
2Kv
FOC
FOC IN
G2
R1601
180.
1/2W
D1601 EX0431BM
D1602 EX0411BM
L5
(EW)
GN0241
Q1601 TIP32
M6701
11 122233 3
123
RC
+5V
GND
+5V
GND
LED
23
OPC
LEDOPC
+5V
+5V
+5V
1
3
2
RRMCU0228CEZZ
1
(A) GN0207
(M)
GN0304
(SW1)
GN0341
(SW2)
GN0341
(OPC)
GN0341
R6701 120K
1/2W
R6702 120K
1/2W
S6702
KZ0079
S6703
KZ0079
S6704
KZ0079
S6705
KZ0079
S6701
P0600
F6701
FS-C3226
D6751 PX0105
1 2
3
D6752 PX0105
1 2
3
R6738
100
R6739 100
(ST)
GN0341
LP6701 P0001
(RC)
GN0341
Page 16
16
81GF-63E
123 123 123 321123
VS
+5V
+3.3V
+3.3V
+3.3V
+3.3V
+5V
+5V
+5V
+3.3V
+3.3V
+5V
+5V
+3.3V
+5V
+8V
+16V
-16V +5V
+150V
1
2
3
OPC
LEDOPC
LED
LEDOPC
PAGC
LED
OPC
RU R2
G2
A16
B2 A17
BLU A18
A19
TLTXT
ALCLOCK
AFT2
AFT1
PAFT
PROT
SCL
SDA OE
CAG
BU
GU
HB
AL
AL
RS
PROT
GNDU
VS
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
R733
47K
R712
560
FB701
LN0037
R728
180
(1/2W)
R715
47K
5W
C731
10nF
C702
10nF
250V
KZ0029
(G)
PLGN0207
C705
EZ0119
220uF
(385V)
R714
560K
(1/2W)
R713
560K
(1/2W)
D703
DX0555
RF2005
D704
DX0555
RF2005
D701
DX0555
RF2005
D702
DX0555
RF2005
C724
220uF
(16V)
D706
DX0551
R740
47K
R789
18K
R788
18K
CF701
C0121
Q709
2SC2412
D711
DX0539
BYT52M
R711
1K8
R1017
3K3
D721
C8V2
EX0550
R727
180
(1/2W)
C718
1000uF
(25V)
C719
1000uF
(25V)
FB703
LN0037
R1033
10K
D725
DX0551
Q710
2SC2412
R758
100
R754
2R7
C1022
100nF
R1001
3K3
R1002
3K3
R1052
4K7
R1032
27K
Q1005
2SC2412
R1026
220
R2406
2K2
R2407
2K2
C1021
100nF
C2404
100nF
X2401
B0214
D718
DX0603
RGP15D
D719
DX0603
RGP15D
C707
100uF
(16V)
R1048
820
R751
1K
R790
18K
R791
18K
R1022
100
R763
100
(1/2W)
XZ0224
Q711
BC547
TX0106
C710
47nF
400V
FZ0156
T702
BTW34
VHDBT34F
D2401
EX0539
3V
D724
C2V7
EX0538
D730
DX0551
FB702
LN0037
POR701
P0001
D720
DX0587
MR826
X1002
17.734MHz
B0200
L701
F0108
R792
6K8
R755
390
R1037
4K7
R1036
4K7
IC708
FX0111
Q712
2SC2412
D728
R1055
47K
C1019
47pF
Q701
C711
330pF
2KV
KZ0036CE
J62
3.3uH
(DF)
R739
47K
R1035
4K7
C737
1uF
(16V)
R1050
220
C1034
10pF
R1020
3K3
R1018
100
R1023
220
D1003
DX0606
BAS85
IC703
FX0106
MOC8106
5
12
4
R2410
100
R2411
100
R2412
100
C1025
15nF
C1024
15nF
C1023
15nF
R716
(RC)
GN0341
(ST)
GN0341
F701
C706
22uF
(16V)
FB1002
LN0037
C1017
100nF
(HB)
R767
10K
R738
47K
R737
180K
R777
47
D729
47V
EX0568
R708
1K
R1059
100
R1058
100
R1019
3K3
R1041
4K7
R1004
3K3
J39
3.3uH
(DF)
(SV)
GN0341
C704
KZ0165
3.3nF 250V
R770
270
XZ0229
(1/2W)
R771
470K
(1W)
D732
15V
EX0556
D733
DX0551
R774
470K
(TQ)
R775
470K
(TQ)
R776
82K
R736
470K
R735
470K
Q715
2SK2715
TX0215
D707
DX0502
1N4005
D708
DX0502
1N4005
D710
EX0545
5V1
LP1001
R721
150K
D731
DX0502
1N4005
D734
DX0502
1N4005
R703
150K
(SW1)
GN0341
(SW2)
GN0341
(AA)
CM0672FC
C701
0.1uF
(250V)
C703
KZ0165
3.3nF 250V
R769
820
C746
0.1uF
(250V)
(OPC)
GN0341
C1027
470uF
(10V)
C1032
47uF
(10V)
C1002
100nF
R1029
4K7
R2401
470
D1005
EX0545
5V1
C733
10nF
R1030
4K7
IC702
ST6203
IX1646
VDD1OSCIN2OSCOUT3NMI4TEST5RESET6PB77PB6
8
PB59PB310PB111PB012PA313PA214PA1
15
VSS
16
IC1003
X24645
IX1603
NC1S12S23VSS
4
SDA5SCL
6
WP
7
VCC
8
8
7
3
T701
RTRNZ0578BM
17
IC1001
ST10R272LIX1686BM
P5.131P5.14 AFT12P5.15 AFT23VSS4XTAL15XTAL26VDD73.083.193.2 MICRO OUT103.3 LED OPC113.4 AGC OUT123.5 ABL133.6 LEDST143.7 OPC IN153.8 AV LINK163.9 CAG173.10 M3CLK183.11 M3LDA193.12 I2CEN
20
A19
26
VSS
27
VDD
28
A20
29
A21
30
A22
31
A23
32
RD
33
WR/WRL
34
READY
35
ALE
36
EA
37
VDD
38
VSS
39
RPD
40
P5.12
100
P5.11
99
P5.10
98
P7.3 PAFT
97
P7.2 SDA2
96
P7.1 PROT
95
P7.0 SCL1
94
P2.11 SDA1
93
P2.10 AVLINK
92
P2.9 IR
91
P2.8
90
P6.7
89
P6.6
88
P6.5
87
P6.4 SCL2
86
3.13 SERV DATA21P3.1522A1623A1724A18
25
R1064
100
D1011
EX0408
5V1
IC1004
X24645
IX1603
NC1S12S23VSS
4
SDA5SCL
6
WP
7
VCC
8
Q1003
2SC2412
Q717
2SC2412
D1004
EX0545
5V1
L703
L702
C1020
68pF
C2401
22pF
C2402
22pF
Q708
2SC2412
C2403
100nF
C1001
470uF
(6.3V)
C725
4.7nF
(HB)
R787
47K
C728
100nF
R1031
4K7
Q1002
2SC2412
IC704
FX0106
MOC8106
5
12
4
C732
10nF
C730
10nF
R1028
1K
Q714
2SA1037
C739
220uF
(16V)
IC701
PST529
.
2
.
1
.
3
R2409
(0)
1
1
I
H
G
F
E
D
C
B
A
2
3
4567
Page 17
Page 18

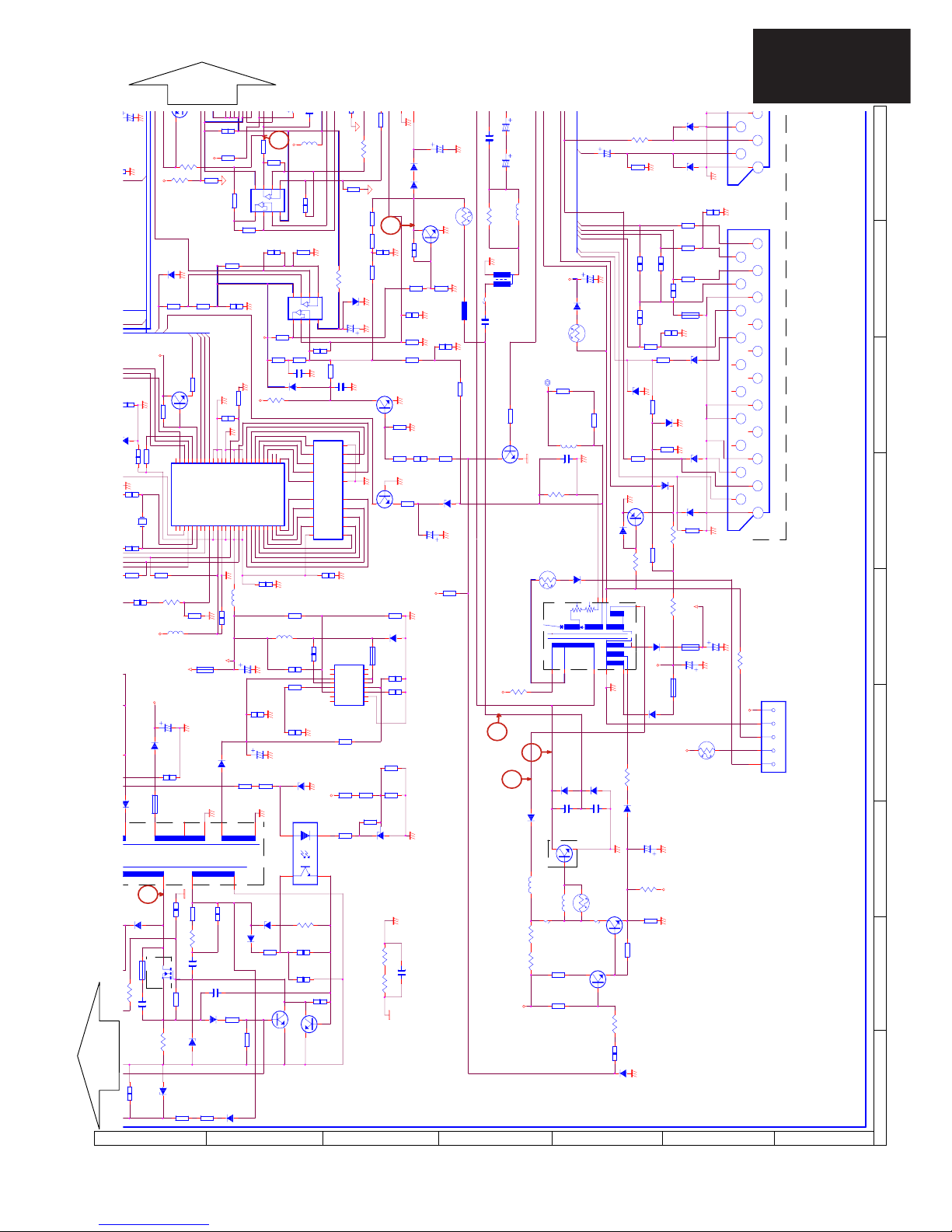

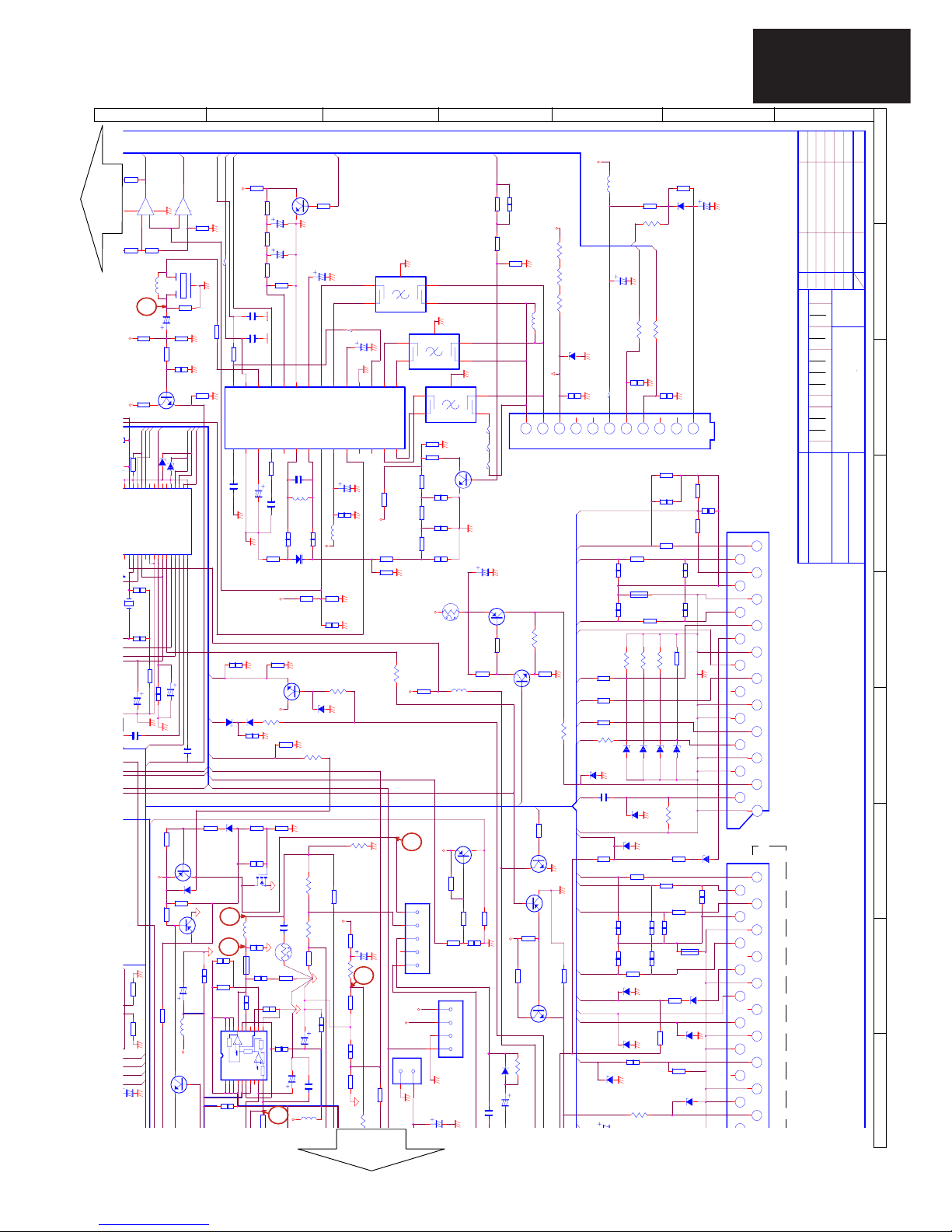

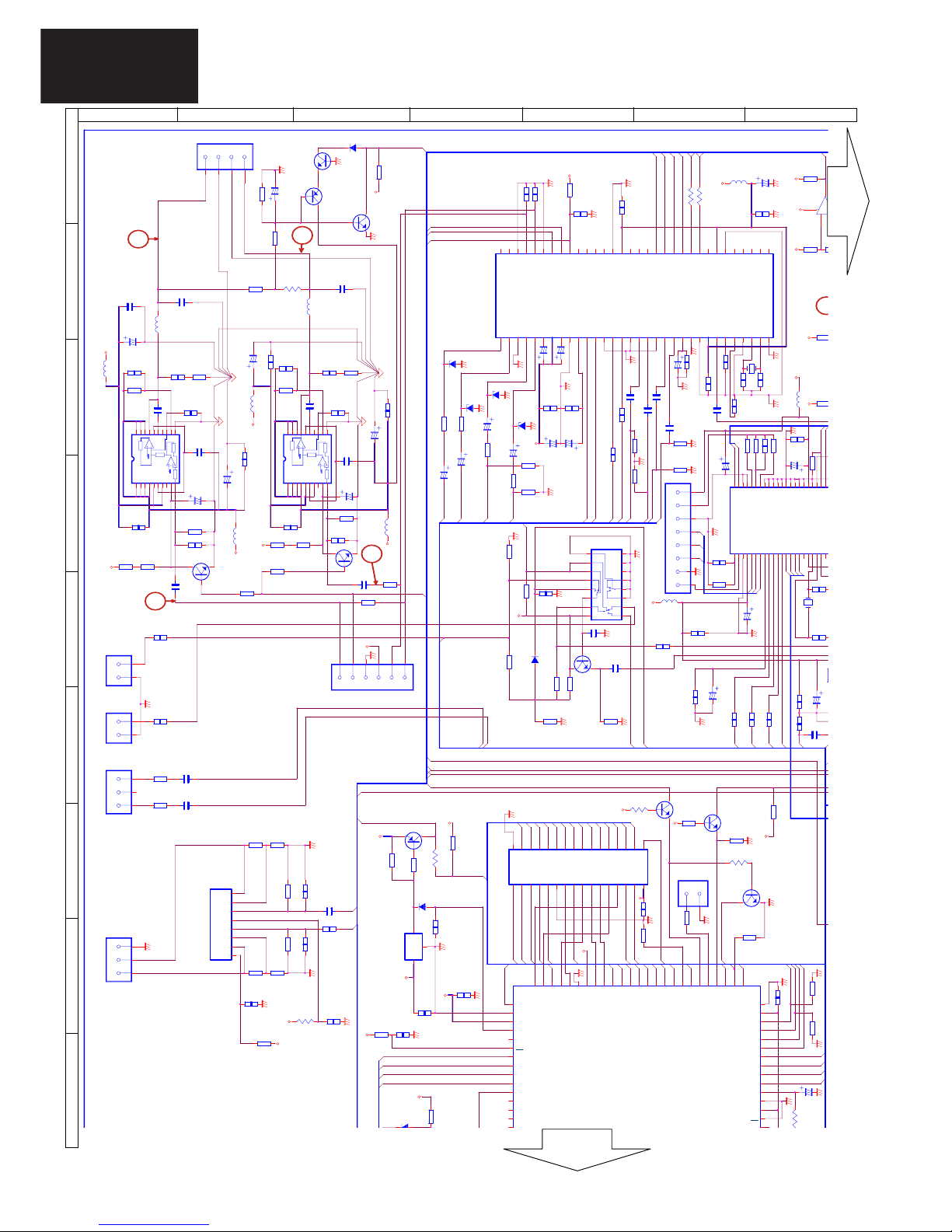

MOTHER UNTI SCHEMATIC DIAGRAM (00 Version).
Page 17
17
81GF-63E
1234
+13V
Vf
GND
V OUT
V IN
R OUT
L OUT
R IN
L IN
SS
V OUT
V IN
5
+175V
+150V
+5V
+5VB
+5V
+150V
+5V
+150V
+5V
-19V
+13V
+13V
+150V
-13V
+20V
+5V
+5V+150V
+5V
+5V
-13V
PROT
BLU
RU
SC3INR
SC3INL
OE
VI2
CAG
GU
BU
S
AV3
SC1OUTR
SC1OUTL
VI3
S
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
L605
Z0720
R720
10K
R722
33
JF1
L606
150uH
P0237BM
R539
3K3
R402
75
R404
100
R406
100
17
19
18
20
17
19
13
15
9
11
5
7
1
3
2
4
6
8
10
12
14
16
18
20
R6231(2W)
R607
12K
C515
680pF
R522
2K2
D715
DX0551
D713
DX0551
D712
EX0419
C15
C713
68nF
C712
100pF
(1/2W)
D711
DX0539
BYT52M
R745
1K8
(1%)
R750
1M
FB703
LN0037
J152
J1023
C2404
100nF
R2402
4K7
X2401
B0214
20.48MHz
R2408
3K3
R2403
1K5
Q2401
2SC2412
R2404
56
R2405
100K
R537
8K2
R627
180
(TQ)
L601
3.3uH
R625
180
(TQ)
R614
10K
(1/2W)
C606
100nF
(HB)
R768
220
(TQ)
D727
DX0551
R719
220
L2
M0017CE
R401
75
R405
100
C401
100pF
C404
100pF
R403
100
R4
R40875(1/4W)
R603
330
D510
DX0505
1N4935
R508
680
R455
10K
R643
1
(1/2W)
XZ0200
R61222(1/3W)
XZ0116
IC706
TL431
IX1674BM
C715
330pF
Q702
TX0182
2PD602AR
D401
EX0549
7V5
D402
EX0549
7V5
D40
EX0
7V5
D404
EX0549
7V5
D2401
EX0539
3V
D506
DX0551
D412
DX0551
Q601
TX0144
BUH515
D611
DX0505
1N4935
FB702
LN0037
R717
22K
C520
470uF
(35V)
D720
DX0587
MR826
D604
DX0301
BY299
D603
DX0299
BY228
C720
EZ0258
100uF
(200V)
21
C532
100pF
R534
27K
CN2
CZ2107BM
21
D502
DX0551
D504
DX0551
R549
27K
D414
DX0551
D608
DX0505
1N4935
F601
J2521
D621
1N4936
DX0506
R616
2.7
(1W)
D610
DX0503
1N4933
R762
220
(TQ)
D728
C4V7
EX0544
F602
J2521
D609
DX0505
1N4935
J248
120 (1/2W)
R451
120
(1/2W)
R456
15K
R452
22K
1%
D415
6V2
EX0547
R526
4K7
C437
47uF
C514
33nF
R723
270
(1W)
Q701
TX0198
S5F10N80
C714
82nF
C711
330pF
2KV
KZ0036CE
Q602A
TX0192
(KSC2500)
R619
560
(1/2W)
R605
470
Q603
2SC2412
D612
R601
3K9
(16V)
C1034
10pF
C738
56pF
Q703
TX0151
2SD2391Q
IC705
FX0106
MOC8106
5
12
4
R624
5.6
(2W)
(LU)
R608
1K
(1/4W)
R716
.27
1W
D716
EX0411
6.8V
R617
XZ0216221/2W
R743
47K
(1%)
TQ
R744
47K
(1%)
TQ
C1017
100nF
(HB)
J701
100nF
(HB)
C528
10uF
(63V)
R533
820
(1/4W)
R540
4K7
C527
100nF
L604
P0284BM
1 3
2
C518
10pF
C522
100nF
R513
220K
L503
3.3uH
(CF)
R544
1K
C530
10nF
R545
100K
R556
10K
R555
330K
JF50
R519
100K
1/2W
R765
100
(TQ)
R766
100
(TQ)
R724
270
(TQ)
C525
5K6
R610
XZ02001(1/2W)
R706
20K
D714
MBR340RC
DX0605
FB705
LN0020
R707
9K1
L2402
10uH
(DF)
L705
PCV1620
P0285
L603
P0286
12
R558
(0)
R811
10K
R812
2K2
(H)
C403
220pF
R646
820R
C613
470nF
(250V)
C611
680nF
(200V)
R747
2K7
L609A
1.2uH
(CF)
C601
12nF
1.7Kv FZ0171
C610
33nF
(850V)
FZ0172
D722
1N4934
DX0504
R552
(0)
R
C619
2.2uF
(160V)
+105
C620
2.2uF
(160V)
+105
C722
100nF
(HB)
C717
15nF
(HB)
C716
3.3nF
(HB)
C742
68nF
(HB)
Q606
2SC2412
C770
KZ0106 3N3 4KV
R515
1K2
C516
270pF
R647
15K
R718
18 (TQ)
R730
100
(1W)
R512
3K3
R746
18K
FB301
LN0037
R530
XZ0212
10R
(1/2W)
R1008
3K3
C2406
100nF
C2407
220nF
C721
470uF
(35V)
EZ0132
C644
220uF
(16V)
R521
5K6
R454
330
C1032
47uF
(10V)
C531
10nF
(HB)
R628
1K
(1/4W)
R527
1K
D601
DX0551
R2401
470
R509
39K
L2401
3.3uH
(DF)
C406
390pF
IC2401
IX1709BM
SDA5273
CLK1TSCQ2VS3HS4XOUT5XIN6GPO7TM8CVBS9VDD_110VDDA11VSSA_112VDD_213RES14VDD_315VREF16VDD_417A818A719A620A521A422A323A224A125A0
26
INTQ
52
I2CEN
51
M3LDA50M3CLK
49
CORQ
48
BLAN
47
B
46
G
45
R
44
VSS_1
43
RGB_GND
42
VSSA_2
41
VSS_2
40
VBB
39
VSS_3
38
CASQ
37
VSS_4
36
D335D234D033D1
32
WEQ
31
RASQ
30
A1129A10
28
A9
27
IC707
L4978
IX1704
1
1
GND
2
SS
3
OSC
4
OUT
5
OUT
6
7
7
8
8
9
9
10
10
VCC
11
BOO
12
COM
13
FB
14
15
15
16
16
3
4
5
6
1
2
12
15
14
T601
NF2065
2
345
6
9
7
1381
10
+VS
-VS
IC503
BA10393
IX1556BM
876
54
321
+VS
-VS
IC502
BA4558
876
54
321
R1061
4K7
R560
68K
R559
8K2
(EW)
R650
5K6
D623
9C27
C405
220pF
C537
4.7nF
(HB)
C402
390pF
Q501
2SC2412
Q802
2SC2412
R642
470
IC2402
KM44C1000DT IX1656BM
D0
1
D1
2
WR
3
RAS
4
NC
5
A0
9
A1
10
A2
11
A3
12
A5
15
A6
16
A7
17
A8
18
OE
22
CAS
23
D2
24
D3
25
VSS
26
A4
14
VCC
13
RA6111K2W
C735
2.7nF
(HB)
R742
8M2
1/2W
C2405
220nF
C642
68nF
R453
18K
1%
C2401
22pF
R741
8M2
1/2W
Q406
2SA1037
C2402
22pF
C2403
100nF
R748
4K7
C741
100nF
D421
4V7
EX0544
R407
75
D726
12V
EX0554
C740
22nF
R514
270
D515
C4V7
EX0544
D413
B6V2
EX0584
(2%)
C645
27nF
(HB)
C723
2200uF
(10V)
C616
470uF
(35V)
D1006
5V6
EX0546
R538
27K
C632
470uF
(25V)
C607
330uF
(10V)
R532
10K
D509
DX0551
C743
100nF
C2408
100nF
Q506
2SK2963
C539
1uF
C526
10uF
R5241KR525
10K
1
2
3
4
5
7
8 9
10
11 12 13 14
I
H
G
F
E
D
C
B
A
Page 16
Page 19
MOTHER UNTI SCHEMATIC DIAGRAM (00 Version).
Page 18
18
81GF-63E
123 1212123
12345678
65432
1
PROT
+5V
+3.3V
+3.3V
+5V
+16V -16V
+3.3V
+5V
+3.3V
-16V
+5V
-16V
+5V
+16V
+16V
+5V
+5V
+8V
+5V
+5V
+3.3V
+3.3V
+3.3V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+8V
+5V
1
2
123
4
SC2OUTR
SC2OUTL
SC4INL
SC4INR
A15
D3
D4 D2
D5 D1
D6 D0
D7 A0
A12
A1
A2
OE A3
A4
SC4INLA5SC4INR
A6
A7
A7 SC3INL
A12
A6 SC3INR
A17 A15
A5 SC2INL
A18 A16
A4
A3 SC2INR
SC1INL
A2 I2SIN
A19 SC1INR
A1 I2SOUT
A0 I2SWS
I2SCL
H SDA
SCL
L/L'
BG/L R EW
VERT
SELFI
G RO
GO
BO
B
FB
R2
D7 G2
D6 B2
D5 BL1
D4
SELV D0
AV1 D1
AV2 D2
D3
HEADL
HEADR
MUTE
TLTXT
RES2
SCL
SDA
AGC
GO
BO
RO
ISEN
RES2
HEADL
HEADR
MUTE
VFRONT
H
SELV
SF
AFT1
VPROT
+5V
RS
HB
AL
AV3
SC1OUTR
SC1OUTL
GND
GND
GND
VI3
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
..
.
..
.
.
.
.
C351
220uF
(25V)
R350
10K
R353
150
R357
150
R358
100K
R361
10K
C350
100nF
L350
3.3uH
(CF)
C354
100pF
C360
560pF
C375
560pF
R1042
8K2
R1046
1K8
R362
4K7
L352
P0278
L353
P0278
R303
100
R301
100K
R372
10K
R373
10K
R1047
10K
R1032
27K
C1018
100nF
R1024
8K2
R1025
8K2
R359
100K
R315
100
R308
100
R312
22K
C320
1nF
R314
100K
C341
220nF
R309
22K
R311
100K
C319
1nF
C340
220nF
C353
100nF
R352
12K
C361
470nF
(FZ)
R360
10K
C376
470nF
C358
100nF
C357
1nF
R375
47K
C362
2.2uF
L351
3.3uH
(CF)
C363
220uF
(25V)
C364
100nF
C365
220uF
(25V)
L315
3.3uH
(CF)
C366
100nF
C368
100nF
C373
100nF
C369
100pF
C379
100nF
C367
100nF
R363
4K7
R355
27K
L316
3.3uH
(CF)
C371
1nF
R445
100K
R465
10K
D419
DX0551
R461
100K
R458
1K
C812
22uF
C804
3.3uF
C813
3.3pF
C821
680nF
Q305
2SC2412
R376
4K7
R302
100K
C342
10uF
R319
100
C343
10uF
R320
100
C326
10uF
(16V)
C323
330nF
C327
100nF
C330
47pF
C335
5pF
C334
5pF
X301
B0203
18.432
L801
3.3uH
(CF)
R803
1K2
R622
10K
R804
270
R805
2K2
C809
1nF
C321
100nF
R307
100
R306
100
L301
10uH
(DF)
L201
12uH
R1054
100K
R1043
8K2
C432
1uF
(16V)
C317
330nF
R210
L803
3.3uH
(CF)
C819
1nF
R801
10K
R1049
10K
R1044
10K
Q1004
BC287
R1021
4K7
C814
6.8
p
F
1055
47K
R323
100K
R318
100K
R321
100K
C229
R25822(TQ)
D301
DX0551
Q303
2SC2412
Q304
2SA1037
D1009
DX0551
C1033
68nF
D801
R467
33K
(TQ)
C352
100nF
FB802
RF0003
D1003
DX0606
BAS85
C305
10uF
(16V)
C306
10uF
(16V)
D303
7V5
EX0549
(S)
GN0441CE
C807
220nF
C808
220nF
R356
10K
R448
220
C431
330nF
R447
220
C430
330nF
C451
10nF
(HB)
Q306
2SC2412
C378
220uF
(25V)
D305
7V5
EX0549
C313
10uF (16V)
C314
10uF (16V)
C311
330uF
(10V)
C315
3.3uF
C318
330nF
C322
330nF
C324
330nF
C325
330nF
C801
100nF
C377
10uF
R1005
4K7
C803
100nF
C822
680nF
R1003
3K3
R1027
10K
R1045
8K2
Q1006
2SC2412
R1057
1K
(RT)
GN0241
Q1007
2SC2412
R1053
100K
C434
220nF
X801
20.25MHz
B0219
C802
10uF
C356
15nF
C370
15nF
(SB)
CN0685CE
C359
4n7
(HB)
C374
4n7
(HB)
C329
47pF
(SS)
GN0341
(CC)
GN0241
(FV)
GN0241
D304
7V5
EX0549
R322
100K
(K)
R354
10K
R209
3K3
C1032
47uF
(10V)
R208
1K
Q408
2SC2412
C331
100nF
D302
7V5
EX0549
C332
330uF
(10V)
Q302
2SC2412
C338
100nF
R254
12K
IC1001
ST10R272L
IX1686BM
ALE
EA
37
VDD
38
VSS
39
RPD
40
D0
41
D1
42
D2
43
D3
44
D4
45
A1475A1374A1273A1172A10
71
VSS
70
VDD
69
A968A867A766A665A564A463A362A261A160A0
59
P0H.7
58
HOUT
57
RES2OUT
56
P2.8
P6.7
89
P6.6
88
P6.5
87
P6.4 SCL2
86
P6.3 SELV
85
P6.2 SLW1
84
P6.1 SLW2
83
P6.0 SLW3
82
NMI
81
D5
46
D6
47
D7
48
VDD
49
VSS
50
SELFI
51
BG/L
52
L/L'
53
RESOUT
54
ROT OUT
55
A15
76
VSS
77
VDD
78
RSTIN
79
RSTOUT
80
IC304
M5218L
+12V
8
OUTL
7
-INL
6
+INL
5
GND
4
+INR
3
-INR
2
OUTR
1
IC1002
27C4000
IX1664
VPP
1
A162A153A12
4
A75A66A57A48A39A210A111A0
12
D721E22A1023OE24A1125A926A827A1328A1429A1730A1831VCC
32
D013D114D2
15
VSS
16
D317D418D519D6
20
E
VEE
VSS
VDD
IC401
HEF4053B
IX1602
1
2
3
4
5
6
7
8 9
10
11
12
13
14
15
16
IC301
TDA7480
123456789
10
201918171615141312
11
IC302
TDA7480
123456789
10
201918171615141312
11
IC305
MSP3410D
IX1636BM
AUD_CL_OUT
1
NC2NC
3
D_CTR_OUT14D_CTR_OUT0
5
ADR_SEL
6
STBY
7
NC
8
SCL9SDA
10
I2SCL
11
I2SWS
12
I2SDAOUT
13
I2SDAIN
14
ADR_DA
15
ADR_WS
16
ADR_CL
17
DVSUP
18
DVSS
19
I2S_DA_IN2
20
NC21NC22NC
23
RESET
24
DAC_R
25
DAC_L
26
VREF2
27
DACM_R
28
DACM_L
29
NC30NC31NC
32
NC64XTAL_OUT63XTAL_IN62TESTIO161ANA_IN2+60ANA_IN-59ANA_IN1+58AVSUP57AVSS56MONO_IN55VREFTOP54SC1_IN_R53SC1_IN_L52ASG151SC2_IN_R50SC2_IN_L49ASG248SC3_IN_R47SC3_IN_L46ASG445SC4_IN_R44SC4_IN_L43AGNDC42AHVSS41CAPL_M40AHVSUP39CAPL_A38SC1_OUT_L37SC1_OUT_R36VREF135SC2_OUT_L34SC2_OUT_R
33
IC801
VDP3120C2
IX1688BMN2
10
VPROT
11
SAFETY
12
HFLB
13
GND
14
VSUPD
15
GNDD
16
PR017PR118PR2
19
PORT220PORT321PORT422PORT523PORT6
24
DSGND
25
RSW226RSW1
27
SENSE
28
GNDM
29
VERTQ
30
VERT
31
EW
32
XREF33SVM34GND35VSUP36ROUT37GOUT38BOUT39VRD40RIN41GIN42BIN43FBLIN44RIN245GIN246BIN247FBLIN248CLK2049HOUT50XTAL151XTAL252VSTBY53CLK5
54
55
R351
27K
C443
100nF
R304
100
+
-
3
2
1
8
C380
47nF
C816
100nF
C811
100nF
C316
100nF
C333
47pF
C312
100nF
C309
1nF
C1014
100nF
R374
47K
C824
10nF
C815
22uF
C310
1nF
R310
1K
C825
10uF
(16V)
R313
1K
C328
100nF
C372
2.2uF
C1028
100nF
Q1001
2SC2412
C339
100nF
C1026
10nF
R459
1K
C438
100pF
(HD)
GN0341
R466
220
C1005
100nF
C447
68pF
IC1005
PST529
.
2
.
1
.
3
11
13
12
12
13
1 2
3
4567
R
Q
P
O
N
M
L
K
J
Page 19
Page 16
MOTHER UNTI SCHEMATIC DIAGRAM (00 Version).
Page 19
19
81GF-63E
8 9
10
11 12 13 14
R
Q
P
O
N
M
L
K
J
Page 18
Page 17
MOTHER UNTI SCHEMATIC DIAGRAM (00 Version).
12345
R OUT
R IN
L OUT
L IN
SS
V OUT
R OUT
R IN
L OUT
L IN
B
SS
G
R
FS
V OUT
V IN
SERVICE
AV LINK
AV LINK
1234
BG/L
L/L`
Hasta INFO
SHARP
NOMBRE CODIGO
ESCALA
MODELO
FECHA REVISIONES N
234
5
6
FECHA
A-1
UNTK7 BMX
29-05-2000
40 2
MOTHER BOARD
81GF63E
REALIZADO VERIFICADO
APROBADO
D
1
2
ELECTRONICA ESPANA S.A.
24-02- 2000
554
17-03- 2000 Ha sta I NFO
600
QK I T P 7 2 4
0
BMNF
1
2
23-05- 2000
Hasta INFO
677
+13V
3V
+13V
-13V
+5V
+5V
+5V
+5V
+5V
+25V
+5V
+5VB
+5V
+33V
+33V
+150V
+5VB
+5V
+5V
+5V
15-05- 2000
Hasta INFO 663
D4
CSY
AFT2
SDA
SCL
RES1
AGC
PAGC
FI
H
AGC
SDA
SCL
D0
D1
D2
D3
ALCLOCK
AV2
SC1INL
SC1INR
AV1
VI1
EW
CSY
SCL
SDA VERT
FI
V11
FB
SF R
G
B
SC2INL
SC2NR
SC2OUTL
RES1
SF
AFT1
PAFT
CIN
VPROT
VPROT
HB
HB
AL
AL
SC2OUTR
SC1OUTL
SC1OUTR
GND
VS
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
..
.
.
2
3
4
5
6
7
8
9
11
R413
100
R431
100
C409
100pF
C411
100pF
C413
100pF
C416
100pF
C417
100pF
17
19
13
15
9
11
5
7
1
3
2
4
6
8
10
12
14
16
18
C534
1nF
JF3
R1024
8K2
R1025
8K2
R510
8K2
C503
100pF
C505
100nF
R528
100K
R504
39K
R505
2K2
R506
120
(TQ)
C506
100nF
R809
10K
R808
10K
(F)
QPLGN0505CEZZ
Q505
2SC2412
L502
3.3uH
(CF)
C502
100nF
FB501
LN0020
C508
560pF
R511
150
R547
3K9
Q507
2SB852
TX0203
D508
DX0551
D507
C12
EX0554
R503
1K
R553
1 (1/3W)
XZ0100
Q503
IRFR010
TX0172
R807
33K
R810
10K
R450
22
R435
1K
Q404
2SC2412
D613
DX0506
1N4936
R409
75
C420
100pF
R432
100K
R433
100K
C421
100pF
R430
100
R429
100
C419
390pF
C418
390pF
FB303
LN0037
R428
100
R419
75
(1/4W)
R420
1K
Q201
2SA1037
R418681/2W
R415
100
R414
100
C414
390pF
C410
390pF
C412
100pF
C408
10nF
R40875(1/4W)
8
C224
100nF
D410
EX0549
7V5
D409
EX0549
7V5
D408
EX0549
7V5
D407
EX0549
7V5
D403
EX0549
7V5
D406
EX0549
7V5
C501
470uF
(25V)
L501
P0271
34
K
C812
22uF
C813
3.3pF
R622
10K
L201
12uH
(DF)
L202
15uH
R219
47K
R216
150
C205
470nF
C204
2.2uF
R246
220K
C221
22pF
D204
BBY40
DX0548
C222
22pF
L204
0.61uH
P0229BM
C228
8.2pF
(500V)
C211
10uF
R245
1K5
R1051
22K
C1030
330pF
R238
220
R237
220
R239
10K
Q208
2SC2412
R247
1K
R217
1K
IC203
IX0037
R231
8K2
1/2W
L203
6.8uH
(CF)
R232
560
R233
560
R241
100K
R242
100K
R243
100K
D617
C24
EX0561
D615
DX0551
C510
100nF
C511
2.2uF
C509
220uF
(25V)
C521
1nF
R549
27K
R249
820K
C415
680nF
R416
22K
1%
D417
6V2
EX0547
R462
18K
1%
R460
18K
1%
D416
6V2
EX0547
R410
22K
1%
R412
100
FB302
LN0037
R210
1K5
FB801
3.3uH
R806
1K
C814
6.8pF
R516
1K
R550
12K
C219
10uF
(16V)
C220
10uF
(16V)
C229
22uF
(16V)
R204
1K
R25822(TQ)
R255
100
Q210
2SC2412
R554
560
D801
7V5
EX0549
D802
7V5
EX0549
Q608
2SC2412
R618
1K
R620
1K
FB802
RF0003
17
19
13
15
9
11
5
7
1
3
2
4
6
8
10
12
14
16
18
20
CN1
CZ2109BM
21
R626
4K7
C818
100uF
(16V)
R203
1K
R463
100
C820
680nF
(MO)
GN0441
R464
220
C822
680nF
20
.
25MHz
B0219
C522
100nF
13
0K
544
1K
R425751/4W
R424
75
R426
75
R427
82
R230
8K2
1/2W
R229
8K2
1/2W
R240
220K
R244
33K
613
70nF
250V)
R613
3K3 (3W)
J231
10K
R548
5K6
C620
2.2uF
(160V)
+105
C817
100nF
(HB)
C223
33nF
(HB)
R535
6K8
C524
100nF
TH201A
RTUNH0139BM
1
Q209
2SC2412
C225
100nF
R205
390
CF202
C0020
JF14
JF6
R234
100
D203
DX0551
C203
100nF
R541
33K
R235
15K
R236
5K6
R502
3K3
R518
1.2 Ohm
(2W)
C217
220pF
C218
100uF
C215
470uF
(10V)
R209
3K3
C1032
47uF
(10V)
R208
1K
R252
18K
Q502
KSA928
TX0201
C512
220nF
C504
680nF
R517
15K
Q403
2SC2412
Q801
2SA1037
R248
1K
R434
1K
R542
8K2
R43610(1/3W)
XZ0112
R253
1K
D1007
5V6
EX0546
R437
470
R509
39K
R254
12K
IC501
IX1786
123456789
10
201918171615141312
11
IX1688BMN2
TEST
1
RESQ
2
SCL3SDA
4
DSGND
5
HCS
6
FSY
7
CSY
8
MSY
9
INTLC
10
VPROT
11
SAFETY
12
HFLB
13
GND
14
VSUPD
15
GNDD
16
CLK2049HOUT50XTAL151XTAL252VSTBY53CLK554GNDF55ISGND56VRT57VSUPF58VOUT59CIN60VIN161VIN262VIN363VIN4
64
IC201
TDA4470
IX1671
SIF1SIF
2
IS
3
GND
4
SAGC
5
VIF6VIF
7
VAGC
8
GND
9
AGC
10
RFAGC
11
VOUT
12
C17PLL18AFC19VCO20VCO21AFC22+V23FM24AM25OFS26SIF227SIF2
28
ST
13
L/L'
14
BL1516
16
R215
10K
R421
150
R422
150
R423
150
+
-
IC202A
BA10393
IX1556BM
5
6
7
(EW)
SF202
C0286BM
K9356M
5
3
2
1
4
10
Q405
2SA1037
C209
100uF
(16V)
+
-
IC202B
BA10393
IX1556BM
3
2
1
4 8
R501
100
1/2W
R257
220
C216
27pF
C206
2.2uF
SF203
L9354
CO289BM
5
4
3
1
2
C643
10nF
R256
22K
D1008
5V6
EX0546
D411
C5V6
EX0546
R644
220
C230
22pF
D405
EX0549
7V5
R226C212C213
L205
610nH
(CF)
SF201
C0278BM
K3953
5
4
3
2
1
100
n
F
C823
820pF
C507
4.7nF
(HB)
D421
4V7
EX0544
R220
47K
C536
47uF
(10V)
D618
C4V7
EX0544
C226
10nF
C617
100nF
Q607
2SC2412
D420
C5V6
EX0546
R251
68K
C227
10nF
R211
1K
C207
10nF
C214
100nF
R507
8K2
C422
47uF
(10V)
C208
22nF
8
9
11
6
7
10
Page 20
20
81GF-63E
1
I
H
G
F
E
D
C
B
A
234567
DINAMIC FOCUS UNIT SCHEMATIC DIAGRAM.
RGB
H.V.
27.5 KV
123
1234567
8
1
345
2
1
234
1
2
3
1
2
+10V
+10V
+10V
FOCUS
+175V
+13V
+150V
+175V
+12V
+13V
-13V
SCREEN
R1806
220
R1811
220
R1816
220
C1801
100nF
C1805
220nF
C1806
10nF
C5405
220nF
R1618
100K
R1617
2K2
C1610
100nF
R1621
100
(1W)
R1623
100
(1W)
C1613
220uF
(25V)
(RT)
GN0241
Q5411
2SC2412
Q5412
2SA1037
Q5410
2SC2412
R1802
390
R1803
75
R1804
100
Q902
2SC2412
Q903
2SA1037
R1805
1K
C1822
22pF
R1801
220
Q901
2SC2412
R1807
390
R1808
75
R18351KC1810
1nF
R1833
1K
C1802
15pF
R1817
1K2
C1803
15pF
R1818
1K2
R1819
1K2
C1804
15pF
Q905
2SC2412
R1810
1K
C1809
1nF
Q906
2SA1037
Q904
2SC2412
R1809
100
C1821
22pF
R1813
75
R1815
1K
Q908
2SC2412
Q909
2SA1037
R1812
390
R1814
100
C1820
22pF
Q907
2SC2412
C1811
10uF
(250V)
C1612
220uF
(25V)
R1624
100
R1620
10K
C1608
10uF
(16V)
R1615
1M
R1616
100K
C1609
10uF
(16V)
R1622
470
R1830
4K7
R5412
47
R5431
390
R5432
33
R1823
2K2
R1824
2K2
R1825
2K2
R5435
330
R5434
1K
R5433
100
R1839
10
C1611
10nF
D1607
C2V4
EX0537
R1820
82K
(1/2W)
R1821
82K
(1/2W)
R1822
82K
(1/2W)
D1809
1N4004
DX0501
D1805
C12
EX0554
C1812
1uF
(250V)
Q1604
2SA1037
Q1603
2SC2412
C1815
100nF
C1807
1000uF
(16V)
C1814
4.7nF
KZ0023CE
(2KV)
R1832
680
(1/2W)
R1834
680
(1/2W)
R1836
680
(1/2W)
C1808
1nF
R1831
1K
(B)
GN0341
(H)
(PU)
N0341
L1801
P0276BM
R1619
47K
C5415
22uF
(160V)
C5410
10nF
C5407
10nF
R5413
22
C5408
4n7
500V
R5415
1K2
R5420
56
(1/4W)
C5414
22uF
(160V)
R5422
2.7
(1/4W)
C5412
100uF
(16V)
R5424
220
Q5407
A1837
R5423
2.7
(1/4W)
R5416
68K
R5417
12K
R5418
68K
R5419
1K2
C5411
10nF
C5409
4n7
R5414
22
R5428
100
(1/4W)
R542156(1/4W)
C5413
100uF
(16V)
Q5408
C4793
(MO)
GN0441
R5425
470
1W
D5403
DX0551
D5410
DX0551
Q5406
2SA1037
Q5405
2SA1037
D5404
DX0501
1N4004
D5405
DX0501
1N4004
D1804
DX0505
Q912
TX0130
C1825
10nF
250V
C1824
4,7nF
L1604
47uH
(DF)
(K)
+VS
-VS
IC1601
VHIBA4558
8
7
6
5 4
3
2
1
IC1801
IX1416
4
3
1
141311101267
9
15
2
5
8
TRC
VB76ERF3113*N
1
9106
11
5
7
1
1
6
11
5
7
R1837
2M2
C1813
10nF
8
10
9
(Q)
N0341
D5411
1N4004
D5405
DX0501
1N4004
Page 21
21
81GF-63E
1
I
H
G
F
E
D
C
B
A
2
3
4 567
FRONT AV UNIT SCHEMATIC DIAGRAM.
CENTRAL SPEAKER UNIT SCHEMATIC DIAGRAM.
12 3
12312
12
OUT L
OUT R
GND
OUT R
OUT L
GND
GND
CHROMA IN
GND
LUMA IN
L318
3.3uH
C428
1nF
C429
1nF
J401
0015B
R316
390
C336 10nF
CN4
JAKJ0047CEZZ
1543267
R449 75
(1/4W)
L317
3.3uH
(DF)
(HD)
GN0341
(SS)
GN0341
(CC)
GN0241
(FV)
GN0241
C337 10nF
R317
390
6
5
4
3
2
1
+5V
-16V
+5V
+16V
1
2
1
2
3
.
.
.
.
L1303
3.3uH
(CF)
C1305
2.2uF
C1315 100nF
C1308 4n7
R1313 150
C1313 560pF
C1312 100pF
L1301
P0278
C1314 470nF
L1302
3.3uH
(CF)
R1311
4K7
(SF)
GN0241
(SB)
GN0685CE
C1311 100nF
C1310 220uF
(25V)
C1309 100nF
C1307 100nF
C1306 220uF
(25V)
R1310 47K
C1304 100nF
C1302 330nF
R1308 10K
R1309 27K
R1312
12K
(VS)
GN0341
Q1301 2SC2412
C1303
390pF
R1307 47K
IC1302
TDA7480
1 2 3 4 5 6 7 8 9 10
20 19 18 17 16 15 14 13 12 11
R1302
12K
R1301
12K
R1304
(0)
D1304 6V8
EX0411
D1303
6V8
EX0411
+
-
IC1300
VHIBA4558
3
2
1
4 8
Page 22
22
81GF-63E
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
+16V AUDIO
-16V AUDIO
+140V
Q 713
Q 704
Q 706
Q 705
Q 707
+5V DIGITAL
T 701
POR 701
ON/ST-BY
POWER ST-BY
CONTROL
+5V
Micro Proc. COMUNICATION
Micro Proc. COMUNICATION
MAIN POWER
IC 7601
IR
DETECTOR
+ CH - + VOL -
TH 201
TUNER
SAW
SF 201
SAW
SF 203
SF 202
SAW
IF
IC 201
TDA 4470
IC 401
HEF 4053
SWITCH
IC 1001
S 10 R 272 L
Micro Proc.
IC 1002
27C4000
EPROM
IC 2401
SDA 5273S
MT TEXT
IC 801
VIDEO PROCESSOR
VDP 3120 C
+16V
-16V
+16V
-16V
Q 304
Q 303
Q 302
AUDIO
PROTECTOR
Q 305
Q 306
MUTE
+16V
-16V
21 PINS
21 PINS
21 PINS
AV-FRONT
S-VIDEO
RGB
AV-2
AV-1
MSP 3410 D
IC 305
Q 901
Q 902
Q 903
Q 905
Q 904
Q 906
Q 908
Q 907
Q 909
RGB
Q 5410
Q 5411
Q 5412
IC 1601
Q 1603
Q 1604
IC 1801
TEA5101A
C.R.T.
H.V.
VERT.
DEFLEX.
COIL
HORIZ.
DEFLEX.
COIL
RGB
BA 4558
DRIVER
TDA 7480
VERTICAL
POWER
Q 502
Q 503
VERTICAL
FLYBACK
+13V
-13V
H.V.
+145 V
H
HEATER
SVM
ROTATION COIL
IF
FM AUDIO
CVBS
PERIPHERICS
AUDIO L/R
RGB
V
V
V
M3L
ROTATION
COIL
SVM
SVM
ROTATION
COIL
RGB
RGB
V. OUT
Q 506
E/W
EMULATOR
Q 601
POWER UNIT
Q603
Q605
Q604
Q602
H. DRIVE
Q 501 E/W
DRIVE
H. OUT
H.OUT
HORIZ. DEFLECTION
+13 V
-13 V
FOCUS
FOCUS
FOCUS 2
SCREEN
F.B.T.
C 1602
C 1601
C 1603
E/W
OUT
H.OUT
E/W
OUT
E/W
OUT
E/W
OUT
81GF-63E BLOCK DIAGRAM
CENTRAL SPEAKER UNIT
CRT UNIT
DINAMIC FOCUS UNIT
81GF-63E 0024JB00 00
BLOCK DIAGRAM 81FW-53E.
A2
11Wednesday, June 14, 2000
Title
Size Document Number Rev
Date: Sheet
of
IC 705
IC 706
IC 701
IC 704
IC 703
IC 702
Micro Proc.
-+
D 701...D 704
S6701
17
12
15
14
PTC
C770
R741
SENSOR
8
7
3
4
5
6
1
2
Q703 DRIVER
Q702
Q701
C?
CESH
ADG COIL
D 1101
F6701
+
-
IC 301
3
2
6
74
+-IC 302
3
2
6
74
AUDIO OUT L
AUDIO OUT R
CENTER
+-IC1302
3
6
74
IC 304
HEADPHONE CONECTOR
IC 501
IC 502
IC 503
R742
D 605
Q 1601
T 1602
I2C
IC2
I2C
I2C
IC2
BLOCK DIAGRAM
Page 23
23
81GF-63E
MARK *:
SPARE PARTS DELIVERY SECTION
PARTS DESCRIPTION *
SN CODE EX CODE
PICTURE TUBE
VB76ERF3113*N 32"16:9 REALFLAT 50Hz PHIL.W76ERF031X013 S CU ** RCILG0418BMZZ ATN01121952 NUCTOR32"16:9 S AS AZ
PWB-A DUNTK7240CJX2 ADJUST CHASSIS 81GF63E S -- -­PWB-B DUNTK7305BMV3 FRONTAL POWER 81GF63E S AN AZ PWB-C DUNTK7306BMV3 FRONTAL A/V 81GF63E S AL AX PWB-D DUNTK7314BMV2 DINAMIC FOCUS +E/W 81GF63E S AU BF PWB-E DUNTK7273BMV9 CRT UNIT 81GF63E S AP BA PWB-F DUNTK7285BMV9 CENTRAL SPEAKER UNIT 81GF63E S AF AR
PWB-A MOTHER UNIT
TUNER
TH 0201 RTUNH0139BMZZ TUNER CTT5020E S AP BA
INTEGRATED CIRCUITS
IC 050 RH-IX1786BMZZ C.I. TDA 7480L THOMSON S AD AL IC 0201 RH-IX1671BMZZ IC TDA4470-MFL TEMIC SMD S AF AQ IC 0202 RH-IX1556BMZZ IC BA10393 S0P8 SMD ROHM S AC AD IC 0203 RH-IX0037CEZZ IC UPC574J 33V NEC S AF AD IC 0301 VHITDA7480/-1 IC TDA7480 THOMSON S AF AK IC 0302 VHITDA7480/-1 IC TDA7480 THOMSON S AF AK IC 0304 VHIM5218L//-1 IC M5218L S AA AD IC 0305 RH-IX1789BMZZ CI MSP3410D-PP-C5 MICRONA S AS BD IC 0401 RH-IX1602BMZZ IC HEF4053 SMD S AA AD IC 0502 VHIBA4558F/-1 IC BA4558F-E2 ROHM OP-AMP S AA AC IC 0503 RH-IX1556BMZZ IC BA10393 S0P8 SMD ROHM S AC AD IC 0701 VHIPST529C2-1 IC PST529C2 MITSUMI S AD AD IC 0702 RH-IX1646BMZZ IC ST6203B SMD SGS-THOMSON S AF AL IC 0703 RH-FX0106BMZZ OPTOCOUPLER M0C8106SR2V-M S AC AD IC 0704 RH-FX0106BMZZ OPTOCOUPLER M0C8106SR2V-M S AC AD IC 0705 RH-FX0106BMZZ OPTOCOUPLER M0C8106SR2V-M S AC AD IC 0706 RH-IX1674BMZZ IC KA431AZ SAMSUNG S AA AD IC 0707 RH-IX1704BMZZ IC L4978 THOMSON S AD AK IC 0708 RH-FX0111BMZZ OPTOCOUPLER TLP165J TOSHIBA S AB AE IC 0801 RH-IX1688BMN2 IC VDP 3120C2 MICRONAS S AU BF IC 1001 RH-IX1686BMZZ IC ST10R272L THOMSON S AK AW IC 1002 RH-IX1664BMZZ OTP MX27C4000PC-15 MXIC S AR AY IC 1003 RH-IX1603BMZZ NVM X24645S8 XICOR SMD S AS AV IC 1004 RH-IX1603BMZZ NVM X24645S8 XICOR SMD S AS AV IC 1005 VHIPST529C2-1 IC PST529C2 MITSUMI S AD AD IC 1801 RH-IX1416BMZZ IC TEA 5101A S AF AN IC 2401 RH-IX1709BMZZ IC SDA5275-3MTXT NIVEL2,5 S AT BD IC 2402 RH-IX1656BMZZ RAM D KM44C1000DT-6T SAMSUNG S AR AY
TRANSISTORS
Q 0201 VS2SA1037KQ-1 TRT BC807 SMD S AA AA Q 0208 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 0209 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 0210 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 0302 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 0303 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA
PRINTED WIRING BOARDS (Not replacement item)
PART LIST
REPLACEMENT PARTS
Replacement parts which have special safety characteristics are identi­fied in this manual. Electrical components having such features are iden­tified by
in the Replacement Part List. The use of a substitute replacement part which does not have the same safety characteristics as the factory recommended is not permitted. Replacement parts not shown in this service manual may create shock fire, or other hazards.
HOW TO ORDER REPLACEMENT PARTS
To have your order completed promplty and corretly please supply the following information.
1. MODEL NUMBER
3. PART NO.
5. CODE
2. REF. NO.
4. DESCRIPTION
6. QUANTITY
PARTS DESCRIPTION *
SN CODE EX CODE
Q 0304 VS2SA1037KQ-1 TRT BC807 SMD S AA AA Q 0305 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 0306 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 0403 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 0404 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 0405 VS2SA1037KQ-1 TRT BC807 SMD S AA AA Q 0406 VS2SA1037KQ-1 TRT BC807 SMD S AA AA Q 0408 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 0501 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 0502 RH-TX0201BMZZ TRT KSA928A SAMGUNG S AA AC Q 0503 RH-TX0172BMZZ IRFR010TM SAMSUNG N S AD AE Q 0505 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 0506 RH-TX0219BMZZ TRT MOSFET TOSHIBA 2SK2963 SMD S AA AD Q 0507 RH-TX0203BMZZ TRT 2SB852 ROHM S AA AB Q 0601 RH-TX0144BMZZ TRT BUH 515 THOMSON S AH AK Q 0602 RH-TX0192BMZZ TRT KSC2500 SAMSUNG S AB AC Q 0603 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 0606 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 0607 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 0608 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 0701 RH-TX0198BMZZ TRT S5F10N80A SAMSUNG S AM AU Q 0702 RH-TX0182BMZZ TRT 2PD602AR PHILIPS S AA AB Q 0703 RH-TX0151BMZZ TRT 2SD2391Q SMD ROHM S AC AD Q 0708 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 0709 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 0710 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 0711 RH-TX0106BMZZ TRT BC547 S AA AB Q 0712 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 0714 VS2SA1037KQ-1 TRT BC807 SMD S AA AA Q 0715 RH-TX0215BMZZ MOSFET 2SK2715 ROHM S AA AE Q 0717 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 0801 VS2SA1037KQ-1 TRT BC807 SMD S AA AA Q 0802 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 1001 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 1002 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 1003 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 1004 VS2SA1037KQ-1 TRT BC807 SMD S AA AA Q 1005 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 1006 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 1007 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 1601 RH-TX0224BMZZ TRT TIPC32 THOMSON S AA AE Q 2401 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 5407 VS2SA1837//-1 TRT A1837 S AB AE Q 5408 VS2SC4793//-1 TRT C4793 S AB AE
DIODES
D 0203 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA D 0204 RH-DX0548BMZZ DIODE VARICAP BBY40 S AC AE D 0205 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA D 0206 RH-DX0045BMZZ DIODE 1N4148 S AA AA D 0301 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA D 0302 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA D 0303 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA D 0304 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA D 0305 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA D 0401 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA D 0402 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA D 0403 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA D 0404 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA D 0405 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA D 0406 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA D 0407 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA D 0408 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA D 0409 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA D 0410 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA D 0411 RH-EX0546BMZZ ZENER DIODE TZMC5V6 TFK SMD S AA AA D 0412 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA D 0413 RH-EX0584BMZZ ZENER DIODE TZMB6V2 TFK SMD 2% S AA AA D 0414 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA D 0415 RH-EX0547BMZZ ZENER DIODE TZMC6V2 TFK SMD S AA AA D 0416 RH-EX0547BMZZ ZENER DIODE TZMC6V2 TFK SMD S AA AA D 0417 RH-EX0547BMZZ ZENER DIODE TZMC6V2 TFK SMD S AA AA D 0419 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA D 0420 RH-EX0546BMZZ ZENER DIODE TZMC5V6 TFK SMD S AA AA
Page 24
24
81GF-63E
PARTS DESCRIPTION *
SN CODE EX CODE
D 0421 RH-EX0544BMZZ ZENER DIODE TZMC4V7 TFK SMD S AA AA D 0502 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA D 0504 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA D 0506 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA D 0507 RH-EX0554BMZZ ZENER DIODE TZMC12 TFK SMD S AA AA D 0508 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA D 0509 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA D 0510 RH-DX0505BMZZ DIODE 1N4935 S AB AE D 0515 RH-EX0544BMZZ ZENER DIODE TZMC4V7 TFK SMD S AA AA D 0601 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA D 0603 RH-DX0299BMZZ DIODE BY 228-20 S AC AE D 0604 RH-DX0301BMZZ DIODE BY 299 PREFORM C6.3 S AB AD D 0608 RH-DX0505BMZZ DIODE 1N4935 S AB AE D 0609 RH-DX0505BMZZ DIODE 1N4935 S AB AE D 0610 RH-DX0503BMZZ DIODE 1N4933 S AB AB D 0611 RH-DX0505BMZZ DIODE 1N4935 S AB AE D 0613 RH-DX0506BMZZ DIODE 1N4936 S AB AB D 0615 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA D 0617 RH-EX0561BMZZ ZENER DIODE TZMC24 TFK SMD S AA AA D 0618 RH-EX0544BMZZ ZENER DIODE TZMC4V7 TFK SMD S AA AA D 0621 RH-DX0506BMZZ DIODE 1N4936 S AB AB D 0623 RH-EX0425BMZZ ZENER DIODE BZX79C27V S AA AA D 0701 RH-DX0555BMZZ DIODE RF2005 FAGOR S AA AB D 0702 RH-DX0555BMZZ DIODE RF2005 FAGOR S AA AB D 0703 RH-DX0555BMZZ DIODE RF2005 FAGOR S AA AB D 0704 RH-DX0555BMZZ DIODE RF2005 FAGOR S AA AB D 0706 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA D 0707 RH-DX0502BMZZ DIODE 1N4005 S AB AA D 0708 RH-DX0502BMZZ DIODE 1N4005 S AB AA D 0710 RH-EX0545BMZZ ZENER DIODE TZMC5V1 TFK SMD S AA AA D 0711 RH-DX0539BMZZ DIODE BYT52M TFK S AA AC D 0712 RH-EX0419BMZZ ZENER DIODE BZX79C15V 0,4W S AA AB D 0713 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA D 0714 RH-DX0605BMZZ DIODE MBR340RL MOTOROLA S AA AE D 0715 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA D 0716 RH-EX0411BMZZ ZENER DIODE BZX79C6V8 S AA AA D 0718 RH-DX0603BMZZ DIODE RGP15D FAGOR S AA AC D 0719 RH-DX0603BMZZ DIODE RGP15D FAGOR S AA AC D 0720 RH-DX0587BMZZ DIODE MR826 PREFORM C6.3 S AH AP D 0721 RH-EX0550BMZZ ZENER DIODE TZMC8V2 TFK SMD S AA AA D 0722 RH-DX0504BMZZ DIODE 1N4934 S AB AB D 0724 RH-EX0538BMZZ ZENER DIODE TZMC2V7 TFK SMD S AA AA D 0725 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA D 0726 RH-EX0554BMZZ ZENER DIODE TZMC12 TFK SMD S AA AA D 0727 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA D 0728 RH-EX0544BMZZ ZENER DIODE TZMC4V7 TFK SMD S AA AA D 0729 RH-EX0568BMZZ ZENER DIODE TZMC47 TFK SMD S AA AA D 0730 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA D 0731 RH-DX0502BMZZ DIODE 1N4005 S AB AA D 0732 RH-EX0556BMZZ ZENER DIODO TZMC15 TFK SMD S AA AA D 0733 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA D 0734 RH-DX0502BMZZ DIODE 1N4005 S AB AA D 0801 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA D 0802 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA D 1003 RH-DX0606BMZZ DIODE BAS85 PHILIPS S AA AB D 1004 RH-EX0545BMZZ ZENER DIODE TZMC5V1 TFK SMD S AA AA D 1005 RH-EX0545BMZZ ZENER DIODE TZMC5V1 TFK SMD S AA AA D 1006 RH-EX0546BMZZ ZENER DIODE TZMC5V6 TFK SMD S AA AA D 1007 RH-EX0546BMZZ ZENER DIODE TZMC5V6 TFK SMD S AA AA D 1008 RH-EX0546BMZZ ZENER DIODE TZMC5V6 TFK SMD S AA AA D 1009 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA D 1011 RH-EX0545BMZZ ZENER DIODE TZMC5V1 TFK SMD S AA AA D 2401 RH-EX0539BMZZ ZENER DIODE TZMC3V0 TFK SMD S AA AA
PACKAGED CIRCUITS
POR0701 RMPTP0001BMZZ PTC B59250-C1080-B70 S AA AD X 0301 RCRSB0203BMZZ CRYSTAL 18,432 MHZ S AD AG X 0801 RCRSB0219BMZZ CRYSTAL 20.25 HMZ S AG AH X 1002 RCRSB0200BMZZ CRYSTAL 17,734 MHZ S AD AG X 2401 RCRSB0214BMZZ CRYSTAL 20.48 MHZ SEL S AD AH
COILS
L 0201 VP-DF120K0000 PEAK COIL 12UH 10% S AA AA L 0202 VP-NM150KR63N COIL 15UH SMD S AB AC
PARTS DESCRIPTION *
SN CODE EX CODE
L 0203 VP-CF6R8K0000 PEAK COIL 6.8UH 10% S AA AA L 0204 RCILP0229BMZZ COIL SMD 610NH LQN1HR61J S AA AD L 0205 RCILP0229BMZZ COIL SMD 610NH LQN1HR61J S AA AD L 0301 VP-DF100K0000 PEAK COIL 10UH 10% S AA AA L 0315 VP-CF3R3K0000 PEAK COIL 3.3UH 10% S AB AB L 0316 VP-CF3R3K0000 PEAK COIL 3.3UH 10% S AB AB L 0318 VP-DF3R3K0000 PEAK COIL 3,3UH 10% S AB AB L 0350 VP-CF3R3K0000 PEAK COIL 3.3UH 10% S AB AB L 0351 VP-CF3R3K0000 PEAK COIL 3.3UH 10% S AB AB L 0352 RCILP0278BMZZ COIL A823LY-680K TOKO S AA AD L 0353 RCILP0278BMZZ COIL A823LY-680K TOKO S AA AD L 0501 RCILP0271BMZZ COIL BC-400/K DIEMEN S AD AG L 0502 VP-CF3R3K0000 PEAK COIL 3.3UH 10% S AB AB L 0503 VP-CF3R3K0000 PEAK COIL 3.3UH 10% S AB AB L 0601 VP-NM3R3MR19N COIL 3,3UH SMD S AA AD L 0603 RCILP0286BMZZ COIL BR-0602/A DIEMEN S AB AG L 0604 RCILP0284BMZZ COIL HR-18015-01 DIEMEN S AB AG L 0605 RCILZ0720BMZZ LYN COIL HR-13044 S AD AL L 0606 RCILP0237BMZZ COIL AR621LY-151K=R TOKO S AC AD L 0701 RCILF0108BMZZ COIL 472839.00 THOMSON S AF AL L 0705 RCILP0285BMZZ COIL PCV1620-500K DIONIX S AB AF L 0801 VP-CF3R3K0000 PEAK COIL 3.3UH 10% S AB AB L 0803 VP-CF3R3K0000 PEAK COIL 3.3UH 10% S AB AB L 2401 VP-DF3R3K0000 PEAK COIL 3,3UH 10% S AB AB L 2402 VP-DF100K0000 PEAK COIL 10UH 10% S AA AA
CERAMIC FILTERS
CF 0202 RFILC0023CEZZ SOUND FILTER (TAPED) S AA AD CF 0701 RFILC0121GEZZ FILTER CST8.00MTW MURATA S AC AD SF 0201 RFILC0278BMZZ SAW FILTER K3953M SIEMENS S AK AM SF 0202 RFILC0286BMZZ FILTER K9356M SIEMENS S AC AG SF 0203 RFILC0289BMZZ SAW FILTER L9354M SIEMENS S AC AK
TRANSFORMERS
T 0601 RTRNF2073BMZZ FBT HR-8168-00 FOR PHILIPS 32" FLAT CRT S AQ BB T 0701 RTRNZ0578BMZZ CHOPPER TG-0601A DIEMEN S AF AT
CAPACITORS
C 0037 VCCCTV1HH471J CERAM C 470PF 50V 2125SMD S AA AA C 0203 VCKYTV1HB104K CERAM C 100NF 50V 2125SMD S AA AA C 0204 VCEAGA1HW225M ELEC C 2,2UF 20% 50V S AA AB C 0205 RC-FZ4474BMNJ POL FILM C 470nF 50V 5% ECQ-V PANASONIC S AA AC C 0206 VCEAGA1HW225M ELEC C 2,2UF 20% 50V S AA AB C 0207 VCKYTV1HF103Z CERAM C 10NF 50V 2125SMD S AA AA C 0208 VCKYTV1HF223Z CERAM C 22NF 50V 2125SMD S AA AA C 0209 VCEAGA1CW107M ELEC C 100UF 20% 16V S AA AA C 0211 VCEAGA1HW106M ELEC C 10UF 20% 50V S AA AA C 0212 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA C 0213 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA C 0214 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 0215 VCEAGA1AW477M ELEC C 470UF 20% 10V S AA AB C 0216 VCCCTV1HH270J CERAM C 27PF 50V 2125SMD S AA AA C 0217 VCCCTV1HH221J CERAM C 220PF 50V 2125SMD S AA AA C 0218 VCEAGA1CW107M ELEC C 100UF 20% 16V S AA AA C 0219 VCEAGA1CW106M ELEC C 10UF 20% 16V S AA AA C 0220 VCEAGA1CW106M ELEC C 10UF 20% 16V S AA AA C 0221 VCCCTV1HH220J CERAM C 22PF 50V 2125SMD S AA AA C 0222 VCCCTV1HH220J CERAM C 22PF 50V 2125SMD S AA AA C 0223 VCKYTV1HB333K CERAM C 33NF 50V 2125SMD S AA AA C 0224 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 0225 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 0226 VCKYTV1HB103K CERAM C 10NF 50V 2125SMD S AA AA C 0227 VCKYTV1HB103K CERAM C 10NF 50V 2125SMD S AA AA C 0228 VCCWPA2HL8R2C C 8,2PF 0,25 N1500 500V S AA AB C 0229 VCEAGA1CW226M ELEC C 22UF 20% 16V S AA AA C 0230 VCCCTV1HH220J CERAM C 22PF 50V 2125SMD S AA AA C 0305 VCEAGA1CW106M ELEC C 10UF 20% 16V S AA AA C 0306 VCEAGA1CW106M ELEC C 10UF 20% 16V S AA AA C 0309 VCKYTV1HB102K CERAM C 1NF 50V 2125SMD S AA AA C 0310 VCKYTV1HB102K CERAM C 1NF 50V 2125SMD S AA AA C 0311 VCEAGA1AW337M ELEC C 330UF 20% 10V S AA AA C 0312 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 0313 VCEAGA1CW106M ELEC C 10UF 20% 16V S AA AA C 0314 VCEAGA1CW106M ELEC C 10UF 20% 16V S AA AA
Page 25
25
81GF-63E
PARTS DESCRIPTION *
SN CODE EX CODE
C 0315 VCEAGA1HW335M ELEC C 3,3UF 20% 50V S AA AA C 0316 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 0317 VCKYTV1EF334Z CERAM C 330NF 25V 2125SMD S AA AB C 0318 VCKYTV1EF334Z CERAM C 330NF 25V 2125SMD S AA AB C 0319 VCKYTV1HB102K CERAM C 1NF 50V 2125SMD S AA AA C 0320 VCKYTV1HB102K CERAM C 1NF 50V 2125SMD S AA AA C 0321 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 0322 RC-FZ4334BMNJ POL FILM C 330nF 50V 5% ECQ-V PANASONIC S AA AB C 0323 RC-FZ4334BMNJ POL FILM C 330nF 50V 5% ECQ-V PANASONIC S AA AB C 0324 RC-FZ4334BMNJ POL FILM C 330nF 50V 5% ECQ-V PANASONIC S AA AB C 0325 RC-FZ4334BMNJ POL FILM C 330nF 50V 5% ECQ-V PANASONIC S AA AB C 0326 VCEAGA1CW106M ELEC C 10UF 20% 16V S AA AA C 0327 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 0328 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 0329 VCCCPA1HH470J CERAM C 47PF 5% 50V S AA AA C 0330 VCCCTV1HH470J CERAM C 47PF 50V 2125SMD S AA AA C 0331 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 0332 VCEAGA1AW337M ELEC C 330UF 20% 10V S AA AA C 0333 VCCCTV1HH470J CERAM C 47PF 50V 2125SMD S AA AA C 0334 VCCCTV1HH5R0C CERAM C 5PF 50V 2125SMD S AA AA C 0335 VCCCTV1HH5R0C CERAM C 5PF 50V 2125SMD S AA AA C 0336 VCCCTV1HH471J CERAM C 470PF 50V 2125SMD S AA AA C 0338 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 0339 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 0340 VCKYTV1EF224Z CERAM C 220NF 25V 2125SMD S AA AA C 0341 RC-FZ4224BMNJ POL FILM C 220nF 50V 5% ECQ-V PANASONIC S AA AB C 0342 VCEAGA1HW106M ELEC C 10UF 20% 50V S AA AA C 0343 VCEAGA1HW106M ELEC C 10UF 20% 50V S AA AA C 0350 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 0351 VCEAGA1EW227M ELEC C 220UF 20% 25V S AA AA C 0352 RC-FZ4104BMNJ POL FILM C 100nF 50V 5% ECQ-V PANASONIC S AA AA C 0353 RC-FZ4104BMNJ POL FILM C 100nF 50V 5% ECQ-V PANASONIC S AA AA C 0354 VCCCTV1HH101J CERAM C 100PF 50V 2125SMD S AA AA C 0356 RC-FZ4153BMNJ POL FILM C 15nF 50V 5% ECQ-B PANASONIC S AA AA C 0357 VCKYTV1HB102K CERAM C 1NF 50V 2125SMD S AA AA C 0358 RC-FZ4104BMNJ POL FILM C 100nF 50V 5% ECQ-V PANASONIC S AA AA C 0359 VCKYTV1HB472K CERAM C 4,7NF 50V 2125SMD S AA AA C 0360 VCCCTV1HH561J CERAM C 560PF 50V 2125SMD S AA AA C 0361 RC-FZ4474BMNJ POL FILM C 470nF 50V 5% ECQ-V PANASONIC S AA AC C 0362 VCEAGA1HW225M ELEC C 2,2UF 20% 50V S AA AB C 0363 VCEAGA1EW227M ELEC C 220UF 20% 25V S AA AA C 0364 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 0365 VCEAGA1EW227M ELEC C 220UF 20% 25V S AA AA C 0366 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 0367 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 0368 RC-FZ4104BMNJ POL FILM C 100nF 50V 5% ECQ-V PANASONIC S AA AA C 0369 VCCCTV1HH101J CERAM C 100PF 50V 2125SMD S AA AA C 0370 RC-FZ4153BMNJ POL FILM C 15nF 50V 5% ECQ-B PANASONIC S AA AA C 0371 VCKYTV1HB102K CERAM C 1NF 50V 2125SMD S AA AA C 0372 VCEAGA1HW225M ELEC C 2,2UF 20% 50V S AA AB C 0373 RC-FZ4104BMNJ POL FILM C 100nF 50V 5% ECQ-V PANASONIC S AA AA C 0374 VCKYTV1HB472K CERAM C 4,7NF 50V 2125SMD S AA AA C 0375 VCCCTV1HH561J CERAM C 560PF 50V 2125SMD S AA AA C 0376 RC-FZ4474BMNJ POL FILM C 470nF 50V 5% ECQ-V PANASONIC S AA AC C 0377 VCEAGA1HW106M ELEC C 10UF 20% 50V S AA AA C 0378 VCEAGA1EW227M ELEC C 220UF 20% 25V S AA AA C 0379 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 0380 VCKYTV1HF473Z CERAM C 47NF 50V 2125SMD S AA AA C 0401 VCCCTV1HH101J CERAM C 100PF 50V 2125SMD S AA AA C 0403 VCCCTV1HH221J CERAM C 220PF 50V 2125SMD S AA AA C 0404 VCCCTV1HH101J CERAM C 100PF 50V 2125SMD S AA AA C 0405 VCCCTV1HH221J CERAM C 220PF 50V 2125SMD S AA AA C 0408 VCKYTV1HF103Z CERAM C 10NF 50V 2125SMD S AA AA C 0409 VCCCTV1HH101J CERAM C 100PF 50V 2125SMD S AA AA C 0410 VCCCTV1HH391J CERAM C 390PF 50V 2125SMD S AA AA C 0411 VCCCTV1HH101J CERAM C 100PF 50V 2125SMD S AA AA C 0412 VCCCTV1HH101J CERAM C 100PF 50V 2125SMD S AA AA C 0413 VCCCTV1HH101J CERAM C 100PF 50V 2125SMD S AA AA C 0414 VCCCTV1HH391J CERAM C 390PF 50V 2125SMD S AA AA C 0415 RC-FZ4684BMNJ POL FILM C 680nF 50V 5% ECQ-V PANASONIC S AA AC C 0416 VCCCTV1HH101J CERAM C 100PF 50V 2125SMD S AA AA C 0417 VCCCTV1HH101J CERAM C 100PF 50V 2125SMD S AA AA C 0418 VCCCTV1HH391J CERAM C 390PF 50V 2125SMD S AA AA
PARTS DESCRIPTION *
SN CODE EX CODE
C 0419 VCCCTV1HH391J CERAM C 390PF 50V 2125SMD S AA AA C 0420 VCCCTV1HH101J CERAM C 100PF 50V 2125SMD S AA AA C 0421 VCCCTV1HH101J CERAM C 100PF 50V 2125SMD S AA AA C 0422 VCEAGA1AW476M ELEC C 47UF 20% 10V S AA AA C 0427 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA C 0430 RC-FZ4334BMNJ POL FILM C 330nF 50V 5% ECQ-V PANASONIC S AA AB C 0431 RC-FZ4334BMNJ POL FILM C 330nF 50V 5% ECQ-V PANASONIC S AA AB C 0432 VCKYTV1CF105Z CERAM C 1UF 16V 2125SMD S AA AA C 0434 VCKYTV1EF224Z CERAM C 220NF 25V 2125SMD S AA AA C 0435 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA C 0436 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA C 0437 VCEAGA1HW476M ELEC C 47UF 20% 50V S AA AA C 0438 VCCCTV1HH101J CERAM C 100PF 50V 2125SMD S AA AA C 0443 VCCCTV1HH101J CERAM C 100PF 50V 2125SMD S AA AA C 0447 VCCCTV1HH680J CERAM C 68PF 50V 2125SMD S AA AA C 0451 VCKYTV1HB103K CERAM C 10NF 50V 2125SMD S AA AA C 0501 VCEAGA1EW477M ELEC C 470UF 20% 25V S AA AB C 0502 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 0503 VCCCTV1HH101J CERAM C 100PF 50V 2125SMD S AA AA C 0504 RC-FZ4684BMNJ POL FILM C 680nF 50V 5% ECQ-V PANASONIC S AA AC C 0505 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 0506 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 0507 VCKYTV1HB472K CERAM C 4,7NF 50V 2125SMD S AA AA C 0508 VCCCTV1HH561J CERAM C 560PF 50V 2125SMD S AA AA C 0509 VCEAGA1EW227M ELEC C 220UF 20% 25V S AA AA C 0510 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 0511 VCEAGA1HW225M ELEC C 2,2UF 20% 50V S AA AB C 0512 VCKYTV1EF224Z CERAM C 220NF 25V 2125SMD S AA AA C 0514 RC-FZ4473BMNJ POL FILM C 47nF 50V 5% ECQ-B PANASONIC S AA AA C 0515 VCCCTV1HH681J CERAM C 680PF 50V 2125SMD S AA AA C 0516 VCCCTV1HH271J CAPACITOR CERAM 270PF 50V 2125SMD S AA AA C 0518 VCCCTV1HH100D CERAM C 10PF 50V 2125SMD S AA AA C 0520 VCEAGA1VW477M ELEC C 470UF 20% 35V S AA AC C 0521 VCKYTV1HB102K CERAM C 1NF 50V 2125SMD S AA AA C 0522 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 0524 RC-FZ4104BMNJ POL FILM C 100nF 50V 5% ECQ-V PANASONIC S AA AA C 0525 VRS-TV1JD562J 2125 5,6KOHM 5% 1/10W SMD S AA AA C 0526 VCEAGA1HW106M ELEC C 10UF 20% 50V S AA AA C 0527 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 0528 VCEAGA1JW106M ELEC C 10UF 20% 63V S AA AA C 0530 VCKYTV1HF103Z CERAM C 10NF 50V 2125SMD S AA AA C 0531 VCKYTV1HB103K CERAM C 10NF 50V 2125SMD S AA AA C 0532 VCCCTV1HH101J CERAM C 100PF 50V 2125SMD S AA AA C 0534 VCKYTV1HB102K CERAM C 1NF 50V 2125SMD S AA AA C 0536 VCEAGA1AW476M ELEC C 47UF 20% 10V S AA AA C 0537 VCKYTV1HB472K CERAM C 4,7NF 50V 2125SMD S AA AA C 0539 VCKYTV1CF105Z CERAM C 1UF 16V 2125SMD S AA AA C 0601 RC-FZ0152BMZZ POLIP C B32650 12NF 1,5KV S AC AD C 0606 VCKYTV1HB104K CERAM C 100NF 50V 2125SMD S AA AA C 0607 VCEAGA1AW337M ELEC C 330UF 20% 10V S AA AA C 0610 RC-FZ0172BMZZ C MKP 33NF 850V PHILIPS S AF AR C 0611 RC-FZ6684BMNJ PP FILM C 680NF 5% 250V S AD AE C 0613 RC-FZ6474BMNJ PP FILM C 470NF 5% 250V S AB AE C 0615 VCEAGA1EW477M ELEC C 470UF 20% 25V S AA AB C 0616 VCEAGA1VW477M ELEC C 470UF 20% 35V S AA AC C 0617 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 0619 VCEA4A2CN225M C UVZ2C2R2MEH1TA NICHICON S AA AB C 0620 VCEA4A2CN225M C UVZ2C2R2MEH1TA NICHICON S AA AB C 0632 VCEAGA1EW477M ELEC C 470UF 20% 25V S AA AB C 0642 RC-FZ4683BMNJ POL FILM C 68nF 50V 5% ECQ-B PANASONIC S AA AA C 0643 VCKYTV1HF103Z CERAM C 10NF 50V 2125SMD S AA AA C 0644 VCEAGA1CW227M ELEC C 220UF 20% 16V S AA AA C 0645 VCKYTV1HF224Z CERAM C 220NF 50V 2125SMD S AA AA C 0649 RC-KZ0073CEZZ CERAM C 2,2NF 2KV S AD AD C 0701 RC-FZ0070BMZZ PLAST C MET 0,1uF 250V B81121-C-B125 S AD AD C 0702 RC-FZ0173BMZZ C.POL 47NF 400V PHIL.365 S AN AZ C 0703 RC-KZ0165BMZZ CERAM C DE0905-979E332ZAC250 S AA AB C 0704 RC-KZ0165BMZZ CERAM C DE0905-979E332ZAC250 S AA AB C 0705 RC-EZ0119BMZZ ELEC 220uF 385V B43303-H227-M SIEMENS S AF AR C 0706 VCEAGA1CW226M ELEC C 22UF 20% 16V S AA AA C 0707 VCEAGA1CW107M ELEC C 100UF 20% 16V S AA AA C 0710 RC-FZ0156BMZZ C B32529-B6473K SIEMENS S AD AE C 0711 RC-KZ0036CEZZ CERAM C 330PF 2KV S AA AB
Page 26
26
81GF-63E
PARTS DESCRIPTION *
SN CODE EX CODE
C 0712 VCCCTV1HH101J CERAM C 100PF 50V 2125SMD S AA AA C 0713 RC-FZ4683BMNJ POL FILM C 68nF 50V 5% ECQ-B PANASONIC S AA AA C 0714 RC-FZ4823BMNJ POL FILM C 82nF 50V 5% ECQ-B PANASONIC S AA AA C 0715 VCCCTV1HH331J CERAM C 330PF 50V 2125SMD S AA AA C 0716 VCKYTV1HB332K CERAM C 3,3NF 50V 2125SMD S AA AA C 0717 VCKYTV1HB153K CERAM C 15NF 50V 2125SMD S AA AA C 0718 VCEAGA1EW108M ELEC C 1000UF 20% 25V S AD AD C 0719 VCEAGA1EW108M ELEC C 1000UF 20% 25V S AD AD C 0720 RC-EZ0258CEZZ ELEC C 100MF 200V S AC AK C 0721 RC-EZ0132BMZZ C UVX1V471MPA1CA NICHICON S AA AC C 0722 VCKYTV1HB104K CERAM C 100NF 50V 2125SMD S AA AA C 0723 VCEAGA1AW228M ELEC C 2200UF 20% 10V S AA AC C 0724 VCEAGA1CW227M ELEC C 220UF 20% 16V S AA AA C 0725 VCKYTV1HB472K CERAM C 4,7NF 50V 2125SMD S AA AA C 0728 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 0730 VCKYTV1HF103Z CERAM C 10NF 50V 2125SMD S AA AA C 0731 VCKYTV1HF103Z CERAM C 10NF 50V 2125SMD S AA AA C 0732 VCKYTV1HF103Z CERAM C 10NF 50V 2125SMD S AA AA C 0733 VCKYTV1HF103Z CERAM C 10NF 50V 2125SMD S AA AA C 0735 VCKYTV1HB272K CERAM C 2,7NF 50V 2125SMD S AA AB C 0737 VCKYTV1CF105Z CERAM C 1UF 16V 2125SMD S AA AA C 0738 VCCCTV1HH560J CERAM C 56PF 50V 2125SMD S AA AA C 0739 VCEAGA1CW227M ELEC C 220UF 20% 16V S AA AA C 0740 VCKYTV1HF223Z CERAM C 22NF 50V 2125SMD S AA AA C 0741 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 0742 VCKYTV1HB683K CERAM C 68NF 50V 2125SMD S AA AA C 0743 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 0746 RC-FZ0070BMZZ PLAST C MET 0,1uF 250V B81121-C-B125 S AD AD C 0770 RC-KZ0106GEZZ CERAM C DE1410 E332M-KX S AB AC C 0801 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 0802 VCEAGA1HW106M ELEC C 10UF 20% 50V S AA AA C 0803 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 0804 VCEAGA1HW335M ELEC C 3,3UF 20% 50V S AA AA C 0807 VCKYTV1EF224Z CERAM C 220NF 25V 2125SMD S AA AA C 0808 VCKYTV1EF224Z CERAM C 220NF 25V 2125SMD S AA AA C 0809 VCKYTV1HB102K CERAM C 1NF 50V 2125SMD S AA AA C 0811 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 0812 VCEAGA1HW226M ELEC C 22UF 20% 50V S AA AA C 0813 VCCCTV1HH3R3C CERAM C 3,3PF 50V 2125SMD S AA AA C 0814 VCCCTV1HH6R8D CERAM C 6,8PF 50V 2125SMD S AA AA C 0815 VCEAGA1HW226M ELEC C 22UF 20% 50V S AA AA C 0816 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 0817 VCKYTV1HB104K CERAM C 100NF 50V 2125SMD S AA AA C 0818 VCEAGA1CW107M ELEC C 100UF 20% 16V S AA AA C 0819 VCKYTV1HB102K CERAM C 1NF 50V 2125SMD S AA AA C 0820 RC-FZ4684BMNJ POL FILM C 680nF 50V 5% ECQ-V PANASONIC S AA AC C 0821 RC-FZ4684BMNJ POL FILM C 680nF 50V 5% ECQ-V PANASONIC S AA AC C 0822 RC-FZ4684BMNJ POL FILM C 680nF 50V 5% ECQ-V PANASONIC S AA AC C 0823 VCCCTV1HH821J CERAM C 820PF 50V 2125SMD S AA AA C 0824 VCKYTV1HF103Z CERAM C 10NF 50V 2125SMD S AA AA C 0825 VCEAGA1CW106M ELEC C 10UF 20% 16V S AA AA C 1001 VCEAGA0JW477M ELEC C 470UF 20% 6,3V S AA AA C 1002 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 1005 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 1014 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 1017 VCKYTV1HB104K CERAM C 100NF 50V 2125SMD S AA AA C 1018 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 1019 VCCCTV1HH470J CERAM C 47PF 50V 2125SMD S AA AA C 1020 VCCCTV1HH680J CERAM C 68PF 50V 2125SMD S AA AA C 1021 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 1022 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 1023 VCKYTV1HF153Z CERAM C 15NF 50V 2125SMD S AA AA C 1024 VCKYTV1HF153Z CERAM C 15NF 50V 2125SMD S AA AA C 1025 VCKYTV1HF153Z CERAM C 15NF 50V 2125SMD S AA AA C 1026 VCKYTV1HF103Z CERAM C 10NF 50V 2125SMD S AA AA C 1027 VCEAGA1AW477M ELEC C 470UF 20% 10V S AA AB C 1028 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 1030 VCCCTV1HH331J CERAM C 330PF 50V 2125SMD S AA AA C 1032 VCEAGA1AW476M ELEC C 47UF 20% 10V S AA AA C 1033 VCKYTV1HF683Z CERAM C 68NF 50V 2125SMD S AA AA C 1034 VCCCTV1HH100D CERAM C 10PF 50V 2125SMD S AA AA C 2401 VCCCTV1HH220J CERAM C 22PF 50V 2125SMD S AA AA C 2402 VCCCTV1HH220J CERAM C 22PF 50V 2125SMD S AA AA C 2403 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA
PARTS DESCRIPTION *
SN CODE EX CODE
C 2404 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 2405 VCKYTV1EF224Z CERAM C 220NF 25V 2125SMD S AA AA C 2406 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 2407 VCKYTV1EF224Z CERAM C 220NF 25V 2125SMD S AA AA C 2408 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA
RESISTORS
R 0203 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA R 0204 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA R 0205 VRS-TV1JD391J 2125 390 OHM 5% 1/10W SMD S AA AA R 0208 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA R 0209 VRS-TV1JD332J 2125 3.3KOHM 5% 1/10W SMD S AA AA R 0210 VRS-TV1JD152J 2125 1.5KOHM 5% 1/10W SMD S AA AA R 0211 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA R 0215 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA R 0216 VRS-TV1JD151J 2125 150 OHM 5% 1/10W SMD S AA AA R 0217 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA R 0219 VRS-TV1JD473J 2125 47KOHM 5% 1/10W SMD S AA AA R 0220 VRS-TV1JD473J 2125 47KOHM 5% 1/10W SMD S AA AA R 0226 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA R 0229 VRD-RA2HD822J RES 8,2KOHM 5% 1/2W S AA AA R 0230 VRD-RA2HD822J RES 8,2KOHM 5% 1/2W S AA AA R 0231 VRD-RA2HD822J RES 8,2KOHM 5% 1/2W S AA AA R 0232 VRD-RA2BE561J RES 560 OHM 5% 1/8W S AA AA R 0233 VRD-RA2BE561J RES 560 OHM 5% 1/8W S AA AA R 0234 VRD-RA2BE101J RES 100 OHM 5% 1/8W S AA AA R 0235 VRS-TV1JD153J 2125 15KOHM 5% 1/10W SMD S AA AA R 0236 VRS-TV1JD562J 2125 5,6KOHM 5% 1/10W SMD S AA AA R 0237 VRS-TV1JD221J 2125 220 OHM 5% 1/10W SMD S AA AA R 0238 VRS-TV1JD221J 2125 220 OHM 5% 1/10W SMD S AA AA R 0239 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA R 0240 VRS-TV1JD224J 2125 220KOHM 5% 1/10W SMD S AA AA R 0241 VRS-TV1JD104J 2125 100KOHM 5% 1/10W SMD S AA AA R 0242 VRS-TV1JD104J 2125 100KOHM 5% 1/10W SMD S AA AA R 0243 VRS-TV1JD104J 2125 100KOHM 5% 1/10W SMD S AA AA R 0244 VRS-TV1JD333J 2125 33KOHM 5% 1/10W SMD S AA AA R 0245 VRS-TV1JD152J 2125 1.5KOHM 5% 1/10W SMD S AA AA R 0246 VRS-TV1JD224J 2125 220KOHM 5% 1/10W SMD S AA AA R 0247 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA R 0248 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA R 0249 VRS-TV1JD824J 2125 820KOHM 5% 1/10W SMD S AA AA R 0251 VRS-TV1JD683J 2125 68KOHM 5% 1/10W SMD S AA AA R 0252 VRS-TV1JD183J 2125 18KOHM 5% 1/10W SMD S AA AA R 0253 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA R 0254 VRS-TV1JD123J 2125 12KOHM 5% 1/10W SMD S AA AA R 0255 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA R 0256 VRS-TV1JD223J 2125 22KOHM 5% 1/10W SMD S AA AA R 0257 VRS-TV1JD221J 2125 220 OHM 5% 1/10W SMD S AA AA R 0258 VRS-TQ2BD220J OX RE 22 OHM 5% 1/8W SMD S AA AD R 0259 VRS-TV1JD472J 2125 4.7KOHM 5% 1/10W SMD S AA AA R 0301 VRS-TV1JD104J 2125 100KOHM 5% 1/10W SMD S AA AA R 0302 VRS-TV1JD104J 2125 100KOHM 5% 1/10W SMD S AA AA R 0303 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA R 0304 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA R 0306 VRD-RA2BE101J RES 100 OHM 5% 1/8W S AA AA R 0307 VRD-RA2BE101J RES 100 OHM 5% 1/8W S AA AA R 0308 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA R 0309 VRS-TV1JD223J 2125 22KOHM 5% 1/10W SMD S AA AA R 0310 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA R 0311 VRS-TV1JD104J 2125 100KOHM 5% 1/10W SMD S AA AA R 0312 VRS-TV1JD223J 2125 22KOHM 5% 1/10W SMD S AA AA R 0313 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA R 0314 VRS-TV1JD104J 2125 100KOHM 5% 1/10W SMD S AA AA R 0315 VRD-RA2BE101J RES 100 OHM 5% 1/8W S AA AA R 0316 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA R 0317 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA R 0318 VRS-TV1JD104J 2125 100KOHM 5% 1/10W SMD S AA AA R 0319 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA R 0320 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA R 0321 VRS-TV1JD104J 2125 100KOHM 5% 1/10W SMD S AA AA R 0322 VRS-TV1JD104J 2125 100KOHM 5% 1/10W SMD S AA AA R 0323 VRS-TV1JD104J 2125 100KOHM 5% 1/10W SMD S AA AA R 0350 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA R 0351 VRS-TV1JD273J 2125 27KOHM 5% 1/10W SMD S AA AA
Page 27
27
81GF-63E
PARTS DESCRIPTION *
SN CODE EX CODE
R 0352 VRS-TV1JD123J 2125 12KOHM 5% 1/10W SMD S AA AA R 0353 VRS-TV1JD151J 2125 150 OHM 5% 1/10W SMD S AA AA R 0354 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA R 0355 VRS-TV1JD273J 2125 27KOHM 5% 1/10W SMD S AA AA R 0356 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA R 0357 VRS-TV1JD151J 2125 150 OHM 5% 1/10W SMD S AA AA R 0358 VRS-TV1JD104J 2125 100KOHM 5% 1/10W SMD S AA AA R 0359 VRD-RA2BE104J RES 100KOHM 5% 1/8W S AA AA R 0360 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA R 0361 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA R 0362 VRS-TV1JD472J 2125 4.7KOHM 5% 1/10W SMD S AA AA R 0363 VRS-TV1JD472J 2125 4.7KOHM 5% 1/10W SMD S AA AA R 0372 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA R 0373 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA R 0374 VRS-TV1JD473J 2125 47KOHM 5% 1/10W SMD S AA AA R 0375 VRS-TV1JD473J 2125 47KOHM 5% 1/10W SMD S AA AA R 0376 VRS-TV1JD472J 2125 4.7KOHM 5% 1/10W SMD S AA AA R 0401 VRS-TV1JD750J 2125 75 OHM 5% 1/10W SMD S AA AA R 0402 VRS-TV1JD750J 2125 75 OHM 5% 1/10W SMD S AA AA R 0403 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA R 0404 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA R 0405 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA R 0406 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA R 0407 VRS-TV1JD750J 2125 75 OHM 5% 1/10W SMD S AA AA R 0408 VRD-RA2EE750J RES 75 OHM 5% 1/4W S AA AA R 0409 VRS-TV1JD750J 2125 75 OHM 5% 1/10W SMD S AA AA R 0410 VRS-TV1JD223F 2125 22KOHM 1% 1/10W SMD S AA AA R 0412 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA R 0413 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA R 0414 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA R 0415 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA R 0416 VRS-TV1JD223F 2125 22KOHM 1% 1/10W SMD S AA AA R 0418 VRD-RA2HD680J RES 68 OHM 5% 1/2W S AA AA R 0419 VRD-RA2EE750J RES 75 OHM 5% 1/4W S AA AA R 0420 VRD-RA2BE102J RES 1KOHM 5% 1/8W S AA AA R 0421 VRS-TV1JD151J 2125 150 OHM 5% 1/10W SMD S AA AA R 0422 VRS-TV1JD151J 2125 150 OHM 5% 1/10W SMD S AA AA R 0423 VRS-TV1JD151J 2125 150 OHM 5% 1/10W SMD S AA AA R 0424 VRD-RA2BE750J RES 75 OHM 5% 1/8W S AA AA R 0425 VRD-RA2EE750J RES 75 OHM 5% 1/4W S AA AA R 0426 VRD-RA2BE750J RES 75 OHM 5% 1/8W S AA AA R 0427 VRS-TV1JD820J 2125 82 OHM 5% 1/10W SMD S AA AA R 0428 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA R 0429 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA R 0430 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA R 0431 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA R 0432 VRS-TV1JD104J 2125 100KOHM 5% 1/10W SMD S AA AA R 0433 VRS-TV1JD104J 2125 100KOHM 5% 1/10W SMD S AA AA R 0434 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA R 0435 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA R 0436 RR-XZ0112BMZZ FUS RES 10R TAP 5% 1/3W S AA AB R 0437 VRS-TV1JD471J 2125 470 OHM 5% 1/10W SMD S AA AA R 0445 VRS-TV1JD104J 2125 100KOHM 5% 1/10W SMD S AA AA R 0447 VRS-TV1JD221J 2125 220 OHM 5% 1/10W SMD S AA AA R 0448 VRS-TV1JD221J 2125 220 OHM 5% 1/10W SMD S AA AA R 0450 VRS-TV1JD220J 2125 22 OHM 5% 1/10W SMD S AA AA R 0451 VRD-RA2HD121J RES 120 OHM 5% 1/2W S AA AA R 0452 VRS-TV1JD223F 2125 22KOHM 1% 1/10W SMD S AA AA R 0453 VRS-TV1JD183F 2125 18KOHM 1% 1/10W SMD S AA AA R 0454 VRS-TV1JD331J 2125 330 OHM 5% 1/10W SMD S AA AA R 0455 VRD-RA2BE103J RES 10KOHM 5% 1/8W S AA AA R 0456 VRS-TV1JD153J 2125 15KOHM 5% 1/10W SMD S AA AA R 0458 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA R 0459 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA R 0460 VRS-TV1JD183F 2125 18KOHM 1% 1/10W SMD S AA AA R 0461 VRS-TV1JD104J 2125 100KOHM 5% 1/10W SMD S AA AA R 0462 VRS-TV1JD183F 2125 18KOHM 1% 1/10W SMD S AA AA R 0463 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA R 0464 VRD-RA2BE221J RES 220 OHM 5% 1/8W S AA AA R 0465 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA R 0466 VRS-TV1JD221J 2125 220 OHM 5% 1/10W SMD S AA AA R 0467 VRS-TQ2BD333J OX RE 33KOHM 5% 1/8W SMD S AA AA R 0501 VRD-RA2HD101J RES 100 OHM 5% 1/2W S AA AA R 0502 VRS-TV1JD332J 2125 3.3KOHM 5% 1/10W SMD S AA AA
PARTS DESCRIPTION *
SN CODE EX CODE
R 0503 VRD-RA2BE102J RES 1KOHM 5% 1/8W S AA AA R 0504 VRS-TV1JD393J 2125 39KOHM 5% 1/10W SMD S AA AA R 0505 VRS-TV1JD222J 2125 2,2KOHM 5% 1/10W SMD S AA AA R 0506 VRS-TQ2BD121J OX RE 120 OHM 5% 1/8W SMD S AA AB R 0507 VRS-TV1JD822J 2125 8,2KOHM 5% 1/10W SMD S AA AA R 0508 VRD-RA2BE681J RES 680 OHM 5% 1/8W S AA AA R 0509 VRS-TV1JD393J 2125 39KOHM 5% 1/10W SMD S AA AA R 0510 VRS-TV1JD822J 2125 8,2KOHM 5% 1/10W SMD S AA AA R 0511 VRS-TV1JD151J 2125 150 OHM 5% 1/10W SMD S AA AA R 0512 VRS-TV1JD332J 2125 3.3KOHM 5% 1/10W SMD S AA AA R 0513 VRS-TV1JD224J 2125 220KOHM 5% 1/10W SMD S AA AA R 0514 VRS-TV1JD271J 2125 270 OHM 5% 1/10W SMD S AA AA R 0515 VRS-TV1JD122J 2125 1,2KOHM 5% 1/10W SMD S AA AA R 0516 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA R 0517 VRS-TV1JD153J 2125 15KOHM 5% 1/10W SMD S AA AA R 0518 VRN-VV3DB1R2J MET FILM R 1,2 OHM 5% 2W S AA AB R 0519 VRD-RA2HD104J RES 100KOHM 5% 1/2W S AA AA R 0521 VRS-TV1JD123J 2125 12KOHM 5% 1/10W SMD S AA AA R 0522 VRS-TV1JD222J 2125 2,2KOHM 5% 1/10W SMD S AA AA R 0524 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA R 0526 VRD-RA2BE472J RES 4,7KOHM 5% 1/8W S AA AA R 0527 VRS-TV1JD561J 2125 560 OHM 5% 1/10W SMD S AA AA R 0528 VRS-TV1JD104J 2125 100KOHM 5% 1/10W SMD S AA AA R 0530 RR-XZ0212BMZZ FUS RES 10R TAP 5% 1/2W S AA AB R 0532 VRS-TV1JD822J 2125 8,2KOHM 5% 1/10W SMD S AA AA R 0533 VRD-RA2EE821J RES 820 OHM 5% 1/4W S AA AA R 0534 VRD-RA2BE273J RES 27KOHM 5% 1/8W S AA AA R 0535 VRS-TV1JD682J 2125 6.8KOHM 5% 1/10W SMD S AA AA R 0536 VRS-VV3DB102J MET OX RES 1KOHM 5% 2W S AA AA R 0537 VRS-TV1JD822J 2125 8,2KOHM 5% 1/10W SMD S AA AA R 0538 VRS-TV1JD273J 2125 27KOHM 5% 1/10W SMD S AA AA R 0539 VRS-TV1JD332J 2125 3.3KOHM 5% 1/10W SMD S AA AA R 0540 VRS-TV1JD472J 2125 4.7KOHM 5% 1/10W SMD S AA AA R 0541 VRD-RA2BE333J RES 33KOHM 5% 1/8W S AA AA R 0542 VRS-TV1JD822J 2125 8,2KOHM 5% 1/10W SMD S AA AA R 0544 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA R 0545 VRS-TV1JD104J 2125 100KOHM 5% 1/10W SMD S AA AA R 0547 VRS-TV1JD392J 2125 3.9KOHM 5% 1/10W SMD S AA AA R 0548 VRS-TV1JD562J 2125 5,6KOHM 5% 1/10W SMD S AA AA R 0549 VRS-TV1JD273J 2125 27KOHM 5% 1/10W SMD S AA AA R 0550 VRD-RA2BE123J RES 12KOHM 5% 1/8W S AA AA R 0552 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA R 0553 RR-XZ0100BMZZ FUS RES 1R0 TAP 5% 1/3W S AA AB R 0554 VRS-TV1JD561J 2125 560 OHM 5% 1/10W SMD S AA AA R 0555 VRS-TV1JD334J 2125 330KOHM 5% 1/10W SMD S AA AA R 0556 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA R 0558 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA R 0559 VRS-TV1JD683J 2125 68KOHM 5% 1/10W SMD S AA AA R 0560 VRS-TV1JD822J 2125 8,2KOHM 5% 1/10W SMD S AA AA R 0601 VRS-TV1JD392J 2125 3.9KOHM 5% 1/10W SMD S AA AA R 0603 VRD-RA2BE331J RES 330 OHM 5% 1/8W S AA AA R 0605 VRS-TV1JD471J 2125 470 OHM 5% 1/10W SMD S AA AA R 0607 VRS-TV1JD123J 2125 12KOHM 5% 1/10W SMD S AA AA R 0608 VRD-RA2EE102J RES 1KOHM 5% 1/4W S AA AA R 0610 RR-XZ0200BMZZ FUS RES 1R0 TAP 5% 1/2W S AA AB R 0612 RR-XZ0116BMZZ FUS RES 22R TAP 5% 1/3W S AA AB R 0613 VRS-LU3LB332J SET MET OX R 3,3KOHM 5% 3W LW S AA AB R 0614 VRD-RA2HD103J RES 10KOHM 5% 1/2W S AA AA R 0615 VRS-TV1JD561J 2125 560 OHM 5% 1/10W SMD S AA AA R 0616 VRN-VV3AB2R7J MET FILM R 2.7 OHM 5% 1W S AA AA R 0617 RR-XZ0216BMZZ FUS RES 22R TAP 5% 1/2W S AA AB R 0618 VRD-RA2BE102J RES 1KOHM 5% 1/8W S AA AA R 0619 VRD-RA2HD561J RES 560 OHM 5% 1/2W S AA AA R 0620 VRD-RA2BE102J RES 1KOHM 5% 1/8W S AA AA R 0622 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA R 0623 VRN-VV3DB1R0J MET FILM R 1 OHM 5% 2W S AA AA R 0624 VRN-LU3DB5R6J SET MET FILM 5,6 OHM 5% 2W LW S AA AB R 0625 VRS-TQ2BD181J OX RE 180 OHM 5% 1/8W SMD S AA AA R 0626 VRS-TV1JD472J 2125 4.7KOHM 5% 1/10W SMD S AA AA R 0627 VRS-TQ2BD181J OX RE 180 OHM 5% 1/8W SMD S AA AA R 0628 VRD-RA2EE102J RES 1KOHM 5% 1/4W S AA AA R 0642 VRS-TV1JD471J 2125 470 OHM 5% 1/10W SMD S AA AA R 0643 RR-XZ0200BMZZ FUS RES 1R0 TAP 5% 1/2W S AA AB R 0644 VRS-TV1JD221J 2125 220 OHM 5% 1/10W SMD S AA AA
Page 28
28
81GF-63E
PARTS DESCRIPTION *
SN CODE EX CODE
R 0646 VRS-TV1JD274J 2125 270KOHM 5% 1/10W SMD S AA AA R 0647 VRS-TV1JD224J 2125 220KOHM 5% 1/10W SMD S AA AA R 0650 VRD-RA2BE562J RES 5,6KOHM 5% 1/8W S AA AA R 0703 VRD-RA2HD154J RES 150KOHM 5% 1/2W S AA AA R 0706 VRS-TV1JD203J 2125 20KOHM 5% 1/10W SMD S AA AA R 0707 VRS-TV1JD912J 2125 9.1KOHM 5% 1/10W SMD S AA AA R 0708 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA R 0711 VRS-TV1JD182J 2125 1,8KOHM 5% 1/10W SMD S AA AA R 0712 VRS-TV1JD561J 2125 560 OHM 5% 1/10W SMD S AA AA R 0713 VRC-MA2HG564J SOLID R 560KOHM 5% 1/2W S AA AA R 0714 VRC-MA2HG564J SOLID R 560KOHM 5% 1/2W S AA AA R 0715 VRW-KS3HC473J WOUND RES 47KOHM 5% 5W S AA AE R 0716 VRN-VV3ABR27J MET FILM R .27 OHM 5% 1W S AA AA R 0717 VRS-TV1JD223J 2125 22KOHM 5% 1/10W SMD S AA AA R 0718 VRS-TQ2BD180J OX RE 18 OHM 5% 1/8W SMD S AA AA R 0719 VRS-TV1JD221J 2125 220 OHM 5% 1/10W SMD S AA AA R 0720 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA R 0721 VRD-RA2HD154J RES 150KOHM 5% 1/2W S AA AA R 0722 VRS-TV1JD330J 2125 33 OHM 5% 1/10W SMD S AA AA R 0723 VRS-VV3AB271J MET OX RES 270 OHM 5% 1W S AA AA R 0724 VRS-TQ2BD271J OX RE 270 OHM 5% 1/8W SMD S AA AA R 0727 VRD-RA2HD181J RES 180 OHM 5% 1/2W S AA AA R 0728 VRD-RA2HD181J RES 180 OHM 5% 1/2W S AA AA R 0730 VRS-VV3AB101J MET OX RES 100 OHM 5% 1W S AA AA R 0733 VRS-TV1JD473J 2125 47KOHM 5% 1/10W SMD S AA AA R 0735 VRS-TV1JD474J 2125 470KOHM 5% 1/10W SMD S AA AA R 0736 VRS-TV1JD474J 2125 470KOHM 5% 1/10W SMD S AA AA R 0737 VRS-TV1JD184J 2125 180KOHM 5% 1/10W SMD S AA AA R 0738 VRS-TV1JD473J 2125 47KOHM 5% 1/10W SMD S AA AA R 0739 VRS-TV1JD473J 2125 47KOHM 5% 1/10W SMD S AA AA R 0740 VRS-TV1JD473J 2125 47KOHM 5% 1/10W SMD S AA AA R 0741 VRC-UA2HG825K SOLID R 8,2MOHM 10% 1/2W S AA AA R 0742 VRC-UA2HG825K SOLID R 8,2MOHM 10% 1/2W S AA AA R 0743 VRS-TQ2BD473F OX RE 47KOHM 1% 1/8W S AA AA R 0744 VRS-TQ2BD473F OX RE 47KOHM 1% 1/8W S AA AA R 0745 VRS-TV1JD182F 2125 1,8KOHM 1% 1/10W SMD S AA AA R 0746 VRS-TV1JD153J 2125 15KOHM 5% 1/10W SMD S AA AA R 0746 VRS-TV1JD183J 2125 18KOHM 5% 1/10W SMD S AA AA R 0747 VRS-TV1JD272J 2125 2,7KOHM 5% 1/10W SMD S AA AA R 0748 VRS-TV1JD472J 2125 4.7KOHM 5% 1/10W SMD S AA AA R 0750 VRS-TV1JD105J 2125 1MOHM 5% 1/10W SMD S AA AA R 0751 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA R 0754 VRS-TV1JD2R7J 2125 2,7 OHM 5% 1/10W SMD S AA AA R 0755 VRS-TV1JD391J 2125 390 OHM 5% 1/10W SMD S AA AA R 0758 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA R 0762 VRS-TQ2BD221J OX RE 220 OHM 5% 1/8W SMD S AA AA R 0763 RR-XZ0224BMZZ FUS RES 100R TAP 5% 1/2W S AA AB R 0765 VRS-TQ2BD101J OX RE 100 0HM 5% 1/8W SMD S AA AA R 0766 VRS-TQ2BD101J OX RE 100 0HM 5% 1/8W SMD S AA AA R 0767 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA R 0768 VRS-TQ2BD221J OX RE 220 OHM 5% 1/8W SMD S AA AA R 0769 VRS-TV1JD821J 2125 820 OHM 5% 1/10W SMD S AA AA R 0770 RR-XZ0229BMZZ FUS RES 270R TAP 5% 1/2W S AA AA R 0771 VRS-VV3AB474J MET OX RES 470KOHM 5% 1W S AA AA R 0773 VRS-TV1JD473J 2125 47KOHM 5% 1/10W SMD S AA AA R 0774 VRS-TQ2BD474J OX RE 470KOHM 5% 1/8W SMD S AA AA R 0775 VRS-TQ2BD474J OX RE 470KOHM 5% 1/8W SMD S AA AA R 0776 VRS-TV1JD823J 2125 82KOHM 5% 1/10W SMD S AA AA R 0777 VRS-TV1JD470J 2125 47 OHM 5% 1/10W SMD S AA AA R 0787 VRS-TV1JD473J 2125 47KOHM 5% 1/10W SMD S AA AA R 0788 VRS-TV1JD183J 2125 18KOHM 5% 1/10W SMD S AA AA R 0789 VRS-TV1JD183J 2125 18KOHM 5% 1/10W SMD S AA AA R 0790 VRD-RA2BE183J RES 18KOHM 5% 1/8W S AA AA R 0791 VRD-RA2BE183J RES 18KOHM 5% 1/8W S AA AA R 0792 VRD-RA2BE682J RES 6,8KOHM 5% 1/8W S AA AA R 0801 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA R 0803 VRS-TV1JD122J 2125 1,2KOHM 5% 1/10W SMD S AA AA R 0804 VRS-TV1JD271J 2125 270 OHM 5% 1/10W SMD S AA AA R 0805 VRS-TV1JD222J 2125 2,2KOHM 5% 1/10W SMD S AA AA R 0806 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA R 0807 VRS-TV1JD333J 2125 33KOHM 5% 1/10W SMD S AA AA R 0808 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA R 0809 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA R 0810 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA
PARTS DESCRIPTION *
SN CODE EX CODE
R 0811 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA R 0812 VRS-TV1JD222J 2125 2,2KOHM 5% 1/10W SMD S AA AA R 1001 VRS-TV1JD332J 2125 3.3KOHM 5% 1/10W SMD S AA AA R 1002 VRS-TV1JD332J 2125 3.3KOHM 5% 1/10W SMD S AA AA R 1003 VRD-RA2BE332J RES 3,3KOHM 5% 1/8W S AA AA R 1004 VRS-TV1JD332J 2125 3.3KOHM 5% 1/10W SMD S AA AA R 1005 VRS-TV1JD472J 2125 4.7KOHM 5% 1/10W SMD S AA AA R 1008 VRD-RA2BE332J RES 3,3KOHM 5% 1/8W S AA AA R 1017 VRS-TV1JD332J 2125 3.3KOHM 5% 1/10W SMD S AA AA R 1018 VRD-RA2BE101J RES 100 OHM 5% 1/8W S AA AA R 1019 VRD-RA2BE332J RES 3,3KOHM 5% 1/8W S AA AA R 1020 VRD-RA2BE332J RES 3,3KOHM 5% 1/8W S AA AA R 1021 VRS-TV1JD472J 2125 4.7KOHM 5% 1/10W SMD S AA AA R 1022 VRD-RA2BE101J RES 100 OHM 5% 1/8W S AA AA R 1023 VRS-TV1JD221J 2125 220 OHM 5% 1/10W SMD S AA AA R 1024 VRS-TV1JD822J 2125 8,2KOHM 5% 1/10W SMD S AA AA R 1025 VRS-TV1JD822J 2125 8,2KOHM 5% 1/10W SMD S AA AA R 1026 VRS-TV1JD221J 2125 220 OHM 5% 1/10W SMD S AA AA R 1027 VRD-RA2BE103J RES 10KOHM 5% 1/8W S AA AA R 1028 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA R 1029 VRS-TV1JD472J 2125 4.7KOHM 5% 1/10W SMD S AA AA R 1030 VRS-TV1JD472J 2125 4.7KOHM 5% 1/10W SMD S AA AA R 1031 VRS-TV1JD472J 2125 4.7KOHM 5% 1/10W SMD S AA AA R 1032 VRS-TV1JD273J 2125 27KOHM 5% 1/10W SMD S AA AA R 1033 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA R 1035 VRS-TV1JD472J 2125 4.7KOHM 5% 1/10W SMD S AA AA R 1036 VRD-RA2BE472J RES 4,7KOHM 5% 1/8W S AA AA R 1037 VRS-TV1JD472J 2125 4.7KOHM 5% 1/10W SMD S AA AA R 1040 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA R 1041 VRS-TV1JD472J 2125 4.7KOHM 5% 1/10W SMD S AA AA R 1042 VRS-TV1JD822J 2125 8,2KOHM 5% 1/10W SMD S AA AA R 1043 VRS-TV1JD822J 2125 8,2KOHM 5% 1/10W SMD S AA AA R 1044 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA R 1045 VRS-TV1JD822J 2125 8,2KOHM 5% 1/10W SMD S AA AA R 1046 VRS-TV1JD182J 2125 1,8KOHM 5% 1/10W SMD S AA AA R 1047 VRD-RA2BE103J RES 10KOHM 5% 1/8W S AA AA R 1048 VRS-TV1JD821J 2125 820 OHM 5% 1/10W SMD S AA AA R 1049 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA R 1050 VRD-RA2BE221J RES 220 OHM 5% 1/8W S AA AA R 1051 VRS-TV1JD223J 2125 22KOHM 5% 1/10W SMD S AA AA R 1052 VRS-TV1JD472J 2125 4.7KOHM 5% 1/10W SMD S AA AA R 1053 VRS-TV1JD104J 2125 100KOHM 5% 1/10W SMD S AA AA R 1054 VRS-TV1JD104J 2125 100KOHM 5% 1/10W SMD S AA AA R 1055 VRD-RA2BE473J RES 47KOHM 5% 1/8W S AA AA R 1056 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA R 1057 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA R 1058 VRD-RA2BE101J RES 100 OHM 5% 1/8W S AA AA R 1059 VRD-RA2BE101J RES 100 OHM 5% 1/8W S AA AA R 1060 VRS-TV1JD123J 2125 12KOHM 5% 1/10W SMD S AA AA R 1061 VRS-TV1JD472J 2125 4.7KOHM 5% 1/10W SMD S AA AA R 1064 VRD-RA2BE101J RES 100 OHM 5% 1/8W S AA AA R 2401 VRS-TV1JD471J 2125 470 OHM 5% 1/10W SMD S AA AA R 2402 VRS-TV1JD472J 2125 4.7KOHM 5% 1/10W SMD S AA AA R 2403 VRS-TV1JD152J 2125 1.5KOHM 5% 1/10W SMD S AA AA R 2404 VRS-TV1JD560J 2125 56 OHM 5% 1/10W SMD S AA AA R 2405 VRS-TV1JD104J 2125 100KOHM 5% 1/10W SMD S AA AA R 2406 VRS-TV1JD222J 2125 2,2KOHM 5% 1/10W SMD S AA AA R 2407 VRS-TV1JD222J 2125 2,2KOHM 5% 1/10W SMD S AA AA R 2408 VRS-TV1JD332J 2125 3.3KOHM 5% 1/10W SMD S AA AA R 2409 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA R 2410 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA R 2411 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA R 2412 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA RA 0611 RR-XZ0242BMZZ FUS RES 3K3 TAP 5% 1/2W S AA AB
MISCELLANEOUS PARTS
(AA) QCNCM0672FCZZ CONN B2P3-VH JST S AA AB (CC) QPLGN0241CEZZ PLUG S AA AA (CN1) QSOCZ2109BMZZ TWIN SCART JR21A13 CONECT S AG AK (CN2) QSOCZ2107BMZZ SOCKET S AF AE (EW) QPLGN0241CEZZ PLUG S AA AA (F) QPLGN0505CEZZ PLUG S AA AB (FV) QPLGN0241CEZZ PLUG S AA AA (G) QPLGN0207CEZZ PLUG S AA AA
Page 29
29
81GF-63E
PARTS DESCRIPTION *
SN CODE EX CODE
(H) QPLGN0541CEZZ PLUG S AA AA (HD QPLGN0341CEZZ PLUG S AA AA (K) QPLGN0841CEZZ PLUG S AA AB (L2) QTIPM0017CEFM TIP S AA AA (MO) QPLGN0441CEZZ PLUG 4PIN S AA AA (OPC) QPLGN0341CEZZ PLUG S AA AA (RC) QPLGN0341CEZZ PLUG S AA AA (RT) QPLGN0241CEZZ PLUG S AA AA (SB) QSOCN0685CEZZ SOCKET S AA AC (SP) QPLGN0441CEZZ PLUG 4PIN S AA AA (SS) QPLGN0341CEZZ PLUG S AA AA (ST) QCNW-2795BMZZ WIRE 3 WAYS S AA AD (ST) QPLGN0341CEZZ PLUG S AA AA (SV) QPLGN0341CEZZ PLUG S AA AA (SW1) QPLGN0341CEZZ PLUG S AA AA (SW2) QPLGN0341CEZZ PLUG S AA AA F 0601 QFS-J2521CEZZ FUSE 2,5A/125V LITTELFUSE S AC AD F 0602 QFS-J2521CEZZ FUSE 2,5A/125V LITTELFUSE S AC AD FB 0301 RBLN-0037CEZZ BALUN FBA04HA90088-00 T/Y S AB AB FB 0302 RBLN-0037CEZZ BALUN FBA04HA90088-00 T/Y S AB AB FB 0303 RBLN-0037CEZZ BALUN FBA04HA90088-00 T/Y S AB AB FB 0501 RBLN-0020CEZZ BALUNE S AA AB FB 0701 RBLN-0037CEZZ BALUN FBA04HA90088-00 T/Y S AB AB FB 0702 RBLN-0037CEZZ BALUN FBA04HA90088-00 T/Y S AB AB FB 0703 RBLN-0037CEZZ BALUN FBA04HA90088-00 T/Y S AB AB FB 0705 RBLN-0020CEZZ BALUNE S AA AB FB 0801 VP-NM3R3MR19N COIL 3,3UH SMD S AA AD FB 0802 RCORF0003GEZZ SMDFERRIT HF50ACB322513 S AA AC FB 1001 VRS-TQ2BD000J 3216 0 OHM 5% 1/8W SMD S AA AA FB 1002 RBLN-0037CEZZ BALUN FBA04HA90088-00 T/Y S AB AB J 0002 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA J 0039 VP-DF3R3K0000 PEAK COIL 3,3UH 10% S AB AB J 0062 VP-DF3R3K0000 PEAK COIL 3,3UH 10% S AB AB J 0065 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA J 0098 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA J 0126 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA J 0132 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA J 0152 QFS-J1023CEZZ FUSE 492001 T1 LITTELFUSE S AA AA J 0218 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA J 0219 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA J 0220 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA J 0231 VRD-RA2BE103J RES 10KOHM 5% 1/8W S AA AA J 0240 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA J 0248 VRD-RA2HD121J RES 120 OHM 5% 1/2W S AA AA J 0279 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA J 0281 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA J 0283 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA J 0286 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA J 0289 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA J 0294 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA J 0302 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA J 0310 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA J 0313 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA J 0324 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA J 0325 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA J 0332 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA J 0335 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA J 0336 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA J 0338 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA J 0339 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA J 0341 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA J 0342 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA J 0701 VCKYTV1HB104K CERAM C 100NF 50V 2125SMD S AA AA JF 0003 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA JF 0015 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA JF 0016 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA JF 0020 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA JF 0021 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA JF 0022 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA JF 0038 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA JF 0052 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA JF 1005 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA JF 1007 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA JF 1008 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA
PARTS DESCRIPTION *
SN CODE EX CODE
JL 0012 QCNW-2803BMZZ COAXIAL WIRE 1 WAY S AA AD JL 0014 QCNW-2736BMZZ WIRE 1 WAY S AB AF JL 0015 QCNW-2736BMZZ WIRE 1 WAY S AB AF L0005 QTIPM0017CEFM TIP S AA AA LA 0609 VP-CF1R2K0000 PEAK COIL 1.2UH 10% S AA AB IC 1002 QSOCZ0115SC32 SOCKET IC 32 PIN S AA AB T 0702 VHDBTW34F//-1 DIODE BT134W-500 S AD AE
QCNW-2819BMZZ FOCUS WIRE 20020000-0 MARBEL S AA AC
(MAT) QCNW-2857BMZZ T.H.V. WIRE HR-16521 TO FLYBACK HR-8168 S AC AK
PWB-B FRONTAL POWER UNIT
DIODES
D 6751 RH-PX0105BMZZ LED SPB-25MVW ROHM S AC AC D 6752 RH-PX0105BMZZ LED SPB-25MVW ROHM S AC AC
CAPACITORS
C 6715 VCKYTV1CF105Z CERAM C 1UF 16V 2125SMD S AA AA
RESISTORS
R 6701 VRD-RA2HD124J RES 120KOHM 5% 1/2W S AA AA R 6702 VRD-RA2HD124J RES 120KOHM 5% 1/2W S AA AA R 6738 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA R 6739 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA R 6751 VRD-RA2BE332J RES 3,3KOHM 5% 1/8W S AA AA
MISCELLANEOUS PARTS
GCOVA1512BMSA DECORATION S AA AB QFSHD1001BMZZ FUSE HOLD.EYF52BC=PANASON S AA AA
QFSHD1002BMZZ FUSE HOLD.EYF52BC=PANASON S AA AA (A) QPLGN0207CEZZ PLUG S AA AA (M) QPLGN0304CEZZ PLUG S AA AB (OPC) QPLGN0341CEZZ PLUG S AA AA (RC) QPLGN0341CEZZ PLUG S AA AA (ST) QPLGN0341CEZZ PLUG S AA AA (SW1) QPLGN0341CEZZ PLUG S AA AA (SW2) QPLGN0341CEZZ PLUG S AA AA F 6701 QFS-C3226CEZZ FUSE T3.15AH 250V S AC AE LP 6701 RLAMP0001BMZZ NEON TYPE 4/30HB NEOTRONIC S AB AC M 6701 RRMCU0228CEZZ R/C RECEIVER S AC AH S 6701 QSW-P0600BMZZ SWITCH S40 3110432713 GDE S AF AL S 6702 QSW-K0079GEZZ TACTILE SWITCH S AA AA S 6703 QSW-K0079GEZZ TACTILE SWITCH S AA AA S 6704 QSW-K0079GEZZ TACTILE SWITCH S AA AA S 6705 QSW-K0079GEZZ TACTILE SWITCH S AA AA
PWB-C FRONTAL A/V UNIT
COILS
L 0317 VP-DF3R3K0000 PEAK COIL 3,3UH 10% S AB AB L 0318 VP-DF3R3K0000 PEAK COIL 3,3UH 10% S AB AB
RESISTORS
R 0316 VRS-TV1JD391J 2125 390 OHM 5% 1/10W SMD S AA AA R 0317 VRS-TV1JD391J 2125 390 OHM 5% 1/10W SMD S AA AA R 0449 VRD-RA2EE750J RES 75 OHM 5% 1/4W S AA AA
CAPACITORS
C 0336 VCKYTV1HF103Z CERAM C 10NF 50V 2125SMD S AA AA C 0337 VCKYTV1HF103Z CERAM C 10NF 50V 2125SMD S AA AA C 0428 VCKYTV1HB102K CERAM C 1NF 50V 2125SMD S AA AA C 0429 VCKYTV1HB102K CERAM C 1NF 50V 2125SMD S AA AA
MISCELLANEOUS PARTS
(CC) QCNW-2801BMZZ WIRE 2 WAYS (CC) S AB AF (CC) QPLGN0241CEZZ PLUG S AA AA (CN4) QJAKJ0047CEZZ EARPHONE JACK HSJ0998-72 S AA AG (FV) QCNW-2825BMZZ WIRE (FV) 2 WAYS S AB AF (FV) QPLGN0241CEZZ PLUG S AA AA (HD) QCNW-2797BMZZ WIRE 3 WAYS (RD) S AA AD (HD) QPLGN0341CEZZ PLUG S AA AA (SS) QCNW-2792BMZZ WIRE 3 WAYS (SS) S AB AE (SS) QPLGN0341CEZZ PLUG S AA AA J 0401 QJAKZ0015CEZZ JACK S AH AM JF 0001 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA
Page 30
30
81GF-63E
PARTS DESCRIPTION *
SN CODE EX CODE
JF 0003 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA
PWB-D DINAMIC FOCUS UNIT
DIODES
D 1601 RH-EX0431BMZZ ZENER DIODE BZX79C47V S AA AA D 1602 RH-EX0411BMZZ ZENER DIODE BZX79C6V8 S AA AA
RESISTORS
R 1601 VRD-RA2HD181J RES 180 OHM 5% 1/2W S AA AA R 1602 VRS-VV3LB332J MET OX RES 3,3KOHM 5% 3W S AA AA R 1603 VRS-VV3LB332J MET OX RES 3,3KOHM 5% 3W S AA AA
TRANSFORMERS
T 1602 RTRNZ0575BMZZ TRANSFORMER S AG AS
CAPACITORS
C 1601 RC-KZ0036CEZZ CERAM C 330PF 2KV S AA AB C 1602 RC-KZ0038CEZZ CERAM C 470PF 2KV S AA AB C 1603 RC-KZ0052CEZZ CERAM C 1000PF 2KV MURATA S AA AC
MISCELLANEOUS PARTS
(EW) QPLGN0241CEZZ PLUG S AA AA (F) QPLGN0505CEZZ PLUG S AA AB (FF) QPLGN0505CEZZ PLUG S AA AB L 0005 QTIPM0017CEFM TIP S AA AA FOCO RVR-Z0001BMZZ VAR-RESISTOR POT 8222 419 34301 S AR BC
PWB-E CRT UNIT
INTEGRATED CIRCUITS
IC1601 VHIBA4558F/-1 IC BA4558F-E2 ROHM OP-AMP S AA AC
TRANSISTORS
Q 0901 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 0902 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 0903 VS2SA1037KQ-1 TRT BC807 SMD S AA AA Q 0904 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 0905 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 0906 VS2SA1037KQ-1 TRT BC807 SMD S AA AA Q 0907 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 0908 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 0909 VS2SA1037KQ-1 TRT BC807 SMD S AA AA Q 0912 RH-TX0218BMZZ TRT BC337-40 PHILIPS S AA AA Q 1603 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 1604 VS2SA1037KQ-1 TRT BC807 SMD S AA AA Q 5405 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 5406 VS2SA1037KQ-1 TRT BC807 SMD S AA AA Q 5410 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 5411 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA Q 5412 VS2SA1037KQ-1 TRT BC807 SMD S AA AA
DIODES
D 1607 RH-EX0537BMZZ ZENER DIODE TZMC2V4 TFK SMD S AA AA D 1804 RH-DX0505BMZZ DIODE 1N4935 S AB AE D 1805 RH-EX0554BMZZ ZENER DIODE TZMC12 TFK SMD S AA AA D 1809 RH-DX0501BMZZ DIODE 1N4004 S AA AA D 5403 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA D 5404 RH-DX0501BMZZ DIODE 1N4004 S AA AA D 5405 RH-DX0501BMZZ DIODE 1N4004 S AA AA D 5410 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA D 5411 RH-DX0501BMZZ DIODE 1N4004 S AA AA D 5412 RH-DX0501BMZZ DIODE 1N4004 S AA AA
COILS
L 1604 VP-DF470K0000 PEAK COIL 47UH 10% S AB AB
CAPACITORS
C 1608 VCEAGA1CW106M ELEC C 10UF 20% 16V S AA AA C 1609 VCEAGA1CW106M ELEC C 10UF 20% 16V S AA AA C 1610 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 1611 VCKYTV1HB103K CERAM C 10NF 50V 2125SMD S AA AA C 1612 VCEAGA1EW227M ELEC C 220UF 20% 25V S AA AA C 1613 VCEAGA1EW227M ELEC C 220UF 20% 25V S AA AA C 1801 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA
PARTS DESCRIPTION *
SN CODE EX CODE
C 1802 VCCCTV1HH150J CERAM C 15PF 50V 2125SMD S AA AA C 1803 VCCCTV1HH150J CERAM C 15PF 50V 2125SMD S AA AA C 1804 VCCCTV1HH150J CERAM C 15PF 50V 2125SMD S AA AA C 1805 VCKYTV1HF224Z CERAM C 220NF 50V 2125SMD S AA AA C 1806 VCKYTV1HB103K CERAM C 10NF 50V 2125SMD S AA AA C 1807 VCEAGA1CW108M ELEC C 1000UF 20% 16V S AA AC C 1808 VCKYTV1HB102K CERAM C 1NF 50V 2125SMD S AA AA C 1809 VCKYTV1HB102K CERAM C 1NF 50V 2125SMD S AA AA C 1810 VCKYTV1HB102K CERAM C 1NF 50V 2125SMD S AA AA C 1811 VCEAGA2EW106M ELEC C 10UF 20% 250V S AA AC C 1812 VCEAGA2EW105M ELEC C 1UF 20% 250V S AA AB C 1813 VCKYTV1HB103K CERAM C 10NF 50V 2125SMD S AA AA C 1814 RC-KZ0023CEZZ CERAM C 4700PF 20% 2KV S AD AD C 1815 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 1820 VCCCTV1HH220J CERAM C 22PF 50V 2125SMD S AA AA C 1821 VCCCTV1HH220J CERAM C 22PF 50V 2125SMD S AA AA C 1822 VCCCTV1HH220J CERAM C 22PF 50V 2125SMD S AA AA C 1824 VCKYPA2HB472K CERAM C 4,7NF 10% 500V S AA AB C 1825 RC-KZ0029CEZZ CERAM C 10NF 80,20% 250V S AC AC C 5405 RC-FZ4224BMNJ POL FILM C 220nF 50V 5% ECQ-V PANASONIC S AA AB C 5408 VCKYPA2HB472K CERAM C 4,7NF 10% 500V S AA AB C 5409 VCKYTV1HB472K CERAM C 4,7NF 50V 2125SMD S AA AA C 5410 VCKYTV1HB103K CERAM C 10NF 50V 2125SMD S AA AA C 5411 VCKYTV1HB103K CERAM C 10NF 50V 2125SMD S AA AA C 5412 VCEAGA1CW107M ELEC C 100UF 20% 16V S AA AA C 5413 VCEAGA1CW107M ELEC C 100UF 20% 16V S AA AA C 5414 VCEAGA2CW226M ELEC C 22UF 20% 160V S AA AC C 5415 VCEAGA2CW226M ELEC C 22UF 20% 160V S AA AC C 5417 RC-FZ4222BMNJ POL FILM C 2,2nF 50V 5% ECQ-B PANASONIC S AA AA
RESISTORS
R 1615 VRS-TV1JD105J 2125 1MOHM 5% 1/10W SMD S AA AA R 1616 VRS-TV1JD104J 2125 100KOHM 5% 1/10W SMD S AA AA R 1617 VRS-TV1JD222J 2125 2,2KOHM 5% 1/10W SMD S AA AA R 1618 VRS-TV1JD104J 2125 100KOHM 5% 1/10W SMD S AA AA R 1619 VRS-TV1JD473J 2125 47KOHM 5% 1/10W SMD S AA AA R 1620 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA R 1621 VRS-VV3AB101J MET OX RES 100 OHM 5% 1W S AA AA R 1622 VRS-TV1JD471J 2125 470 OHM 5% 1/10W SMD S AA AA R 1623 VRS-VV3AB101J MET OX RES 100 OHM 5% 1W S AA AA R 1624 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA R 1801 VRS-TV1JD221J 2125 220 OHM 5% 1/10W SMD S AA AA R 1802 VRS-TV1JD391J 2125 390 OHM 5% 1/10W SMD S AA AA R 1803 VRS-TV1JD750J 2125 75 OHM 5% 1/10W SMD S AA AA R 1804 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA R 1805 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA R 1806 VRS-TV1JD221J 2125 220 OHM 5% 1/10W SMD S AA AA R 1807 VRS-TV1JD391J 2125 390 OHM 5% 1/10W SMD S AA AA R 1808 VRS-TV1JD750J 2125 75 OHM 5% 1/10W SMD S AA AA R 1809 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA R 1810 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA R 1811 VRS-TV1JD221J 2125 220 OHM 5% 1/10W SMD S AA AA R 1812 VRS-TV1JD391J 2125 390 OHM 5% 1/10W SMD S AA AA R 1813 VRS-TV1JD750J 2125 75 OHM 5% 1/10W SMD S AA AA R 1814 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA R 1815 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA R 1816 VRS-TV1JD221J 2125 220 OHM 5% 1/10W SMD S AA AA R 1817 VRS-TV1JD122J 2125 1,2KOHM 5% 1/10W SMD S AA AA R 1818 VRS-TV1JD122J 2125 1,2KOHM 5% 1/10W SMD S AA AA R 1819 VRS-TV1JD122J 2125 1,2KOHM 5% 1/10W SMD S AA AA R 1820 VRD-RA2HD823J RES 82KOHM 5% 1/2W S AA AA R 1821 VRD-RA2HD823J RES 82KOHM 5% 1/2W S AA AA R 1822 VRD-RA2HD823J RES 82KOHM 5% 1/2W S AA AA R 1823 VRS-TV1JD222J 2125 2,2KOHM 5% 1/10W SMD S AA AA R 1824 VRS-TV1JD222J 2125 2,2KOHM 5% 1/10W SMD S AA AA R 1825 VRS-TV1JD222J 2125 2,2KOHM 5% 1/10W SMD S AA AA R 1830 VRS-TV1JD472J 2125 4.7KOHM 5% 1/10W SMD S AA AA R 1831 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA R 1832 VRC-MA2HG681J SOLID R 680 OHM 5% 1/2W S AA AB R 1833 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA R 1834 VRC-MA2HG681J SOLID R 680 OHM 5% 1/2W S AA AB R 1835 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA R 1836 VRC-MA2HG681J SOLID R 680 OHM 5% 1/2W S AA AB R 1837 VRS-TV1JD225J 2125 2,2MOHM 5% 1/10W SMD S AA AA
Page 31
31
81GF-63E
PARTS DESCRIPTION *
SN CODE EX CODE
R 1839 VRS-TV1JD100J 2125 10 OHM 5% 1/10W SMD S AA AA R 1840 VRS-TV1JD822J 2125 8,2KOHM 5% 1/10W SMD S AA AA R 1841 VRD-RA2BE220J RES 22 OHM 5% 1/8W S AA AA R 5412 VRS-TV1JD470J 2125 47 OHM 5% 1/10W SMD S AA AA R 5413 VRS-TV1JD220J 2125 22 OHM 5% 1/10W SMD S AA AA R 5414 VRS-TV1JD220J 2125 22 OHM 5% 1/10W SMD S AA AA R 5415 VRS-TV1JD122J 2125 1,2KOHM 5% 1/10W SMD S AA AA R 5416 VRS-TV1JD683J 2125 68KOHM 5% 1/10W SMD S AA AA R 5417 VRS-TV1JD123J 2125 12KOHM 5% 1/10W SMD S AA AA R 5418 VRS-TV1JD683J 2125 68KOHM 5% 1/10W SMD S AA AA R 5419 VRS-TV1JD122J 2125 1,2KOHM 5% 1/10W SMD S AA AA R 5420 VRD-RA2EE560J RES 56 OHM 5% 1/4W S AA AA R 5421 VRD-RA2EE560J RES 56 OHM 5% 1/4W S AA AA R 5422 VRD-RA2EE2R7J RES 2,7 OHM 5% 1/4W S AA AA R 5423 VRD-RA2EE2R7J RES 2,7 OHM 5% 1/4W S AA AA R 5425 VRS-VV3AB471J MET OX RES 470 OHM 5% 1W S AA AA R 5426 VRS-VV3DB221J MET FILM R 220 OHM 5% 2W S AA AB R 5428 VRD-RA2EE101J RES 100 OHM 5% 1/4W S AA AA R 5431 VRS-TV1JD391J 2125 390 OHM 5% 1/10W SMD S AA AA R 5432 VRS-TV1JD330J 2125 33 OHM 5% 1/10W SMD S AA AA R 5433 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA R 5434 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA R 5435 VRS-TV1JD331J 2125 330 OHM 5% 1/10W SMD S AA AA
MISCELLANEOUS PARTS
(B) QPLGN0341CEZZ PLUG S AA AA (H) QPLGN0541CEZZ PLUG S AA AA (K) QPLGN0841CEZZ PLUG S AA AB (PU) QPLGN0341CEZZ PLUG S AA AA (Q) QPLGN0341CEZZ PLUG S AA AA (RT0000 QPLGN0241CEZZ PLUG S AA AA J 0071 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA J 0074 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA J 0075 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA J 0076 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA J 0077 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA J 0079 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA L 0003 QTIPM0017CEFM TIP S AA AA L 0005 QTIPM0017CEFM TIP S AA AA SC 1801 QSOCV0936CEZZ CRT SOCKET S AF AM
PWB-F CENTRAL SPEAKER UNIT
INTEGRATED CIRCUITS
IC 1300 VHIBA4558F/-1 IC BA4558F-E2 ROHM OP-AMP S AA AC IC 1302 VHITDA7480/-1 IC TDA7480 THOMSON S AF AK
TRANSISTORS
Q 1301 VS2SC2412KQ-1 TRT 2SC2412 ROHM S AA AA
DIODES
D 1303 RH-EX0411BMZZ ZENER DIODE BZX79C6V8 S AA AA D 1304 RH-EX0411BMZZ ZENER DIODE BZX79C6V8 S AA AA
COILS
L 1301 RCILP0278BMZZ COIL A823LY-680K TOKO S AA AD L 1302 VP-CF3R3K0000 PEAK COIL 3.3UH 10% S AB AB L 1303 VP-CF3R3K0000 PEAK COIL 3.3UH 10% S AB AB
CAPACITORS
C 1302 RC-FZ4334BMNJ POL FILM C 330nF 50V 5% ECQ-V PANASONIC S AA AB C 1303 VCKYTV1HB102K CERAM C 1NF 50V 2125SMD S AA AA C 1304 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 1305 VCEAGA1HW225M ELEC C 2,2UF 20% 50V S AA AB C 1306 VCEAGA1EW227M ELEC C 220UF 20% 25V S AA AA C 1307 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 1308 VCKYTV1HB472K CERAM C 4,7NF 50V 2125SMD S AA AA C 1309 RC-FZ4104BMNJ POL FILM C 100nF 50V 5% ECQ-V PANASONIC S AA AA C 1310 VCEAGA1EW227M ELEC C 220UF 20% 25V S AA AA C 1311 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA C 1312 VCCCTV1HH101J CERAM C 100PF 50V 2125SMD S AA AA C 1313 VCCCTV1HH561J CERAM C 560PF 50V 2125SMD S AA AA C 1314 RC-FZ4474BMNJ POL FILM C 470nF 50V 5% ECQ-V PANASONIC S AA AC C 1315 RC-FZ4104BMNJ POL FILM C 100nF 50V 5% ECQ-V PANASONIC S AA AA
PARTS DESCRIPTION *
SN CODE EX CODE
RESISTORS
R 1301 VRS-TV1JD123J 2125 12KOHM 5% 1/10W SMD S AA AA R 1302 VRS-TV1JD123J 2125 12KOHM 5% 1/10W SMD S AA AA R 1304 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA R 1307 VRS-TV1JD153J 2125 15KOHM 5% 1/10W SMD S AA AA R 1308 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA R 1309 VRS-TV1JD273J 2125 27KOHM 5% 1/10W SMD S AA AA R 1310 VRS-TV1JD473J 2125 47KOHM 5% 1/10W SMD S AA AA R 1311 VRS-TV1JD472J 2125 4.7KOHM 5% 1/10W SMD S AA AA R 1312 VRS-TV1JD123J 2125 12KOHM 5% 1/10W SMD S AA AA R 1313 VRS-TV1JD151J 2125 150 OHM 5% 1/10W SMD S AA AA
MISCELLANEOUS PARTS
(SB) QPLGN0685CEZZ PLUG S AA AB (SF) QPLGN0241CEZZ PLUG S AA AA (VS) QPLGN0341CEZZ PLUG S AA AA JF 0001 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA
MISCELLANEOUS PARTS
QACCZ2100BMSA AC CORD S AH AR
RRMCG1065BMSA REMOTE CONTROLLER S AQ AX
VSP1206PB437A SPEAKER 12W 7 OHM S AE AP
TINS-6809BMN0 OWNERS MANUAL S -- --
LCHSM1011BMZZ CHASSIS FRAME S AD AL
RCORF0002BMZZ FERRITE CORE TFC-16816EX S AF AK
RCILG0419BMZZ COIL ATN01121953 ROTATION 16:9 S AK AR

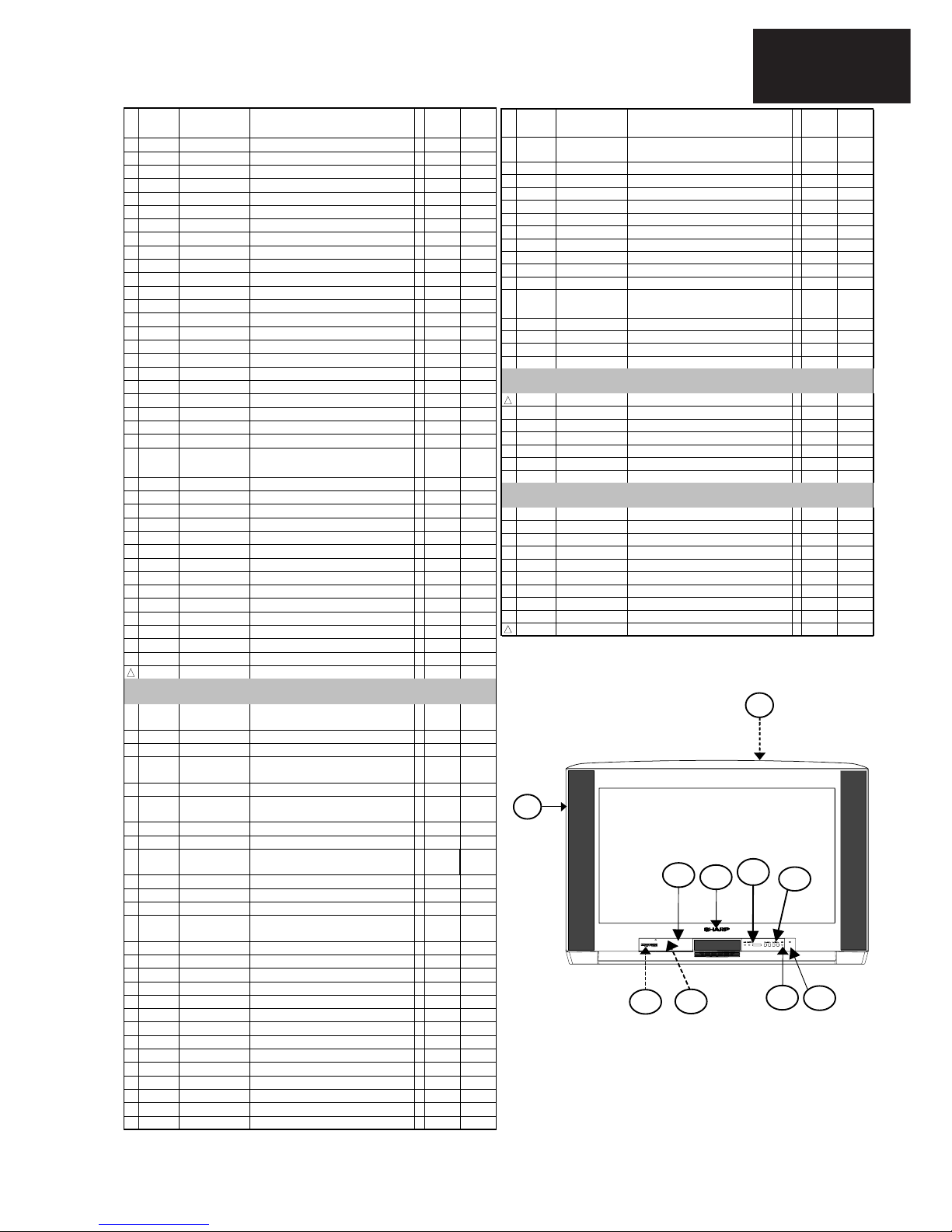

CABINET PARTS
1 CCABA1296BMV0 FRONT CABINET SET 81GF63E S BC BT
1.1 GDORF1055BMSA DOOR S AA AD
1.2 PKAI-1083BM00 DOOR LATCH S AC AF
1.3 HINDP5106BMSA INDICATOR FRONTAL S AA AD
1.4 HBDGB3510BMSA BADGE SHARP S AC AK
1.5 HDECQ0043BMSA LED DECORATION COVER S AA AC
1.6 HDECQ0044BMSA R/C DECORATION COVER S AA AC
1.7 JBTN-1056BMSA UP/DOWN BUTTON S AA AC
1.8 JBTN-1055BMSA POWER BUTTON S AB AD 2 GCABB1112BMKA REAR CABINET 81GF63E 76GF63H S AZ BN
1
1.1
1.3
2
1.4
1.2
1.5
1.6
1.8
1.7
Page 32
22
37GQ-20FP
RECICLED PAPER
PRINTED BY: ON:
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
