Sharp 29K-F200A, 29K-F200M Operating Manual

Download

COLOUR TELEVISION

TÉLÉVISEUR COULEUR

TELEVISYEN WARNA

OPERATION MANUAL

BUKU PANDUAN OPERASI

MODE D’ EMPLOI

Please read this operation manual carefully before using the colour television.

Sila baca dengan teliti buku panduan operasi ini sebelum menggunakan TV warna.

Veuillez lire attentivement ce mode d’emploi avant d’utiliser ce téléviseur couleur.

29K-F200A

29K-F200M

ENGLISH

29K-F200A

29K-F200M

FRANÇAIS

TINS-C112WJZZ 05P11-MSM

BAHASA MELAYU

THAI

TINS-C112WJZZ 05P11-MSM

Safety precautions

Damage

Servicing

Unstable surface and shocks

Turn off the power and unplug the power cord from the wall outlet immediately if the TV set begins to make any unusual noises or gives off smoke or an unusual smell. Then call your dealer for service.

To reduce the risk of electric shock, do not remove the back of the cabinet. This TV set contains dangerous voltage.

Do not place this TV set on an unstable cart, stand, shelf, or table. The TV set may fall, causing serious injury to a child or adult, and serious damage to the set.

Sharp recommends securing the TV set to a stable surface or wall to prevent the set from falling due to sudden shocks or impact.

Liquid entry

Object entry

Water

Do not place a flower vase or anything else containing liquid on the TV set, as liquid spilt on the TV set can cause electrical shock or failure.

Never insert or drop any metallic or inflammable objects into the ventilation openings of the TV set, as this can cause fire, electrical shock, or electrical failure.

To prevent fire or electrical shock, do not place the TV set near a bathroom, swimming pool or other area where it may become wet.

E 2

Moisture

To prevent electrical shock, do not use the

ENGLISH

TV set in an excessively damp place.

Power cord protection

Ventilation

TV set position

To prevent electrical shock, do not subject the AC power cord to damage by bending or twisting it, or by placing heavy items on top of it and do not place the AC power cord under the TV set. If the AC power cord becomes damaged, unplug it from the wall outlet immediately and call your dealer for service.

Do not place this TV set in a confined area, such as on a bookshelf or in a builtin case. Leave adequate space behind the TV for proper ventilation.

Do place the TV set onto an even stand, table or rack which size is bigger than the TV set. If the TV set is put onto a smaller size or uneven stand, table or rack may cause the TV cabinet to distort. Do not put or insert anything between TV set and the stand, table or rack.

Fire prevention

TV set and cart combination

To prevent fire, never place any type of candle or naked flames on the top or near the TV set.

Television equipment and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the equipment and cart combination to overturn.

E 3

Contents

Preparation

Safety precautions ............................................. 2

Accessories ........................................................ 5

Easy setup ......................................................... 6

Part names ......................................................... 7

Installing batteries in the remote control unit ..... 8

Antenna connections........................................11

Watching TV

Watching a TV programme...............................12

Operating the TV buttons ................................. 13

Useful features

Channel/Timer display ..................................... 14

Mute .................................................................14

AV mode selection ...........................................14

Channel recall ..................................................15

TV/Video selection ...........................................15

Picture in Picture (PIP) function

PIP on/off and PIP size selection .....................16

Move ................................................................ 16

Input/channel selection of inset screen ............17

Swap/Freeze .................................................... 17

Settings and adjustments

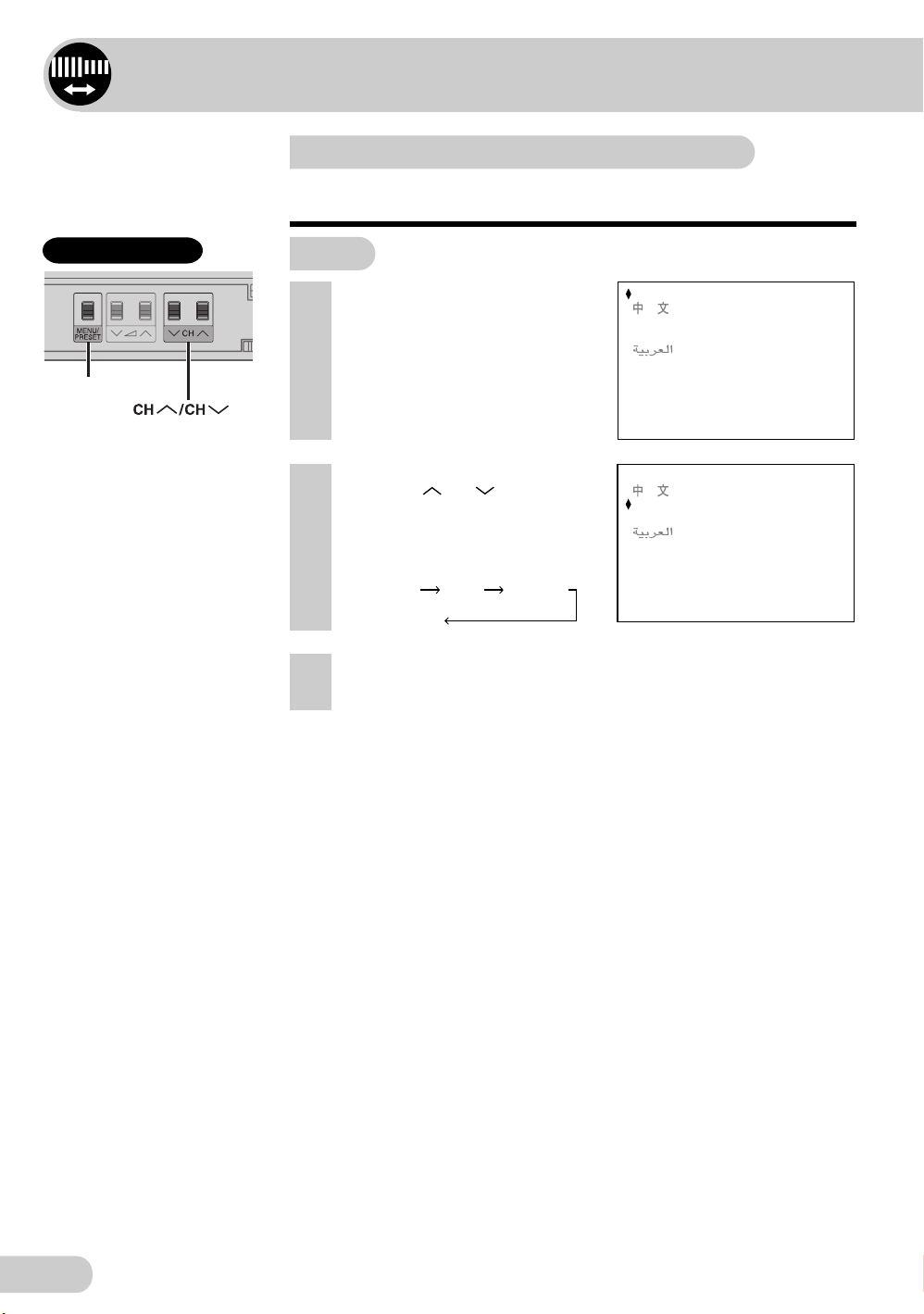

On-screen display language selection .............22

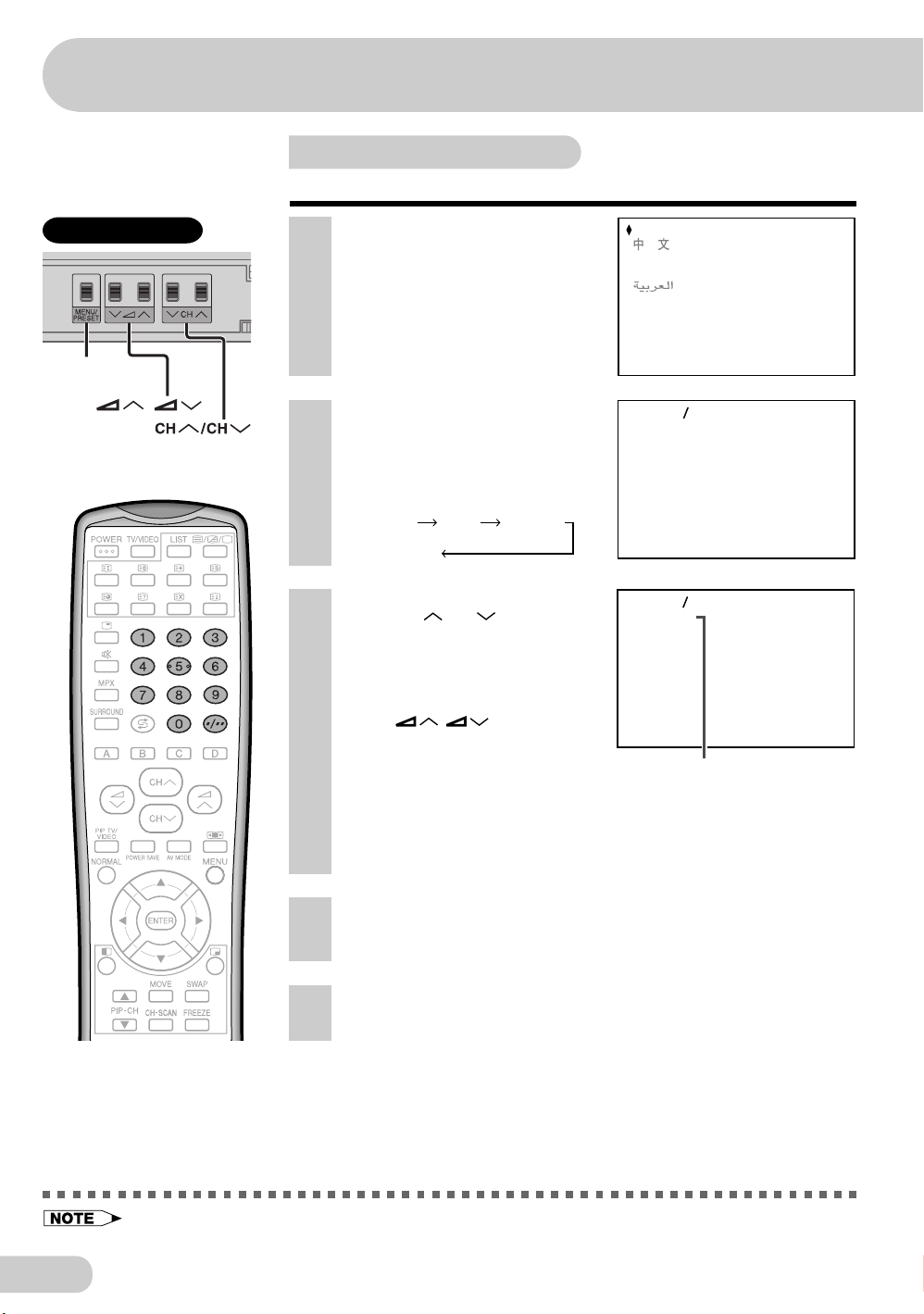

Auto channel tuning ......................................... 23

Manual channel tuning .....................................24

Channel setting ................................................25

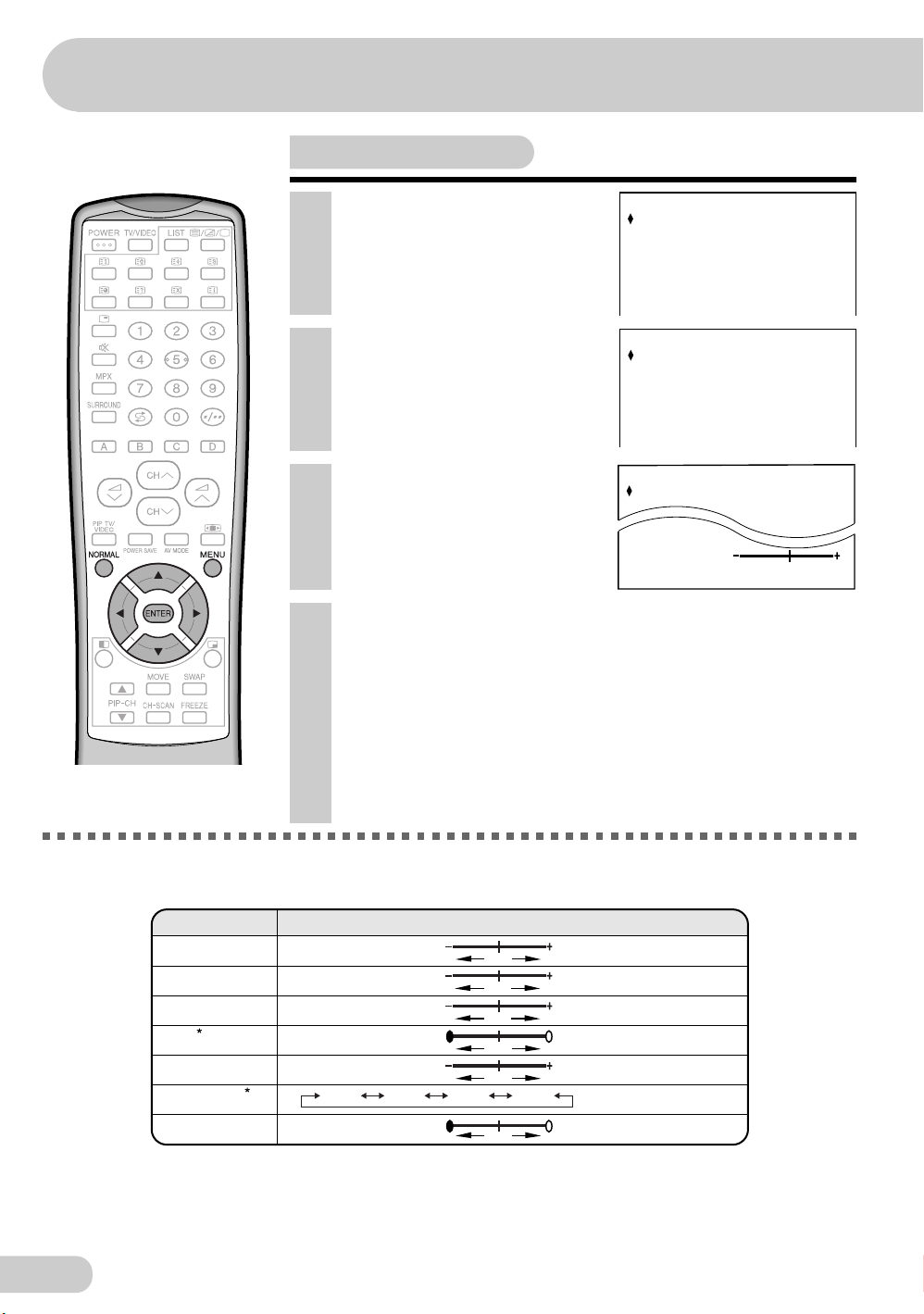

Picture adjustment ........................................... 26

Sound adjustment ............................................27

Surround sound................................................28

Favourite channels ...........................................28

Blue screen ......................................................29

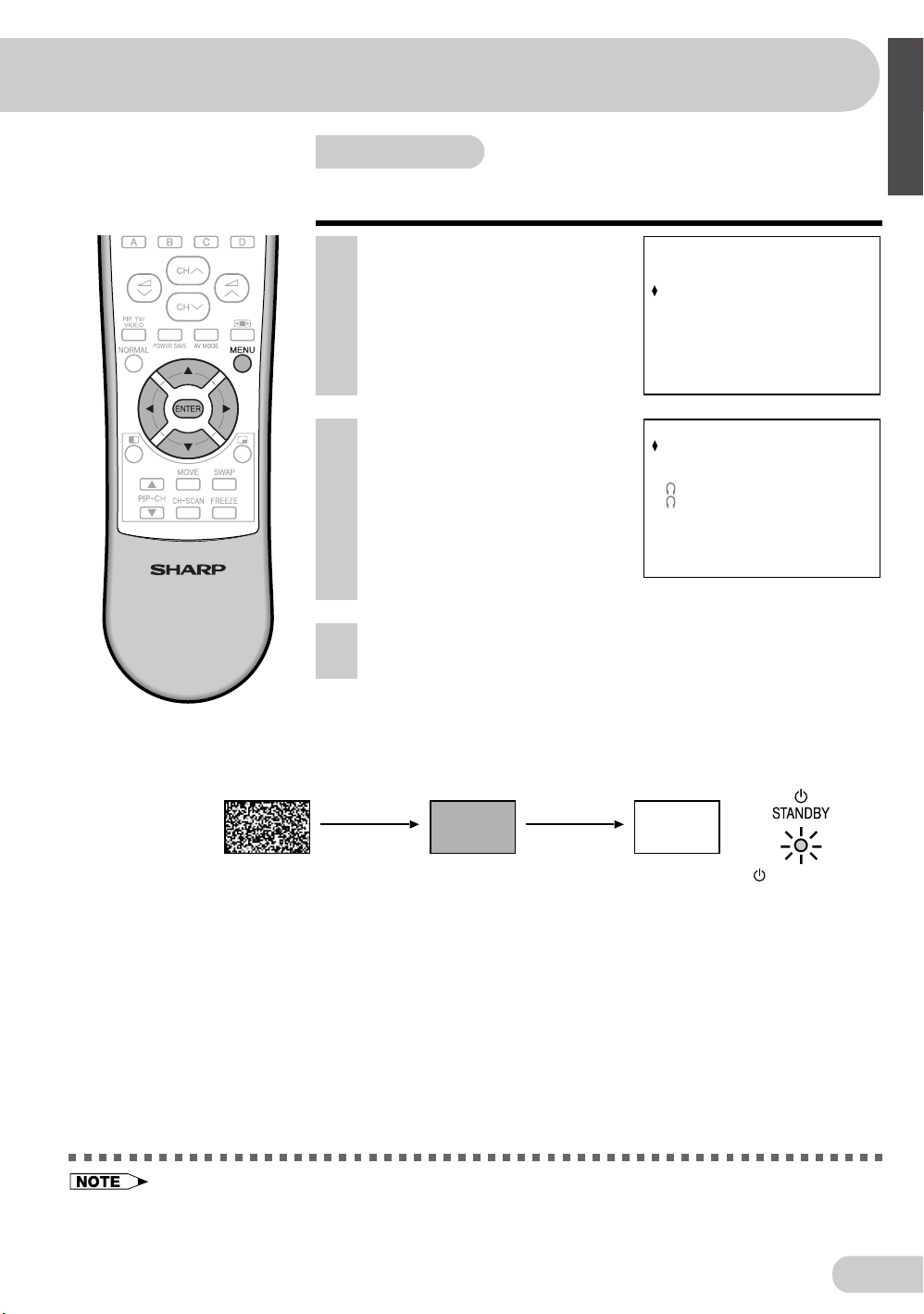

Auto select ....................................................... 30

Save .................................................................31

Headphones volume ........................................32

Headphones audio selection ............................ 32

Rotation ............................................................ 33

IP mode ............................................................ 33

Off timer ........................................................... 34

On timer ........................................................... 35

Reminder on-screen timer................................36

Broadcast features

NICAM broadcasts ...........................................37

A2 stereo system broadcasts ........................... 38

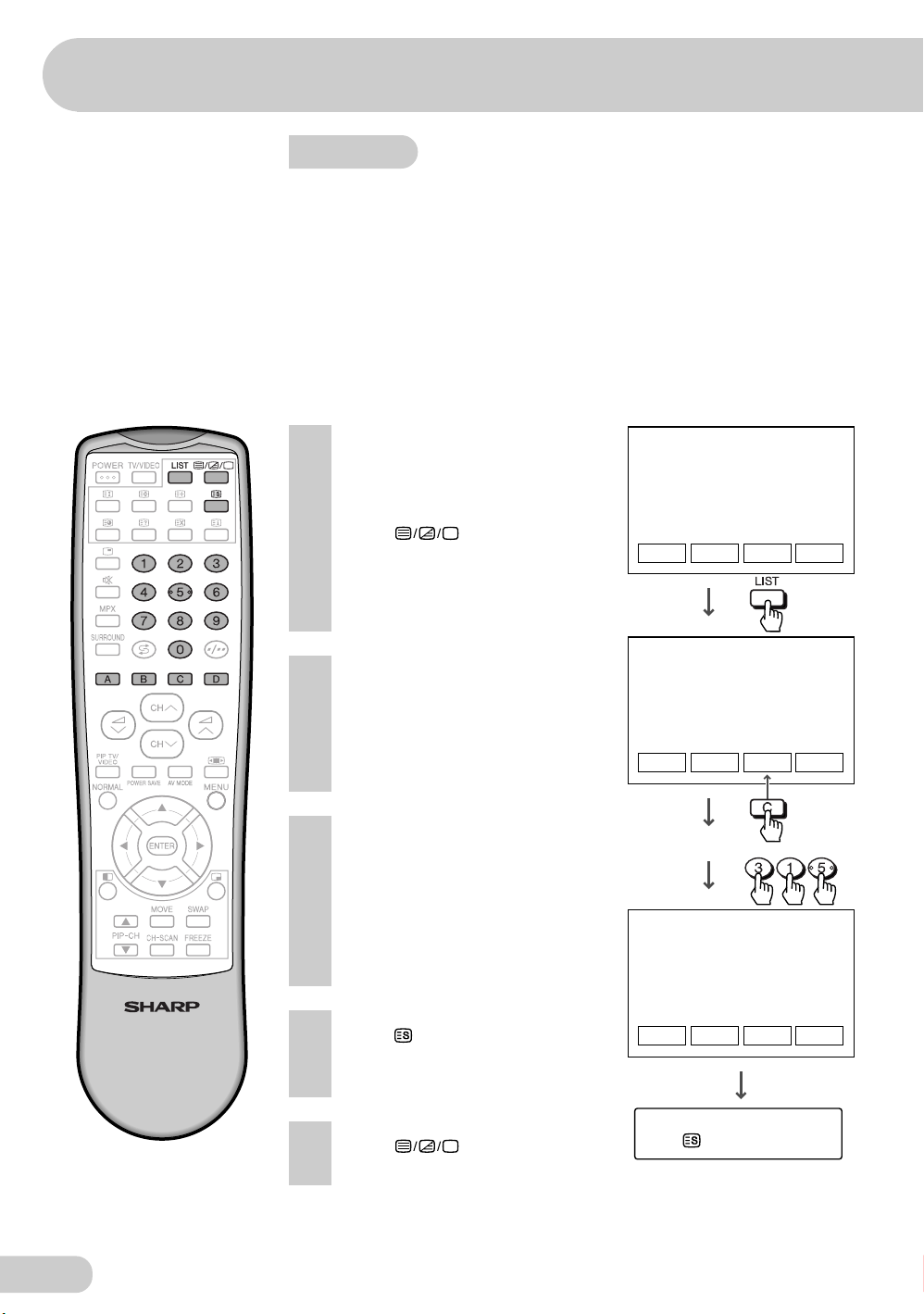

Teletext broadcasts .......................................... 39

Connections

Twin screen function

Twin screen ...................................................... 18

Swap ................................................................18

Channel scan function

Channel scan ...................................................19

Freeze function

Freeze ..............................................................20

Selecting menu items

Selecting a menu item......................................21

E 4

Connecting to a DVD player ............................. 44

Watching DVD playback ...................................44

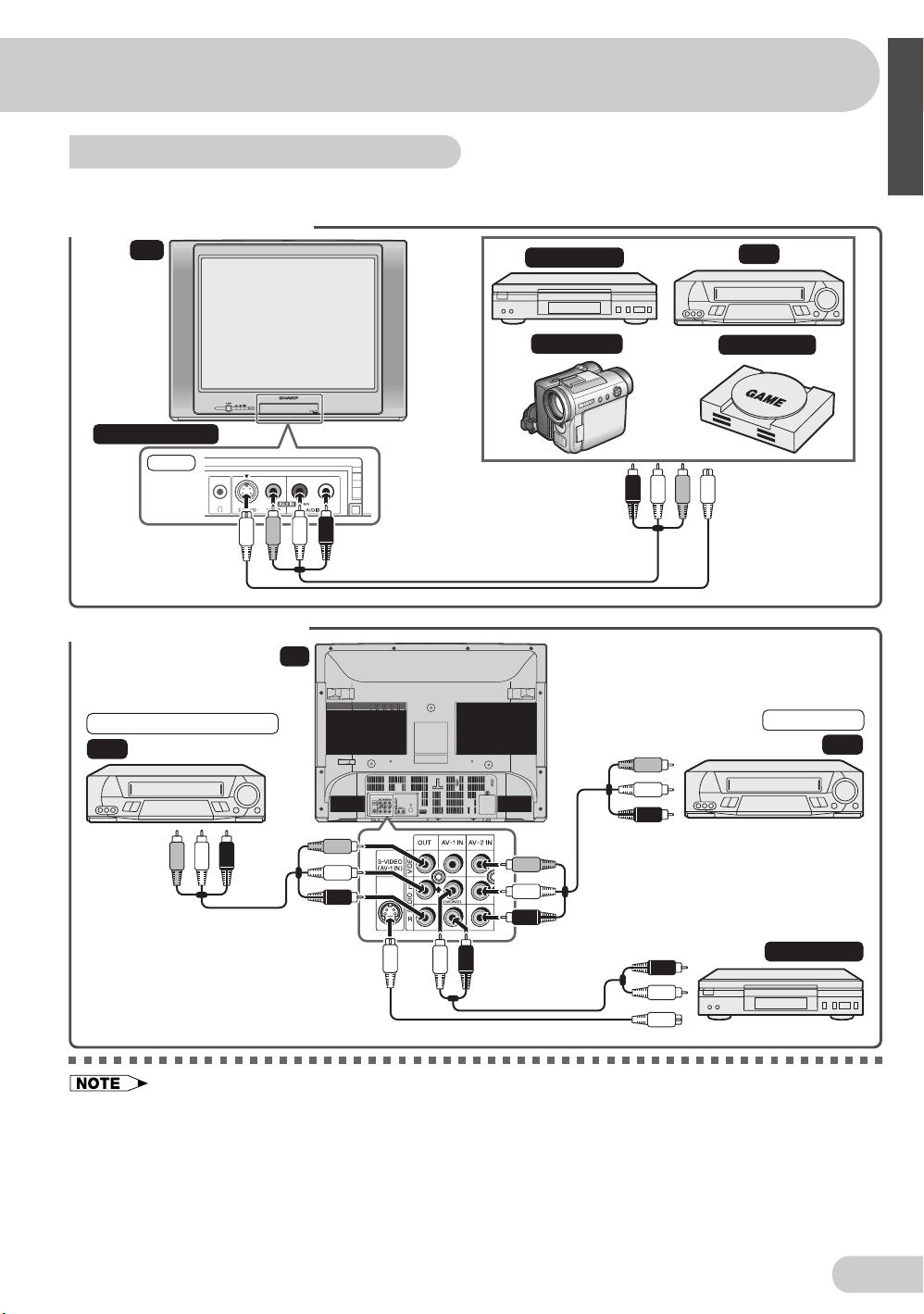

Connecting to video equipment........................45

Troubleshooting

Troubleshooting ................................................46

Specifications

Specifications ...................................................47

Dear SHARP Customer

Thank you for buying SHARP’s Colour Television. We hope you will have many years of enjoyment from this television set. To ensure proper operation, please read this manual carefully, and keep it in a safe place for future reference.

Accessories

ENGLISH

The following accessories are included with this television.

Remote control

Size-AA batteries

Operation manual

E 5

Easy setup

To use your TV set, perform the easy setup procedure below.

The mark indicates the page number with more detailed information.

Connect the antenna.

• See

to connect the antenna.

Connect any video equipment.

• See

• See the operation manual of your video equipment when

44, 45

connecting it to the TV set.

to connect video equipment.

Insert the batteries into the remote control.

• Use the two batteries included with the TV.

• See

Insert the AC plug to the power outlet.

• If you will not use the TV set for a considerable length of time, as a safety precaution, unplug the cord from the outlet.

E 6

Tune the channels.

• Use the buttons on the TV.

• See

23, 24

Adjust the picture tilt.

• If the picture is tilted, use the rotation feature to adjust the picture tilt.

• See

Part names

The mark indicates the page number with more detailed information.

Remote control

Infrared transmitter window

Aim this window at the infrared sensor window on your TV set.

TV/VIDEO Select button

Switches between TV broadcasts

and AV input programmes.

POWER On/Off button

Turns the TV on or set

it to Standby mode.

Call button ( )

Displays the channel and timer

settings on the screen.

Mute button ( )

Mutes the sound and restores

sound to previous level.

MPX button

Switches between main and sub sound, and stereo and monaural

sound.

SURROUND button

Produces a more spacious sound.

Flashback button ( )

Returns to previously viewed

channel.

POWER SAVE button

Switches Power Save mode

on or off.

PIP TV/VIDEO Select button

Switches channel selection of

inset screen.

NORMAL button

Resets all settings.

Cursor buttons ('/"/\/|)

Select MENU items.

39-43

28, 39

16-20

Teletext Control buttons

Operate the Teletext functions.

Number buttons

Select the channels and input numbers.

Digit Select button ( )

Switches between one- or two-digit mode channel selection.

Colour buttons (A/B/C/D)

Operate the Favourite Channel and Teletext functions.

Volume Up/Down buttons ( / )

Adjust the volume.

Channel Up/Down buttons (CH / CH )

Select the channels.

AV MODE Select button

Changes picture and sound settings. (STANDARD, MOVIE, MUSIC, NEWS)

This button does not work in this model.

MENU button

Calls the MENU screen.

ENTER button

Confirms the selected setting or calls the next screen.

Picture in Picture/Twin Screen Control buttons

Operate the Picture in Picture (PIP), Twin Screen, Channel Scan and Freeze functions.

ENGLISH

E 7

Part names

Installing batteries in the remote control unit

With your thumbnail, pull up at the slit to open the

1 2 3

battery cover.

Insert two batteries (size AA).

Replace the battery cover.

E 8

• Be sure to match the battery

• Remove the batteries if weak or if the unit is not in use for long periods.

• Do not mix old and new batteries.

• Incorrect installation of the batteries may damage the remote control.

k terminals with the

k marks inside the compartment.

TV Set

Bottom

POWER switch

Turns the main power on and off.

Infrared sensor window

Receives the infrared wave from the remote control.

Door

To open the door

Using the projection located under the “PULL-OPEN” indication, pull and lift the door open.

To close the door

Using the projection, lower the door until closed.

Caution:

• When opening or closing the door, do not insert your fingers into the gap between the door and front panel. This may result in an injury.

MENU/PRESET button

Used for MENU setup. Tunes the channels.

Volume Up/Down buttons

( / )

Adjust the volume. Make adjustments in PRESET.

Channel Up/Down buttons

(CH / CH )

Select the channels. Tune or set the channels.

ENGLISH

POWER SAVE sensor

Room brightness sensor.

POWER SAVE indicator

Lights up red when Power Save mode is on.

ON TIMER indicator

Lights up red when the On Timer is set.

STANDBY indicator

Power can be turned on by the remote control when the indicator is lit red.

• Minimal electric power remains consumed even after the main power is turned off with the Power switch on the TV set.

S-Video input terminal (SAV3)

Connects to a camcorder, video game, etc.

Headphone jack ( )

Used to listen to the audio with headphone. (When using headphone, see .)

Audio input terminals (AV-3 IN)

Connects to a camcorder, video game, etc.

Video input terminal (AV-3 IN)

Connects to a camcorder, video game, etc.

E 9

Part names

Rear terminals

S-VIDEO (AV-1 IN) terminal

Connects to a VCR, etc.

VIDEO/AUDIO (L/R) OUT terminals

Connect to a VCR, etc.

AV-1 IN VIDEO/AUDIO (L/R)

Connect to a VCR, etc.

E 10

terminals

COMPONENT IN/AUDIO IN

terminals

Connect to a DVD player, etc.

AV-2 IN VIDEO/AUDIO (L/R)

terminals

Connect to a VCR, etc.

Antenna In terminal

Connects to an antenna.

Antenna connections

Connecting to an antenna

To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections that are used for coaxial and feeder cables.

If your outdoor antenna uses a 75-ohm coaxial cable with a standard DIN45325 plug (IEC 169-2), plug it into the Antenna In terminal at the rear of the TV set.

If your outdoor antenna uses a 300-ohm twin-lead flat feeder, connect a 300-ohm to 75-ohm impedance converter and plug it into the Antenna In terminal at the rear of the TV set.

Standard DIN45325 plug (IEC169-2)

75-ohm coaxial cable (round cable) (not supplied)

300-ohm twin-lead flat feeder (not supplied)

75-ohm impedance converter (not supplied)

Antenna in

ENGLISH

Connecting to an antenna via a VCR

You can also connect the TV set to the tuner on a VCR using the connection shown below.

VCR

To antenna in terminal

To RF out terminal

Antenna in

• Remove the power cord from the power outlet before connecting the antenna to the TV set.

• When using the RF terminal connection, set the TV to channel zero to make initial adjustments for the VCR.

• Turn off the power on the TV set and the VCR being connected before making the above connections.

• Be sure the cord plugs are fully inserted in the connection terminals.

• See the operation manual of your VCR for connection details.

E 11

Watching TV

Watching a TV programme

TV Set (Bottom)

Standby indicator

Power switch

Remote Control

Simple operations for watching a TV programme

1 Turn on power.

• When the Standby indicator (see 9) is off, press the Power

switch on the TV set.

• When the remote control. The picture appears.

Standby indicator lights up red, press POWER on the

Standby indicator changes to green and a

2 Select channel.

With CH / CH (on remote control)

• Press CH , and channels change as shown below. 1 / 2 / ... / 98 / 99 / 0 / 1 / 2 ...

• Press CH 1 / 0 / 99 / 98 / ... / 2 / 1 / 0 ...

With the Number buttons (on remote control)

• To select a one-digit channel, such as 5, press 5. If “5-” is indicated, press the Digit Select button ( digit input, and then press 5 again.

• To select a two-digit channel, such as 15, press the Digit Select

button (

, and channels change as shown below.

) to select two-digit input. Press 1, and then press 5.

-- -1

) to select one-

PAL B/G

E 12

3 Adjust volume using /

• The number of oval blocks “ ” indicates the volume level. The volume bar disappears approximately three seconds after the volume has been adjusted.

• When the Standby indicator lights up red, either CH /CH on the TV can be pressed to turn on the

power.

• The channel number is displayed in green for channels tuned by Auto Tuning and displayed in yellow for channels tuned using Fine Tuning.

• When the Standby indicator lights up red, the TV is in Standby mode and power is still supplied to the TV. If you will not watch TV for a while, turn off the main power by pressing the Power switch on the TV set. Also, if you will not be at home for a considerable length of time, unplug the cord from the power outlet.

• The AV1 (or SAV1), AV2, AV3 (or SAV3) or COMPONENT input channels cannot be selected using CH /CH on the remote control. Use TV/VIDEO to select these channels.

• Channels that have been skipped cannot be selected. See 25.

• The TV set and remote control illustrations and the on-screen displays in this manual may differ from their actual appearance.

VOLUME15

Operating the TV buttons

Simple operation of the TV set

ENGLISH

Behind the door

Using /

Press to increase volume.

Press to decrease volume.

Using CH / CH

Press CH , and channels change as shown below.

1 / 2 / ... / 98 / 99 / AV1 (or SAV1) / AV2 / AV3 (or SAV3) /COMPONENT / 0 / 1 / 2 ...

Press CH , and channels change as shown below.

1 / 0 / COMPONENT / AV3 (or SAV3) / AV2 / AV1 (or SAV1) / 99 / 98 / ... / 2 / 1 / 0 ...

VOLUME15

PAL B/G

Behind the door

• Select an appropriate volume so as not to injure your hearing.

• To avoid injuring your hearing, do not put on the headphones before plugging them into the

headphones jack and before the power is turned on.

• The proper impedance for the headphones is 32 ohms.

• Remove the headphones plug from the headphones jack when not using the headphones.

Using headphones

Insert headphones plug into headphones jack ( ) to listen to audio with headphones.

• See 32 for headphones volume adjustment and audio selection.

• The audio from the speakers is not turned off.

If you want the audio from the speakers to be turned off, press the Volume Down button (

E 13

Useful features

Channel/Timer display

Displays the current channel number, the timer, and other settings on the screen.

1 Press .

• The time remaining on the Off Timer, On Timer, Reminder, and the channel number and colour/ sound system indications appear on the screen.

• When no timer is set, the channel number and colour/sound system indications appear on the screen. Press indications.

again to turn off these

2 Press again.

• The timer displays disappear.

3 Press once again.

• The channel number and colour/ sound system indications disappear.

Mute

Silences the sound.

1 Press .

•“ ” appears on the screen, and the sound is silenced.

OFF ON

2:30

8:00

1:50

PAL B/G

E 14

2 Press again.

• The volume returns to its previous level.

AV mode selection

Each time you press AV MODE, the mode switches between STANDARD, MOVIE, MUSIC and NEWS.

STANDARD: Normal mode MOVIE: Movie mode MUSIC: Music mode NEWS: News mode

• Picture and sound can be adjusted individually for each AV mode. See and 27 for details.

• Mute will be cancelled if is pressed at any time.

(STANDARD )

S I

(NEW)

(

MUS

OV I E )

Channel recall

Switches back to the channel you were watching just before the current channel.

ENGLISH

Press .

• The channel previously viewed returns to the screen.

Example:

After switching from channel 5 to channel 7,

is pressed, the channel will change to channel 5. Press channel 7.

again to return to

TV/Video selection

Switches between TV broadcasts and AV input programmes.

Each time you press TV/VIDEO, the input switches between AV1 (or SAV1 when S-VIDEO terminal is used), AV2, AV3 (or SAV3 when S-VIDEO terminal is used), COMPONENT, and TV programme.

AVS1 AV1

AV2

PAL B/G

AVS3 AV3

COMPONENT

PAL B/G

E 15

Picture in Picture (PIP) function

Allows you to monitor another programme on the inset screen.

PIP on/off and PIP size selection

1 Press .

• The inset screen (PIP) appears.

2 Press to change the inset

screen size.

• The size changes in the following order.

Large Small

The PIP function does not work for video input via the COMPONENT IN terminals.

Move

Medium

Normal screen

(PIP not displayed.)

PAL B/G

(10)

PAL B/G

(10)

E 16

1 Press to display the inset

screen.

2 Press MOVE to move the inset

screen to the desired position.

Input/channel selection of inset screen

ENGLISH

1 When the inset screen (PIP) is

displayed, press PIP TV/VIDEO.

• The input for the inset screen changes in the following order.

AV1 AV3

AV2

PAL B/G

(AV1)

2 When the inset screen (PIP) is displayed, press PIP-CH '/"

to select the desired channel for the inset screen.

• When the colour system is different between the main screen and the inset screen, the aspect ratio of the inset screen might be changed.

Swap/Freeze

1 When the inset screen (PIP) is

displayed, press SWAP.

• The inset screen changes over with the main screen.

PAL B/G

(36)

2 Press FREEZE.

• The inset screen displays a still picture.

• If SWAP is pressed during Freeze mode, the Freeze function is cancelled and the inset screen changes over with the main screen.

3 Press FREEZE again to cancel Freeze mode.

• Do not keep the TV engaged in Freeze mode for a long time to prevent a possible screen burn-in.

PAL B/G (5)

E 17

Twin screen function

Twin screen

Allows you to monitor two separate images from a variety of sources at the same time.

1 Press to engage the TV set

in Twin Screen mode.

• The image on the left is displayed as the main screen, and the image on the right as the sub screen. (The sub screen channel is displayed in parentheses.)

• Press Number buttons or CH CH

to select the main screen

channel.

• Press PIP-CH '/" to select the sub screen channel, or press PIP TV/VIDEO to select the desired external input.

The Twin screen function does not work for video input via the COMPONENT IN terminals.

36 01()

Main

screen

Sound can be heard via TV speakers.

2 Press again to return to the normal screen.

Swap

Sub

screen

Sound can be heard via headphones jack.

E 18

Allows you to switch the main and sub screens.

1 When the two images are displayed, press SWAP.

• The main screen changes over with the sub screen.

36 01()

Main

screen

Sub

screen

10 63()

Main

screen

Sub

screen

2 Press SWAP again to return the images to their original

positions.

Channel scan function

Channel scan

For fast and easy channel selection, this function displays each tuned channel in numeric order.

Normal screen (Ex. Channel 10)

1 Press CH-SCAN.

• The tuned channels are automatically displayed on sub screens in numeric order. (If there are more than 9 preset channels, the 10th channel and after will be displayed on a new screen.)

Channel scan screen

Press Number buttons to select the desired channel (ex. channel 3).

Ex. Channel 3

ENGLISH

110

The Channel scan function does not work for video input via the COMPONENT IN terminals.

2 Press CH-SCAN again to return

to the normal screen.

• Skipped channels are not displayed.

E 19

Freeze function

Freeze

Use to temporarily freeze a video image, such as when you want to copy down important information from the screen or freeze an image from a sports programme.

1 Press FREEZE.

• The right half of the screen displays a still image while the left half displays a moving image.

2 Press FREEZE again to return

to the normal screen.

Moving image

Still image

E 20

• The Freeze function cannot be used with the Channel Scan function.

Selecting menu items

This TV set allows you to adjust the picture and sound, and set the channels and other features using the on-screen display with the remote control or from the TV set. Select the desired menu item by following the steps below and then refer to the indicated pages for details.

Remote control

Behind the door

MENU/ PRESET

ENU PICTURE SOUND FEATURE TI

M–ER

CH SETT I

:SELECT :FIXENTERMENU: RETURN

Selecting a menu item

1 Press MENU or MENU/PRESET

to call MENU screen.

2 Press '/" or CH /CH to

select desired menu item.

• The selected item is highlighted in yellow.

3 Press ENTER or / to

enter.

• The corresponding menu screen will appear.

PICTURE menu..................... SOUND menu.........................

OFF

UATO

02 BUS 0

(STANDARD

–

PICTURE CONTRAS

T50 COLOUR 0 BRI GHTNE SS 0 TINT SHARPNESS 0 PICTURE NR LO W

HI TE TEMP 0

FEATURE menu...........

FEATURE BLUE BA

CK AUTO SELECT SAVE OFF

SELE TION

ROT A

IPMDOE

ENU

P ICTURE

SOUND FEATURE

TI CH–SETT ING

ENU P ICTURE

SOUND

FEATURE

TI CH–SETTING

(STANDARD

SOUND

TREBLE

BASS 0 SUPER BASS IU SURROUND OF F

LEVEL

BAL ANCE 0

26 27

SOUND

)

TREBLE BASS 0 SUPER BASS I U SURROUND OF F

LEVEL

BALANCE

TIMER menu..............

3329

ER OFF ON

POS IT I ON VO

(STANDARD

MEDM

–

3634

––

ENGLISH

)

Operation guide

:SELECT :FIXENTER

ENU:RETURN

MENU button

ENTER button

Cursor Up/Down buttons

* The operation guide display is not always the same depending on the selected menu.

• If you press and hold down MENU/PRESET for more than two seconds, the Language Select screen will appear instead of the MENU screen. To display the MENU screen, press MENU/PRESET until the normal screen appears, then press the button again.

• The procedures for setting and selecting the menu items on the following pages are described using the buttons on the remote control. These procedures can also be performed using the corresponding buttons on the TV set.

CH-SETTING menu................

ING

CH SE TT POS–ITIO

NCH1 COLOUR A SOUND SK IP OFF FINE 48.20 NICAM A2

UTO BG

Hz ON ON

E 21

Settings and adjustments

On-screen display language selection

The on-screen display language can be set to English, Chinese, French, Malay or Arabic.

Behind the door

MENU/PRESET

TV set

ISH

1 Press and hold down MENU/

PRESET for more than two

seconds.

• The Language Select screen appears.

2 Press CH /CH to select

desired language.

• Pressing MENU/PRESET changes the screen as shown below.

Language MANUAL

Normal screen

AUTO

NGL

FRANÇ

NGL

FRANÇ

AIS A

ISH

AIS

ELAYUBA

3 Press MENU/PRESET until normal screen appears.

E 22

Behind the door

MENU/ PRESET

Auto channel tuning

Automatically tunes in and presets receivable TV stations.

ISH

1 Press and hold down MENU/

PRESET for more than two

seconds.

• The Language Select screen appears.

2 Press MENU/PRESET again to

display AUTO mode screen.

• Pressing MENU/PRESET changes the screen as shown below.

Language MANUAL

Normal screen

AUTO

NGL

FRANÇ

UTO(

VHF

AIS A

B/G)

.25

ELAYUBA

ENGLISH

3 Press / on TV set.

• All the TV stations in your area that can be received by the TV set are automatically preset between channels 1 to 99.

• The screen shows whatever is on channel 1 when auto channel preset is finished.

• When starting the AUTO PRESET after setting the SOUND SYSTEM with the MENU, the SOUND

SYSTEM for all the channels are stored into memory.

• Auto Preset stores all receivable channels including those which may be very weak and not clearly visible. To preset only those channels designated for the local viewing region, use Manual Preset. See

• Unused channels are automatically skipped.

PAL B/G

E 23

Settings and adjustments

Manual channel tuning

Enable manual channel tuning to a desired TV station.

Behind the door

MENU/ PRESET

1 Press and hold down MENU/

PRESET for more than two

seconds.

• The Language Select screen appears.

2 Press MENU/PRESET twice to

display MANUAL mode screen.

• Pressing MENU/PRESET changes the screen as shown below.

Language MANUAL

Normal screen

3 Press CH /CH on TV set or

the Number buttons on remote control to select channel position.

AUTO

NGL

FRANÇ

ANUA

VHF

ANUA

VHF

107

ISH

.25

.50

AIS

ELAYUBA

L(B G)

4 Press / on TV set to

locate channel you wish to preset to current channel

Channel position

position.

• Search is initiated and when a TV signal is received during the search, the search stops.

5 Repeat steps 3 and 4 above to preset channel positions for

other broadcasts.

6 Press MENU/PRESET again to return to normal screen.

• SOUND SYSTEM may not have been set correctly, if noise can be heard or if there is no sound. In such

case, adjust the SOUND SYSTEM using the MENU button on the remote control.

E 24

Channel setting

Enables individual channel setting.

1 Press MENU to call MENU

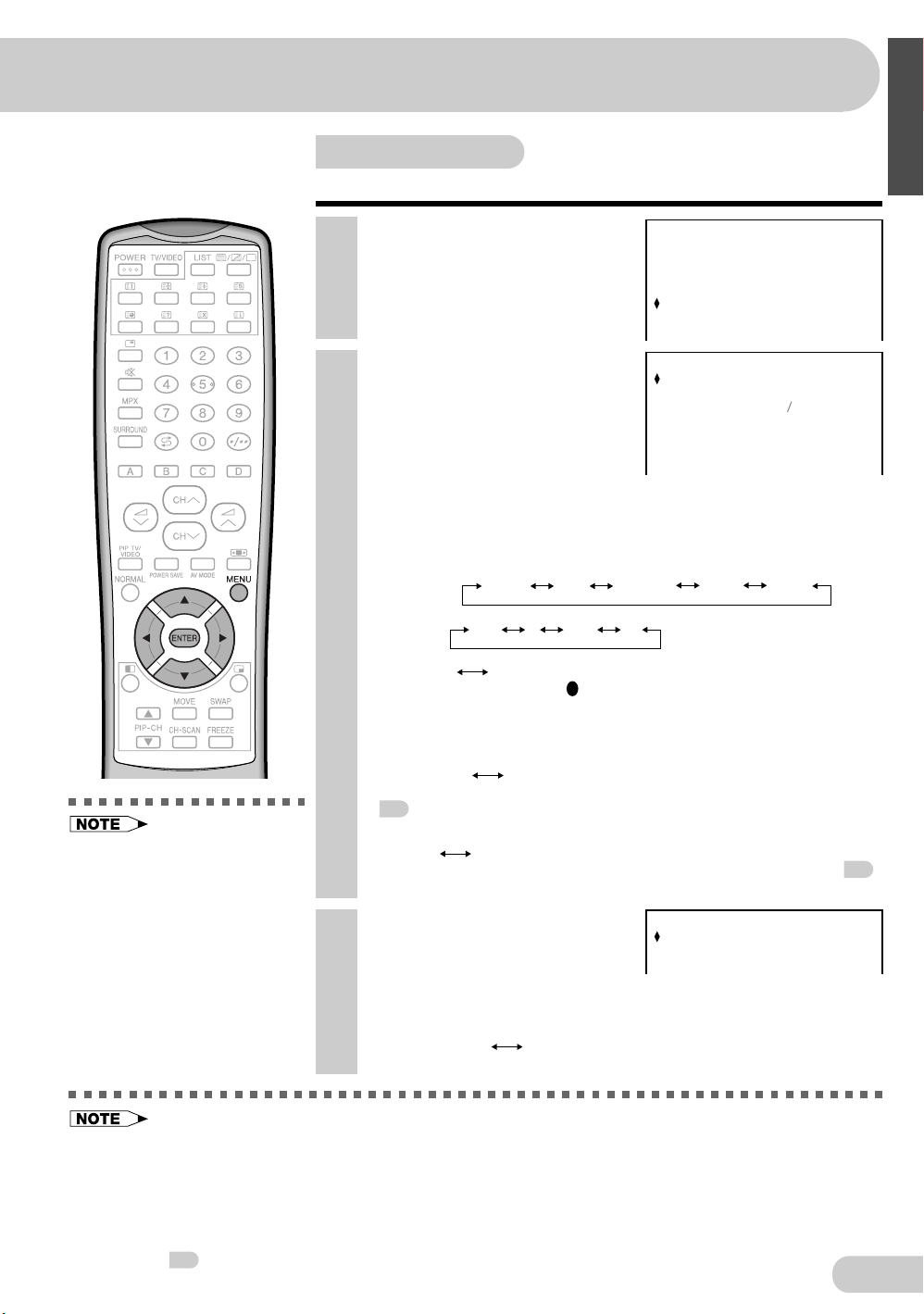

screen.

2 Press '/" to select “CH-

SETTING”.

3 Press ENTER to display CH-

SETTING menu.

4 Press '/" to select desired

item.

ENU P ICTURE SOUND FEATURE

CH–SETTING

ING

CH–SETT

POS I T IO

NCH7

COL OUR A SOUND SKIP OFF FINE 68.25 NICA

MON

A2 ON

5 Each time you press \/|, setting for individual items

changes as follows:

• POSITION:

The channel position changes to the next higher or lower number.

• COLOUR:

AUTO PAL

SECAM

N443

N358

UTO B

ENGLISH

• This product is designed to automatically detect the appropriate colour system. However, when a VCR of NTSC format is connected to AV-1, 2 or 3 input terminal of this product, if the output signal of the VCR is switched between channels, the screen image may become black and white. To solve this problem, select “MENU/CH-SETTING” and then “COLOUR” to switch the colour system from “AUTO ” to the appropriate one (NTSC).

• Switching COLOUR system: Set the system to “AUTO ” for normal TV reception. The AUTO mode automatically detects the received signal system and changes the reception system of the TV set. When the picture is not stable, switching to an appropriate system may improve the picture quality.

• In a weak reception area, or under bad reception conditions, you can change the frequency by Fine Tuning.

• When using Fine Tuning (FINE), the channel number changes from green to yellow.

• To return the channel to its original frequency setting, follow the manual channel tuning procedure. See

• SOUND:

• SKIP: ON

Channel numbers with a “ off SKIP, press the number buttons to select the desired channel and then set SKIP to “OFF”.

• FINE: The frequency changes to allow fine tuning.

• NICAM: ON

Select “ON” to receive NICAM stereo or bilingual sound signals. (See

for sound mode selection.) Select “OFF” to receive NICAM

mono signals.

• A2: ON

Select “ON” to receive A2 stereo or bilingual sound signals. (See for sound mode selection.) Select “OFF” to receive mono signals.

6 Press MENU until normal

screen appears.

• When you select AV1, AV2 or AV3 for the channel position, the CHSETTING menu changes as shown above and the VCR MODE setting offers the following options:

VCR MODE: 1 Normally select “1”. Select “2” when using a deteriorated video tape.

B/G I

OFF

D/K

” mark on the left are set to SKIP. To turn

ING

CH–SETT

POS I T IO

COLOUR AUTO

VCR

E 25

Settings and adjustments

Picture adjustment

1 Press MENU to call MENU

screen.

2 Press '/" to select

Adjustable individually for each AV mode

ENU

P ICTURE

SOUND FEATURE

TI CH–SETTING

“PICTURE”.

P ICTURE

CONTRAS

3 Press ENTER to display

PICTURE menu.

4 Press '/" to select

adjustment items.

5 Adjust using \/|.

T50

COL OUR 0 BRI GHTNESS 0 TINT SHARPNESS 0 P ICTURE NR LO

HI TE TEMP0

P ICTURE

CONTRAS

T30

COLOU 0 B0

P ICTURE NR W

HI TE TEMP0

CH : SELECT : ADJUST

6 Repeat steps 4 and 5 above to adjust other items. 7 Press MENU until normal screen appears.

• When NORMAL is pressed while the PICTURE menu is displayed,

the setting for the selected item is reset to the standard (factory setting) position.

• When NORMAL is pressed while the MENU screen is displayed and

“PICTURE” is selected, all the settings for the PICTURE items are

reset to the standard (factory setting) position.

(STANDARD

ENU:RETURN

)

The following table lists the adjustment items shown in the PICTURE menu and how they change as you press \/|.

Selected item Press \ Press |

CONTRAST

COLOUR

BRIGHTNESS

TINT -1

SHARPNESS

PICTURE NR -2

WHITE TEMP To more reddish

*-1: TINT can only be selected and adjusted when receiving an NTSC signal. *-2: Picture Noise Reduction

Noise might be generated on images when playing deteriorated video tapes or when receiving broadcasts with relatively weak signals. In these cases, set PICTURE NR to “LOW, MID or HIGH” to reduce the noise. However, when receiving good images without noise, you can get better image quality by turning OFF this feature.

To decrease contrast

For less colour intensity

For less brightness

To move tint toward purple

For less sharpness

OFF LOW

background

MID

HIGH

To increase contrast

For more colour intensity

For more brightness

To move tint toward green

For more sharpness

(See note below)

To more bluish background

E 26

Sound adjustment

Adjustable individually for each AV mode

1 Press MENU to call MENU

screen.

2 Press '/" to select “SOUND”.

ENU P ICTURE

SOUND

FEATURE TI

CH–SETTING

ENGLISH

SOUND

3 Press ENTER to display

SOUND menu.

4 Press '/" to select

adjustment items.

5 Adjust using \/|.

TREBLE

BASS 0 SUPER BASS IU SURROUND OF F

LEVEL

BAL ANCE 0

SOUND

TREBLE

BASS 0 SUP I U BAL ANCE

CH : SELECT : ADJUST

OFF

6 Repeat steps 4 and 5 above to adjust other items. 7 Press MENU until normal screen appears.

• When NORMAL is pressed while the SOUND menu is displayed, the

setting for the selected item is reset to the standard (factory setting) position.

• When NORMAL is pressed while the MENU screen is displayed and

“SOUND” is selected, all the settings for the SOUND items are reset

to the standard (factory setting) position.

(STANDARD

ENU:RETURN

)

The following table lists the adjustment items shown in the SOUND menu and how they change as you press \/|.

Selected item

TREBLE

BASS

SUPER BASS

SURROUND

LEVEL*

BALANCE To shift balance

* LEVEL can only be selected and adjusted when SURROUND is set to “ON”.

Press \ Press |

To decrease treble

To decrease bass

The surround effect is ON.

To decrease surround effect level

toward left

OFF

MEDIUM

ON OFF

To increase treble

To increase bass

STRONG

The surround effect is OFF.

To increase surround effect level

To shift balance toward right

E 27

Settings and adjustments

Surround sound

Produces a virtual surround sound from the TV’s speakers.

Each time you press SURROUND, the mode toggles between ON and OFF.

OFF: Produces normal sound. ON: Produces surround sound.

Surround effect level adjustment

1 Press SURROUND until the

SURROUND ON mode screen is displayed.

2 Press \/| to adjust the

surround effect level.

SURROUND OFF

SURROUND ON

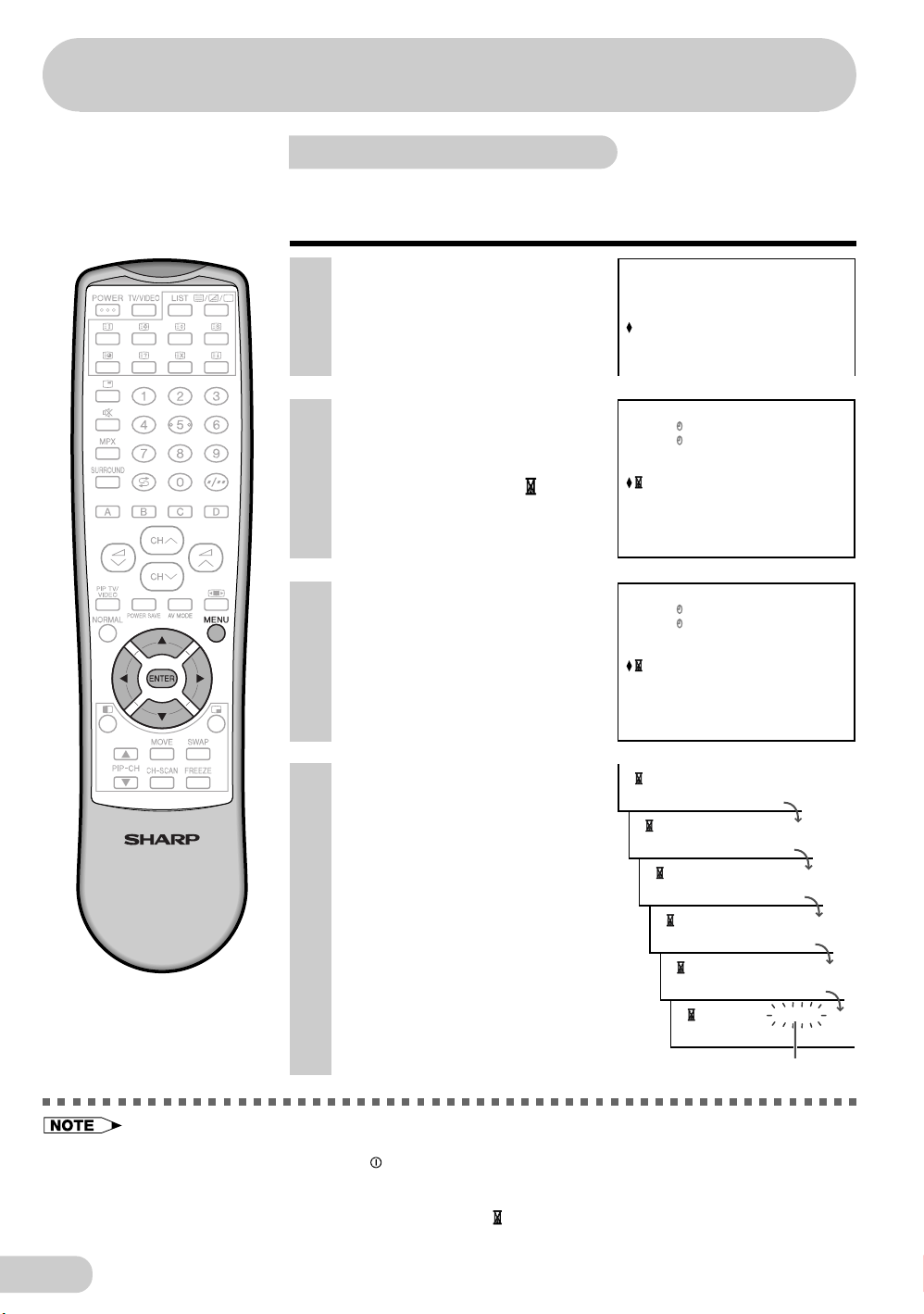

Favourite channels

The colour buttons (A, B, C and D) can be used to select up to four user-registered channels.

1 Press CH /CH to select your favourite

channel. (E.g. Channel 12)

2 Press A, for example, until channel number

display turns white.

• The display will disappear after three seconds, and the selected channel is then preset.

3 To watch favourite channel, press A.

• The preset favourite channel will be displayed. (E.g. Channel 12)

4 To preset another favourite channel, repeat steps 1 and 2

above.

• To change a preset favourite channel, repeat steps 1 and 2 above.

• Surround Sound only works when a stereo signal is being received.

Displayed in green or yellow

Turns white

E 28

Blue screen

Automatically turns the screen blue if a broadcast signal is not received.

ENU

1 Press MENU to call MENU

screen.

2 Press '/" to select

“FEATURE”.

3 Press ENTER to display

FEATURE menu.

4 Press '/" to select “BLUE

BACK”.

P ICTURE SOUND

FEATURE

CH–SETTING

CH : SELECT : ENTER

FEATURE

BLUE BA

CK ON

AUTO SELECT SAVE OFF

VOLUME2 SELECT SUB

ROTAT ION 0

ODE AUTO

ENU:RETURN

5 Press \/| to select “ON” or

“OFF”.

6 Press MENU until normal screen appears.

ENGLISH

When BLUE BACK is set to “ON”

No signal

after 5 seconds after 15 minutes

• Poor reception due to weak signals and too much noise may activate BLUE BACK, despite the presence of a broadcast signal. To continue watching TV under these conditions, set BLUE BACK to

“OFF”.

• When Off Timer is set, the OFF TIMER setting has priority over BLUE BACK.

Blue screen TV off

Standby mode

(Indicator)

Standby indicator lights up red.

E 29

Settings and adjustments

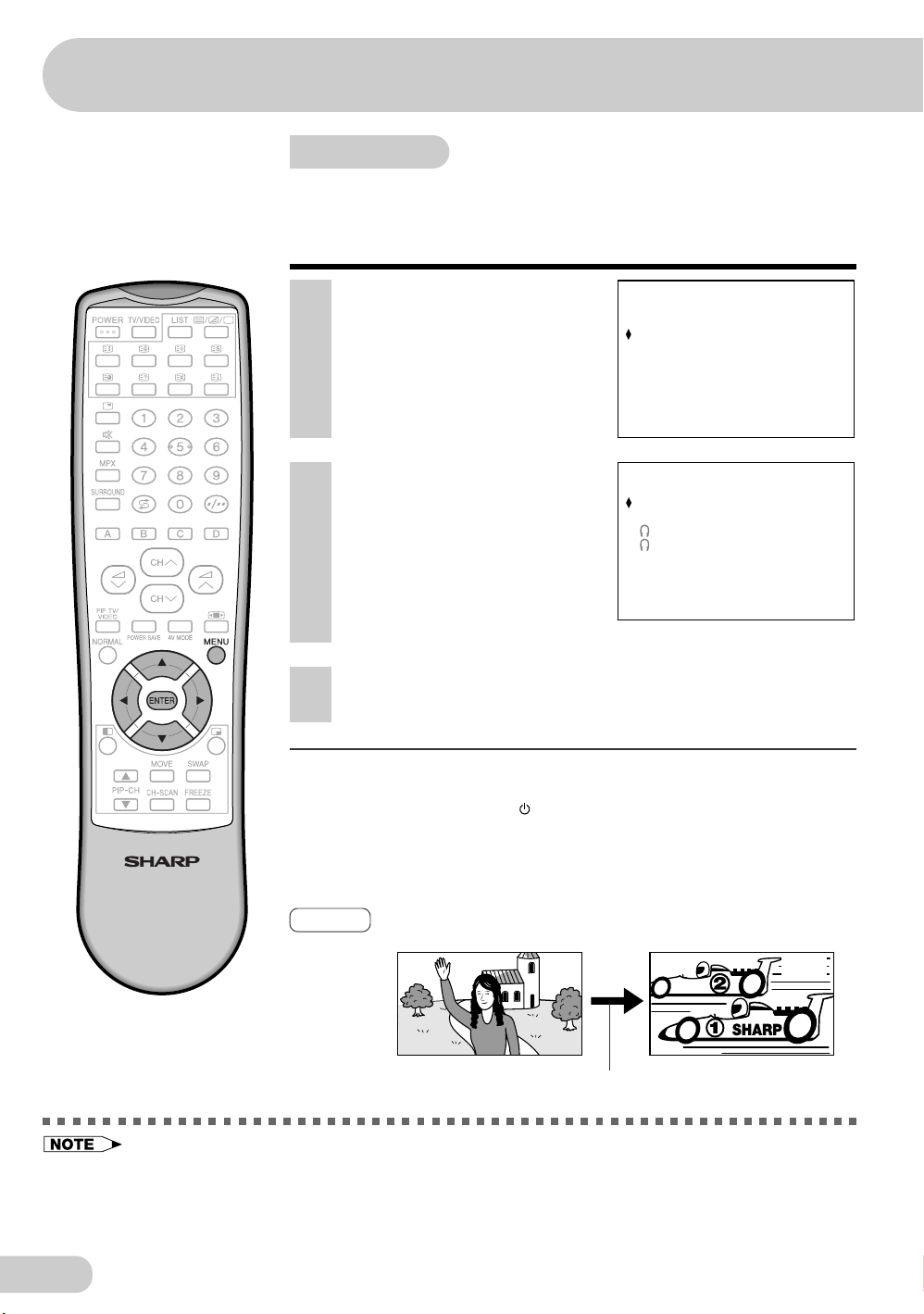

Auto select

When video equipment, such as a video game system or camcorder, is connected to the front (AV-3 IN) terminals, this TV set automatically selects the input mode (AV3) when the video equipment is turned on.

1 Press MENU to call MENU

screen.

2 Press '/" to select

“FEATURE”.

ENU P ICTURE SOUND

FEATURE

CH–SETTING

3 Press ENTER to display

FEATURE menu.

4 Press '/" to select “AUTO

SELECT”.

CH : SELECT : ENTER

FEATURE BLUE BA

CK FF

AUTO SELECT

SAVE OF F

VOLU

LECSU

ROTAT ION

ODE AUTO

ENU:RETURN

0 B

5 Press \/| to select “ON” or

“OFF”.

6 Press MENU until normal screen appears.

To use the Auto Select function, confirm the following:

• The TV set is turned on. (The Standby indicator lights up green.)

• The video equipment, such as a video game system or camcorder, is

connected to the front (AV-3 IN) terminals.

• The video equipment is turned on.

Example

Connect the video equipment to the front (AV-3 IN) terminals.

Input mode (AV3) is automatically selected.

E 30

8 AV3

Video equipment

turned on

• If the video equipment is connected to the rear terminals on the TV set, the video mode will not be automatically selected.

• If the TV set receives a signal with noise or does not receive a signal even when the video equipment is turned on, the video mode may not be automatically selected.

• When the power on the video equipment is turned off, the input mode (AV3) is still selected. Use the remote control to return to a TV channel.

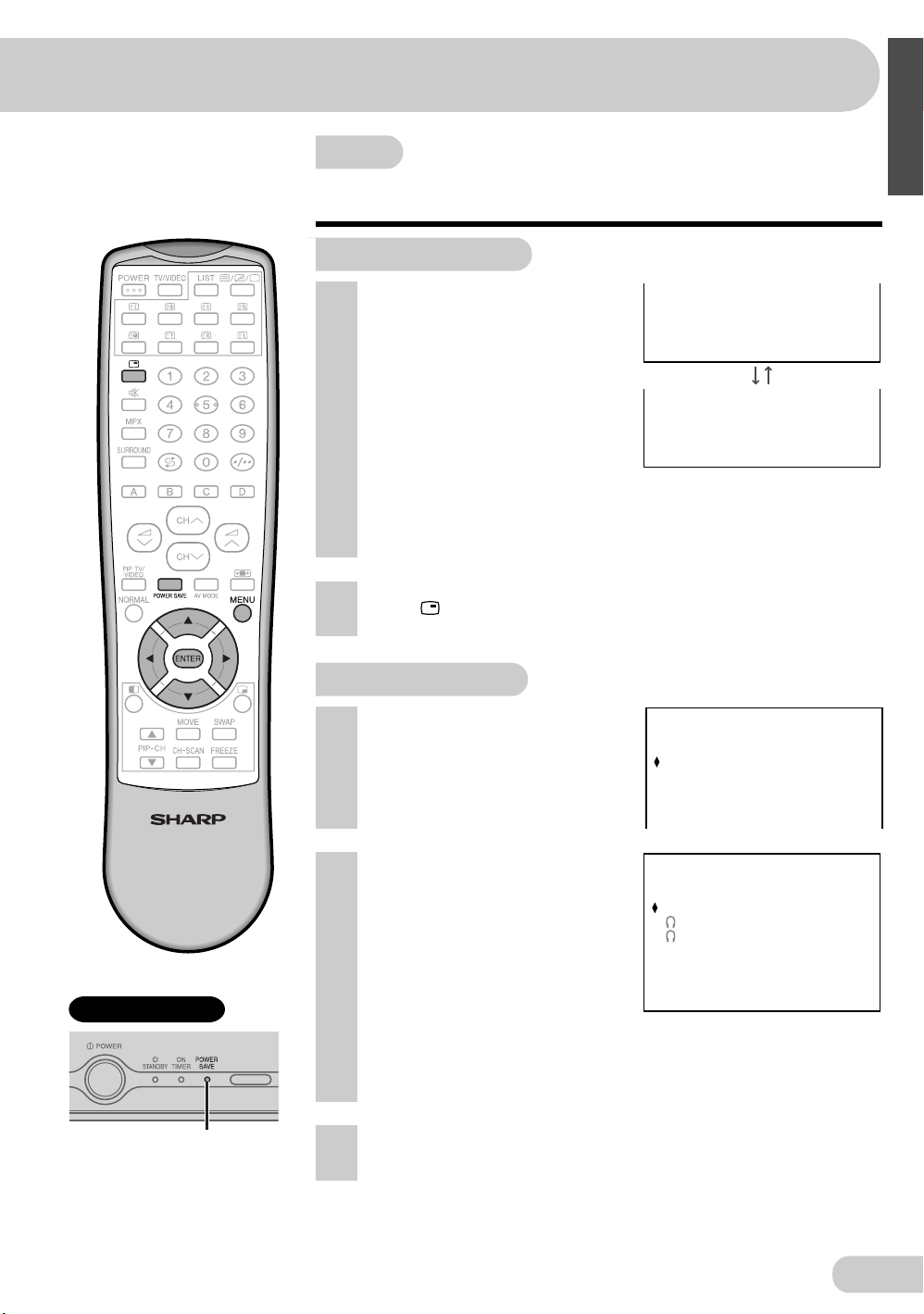

Save

This function reduces the picture brightness to create a softer image while saving electricity.

Using remote control

1 Press POWER SAVE to display

the SAVE mode screen.

SAVE

2 Each time you press POWER

SAVE, the mode toggles

between “ON” and “OFF”.

• When SAVE is set to “ON”, the POWER SAVE indicator on the TV set lights up red.

• When SAVE is set to “OFF”, the POWER SAVE indicator on the TV set turns off.

SAVE

OFF

3 Press to turn off the SAVE mode screen.

Using MENU screen

ENGLISH

TV Set (Bottom)

POWER SAVE indicator (Red)

1 Press MENU to call MENU

screen.

2 Press '/" to select

“FEATURE”.

3 Press ENTER to display

FEATURE menu.

4 Press '/" to select “SAVE”. 5 Press \/| to select “ON” or

“OFF”.

• When SAVE is set to “ON”, the POWER SAVE indicator on the TV set lights up red.

• When SAVE is set to “OFF”, the POWER SAVE indicator on the TV set turns off.

ENU P ICTURE SOUND

FEATURE

CH–SETT ING

FEATURE BLUE BA

CK FF AUTO SELECT

SAVE ON

VOLU

SELECT SUB

ROTAT ION 0

ODE AUTO

6 Press MENU until normal screen appears.

E 31

Settings and adjustments

Headphones volume

Adjusts the headphones volume.

1 Press MENU to call MENU screen. 2 Press '/" to select “FEATURE”.

3 Press ENTER to display

FEATURE menu.

SAVE OFF

VOLUME

SELECT SUB

ROTAT ION 0

ODE AUTO

4 Press '/" to select

VOLUME”.

“

5 Press \/| to adjust the volume.

6 Press MENU until normal screen appears.

•

Select an appropriate volume so as not to injure your hearing.

•

To avoid injuring your hearing, do not put on the headphones before plugging them into the headphones jack and before the power is turned on.

•

See 13 for headphones connection to the headphones jack on the TV.

Headphones audio selection

Allows you to select the main or sub sound when listening to the audio with headphones.

1 Press MENU to call MENU screen. 2 Press '/" to select “FEATURE”.

3 Press ENTER to display

FEATURE menu.

4 Press '/" to select

“

SELECT”.

FEATURE BLUE BA

CK FOF AUTO SELECT SAVE OFF

VOLUME

SELECT SUB

ROTAT ION 0

ODE AUTO

E 32

5 Press \/| to select “MAIN” or “SUB”.

• When “MAIN” is selected, you can listen to – Normal screen audio during Normal Screen mode – Main screen audio during PIP mode – Left screen audio during Twin Screen mode

• When “SUB” is selected, you can listen to – Normal screen audio during Normal Screen mode – Inset screen audio during PIP mode

– Right screen audio during Twin Screen mode

6 Press MENU until normal screen appears.

• When AV input (AV1, AV2, AV3 or COMPONENT) is selected for both “MAIN” and “SUB” in PIP mode or Twin Screen mode, you can only listen to Main screen audio even if “SUB” is selected in the Menu.

• When TV programmes are selected in the both screens of PIP mode (Main and Inset) or Twin Screen mode (Right and Left), if you select SUB sound with headphones, only monaural sound can be heard even if the Inset screen or the Right screen has A2/NICAM signal.

Rotation

If the picture is tilted, use the rotation feature to adjust the picture tilt.

1 Press MENU to call MENU screen. 2 Press '/" to select “FEATURE”.

ENGLISH

SAVE OF F

3 Press ENTER to display

FEATURE menu.

VOLUME SELECT SUB

ROTAT ION 0

ODE AUTO

4 Press '/" to select

“ROTATION”.

5 Press \/| to adjust the picture tilt.

6 Press MENU until normal screen appears.

IP mode

Selects the video signal output mode.

1 Press MENU to call MENU

screen.

2 Press '/" to select

“FEATURE”.

3 Press ENTER to display

FEATURE menu.

4 Press '/" to select “IP

MODE”.

ENU P ICTURE SOUND

FEATURE

TI CH–SETTING

FEATURE BLUE BA AUTO SELECT SAVE ON

VOLU SELECT SUB

ROTAT ION 0

ODE AUTO

CK FF

5 Press \/| to select “I”, “P” or

“AUTO”.

I: 100/120 Hz Interlaced signal output P: Progressive signal output AUTO: 100 Hz Interlaced signal output when 50i signal is input

Progressive signal output when 60i signal is input

6 Press MENU until normal screen appears.

• When progressive signal is input, only progressive signal output is possible. Interlaced signal output is not possible.

E 33

Settings and adjustments

Off timer

Automatically turns power off after a set length of time has passed.

1 Press MENU to call MENU

screen.

2 Press '/" to select “TIMER”.

3 Press ENTER to display TIMER

menu.

4 Press '/" to select “OFF ”.

5 Press \/| to set time for TV to

turn off.

• Maximum time that can be preset is 12 hours and 50 minutes.

• As soon as the time is entered, the timer starts to count down.

ENU P ICTURE SOUND FEATURE

CH–SETTING

OFF

ON ––

POS I T ION VOLU

ON ––

POS I T ION VOLU

––: ––

0OFF

––: ––

: ––

2:30

: ––

E 34

6 Press MENU until normal

screen appears.

• Five minutes before the preset length of time expires (in the example, after two hours and 25

OFF

0:05

0:04

0:03

minutes) and each minute

0:02

thereafter, the remaining time

OFF

appears on the screen for several seconds.

OFF

0:01

• A flashing display of the remaining time appears during the last few seconds.

OFF

0:00

• When the preset length of time has passed, the TV set enters the

Flashing

Standby mode.

• To cancel the Off Timer setting, press NORMAL when “OFF ” is selected on TIMER menu. The time is

reset to “- - : - -”.

• The timer can be set in ten-minute intervals.

• The Off Timer is cancelled if the power is turned off or set to the Standby mode using POWER on the

remote control or the Power switch on the TV set, or if the power is otherwise interrupted.

On timer

Automatically turns power on after a set length of time has passed.

ENU

1 Press MENU to call MENU

screen.

2 Press '/" to select “TIMER”.

3 Press ENTER to display TIMER

menu.

4 Press '/" to select “ON ”.

P ICTURE SOUND FEATURE

CH–SETTING

TI OFF

ON ––

POS I T ION VOLU

––: ––

: ––

ENGLISH

TV Set (Bottom)

ON TIMER indicator (Red)

5 Press \/| to set time for TV to

turn on.

• Maximum time that can be preset is 12 hours and 50 minutes.

• As soon as the time is entered, the timer starts to count down.

6 Press '/" to select

“POSITION”.

TIMER OFF

ON 8

POS I T ION –– VOLU

E ––

ER OFF ON 8

POS I T ION 2H8

VOLU

E ––

7 Press \/| to set the channel.

8 Press '/" to select

“VOLUME”.

OFF ON 8

POS I T ION 2HC8

VOLU

E20

9 Press \/| to set volume.

Press POWER to put TV set into Standby mode.

• The ON TIMER indicator lights up red.

• When the preset length of time (in the above example, eight hours) has passed, the power turns on and a picture appears on the screen. The On Timer speaker volume gradually increases from zero to the preset volume.

––: ––

:00

––: ––

:00

––: ––

:000

––: ––

• To cancel the On Timer setting, press NORMAL when “ON ” is selected on TIMER menu. The time is

reset to “- - : - -”.

• The timer can be set in ten-minute intervals.

• The On Timer is cancelled if the power is turned off using the Power switch on the TV set.

• If the TV set is turned on by the On Timer, then the TV set will be automatically turned off in two hours if no buttons are pressed on the TV set or remote control.

E 35

Settings and adjustments

Reminder on-screen timer

Lets you know when a preset length of time has passed by displaying a countdown timer on the screen. This is useful for timer cooking while you watch TV.

1 Press MENU to call MENU

screen.

2 Press '/" to select “TIMER”.

3 Press ENTER to display TIMER

menu.

4 Press '/" to select “ ”.

5 Press \/| to set time.

• Maximum time that can be preset is 12 hours and 50 minutes.

• The right example shows that the Reminder will be activated after 1 hour and 50 minutes.

ENU P ICTURE SOUND

FEATURE

CH–SETTING

TI OFF ON ––

POS I T ION

VOLU

ER OFF ON ––

POS I T ION VOLU

––: ––

: ––

1:50

E 36

6 Press MENU until normal

screen appears.

• Five minutes before the preset length of time expires (in the example, after one hour and 45 minutes) and each minute thereafter, the remaining time appears on the screen for several seconds.

• When the preset length of time has passed, “00:00” flashes in red.

• This function also works in the Standby mode. Power is automatically turned on five minutes before the preset length of time expires. The TV set automatically returns to the Standby mode after the preset time.

• The Reminder is cancelled if the Power switch on the TV set is pressed or if the power is otherwise interrupted.

• The timer can be set in ten-minute intervals.

• To cancel the timer setting, press NORMAL when “ ” is selected on TIMER menu. The time is reset to

“- - : - -”.

0:05

0:04

0:03

0:02

0:01

Flashing

:0000

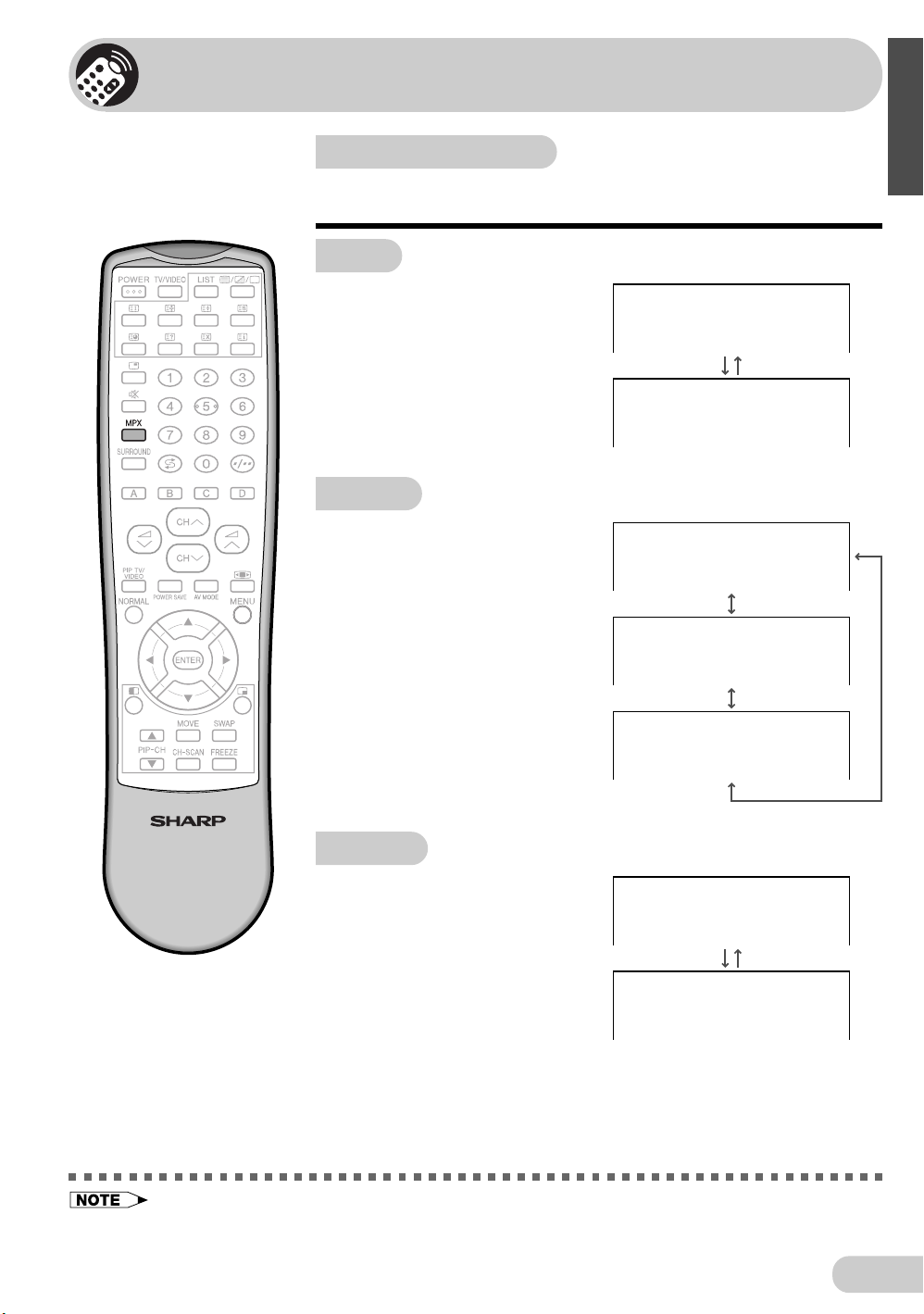

Broadcast features

NICAM broadcasts

Enables selection of reception mode when receiving a NICAM-I, -B/G, or -D/K signal.

Stereo

Each time you press MPX, the mode switches between NICAM STEREO and MONO.

Bilingual

Each time you press MPX, the mode switches between M1 (main sound), M2 (sub sound), and MONO.

NICAM

STEREO

MONO

NICAM

ENGLISH

Monaural

Each time you press MPX, the mode switches between NICAM MONO and MONO.

• The setting can be selected individually for each channel position.

• NICAM-I: National and regional broadcast system used in the UK and Hong Kong.

• NICAM-B/G: National and regional broadcast system used in the Singapore and New Zealand.

MONO

NICAM

MONO

E 37

Broadcast features

A2 stereo system broadcasts

Enables selection of reception mode when receiving an A2 stereo signal (B/G).

Stereo

Each time you press MPX, the mode switches between STEREO and MONO.

Bilingual

Each time you press MPX, the mode switches between MAIN and SUB.

STEREO

MONO

MAIN

SUB

E 38

• The setting can be selected individually for each channel position.

• A2 stereo-B/G: National and regional broadcast system used in Malaysia, Thailand and Australia.

Teletext broadcasts

Teletext is an information service, organised like a magazine, which is provided by some television stations in addition to regular television broadcasting. Your television receives special Teletext signals broadcast by a TV station, processes the information and displays it graphically on the screen. News, weather and sports information, stock exchange prices, programme previews and closed captioning for the deaf are among the many services available through Teletext.

Teletext information is organised much like a magazine: according to pages and subpages. The basic unit of displayed information is the page. A sub-page is one of a series of pages.

Teletext reception is controlled by using the remote control. Refer to the appropriate button descriptions for operation of the Teletext functions.

ENGLISH

FLOF and LIST

Depending on the TV programme, the Teletext pages are transmitted using different systems. Your SHARP TV is adjusted to receive two Teletext systems, namely FLOF and LIST, which are automatically identified by the receiver. You can easily identify them by the manner in which they appear on the screen.

Entering and leaving Teletext mode

1 Select a TV channel which is broadcasting the Teletext

2 Press to select Teletext mode.

3 Press twice to exit Teletext mode.

Page selection

FLOF LIST

Teletext

News Sports Movie Weather

programme you wish to watch.

• Teletext information will appear on the screen.

100 200 300 400

Teletext

Fast page selection

Select an appropriate programme channel. Press to select Teletext mode. To recall a page number displayed in the coloured brackets, simply press the corresponding Colour button (A, B, C or D).

0-9 Number buttons

Enter a desired page number with 0-9 Number buttons. (Ex. Press 1, 0, 5 to select page 105.)

Page selector

You can sequentially select page numbers by pressing CH /CH .

E 39

Broadcast features

Other features

Each time you press the button, the display mode changes as shown below.

TV mode Teletext mode

(Text/Mix/Picture)

Mixed mode

TV mode: Current TV programme screen.

Teletext mode: Teletext screen.

Mixed mode: The Teletext broadcast is

superimposed onto the current TV programme screen.

TV mode

Current Programme

Teletext mode

Mixed mode

E 40

(Half page)

Each time you press the button, the upper/lower half of the Teletext page is magnified and displayed on the screen.

(Hold)

Press to hold a Teletext page or sub-page on the screen. Press again to cancel the Hold mode.

(Reveal)

Press to reveal hidden information such as the answer to a quiz. Press again to hide the information.

(Clock)

In TV mode: When a TV signal with Teletext data is received, press to display the

real time information on the top right area of the screen.

In Teletext mode: When a selected Teletext page has hidden sub-pages, you can see them by performing the following procedure:

1 Press .

2 Enter a desired sub-page number (4 digits) with 0-9 Number

buttons. (Ex. Press 0, 0, 2, 1 to select sub-page 21.)

3 Wait until the selected sub-page appears.

(Cancel)

Press to cancel the Teletext mode and restore the normal TV screen. Indication is shown on the screen. In this position, the TV programme cannot be changed, being in Teletext/ Cancelled mode.

LIST

Press to force the Teletext to LIST mode. It means that row 24 (bottom row of Teletext) will not have transmitter information, only the pages that you have previously stored in the memory. See 42 for more information on Teletext page memory list. Press again to switch from LIST mode to FLOF system.

ENGLISH

(Index)

Press to return to the index page.

(Reset)

Press to return to the index page and exit Teletext mode.

E 41

Broadcast features

LIST mode

Teletext page memory list

Your TV has 40 Teletext page number memories for fast recall of Teletext information. In programme positions 1 through 9, four Teletext page numbers can be stored in each position; a total of 36 pages. In programme positions 10 through 99, only one programme with 4 page numbers can be stored. If you try to store more than 4 page numbers in a programme position between 10 and 99, the previously stored page numbers will be erased.

Page memory operation

1 Select the programme channel

number into which you want to store Teletext page numbers.

2 Press to select the

Teletext mode (FLOF).

3 Press LIST to change from

FLOF system to LIST mode.

4 Press the Colour button (A, B,

C or D) corresponding to the

coloured brackets on the screen for page number storage.

5 Enter the Teletext page number

(3 digits) using the 0-9 Number buttons.

6 Repeat steps 4 and 5 until the

numbers for the desired pages are all entered.

P 100

FLOF Teletext

News Sports Movie Weather

P 300

LIST Teletext

100 200 300 400

P 315

LIST Teletext

E 42

7 Press to memorize the page

numbers you require.

• The symbol appears on the screen.

8 Press twice to exit the

Teletext mode.

100 200 315 400

If you want to store the page, press .

Fast page selection (LIST mode)

1 Select an appropriate

programme channel.

2 Press to select the

Teletext mode.

3 Press LIST to change from

FLOF system to LIST mode.

4 To recall a page number

displayed in the coloured brackets, simply press the corresponding Colour button (A, B, C or D).

ENGLISH

P 100

FLOF Teletext

News Sports Movie Weather

P 100

LIST Teletext

100 200 315 400

P 315

LIST Teletext

5 Press LIST again to return to

FLOF mode.

How colour buttons work in FLOF mode

• If link-page data are transmitted from the TV station, each link-page can be viewed by pressing the Colour buttons (A, B, C and D).

• If no link-page data are transmitted, pressing each Colour button (A, B, C

or D) selects the following pages.

A: Current page number minus 1 B: Current page number plus 1

100 200 315 400

News Sports Movie Weather

– +

E 43

Connections

Connecting to a DVD player

The DVD input terminals (COMPONENT IN) on the rear of the TV can be used to input high-quality images from a DVD player.

• The COMPONENT IN terminals support progressive video signal input for playback on the screen.

Watching DVD playback

Green: To Y Blue: To P Red: To P

To colour-difference (component video) out terminals

Connecting the video terminals

DVD input terminals DVD player

COMPONENT IN

DVD input terminals

(CB)

(CR)

DVD player

Y Y or Y/Y

B(CB)PB(CB ) or B-Y/Pb

R(CR)PR(CR) or R-Y/Pr

Red: To AUDIO IN (R) White: To AUDIO IN (L)

To audio out (L/R) terminals

1 Press TV/VIDEO to select

COMPONENT

“COMPONENT”, DVD input screen.

2 Turn on the DVD player and

begin playback.

• When connecting the TV to a DVD player via the COMPONENT IN terminals, the video and audio from the DVD player cannot be output through the AUDIO/VIDEO OUT terminals on the TV.

• Please refer to the operation manual of your DVD player for more information.

• Be sure to fully insert the plugs of the connecting cables into the terminals on the TV set and video

equipment. Failure to do so may result in noise.

• Before connecting the cables, turn off the power of the TV set and video equipment.

• Always remove the cables from the terminals by the plugs and not the cables themselves.

E 44

Connecting to video equipment

Enjoy playback from a video disc player, VCR or other video equipment by connecting them to this TV set using the Audio/Video In terminals.

Example use of front terminals

DVD Player

VCR

ENGLISH

Behind the door

AV-3 IN

To S-VIDEO

Example use of rear terminals

For Recording and Editing

VCR

To AUDIO/ VIDEO in terminals

Camcorder

To AUDIO/VIDEO

out terminals

Yellow: To VIDEO White: To AUDIO (L) Red: To AUDIO (R)

Video Game

To S-VIDEO out terminal

Yellow: To VIDEO White: To AUDIO (L) Red: To AUDIO (R)

For Playback

VCR

To AUDIO/VIDEO out terminals

• Video and audio signals input via the COMPONENT IN terminals cannot be output through the AUDIO/VIDEO OUT terminals.

• The S-VIDEO terminal has priority over the Video terminal.

• The S-VIDEO terminal and AUDIO (L/R) terminals must be connected to the playback DVD player.

• Turn off the power on the TV set and the VCR being connected before making the above connections.

• Be sure the cord plugs are fully inserted in the connection terminals.

• For playback of monaural audio, connect the external source to the AUDIO-L terminal on the front or rear of the TV set (MONO) to hear the same sound from both speakers.

• The audio-visual cords required to connect the TV set to video equipment may differ from those shown in the above diagram. See the operation manual of your video equipment for connection details.

• The above recording and editing connections are intended solely for personal use and not for the illegal copying of audio-visual material protected by copyright laws.

• Connection to both the S-VIDEO and VIDEO terminals on the front of this TV will cause picture distortion. Connect to one of them.

To S-VIDEO out terminal

To AUDIO out terminals

DVD Player

E 45

Troubleshooting

The following problems do not always indicate a hardware failure. Therefore, please use the troubleshooting guide below before calling for repair service. If, after following the guide none of the remedies work, unplug the TV set and call for service.

Quick Service Check List

Possible Causes/Remedies

Problems

Remote control does not work.

Bars on screen.

Picture distorted.

Picture rolls vertically.

No colour.

Poor reception on some channels.

Picture weak.

Picture lines or streaks.

Picture ghosting.

Picture blurred.

Sound OK, picture poor.

Picture OK, sound poor.

No picture or sound.

Try a new channel to check for possible station

trouble.

TV not plugged in.

Outlet power OFF.

Power switch of TV not ON.

Antenna not connected to terminal at the rear of

the TV set.

If outside antenna is used, check for broken

wires.

Check for local interference.

Turn OFF using the Power switch, then turn

ON again after a minute.

Adjust COLOUR control.

Check batteries in the remote control.

Try fine tuning to correct.

CONTRAST or BRIGHTNESS setting in picture

mode might be all the way to the minus side.

Increase the volume.

E 46

• This unit is equipped with a microprocessor. Its performance could be adversely affected by external electrical noise or interference. If this should happen, unplug the unit and plug it in again after a few minutes.

Specifications

MODEL 29K-F200A/29K-F200M

Receiving System World multi 28 system

TV broadcasts/ VCR playback PAL-I

VCR playback NTSC 4.43/5.5 MHz 60 Hz NTSC 3.58/5.5 MHz 60 Hz SECAM-I (6.0 MHz)

Laserdisc player playback PAL 5.5 MHz/60 Hz (Using RF-in terminal) PAL 6.0 MHz/60 Hz

VCR playback S-VIDEO NTSC 3.58 MHz (Using S-Video In terminal) S-VIDEO NTSC 4.43 MHz

Special VCR and VDP Video-in 50/60 Hz playback S-Video in 50/60 Hz

DVD playback COMPONENT IN

Stereo broadcast A2 stereo-B/G

Reception Channels

PAL-B/G VHF E2–E12 ch

SECAM B/G UHF E21–E69 ch

PAL-D/K VHF C1–C12 ch, R1–R12 ch

SECAM-D/K, K1 UHF C13–C57 ch, R21–R69 ch

PAL-I VHF B–J ch

NTSC VHF 2–13 ch (U.S.), 1–12 ch (Japan)

CATV S1–S20 ch, S21–S41 ch (Hyper)

Receiving Frequency 48.25 MHz – 863.25 MHz

Teletext Language Multi language

Channel Tuning 100-channel electronic tuner with Full Auto Tuning system

Picture Tube 29-inch Flat CRT (74 cm / 68 cm viewable screen size)

Terminals Audio/video input × 3 (front × 1, rear × 2), DVD input (COMPONENT IN) × 1 (rear),

Sound Output 5 W (RMS) × 2 + 10 W (RMS)/(sub woofer), total 20 W (RMS)

Power Source AC 110 – 240 V, 50/60 Hz

5Power Consumption 175 W

Power Consumption during Less than 1 W Standby Mode

Dimensions 764 (W) × 584 (H) × 500.5 (D) mm

Weight (approx.) 45.5 kg

PAL-B/G PAL-D/K SECAM-B/G SECAM-D/K, K1 NTSC-M (NTSC standard)

NTSC 4.43/6.0 MHz 60 Hz NTSC 3.58/6.0 MHz 60 Hz NTSC 4.43/6.5 MHz 60 Hz NTSC 3.58/6.5 MHz 60 Hz

PAL 6.5 MHz/60 Hz

S-VIDEO PAL S-VIDEO SECAM

Progressive signal 50/60 Hz Interlaced signal 50/60 Hz

NICAM-I, B/G, D/K

UHF 21–69 ch (Hong Kong)

UHF 14–69 ch (U.S.), 13–62 ch (Japan)

Audio/video output × 1 (rear), Headphones jack (front × 1), S-video input × 2 (front × 1, rear × 1)

ENGLISH

• Design and specifications are subject to change without notice.

• Receiving system: These receiving systems, encompassing all currently available technology, include those with planned broadcast, videotape and laserdisc hardware and software.

• Reception channels: Some examples of the main receivable channels are shown above.

SHARP CORPORATION

E 47

Sharp 29K-F200A, 29K-F200M Operating Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
