19R-M100 19R-M100S

SERVICE MANUAL

S11O219R-M100

COLOR TELEVISION

Chassis No. SN-010

19R-M100

MODELS

19R-M100S

In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its original condition and only parts identical to those specified should be used.

CONTENTS

Page

» ELECTRICAL SPECIFICATIONS .........................................................................................................1

» IMPORTANT SERVICE SAFETY PRECAUTION.................................................................................2

» LOCATION OF USER'S CONTROL .....................................................................................................4

» INSTALLATION AND SERVICE INSTRUCTIONS................................................................................5

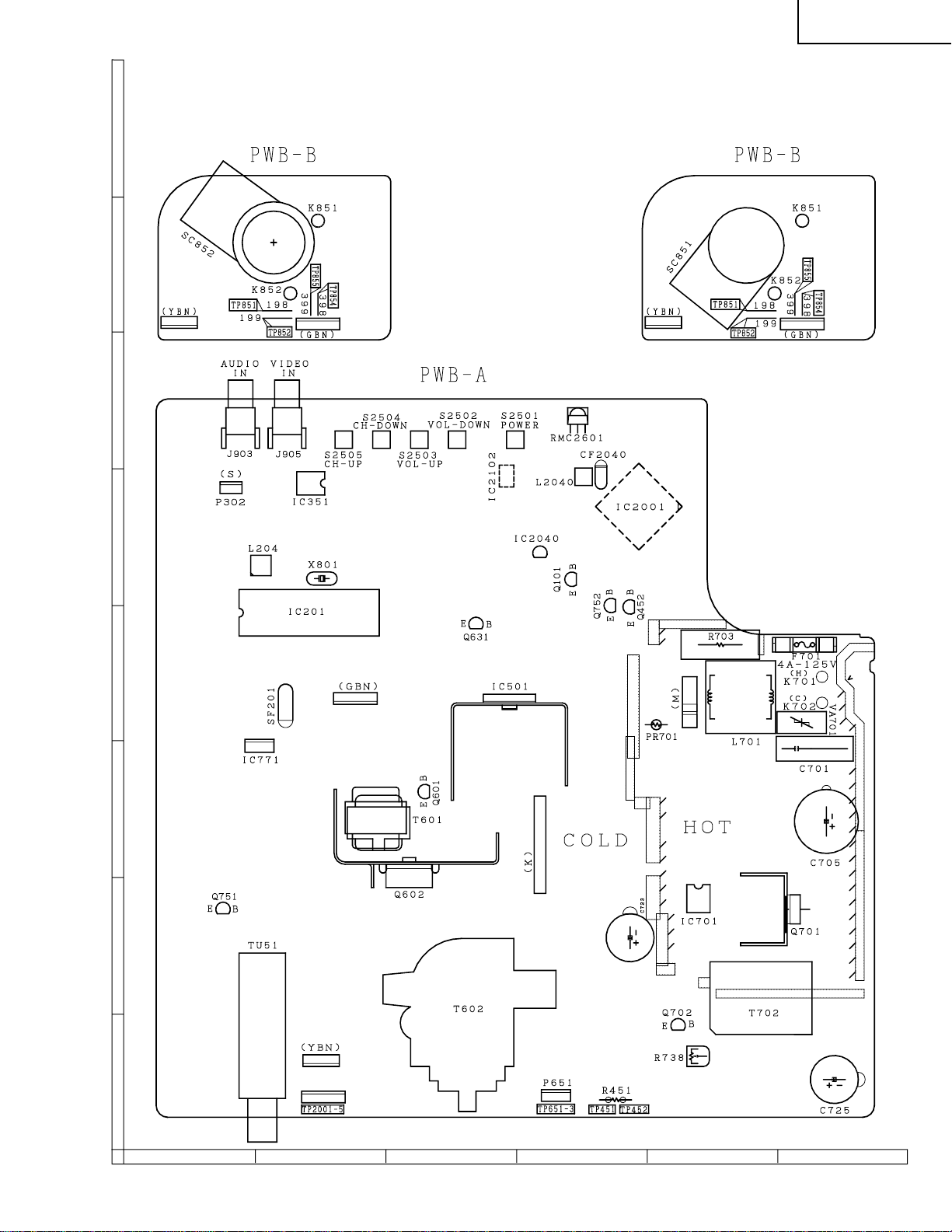

» CHASSIS LAYOUT .............................................................................................................................11

» BLOCK DIAGRAM..............................................................................................................................12

» SCHEMATIC DIAGRAMS ...................................................................................................................13

» PRINTED WIRING BOARD ASSEMBLIES ........................................................................................20

» REPLACEMENT PARTS LIST............................................................................................................23

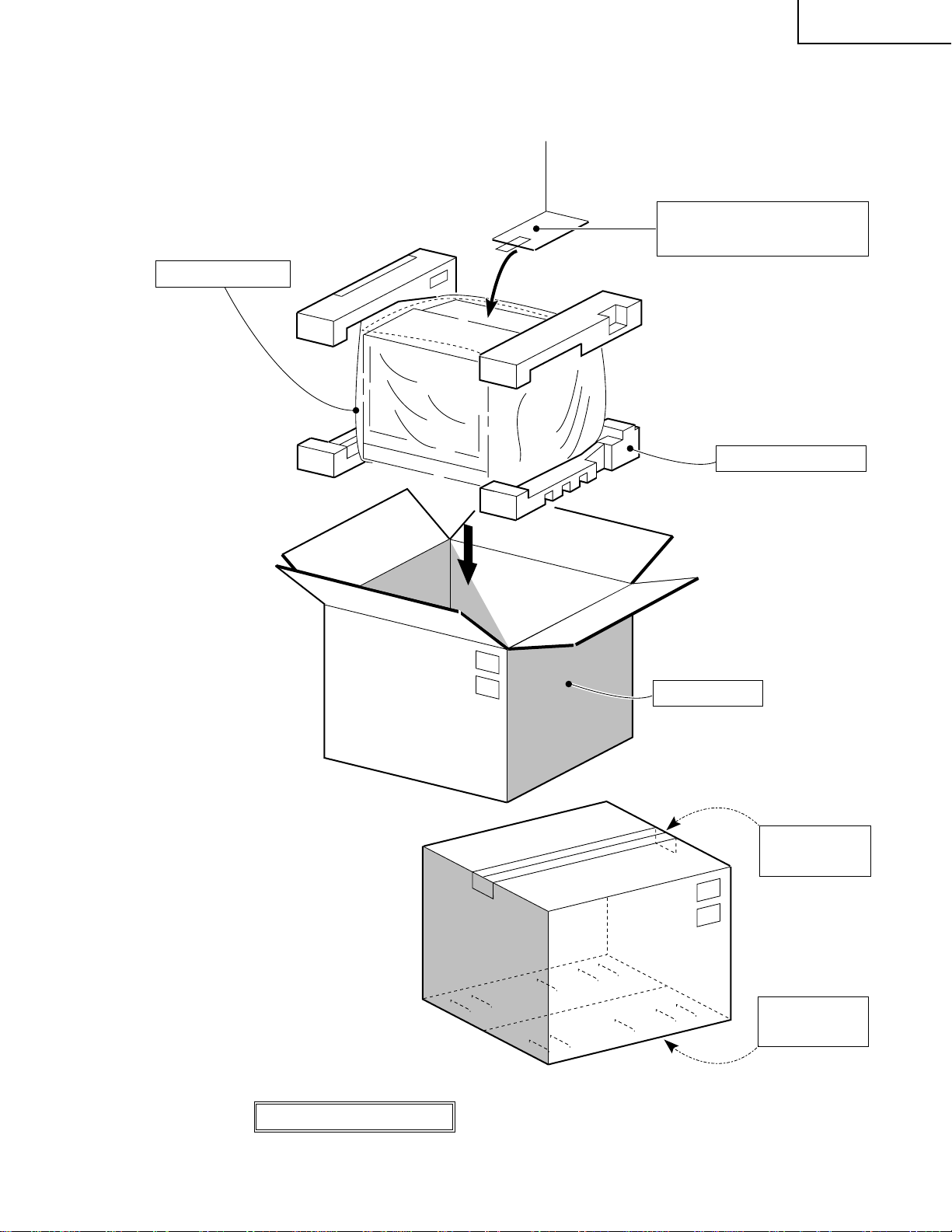

» PACKING OF THE SET......................................................................................................................29

ELECTRICAL SPECIFICATIONS

POWER INPUT.................................................... AC 120 V, 60 Hz

POWER RATING ................................................................... 69 W

PICTURE SIZE ........................................... 1,194cm2 (185sq inch)

CONVERGENCE ............................................................. Magnetic

SWEEP DEFLECTION .................................................... Magnetic

FOCUS ............................................... Hi-Bi-Potential Electrostatic

INTERMEDIATE FREQUENCIES

Picture IF Carrier Frequency ..................................... 45.75 MHz

Sound IF Carrier Frequency...................................... 41.25 MHz

Color Sub-Carrier Frequency .................................... 42.17 MHz

(Nominal)

AUDIO POWER

OUTPUT RATING ..................................................... 1 W (RMS)

SHARP CORPORATION

SPEAKER

SIZE ...................................................................... 8 cm (Round)

VOICE COIL IMPEDANCE ............................ 32 ohm at 400 Hz

ANTENNA INPUT IMPEDANCE

VHF/UHF.....................................................75 ohm Unbalanced

TUNING RANGES

VHF-Channels...............................................................2 thru 13

UHF-Channels ............................................................14 thru 69

CATV Channels...........................................................1 thru 125

(EIA, Channel Plan U.S.A.)

Specifications are subject to change without prior notice.

This document has been published to be used for after sales service only. The contents are subject to change without notice.

19R-M100 19R-M100S

IMPORT ANT SER VICE SAFETY PRECAUTION

Service work should be performed only by qualified service technicians who are thoroughly familiar with all safety checks and the servicing guidelines which follow:

WARNING

1. For continued safety, no modification of any circuit should be attempted.

2. Disconnect AC power before servicing.

3. Semiconductor heat sinks are potential shock hazards when the chassis is operating.

4. The chassis in this receiver has two ground systems which are separated by insulating material. The nonisolated (hot) ground system is for the B+ voltage regulator circuit and the horizontal output circuit. The isolated ground system is for the low B+ DC voltages and the secondary circuit of the high voltage transformer. To prevent electrical shock use an isolation transformer between the line cord and power receptacle, when servicing this chassis.

CAUTION: FOR CONTINUED PROTECTION AGAINST A RISK OF FIRE, REPLACE

4A 125V

ONLY WITH SAME TYPE 4A125V FUSE.

SERVICING OF HIGH VOL T AGE SYSTEM AND PICTURE TUBE

When servicing the high voltage system, remove the static charge by connecting a 10k ohm resistor in series with an insulated wire (such as a test probe) between the picture tube ground and the anode lead. (AC line cord should be disconnected from AC outlet.)

1. Picture tube in this receiver employs integral implosion protection.

2. Replace with tube of the same type number for continued safety .

3. Do not lift picture tube by the neck.

4. Handle the picture tube only when wearing shatterproof goggles and after discharging the high voltage anode completely .

X-RADIA TION AND HIGH VOL TAGE LIMITS

1. Be sure all service personnel are aware of the procedures and instructions covering X-radiation. The only potential source of X-ray in current solid state TV receivers is the picture tube. However, the picture tube does not emit measurable X-Ray radiation, if the high voltage is as specified in the "High Voltage Check" instructions. It is only when high voltage is excessive that Xradiation is capable of penetrating the shell of the picture tube including the lead in the glass material. The important precaution is to keep the high voltage below the maximum level specified.

2. It is essential that servicemen have available at all times an accurate high voltage meter. The calibration of this meter should be checked periodically.

3. High voltage should always be kept at the rated value

-no higher. Operation at higher voltages may cause a failure of the picture tube or high voltage circuitry and;also, under certain conditions, may produce radiation in exceeding of desirable levels.

4. When the high voltage regulator is operating properly there is no possibility of an X-radiation problem. Every time a color chassis is serviced, the brightness should be tested while monitoring the high voltage with a meter to be certain that the high voltage does not exceed the specified value and that it is regulating correctly.

5. Do not use a picture tube other than that specified or make unrecommended circuit modifications to the high voltage circuitry .

6. When troubleshooting and taking test measurements on a receiver with excessive high voltage, avoid being unnecessarily close to the receiver. Do not operate the receiver longer than is necessary to locate the cause of excessive voltage.

2 2

IMPORTANT SERVICE SAFETY PRECAUTION

(Continued)

19R-M100 19R-M100S

BEFORE RETURNING THE RECEIVER (Fire & Shock Hazard)

Before returning the receiver to the user, perform the following safety checks.

1. Inspect all lead dress to make certain that leads are not pinched or that hardware is not lodged between the chassis and other metal parts in the receiver.

2. Inspect all protective devices such as non-metallic control knobs, insulating materials, cabinet backs, adjustment and compartment covers or shields, isolation resistor-capacity networks, mechanical insulators and etc.

3. To be sure that no shock hazard exists, check for leakage current in the following manner.

» Plug the AC cord directly into a 120 volt AC outlet,

(Do not use an isolation transformer for this test).

» Using two clip leads, connect a 1.5k ohm, 10 watt

resistor paralleled by a 0.15µF capacitor in series with all exposed metal cabinet parts and a known earth ground, such as electrical conduit or electrical ground connected to earth ground.

» Use an AC voltmeter having with 5000 ohm per volt,

or higher, sensitivity to measure the AC voltage drop across the resistor.

» Connect the resistor connection to all exposed metal

parts having a return to the chassis (antenna, metal cabinet, screw heads, knobs and control shafts, escutcheon and etc.) and measure the AC voltage drop across the resistor. AII checks must be repeated with the AC line cord plug connection reversed. (If necessary, a nonpolarized adapter plug must be used only for the purpose of completing these check.) Any current measured must not exceed 0.5 milliamp. Any measurements not within the limits outlined above indicate of a potential shock hazard and corrective action must be taken before returning the instrument to the customer.

1.5k ohm 10W

0.15µF

TEST PROBE

TO EXPOSED METAL PARTS

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

CONNECT TO KNOWN EARTH GROUND

SAFETY NOTICE

Many electrical and mechanical parts in television receivers have special safety-related characteristics. These characteristics are often not evident from visual inspection, nor can protection afforded by them be necessarily increased by using replacement components rated for higher voltage, wattage and etc. Replacement parts which have these special safety characteristics are identified in this manual; electrical components having such features are identified by "å" and shaded areas in the Replacement Parts Lists and Schematic Diagrams.

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

For continued protection, replacement parts must be identical to those used in the original circuit. The use of substitute replacement parts which do not have the same safety characteristics as the factory recommended replacement parts shown in this service manual, may create shock, fire, X-radiation or other hazards.

19R-M100 19R-M100S

LOCATION OF USER'S CONTROL

Front Panel

–

VOL

POWER VIDEO IN AUDIO

SENSOR AREA FOR REMOTE CONTROL

POWER

Press → On. Press again → Off.

Basic Remote Control Functions

POWER

Press → On. Press again → Off.

REMOTE KEYPAD

Accesses any channel from keypad.

FLASHBACK

Returns to previous channel.

VOLUME UP/DOWN

(+) Increases sound. (–) Decreases sound.

• In menu mode, changes or selects the TV adjustments.

MUTE

Press → Mutes sound. Press again → Restores sound.

• CLOSED CAPTION appears when sound is muted.

POWER

–

OL+

VOLUME UP/DOWN

(+) Increases sound. (–) Decreases sound.

G1324SA

VIDEO IN AUDIO IN TERMINALS

CHANNEL UP/DOWN

(

) Selects next higher channel.

(

) Selects next lower channel.

• Press both at the same time to access the MAIN MENU screen.

Infrared Transmitter Window

INPUT

Press → Switch to external video input mode. Press again → Switch to TV mode.

CHANNEL UP/DOWN

( ) Selects next higher channel. ( ) Selects next lower channel.

• Moves the “

” mark of the MENU

screen.

Press → Accesses MAIN MENU. Press again → Exits MAIN MENU.

DISPLA Y

Press → Displays receiving channel for four seconds. Press again → Removes display.

• Temporarily displays receiving channel when in Closed Caption mode.

19R-M100 19R-M100S

INSTALLATION AND SERVICE INSTRUCTIONS

Note: (1)When performing any adjustments to resistor controls and transformers use non-metallic

screwdrivers or TV alignment tools.

(2)Before performing adjustments, the TV set must be on at least 15 minutes.

CIRCUIT PROTECTION

The receiver is protected by a 4.0A fuse (F701), mounted on PWB-A, wired into one side of the AC line input.

X-RADIATION PROTECTOR CIRCUIT TEST

After service has been performed on the horizontal deflection system, high voltage system, B+ system, test the X-Radiation protection circuit to ascertain proper operation as follows:

1. Apply 120V AC using a variac transformer for accurate input voltage.

2. Allow for warm up and adjust all customer controls for normal picture and sound.

3. Receive a good local channel.

4. Connect a digital voltmeter to TP653 and make sure that the voltmeter reads 21.4 ±1.5 V.

5. Apply external 27.2V DC at TP653 by using an external DC supply, TV must be shut off.

6. T o reset the protector , unplug the AC cord and make a short circuit between TP651 and TP652. Now make sure that normal picture appears on the screen.

7. If the operation of the horizontal oscillator does not stop in step 5, the circuit must be repaired before the set is returned to the customer.

HIGH VOLTAGE CHECK

High voltage is not adjustable but must be checked to verify that the receiver is operating within safe and efficient design limitations as specified checks should be as follows:

1. Connect an accurate high voltage meter between ground and anode of picture tube.

2. Operate receiver for at least 15 minutes at 120V AC line voltage, with a strong air signal or a properly tuned in test signal.

3. Enter the service mode and select the service adjustment "S03" and Bus data "01" (Y-mute on).

4. The voltage should be approximately 26.0kV (at zero beam). If a correct reading cannot be obtained, check circuitry for malfunctioning components. After the voltage test, make Y-mute off to the normal mode.

19R-M100 19R-M100S

For adjustments of this model, the bus data is converted to various analog signals by the D/A converter circuit.

Note: There are still a few analog adjustments in this series such as focus and master screen voltage. Follow

the steps below whenever the service adjusment is required.

To enter the service mode and exit service mode.

While pressing the Vol-up and Ch-up buttons at the sametime, plug the AC cord into a wall socket. Now, the TV set is switched on and enters the service mode. To exit the service mode, turn the television off by pressing the power button.

1. Service mode.

Before putting unit into the service mode, check that customer adjustments are in the normal mode. Use the reset function in the video adjustment menu to ensure customer control are in their proper (reset) position.

2. Service number selection.

In the service mode, you will see the window screen as window 1. There are 3 adjustment categories 2DEF, 3SIGNAL, 4FIX VALUE as show in Figure A.

Window 2: DEF

D01 D03 D05

RETURN

Window 4: FIX VALUE

D02 D04 D06

Window 1: ADJUSTMENT CATEGORIES

RETURN

F01 F02

F13 F14

RETURN NEXT

DEF

SERVICE MODE

DEF SIGNAL FIX V ALUE EEPROM

SIGNAL

FIX V ALUE

Window 3: SIGNAL

S01

S13 RETURN

F15 F16

F25 F26

RETURNPREVIOUS

S02 S12

RETURN

Figure A: ADJUSTMENT CATEGORIES

Press CH UP/DOWN button for selection and enter by VOL UP or VOL DOWN. Press CH UP/DOWN button to select the adjustment item and VOL UP/DOWN to adjust the data number for each categories.

(OSD disturbance can be erased by R/C display key) (Note: EEPROM – factory used only)

Below are the adjustments ranges and initial values for FIX VALUE category.

FIX V ALUE

SERVICE

POSITION

F01 OPTION 1 00-FF B0 B0 F02 OPTION 2 00-FF 04 04 F03 E-SAVE 00-3F 23 2A F04 TUNER SETUP 00, 01 00 00 F05 R-TONE RD 00-7F 19 03 F06 R-TONE BD 00-7F 00 7C F07 B-TONE RD 00-7F 00 00 F08 B-TONE BD 00-7F 12 04 F09 FM LEVEL 00-1F 0C 0C F10 AFC GAIN 00, 01 00 00 F11 G DRIVE 00, 0F 0F 0F F12 FBT BLK SW 00, 01 01 01 F13 V COMP 00-07 07 07 F14 OSD CONT 00-07 02 01 F15 SHARPNESS 00-3F 19 19 F16 FLT SYS 00-03 00 00 F17 KILLER OP 00-07 04 02 F18 PRE SHOOT 00-03 03 00 F19 CORING 00-07 07 04 F20 DC REST 00-03 02 02 F21 BS START 00-03 01 01 F22 BS GAIN 00-03 01 01 F23 ABL START 00-07 00 00 F24 R/B ANGLE 00-0F 08 08 F25 H BLK R 00-07 04 03 F26 H BLK L 00-07 04 00

ADJUST ITEM

RANGE

Table - A

DATA

INITIAL VALUE

19R-M100 19R-M100S

(Hex)

Below are the ranges and initial values for each adjustment and in each categories.

DEF

SERVICE

POSITION

D01 H-PHASE 00-1F 0C D02 V-SIZE 00-7F 40 D03 V-POSITION 00-3F 20 Must be "20" D04 CC-POSITION 00-FF 1A D05 V-LINEARITY 00-1F 10 Must be "18" D06 V-S-CORRECTION 00-1F 10 Must be "0C"

ADJUST ITEM

RANGE

DATA

Table - B

INITIAL VALUE

ADJUSTMENT CONTENTS

SIGNAL

SERVICE

POSITION

S01 RF AGC 00-3F 14 S02 VIDEO LEVEL 00-07 03

S03 Y-MUTE 00-03 00 S04 SUB BIAS 00-FF 40 Must be "30"

S05 R-BIAS 00-FF 00 S06 G-BIAS 00-FF 00 S07 B-BIAS 00-FF 00 S08 R-DRIVE 00-7F 40 S09 B-DRIVE 00-7F 40 S10 CONTRAST 00-7F 5A S11 TINT 00-7F 40 S12 COLOR 00-7F 40 S13 BRIGHTNESS 00-7F 40

ADJUST ITEM

RANGE

Note: Refer to the SERVICE ADJUSTMENT for each corresponding values.

DATA

Table - C

INITIAL VALUE

ADJUSTMENT CONTENTS

"01":Y-MUTE, "02":V-STOP&Y-MUTE "03":Activate color killer

19R-M100 19R-M100S

Holding down both the Vol-up/Ch-down buttons on the TV set at service mode for more than 2 seconds will automatically write the above initial values into IC2102 (IC2101).

PAR T REPLACED

IC2001

IC201

IC2102 (IC2101)

CRT

ADJUSTMENT

NECESSARY

If using IC2101 If using IC2102

UNNECESSARY

Data is stored in IC2102 (IC2101). The adjustment is needed to compensate for characteristics

of parts including IC201.

Holding down both the Vol-up/Ch-down buttons on the TV set in the service mode for more than 2 seconds will automatically write the above initial values into IC2102 (IC2101).

Adjust items related to picture tube only .

Table - D

R2101 R2102 R2103 R2104

––

Table - E

NOTES

SERVICE ADJUSTMENT

19R-M100 19R-M100S

RF AGC Adjustment

1. Receive a good local channel.

2. Enter the service mode signal category and select the service adjustment "S01".

3. Set the data value to point where no noise or beat appears.

4. Select another channel to confirm that no noise or beat appears.

Note: You have to exit the service mode first to

select another channel.

Video Level (TV Det Video Level) Adjustment

1. Receive a good local channel.

2. Enter the service mode signal category and select the service adjustment "S02".

3. Set the data value to "02" first, then adjust the data in ranges 02 ±2 step to obtain a normal contrast level.

Screen Adjustment

1. Connect to oscilloscope probe between TP855 and ground of the CRT unit.

2. Receive a good local channel.

3. Enter the service mode Signal category and set the service adjustment "S04" to step 30. Then select the service adjustment "S12" and set the data value to "00" to set the color level to the minimum level. (record the original data first). Y ou may skip this step, if you selected a B/W picture or monoscope pattern. Set also the "S05/S06/S07" data to minimum level.

4. Select the service adjustment "S03" and set the data value to "01" to turn off the luminance signal (Y -mute).

5. Select the service adjustment "S13" and adjust the data value to obtain 2.35 volts as shown in Figure B.

6. Adjust the master screen control until the raster darkens to the point where raster is barely seen.

7. Adjust the service adjustment "S05" red, "S06" green and "S07" blue to obtain a good grey scale with normal white at low brightness level.

8. Select the service a adjustment "S03" and reset data to "00". Select the service adjustment "S12" and reset data to obtain normal color level.

9. Remove probe and reset the master screen control to obtain normal brightness range.

White Balance Adjustment

1. Receive a good local channel.

2. Select the service adjustment "S12" and set the data value to "00" to set the color level to the minimun. Y ou may skip this step, if you selected a B/W picture or monoscope.

3. Alternately adjust the service adjustment data of "S08" and "S09" until a good grey scale with normal white is obtained.

4. Select the service adjustment "S12" and reset data to obtain normal color level.

Sub-Picture Adjustment

1. Receive a good local channel.

2. Make sure the customer picture control is set to maximum.

3. Enter the service mode and select the service adjustment "S10".

4. Adjust the data value to achieve normal contrast range.

Sub-Tint Adjustment

1. Receive a good local channel.

2. Set the customer tint control to the center of it’s range.

3. Enter the service mode and select the service adjustment "S11".

4. Adjust "S11" data value to obtain normal fresh tones.

Sub-Color Adjustment

1. Receive a good local channel.

2. Make sure the customer color control is set to center position.

3. Enter the service mode and select the service adjustment "S12".

4. Adjust "S12" data value to obtain normal color level.

Sub-Brightness Adjustment

1. Receive a good local channel.

2. Make sure the customer brightness control is set to center position.

3. Enter the service mode and select the service adjustment "S13".

4. Adjust "S13" data value to obtain normal brightness level.

2.35 Vdc

GND

Figure B: WAVEFORM FOR SCREEN ADJUSTMENT

19R-M100 19R-M100S

Vertical-Size, V-Linearity and V-S Correction Adjustments

1. Receive a good local channel.

2. Enter the service mode DEF category and select the adjustment "D02" for Vertical Size, "D05" for VLinearity and "D06" for V-S Correction Adjustment.

3. Set in order "D05" for V-Linearity, "D06" for V-S Correction and set the data to get the best linearity.

4. Then adjust "D02" data until it become a proper vertical size.

Horizontal Position Adjustment

1. Receive a good local channel.

2. Enter the service mode DEF category and select the adjustment "D01".

3. Adjust "D01" data value to center the picture.

Vertical-Phase Adjustment

1. Receive a good local channel.

2. Enter the service mode DEF category and select the adjustment "D03".

3. Adjust "D03" bus data to get the most acceptable vertical position.

Note: The step range is 20 (032) ±10 steps.

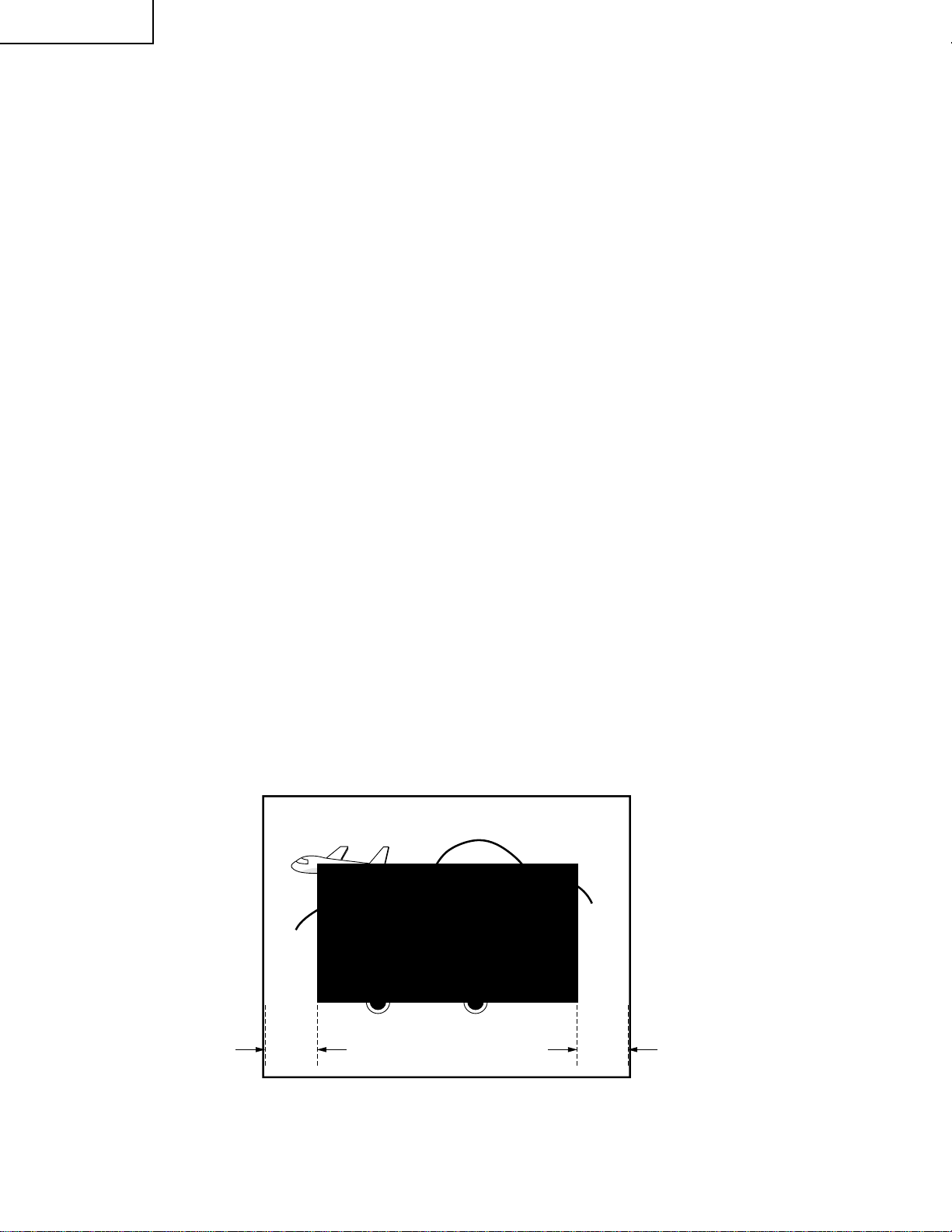

Caption Position Adjustment (Horizontal)

1. Receive a good local channel.

2. Enter the service mode DEF category and select the adjustment "D04".

3. A black text box will appear on the screen. (see Figure C. below)

4. Adjust "D04" data value to balance the text box position in the center (A=B).

A B

Figure C.

CHASSIS LAYOUT

19R-M100 19R-M100S

19R-M100

19R-M100S

654321

19R-M100 19R-M100S

BLOCK DIAGRAM

654321

DESCRIPTION OF SCHEMATIC DIAGRAM

19R-M100 19R-M100S

NOTES:

1. The unit of resistance "ohm" is omitted. (K=kΩ=1000Ω, M=MΩ)

2. All resistors are 1/10 watt, unless otherwise noted.

3. All capacitors are µF, unless otherwise noted. (P=pF=µµF)

4. (G) indicates ±2% tolerance may be used.

5. indicates line isolated ground.

VOL T AGE MEASUREMENT CONDITIONS:

1. All DC voltages are measured with DVM connected between points indicated and chassis ground, line voltage set at 120V AC and all controls set for normal picture unless otherwise indicated.

2. All voltages measured with 1000µ V B & W or Color signal.

WAVEFORMS

1.0

0.9

WAVEFORM MEASUREMENT CONDITIONS:

1. Photographs taken on a standard gated color bar signal, the tint setting adjusted for proper color. The wave shapes at the red, green and blue cathodes of the picture tube depend on the tint, color level and picture control.

indicates waveform check points (See chart, waveforms are measured from point indicated to chassis ground.)

AND SHADED ( ) COMPONENTS = SAFETY RELATED PARTS.

MARK= X-RAY RELATED PARTS.

This circuit diagram is a standard one, printed circuits may be subject to change for product improvement without prior notice.

5.0

2.1

1.0

1.2

1160

1.4

220

105

150

4.6

133

105

0.7

220

1.7

39.0

0.7

MODEL 19R-M100 SCHEMATIC DIAGRAM: MAIN Unit

19R-M100 19R-M100S

NOTE

IC201 RH-iX3354CEZZ RH-iX3354CEN1 C211 VCKYCY1HB102K(1000p) C301 VCCCCY1HH470J(47p) VCCCCY1HH220J(22p) C304 VCCCCY1HH470J(47p) VCCCCY1HH220J(22p) C802 VCEA0A1CW106M(10 (16V)) R209 VRS-CY1JF123J(12k) VRS-CY1JF000J(0) R302 VRS-CY1JF332J(3.3k) VRS-CY1JF152J(1.5k)

R413 VRS-CY1JF152J(1.5k) VRS-CY1JF222J(2.2K)

COMBINATION

121110987654321

MODELS 19R-M100S SCHEMATIC DIAGRAM: MAIN Unit

19R-M100 19R-M100S

NOTE

COMBINATION

121110987654321

19R-M100 19R-M100S

MODEL 19R-M100 SCHEMATIC DIAGRAM: CRT Unit

654321

MODEL 19R-M100S SCHEMATIC DIAGRAM: CRT Unit

19R-M100 19R-M100S

654321

19R-M100 19R-M100S

PRINTED WIRING BOARD ASSEMBLIES

PWB-A: MAIN Unit (Wiring Side)

654321

19R-M100 19R-M100S

PWB-A: MAIN Unit (Chip Parts Side)

654321

19R-M100 19R-M100S

PWB-B: CRT Unit (Wiring Side)

PWB-B: CRT Unit (Chip Parts Side)

654321

19R-M100 19R-M100S

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PARTS LIST

P ARTS REPLACEMENT

Replacement parts which have these special safety characteristics identified in this manual; electrical components having such features are identified by and Schematic Diagrams. The use of a substitute replacement part which dose no have the same safety characteristic as the factory recommended replacement parts shown in this service manual may create shock, fire or other hazards.

"HOW TO ORDER REPLACEMENT P ARTS"

To have your order filled promptly and correctly, please furnish the following informations.

1. MODEL NUMBER 2. REF. NO.

3. PAR T NO. 4. DESCRIPTION

in USA: Contact your nearest SHARP Parts Distributor to order.

Ref. No. Part No. ★ Description Code

'åV101 VB48JLL40X/*S X

'åDY601 RCiLH0099MEZZ X Deflection Y oke AX

å L703 RCiLG0014MEZZ X Degaussing Coil AQ

'åV101 VB48KRD89X/3E X Picture Tube BY 'åDY601 RCiLH0100MEZZ X Deflection Yoke AY

å L703 RCiLG0108GJZZ X Degaussing Coil AQ

å and shaded areas in the Replacement Parts Lists

For location of SHARP Parts Distributor, Please call TollFree; 1-800-BE-SHARP

★ MARK : SP ARE PARTS-DELIVERY SECTION

' MARK : X- RAY RELATED PARTS

PICTURE TUBE

19R-M100

Picture Tube (DY:H0099ME) or VB48KZL70X/*S (DY:H0105GJ)

or (CRT:A48JLL40X) RCiLH0105GJZZ (CRT:A48KZL70X)

or RCiLG0108GJZZ or RCiLG0099PEZZ LHLDW0102GJKZ X Holder AC LHLDW1007MEKZ X Holder AD PMAGF3045CEZZ R Purity Magnet AG QEARC2016PEZZ J Grounding Strap AG

19R-M100S

or RCiLG0014MEZZ or RCiLG0099PEZZ LHLDW0102GJKZ X Holder A C LHLDW1007MEKZ X Holder AD PMAGF3046CEZZ R Purity Magnet AF QEARC2016PEZZ J Grounding Strap AG

PRINTED WIRING BOARD ASSEMBLIES

(NOT REPLACEMENT ITEM)

19R-M100

PWB-A DUNTKA358WEW0 – MAIN Unit — PWB-B DUNTKA359WEW0 – CRT Unit —

19R-M100S

PWB-A DUNTKA358WEW1 – MAIN Unit — PWB-B DUNTKA359WEW1 – CRT Unit —

PWB-A: DUNTKA358WEW0 (19R-M100) PWB-A: DUNTKA358WEW1 (19R-M100S)

MAIN UNIT

TUNER

NOTE: THE PARTS HERE SHOWN ARE SUPPLIED AS AN

ASSEMBLY BUT NOT INDEPENDENTLY.

å TU51 VTUVTST5UF770 R Tuner AZ

or VTUENV56D82-1

INTEGRATED CIRCUITS

'åIC201 RH-iX3354CEZZ J LA76843 AT

or RH-iX3354CEN1

COMBINATION IC201 RH-iX3354CEZZ RH-iX3354CEN1 C211 VCKYCY1HB102K(1000p) — C301 VCCCCY1HH470J(47p) VCCCCY1HH220J(22p) C304 VCCCCY1HH470J(47p) VCCCCY1HH220J(22p) C802 — VCEA0A1CW106M(10µ(16V)) R209 VRS-CY1JF123J(12k) VRS-CY1JF000J(0) R302 VRS-CY1JF332J(3.3k) VRS-CY1JF152J(1.5k) R413 VRS-CY1JF152J(1.5k) VRS-CY1JF222J(2.2K)

IC351 VHiAN7511//-1 J AN7511 AK

å IC501 VHiLA7840//-1 J LA7840 AR å IC701 VHiTEA1507/-1 J TEA1507P/N1 AL å IC702 RH-FX0034CEZZ J PC817 AE

IC771 VHiKA7805AP-1 J KA7805API AE

VHiTA7805S/-1 IC2001 RH-iX3492CEZZQ X TMPA8700CPF AT IC2040 VHiPST994C/-1 J PST994C AD IC2102 VHiBR2416E2-1 J BR2416E2 AK

VHiM24C16B/-1 J M24C16B (IC2101) AG

TRANSISTORS

Q101 VS2SC945AQ/-1 J 2SC945AQ AB

VS2SC3198Y/-1 Q201 VS2SC2735//1E J 2SC2735 AC Q451 VS2SA1530R/-1 J 2SA1530AR AB Q452 VS2SA1266-Y-1 J 2SA1266-Y AA Q601 VS2SC2482//-1 J 2SC2482 AD

å Q602 VS2SD2586//1E J 2SD2586 AM

Q631 VS2SC945AQ/-1 J 2SC945AQ AB

VS2SC3198Y/-1

å Q701 VSSPP04N60C-1 J FET AH

VSSPP07N60C-1

VS2SK2708//1E

VS2SK2645++-1

VSSTP6NC60+-1

VSSTP6NC60F-1

19R-M100 19R-M100S

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-A: DUNTKA358WEW0 (19R-M100) PWB-A: DUNTKA358WEW1 (19R-M100S)

MAIN UNIT (Continued)

or VSSTP7NB60F-1

Q702 VS2SC945AQ/-1 J 2SC945AQ AB

VS2SC3198Y/-1 Q751 VS2SC945AQ/-1 J 2SC945AQ AB Q752 VS2SC945AQ/-1 J 2SC945AQ AB

VS2SC3198Y/-1 Q2201 VS2SC3928R/-1 J 2SC3928R AB

VS2PD601ARQ-1 Q2211 VS2SC3928R/-1 J 2SC3928R AB

DIODES

D52 RH-EX0676GEZZ J Zener Diode, 32V AA D101 RH-EX0616GEZZ J Zener Diode, 5.6V AA D352 VHD1SS119//-1 J Diode AB

RH-DX0475CEZZ D353 RH-EX0644GEZZ J Zener Diode, 13V AB D453 RH-EX0616GEZZ J Zener Diode, 5.1V AA D455 VHD1SS119//-1 J Diode AB

RH-DX0475CEZZ D456 VHD1SS119//-1 J Diode AB

RH-DX0475CEZZ D457 RH-EX0644GEZZ J Zener Diode, 13V AB D458 RH-EX0644GEZZ J Zener Diode, 13V AB D459 VHD1SS119//-1 J Diode AB

RH-DX0475CEZZ D502 RH-DX0131CEZZ J Diode AC D511 RH-DX0441CEZZ J Diode AC D632 RH-EX0630GEZZ J Zener Diode, 9.1V AA D641 RH-EX0630GEZZ J Zener Diode, 9.1V AA

'åD651 VHD1SS244//-1 J Diode AB 'åD653 RH-EX0667GEZZ J Zener Diode, 27V AA

å D661 RH-DX0468CEZZ J Diode AE

RH-DX0302CEZZ

å D701 RH-DX0490CEZZ J Diode AC

RH-DX0154CEZZ

å D702 RH-DX0490CEZZ J Diode AC

RH-DX0154CEZZ

å D703 RH-DX0490CEZZ J Diode AC

RH-DX0154CEZZ

å D704 RH-DX0490CEZZ J Diode AC

RH-DX0154CEZZ D707 RH-DX0475CEZZ J Diode AB

VHD1SS244//-1 D708 RH-DX0475CEZZ J Diode AB

VHD1SS244//-1

å D709 RH-DX0229CEZZ J Diode AF å D712 RH-DX0487CEZZ J Diode AC

RH-DX0302CEZZ

RH-DX0468CEZZ

VHDD1NS4///-1 D717 RH-EX0616GEZZ J Zener Diode, 5.6V AA

å D725 RH-DX0131CEZZ J Diode AC

D726 VHD1SS119//-1 J Diode AB

RH-DX0475CEZZ D751 RH-EX0611GEZZ J Zener Diode, 5.1V AA D753 RH-DX0441CEZZ J Diode AC

RH-DX0110CEZZ

å D758 RH-DX0131CEZZ J Diode AC å VA701 RH-VX0048CEZZ J Varistor AE

RH-VX0019CEZZ

PACKAGED CIRCUIT

å PR701 RMPTP0026CEZZ J Packaged Circuit AF

X801 RCRSB0001PEZZ J Crystal AL

RCRSB0205CEZZ

FIL TER AND COILS

CF2040

RFiLA0099CEZZ J Ceramic Filter AE

RFiLC0121GEZZ L201 VP-XF1R2K0000 J Peaking 1.2µH AB L202 VP-XF1R2K0000 J Peaking 1.2µH AB L203 VP-XF220K0000 J Peaking 22µH AB L204 RCiLi0632CEZZ J IF Coil AE L301 VP-XF150K0000 J Peaking 15µH AB

å L701 RCiLF0078PEZZ J Coil AF

RCiLF0069PEZZ

å L705 RCiLP0179CEZZ J Coil AD

L706 RCiLP0197CEZZ J Coil (JA301) L2040 RCiLB0131CEZZ J Oscillation Coil AE SF201 RFiLC0441CEZZ J SAW Filter AH

TRANSFORMERS

å T601 RTRNZ0731CEZZ J Transformer AG

'åT602 RTRNF0213PEZZ J H-Volt Transformer AY

å T702 RTRNW0003PEZZ J Transformer AM

RTRNZ0026PEZZ

RTRNW0009PEZZ

CONTROL

R738 RVR-M4588CEZZ X 22k(B) Variable Resistor AF

RVR-M4336CEZZ

CAPACITORS

[EL.··· Electrolytic, M-Poly..··· Metalized Polypro Film]

C51 VCEA0A1AW337M X 330 10V EL. AE C53 VCEA0A1HW105M J 1.0 50V EL. AB C54 VCEA0A1HW475M J 4.7 50V EL. AB C101 VCEA0A1CW476M J 47 16V EL. AB C201 VCKYCY1HF103Z J 0.01 50V Ceramic AA C202 VCKYCY1HF103Z J 0.01 50V Ceramic AA C203 VCKYCY1HF103Z J 0.01 50V Ceramic AA C204 VCQYTA1HM223K J 0.022 50V Mylar AB C205 VCKYPA1HB103K J 0.01 50V Ceramic AA C206 VCKYCY1HB102K J 1000p 50V Ceramic AA C207 VCEA0A1CW476M J 47 16V EL. AB C208 VCKYCY1HF103Z J 0.01 50V Ceramic AA C209 VCEA0A1HW105M J 1.0 50V EL. AB C210 VCEA0A1HW474M J 0.47 50V EL. AB C211 VCKYCY1HB102K J 1000p 50V Ceramic AA

C212 VCEA0A1HW474M J 0.47 50V EL. AB C220 VCKYCY1CB104K J 0.1 16V Ceramic AB C301 VCCCCY1HH470J J 47p 50V Ceramic AA

C301 VCCCCY1HH220J J 22p 50V Ceramic AA C302 VCKYCY1HB102K J 1000p 50V Ceramic AA

(IC201:iX3354CEZZ)

(IC201:iX3354CEZZ) (IC201:iX3354CEN1)

19R-M100 19R-M100S

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-A: DUNTKA358WEW0 (19R-M100) PWB-A: DUNTKA358WEW1 (19R-M100S)

MAIN UNIT (Continued)

C304 VCCCCY1HH470J J 47p 50V Ceramic AA C304 VCCCCY1HH220J J 22p 50V Ceramic AA C305 VCKYCY1HB103K J 0.01 50V Ceramic AA

C306 VCQYTA1HM103K J 0.01 50V Mylar AB C354 VCEA0A1HW225M J 2.2 50V EL. AB C356 VCKYCY1HB332K J 3300p 50V Ceramic AA C357 VCEA0A1HW106M J 10 50V EL. AB C358 VCEA0A1HW106M J 10 50V EL. AB C361 VCEA0A1CW227M J 220 16V EL. AC C401 VCCCCY1HH470J J 47p 50V Ceramic AA C411 VCEA0A1AW108M J 1000 10V EL. AC C412 VCKYCY1HB103K J 0.01 50V Ceramic AA C414 VCEA0A1HW225M J 2.2 50V EL. AB C416 VCEA0A1HW105M J 1.0 50V EL. AB C418 VCKYCY1HB103K J 0.01 50V Ceramic AA C421 VCEA0A1HW106M J 10 50V EL. AB C451 VCQYTA1HM563K J 0.056 50V Mylar AB C454 VCEA0A1HW475M J 4.7 50V EL. AB C455 VCEA0A1CW226M+J 22 16V EL. AB C456 VCEA0A1HW475M J 4.7 50V EL. AB C509 VCKYPA2HB102K J 1000p 500V Ceramic AA C510 VCEA0A1VW477M J 470 35V EL. AB C512 VCFYSA1JB224J X 0.22 63V Mylar AF C513 VCFYSA1JB473J J 0.047 63V Mylar AC C514 VCEA0A1EW477M J 470 25V EL. AD C515 VCEA0A1HW475M J 4.7 50V EL. AB C516 VCKYCY1HB222K J 2200p 50V Ceramic AA C517 VCEA0A1CW226M J 22 16V EL. AB C520 VCEA0A1HW107M J 100 50V EL. AB C530 VCFYFA1HA334J J 0.33 50V Mylar AB C531 VCFYFA1HA564J J 0.56 50V Mylar AB C606 VCKYPA2HB561K J 560p 500V Ceramic AA C607 VCKYPA1HB472K J 4700p 50V Ceramic AA

'åC610 VCFPVC3CA772H J 7700p 1.6kV M-Poly. AE 'åC610 VCFPVC3CA802H X 8000p 1.6kV M-Poly. AF

C612 VCFPVC2DB474J J 0.47 200V M-Poly. AE C633 VCEA0A1AW337M X 330 10V EL. AE C634 VCKYCY1HF103Z J 0.01 50V Ceramic AA C635 VCEA0A1HW105M J 1.0 50V EL. AB C636 VCQYTA1HM153K J 0.015 50V Mylar AA C637 VCEA0A1CW476M J 47 16V EL. AB C652 VCEA0A1HW475M J 4.7 50V EL. AB C653 VCEA0A1HW105M J 1.0 50V EL. AB C661 VCKYPA2HB152K J 1500p 500V Ceramic AA C662 VCEA0A1CW477M J 470 16V EL. AC

å C701 RC-FZ036SCEZZ J 0.1 250V M-Poly. AC

or RC-FZ008SGEZZ or RC-FZ016SCEZZ or RC-FZ028SCEZZ or

RC-FZ029CUMZZ C702 RC-KZ0029CEZZ J 0.01 C703 RC-KZ0029CEZZ J 0.01

å C705 RC-EZ1022CEZZ J 470 200V EL. AK

RC-EZ0609CEZZ 220 200V EL.

RC-EZ0629CEZZ 220 200V EL.

å C706 RC-KZ0092GEZZ J 0.0033

RC-KZ021SCEZZ C717 VCKYPA2HB472K J 4700p 500V Ceramic AB

å C723 RC-EZ0638CEZZ J 33 160V EL. AG å C725 RC-EZ0724CEZZ J 100 160V EL. AG

(IC201:iX3354CEZZ) (IC201:iX3354CEN1)

(19R-M100) (19R-M100S)

AC250V

Ceramic AC

AC250V

Ceramic AC

AC250V

Ceramic AC

C726 RC-KZ0338CEZZ J 560p 2kV Ceramic AD

å C727 VCKYPA2HB472K J 4700p 500V Ceramic AB å C730 VCEA0A1CW108M J 1000 16V EL. AD å C731 VCEA0A1EW107M J 100 25V EL. AC

C732 VCKYPA1HF103Z J 0.01 50V Ceramic AA C735 VCCCPA1HH680J J 68p 50V Ceramic AA C737 VCEA0A1EW226M J 22 25V EL. AB C738 RC-KZ0040CEZZ J 820p 2kV Ceramic AD

RC-KZ0340CEZZ C739 VCEA0A1HW104M J 0.1 50V EL. AB C740 VCEA0A1EW476M J 47 25V EL. AB C743 RC-KZ0338CEZZ J 560p 2kV Ceramic AD C750 VCKYPA1HF103Z J 0.01 50V Ceramic AA C752 VCEA0A1CW476M J 47 16V EL. AB C753 RC-KZ0338CEZZ J 560p 2kV Ceramic AD C754 VCEA0A1CW476M J 47 16V EL. AB C758 VCEA0A2EW106M J 10 250V EL. AD C759 VCKYPA2HB102K J 1000p 500V Ceramic AA C760 VCEA0A1CW108M J 1000 16V EL. AD C771 VCEA0A1CW476M J 47 16V EL. AB C772 VCEA0A1CW476M J 47 16V EL. AB C783 VCQYTA1HM103K J 0.01 50V Mylar AB C801 VCCCCY1HH180J J 18p 50V Ceramic AA C802 VCEA0A1CW106M J 10 16V EL. AB

(IC201:iX3354CEN1) C807 VCKYCY1EF104Z J 0.1 25V Ceramic AA C808 VCEA0A1CW106M J 10 16V EL. AB C811 VCKYCY1CB473K J 0.047 16V Ceramic AA C812 VCEA0A1HW474M J 0.47 50V EL. AB C901 VCEA0A1HW105M J 1.0 50V EL. AB C905 VCEA0A1HW106M J 10 50V EL. AB C2001 VCCCCY1HH101J J 100p 50V Ceramic AA C2002 VCCCCY1HH101J J 100p 50V Ceramic AA C2040 VCEA0A1AW107M J 100 10V EL. AB C2041 VCEA0A1HW105M J 1.0 50V EL. AB C2060 VCKYCY1CB104K J 0.1 16V Ceramic AB C2061 VCKYCY1HB222K J 2200p 50V Ceramic AA C2062 VCEA0A1AW107M J 100 10V EL. AB C2201 VCKYCY1HB682K J 6800p 50V Ceramic AA C2202 VCCCCY1HH560J J 56p 50V Ceramic AA C2601 VCEA0A1HW475M J 4.7 50V EL. AB C2602 VCCCCY1HH101J J 100p 50V Ceramic AA

RESISTORS

[M-Ox.··· Metal Oxide, M-Film ··· Metal Film]

RJ2 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ7 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ8 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ9 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ10 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ12 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ18 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ19 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ20 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ21 VRS-CY1JF000J J 0 1/16W M-Ox. AA

å R53 VRS-RG3LB223J X 22k 3W M-Ox. AF

R54 VRS-CY1JF101J J 100 1/16W M-Ox. AA R55 VRS-CY1JF101J J 100 1/16W M-Ox. AA R56 VRS-CY1JF823J J 82k 1/16W M-Ox. AA R57 VRD-RA2BE563J J 56k 1/8W Carbon AA R101 VRD-RA2BE152J J 1.5k 1/8W Carbon AA R201 VRS-CY1JF221J J 220 1/16W M-Ox. AA R202 VRS-CY1JF122J J 1.2k 1/16W M-Ox. AA R203 VRS-CY1JF682J J 6.8k 1/16W M-Ox. AA R204 VRS-CY1JF270J J 27 1/16W M-Ox. AA R205 VRD-RA2BE680J J 68 1/8W Carbon AA R206 VRD-RA2EE151J J 150 1/4W Carbon AA R207 VRD-RA2BE123J J 12k 1/8W Carbon AA R208 VRS-CY1JF332J J 3.3k 1/16W M-Ox. AA R209 VRS-CY1JF123J J 12k 1/16W M-Ox. AA

(IC201:iX3354CEZZ) R209 VRS-CY1JF000J J 0 1/16W M-Ox. AA

(IC201:iX3354CEN1) R210 VRS-CY1JF104J J 100k 1/16W M-Ox. AA

19R-M100 19R-M100S

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-A: DUNTKA358WEW0 (19R-M100) PWB-A: DUNTKA358WEW1 (19R-M100S)

MAIN UNIT (Continued)

R211 VRS-CY1JF104J J 100k 1/16W M-Ox. AA R212 VRS-CY1JF000J J 0 1/16W M-Ox. AA R215 VRS-CY1JF000J J 0 1/16W M-Ox. AA R220 VRS-CY1JF331J J 330 1/16W M-Ox. AA R301 VRS-CY1JF102J J 1.0k 1/16W M-Ox. AA R302 VRS-CY1JF332J J 3.3k 1/16W M-Ox. AA

(IC201:iX3354CEZZ)

R302 VRS-CY1JF152J J 1.5k 1/16W M-Ox. AA

(IC201:iX3354CEN1) R353 VRD-RA2BE683J J 68k 1/8W Carbon AA R354 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R355 VRD-RA2BE223J J 22k 1/8W Carbon AA R357 VRS-CY1JF822J J 8.2k 1/16W M-Ox. AA R401 VRS-CY1JF101J J 100 1/16W M-Ox. AA R402 VRS-CY1JF101J J 100 1/16W M-Ox. AA R403 VRS-CY1JF101J J 100 1/16W M-Ox. AA R404 VRD-RA2BE102J J 1.0k 1/8W Carbon AA R411 VRS-CY1JF684J J 680k 1/16W M-Ox. AA R412 VRS-CY1JF102J J 1.0k 1/16W M-Ox. AA R413 VRS-CY1JF152J J 1.5k 1/16W M-Ox. AA

(IC201:iX3354CEZZ) R413 VRS-CY1JF222J J 2.2k 1/16W M-Ox. AA

(IC201:iX3354CEN1) R414 VRS-CY1JF000J J 0 1/16W M-Ox. AA R421 VRS-CY1JF223J J 22k 1/16W M-Ox. AA

å R451 VRS-RG2HC103J J 10k 1/2W M-Ox. AA

R453 VRD-RA2BE152J J 1.5k 1/8W Carbon AA R454 VRD-RA2EE334J J 330k 1/4W Carbon AA R455 VRD-RA2BE392J J 3.9k 1/8W Carbon AA R456 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R457 VRD-RA2BE102J J 1.0k 1/8W Carbon AA R458 VRD-RA2EE334J J 330k 1/4W Carbon AA R460 VRD-RA2BE152J J 1.5k 1/8W Carbon AA R461 VRS-CY1JF184J J 180k 1/16W M-Ox. AA R462 VRS-CY1JF273J J 27k 1/16W M-Ox. AA R512 VRD-RM2HD102J J 1.0k 1/2W Carbon AA R513 VRD-RM2HD102J J 1.0k 1/2W Carbon AA R514 VRD-RM2HD1R0J J 1.0 1/2W Carbon AA R515 VRS-RG3AB391J X 390 1W M-Ox. AE R516 VRS-CY1JF153J J 15k 1/16W M-Ox. AA R517 VRS-CY1JF102J J 1.0k 1/16W M-Ox. AA R518 VRS-CY1JF333J J 33k 1/16W M-Ox. AA R519 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R520 VRD-RM2HD1R2J J 1.2 1/2W Carbon AA

(19R-M100S) R520 VRD-RM2HD1R5J J 1.5 1/2W Carbon AA

(19R-M100) R522 VRD-RA2BE102J J 1.0k 1/8W Carbon AA R523 VRD-RA2BE562J J 5.6k 1/8W Carbon AA R525 VRD-RA2BE272J J 2.7k 1/8W Carbon AA R527 VRD-RA2BE223J J 22k 1/8W Carbon AA

(19R-M100) R528 VRD-RA2BE272J J 2.7k 1/8W Carbon AA R529 VRD-RA2BE472J J 4.7k 1/8W Carbon AA

å R604 VRS-RG3DB682J X 6.8k 2W M-Ox. AE

R605 VRD-RA2BE121J J 120 1/8W Carbon AA R606 VRD-RA2BE102J J 1.0k 1/8W Carbon AA

å R607 VRS-RG3DB682J X 6.8k 2W M-Ox. AE å R608 VRS-RG3DB391J X 390 2W M-Ox. AE å R609 VRS-RG3AB562J X 5.6k 1W M-Ox. AE

R610 VRD-RM2HD220J J 22 1/2W Carbon AA

å R611 VRS-KA3HG3R3K J 3.3 5W M-Ox. AD

R622 VRS-CY1JF222J J 2.2k 1/16W M-Ox. AA R623 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R624 VRN-RA2BK472F J 4.7k 1/8W M-Film AA R634 VRD-RM2HD121J J 120 1/2W Carbon AA R635 VRS-CY1JF332J J 3.3k 1/16W M-Ox. AA R636 VRD-RA2EE221J J 220 1/4W Carbon AA

å R641 VRS-RG3AB682J+ X 6.8k 1W M-Ox. AE

'åR651 VRD-RM2HD270J J 27 1/2W Carbon AA

å R653 VRS-CY1JF000J J 0 1/16W M-Ox. AA

'åR654 VRD-RA2BE154J J 150k 1/8W Carbon AA 'åR655 VRS-CY1JF103J J 10k 1/16W M-Ox. AA

å R659 VRN-RL3AB1R0J X 1.0 1W M-Film AE

(19R-M100S)

å R659 VRN-RL3AB3R3J X 3.3 1W M-Film AE

(19R-M100) (CRT:A48JLL40X) or VRN-VV3AB2R2J J 2.2 1W M-Film AA

(19R-M100) (CRT:A48KZL70X)

å R661 VRN-RL3ABR47J X 0.47 1W M-Film AE

'åR662 VRD-RA2BE102G J 1.0k 1/8W Carbon AB

å R702 RR-DZ0049CEZZ J 3.9 1/2W Carbon AB å R703 VRW-KP3HC1R8K J 1.8 5W Cement AC

R705 VRN-RL3ABR39J X 0.39 1W M-Film AE R706 VRN-RL3ABR39J X 0.39 1W M-Film AE R707 VRD-RM2HD270J J 27 1/2W Carbon AA R708 VRS-CY1JF102J J 1.0k 1/16W M-Ox. AA R710 VRS-RG2HC102J J 1.0k 1/2W M-Ox. AA R711 VRS-CY1JF334J J 330k 1/16W M-Ox. AA R712 VRD-RA2BE100J J 10 1/8W Carbon AA R713 VRS-RG2HC122J X 1.2k 1/2W M-Ox. AE R715 VRD-RA2BE150J J 15 1/8W Carbon AA R716 VRS-RG3AB121J X 120 1W M-Ox. AE R721 VRD-RM2HD124J J 120k 1/2W Carbon AA R723 VRS-CY1JF000J J 0 1/16W M-Ox. AA R725 VRS-RG2HC821J X 820 1/2W M-Ox. AE R733 VRD-RA2EE394J J 390k 1/4W Carbon AA R736 VRD-RM2HD184J J 180k 1/2W Carbon AA R739 VRD-RM2HD332J J 3.3k 1/2W Carbon AA R740 VRD-RM2HD470J J 47 1/2W Carbon AA R741 VRN-RA2BK682F J 6.8k 1/8W M-Film AA R751 VRD-RA2BE821J J 820 1/8W Carbon AA R752 VRD-RA2BE562J J 5.6k 1/8W Carbon AA R755 VRD-RM2HD151J J 150 1/2W Carbon AA

å R758 VRS-RG2HC100J X 10 1/2W M-Ox. AE å R773 VRS-RG3LB270J X 27 3W M-Ox. AF å R774 VRS-VU3LE680J J 68 3W M-Ox. AC

or VRS-VV3LB680J

R801 VRD-RM2HD470J J 47 1/2W Carbon AA R807 VRS-CY1JF272J J 2.7k 1/16W M-Ox. AA R808 VRS-CY1JF272J J 2.7k 1/16W M-Ox. AA R809 VRS-CY1JF223J J 22k 1/16W M-Ox. AA R810 VRS-CY1JF223J J 22k 1/16W M-Ox. AA R901 VRD-RA2BE101J J 100 1/8W Carbon AB R902 VRS-CY1JF750J J 75 1/16W M-Ox. AA R906 VRS-CY1JF102J J 1.0k 1/16W M-Ox. AA R925 VRS-CY1JF104J J 100k 1/16W M-Ox. AA R961 VRS-CY1JF101J J 100 1/16W M-Ox. AA R962 VRS-CY1JF101J J 100 1/16W M-Ox. AA R2001 VRS-CY1JF102J J 1.0k 1/16W M-Ox. AA R2002 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R2006 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R2008 VRS-CY1JF472J J 4.7k 1/16W M-Ox. AA R2009 VRS-CY1JF102J J 1.0k 1/16W M-Ox. AA R2010 VRS-CY1JF102J J 1.0k 1/16W M-Ox. AA R2012 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R2016 VRS-CY1JF223J J 22k 1/16W M-Ox. AA R2018 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R2020 VRS-CY1JF223J J 22k 1/16W M-Ox. AA R2022 VRS-CY1JF333J J 33k 1/16W M-Ox. AA R2023 VRD-RA2BE223J J 22k 1/8W Carbon AA R2024 VRD-RA2BE682J J 6.8k 1/8W Carbon AA R2025 VRD-RA2BE682J J 6.8k 1/8W Carbon AA R2026 VRD-RA2BE682J J 6.8k 1/8W Carbon AA R2027 VRD-RA2BE682J J 6.8k 1/8W Carbon AA R2028 VRS-CY1JF102J J 1.0k 1/16W M-Ox. AA R2029 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R2032 VRD-RA2BE471J J 470 1/8W Carbon AA R2033 VRS-CY1JF684J J 680k 1/16W M-Ox. AA R2034 VRS-CY1JF684J J 680k 1/16W M-Ox. AA R2040 VRS-CY1JF102J J 1.0k 1/16W M-Ox. AA R2041 VRS-CY1JF333J J 33k 1/16W M-Ox. AA R2042 VRD-RA2BE101J J 100 1/8W Carbon AB R2043 VRD-RA2BE101J J 100 1/8W Carbon AB

19R-M100 19R-M100S

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-A: DUNTKA358WEW0 (19R-M100) PWB-A: DUNTKA358WEW1 (19R-M100S)

MAIN UNIT (Continued)

R2044 VRS-CY1JF683J J 68k 1/16W M-Ox. AA R2045 VRS-CY1JF101J J 100 1/16W M-Ox. AA R2047 VRS-CY1JF221J J 220 1/16W M-Ox. AA R2048 VRS-CY1JF562J J 5.6k 1/16W M-Ox. AA R2049 VRS-CY1JF333J J 33k 1/16W M-Ox. AA R2060 VRS-CY1JF221J J 220 1/16W M-Ox. AA R2061 VRS-CY1JF562J J 5.6k 1/16W M-Ox. AA R2062 VRS-CY1JF183J J 18k 1/16W M-Ox. AA R2063 VRS-CY1JF222J J 2.2k 1/16W M-Ox. AA R2065 VRS-CY1JF000J J 0 1/16W M-Ox. AA R2066 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R2067 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R2068 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R2070 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R2072 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R2101 VRS-CY1JF101J J 100 1/16W M-Ox. AA

(IC2101:M24C16B)

R2102 VRS-CY1JF101J J 100 1/16W M-Ox. AA

(IC2101:M24C16B)

R2103 VRD-RA2BE101J J 100 1/8W Carbon AB

(IC2102:BR2416E2)

R2104 VRD-RA2BE101J J 100 1/8W Carbon AB

(IC2102:BR2416E2) R2201 VRD-RA2BE103J J 10k 1/8W Carbon AA R2202 VRD-RA2BE473J J 47k 1/8W Carbon AA R2203 VRS-CY1JF332J J 3.3k 1/16W M-Ox. AA R2211 VRD-RA2BE222J J 2.2k 1/8W Carbon AA R2212 VRS-CY1JF682J J 6.8k 1/16W M-Ox. AA R2213 VRD-RA2BE223J J 22k 1/8W Carbon AA R2401 VRS-CY1JF101J J 100 1/16W M-Ox. AA R2402 VRS-CY1JF101J J 100 1/16W M-Ox. AA R2403 VRS-CY1JF101J J 100 1/16W M-Ox. AA R2404 VRS-CY1JF101J J 100 1/16W M-Ox. AA R2501 VRS-CY1JF123J J 12k 1/16W M-Ox. AA R2503 VRS-CY1JF273J J 27k 1/16W M-Ox. AA R2504 VRS-CY1JF123J J 12k 1/16W M-Ox. AA R2505 VRS-CY1JF563J J 56k 1/16W M-Ox. AA R2506 VRS-CY1JF563J J 56k 1/16W M-Ox. AA R2507 VRS-CY1JF823J J 82k 1/16W M-Ox. AA R2508 VRS-CY1JF153J J 15k 1/16W M-Ox. AA R2509 VRS-CY1JF272J J 2.7k 1/16W M-Ox. AA R2601 VRD-RA2BE331J J 330 1/8W Carbon AA

FH701 QFSHD1013CEZZ J Fuse Holder AC FH702 QFSHD1014CEZZ J Fuse Holder AC J903 QJAKE0205CE09 J Jack, Audio-In AD

or QJAKE0159CEZZ

J905 QJAKE0205CE04 J Jack, Video-In AD

QJAKE0158CEZZ P302 QPLGN0261CEZZ J Plug, 2-pin(S) AB P401 QPLGN0561CEZZ J Plug, 5-pin(GBN) AB P601 QPLGN0660CEZZ J Plug, 6-pin(K) AC P651 QPLGN0361CEZZ J Plug, 3-pin(TP651-3) AB P701 QPLGN0260CEZZ J Plug, 2-pin(M) AC P751 QPLGN0461CEZZ J Plug, 4-pin(YBN) AB P2001 QPLGN0561CEZZ J Plug, 5-pin(TP2001-5) AB

RMC2601

RRMCU0252CEZZ X R/C Receiver AH

RRMCU0232CEZZ HM602 LX-GZ3001PEZZ J Screw AB HM604 LX-GZ3001PEZZ J Screw AB HM612 LX-GZ3001PEZZ J Screw AB HM613 LX-GZ3002PEZZ J Screw AB HM614 LX-GZ3002PEZZ J Screw AB HM726 LX-GZ3002PEZZ J Screw AB HM740 LX-GZ3002PEZZ J Screw AB HM741 LX-GZ3002PEZZ J Screw AB HM742 LX-GZ3002PEZZ J Screw AB RDA501

PRDAR0297PEFW J Heat Sink, for IC501 AD RDA602

PRDAR0216PEFW J Heat Sink, for Q602 AE RDA701

PRDAR0026PEFW J Heat Sink, for Q701 AD

LX-BZ3100CEFD J Screw AA

S2501 QSW-K0202PEZZ J Power AC

or QSW-K0079GEZZ

S2502 QSW-K0202PEZZ J VOL-Down AC

or QSW-K0079GEZZ

S2503 QSW-K0202PEZZ J VOL-Up AC

or QSW-K0079GEZZ

S2504 QSW-K0202PEZZ J CH-Down AC

or QSW-K0079GEZZ

S2505 QSW-K0202PEZZ J CH-Up AC

or QSW-K0079GEZZ

MISCELLANEOUS PARTS

SWITCHES

å F701 QFS-B4023CEZZ J Fuse 4A/125V AC

or QFS-B0421GEZZ

FB351 RBLN-0047CEZZ J Ferrite Bead AB

RBLN-0091GEZZ FB601 RBLN-0047CEZZ J Ferrite Bead AB FB2002

RBLN-0037CEZZ J Ferrite Bead AB

RBLN-0091GEZZ

19R-M100 19R-M100S

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-B: DUNTKA359WEW0 (19R-M100) PWB-B: DUNTKA359WEW1 (19R-M100S)

MISCELLANEOUS PARTS

CRT UNIT

ACC701

Q852 VSBF422////-1 J BF422 AC

TRANSISTORS

or VS2SC2229O/1E

Q854 VSBF422////-1 J BF422 AC

or VS2SC2229O/1E

Q856 VSBF422////-1 J BF422 AC

or VS2SC2229O/1E

Q881 VS2SA1266-Y-1 J 2SA1266-Y AA

or VS2SA1015-Y-1

QACCD3064CESA J AC Cord AM or QACCD3090CESA or QACCD3060CESA

SP1 VSP0080PBP7YA X Speaker, 32 ohm A L

QCNW-2111PEZZ J Connecting Cord AF QCNW-2112PEZZ J Connecting Cord AF QCNW-2160PEZZ J Connecting Cord AG TCAUS3000GJZZ X Caution Card A B TLABM0002GJZZ X Label AB TLABZ0109GJZZ X Label AB

D882 RH-DX0475CEZZ J Diode AB

DIODES

D885 RH-DX0475CEZZ J Diode AB

COIL

L852 VP-MK820K0000 J Peaking 82µH AB

CAPACITORS

[EL.··· Electrolytic]

C851 VCCCCY1HH151J J 150p 50V Ceramic AA C852 VCCCCY1HH151J J 150p 50V Ceramic AA C853 VCCSPA1HL151J J 150p 50V Ceramic AA C854 RC-KZ0029CEZZ J 0.01 1.4kV Ceramic AC

or RC-KZ0160CEZZ

C883 VCEA0A1CW336M J 33 16V EL. AB

RESISTORS

[M-Ox.··· Metal Oxide]

R851 VRS-CY1JF470J J 47 1/16W M-Ox. AA

(19R-M100S) R852 VRD-RA2BE181J J 180 1/8W Carbon AA R853 VRS-CY1JF121J J 120 1/16W M-Ox. AA

å R857 VRS-VU3AE123J J 12k 1W M-Ox. AB

R858 VRD-RM2HD332J J 3.3k 1/2W Carbon AA R859 VRS-CY1JF470J J 47 1/16W M-Ox. AA

(19R-M100S) R860 VRD-RA2BE181J J 180 1/8W Carbon AA R861 VRS-CY1JF121J J 120 1/16W M-Ox. AA

å R865 VRS-VU3AE123J J 12k 1W M-Ox. AB

R866 VRD-RM2HD332J J 3.3k 1/2W Carbon AA R867 VRS-CY1JF470J J 47 1/16W M-Ox. AA R868 VRS-CY1JF181J J 180 1/16W M-Ox. AA R869 VRS-CY1JF121J J 120 1/16W M-Ox. AA

å R873 VRS-VU3AE123J J 12k 1W M-Ox. AB

R874 VRD-RM2HD332J J 3.3k 1/2W Carbon AA R881 VRS-CY1JF561J J 560 1/16W M-Ox. AA R882 VRS-CY1JF391J J 390 1/16W M-Ox. AA R883 VRD-RA2BE561J J 560 1/8W Carbon AA R884 VRS-CY1JF152J J 1.5k 1/16W M-Ox. AA R886 VRS-CY1JF821J J 820 1/16W M-Ox. AA R887 VRD-RA2BE470J J 47 1/8W Carbon AA R890 VRS-CY1JF470J J 47 1/16W M-Ox. AA

(19R-M100) R891 VRS-CY1JF470J J 47 1/16W M-Ox. AA

(19R-M100)

SUPPLIED ACCESORRIES

RRMCG1324CESA R Infrared R/C Unit AT TiNS-7320GJZZ X Operation Manual AD TGAN-0001GJZZ X Guarantee Card A B

PACKING PARTS

(NOT REPLACEMENT ITEM)

SPAKC0198GJZZ – Packing Case(19R-M100) — SPAKC0199GJZZ – Packing Case(19R-M100S) — SPAKP0102GJZZ – Wrapping Paper — SPAKF0101GJZZ – Packing Material — SPAKX0003GJZZ – Buffer Material — SSAKA0101GJZZ – Polyethylene Bag —

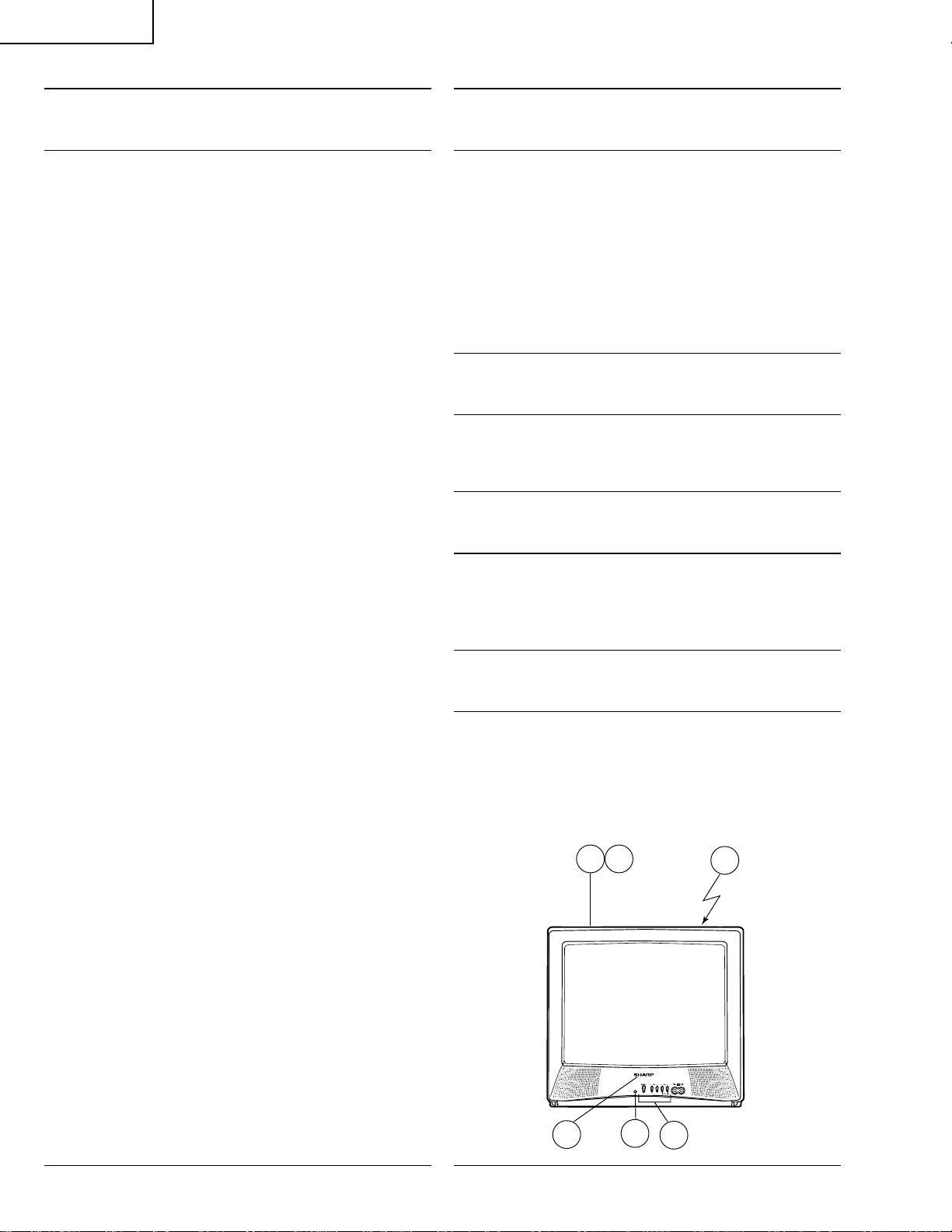

CABINET PARTS

1 CCABA0108WEH3 X Front Cabinet Ass’y AY 1-1 1-2 GCOVA0003GJSA X Cover for R/C AG 1-3 HBDGB1001GJSB X Badge, "SHARP" AF 1-4 JBTN-0003GJSA X Button(Power, Vol-up/down, AH

2 GCABB0109GJKA X Rear Cabinet AW

Not Available

– Front Cabinet —

CH-up/down)

1-1

P851 QPLGN0561CEZZ J Plug, 5-pin(GBN) AB

MISCELLANEOUS PARTS

P852 QPLGN0461CEZZ J Plug, 4-pin(YBN) AB SC851 QSOCV0933CEZZ J CRT Socket (19R-M100S) AH

or QSOCV0016PEZZ

SC852 QSOCV0840CEZZ J CRT Socket (19R-M100) AK

or QSOCV0841CEZZ

1-3

1-2

1-4

19R-M100 19R-M100S

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

★ Wrapping Paper

P ACKING OF THE SET

★ Polyethylene Bag

Operation Manual Infrared R/C Unit

★ Batteries

★ Buffer Material

FRONT

★ MARK : Not replacement items.

★ Packing Case

Use tape to fix the top side of packing case.

REAR

Use 10 staples to fix the bottom side of packing case.

19R-M100 19R-M100S

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission of the publisher.

D SEM P SEMEX TQ1071-S

Feb. 2001 Printed in Japan

MI. KG

SHARP CORPORA TION AV Systems Group Quality , Reliability Control Center Y aita, Tochigi 329-2193, Japan

Sharp 19R-M100, 19R-M100S User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
