SHARP 19J-M100, 19J-M100S, 19J-M150, CJ19M10, 20J-M100 Service Manual

19J-M100/100S/150/20J-M100
CJ19M10/CJ20M10 / 20MJ10

SERVICE MANUAL

S67A419J-M100

COLOR TELEVISION

POWER

VIDEO IN AUDIO

9CH

8

–

L+

V

O

19J-M100/150/100S

CJ19M10

20J-M100
CJ20M10

>

?CH

VIDEO IN AUDIO

+

–VOL

POWER

19J-M100/19J-M100S

Chassis No. SN-70

19J-M150/CJ19M10

MODELS

In the interests of user-safety (Required by safety regulations in some countries ) the set should be restored to its
original condition and only parts identical to those specified should be used.

POWER INPUT ........................... 120 V AC 60 Hz

POWER RATING .......................................... 84 W

PICTURE SIZE...............19":1194cm2(185sq inch)

....................................20":1240cm2(192sq inch)

CONVERGENCE ....................................Magnetic

SWEEP DEFLECTION............................ Magnetic

FOCUS....................... Hi-Bi-Potential Electrostatic

INTERMEDIATE FREQUENCIES

Picture IF Carrier Frequency ............. 45.75 MHz

Sound IF Carrier Frequency.............. 41.25 MHz

Color Sub-Carrier Frequency ............ 42.17 MHz

AUDIO POWER

æ ELECTRICAL SPECIFICATIONS ............................................................................................ 1

æ IMPORTANT SERVICE SAFETY PRECAUTION ...................................................................2

æ LOCATION OF USER'S CONTROL........................................................................................6

æ INSTALLATION AND SERVICE INSTRUCTIONS...................................................................7

æ CHASSIS LAYOUT ...............................................................................................................13

æ BLOCK DIAGRAM ................................................................................................................ 14

æ SCHEMATIC DIAGRAMS ..................................................................................................... 15

æ PRINTED WIRING BOARD ASSEMBLIES ...........................................................................21

æ REPLACEMENT PARTS LIST .............................................................................................. 27

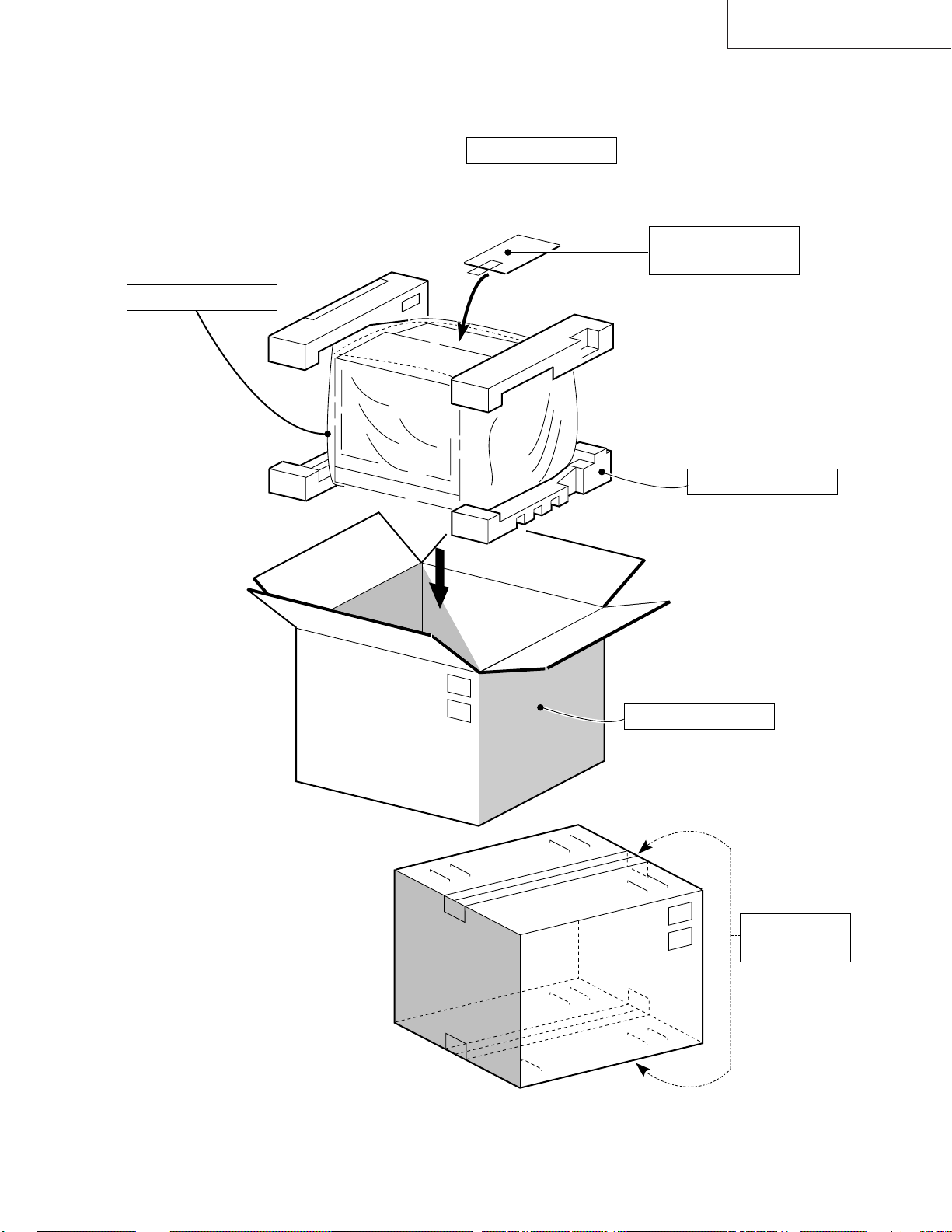

æ PACKING OF THE SET ........................................................................................................35

20J-M100/CJ20M10/20MJ10

ELECTRICAL SPECIFICATIONS

OUTPUT RATING ........ 0.9W (at 10% distortion)

SPEAKER

SIZE ................................................8cm(Round)

VOICE COIL IMPEDANCE ....... 8ohm at 400 Hz

ANTENNA INPUT IMPEDANCE

VHF/UHF............................ 75 ohm Unbalanced

TUNING RANGES

VHF-Channels....................................... 2thru 13

UHF-Channels .................................... 14thru 69

CATV Channels................................... 1thru 125

USA: (EIA, Channel Plan)

(Nominal)

CONTENTS

Specifications are subject to change without prior
notice.

Page

SHARP ELECTRONICS CORPORATION

Service Headquarters: Sharp Plaza, Mahwah, New Jersey 07430-2135

SHARP ELECTRONICS OF CANADA LTD.

335 Britannia Road East Mississauga, Ontario L4Z 1W9 Canada

SHARP CORPORATION

1

19J-M100/100S/150/20J-M100
CJ19M10/CJ20M10/ 20MJ10

IMPORTANT SERVICE SAFETY PRECAUTION

Service work should be performed only by qualified service technicians who are
thoroughly familiar with all safety checks and servicing guidelines which follow:

WARNING

1. For continued safety, no modification of any circuit
should be attempted.

2. Disconnect AC power before servicing.

3. Semiconductor heat sinks are potential shock
hazards when the chassis is operating.

4. The chassis in this receiver has two ground systems
which are separated by insulation material. The non­isolated (hot) ground system is for the B+ voltage
regulator circuit and the horizontal output circuit.The
isolated ground system is for the low B+ DC voltages
and the secondary circuit of the high voltage
transformer.
To prevent electrical shock use an isolation
transformer between the line cord and power
receptacle, when servicing this chassis.

CAUTION: FOR CONTINUED
PROTECTION AGAINST A
RISKOF FIRE, REPLACE

4A 125V

ONLY WITH SAME TYPE 4A­125V FUSE.

SERVICING OF HIGH VOLTAGE SYSTEM
AND PICTURE TUBE

When servicing the high voltage system, re­move the static charge by connecting a 10k
ohm resistor in series with an insulated wire
(such as a test probe) between the picture tube
ground and the anode lead. (AC line cord
should be disconnected from AC outlet.)

1. Picture tube in this receiver employs integral
implosion protection.

2. Replace with tube of the same type number for
continued safety.

3. Do not lift picture tube by the neck.

4. Handle the picture tube only when wearing
shatterproof goggles and after discharging the high
voltage anode completely.

X-RADIATION AND HIGH VOLTAGE
LIMITS

1. Be sure all service personnel are aware of the
procedures and instructions covering X-radiation. The
only potential source of X-ray in current solid state
TV receivers is the picture tube. However, the picture
tube does not emit measurable X-Ray radiation if the
high
voltage is as specified in the "High Voltage Check"
instructions.
It is only when high voltage is excessive that X­radiation is capable of penetrating the shell of the
picture tube including the lead in glass material. The
important precaution is to keep the high voltage below
the maximum level specified.

2. It is essential that service personal have available at
all times an accurate high voltage meter.
The calibration of this meter should be checked
periodically.

3. High voltage should always be kept at the rated value

−no higher. Operation at higher voltages may cause
a failure of the picture tube or high voltage circuitry
and; also under certain conditions, may produce
radiation that exceeds specifications.

4. When the high voltage regulator is operating properly
there is no possibility of an X-radiation problem. Every
time a color chassis is serviced, the brightness
should be tested while monitoring the high voltage
with a meter to be certain that the high voltage does
not exceed the specified value and that it is regulating
correctly .

5. Do not use a picture tube other than that specified or
make unrecommended circuit modifications to the
high voltage circuitry.

6. When trouble shooting and taking test measurements
on a receiver with excessive high voltage, avoid being
unnecessarily close to the receiver.
Do not operate the receiver longer than is necessary
to locate the cause of excessive voltage.

2

19J-M100/100S/150/20J-M100

2

2

2

CJ19M10/CJ20M10 / 20MJ10

IMPORTANT SERVICE SAFETY PRECAUTION

(Continued)

BEFORE RETURNING THE RECEIVER
(Fire & Shock Hazard)

Before returning the receiver to the user, perform
the following safety checks.

1. Inspect all lead dress to make certain that leads are
not pinched or that hardware is not lodged between
the chassis and other metal parts in the receiver.

2. Inspect all protective devices such as non-metallic
control knobs, insulating materials, cabinet backs,
adjustment and compartment covers or shields,
isolation resistor-capacity networks, mechanical
insulators, etc.

3. To be sure that no shock hazard exists, check for
leakage current in the following manner.

æ Plug the AC cord directly into a 120 volt AC outlet,

using reverse polarity.(Do not use an isolation
transformer for this test).

æ Using to clip leads, connect a 1.5k ohm, 10 watt

resistor paralleled by a 0.15∝F capacitor in series
with all exposed metal cabinet parts and a known
earth ground, such as electrical conduit or electrical
ground connected to earth ground.

æ Use an AC voltmeter having with 5000 ohm per volt,

or higher, sensitivity to measure the AC voltage drop
across the resistor.

æ Connect the resistor connection to all exposed metal

parts having a return to the chassis
(antenna, metal cabinet, screw heads, knobs and
control shafts, escutcheon, etc.) and measure the
AC voltage drop across the resistor.
AII check must be repeated with the AC line cord
plug connection reversed. (IF necessary, a non­polarized adapter plug must be used only for the
purpose of completing these check.)
Any current measured must not exceed 0.5 milliamp.
Any measurements not within the limits outlined
above are indicative of a potential shock hazard and
corrective action must be taken before returning the
instrument to the customer.

AC

VOLTMETER

1.5k ohm
10w

0.15µF

TEST PROBE

TO EXPOSED

METAL PARTS

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

CONNECT TO
KNOWN EARTH
GROUND

SAFETY NOTICE

Many electrical and mechanical parts in television
receivers have special safety-related characteristics.
These characteristics are often not evident from visual
inspection, nor can protection afforded by them be
necessarily increased by using replacement components
rated for higher voltage, wattage, etc.
Replacement parts which have special safety
characteristics are identified in this manual; electrical
components having such features are identified by
" å " and shaded areas in the Replacement Parts
Lists and Schematic Diagrams.

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

For continued protection, replacement parts must be
identical to those used in the original circuit.

The use of substitute replacement parts which do not
have the same safety characteristics as the factory
recommended replacement parts shown in this service
manual, may create shock, fire, X-radiation or other
hazards.

3

19J-M100/100S/150/20J-M100
CJ19M10/CJ20M10/ 20MJ10

PRECAUTIONS A PRENDRE LORS DE LA REPARATION

Ne peut effectuer la réparation qu' un technicien spécialisé qui s'est parfaitement
accoutumé à toute vérification de sécurité et aux conseils suivants.

AVERTISSEMENT

1. N'entreprendre aucune modification de tout circuit.
C'est dangereux.

2. Débrancher le récepteur avant toute réparation.

3. Les déversoirs thermiques à semi-conducteurs
peuvent présenter un danger de choc électrique
lorsque le réceqteur est en marche.

4. Le châssis de ce récepteur possède deux systèmes
de masse qui sont séparées par du matériel
d'isolation. Le système de masse non-isolée (sous
tension) est pour le circuit du régulateur de tension
+ B et le circuit de sortie horizontale. Le système de
masse isolée est pour les tensions DC + B basses et
le circuit secondaire du transformateur haute tension.
Pour éviter tout risque d'électrocution lors de
l'entretien de ce châssis, utiliser un transformateur
d'isolation entre le cordon de ligne et la prise de
courant.

PRECAUTION:POUR LA
PROTECTION CONTINUE
CONTRE LES RISQUES

4A 125V

D'INCENDIE, REMPLACER LE
FUSIBLE PAR UN FUSIBLE DE
MEME TYPE 4A-125V.

REP ARA TION DU SYSTEME A HAUTE TEN­SION ET DU TUBE-IMAGE

Lors de la réparation de ce systéme,
supprimer la charge statique en branchant
une résistance de 10 kΩ en série avec un fil
isolé (comme une sonde d'essai) entre la
mise à la terre du tube-image et le fil
d'anodel. (Le corden d'alimentation doit être
retiré de la prise murale.)

1. Le tube image dans ce récepteur emploie une
protection intégrée contre l'implosion.

2. Par mesure de sécurité, changer le tube-image pour
un tube du même numéro de type.

3. Ne pas lever le tube-image par son col.

4. Ne manipuler le tube-image qu'en porant des lunettes
incassables et qu'après avoir déchargé totalement
la haute tension.

LIMITES DES RADIATIONS X ET DE LA
HAUTE TENSION

1. Tout le personnel réparateur doit être instruit des
instructions et procédés relatifs aux radiations X.
Le tube-image, seule source de rayons X dons les
téleviseurs transistorisés, n'émet pourtant pas de
rayons mesurables si la haute tension est maintenue
à un niveau préconisé dans la section "Vérification
de la haute tension".
C'est seulement quand la haute tension est excessive
que les rayons X peuvent entrer dans l'enveloppe
du tube-image y compris le conducteur de verre. Il
est important de maintenir la haute tension en­dessous du niveau spécifié.

2. Il est essentiel que le réparateur ait sous la main un
voltmètre à haute tension qui doit être périodiquement
étalonné.

3. La haute tension doit toujours être maintenue à la
valeur de régime -et pas plus haute. L'opération à
des tensions plus élevées peut entraîner une panne
du tube-image ou du circuit à haute tension et, dans
certaines conditions, peut entraîner une radiation
dépassant les niveaux préscrits.

4. Quand le régulateur à haute tension fonctionne
correctement, il n'y a aucun problème de radiation
X. Chaque fois qu'un châssis couleurs est réparé, la
luminosité doit être examinée bout en contrôlant la
haute tension à l'aide d'un voltmètre pour s'assurer
que la haute tension ne dépasse pas la valeur
spécifiée et qu'elle soit correctement réglée.

5. Ne pas utiliser un tube-image autre que celui spécifié
et ne pas effectuer de modifications déconseillées
du circuit à haute tension.

6. Lors de la recherche des pannes et des mesures
d'essai sur un récepteur qui présente une haute
tension excessive, éviter de s'approcher inutilement
du récepteur.
Ne pas faire fonctionner le récepteur plus longtemps
que nécessaire pour localiser la cause de la tension
excessive.

4

19J-M100/100S/150/20J-M100

2

2

2

CJ19M10/CJ20M10 / 20MJ10

PRECAUTIONS A PRENDRE LORS DE LA REPARATION

(Suite)

VERIFICATIONS CONTRE L'INCEN-DIE ET
LE CHOC ELECTRIQUE

Avant de rendre le récepteur à l'utilisateur , effectuer
les vérifications suivantes.

1. Inspecter tous les faisceaux de câbles pour s'assurer
que les fils ne soient pas pincés ou qu'un outil ne
soit pas placé entre le châssis et les autres pièces
métalliques du récepteur.

2. Inspecter tous les dispositifs de protection comme
les boutons de commande non-métalliques, les
isolants, le dos du coffret, les couvercles ou blindages
de réglage et de compartiment, les réseaux de
résistance-capacité, les isolateurs mécaniques, etc.

3. S'assurer qu'il n'y ait pas de danger d'électrocution
en vérifiant la fuite de courant, de la facon suivante:

æ Brancher le cordon d'alimentation directem-ent à une

prise de courant de 120V. (Ne pas utiliser de
transformateur d'isolation pour cet essai).

æ A l'aide de deux fils à pinces, brancher une résistance

de 1,5 kΩ 10 watts en parallèle avec un condensateur
de 0.15µF en série avec toutes les pièces métalliques
exposées du coffret et une terre connue comme une
conduite électrique ou une prise de terre branchée à
la terre.

æ Utiliser un voltmètre CA d'une sensibilité d'au moins

5000Ω/V pour mesurer la chute de tension en travers
de la résistance.

æ T oucher avec la sonde d'essai les pièces métalliques

exposées qui présentent une voie de retour au
châssis (antenne, coffret métallique, tête des vis,
arbres de commande et des boutons, écusson, etc.)
et mesurer la chute de tension CA en-travers de la
résistance. Toutes les vérifications doivent être
refaites après avoir inversé la fiche du cordon
d'alimentation. (Si nécessaire, une prise d'adpatation
non polarisée peut être utilisée dans le but de
terminer ces vérifications.)
T ous les courants mesurés ne doivent pas dépasser
0,5 mA.
Dans le cas contraire, il y a une possibilité de choc
électrique qui doit être supprimée avant de rendre le
récepteur au client.

AC

Voltmètre CA

VOLTMETER

1.5k ohm
10w

0.15µF

SONDE D'ESSAI

AUX PIECES
TO EXPOSED

METALLIQUES

METAL PARTS

EXPOSEES

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

BRANCHER A UNE

CONNECT TO

TERRE CONNUE

KNOWN EARTH
GROUND

AVIS POUR LA SECURITE

De nombreuses pièces, électriques et mécaniques, dans
les téléviseurs présentent des caractéristiques spéciales
relatives à la sécurité, qui ne sont souvent pas évidentes
à vue. Le degré de protection ne peut pas être
nécessairement augmentée en utilisant des pièces de
remplacement étalonnées pour haute tension,
puissance, etc.
Les pièces de remplacement qui présentent ces
caractéristiques sont identifiées dans ce manuel; les
pièces électriques qui présentent ces particularités sont

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

identifiées par la marque " å " et hachurées dans la
liste des pièces de remplacement et les diagrammes
schématiques.
Pour assurer la protection, ces pièces doivent être
identiques à celles utilisées dans le circuit d'origine.
L'utilisation de pièces qui n'ont pas les mêmes
caractéristiques que les pièces recommandées par
l'usine, indiquées dans ce manuel, peut provoquer des
électrocutions, incendies, radiations X ou autres
accidents.

5

19J-M100/100S/150/20J-M100
CJ19M10/CJ20M10/ 20MJ10

LOCATION OF USER'S CONTROL

19J-M100/150/100S/CJ19M10/20MJ10

6

20J-M100/CJ20M10

19J-M100/100S/150/20J-M100
CJ19M10/CJ20M10 / 20MJ10

7

19J-M100/100S/150/20J-M100
CJ19M10/CJ20M10/ 20MJ10

INSTALLATION AND SERVICE INSTRUCTIONS

Note: (1) When performing any adjustments to resistor controls and transformers use non-metallic

screwdriver or TV alignment tools.

(2) Before performing adjustment, TV set must be on at least 15 minutes.

CIRCUIT PROTECTION

The receiver is protected by a 4.0A fuse (F701),
mounted on PWB-A, wired into one side of the AC
line input.

X-RADIATION PROTECTOR CIRCUIT
TEST

1.After service has been performed on the horizontal
deflection system, high voltage system, B + system,
test the X-Radiation protection circuit to ascertain
proper operation as follows:

1) Apply 120V AC using a variac transformer for
accurate input voltage.

2) Allow for warm up and adjust all customer controls
for normal picture and sound.

3) Select a local channel.

4) Connect a digital voltmeter to TP653 and make sure
that the voltmeter reads 20.9±1.5V(19J-M100/100S/
M150/CJ19M10),21.5±1.5V(20J-M100/CJ20M10).

5) Apply external 26.8V DC at TP653 by using an
external DC supply, TV must be shut off.

6) T o reset the protector , unplug the AC cord and make
a short circuit between TP651 and TP652.Now make
sure that normal picture appears on the screen.

7) If the operation of the horizontal oscillator does not
stop in step 5, the circuit must be repaired before the
set is returned to the customer.

HIGH VOLTAGE CHECK

High voltage is not adjustable but must be checked
to verify that the receiver is operating within safe
and efficient design limitations as specified checks
should be as follows:

1. Connect an accurate high voltage meter between
ground and anode of picture tube.

2. Operate receiver for at least 15 minutes at 120V AC
line voltage, with strong air signal or properly tuned
in test signal.

3. Set service mode on (See next page.),Service
No.S19 and Bus data "01" (Y-mute on).

4. The voltage should be approximately 26.0kV(19J­M100/100S/M150/CJ19M10) 26.5kV(20J-M100/
CJ20M10)(at zero beam)."
If a correct reading cannot be obtained, check circuitry
for malfunctioning components. After the voltage
test,make Y-mute off (normal mode).

8

19J-M100/100S/150/20J-M100
CJ19M10/CJ20M10 / 20MJ10

For adjustments of this model, the bus data is convered to various analog signals by the D-A converter
circuit.

Note: There are still a few analog adjustments in this series such as focus and master screen voltage.
Follow the steps below whenever service adjustment is required. See Figure "B" to determine if service adjust-

ments are required.

To enter the service mode .

While Pressing the Vol-up and Ch- up buttons at

1.Service mode -

Before putting unit into the service mode,
check, that customer adjustments are in the normal
mode. use the reset function in the video adjust
menu to ensure customer controls are in their

2.Service number selection

Once in the service mode, press the channel up or
channel down button on the remote transmitter or at
the set. the service adjustment number will vary in
increments of one, from "S01" to S19.

Select the item you wish to adjust.

once,plug the AC cord into a wall socket.Now the TV
set is switched on and enters the service mode.
To exit the service mode, shut the television off by
pressing the power button.

3.Data number selection

Press the volume up or down button to adjust the
data number.

DATA NUMBER

SERVICE ADJUSTMENT NUMBER

55

CHANNEL

02S01

Figure B.

9

S01 D:00

19J-M100/100S/150/20J-M100
CJ19M10/CJ20M10/ 20MJ10

SERVICE
NUMBER

S01 PICTURE 55 00-7F
S02 TINT 46 00-7F
S03 COLOR 32 00-7F
S04 BRIGHTNESS 40 00-7F
S05 SHARPNESS 28 00-3F Must be set to “24”
S06 VERTICAL PHASE 00 00-07 Must be set to “00”~"03"
S07 HORIZONTAL PHASE 12 00-1F
S08 RF-AGC 2A 00-3F
S09 VERTICAL AMP 20 00-3F
S10 VCO 2C 00-7F
S11 R CUT-OFF 00 00-FF
S12 G CUT -OFF 00 00-FF
S13 B CUT-OFF 00 00-FF
S14 G GAIN 7F 00-FF
S15 B GAIN 7F 00-FF
S16 TRAP(3.58MHz) 00 00 or 01 Must be set to “00”
S17 BALANCE 20 00-3F Must be set to “20”
S18 C.C.POSITION 18 00-7F
S19 Y-MUTE 00 00,01,03 00=NORMAL, 01=no”Y, 03=NO VERTICAL”

ADJUSTMENT ITEM

INITIAL VALUE

DATA

ADJUSTMENT CONTENTS

RANGE

Table - A

Holding down both the CH UP/DOWN keys on the TV set at service mode for more then 2 seconds will automatically
write the above initial values into IC2101.

ADJUSTMENT

PART REPLACED

IC2001

IC201

IC2101

CRT

NECESSARY

X

X

X

UNNECESSARY

X

Data is stored in IC2101.

The adjustment is needed to compensate for
characteristics of parts including IC201.

Holding down both the CH UP/DOWN keys on the TV set
at service mode for more than 2 seconds will automatically
write the above initial values into IC2101.

Adjust items related to picture tube only.

NOTES

Table - B

10

Ë Ë

Ë adjustment

Ë Ë

VCO Adjustment

19J-M100/100S/150/20J-M100
CJ19M10/CJ20M10 / 20MJ10

White balance adjustment

1. Connect a digital voltmeter between pin (44) of IC201
and ground.

2. Select a good local channel.

3. Enter the service mode. select adjustment "S10".

4. Adjust the data so that digital voltmeter shold read

2.2V

5. Adjustment is complete, remove the volt-meter,
return to "normal" mode.

RF AGC Adjustment

1. Have unit receive a good local channel.

2. Enter the service mode and select service adjustment
"S08".

3. Set the data value to point where no noise or beat
appears.

4. Select another channel to confirm that no noise or
beat appears.

NOTE1 :You will have to come out of the service

mode to select another channel.

NOTE2 :Setting the data to "00" will pro-duce a

black raster.

Screen adjustment

1. Connect a digital voltmeter between TP852 and
TP853 on the CRT socket PWB.

Note:These test points may not be provided.

Then connect the voltmeter to both ends of R852
located near Q852 on the foil side.

2. Select a good local channel.

3. Enter the service mode and select service adjustment
“S03” and set the data value to “00” to set the color
level to minimum.(Record original data code under
adjustment “S03” before changing) Y ou may skip this
step if you selected a B/W picture or monoscope
pattern.

4. Select service adjustment “S19” and adjust the data
value to “01” this turn off the luminance signal (Y­mute).

5. Select service adjustment "S04" and adjust data
value to obtain 0.17 volts on the digital voltmeter.

6. Adjust the master screen cotrol untill raster darkens
to the point where raster is barely seen.

7. Adjust service adjustments "S11" red,"S12" green
and "S13" blue to obtain a good grey scale with
normal whites at low brightness level.

8. Select service adjustment “S19” and reset data to
“00”.
Select service adjustment “S03” and reset data to
obtain normal color level.

9. Remove digital voltmeter.
Reset master screen cotrol to obtain normal
brightness range.

1. Have unit receive a good local channel.

2. Enter the service mode. select service adjustment
"S03" and set to "00" ( minimum color) . "S03" does
not have to be adjusted if you selected a B/W picture
or monoscope pattern.

3. Alternately adjust service adjustment data of "S14"
and "S15" untill a good grey scale with normal whites
is obtained.

4. Select service adjustment "S03" and adjust data to
obtain normal color level.

Sub-picture adjustment

1. Have unit receive a good local channel.

2. Make sure the customer picture control is set to
maximum.

3. Enter the service mode and select service adjustment
"S01".

4. Adjust the data value to achieve normal contrast
range.

Sub-Tint Adjustment

1. Have unit receive a good local channel.

2. Set customer tint control to center of it's range.

3. Enter the service mode and select service adjustment
"S02".

4. Adjust "S 02" data value to obtain normal flesh tones.

11

19J-M100/100S/150/20J-M100
CJ19M10/CJ20M10/ 20MJ10

Sub-color adjustment

1. Have unit receive a good local channel.

2. Make sure the customer color control is set to center
position .

3. Enter the service mode and select service adjustment
"S03".

4. Adjust "S03"data value to obtain normal color level.

Sub-brightness adjustment

1. Have unit receive a good local channel.

2. Make sure the customer brightness control is set to
center position.

3. Enter the service mode and select service adjustment
"S04".

4. Adjust "S04"data value to obtain normal brightness
level.

Vertical-size adjustment

1. Have unit receive a good local channel.

2. Enter the service mode and select service adjustment
"S09".

3. While observing the top and bottom of the screen,
adjust "S09" data value to proper vertical size .

"Horizontal position adjustment

1. Have unit receive a good local channel.

2. Enter the service mode and select service adjustment
"S07".

3. Adjust "S07" data value so that picture is centered.

Caption position adjustment (horizontal)

1. Have unit receive a good local channel.

2. Enter the service mode and select service adjustment
"S18".

3. A black text box appears on the screen ( see Figure
C ) .

4. Adjust "S18" data value so that text box is positioned
in the center of the screen.

3.58MHz trap adjustment

1. Have unit receive a good local channel.

2. Enter the service mode and select service adjustment
"S16" .

3. This is a two position adjustment, "00"is ON , "01" is
OFF .

4. Adjust data value to "00" for normal viewing.

Vertical phase adjustment

1. Enter the service mode and select service adjustment
"S06".

2. Adjust data value to "00"~"03" so that picture is
approximate center.

Note: This must be set "00"~"03" when adjust another

data retrace line will be appear.

Sharpness and Audio balance adjust­ments

1. Have unit receive a good local channel.

2. Enter the service mode and select "S05" for
sharpness and "S17" for balance.

• Sharpness adjustments

3. Adjust data value to "24" (center of data range) for
sharpness adjustment.

• Audio balance adjustments

4. Adjust data value to "20" (center of data range) for
Audio balance adjustment.

Figure C.

12

19J-M100/100S/150
CJ19M10/CJ20M10

19J-M100/100S/150
CJ19M10/CJ20M10

CHASSIS LAYOUT BLOCK DIAGRAM

H

H

G

F

MODEL 20MJ10

G

F

MODEL 20MJ10

H

G

F

20MJ10

E

E

D

D

C

C

B

B

E

D

C

B

A

A

123456789101112

1 23456

A

123456

13 14

19J-M100/100S/150/CJ19M10/
20J-M100/CJ20M10

19J-M100/100S/150/CJ19M10/
20J-M100/CJ20M10

DESCRIPTION OF SCHEMATIC DIAGRAM

H

NOTE:

1. The unit of resistance "ohm" is omitted (K:1000
ohms, M:1 Meg ohm).

2. All resistors are 1/8 watt, unless otherwise noted.

3. All capacitors are µ F , unless otherwise noted P:
µµ F .

4. (G) indicates ±2% tolerance may be used.

G

5. indecates line isolated ground.

6. indecates hot ground.

VOLTAGE MEASUREMENT CONDITIONS:

1. All DC voltages are measured with DVM connected
between points indicated and chassis ground, line
voltage set at 120V AC and all controls set for

F

normal picture unless otherwise indicated.

2. All voltages measured with 1000µ V B & W or Color
signal.

WAVEFORM MEASUREMENT CONDITIONS:

1. Photographs taken on a standard gated color bar
signal, the tint setting adjusted for proper color. The
wave shapes at the red, green and blue cathodes of
the picture tube depend on the tint, color level and
picture control.

2.

indicates waveform check points (See chart,
waveforms are measured from point indicated to
chassis ground.)

m

AND SHADED ( ) COMPONENTS

= SAFETY RELATED PARTS.

▲

MARK= X-RAY RELATED PARTS.

DRGANNES MARQUES m ET HACHRES ( ):
PIECES RELATIVES A LA SECURITE.
MARQUE ▲ : PIECS RELATIVE AUX RAYONS X.

This circuit diagram is a standard one, printed circuits
may be subject to change for product improvement
without prior notice.

SCHEMATIC DIAGRAM :CRT Unit

19J-M100/M150
CJ19M10

H

G

F

E

E

20MJ10

D

C

B

D

C

B

A

123456789101112

A

1 23456

1615

SCHEMATIC DIAGRAM:MAIN Unit

H

G

F

19J-M100/100S/150
CJ19M10/CJ20M10

19J-M100/100S/150
CJ19M10/CJ20M10

E

D

C

B

A

123456789101112

17 18

19J-M100/100S/150/CJ19M10/
20J-M100/CJ20M10

19J-M100/100S/150/CJ19M10/
20J-M100/CJ20M10

PRINTED WIRING BOARD ASSEMBLIES(19J-M100/150/CJ19M10/CJ20M10)

H

G

F

PWB-B:CRT Unit (Wiring Side)

SCHEMATIC DIAGRAM :CRT Unit

E

D

C

B

A

PWB-A:MAIN Unit (Wiring Side)

123456789101112

19

20

19J-M100/100S/150
CJ19M10/CJ20M10

H

G

F

19J-M100/100S/150
CJ19M10/CJ20M10

PWB-B:CRT Unit (Chip Parts Side)

E

D

C

B

A

PWB-A:MAIN Unit (Chip Parts Side)

123456789101112

2221

19J-M100/100S/150/CJ19M10/
20J-M100/CJ20M10

PRINTED WIRING BOARD ASSEMBLIES(19J-M100S)

H

G

F

19J-M100/100S/150/CJ19M10/
20J-M100/CJ20M10

E

PWB-B CRT PWB (Wiring Side)

D

C

B

A

123456789101112

2423

19J-M100/100S/150
CJ19M10/CJ20M10

H

G

F

19J-M100/100S/150
CJ19M10/CJ20M10

PWB-B CRT PWB (Chip parts)

E

D

C

B

A

PWB-A MAIN PWB (Chip parts)

123456789101112

2625

19J-M100/100S/150/CJ19M10
20J-M100/CJ20M10/20MJ10

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PARTS LIST

PARTS REPLACEMENT

Replacement parts which have these special safety characteristics
identified in this manual ; electrical components having such fea­tures are identified by å and shaded areas in the Replacement Parts
Lists and Schematic Diagrams. The use of a substitute replacement
part which dose no have the same safety characteristic as the fac­tory recommended replacement parts shown in this service manual
may create shock, fire or other hazards.

"HOW TO ORDER REPLACEMENT PARTS"

To have your order filled promptly and correctly, please furnish the
following informations.

1. MODEL NUMBER 2. REF. NO.

3. PART NO. 4. DESCRIPTION

in USA: Contact your nearest SHARP Parts Distributor to or-

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

der. For location of SHARP Parts Distributor, Please
call Toll-Free; 1-800-BE-SHARP

MARK★: SPARE PARTS-DELIVERY SECTION

MARK

: X- RAY RELATED PARTS

ç

LISTE DES PIECES

CHANGE DES PIECES

Les pi`eces de rechange qui pr élelesentent ces caract éleristiques
sp éleciales de s élecurit éle, sont identifi élees dans ce manuel : les
pi`eces élelectriques qui pr élesentent ces particularit éles, sont rep
éler élee par la marque å et sont hachur élees dans les listes de
pi`eces et dans les diagrammes sch élematiques.
La substitution d'une pi`ece de rechange par une autre qui ne pr
éLesente pas les m éoemes caract éLeristiques de s élecurit éle que
la pi`ece recommand élee parl'usine et dans ce manuel de service,
peut provoquer une éLelectrocution, un incendie ou toutautre sinistre.

"COMMENT COMMANDER LES PIECES DE RECHANGE"

Pour que votre commande soit rapidement et correctement remplie,
veuillez fournir les renseignements suivants.

1. NUMERO DU MODELE 2. NO. DE REF

3. NO. DE PIECE 4. DESCRIPTION

in CANADE: Contact SHARP Electronics of Conada Limited

Phone [phone]

★MARQUE: SECTION LIVRAISON DES PIECES DE RECHANGE

ç MARQUE : PIECES RELATIVE AUX RAYONS X

DUNTK9273WEV0/V2/V4/V5

PICTURE TUBE

DUNTK9316WEV0/V2 MAIN UNIT

19J-M100/150/CJ19M10

çå V101 VB48AFS15X/*S M Picture Tube CC

or VB48KZL70X/*S

å L702 RCiLG0014MEZZ M Degaussing Coil AM

çå DY601 RCiLH0099MEZZ M Deflection Yoke AY

19J-M100S/20MJ10

çå V101 VB48KRD89X/1E M Picture Tube CB

å L702 RCiLG0014MEZZ M Degaussing Coil AM

çå DY601 RCiLH0100MEZZ M Deflection Yoke AZ

PMAGF3001MEZZ M Magnet Ass'y AG
MSPRT0002MEZZ M Spring for CRT AA
QEARC1913MEZZ M Grounding part AE

20J-M100/CJ20M10

çå V101 VB51KZR50X/*S M Picture Tube

å DY601 RCiLH0105MEZZ M Deflection Yoke
å L702 RCiLG0017MEZZ M Degaussing Coil

PRINTED WIRING BOARDASSEMBLYS

(NOT REPLACEMENT ITEM)

PWB-A DUNTK9273WEV0 _ Main Unit (19J-M100/150) _
PWB-A DUNTK9273WEV2 _ Main Unit (20J-M100) _
PWB-A DUNTK9273WEV5 _ Main Unit (CJ20M10) _
PWB-A DUNTK9273WEV4 _ Main Unit (CJ19M10) _
PWB-A DUNTK9316WEV0 _ Main Unit (19J-M100S) _
PWB-B DUNTK9274WEV2 _ CRT Unit (20J-M100/CJ20M10)
PWB-B DUNTK9274WEV0 _ CRT Unit(19J-M100/150) _
PWB-B DUNTK9317WEV0 _ CRT Unit(19J-M100S) _

TUNER

NOTE:THE PARTS HERE SHOWN ARE SUPPLIED AS AN ASSEM­BLY BUT NOT INDEPENDETLY.

å TU51 VTUVTST6UF78/ J Tuner BD

INTEGRATED CIRCUITS

çå IC201 RH-iX2933CEZZ J TAL268N AX
çå IC201 RH-iX2573CEZZ J (20MJ10)

IC351 VHiTDA7233/-1 J TDA7233 AF

å IC501 VHiTA8403K/-1 J TA8403k AL

çå IC701 VHiSTR301301E J I.C. AP

å IC751 VHiKA7809Pi-1 R KiA7809Pi AE

IC2001 RH-iX2942CEZZ J TMPA8701CHF106 AV
IC2040 VHiPST994C/-1 J PST994C AD
IC2101 RH-iX2447CEN1 J ST24C01B6 AL

TRANSISTORS

You can substitute "VS2SD601AR/-1" for "VS2SC2462-C-1".

Q201 VS2SC2735//1E J 2SC2735 AC
Q351 VS2SD601AR/-1 J 2SD601(AR) AC
Q401 VS2SD601AR/-1 J 2SD601(AR) AC
Q402 VS2SB709AR/-1 J 2SB709(AR) AC
Q403 VS2SD601AR/-1 J 2SD601(AR) AC
Q404 VS2SB709AR/-1 J 2SB709AR AC
Q451 VS2SB709AR/-1 J 2SB709AR AC
Q601 VS2SC2655Y/-1 J 2SC2655(Y) AE

å Q602 VS2SD2095//1E J 2SD2095 AN

or VS2SD2095//1E
or VS2SD2499//1E
or VS2SD2586//1E

27

19J-M100/100S/150/CJ19M10
20J-M100/CJ20M10/20MJ10

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTK9273WEV0/V2/V4/V5

DUNTK9316WEV0/V2 MAIN UNIT

Q603 VS2SC945AQ/-1 J 2SC945(AQ) AB
or VS2SC1815YW-1
or VS2SC3198-Y-1
Q730 VS2SC2002-K1A J 2SC2002 AC

å Q751 VS2SD667D//-1 J 2SD667(D) AE

or VS2SC1983//-2
Q752 VS2SC945AQ/-1 J 2SC945(AQ) AB
or VS2SC1815YW-1
or VS2SC3198-Y-1
Q753 VS2SA1013//1E J 2SA1013 AD
Q2001 VS2SD601AR/-1 J 2SD601(AR) AC
Q2002 VS2SD601AR/-1 J 2SD601(AR) AC
Q2060 VS2SD601AR/-1 J 2SD601(AR) AC

DIODES

D51 RH-EX0611GEZZ J Zener Diode AA
D52 RH-EX0701GEZZ J Zener Diode AB
D53 RH-EX0611GEZZ J Zener Diode AA
D102 RH-EX0611GEZZ J Zener Diode AA
D401 VHD1SS119//-1 J Diode AB
D402 RH-EX0092CEZZ J Zener Diode AB
D454 RH-EX0103CEZZ J Zener Diode AB
D455 VHD1SS119//-1 J 1SS119 AB
D501 RH-DX0441CEZZ J Diode AC
or RH-DX0110CEZZ
or RH-DX0441CEZZ
D502 RH-DX0131CEZZ J Diode AC
D601 RH-DX0441CEZZ J Diode AC
D603 RH-DX0441CEZZ J Diode AC
or RH-DX0110CEZZ
or RH-DX0441CEZZ
D604 VHD1SS119//1E J 1SS119 AA
D605 VHD1SS119//1E J 1SS119 AA
or RH-DX0110CEZZ
or RH-DX0441CEZZ
D631 RH-EX0630GEZZ J Zener Diode AA
D641 RH-EX0631GEZZ J Zener Diode AA

çå D651 RH-DX0131CEZZ J Diode AC
çå D652 VHD1SS119//-1 J 1SS119 AB
çå D653 RH-EX0091CEZZ J Zener Diode AB

D661 RH-DX0444CEZZ J Diode AH
D701 RH-DX0154CEZZ J Diode AC
D702 RH-DX0154CEZZ J Diode AC
D703 RH-DX0154CEZZ J Diode AC
D704 RH-DX0154CEZZ J Diode AC
D730 RH-EX0310CEZZ J Zener Diode AA
D751 RH-DX0417CEZZ J Diode AE
or RH-DX0200CEZZ
D752 RH-EX0019TAZZ J Zener Diode AB
D757 VHD1SS119//-1 J Diode AB
D758 RH-DX0131CEZZ J Diode AC
D2001 VHD1SS119//-1 J 1SS119 AB

D2060 RH-EX0298CEZZ J Zener Diode AA

PACKAGED CIRCUITS

PR701 RMPTP0026CEZZ J Packaged Circuit AF
X801 RCRSB0001PEZZ R Crystal,3.58MHz AL
or RCRSB0205CEZZ

FILTERS

CF301 RFiLC0403CEZZ J Filter AE
or RFiLC0029TAZZ
CF401 RFiLC0013CEZZ J Filter AE
or RFiLC0004PEZZ
CF631 RFiLA0034CEZZ J Filter AD
CF2040 RFiLC0121GEZZ J Filter AD

SF201 RFiLC0405CEZZ J S.A.W.Filter AH

COILS

L201 VP-XF1R2K0000 J 1.2µH AB
L202 RCiLi0612CEZZ J If Coil AE
L301 VP-XF8R2K0000 J 8.2µH AB
L302 RCiLi0613CEZZ J If Coil AE
or RCiLC0605CEZZ
L401 VP-XF6R8K0000 J 6.8µH AB
L402 VP-XF3R3K0000 J 3.3µH AB
L403 VP-XF100K0000 J 10µH AB
L404 VP-XF8R2K0000 J 8.2µH AB
L406 VP-XF680K0000 J 68µH AB
L409 VP-XF100K0000 J 10µH AB

å L701 RCiLF0029PEZZ R Coil AH

or RCiLF0087CEZZ (19J-M100/M100S/M150/20J-M100)
or RCiLF0235CEZZ

å L701 RCiLF0090CEZZ R Coil AL

(CJ19M10/CJ20M10)

å L701 RCiLF0087CEZZ R Coil

(20MJ10)
or RCiLF0235CEZZ
L2040 RCiLB0131CEZZ J Oscillation Coil AE

TRANSFORMERS

T601 RTRNZ0168CEZZ J Transformer AH

çå T602 RTRNF0149PEZZ R H-OUT BE

å T701 RTRNP0518CEZZ J Power AN

CAPACITORS

EL:Electrolytic

C51 VCEA0A1CW476M J 47 16V EL. AB
C52 VCSATA1CE226K J 22 16V Tantalum AD
C53 VCEA0A1HW105M J 1.0 50V EL. AB
C54 VCEA0A1HW225M J 2.2 50V EL. AB
C55 VCEA0A1CW477M J 470 16V EL. AC
C102 VCEA0A1CW107M J 100 16V EL. AC
C201 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C202 VCKYPA1HF103Z J 0.01 50V Ceramic AA
C203 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C204 VCKYCY1HF103Z J 0.01 50V Ceramic AA

28

19J-M100/100S/150/CJ19M10
20J-M100/CJ20M10/20MJ10

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTK9273WEV0/V2/V4/V5

DUNTK9316WEV0/V2 MAIN UNIT

C205 VCEA0A1HW474M J 0.47 50V EL. AB
C206 VCEA0A1CW227M J 220 16V EL. AC
C207 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C208 VCEA0A1HW474M J 0.47 50V EL. AB
C209 VCKYCY1HB222K J 2200p 50V Ceramic AA
C210 VCKYCY1HB102K J 1000p 50V Ceramic AA
C302 VCCCCY1HH330J J 33p 50V Ceramic AA
C303 VCKYCY1HB472K J 4700p 50V Ceramic AA
C304 VCEA0A1HW225M J 2.2 50V EL. AB
C305 VCKYPA1HB151K J 150p 50V Ceramic AA
C306 VCKYPA1HF103Z J 0.01 50V Ceramic AA
C308 VCKYCY1HB102K J 1000p 50V Ceramic AA
C309 VCEA0A1CW227M J 220 16V EL. AC
C312 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C313 VCEA0A1HW225M J 2.2 50V EL. AB
C351 VCKYCY1HB562K J 5600p 50V Ceramic AA
C352 VCEA0A1CW107M J 100 16V EL. AC
C353 VCEA0A1CW337M J 330 16V EL. AC
C354 RC-QZA104TAYK J 0.1 50V Mylar AB
C355 VCEA0A1CW226M J 22 16V EL. AB
C361 VCEA0A1CW477M J 470 16V EL. AC
C362 VCEA0A1CW476M J 47 16V EL. AB
C402 VCCCCY1HH331J J 330p 50V Ceramic AA
C403 VCCCCY1HH101J J 100p 50V Ceramic AA
C405 VCEA0A1HW335M J 3.3 50V EL. AB
C406 VCEA0A1HW335M J 3.3 50V EL. AB
C407 RC-QZA104TAYK J 0.1 50V Mylar AB
C408 VCEA0A1CW106M J 10 16V EL. AB
C409 VCEA0A1HW105M J 1.0 50V EL. AB
C410 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C411 VCEAGA1CW108M J 1000 16V EL. AD
C413 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C414 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C419 VCCCCY1HH330J J 33p 50V Ceramic AA
C420 VCCCCY1HH471J J 470p 50V Ceramic AA
C451 RC-QZA563TAYK J 0.056 50V Mylar AB
C454 VCEA0A1HW475M J 4.7 50V EL. AB
C502 VCEA0A1EW477M J 470 25V EL. AD
C504 VCKYPA2HB391K J 390p 500V Ceramic AA
C505 VCQYTA1HM473K J 0.047 50V Mylar AB
C506 RC-QZA104TAYK J 0.1 50V Mylar AB
C507 RC-QZA103TAYK J 0.01 50V Mylar AA
C508 VCEAGA1VW107M J 100 35V EL. AC
C509 VCKYPA2HB102K J 1000p 500V Ceramic AA
C510 VCEAGA1VW477M J 470 35V EL. AD
C511 VCQYTA1HM473K J 0.047 50VMylar AB
C513 VCEACA1HC225M J 2.2 50V EL. AC
C514 VCEACA1HC225J J 2.2 50V EL. AC
C517 VCKYPA1HB102K J 1000p 50V Ceramic AA
C522 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C551 VCSATA1CE225K J 2.2 16V Tantalum AB
C552 VCEA0A1HW225M J 2.2 50V EL. AB

C604 VCEA0A1CW227M J 220 16V EL. AC

çå C608 VCFPPD3CA772H J 7700p 1600VMetal.P.FilmAF

(19J-M100/150/CJ19M10)

çå C608 VCFPPD3CA802H J 8000p 1600VMetal.P.Film

(19J-M100S/20MJ10)

çå C608 VCFPPD3CA712H J 7100p 1600VMetal.P.FilmAE

(20J-M100/CJ20M10)
C609 RC-QZA223TAYK J 0.022 50V Mylar AB
C612 VCFPPJ2EB474J J 0.47 250VMetal.P.Film AF

(19J-M100/150/CJ19M10 m
C612 VCFPPJ2EB564J J 0.56 250VMetal.P.Film

(20J-M100/CJ20M10/

CJ19M10)
C631 VCEA0A1HW225M J 2.2 50V EL. AB
C632 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C633 VCEA0A1HW105M J 1.0 50V EL. AB
C652 VCEA0A1HW475M J 4.7 50V EL. AB
C653 VCEA0A1CW106M J 10 16V EL. AB
C661 VCKYPA2HB152K J 1500p 500V Ceramic AC
C662 VCEA0A1CW477M J 470 16V EL.
C701 RC-FZ015SCEZZ J 0.047 AC125V Plastic AE
or RC-FZ004SGEZZ
or RC-QZ005SCEZZ
or RC-FZ002SCEZZ
or RC-FZ00279CEZZ
C702 VCKYPB2HE103P J 0.01 500V Ceramic AB
C703 VCKYPB2HE103P J 0.01 500V Ceramic AB
C704 VCKYPB2HE103P J 0.01 500V Ceramic AB

å C705 RC-EZ0522CEZZ J 470 200V EL. AN

or RC-EZ0422CEZZ
or RC-EZ0423CEZZ
or RC-EZ0523CEZZ

å C706 RC-KZ0092GEZZ J 0.0033 AC250V Ceramic AC

or RC-KZ0311CEZZ

å C707 VCEAGA2CW226M J 22 160V EL. AD

C711 VCKYPA1HF103Z J 0.01 50V Ceramic AA

å C712 RC-EZ0638CEZZ J 33 160V EL. AG

C751 VCEA0A1CW476M J 47 16V EL. AB
C753 VCEAGA1VW477M J 470 35V EL. AD
C754 VCEA0A1CW337M J 330 16V EL. AC
C756 VCEA0A1CW107M J 100 16V EL. AC
C757 RC-QZA104TAYK J 0.1 50V Mylar AB

å C758 VCEAGA2EW106M J 10 250V EL. AC

C759 VCKYPA2HB102K J 1000p 500V Ceramic AA
C801 RC-QZA223TAYK J 0.022 50V Mylar AB
C802 VCEA0A1HW474M J 0.47 50V EL. AB
C803 VCCCCY1HH120J J 12p 50V Ceramic AA
C804 VCEA0A1HW104M J 0.1 50V EL. AB
C805 VCEA0A1HW104M J 0.1 50V EL. AB
C806 VCEA0A1HW104M J 0.1 50V EL. AB
C807 VCCCCY1HH820J J 82p 50V Ceramic AA
C901 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C905 VCEA0A1HW335M J 3.3 50V EL. AB
C2001 VCCCCY1HH101J J 100p 50V Ceramic AA
C2002 VCCCCY1HH101J J 100p 50V Ceramic AA
C2003 VCEA0A1CW106M J 10 16V EL. AB

29

19J-M100/100S/150/CJ19M10
20J-M100/CJ20M10/20MJ10

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTK9273WEV0/V2/V4/V5

DUNTK9316WEV0/V2 MAIN UNIT

C2021 VCCCCY1HH101J J 100p 50V Ceramic AA
C2022 VCCCCY1HH101J J 100p 50V Ceramic AA
C2023 VCCCCY1HH101J J 100p 50V Ceramic AA
C2024 VCCCCY1HH101J J 100p 50V Ceramic AA
C2040 VCEA0A1AW107M J 100 10V EL. AB
C2041 VCEA0A1HW105M J 1.0 50V EL. AB
C2060 RC-QZA104TAYK J 0.1 50V Mylar AB
C2061 VCKYD41HB101K J 100p 50V Ceramic AA
C2062 VCEA0A1AW107M J 100 10V EL. AB
C2401 VCCSD41HL560J J 56p 50V Ceramic AA
C2601 VCEA0A1CW476M J 47 16V EL. AB
C2602 VCCCCY1HH101J J 100p 50V Ceramic AA

RESISTORS

RJ1 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ3 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ5 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ6 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ7 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ9 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ10 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ12 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ13 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ14 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ15 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ17 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ18 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ19 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ20 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ21 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ24 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ26 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ29 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ30 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ32 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ35 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ40 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ49 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ52 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ53 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ55 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ59 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ62 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ63 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ64 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ65 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ66 VRN-MD2AL000J J 0 0.1W Metal.Film AA
RJ68 VRN-MD2AL000J J 0 0.1W Metal.Film AA

å R51 VRS-VV3AB331J J 330 1W Metal.OxideAA
å R52 VRS-VV3DB470J J 47 2W Metal.OxideAA
å R53 VRS-VV3LB223J J 22k 3.0W Metal.OxideAB

R54 VRN-MD2AL101J J 100 0.1W Metal.Film AA

R55 VRN-MD2AL101J J 100 0.1W Metal.Film AA
R56 VRN-MD2AL823J J 82k 0.1W Metal.Film AA
R57 VRN-MD2AL223J J 22k 0.1W Metal.Film AA

å R106 VRS-VV3AB181J J 180 1W Metal.OxideAA

R201 VRN-MD2AL221J J 220 0.1W Metal.Film AA
R202 VRD-RA2BE122J J 1.2k 1/8W Carbon AA
R203 VRD-RA2BE682J J 6.8k 1/8W Carbon AA
R204 VRN-MD2AL270J J 27 0.1W Metal.Film AA
R205 VRD-RA2BE391J J 390 1/8W Carbon AA
R206 VRD-RA2EE151J J 150 1/4W Carbon AA
R208 VRN-MD2AL391J J 390 0.1W Metal.Film AA
R301 VRD-RA2BE222J J 2.2k 1/8W Carbon AA
R302 VRN-MD2AL102J J 1.0k 0.1W Metal.Film AA
R303 VRN-MD2AL153J J 15k 0.1W Metal.Film AA
R307 VRN-MD2AL333J J 33k 0.1W Metal.Film AA
R352 VRN-MD2AL332J J 3.3k 0.1W Metal.Film AA
R353 VRN-MD2AL4R7J J 4.7 0.1W Metal.Film AA
R354 VRN-MD2AL152J J 1.5k 0.1W Metal.Film AA
R361 VRD-RA2BE102J J 1.0k 1/8W Carbon AA
R364 VRN-MD2AL473J J 47k 0.1W Metal.Film AA
R401 VRN-MD2AL682J J 6.8k 0.1W Metal.Film AA
R403 VRD-RA2BE331J J 330 1/8W Carbon AA
R404 VRN-MD2AL391J J 390 0.1W Metal.Film AA
R405 VRD-RA2BE102J J 1.0k 1/8W Carbon AA
R406 VRN-MD2AL470J J 47 0.1W Metal.Film AA
R407 VRN-MD2AL680J J 68 0.1W Metal.Film AA
R408 VRN-MD2AL102J J 1.0k 0.1W Metal.Film AA
R409 VRN-MD2AL471J J 470 0.1W Metal.Film AA
R410 VRD-RA2BE563J J 56k 1/8W Carbon AA
R411 VRN-MD2AL103J J 10k 0.1W Metal.Film AA
R412 VRD-RA2EE561J J 560 1/4W Carbon AA
R413 VRD-RA2BE470J J 47 1/8W Carbon AA
R414 VRD-RA2BE470J J 47 1/8W Carbon AA
R415 VRD-RA2BE470J J 47 1/8W Carbon AA
R416 VRN-MD2AL102J J 1.0k 0.1W Metal.Film AA
R417 VRD-RA2BE101J J 100 1/8W Carbon AA
R418 VRN-MD2AL152J J 1.5k 0.1W Metal.Film AA
R419 VRN-MD2AL472J J 4.7k 0.1W Metal.Film AA
R423 VRN-MD2AL222J J 2.2k 0.1W Metal.Film AA
R426 VRN-MD2AL271J J 270 0.1W Metal.Film AA
R440 VRN-MD2AL821J J 820 0.1W Metal.Film AA

å R451 VRS-VV3AB103J J 10k 1W Metal.OxideAA

R452 VRD-RA2BE152J J 1.5k 1/8W Carbon AA
R454 VRD-RA2BE334J J 330k 1/8W Carbon AA

(19J-M100/150)

R454 VRD-RA2BE474J J 470k 1/8W Carbon AA

(20J-M100/CJ20M10)
R455 VRD-RA2BE392J J 3.9k 1/8W Carbon AA
R456 VRN-MD2AL223J J 22k 0.1W Metal.Film AA
R457 VRD-RA2BE102J J 1.0k 1/8W Carbon AA
R458 VRD-RA2BE334J J 330k 1/8W Carbon AA

(19J-M100/150)
R458 VRD-RA2BE474J J 470k 1/8W Carbon AA

(20J-M100/CJ20M10)
R458 VRD-RA2BE334J J 330k 1/8W Carbon AA
R459 VRD-RA2BE123J J 12k 1/8W Carbon AA

30

19J-M100/100S/150/CJ19M10
20J-M100/CJ20M10/20MJ10

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTK9273WEV0/V2/V4/V5

MAIN UNIT

R504 VRD-RA2BE471J J 470 1/8W Carbon AA
R505 VRD-RA2BE101J J 100 1/8W Carbon AA
R506 VRD-RA2BE683G J 68k 1/8W Carbon AA
R507 VRD-RA2BE104G J 100k 1/8W Carbon AA
R508 VRD-RA2BE473J J 47k 1/8W Carbon AA
R510 VRD-RM2HD1R5J J 1.5 1/2W Carbon AA
R510 VRD-RM2HD1R2J J 1.2 1/2W Carbon AA

(19J-M100S/20MJ10)

å R511 VRN-SV2HB1R5J J 1.5 1/2W Metal.Film AA

R512 VRD-RM2HD331J J 330 1/2W Carbon AA
R516 VRD-RA2BE683G J 68k 1/8W Carbon AA
R517 VRD-RA2BE103G J 10k 1/8W Carbon AA
R518 VRD-RA2BE154J J 150k 1/8W Carbon AA
R524 VRN-MD2AL332J J 3.3k 0.1W Metal.Film AA
R525 VRD-RA2BE473J J 47k 1/8W Carbon AA
R552 VRD-RA2BE102J J 1.0k 1/8W Carbon AA
R553 VRN-MD2AL273J J 27k 0.1W Metal.Film AA
R554 VRN-MD2AL472J J 4.7k 0.1W Metal.Film AA
R602 VRD-RA2EE820J J 82 1/4W Carbon AA

å R603 VRS-SV3LB220J J 22 3.0W Metal.OxideAB

R605 VRN-MD2AL332J J 3.3k 0.1W Metal.Film AA
R606 VRD-RA2BE102J J 1.0k 1/8W Carbon AA
R607 VRD-RA2BE101J J 100 1/8W Carbon AA
R608 VRD-RA2BE101J J 100 1/8W Carbon AA
R609 VRD-RA2BE331J J 330 1/8W Carbon AA

å R610 VRS-VV3DB391J J 390 2W Metal.OxideAA

R620 VRD-RA2BE103J J 10k 1/8W Carbon AA
R621 VRN-MD2AL682J J 6.8k 0.1W Metal.Film AA
R631 VRN-MD2AL391J J 390 0.1W Metal.Film AA
R632 VRN-MD2AL152J J 1.5k 0.1W Metal.Film AA
R633 VRN-MD2AL472J J 4.7k 0.1W Metal.Film AA
R634 VRD-RM2HD101J J 100 1/2W Carbon AA

å R641 VRS-VV3AB682J J 6.8k 1W Metal.OxideAA

R642 VRD-RA2BE821J J 820 1/8W Carbon AA

çå R651 VRD-RM2HD1R0J J 1.0 1/2W Carbon AA
çå R653 VRD-RA2BE102J J 1.0k 1/8W Carbon AA
çå R654 VRD-RA2BE473J J 47k 1/8W Carbon AA
çå R655 VRN-MD2AL104J J 100k 0.1W Metal.Film AA

å R659 VRN-VV3AB2R2J J 2.2 1W Metal.Film AA

(19J-M100/100S/150/
CJ19M10)

R659 VRN-VV3AB2R7J J 2.7 1W Metal.Film AA

(20J-M100/CJ20M10)

å R661 VRN-VV3ABR47J J 0.47 1W Metal.Film AA
å R701 VRC-UA2HG275K J 2.7M 1/2W Solid AA
å R701 VRC-UB2HG275K J 2.7M 1/2W Solid AA

(CJ19M10/CJ20M10)

å R702 VRW-KP3HC1R8K J 1.8 5W Cement AC
å R703 VRS-KA3NG681J J 680 7.0W Metal.OxideAF
å R704 VRS-VV3AB123J J 12k 1W Metal.OxideAA

R705 VRD-RA2EE334J J 330k 1/4W Carbon AA
R706 VRD-RM2HD470J J 47 1/2W Carbon AA

å R707 VRN-VV3DB1R5J J 1.5 2W Metal.Film AB

R708 VRD-RM2HD824J J 820k 1/2W Carbon AA

å R709 VRS-KA3NG681J J 680 7.0W Metal.OxideAF
å R711 VRS-KA3NG681J J 680 7.0W Metal.OxideAF
å R717 VRS-KA3HG3R3K J 3.3 5W Metal.OxideAD
å R730 VRS-VV3DB270J J 27 2W Metal.OxideAA

R731 VRD-RA2EE101J J 100 1/4W Carbon AA

å R732 VRS-VV3DB151J J 150 2W Metal.OxideAA
å R733 VRS-VV3DB181J J 180 2W Metal.OxideAA

R751 VRD-RM2HD331J J 330 1/2W Carbon AA
R752 VRD-RA2BE562J J 5.6k 1/8W Carbon AA
R754 VRD-RA2BE223J J 22k 1/8W Carbon AA

å R755 VRS-VV3DB470J J 47 2W Metal.OxideAA

R757 VRD-RA2BE472J J 4.7k 1/8W Carbon AA

å R758 VRS-SV2HC100J J 10 1/2W Metal.OxideAA

(19J-M100/M100S/150/
CJ19M10)

å R758 VRS-SV2HC180J J 18 1/2W Metal.OxideAA

(20J-M100/CJ20M10)
R801 VRN-MD2AL332J J 3.3k 0.1W Metal.Film AA
R802 VRN-MD2AL332J J 3.3k 0.1W Metal.Film AA
R803 VRN-MD2AL182J J 1.8k 0.1W Metal.Film AA
R804 VRN-MD2AL182J J 1.8k 0.1W Metal.Film AA
R805 VRN-MD2AL182J J 1.8k 0.1W Metal.Film AA
R806 VRN-MD2AL333J J 33k 0.1W Metal.Film AA
R902 VRN-MD2AL750J J 75 0.1W Metal.Film AA
R906 VRN-MD2AL102J J 1.0k 0.1W Metal.Film AA
R925 VRN-MD2AL104J J 100k 0.1W Metal.Film AA
R961 VRN-MD2AL101J J 100 0.1W Metal.Film AA
R962 VRN-MD2AL101J J 100 0.1W Metal.Film AA
R2001 VRD-RA2BE102J J 1.0k 1/8W Carbon AA
R2002 VRN-MD2AL103J J 10k 0.1W Metal.Film AA
R2006 VRN-MD2AL103J J 10k 0.1W Metal.Film AA
R2008 VRD-RA2BE224J J 220k 1/8W Carbon AA
R2009 VRN-MD2AL102J J 1.0k 0.1W Metal.Film AA
R2010 VRN-MD2AL102J J 1.0k 0.1W Metal.Film AA
R2011 VRN-MD2AL821J J 820 0.1W Metal.Film AA
R2012 VRN-MD2AL471J J 470 0.1W Metal.Film AA
R2020 VRD-RM2HD223J J 22k 1/2W Carbon AA
R2022 VRD-RA2BE333J J 33k 1/8W Carbon AA
R2024 VRD-RA2BE682J J 6.8k 1/8W Carbon AA
R2025 VRD-RA2BE682J J 6.8k 1/8W Carbon AA
R2026 VRD-RA2BE682J J 6.8k 1/8W Carbon AA
R2027 VRD-RA2BE682J J 6.8k 1/8W Carbon AA
R2028 VRD-RA2BE102J J 1.0k 1/8W Carbon AA
R2029 VRN-MD2AL102J J 1.0k 0.1W Metal.Film AA
R2031 VRN-MD2AL103J J 10k 0.1W Metal.Film AA
R2032 VRN-MD2AL471J J 470 0.1W Metal.Film AA
R2040 VRN-MD2AL102J J 1.0k 0.1W Metal.Film AA
R2041 VRN-MD2AL333J J 33k 0.1W Metal.Film AA
R2042 VRN-MD2AL101J J 100 0.1W Metal.Film AA
R2043 VRN-MD2AL101J J 100 0.1W Metal.Film AA
R2044 VRN-MD2AL682J J 6.8k 0.1W Metal.Film AA
R2045 VRN-MD2AL101J J 100 0.1W Metal.Film AA
R2047 VRN-MD2AL221J J 220 0.1W Metal.Film AA
R2048 VRD-RA2BE562J J 5.6k 1/8W Carbon AA

31

19J-M100/100S/150/CJ19M10
20J-M100/CJ20M10/20MJ10

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTK9273WEV0/V2/V4/V5

DUNTK9316WEV0/V2 MAIN UNIT

R2049 VRN-MD2AL333J J 33k 0.1W Metal.Film AA
R2054 VRN-MD2AL103J J 10k 0.1W Metal.Film AA
R2055 VRN-MD2AL103J J 10k 0.1W Metal.Film AA
R2060 VRN-MD2AL221J J 220 0.1W Metal.Film AA
R2061 VRN-MD2AL562J J 5.6k 0.1W Metal.Film AA
R2062 VRN-MD2AL183J J 18k 0.1W Metal.Film AA
R2063 VRD-RA2BE222J J 2.2k 1/8W Carbon AA
R2064 VRD-RA2BE332J J 3.3k 1/8W Carbon AA
R2066 VRN-MD2AL103J J 10k 0.1W Metal.Film AA
R2067 VRN-MD2AL103J J 10k 0.1W Metal.Film AA
R2068 VRN-MD2AL103J J 10k 0.1W Metal.Film AA
R2070 VRN-MD2AL103J J 10k 0.1W Metal.Film AA
R2101 VRN-MD2AL101J J 100 0.1W Metal.Film AA
R2102 VRN-MD2AL101J J 100 0.1W Metal.Film AA
R2501 VRN-MD2AL123J J 12k 0.1W Metal.Film AA
R2503 VRN-MD2AL273J J 27k 0.1W Metal.Film AA
R2504 VRN-MD2AL123J J 12k 0.1W Metal.Film AA
R2505 VRN-MD2AL563J J 56k 0.1W Metal.Film AA
R2506 VRD-RA2BE563J J 56k 1/8W Carbon AA
R2507 VRN-MD2AL823J J 82k 0.1W Metal.Film AA
R2508 VRN-MD2AL153J J 15k 0.1W Metal.Film AA
R2509 VRN-MD2AL272J J 2.7k 0.1W Metal.Film AA
R2601 VRD-RA2BE470J J 47 1/8W Carbon AA

DUNTK9274WEV0/V2

DUNTK9317WEV0 CRT UNIT

TRANSISTORS

Q852 VS2SC2229O/1E J 2SC2229(O) AD
Q854 VS2SC2229O/1E J 2SC2229(O) AD
Q856 VS2SC2229O/1E J 2SC2229(O) AD
Q881 VS2SA1266-Y-1 J 2SA1266(Y) AA

DIODES

D881 VHD1SS119//-1 J Diode AB
D882 VHD1SS119//-1 J Diode AB
D885 VHD1SS119//-1 J Diode AB

COILS

L851 VP-DF151K0000 J 150µH AB
R859 VRN-MD2AL470J J 47 0.1W Metal.Film AA
R859 VRN-MD2AL470J J 47 0.1W Metal.Film AA

CAPACITORS

C851 VCCCCY1HH271J J 270p 50V Ceramic AA
C852 VCCCCY1HH271J J 270p 50V Ceramic AA
C853 VCCCCY1HH271J J 270p 50V Ceramic AA
C854 RC-KZ0016CEZZ J 0.1 1.4kV Ceramic AC
C858 VCKYCY1HB102K J 1000p 50V Ceramic AA
C881 VCEA0A1CW106M J 10 16V EL. AB
C883 VCEA0A1CW336M J 33 16V EL. AB

MISCELLANEOUS PARTS

S2501 QSW-K0079GEZZ J Switch,Power AB
S2502 QSW-K0079GEZZ J Switch,Vol-down AB
S2503 QSW-K0079GEZZ J Switch,Vol-up AB
S2504 QSW-K0079GEZZ J Switch,Ch-down AB
S2505 QSW-K0079GEZZ J Switch,Ch-up AB

å RY701 RRLYU0036CEZZ J Relay AM

or RRLYU0028CEZZ

å F701 QFS-B4023CEZZ J Fuse AC

or QFS-B4021GEZZ
FB602 RBLN-0037CEZZ J Balun AB
FB603 RBLN-0037CEZZ J Balun AB
FH701 QFSHD1013CEZZ J Fuse Holder AC
FH702 QFSHD1014CEZZ J Fuse Holder AC
J903 QJAKE0159CEZZ J Jack AF
J905 QJAKE0158CEZZ J Jack AF
P302 QPLGN0261CEZZ J Plug AB
P401 QPLGN0561CEZZ J Plug AB
P601 QPLGN0603CEZZ J Plug AB
P651 QPLGN0361CEZZ J Plug AB
P701 QPLGN0207CEZZ J Plug AA
P751 QPLGN0461CEZZ J Plug AB
P2001 QPLGN0561CEZZ J Plug AB

RMC2601 RRMCU0222CEZZ J Remote Receiver AL

or RRMCU0216CEZZ
RDA501PRDAR0218PEFW R Heat Sink AD
RDA602PRDAR0216PEFW R Heat Sink AE
RDA701PRDAR0238PEFW R Heat Sink AN
or PRDAR3189PEFW
TP701 QLUGP0102PEZZ R Lug AA

RESISTORS

R851 VRN-MD2AL470J J 47 0.1W Metal.Film AA
R852 VRD-RA2BE271J J 270 1/8W Carbon AA
R853 VRN-MD2AL121J J 120 0.1W Metal.Film AA

å R857 VRS-VV3AB123J J 12k 1W Metal.OxideAA

R858 VRD-RM2HD332J J 3.3k 1/2W Carbon AA
R859 VRN-MD2AL470J J 47 0.1W Metal.Film AA
R859 VRD-RA2BE470J J 47 1/8W Metal.Film AA

(19J-M100S/20MJ10)
R860 VRD-RA2BE271J J 270 1/8W Carbon AA
R860 VRD-MD2AL221J J 220 0.1W Carbon AA

(19J-M100S/20MJ10)
R861 VRN-MD2AL121J J 120 0.1W Metal.Film AA

å R865 VRS-VV3AB123J J 12k 1W Metal.Oxide AA

R866 VRD-RM2HD332J J 3.3k 1/2W Carbon AA
R867 VRD-RA2BE470J J 47 1/8W Carbon AA
R867 VRD-MD2AL470J J 47 0.1W Carbon AA

(19J-M100S/20MJ10)
R868 VRN-MD2AL271J J 270 0.1W Metal.Film AA
R868 VRD-RA2BE221J J 220 1/8W Metal.Film AA

(19J-M100S/20MJ10)
R869 VRN-MD2AL121J J 120 0.1W Metal.Film AA

å R873 VRS-VV3AB123J J 12k 1W Metal.Oxide AA

R874 VRD-RM2HD332J J 3.3k 1/2W Carbon AA
R881 VRN-MD2AL561J J 560 0.1W Metal.Film AA
R882 VRN-MD2AL391J J 390 0.1W Metal.Film AA
R883 VRD-RA2BE561J J 560 1/8W Carbon AA
R884 VRN-MD2AL152J J 1.5k 0.1W Metal.Film AA
R886 VRN-MD2AL431J J 430 0.1W Metal.Film AA

32

19J-M100/100S/150/CJ19M10

9

CH

8

–

VOL

+

VIDEO IN AUDIO

POWER

20J-M100/CJ20M10/20MJ10

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTK9274WEV0/V2

DUNTK9317WEV0 CRT UNIT

CABINET PARTS

MISCELLANEOUS PARTS

P851 QPLGN0561CEZZ J Plug AB
P852 QPLGN0461CEZZ J Plug AB
SC851 QSOCV0840CEZZ J Socket AK
or QSOCV0826CEZZ

(19J-M100/150/CJ19M10/20J-M100/CJ20M10)
SC851 QSOCV0913CEZZ
or QSOCV0929CEZZ

(19J-M100S/20MJ10)

19J-M100/19J-M100S/CJ19M10/20MJ10

1 CCABA1266MES2 M Cabinet Front Ass'y BB
1-1 _ M Cabinet Front _
1-2 GCOVA1031MEKA M Cover AD
1-3 HBDGB3009MESA M Badge "sharp" AC
1-4 JBTN-1090MEKA M Button,CH/VOL-up down AD
2 GCABB1130MEKA M Rear Cabinet AX

19J-M150

1 CCABA1266MES1 M Cabinet Front Ass'y BD
1-1 _ M Cabinet Front
1-2 GCOVA1031MEKA M Cover AD
1-3 HBDGB3009MESA M Badge "sharp" AC
1-4 JBTN-1090MEKB M Button,CH/VOL-up down AD
2 GCABB1130MEKB M Rear Cabinet AZ

1

1-1

1-3

2

1-4

1-2

20J-M100/CJ20M10

1 CCABA1272MES0 M Cabinet Front Ass'y BF
1-1 _ M Cabinet Front _
1-2 GCOVA1034MEKA M Cover _
1-3 HBDGB3009MESA M Badge "sharp" AC
1-4 JBTN-1098MEKA M Button,CH/VOL-up down _
2 GCABB1126MEKA M Rear Cabinet AX

1-1

1

1-3

1-2

>

?

VIDEO IN AUDIO

+

–

CH

VOL

POWER

1-4

2

33

19J-M100/100S/150/CJ19M10
20J-M100/CJ20M10/20MJ10

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

MISCELLANEOUS PARTS

å QACCD3014CESA M AC Cord AH

or QACCD3030CESA

QCNW-2110PEZZ R Connecting Cord _
QCNW-2111PEZZ R Connecting Cord _
QCNW-2112PEZZ R Connecting Cord _
VSP0080PBK98A M Speaker AG

or VSP0080P-E98S

SUPPLIED ACCESORRIES

TGAN-1006MEZZ M Guarantee Card AA
(19J-M100/150/100S/20J-M100)
TiNS-6043MEZZ M Operation Manual AC

TiNS-6081MEZZ M Operation Manual _

TiNS-6082MEZZ M Operation Manual _

TiNS-6031MEZZ M Operation Manual _

TiNS-6085MEZZ M Operation Manual

RRMCG1324CESA M Infrared R-C AQ

RRMCG1324CESB M Infrared R-C AP

RRMCG1339CESA M Infrared R-C _

RUNTK0393CEZZ J Antena Adaptor _

(19J-M100/150/100S)

(CJ19M10)

(CJ20M10)

(20J-M100)

(20MJ10)

(19J-M100/100S/CJ19M10
20J-M100/CJ20M10)

(19J-M150)

(20MJ10)

PACKING PARTS

(NOT REPLACEMENT ITEM)

SPAKC0556MEZZ M Packing Case _

(19J-M100/S/150/CJ19M10)

SPAKC0573MEZZ M Packing Case _

(20J-M100/CJ20M10)
SPAKC0578MEZZ M Packing Case (20MJ10) _
SPAKP0023MEZZ M Polyethylene Sack _
SPAKX0163MEZZ M Buffer Material _

(19J-M100/S/150/CJ19M10)
SPAKX0167MEZZ M Buffer Material _

(20J-M100/CJ20M10)
SSAKA0004MEZZ M Polyethylene Sack _

34

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PACKING OF THE SET

★Polystyrene mat

Polystyrene Bag

★

19J-M100/100S/150/CJ19M10
20J-M100/CJ20M10/20MJ10

Operation manual
Guarantee Card
and batteries

FRONT

★ Buffer material

★ Packing case

Use tapes to
fix the packing
case.

REAR

35

19J-M100/100S/150/CJ19M10
20J-M100/CJ20M10/20MJ10

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

36

TQ0268-S
Printed in U.S.A
Y.O
