SERVICE MANUAL
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
SERVICE MANUAL
S00K414BM2S//
COLOUR TELEVISION
Chassis No. UA-1
14BM2, 14BM2S/G
COLOUR TELEVISION
21BM2, 21BM2S/G
In the interests of user-safety (Required by safety regulations in some countries) the set should be restored
to its original condition and only parts identical to those specified should be used.
Ë
Multi 18 Systems
Ë
Full Auto Channel Preset and Auto Channel Skip
Ë
100-CH Program Memory
Ë
High Contrast Picture
Ë
Black Stretch Circuit
Ë
CATV (Hyper Band) Ready
〈Used Frequency Synthesizer Tuner〉
20BM2, 20BM2S/G
MODELS
FEATURE
Ë
Hotel Mode
Ë
On Timer/Sleep Timer/Reminder Timer
Ë
Colour Comb Filter Function (NTSC only)
Ë
Blue Back Noise Mute
Ë
Front AV-In & Rear AV-In/Out Terminals
Ë
AVL Function
Ë
English/Chinese/Malay/France/Russia/Arabic OSD
CONTENTS
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
MODELS 14BM2, 14BM2S/G, 20BM2, 20BM2S/G, 21BM2, 21BM2S/G
» SPECIFICATIONS ...........................................2
» IMPORTANT SERVICE NOTES ......................2
» ADJUSTMENT PRECAUTIONS .....................3
» HOTEL MODE APPLICATION NOTE............15
» TROUBLE SHOOTING TABLE......................15

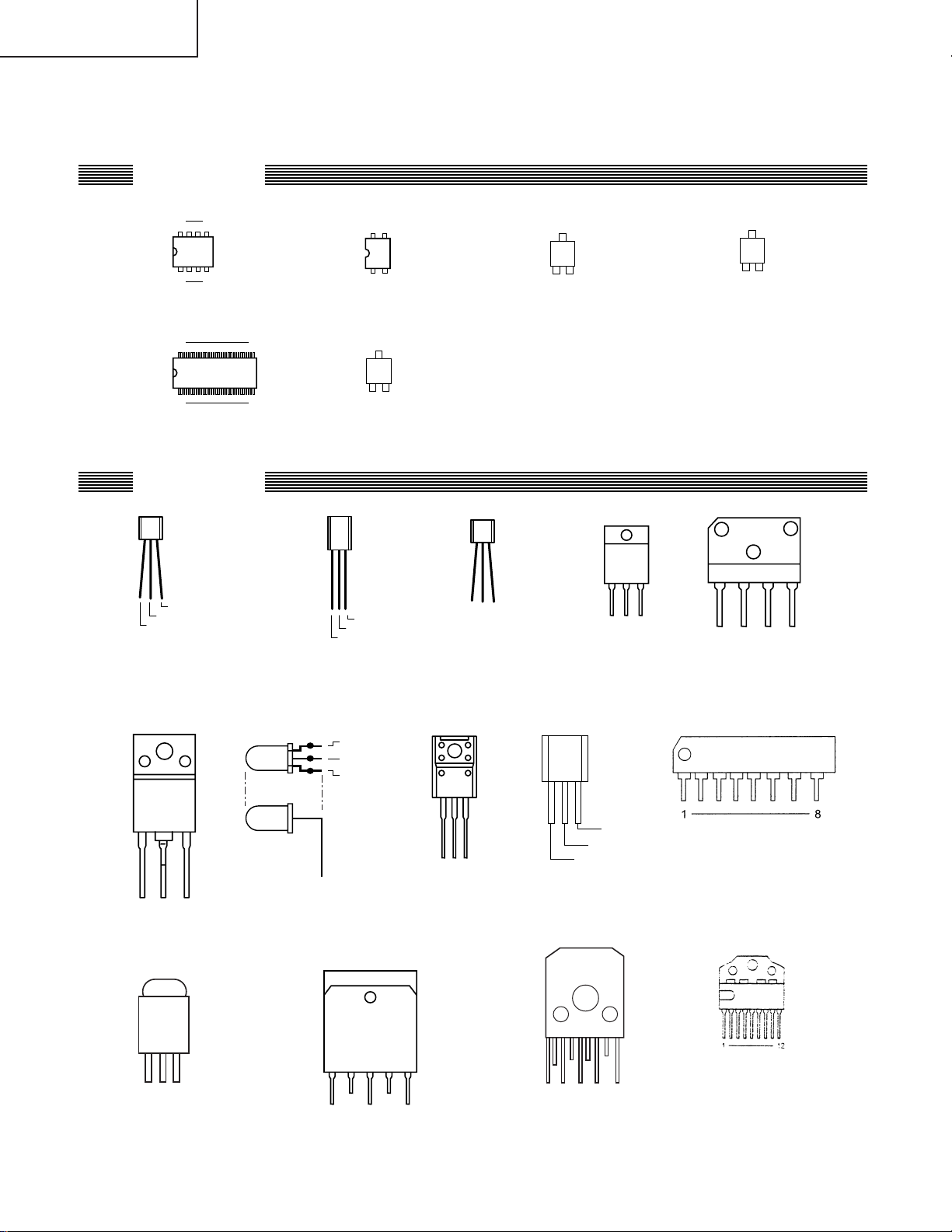

» SOLID STATE DEVICE BASE DIAGRAM ..... 18
» CHASSIS LAYOUT........................................ 19
» BLOCK DIAGRAM.........................................22
» WAVEFORMS ...............................................25
» DESCRIPTION OF SCHEMATIC DIAGRAM ..27
» SCHEMATIC DIAGRAM
■ MAIN UNIT ...............................................28

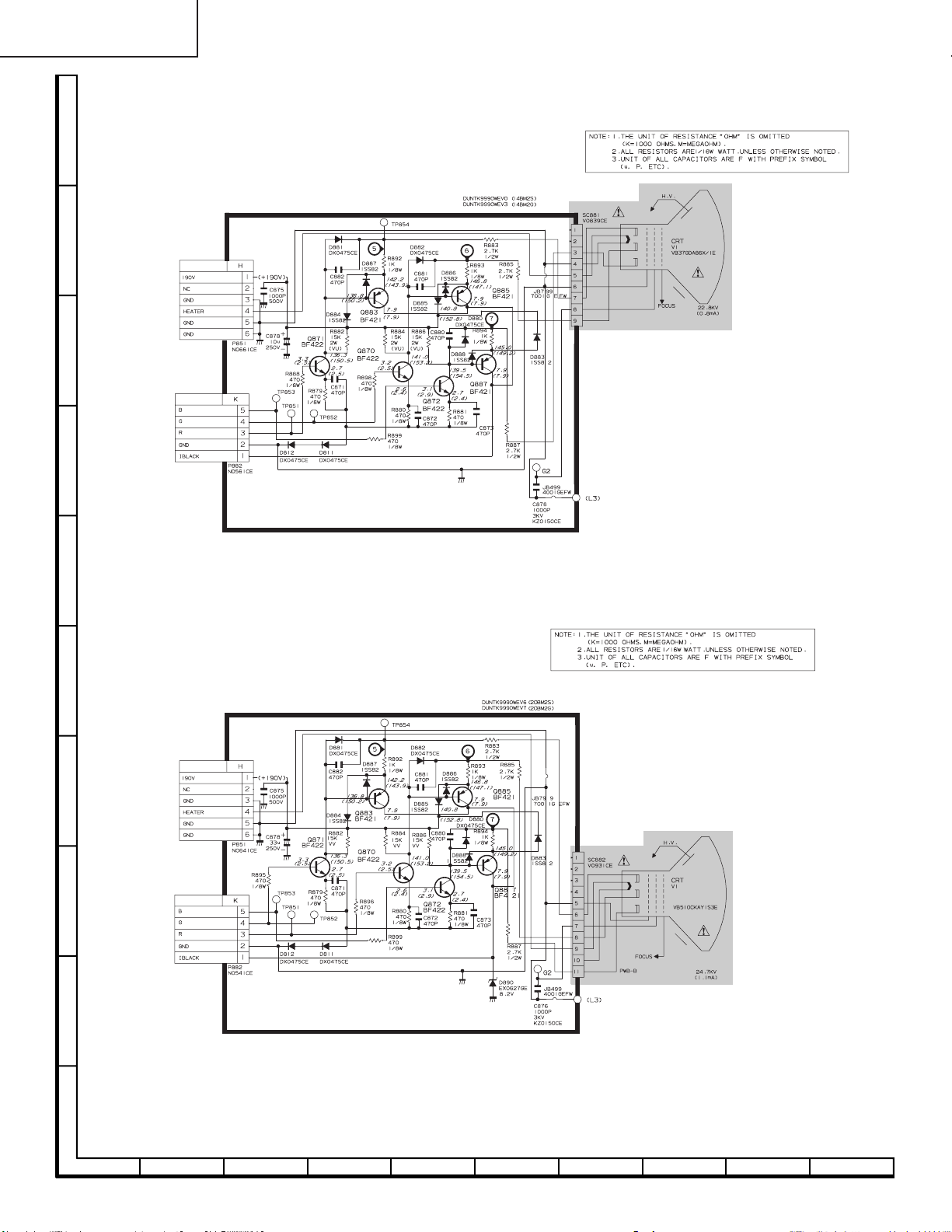

■ CRT UNIT.................................................34
The chassis in this receiver is partially hot. Use an isolation transformer between the line cord plug and power
receptacle, when servicing this chassis. To prevent electric shock, do not remove cover. No user – serviceable
parts inside. Refer servicing to qualified service personnel.
SHARP CORPORATION
Page
Page
» PRINTED WIRING BOARD ASSEMBLIES ...36
» REPLACEMENT PARTS LIST
■ ELECTRICAL PARTS............................... 41
■ MISCELLANEOUS PARTS ...................... 46
■ SUPPLIED ACCESSORIES.....................46
■ PACKING PARTS .....................................46
■ CABINET PARTS ..................................... 46
WARNING
1
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
SPECIFICATIONS
Convergence .............................................................................. Self Convergence System
Focus .......................................................................... Electrostatic Focus High Bi-Potential
Maintenance and repair of this receiver should be done by
Sweep Deflection................................................................................................... Magnetic
Intermediate Frequencies
Picture IF Carrier ............................................................................................... 38.9 MHz
Sound IF Carrier Frequency
5.5 MHz .......................................................................................................... 33.4 MHz
6.0 MHz .......................................................................................................... 32.9 MHz
6.5 MHz .......................................................................................................... 32.4 MHz
Colour Sub-Carrier Frequency..................................................................... 34.47 MHz
Power Input.....................................................................................110 - 240V, AC50/60 Hz
Power Consumption
21BM2 ....................................................................................................................88 W
20BM2 ....................................................................................................................87 W
14BM2 ....................................................................................................................68 W
Audio Power Output Rating .............................................................................. 5.0W (RMS)
Speaker
Size
21BM2/20BM2 ..............................................................6 × 12 cm Elliptic (2 pcs.)
14BM2.............................................................................5 × 9 cm Elliptic (2 pcs.)
Voice Coil Impedance...........................................................................6 ohms at 400 Hz
2
Aerial Input Impedance
VHF/UHF ......................................................................................75 ohms Unbalanced
Receiving System .......................................................... CCIR/PAL B/G, D/K, I/SECAM
NTSC 3.58/4.43 MHz (thru AV)
Tuner Ranges
» VHF-Channels...........................................E1 (48.25 MHz) thru E12 (224.25 MHz)
C1 (49.75 MHz) thru C12 (216.25 MHz)
S1 (105.25 MHz) thru S41 (463.25 MHz)
» UHF-Channels ......................................E21 (471.25 MHz) thru E69 (855.25 MHz)
C13 (471.25MHz) thru C57 (863.25 MHz)
Dimensions
21BM2 ...............................................................................................Width: 642.0 mm
Height: 475.0 mm
Depth: 477.0 mm
Weight (approx.): 21.0 kg
20BM2 ...............................................................................................Width: 642.0 mm
Height: 475.0 mm
Depth: 480.0 mm
Weight (approx.): 19.0 kg
14BM2 ...............................................................................................Width: 496.0 mm
Height: 355.0 mm
Depth: 365.0 mm
Weight (approx.):9.2 kg
Cabinet Material ................................................................................................. All Plastics
qualified service personnel only.
SERVICING OF HIGH VOLTAGE SYSTEM AND
PICTURE TUBE
When servicing the high voltage system, remove static charge from it by
connecting a 10k ohm Resistor in series with an insulated wire (such as a
test probe) between picture tube dag and 2nd anode lead. (AC line cord
should be disconnected from AC outlet.)
1. Picture tube in this receiver employs integral implosion protection.
2. Replace with tube of the same type number for continued safety.
3. Do not lift picture tube by the neck.
4. Handle the picture tube only when wearing shatterproof goggles and after
discharging the high voltage completely
X-RAY
This receiver is designed so that any X-Ray radiation is kept to an absolute
minimum. Since certain malfunctions or servicing may produce potentiall y
hazardous radiation with prolonged exposure at close range, the following
precautions should be observed:
1. 14BM2 : When repairing the circuit, be sure not to increase the high v olt20BM2 : When repairing the circuit, be sure not to increase the high v olt21BM2 : When repairing the circuit, be sure not to increase the high v olt-
2. 14BM2 : To keep the set in a normal operation, be sure to make it function on
20BM2 : To keep the set in a normal operation, be sure to make it function on
21BM2 : To keep the set in a normal operation, be sure to make it function on
3. Do not substitute a picture tube with unauthorized types and/or brands
which may cause excess X-ray radiation.
BEFORE RETURNING THE RECEIVER
Before returning the receiver to the user, perform the f ollowing safety chec ks.
1. Inspect all lead dress to make certain that leads are not pinched or that
hardware is not lodged between the chassis and other metal parts in the
receiver.
2. Inspect all protective devices such as non-metallic control knobs, insulating
fishpapers, cabinet bac ks, adjustment and compartment covers or shields, isolation resistor-capacity networks, mechanical insulators etc.
IMPORTANT SER VICE NO TES
age to more than 25.5 kV (at beam 0.1 µA) for the set.
age to more than 28.0 kV (at beam 0.1 µA) for the set.
age to more than 28.0 kV (at beam 0.1 µA) for the set.
± 1.5 kV (at beam 800 µA) in the case of the set. The set has
22.8 kV
been factory - Adjusted to the above-mentioned high voltage.
24.5 kV
± 1.5 kV (at beam 1,100 µA) in the case of the set. The set has
been factory - Adjusted to the above-mentioned high voltage.
± 1.5 kV (at beam 1,100 µA) in the case of the set. The set has
24.8 kV
If there is a possibility that the high voltage fluctuates as a result of the
repairs, never forget to check for such high v oltage after the work.
been factory – Adjusted to the above-mentioned high voltage.
Specifications are subject to change without prior notice.
2-1 2-2
ADJUSTMENT PRECAUTIONS
Ë
SERVICE MODE
This model’s setting are adjusted in two different ways: though the I2C bus control and in the
conventional analog manner. The adjustments via the I2C bus control include preset-only
items and variable data.
1. Setting the service mode by the microprocessor.
1 Short JA122 & JA124 for 1 second and release to switch to the service mode position,
and the microprocessor is in input mode. (Adjustment through the I2C bus control). (Use
JWS Key to set as well).
2 Press the CH DOWN / UP key on the remote controller to get ready to select the mode
one by one.
3 Press the CH DOWN / UP key on the remote controller to select the modes reversibly
one by one.
4 Using the VOLUME UP/ DOWN key on the remote controller, the data can be modified.
5 Short JA122 & JA124 for 1 second and release to switch to the normal mode (OFF)
position, and the microprocessor is in out of the service mode.
2. Factory Presetting.
3
1 Short JA122 & JA124 for 1 second and release to switch to the service mode position
and turn on the main power switch. Initial values are automatically preset, only when a
new EEPROM is used (Judge with the first 4 bytes).
2 The initial data are preset as listed in pages 4, 5 & 6.
3 Make sure the data need modify or not (Initial data).
Note: Once the chassis has been assembly together and ready to be POWER ON for the
FIRST TIME, make sure to short JA122 & JA124 switch to the service mode position first and then turn on the main power switch. (See 2- 1 above).
Precaution: If haven’t done this initiation, it ma y possibly generate e xcessive Beam
current.
3. For reference please check with memory map
(UA1 Series type RH-IX3368CE Attachment)
(1)In the Service Mode, Key is used to select the mode in the following order.
AGC &
GEOMETRIC
MODE
MISC.
OPTION
MODE
AGC &
GEOMETRIC
MODE
AGC TAKE OVER POINT (AGC)
VERTICAL SLOPE (V-LIN)
VERTICAL AMP (V-AMP)
VERTICAL SHIFT (V-CENT)
HORIZONTAL SHIFT (H-CENT)
S-CORRECTION (S-COR)
↓
↓
↓
↓
↓
↓
W.P. GREEN WARM W.P . (DRI-GW)
WHITE POINT
ADJ.
MODE
IC
OPTION
MODE
WHITE POINT
ADJ.
MODE
W.P. RED STD. W.T. (DRI-RS)
W.P. GREEN STD. W.T. (DRI-GS)
W.P.BLUE STD. W.P. (DRI-BS)
W.P. RED COOL W.P. (DRI-RC)
W.P. GREEN COOL W.P. (DRI-GC)
W.P. BLUE COOL W.P. (DRI-BC)
W.P. RED WARM W.P . (DRI-RW)
W.P. BLUE WARM W.P . (DRI-BW)
↓
↓
↓
↓
↓
↓
↓
↓
↓
FORWARD : CH DOWN KEY
REVERSE : CH UP KEY
MAX VOLUME (SUB-VOL)
SUB CONTRAST (SUB-CON)
SUB COLOUR (SUB-COL)
SUB BRIGHTNESS (SUB-BRI)
SUB TINT (SUB-TINT)
SUB SHARPNESS (SUB-SHP)
MAX HOTEL VOLUME (HTL-VOL)
HOTEL PROGRAM NO (HTL-PRG)
OSD GRB REFERENCE (RGB)
BLACK LEVEL OFFSET R (CUT-R)
BLACK LEVEL OFFSET G (CUT-G)
CATHODE DRIVE LEVEL (CDL)
SUB
ADJ.
MODE
Y-DELAY
ADJ.
MODE
OFFSET
ADJ.
MODE
SUB
ADJ.
MODE
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
FORWARD : CH DOWN KEY
REVERSE : CH UP KEY
* ( ) means OSD display.
3-1 3-2
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
Y-DELAY
MODE
Y-D TIME FOR PAL (TV) (DL-PT)
Y-D TIME FOR SECAM (TV) (DL-ST)
Y-D TIME FOR N358 (TV) (DL-3T)
Y-D TIME FOR N443 (TV) (DL-4T)
Y-D TIME FOR B/W (TV) (DL-TV)
Y-D TIME FOR PAL (AV) (DL-PA)
Y-D TIME FOR SECAM (AV) (DL-SA)
Y-D TIME FOR N358 (AV) (DL-3A)
Y-D TIME FOR N443(AV) (DL-4A)
Y-D TIME FOR B/W (AV) (DL-AV)
*(Y-D : Y-DELAY)
MISC.
OPTION
MODE
SOUND SYSTEM M (S-M)
SOUND SYSTEM DK (S-DK)
4
SOUND SYSTEM I (S-I)
SOUND SYSTEM BG (S-BG)
PLAYBACK SECAM (P-SECAM)
FE (RF) NTSC 3.58 (F-N358)
FE (RF) NTSC 4.43 (F-N443)
FE (RF) SECAM (F-SECAM)
VIDEO MUTE AT IDENT LOSS (VMI)
VIDEO MUTE AT PROGRAM
/SOURCE CHANGE (VMC)
HOTEL MODE (HTL)
REDUCED FM DEMODULATION
GAIN FOR BTSC SIGNAL (BTSC)
ADJ.
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
A
OFFSET
ADJ.
MODE
COLOUR OFFSET (PAL) (COL-OP)
COLOUR OFFSET (SECAM) (COL-OS)
COLOUR OFFSET (NTSC358) (COL-O3)
COLOUR OFFSET (NTSC443) (COL-O4)
SHARPNESS OFFSET (PAL) (SHP-OP)
SHARPNESS OFFSET (SECAM) (SHP-OS)
SHARPNESS OFFSET (NTSC358) (SHP-O3)
SHARPNESS OFFSET (NTSC443) (SHP-O4)
NUMBER OF EXT AV SOURCE (AV)
FM WINDOW SELECTION (FMWS)
SOUND MUTE BIT 0 (SM0)
SOUND MUTE BIT 1 (SM1)
THAI LANGUAGE (THA)
ARABIC LANGUAGE (ARA)
MALAY LANGUAGE (MAL)
CHINESE LANGUAGE (CHI)
FRENCH LANGUAGE (FRE)
RUSSIAN LANGUAGE (RUS)
FORCED V-SYNC SLICING LEVEL(FSL)
SYNC OF OSD (HP2)
TUNER SELECTION (CPT)
↓
↓
↓
↓
↓
↓
↓
↓
A
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
↓
B
IC
OPTION
MODE
VERTICAL SCAN DISABLE(VSD)
BLACK STRETCH (BKS)
AUTO V OLUME LEVELING(A VL)
FAST FILTER IF-PLL(FFI)
ENABLE VERTICAL GUARD (EVG)
EHT TRACKING MODE (EHT)
OVERSCAN SWITCH OFF(OSO)
AUTO COLOUR LIMIT(ACL)
FORCED COLOUR LIMIT(FCO)
IF AGC SPEED BIT 0 (AGC0)
IF AGC SPEED BIT 1 (AGC1)
FOA Time Constant-RF (FOA-FE)
FOB Time Constant-RF (FOB-FE)
FOA Time Constant-AV (FOA-AV)
FOB Time Constant-AV (FOB-AV)
↓
↓
↓
↓
↓
↓
↓
↓
↓
B
↓
BILINGUAL(BIL)
↓
↓
↓
↓
↓
↓
USER DATA IN SERVICE MODE
* While SERVICE mode ON, EEPROM DATA will switch to the service data.
Also, once SERVICE mode OFF, EEPROM will switch back to previous USER DATA.
* In the service mode, the user data establish as below,
MODE USER DATA
CONTRAST MIN (1/60)
COLOUR MIN (1/60)
BRIGHTNESS MIN (1/60)
TINT MIN (1/60)
SHARPNESS MIN (1/60)
WHITE TEMP STANDARD
S-VOLUME MIN (1/60)
BLUE BACK OFF
C SYSTEM AUTO
S SYSTEM *1
The flow of Mode lists as following,
* Direct Key-in Step1 Mode
RC COMMAND SERVICE-ITEM
FUNCTION AGC
CONTRAST DOWN V-LIN
COLOUR DOWN V-AMP
BRIGHTNESS DOWN V-CENT
TINT DOWN H-CENT
SHARPNESS DOWN EW / /
SYSTEM HB
BLUEBACK S-COR
TIMER SUB-VOL
CONTRAST UP SUB-CON
COLOUR UP SUB-COL
BRIGHTNESS UP SUB-BRI
TINT UP TINT SUB TINT
SHARPNESS UP SUB-SHP
*1 : For each CH, before
changing service mode
setting.
4-1 4-2
After short JA122 & 124, and turn on the main power switch, read data from E2PROM
address 00H ~ 03H, and compare to the list below, if different, initialize the E2PROM.
Address : Data Address : Data
00H : 55H 02H : 43H
01H : 4FH 03H : A1H
EEPROM ITEMS OSD DATA LENGTH
AGC TAKE OVER POINT AGC 0~63 14 ADJ
VERTICAL SLOPE V-LIN 0~63 32 ADJ
VERTICAL AMPLITUDE V-AMP 0~63 32 ADJ
VERTICAL SHIFT V-CENT 0~63 32 ADJ
HORIZONTAL SHIFT H-CENT 0~63 32 ADJ
S-CORRECTION S-COR 0~63 0 FIX
WHITE POINT RED STD WHITE TEMP DRI-RS 0~63 32 FIX
WHITE POINT GREEN STD WHITE TEMP DRI-GS 0~63 32 ADJ
WHITE POINT BLUE STD WHITE TEMP DRI-BS 0~63 32 ADJ
WHITE POINT RED COOL WHITE TEMP DRI-RC 0~63 25 ADJ (DRI-RS)-7 *1
WHITE POINT GREEN COOL WHITE TEMP DRI-GC 0~63 32 ADJ (DRI-RS)-7 *1
WHITE POINT BLUE COOL WHITE TEMP DRI-BC 0~63 32 ADJ (DRI-BS)
WHITE POINT RED WARM WHITE TEMP DRI-RW 0~63 32 FIX (DRI-RS)
WHITE POINT GREEN WARM WHITE TEMP DRI-GW 0~63 32 ADJ (DRI-GS)-7
WHITE POINT BLUE WARM WHITE TEMP DRI-BW 0~63 32 ADJ (DRI-BS)-7
MAX VOLUME SUB-VOL 0~63 32 FIX
SUB CONTRAST SUB-CON 0~63 63 FIX
SUB COLOUR SUB-COL 0~63 32 ADJ
SUB BRIGHTNESS SUB-BRI 0~63 32 ADJ
5
SUB TINT SUB-TINT 0~63 32 ADJ
SUB SHARPNESS SUB-SHP 0~63 32 FIX
MAX HOTEL VOLUME HTL-VOL 0~63 32 FIX
HOTEL PROGRAM NUMBER HTL-PRG
OSD GRB REFERENCE RGB 0~15 15 FIX
BLACK LEVEL OFF-SET R CUT-R 0~15 8 ADJ
BLACK LEVEL OFF-SET G CUT-G 0~15 8 ADJ
CATHODE DRIVE LEVEL CDL 0~15 0(2) FIX *2
Y-DELAY TIME FOR PAL(TV) [YD] DL-PT 0~15 12 FIX
Y-DELAY TIME FOR SECAM(TV) [YD] DL-ST 0~15 15 FIX
Y-DELAY TIME FOR N358 (TV) [YD] DL-3T 0~15 12 FIX
Y-DELAY TIME FOR N443 (TV) [YD] DL-4T 0~15 12 FIX
Y-DELAY TIME FOR B/W (TV) [YD] DL-TV 0~15 12 FIX
Y-DELAY TIME FOR PAL (AV) [YD] DL-PA 0~15 12 FIX
Y-DELAY TIME FOR SECAM (AV) [YD] DL-SA 0~15 15 FIX
Y-DELAY TIME FOR N358 (AV) [YD] DL-3A 0~15 12 FIX
Y-DELAY TIME FOR N443 (AV) [YD] DL-4A 0~15 12 FIX
Y-DELAY TIME FOR B/W (AV) [YD] DL-AV 0~15 12 FIX
COLOUR OFFSET (PAL) COL-OP 0~15 8 FIX
COLOUR OFFSET (SECAM) COL-OS 0~15 8 FIX
COLOUR OFFSET (NTSC358) COL-O3 0~15 4 FIX
COLOUR OFFSET (NTSC443) COL-O4 0~15 4 FIX
SHARPNESS OFFSET (PAL) SHP-OP 0~15 8 FIX
SHARPNESS OFFSET (SECAM) SHP-OS 0~15 4 FIX
0~99 OR>99FOR NONE
INITIAL DATA FIX/ADJ
255 FIX
REMARK
EEPROM ITEMS OSD DATA LENGTH
SHARPNESS OFFSET (NTSC358) SHP-O3 0~15 12 FIX
SHARPNESS OFFSET (NTSC443) SHP-O4 0~15 8 FIX
VERTICAL SCAN DISABLE VSD
BLACK STRETCH BKS
AUTOMATIC VOLUME LEVELING AVL
FAST FILTER IF-PLL FFI
ENABLE VERTICAL GUARD (RGB BLANKING) EVG
EHT TRACKING MODE (HCO) EHT
OVERSCAN SWITCH OFF OSO
AUTO COLOUR LIMIT ACL
FORCED COLOUR LIMIT FCO
SOUND SYSTEM M S-M
SOUND SYSTEM DK S-DK
SOUND SYSTEM I S-I
SOUND SYSTEM BG S-BG
PLAYBACK SECAM P-SECAM
FE (RF) NTSC 3.58 F-N358
FE (RF) NTSC 4.43 F-N443
FE (RF) SECAM F-SECAM
VIDEO MUTE AT IDENT LOSS VMI
VIDEO MUTE AT PROGRAM/SOURCE CHANGE
HOTEL MODE HTL
REDUCED FM DEMODULATOR GAIN FOR BTSC SIGNAL
NUMBER OF EXTERNAL AV SOURCE AV
FM WINDOW SELECTION FMWS
SOUND MUTE BIT 0 SM0
SOUND MUTE BIT 1 SM1
THAI LANGUAGE THA
ARABIC LANGUAGE ARA
MALAY LANGUAGE MAL
CHINESE LANGUAGE CHI
FRENCH LANGUAGE FRE
RUSSIAN LANGUAGE RUS
FORCED V-SYNC SLICING LEVEL FSL
SYNC OF OSD HP2
TUNER SELECTION (0:SHARP/ALPS;1:MURATA)
BILINGUAL BIL
IF AGC SPEED BIT 0 AGC0
IF AGC SPEED BIT 1 AGC1
PHI-1 TIME CONSTANT (RF) FOA-FE
PHI-1 TIME CONSTANT (RF) FOB-FE
PHI-1 TIME CONSTANT (OFF AIR) FOA-AV
PHI-1 TIME CONSTANT (OFF AIR) FOB-AV
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
VMC
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
BTSC
0(DISABLE)/1(ENABLE)
0 FOR1 AV/1 FOR 2AV
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
CPT
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
0(DISABLE)/1(ENABLE)
INITIAL DATA FIX/ADJ
0 FIX
1 FIX
1 FIX
0 FIX
1 FIX ONLY BLK
1 FIX
0 FIX
0 FIX
0 FIX
0 FIX
1 FIX
1 FIX
1 FIX
1 FIX
0 FIX
1 FIX
1 FIX
1 FIX
1 FIX
0 FIX
0 FIX
1 FIX
0 FIX
1 FIX
0 FIX
0 FIX
1 FIX
1 FIX
1 FIX
1 FIX
1 FIX
0 FIX
0 FIX
0 FIX
0 FIX
1 FIX
0 FIX
0 FIX
0 FIX
1 FIX
1 FIX
REMARK
Note :
Fixed data, please do not change without specific instruction.
*1:White point RED and GREEN COOL WHITE TEMP for 18000 degree colour TEMP (SMEF
MODELS) MINUS 5. other models (123K degree colour temp) still same MINUS 7.
*2:CDL initial data=2 for all 20” & 21” only.
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
5-1 5-2
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
INITIAL SETTING
(1)In service mode, After execute select POS 1, store the following tuning data in E2PROM.
CH-No. Fv (MHz) SOUND SYS CH-No. Fv (MHz) SOUND SYS
0 0 590.25 B/G
1 48.25 B/G 1 46.25 B/G
2 62.25 B/G 2 64.25 B/G
3 77.25 D/K 3 86.25 B/G
4 175.25 B/G 4 95.25 B/G
5 182.25 B/G 5 138.25 B/G
6 183.25 D/K 6 175.25 B/G
7 191.25 D/K 7 182.25 B/G
8 196.25 B/G 8 189.25 B/G
9 199.25 M 9 196.25 B/G
10 210.25 B/G 10 209.25 B/G
11 224.25 B/G 11 216.25 B/G
12 471.25 B/G 12 B/G
13 487.25 I 13
14 503.25 B/G 14
15 575.25 B/G 15
16 583.25 B/G 16
17 599.25 B/G 17
18 621.25 M 18 527.25 B/G
19 639.25 D/K 19 847.25 B/G
6
20 703.25 B/G 20 48.25 B/G
21 735.25 I 21 175.25 B/G
22 767.25 B/G 22 210.25 B/G
23 815.25 B/G 23 224.25 B/G
24 855.25 I 24 575.25 B/G
25 855.25 B/G 25 599.25 B/G
26 55.25 M 26 767.25 B/G
27 83.25 M 27 183.25 M
28 183.25 M 28 193.25 M
29 193.25 M 29 112.25 B/G
30 217.25 M 30 168.25 B/G
31 471.25 M 31
32 477.25 M 32 294.25 B/G
33 693.25 M 33 463.25 B/G
34 34 174.95 B/G
35 112.25 B/G 35 175.55 B/G
36 168.25 B/G 36
37 37 599.25 B/G
38 294.25 B/G 38
39 463.25 B/G 39
40 40
41 647.25 B/G 41
42 663.25 B/G 42
43 679.25 B/G 43
44 174.95 B/G
45 175.55 B/G
MCL1 MCL2
SHIPPING SETTING & CHECKING
(1)The following default data has been factory-set for the E2PROM.
LAST PROGRAM/CHANNEL 1
FLASHBACK PROGARM/CH 1
*1: Please refer defaults for LANGUAGE and SOUND SYSTEM per MODEL as follows,
MODEL
F -10,000 40,000 12,300°K ENGLISH B/G
G 30,000 20,000 18,000°K ARABIC B/G
*G (Africa) -10,000 40,000 12,300°K ENGLISH B/G
Y 10,000 40,000 12,300°K ENGLISH B/G
*Note for OSD type
*OSD Lang. must be set in service mode, but it's better to write in E2PROM.
Language quantities are 6 as below:
English/Chinese/French/Arabic/Malay/Russian
ITEMS DATA SETTING
DIGIT 1
C-SYSTEM AUTO
S-SYSTEM *1
SKIP OFF
AFC ON
VOLUME 1
CONTRAST 60 (MAX)
COLOUR 0 (CENTER)
BRIGHTNESS 0 (CENTER)
TINT 0 (CENTER)
SHARPNESS 0 (CENTER)
WHITE TEMP STAND ARD
REMINDER TIMER In-active, "--:--"
ON TIMER In-activ e, "--:--"
OFF TIMER In-active, "--:--"
LAST POWER POWER-ON
LANGUAGE *1
BLUE BACK MUTE OFF
HOTEL MODE OFF
0 CHANNEL SKIP ON
MODEL LANGAUGE SOUND SYSTEM
3 ENGLISH B/G
4 ARABIC B/G
FACTORY SETTINGS BY MODELS
(Reference: Geomagnetism Adjustment)
Magnetic filed (V,H) nT
Background Lang. S-SYS
6-1 6-2
PIF ADJUSTMENT
NO. Adjustment par t Adjusting procedure and conditions Waveform and others
TUNER IFT
1
(PRESET)
2 RF-AGC
TAKE OVER
POINT
ADJUSTMENT
(I2C BUS
7
CONTROL)
1. Get the tuner ready to receive the E-9 CH signal, but with no signal input.
Adjust the PLL data.
2. Connect the sweep generator's output cable
to the tuner antenna. (RF SWEEP)
3. Adjust the sweep generator's to 80dBµV.
4. Connect the response lead (use LOW IMPEDANCE probe with wave detector; see Fig.1) to
the tuner's IF output terminal. (This terminal
must have the probe alone connected).
5. Set the RF AGC to 0 - 6 V with no saturation
with the waveform.
6. Adjust the tuner IF coil to obtain the waveform
as shown in Fig. 2.
Note:Be sure to keep the tuner cover in posi-
tion during this adjustment.
1. Receive "PAL COLOUR BAR" signal.
» Signal Strength: 57 ±1 dBµV (75 ohm open)
2. Connect the oscilloscope to TP201 (Tuner’s
AGC Terminal) as shown in Fig. 3.
Oscilloscope
+
0.1V
–
Bias box
+
–
» Bias box: About 4.5 V
Fig. 3
3. Call "AGC" mode in service mode. Adjust the
"AGC" bus data to obtain the Tuner output pin
drop 0.1 V below maximum voltage.
4. Change the antenna input signal to
63~67dBµV, and make sure there is no noise.
5. Turn up the input signal to 90~95 dBµV to be
sure that there is no cross modulation beat.
TP201
TV Set
1000p
1n60
10k
Oscilloscope
100k
Fig. 1
P C
Fig. 2
Note:
For the 50 ohm signal strength
gauge, when not using 50/75
impedance adapter, signal
strength is 52
open), instead of 57
(75 ohm open).
Precaution:
The loss of using impedance
adapter
75ohm
E-9 CH
-1.5+/-0.8dB
±1 dBµV(75 ohm
±1 dBµV
IF OUT
NO. Adjustment par t Adjusting procedure and conditions Waveform and others
PURITY
1
ADJUSTMENT
PURITY ADJUSTMENT
1. Receive the GREEN-ONLY signal. Adjust the
beam current to ~700 µA (21" & 20")/~500 µA
(14").
2. Degauss the CRT enough with the degausing
coil.
Note: Follow the Job Instruction Sheet to ad-
just the magnetic field.
Vertical Bv : +0.030 mT
Horizontal Bh : +0.020 mT
(Reference: page 8/21)
3. Maintain the purity magnet at the zero magnetic field and keep the static convergence
roughly adjusted.
4. Observe the points a, b as shown in Fig. 4-1
through the microscope. Adjust the landings
to the rank A requirements.
5. Orient the raster rotation to 0 eastward.
6. Tighten up the deflection coil screws.
» Tightening torque: 108 ± 20 N (11 ±2 kgf)
7. Make sure the CRT corners landing meet the
A rank requirements. If not, stick the magnet
sheet to correct it.
Note: This adjustment must be done after
warming up the unit for 30 minutes
or longer with a beam current over
µA. (21" & 20")
700
(For 14", the beam current should be
over 500
Note: Set the service mode by JA122 &
JA124 (short) then press factory process R/C RGB key to change to RGB
mono colour mode.
* For the following colours press R/C RGB k ey
to change.
Green only
(0.30 gauss)
(0.20 gauss)
µA).
Blue only
Signal colour
screen cleared
Red only
a
Fig. 4-1
A
Fig. 4-2
Rank "A"
(on the right of the CRT)
A
Fig. 4-3
Rank "A"
(on the left of the CRT)
* Press R/C RGB key for 1 second
in NORMAL MODE, the colour
will change to RGB mono colour
mode.
Text Key "R.G.Cy"" Key can be
directly use to change to other
colours screen.
b
B
A = B
B
A = B
7-1 7-2
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
CONVERGENCE ADJUSTMENT
NO. Adjustment par t Adjusting procedure and conditions Waveform and others
1
CONVERGENCE
ADJUSTMENT
(To be done
after the purity
adjustment.)
8
1. Receive the “Crosshatch Pattern” signal.
2. Using the remote controller, call NORMAL
mode.
Static convergence
1. Turn the 4-pole magnet to a proper opening
angle in order to superpose the blue and red
colours.
2. Turn the 6-pole magnet to a proper opening
angle in order to superpose the green colour
over the blue and red colours.
Dynamic convergence
1. Adjust the convergence on the fringes of the
screen in the following steps.
a) Fig. 5-1: Drive the wedge at point “a” and
swing the deflection coil upward.
b) Fig. 5-2: Drive the wedge at points “b” and
“c” and swing the deflection coil
downward.
c) Fig. 5-3: Drive the “c” wedge deeper and
swing the deflection coil rightward.
d) Fig. 5-4: Drive the “b” wedge deeper and
swing the deflection coil leftward.
2. Fix all the wedges on the CRT and apply glass
tape over them.
3. Apply lacquer to the deflection yoke lock screw ,
magnet unit (purity, 4-pole, 6-pole magnets)
and magnet unit lock screw.
Finally received the Red-only and Blue-only
signals to make sure there is no other colours
on the screen.
8-1 8-2
B
G
R
R
G
B
About
100°
Lacquer
Wedge
"b"
4-pole magnet
Purity magnet
Lacquer
BGR
Fig. 5-1
RGB
Fig. 5-2
RGB
Fig. 5-3
BGR
Fig. 5-4
Wedge "a"
Fig. 5-5
6-pole magnet
CRT neck
Fig. 5-6
B
G
R
R
G
B
About
100°
Wedge
"c"
20c
m
(21")
40
(14")
cm
CRT CUT-OFF, BACKGROUND AND SUB-CONTRAST ADJUSTMENT
NO. Adjustment par t Adjusting procedure and conditions Waveform and others
1
CRT CUTOFF
ADJUSTMENT
2
(I
C BUS
CONTROL)
2
SUBBRIGHTNESS
ADJUSTMENT
2
C BUS
(I
CONTROL)
3
WHITE
BALANCE
SERVICE
MODE
ADJUSTMENT
2
(I
C BUS
CONTROL)
4
MAXIMUM
BEAM CHECK
1. Switch TV to VIDEO mode, BLUE BACK OFF,
with NO VIDEO signal.
2. Press R/C to set Picture Normal condition.
3. Connect the oscilloscope to Red OUT from
IC801.(TP851 (14")/TP852 (20"/21"))
Range : 1 V/Div (DC)
Sweep : 5 msec/Div
4. Adjust SCREEN VR, so that the tip of signal
reach 3.0 ±0.1 Vdc.
1. Call “SUB-BRI” in service mode. (Receive
Crosshatch pattern with 5 black level windo ws)
2. Adjust the “SUB BRIGHT” bus data in order
that the line 1, 2 and 3 have the same darkness
wherelse line 4 is slightly brighter than line 1,
2 and 3 and finally line 5 will be the brighter
than line 4.
1. Receive the “WHITE” pattern with BURST signal.
2. Press R/C to set Picture NORMAL condition.
3. Connect the DC miliammeter between TP602
(-) and TP603 (+).
4. Check Beam current should be around 1,100 µA
(20"&21") (14" around 800 µA).
5. Set it to service mode and adjust the DRI-GS,
& DRI-BS data to have a colour temperature
of 12,300°K or 7,500°K (white).
* Note .
6. Receive “WHITE” pattern, WITH B URST signal,
and set BRIGHTNESS Y b y generator, to ** 10
cd/m2 (MINOLTA CA-100) by reducing
LUMINA TE Y signal.
7. Adjust “CUT-R” & “CUT-G” to get desired colour
temperature. Then go back NORMAL mode
(HIGH BRIGHT**) to check colour temperature.
If out 14” back to (1)
Note: This adjustment must be done after
warming up the unit for 30 minutes
or longer with a beam current over
µA. (20"&21")
700
(For 14", the beam current should be
over 500
µA)
* Adjust DRI-GC/GW, DR-BC/BW as following
data, after finishing DRI-BS and DRI-GS data
adjustment.
DRI-RW=32 (FIXED), DRI-GW=”DRI-
GS”-7*, DRI-BW=”DRI-BS”-7*
DRI-RC=25, DRI-BC=”DRI-BS”,
DRI-GC=”DRI-GS”-7*
1. Receive the “Monoscope Pattern” signal.
2. Press R/C to set Picture NORMAL condition.
3. Connect the DC miliammeter between TP603
(+) and TP602 (–).
(Full Scale: 3 mA Range)
4. Beam current must be within 1,100 ±100µA
(21") 800 ± 100 µA(14") .
3.0Vdc
1 V
0
Fig. 6
1 2 3 4 5
1, 2 and 3 are in same black level.
Fig. 7
Refer to Page ????.
* 12,300°K X : 0.272
Y : 0.275
* 18,000°K X : 0.255
Y : 0.255
(MINOLTA COLOUR ANALYZER
CA-100)
*Note: Above Data can be UP/
DOWN by Volume key.
LOW HIGH
14" 10 cd/m2 200 cd/m2
20"/21" 10 cd/m2 120 cd/m2
* 12,300°K DRI-GW=”DRI-GS”-7
DRI-BW=”DRI-BS”-7
* 18,000°K DRI-GC=”DRI-GS”
DATA-5
DRI-RC=27
HORIZONTAL, VERTICAL, DEFLECTION LOOP AND FOCUS ADJUSTMENT
NO. Adjustment part Adjusting procedure and conditions Waveform and others
1
V-SLOPE
2
C BUS
(I
CONTROL)
V-SHIFT-50
2
2
(I
C BUS
CONTROL)
V-AMP 50
3
(I2C BUS
CONTROL)
S-CORRECTION
4
(I2C BUS
CONTROL)
H-SHIFT (50)
5
(H-CENTER)
2
C BUS
(I
CONTROL)
1
FOCUS
ADJUSTMENT
1. Receive Monoscope Pattern Signal.
2. Call the “V-LIN” mode .
3. Increase or decrease “V-LIN” by Volume k ey till
the horizontal line in the center of monoscope is
just at the position where the blanking starts.
1. Call the “V-CENT” mode.
2. Increase or decrease “V -CENT” by Volume key
till the picture is centered.
1. Call the “V-AMP” mode.
2. Increase or decrease “V- AMP” by Volume key
to set overscan of 9.5% typical.
Adjustment Spec 9.5% range +1% -0%.
FIXED DATA, NO NEED TO ADJUST.
1. Call the “H-CENT” mode.
2. Increase or decrease “H-CENT” by Volume key
to center the picture horizontal.
1. Receive the “Monoscope Pattern” signal.
2. Press R/C to set Picture NORMAL condition.
3. Adjust the focus control to get the best focusing.
9
PAL CHROMA ADJUSTMENT
NO. Adjustment part Adjusting procedure and conditions Waveform and others
1 SUB COLOUR
2
C BUS
(I
CONTROL)
1. Receive the “P AL Colour Bar” signal.
2. Press R/C to set Picture Normal condition.
3. Connect the oscilloscope to Red cathode.
» Range : 20 V/Div. (AC) (Use 10:1 probe)
» Sweep time : 10 µsec/Div.
4. Using the R/C call “SUB COL” in SERVICE
mode. Adjust SUB COLOUR b us data, so that
the 75% White & Red portions of PAL Colour
Bar be at the same level shown as Fig. 8.
5. Clear the SERVICE mode.
W
75%
Y 100%W
Cy
Fig. 8
NTSC CHROMA ADJUSTMENT
NO. Adjustment par t Adjusting procedure and conditions Waveform and others
1 SUB-TINT
2
(I
C BUS
CONTROL)
1. Receive the “NTSC 3.58 Colour Bar” signal thru
AV in.
2. Connect the oscilloscope to TP853 (Pin (5) of
P882) BLUE-OUT.
» Range : 100 mV/Div. (AC)
(Use Probe 10:1)
» Sweep time: 10 µsec/Div.
3. Call the “SUB-TINT” mode in service mode.
Adjust the “SUB-TINT” bus data to obtain the
waveform shown as Fig. 9.
4. Clear the SERVICE mode.
SAME LEVEL
Y
W
Cy G Mg R
Fig. 9
B
PROTECTOR OPERATION CHECKING
NO. Adjustment par t Adjusting procedure and conditions Waveform and others
1 BEAM
PROTECTOR
2H, V
PROTECTOR
3 OTHER
PROTECTOR
G
B
1. Receive “Monoscope Pattern” signal.
2. Set CONTRAST MAX.
3. Set BRIGHT MAX.
4. During the Collector & Emitter of Q883/5/7
short, make sure the protector ON and switch
to standby mode.
1. Receive “Monoscope Pattern” signal.
2. Connect output of Bias Box to D607 cathode
(R606 side).
3. Set voltage of Bias Box to 18V and make sure
the protector is not work.
4. Set voltage of Bias Box to 27V, and make sure
the protector is work.
1. Once finish rectified Electrolytic Capacitor short
testing in +B line, check all possible damaged
components on +B line.
(Use random selected set for inspection)
* Select one of Q883/5/7 to do each
short test.
A/V INPUT AND OUTPUT CHECKING
NO. Adjustment par t Adjusting procedure and conditions Waveform and others
Mg R
1 VIDEO AND
AUDIO OUTPUT
CHECK
2 VIDEO AND
AUDIO INPUT
CHECK
1. Receive the “PAL Colour Bar” signal (100%
White Color Bar, Sound 400 Hz 100% Mod
C475.)
2. Terminate the Video output with a 75 ohm impedance. Mak e sure the output is as specified
(1.0 Vp-p ±3 dB).
3. Terminate the Audio output with a 10K ohm
impedance. Mak e sure the output is as specified (1.76 Vp-p ±3 dB).
1. Using the TV/AV key on the remote controller,
make sure that the modes change in order of
TV , A V1, A V2 & TV again and the video & audio
output are according to the input terminal for
each mode.
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
9-1 9-2
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
FUNCTION OPERATION CHECKING (VIDEO AND AUDIO)
NO. Adjustment par t Adjusting procedure and conditions Waveform and others
CONTRAST
1
KEY
2
COLOUR KEY
3
BRIGHTNESS
KEY
4 TINT KEY 1. Receive the “NTSC Colour Bar” signal thru AV
5
SHARPNESS
KEY
10
6
CH DISPLA Y
COLOUR
7
NORMAL KEY
8
WHITE TEMP
1. Receive “Monoscope Pattern” signal.
2. Set P-Mode to select CONTRAST.
3. Press Volume Up/Down key to check whether
the CONTRAST effect is OK or not.
1. Receive “Colour Bar” signal.
2. Set P-Mode to select COLOUR.
3. Press Volume Up/Down ke y to check whether
the COLOUR effect is OK or not.
1. Receive “Monoscope Pattern” signal.
2. Set P-Mode to select BRIGHTNESS.
3. Press Volume Up/Down ke y to chec k whether
the BRIGHTNESS effect is OK or not
in.
2. Set P-Mode to select TINT.
3. Press V olume Up/Do wn ke y to check TINT, UP
for GREEN direction and DOWN f or PURPLE
direction whether is OK or not.
1. Receive “Monoscope Pattern” signal.
2. Set P-mode to select SHARPNESS.
3. Press Volume Up/Down ke y to chec k whether
the SHARPNESS effect is OK or not.
1. All Ch (1~99) will have an OSD display of the
channel number in green colour under AFT ON
condition.
1. Once in PICTURE Mode, and the NORMAL
key is pressed, all the settings will be present
to normal setting.
(Normal setting value for every mode).
» CONTRAST : MAX
» COLOUR : CENTER
» BRIGHTNESS : CENTER
» TINT : CENTER
» SHARPNESS : CENTER
1. Receive “Monoscope Pattern” signal.
2. Set FUNCTION to select WHITE TEMP.
3. Press Volume Up/Down key to check WHITE
TEMP Option, STANDARD:
NORMAL SETTING, WARM for more REDDISH direction changing, COOL for more BLUISH direction changing.
Note:If nothing is display mean
contrast, colour, bright, tint
or sharpness are all in normal setting.
FUNCTION OPERATION CHECKING (VIDEO AND AUDIO)
(Continued)
NO. Adjustment part Adjusting procedure and conditions Waveform and others
9
COLOUR
SYSTEM
10
SOUND
SYSTEM
11
NOISE MUTE
CHECKING
12
OSD
LANGUA GE
QUANTITY
CHECK
1. Receive the “PAL COLOUR BAR” signal, press
the COLOUR SYSTEM key to select modes
except PAL, check the COLOUR is not working properly. Then, select the “PAL” mode.
Check again its colour so that it is working properly.
2. Receive “SECAM COLOUR BAR” signal,
press COLOUR SYSTEM key to select modes
except SECAM, check the COLOUR is not
working properly. Then, select the “SECAM”
mode. Check again its colour so that it is w orking properly.
3. Receive “NTSC 4.43/3.58 COLOUR BAR” signal thru AV, press COLOUR SYSTEM key to
select modes except N4.43/3.58, check the
COLOUR is not working properly. Then, select the “NTSC 4.43/3.58” mode. Check again
its colour so that it is working properly.
1. Receive “PAL-D/K” signal, press the “SOUND
SYSTEM” turn to B/G, I. Check the sound output is not working properly. Select D/K and
check the sound output to make sure it is working properly.
2. Receive “PAL-I” signal, press the “SOUND
SYSTEM” to select B/G, D/K. Chec k the sound
output is not working properly. Select I and
check the sound output to make sure it is working properly.
3. Receive “PAL-B/G” signal, press the “SOUND
SYSTEM” to select I, D/K. Check the sound
output is not working properly. Select B/G and
check the sound output to make sure it is working properly.
1. Receive “PAL COLOUR BAR” signal.
2. Turn up the volume control to maximum, make
sure the sound is heard from the speakers.
Then put the unit in no signal state.
3. Check the sound mute is effective.
4. Finally turn sound level of CTV to minimum.
There are six language as below;
English, Russian, Chinese, French, Arabic and
Malay.
10-1 10-2
MEMORY MAP
ADDRESS
(HEX) D7 D6 D5 D4 D3 D2 D1 D0
00 PASS WORD 55 00-FF
01
02
03
04
05
06
07
08
09
0A
0B
0C
0D
0E
0F
10
11
12
13
14
15
16
17
18
19
1A
1B
1C
1D
1E
1F
20
21
22
23
24
11
25
26
27
28
29
2A
2B
2C
2D
2E
2F
30
31
32
33
34
35
36
37
38
39
3A
3B
3C
3D
3E
3F
MODEL MODEL
LETTER NO. LETTER NO.
DATA
PASS WORD 4F 00-FF
PASS WORD 43 00-FF
PASS WORD A1 00-FF
AGC TAKE-OVER 0E 00-3F
V-SLOPE 20 00-3F
V-AMPLITUDE 20 00-3F
V-CENTER 20 00-3F
H-CENTER 20 00-3F
H-SIZE 20 00-3F
EW-PARALLELOGRAM 20 00-3F
EW-PARABOLA/WIDTH 20 00-3F
EW-UPPER CORNER 20 00-3F
EW-LOWER CORNER 20 00-3F
EW-TRAPEZIUM 20 00-3F
HORIZONTAL-BOW 20 00-3F
S-CORRECTION 00 00-3F
DRIVE-R (STANDARD) 20 00-3F
DRIVE-G (STANDARD) 20 00-3F
DRIVE-B (STANDARD) 20 00-3F
DRIVE-R (WARM) 20 00-3F
DRIVE-G (WARM) 20 00-3F
DRIVE-B (WARM) 20 00-3F
DRIVE-R (COOL) 19 00-3F
DRIVE-G (COOL) 20 00-3F
DRIVE-B (COOL) 20 00-3F
SUB-VOLUME 3F 00-3F
SUB-CONTRAST 3F 00-3F
SUB-COLOUR 20 00-3F
SUB-BRIGHTNESS 20 00-3F
SUB-TINT 20 00-3F
SUB-SHARPNESS 20 00-3F
HTL-VOLUME 20 00-3F
HTL-POSITION FF 00-FF
OSD-REFERENCE 0F 00-0F
CUTOFF LEVEL -OFFSET R 08 00-0F
CUTOFF LEVEL -OFFSET B 08 00-0F
CATHODE DRIVE LEVEL 00 00-0F
Y-DELAY (TV PAL) 0C 00-0F
Y-DELAY (TV SECAM) 0F 00-0F
Y-DELAY (TV N358) 0C 00-0F
Y-DELAY (TV N443) 0C 00-0F
Y-DELAY (TV BW) 0C 00-0F
Y-DELAY (AV PAL) 0C 00-0F
Y-DELAY (AV SECAM) 0F 00-0F
Y-DELAY (AV N443) 0C 00-0F
Y-DELAY (AV N358) 0C 00-0F
Y-DELAY (AV BW) 0C 00-0F
COLOUR-OFFSET (PAL) 08 00-0F
COLOUR-OFFSET (SECAM) 08 00-0F
COLOUR-OFFSET (N443) 04 00-0F
COLOUR-OFFSET (N358) 04 00-0F
SHARPNESS-OFFSET (PAL) 08 00-0F
MICON EEPROM EEPROM CHASSIS CTV FINAL
DEFAULT RANGE
WRITE(CPU) CHECK DATA CHECK TYPE CHECK DATA CHECK TYPE
LAST INITIAL
SETTING DATA
REMARK
ADDRESS
(HEX)
D7 D6 D5 D4 D3 D2 D1 D0
40
41
42
43
FCO ACL OSO EHT EVG FFI AVL BKS
44
SCM N443 N358 PB-SEC BG I DK M
45
SM FMWS AV BTSC HTL VMC VMI
46
HP2 FSL RUS FRA CHN MLY ARB THA
47
48
49
4A
4B
4C
4D
4E
4F
50
51
52
53
54
55
56
57
58
59
5A
5B
5C
5D
5E
5F
60
61
SKIP 0 SKIP 1 SKIP 2 SKIP 3 SKIP 4 SKIP 5 SKIP 6 SKIP 7
62
SKIP 8 SKIP 9 SKIP 10 SKIP 11 SKIP 12 SKIP 13 SKIP 14 SKIP 15
63
SKIP 16 SKIP 17 SKIP 18 SKIP 19 SKIP 20 SKIP 21 SKIP 22 SKIP 23
64
SKIP 24 SKIP 25 SKIP 26 SKIP 27 SKIP 28 SKIP 29 SKIP 30 SKIP 31
65
SKIP 32 SKIP 33 SKIP 34 SKIP 35 SKIP 36 SKIP 37 SKIP 38 SKIP 39
66
SKIP 40 SKIP 41 SKIP 42 SKIP 43 SKIP 44 SKIP 45 SKIP 46 SKIP 47
67
SKIP 48 SKIP 49 SKIP 50 SKIP 51 SKIP 52 SKIP 53 SKIP 54 SKIP 55
68
SKIP 56 SKIP 57 SKIP 58 SKIP 59 SKIP 60 SKIP 61 SKIP 62 SKIP 63
69
SKIP 64 SKIP 65 SKIP 66 SKIP 67 SKIP 68 SKIP 69 SKIP 70 SKIP 71
6A
SKIP 72 SKIP 73 SKIP 74 SKIP 75 SKIP 76 SKIP 77 SKIP 78 SKIP 79
6B
SKIP 80 SKIP 81 SKIP 82 SKIP 83 SKIP 84 SKIP 85 SKIP 86 SKIP 87
6C
SKIP 88 SKIP 89 SKIP 90 SKIP 91 SKIP 92 SKIP 93 SKIP 94 SKIP 95
6D
SKIP 96 SKIP 97 SKIP 98 SKIP 99
6E
6F
70
71
72
73
74
75
76
77
78
79
7A
7B
7C
7D
7E
7F
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
MODEL MODEL
DATA
SHARPNESS-OFFSET (SECAM)
SHARPNESS-OFFSET (N443)
SHARPNESS-OFFSET (N358)
AGC BIL OBA
VOLUME
CONTRAST
COLOUR
BRIGHTNESS
TINT
SHARPNESS
POSITION/AV1/AV2
FAV-POS A
FAV-POS B
FAV-POS C
FAV-POS D
POWER
WHITE-TEMP
BLUE BACK
LANGUAGE
DIGIT
TUNING FREQUENCY (HIGHER PART)
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART)
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART)
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 3
TUNING FREQUENCY (LOWER PART)
MICON EEPROM EEPROM CHASSIS CTV FINAL
DEFAULT RANGE
04 00-0F
0C 00-0F
08 00-0F
01 00-3C
3C 00-3C
1E 00-3C
1E 00-3C
1E 00-3C
1E 00-3C
01 00-FF
0A 00-FF
14 00-FF
1E 00-FF
28 00-FF
00 00-01
00 00-02
00 00-01
00 00-07
00 00-01
80 00-FF
00 00-FF
00 00-FF
00 00-FF
00 00-FF
00 00-FF
00 00-FF
00 00-FF
00 00-FF
00 00-FF
00 00-FF
00 00-FF
00 00-FF
WRITE(CPU) CHECK DATA CHECK TYPECHECK DATA CHECK TYPE
00-FF
00-FF
00-FF
00-FF
00-FF
S-SYS
000:BG
001:I
O1O:DK
011:M
AFT
0:OFF
1:ON
LAST INITIAL
SETTING DATA
REMARK
POS 0
POS 1
POS 2
20BM2, 20BM2S/G
21BM2, 21BM2S/G
14BM2, 14BM2S/G
LETTER NO. LETTER NO.
11-1 11-2
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
ADDRESS
(HEX) D7 D6 D5 D4 D3 D2 D1 D0
80
81
12
82
83
84
85
86
87
88
89
8A
8B
8C
8D
8E
8F
90
91
92
93
94
95
96
97
98
99
9A
9B
9C
9D
9E
9F
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
AA
AB
AC
AD
AE
AF
B0
B1
B2
B3
B4
B5
B6
B7
B8
B9
BA
BB
BC
BD
BE
BF
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
MODEL MODEL
DATA
TUNING FREQUENCY (HIGHER PART) POS 4
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 5
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 6
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 7
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 8
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 9
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 10
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 11
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 12
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 13
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 14
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 15
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 16
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 17
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 18
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 19
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 20
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 21
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 22
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 23
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 24
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 25
MICON EEPROM EEPROM CHASSIS CTV FINAL
DEFAULT RANGE
WRITE(CPU) CHECK DATA CHECK TYPE CHECK DATA CHECK TYPE
LAST INITIAL
SETTING DATA
REMARK
ADDRESS
(HEX) D7 D6 D5 D4 D3 D2 D1 D0
C0
C1
C2
C3
C4
C5
C6
C7
C8
C9
CA
CB
CC
CD
CE
CF
D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
DA
DB
DC
DD
DE
DF
E0
E1
E2
E3
E4
E5
E6
E7
E8
E9
EA
EB
EC
ED
EE
EF
F0
F1
F2
F3
F4
F5
F6
F7
F8
F9
FA
FB
FC
FD
FE
FF
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
MODEL MODEL
DATA
TUNING FREQUENCY (LOWER PART) POS 25
TUNING FREQUENCY (HIGHER PART) POS 26
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 27
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 28
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 29
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 30
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 31
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 32
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 33
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 34
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 35
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 36
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 37
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 38
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 39
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 40
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 41
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 42
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 43
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 44
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 45
TUNING FREQUENCY (LOWER PART)
MICON EEPROM EEPROM CHASSIS CTV FINAL
DEFAULT RANGE
WRITE(CPU) CHECK DATA CHECK TYPE CHECK DATA CHECK TYPE
LAST INITIAL
SETTING DATA
REMARK
POS 46
LETTER NO. LETTER NO.
12-1 12-2
LETTER NO. LETTER NO.
ADDRESS
(HEX) D7 D6 D5 D4 D3 D2 D1 D0
100
101
102
13
103
104
105
106
107
108
109
10A
10B
10C
10D
10E
10F
110
111
112
113
114
115
116
117
118
119
11A
11B
11C
11D
11E
11F
120
121
122
123
124
125
126
127
128
129
12A
12B
12C
12D
12E
12F
130
131
132
133
134
135
136
137
138
139
13A
13B
13C
13D
13E
13F
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
MODEL MODEL
DATA
TUNING FREQUENCY (HIGHER PART) POS 47
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 48
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 49
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 50
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 51
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 52
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 53
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 54
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 55
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 56
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 57
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 58
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 59
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 60
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 61
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 62
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 63
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 64
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 65
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 66
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 67
TUNING FREQUENCY (LOWER PART)
MICON EEPROM EEPROM CHASSIS CTV FINAL
DEFAULT RANGE
WRITE(CPU) CHECK DATA CHECK TYPE CHECK DATA CHECK TYPE
LAST INITIAL
SETTING DATA
REMARK
POS 46
ADDRESS
(HEX) D7 D6 D5 D4 D3 D2 D1 D0
140
141
142
143
144
145
146
147
148
149
14A
14B
14C
14D
14E
14F
150
151
152
153
154
155
156
157
158
159
15A
15B
15C
15D
15E
15F
160
161
162
163
164
165
166
167
168
169
16A
16B
16C
16D
16E
16F
170
171
172
173
174
175
176
177
178
179
17A
17B
17C
17D
17E
17F
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
MODEL MODEL
DATA
TUNING FREQUENCY (HIGHER PART) POS 68
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 69
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 70
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 71
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 72
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 73
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 74
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 75
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 76
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 77
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 78
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 79
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 80
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 81
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 82
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 83
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 84
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 85
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 86
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 87
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 88
TUNING FREQUENCY (LOWER PART)
MICON EEPROM EEPROM CHASSIS CTV FINAL
DEFAULT RANGE
WRITE(CPU) CHECK DATA CHECK TYPE CHECK DATA CHECK TYPE
LAST INITIAL
SETTING DATA
REMARK
POS 89
20BM2, 20BM2S/G
21BM2, 21BM2S/G
14BM2, 14BM2S/G
LETTER NO. LETTER NO.
13-1 13-2
LETTER NO. LETTER NO.
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
ADDRESS
(HEX) D7 D6 D5 D4 D3 D2 D1 D0
180
181
182
183
14
184
185
186
187
188
189
18A
18B
18C
18D
18E
18F
190
191
192
193
194
195
196
197
198
199
19A
19B
19C
19D
19E
19F
1A0
1A1
1A2
1A3
1A4
1A5
1A6
1A7
1A8
1A9
1AA
1AB
1AC
1AD
1AE
1AF
1B0
1B1
1B2
1B3
1B4
1B5
1B6
1B7
1B8
1B9
1BA
1BB
1BC
1BD
1BE
1BF
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
S-SYS AFT (auto) C-SYS
MODEL MODEL
DATA
TUNING FREQUENCY (HIGHER PART) POS 90
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 91
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 92
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 93
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 94
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 95
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 96
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 97
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 98
TUNING FREQUENCY (LOWER PART)
TUNING FREQUENCY (HIGHER PART) POS 99
TUNING FREQUENCY (LOWER PART)
(auto) C-SYS
(auto) C-SYS
MICON EEPROM EEPROM CHASSIS CTV FINAL
DEFAULT RANGE
WRITE(CPU) CHECK DATA CHECK TYPE CHECK DATA CHECK TYPE
LAST INITIAL
SETTING DATA
REMARK
POS 89
AV1
AV2
LETTER NO. LETTER NO.
14-1 14-2
UA1 HOTEL MODE APPLICATION NOTE
The purpose of this HOTEL MODE is to enable hotel authorized person to store the tuned
programs as hotel channels, current volume as hotel volume (maximum volume), picture and
sound setting. In addition, The user will not be able to select Preset and Channel-setting functions.
How to enable/disable the “Hotel Mode” ?
Ans: a) Select BLUE BACK function (under MENU-FEATURE selection) by R/C,
press the -/— (one/two digit) key and keep pressing it for five second, then you can
see the hotel mode with four digits password.
b) Key in the four digits password starting with number “1”, “3”, “7”, “9”, then the hotel
mode will be ENABLE condition, you can switch on/off the hotel mode by using R/C
(volume up/down) key.
TROUBLE SHOOTING TABLE
Abnormal
Check R701, R707 and
D709.
NO RASTER
Check F701.
Normal
Check T701 pin (7) voltage
(Approx. 310V at 220V AC)
Normal
Blown out.
Replace the fuse.
The fuse is blown out again.
Check IC701, D701 and
C707.
HOTEL MODE ON
PASSWORD ****
Set VOL UP/DOWN by R/C key.
Input 1, 3, 7 and 9 by R/C key.
#1 Ch 1 is your selected
* We recommend:
15
Before set the hotel mode, it is better to choose CH 1 & set SOUND VOLUME level Up to
75% full scale.
channel for hotel mode.
After set hotel mode, starting channel will be always ch 1 & maximum sound level out will
be set to 75% of full scale.
* If you set hotel mode in AV, starting channel will be the last ch which you received before
power off (same as normal operation).
CONDITION:
When using hotel mode, the user can ONLY control PICTURE, SOUND and FEATURE
selection. But, It will return to the previous hotel mode setting condition, after power off.
The user can’t use: — CH-SETTING (OSD become violet) and Preset. Other functions is
allowed to be used.
Check Secondary Main+B
T701 pin (17) voltage
Abnormal Normal
Check D758, IC702, IC753
and R712.
Normal
Check R615 and R618.
(Approx. 115V)
Check CRT connector
K1-K5 bias.
Normal Abnormal
NO
Check
IC801.
Check
C787.
Does horizontal circuit
oscillate ?
Check IC801, IC751, D605
and Q601.
D1001 (Power LED Green)
turns on.
YES
D1001 (Power LED Red)
turns on or turns ON/OFF.
ON/OFF ON
NO
Checking the
protector circuit.
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
15-1 15-2
TROUBLE SHOOTING TABLE (Continued) TROUBLE SHOOTING TABLE (Continued)
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
CIRCUITS TO BE CHECKED:
Tuner.
PIF.
Automatic Gain Control.
(5V), (33V) Power Source.
Check the tuner supply voltage LB must
be approx. 5V. BT must be approx. 33V
and CH preset data check.
Check pin (38) of
IC801.
16
NO PICTURE, NO SOUND
Does the noise level increase at max.
Contrast, Brightness and Sound controls ?
Noise increases but no signal is
received.
Normal
Check the tuner AGC
at TP201.
AbnormalNormal
Check pin (27) of
IC801, Tuner and
related circuit.
No snow noise.
Does signal appear at pin (40) of
IC801 ?
NO
Does noise or
signal appear at
pin (38) of IC801 ?
NO
Does noise or signal
appear at pins (23)
and (24) of IC801.
NO
Check pin (1) of
SF201, Tuner and
related circuit.
Check IC801 and
its related circuit.
YES
Check Q205 and
its related circuit.
YES
Check pin (37) of
IC801 and related
circuit.
YES
HORIZONTAL SYNCHRONIZATION
CIRCUIT TO BE CHECKED:
Sync. Separator Circuit.
DEFECTIVE VERTICAL AMP.
NEITHER VERTICAL NOR
Check pins (16), (17) and
(34) of IC801.
AND VERTICAL LINEARITY
Readjust Vertical Size.
(Bus Data)
Vertical Linearity and Size
are abnormal.
Check R503, R504, R506,
R513, C517 and D501.
CIRCUITS TO BE CHECKED:
» Sound system pins (28) and
(44) of IC801.
» Sound Detector Circuit.
» Sound Switch and Att.
Control.
» Audio Output Circuit.
NO SOUND
Does signal appear at pin
(44) of IC801 ?
YES
(Signal)
Does signal appear at pins
(6) and (8) of IC301 ?
YES
Check P301 connector of
IC301 and peripheral circuit.
16-1 16-2
NO
NO
Does signal appear at pin (28)
of IC801?
YES
Check C356 and
peripheral circuit.
Check Q301, pins (4) and (6)
of IC801 and peripheral
circuit.
NO
Check IC801.
NO VERTICAL SCAN
Normal Abnormal
Check pins (21) and (22) of
IC801.
Check IC501 Bias pins (3)
and (6).
Check C503, C507 and
power supply circuit.
TROUBLE SHOOTING TABLE (Continued)
NO SPECIFIC COLOUR
NO YES
Is some colour produced in
B/W broadcast reception ?
YES
Check IC801, R801, R802,
R803, D804, D805, D806
and Q801.
Is the white balance properly
adjusted ?
Readjust the white balance.
The picture colour is yellow.The picture colour is magenta.The picture colour is cyan.
NO
Check Q870, Q885 and its
adjacent circuits (for 20"&21").
Check Q871, Q883 and its
17
adjacent circuits (for 14").
Check Q871, Q883 and its
adjacent circuits (for 20"&21").
Check Q870, Q885 and its
adjacent circuits (for 14").
Check Q872, Q887 and its
adjacent circuits.
NO SPECIFICATION COLOUR
“PAL/SECAM”
(NO COLOUR SYNCHRONIZATION)
Check IC801 and Bias
control circuit.
Normal
Check X1001(12 MHz).
17-1 17-2
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
SOLID STATE DEVICE BASE DIAGRAM
TOP VIEW
85
14
M24C04W
64 33
132
IX3368CE
SIDE VIEW
BASE
COLLECTOR
EMITTER
2SC1815
43
12
FX0008GE D601A
COLLECTOR
JC
BASE EMITTER
2SC2735
BASE
COLLECTOR
EMITTER
123
PST573J
2SC2482
COLLECTOR
2R
BASE EMITTER
SE115N
COLLECTOR
:BR:
BASE EMITTER
B709A
+ ~ ~ -
DX0386CE
BCE
2SD1877(14")
2SD2586(20" & 21")
1
3
TA48M033
ANODE
(RED)
CATHODE
(COMMON)
ANODE
(GREEN)
PX0423CE
STRF6653(14")
STRF6654(20" & 21")
123
KA7808
KA7805
EMITTER
BF421
BF422
24
135
TDA8357
BASE
COLLECTOR
9
LA7016
TDA7056A
18
CHASSIS LAYOUT : 14BM2S/G
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
19
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
CHASSIS LAYOUT : 20BM2S/G
20
CHASSIS LAYOUT : 21BM2S/G
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
21
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
J
I
H
MAIN UNIT BLOCK DIAGRAM
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
G
F
E
D
C
B
A
1234567891011 12 13 14 15 16 17 18 19 20
22~23
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
BLOCK DIAGRAM
CRT UNIT BLOCK DIAGRAM : 14BM2S/G
CRT UNIT BLOCK DIAGRAM : 20BM2S/G/21BM2S/G
24
WA VEFORMS
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
1 1.00Vp-p 14"
1.12Vp-p 21" & 20"
6 66.0Vp-p 14"
80.0Vp-p 21" & 20"
2 2.50Vp-p 14"
3.17Vp-p 21" & 20"
7 72.0Vp-p 14"
87.2Vp-p 21" & 20"
3 2.55Vp-p 14"
3.11Vp-p 21" & 20"
8 3.00Vp-p 14"
3.11Vp-p 21" & 20"
4 3.35Vp-p 14"
3.11Vp-p 21" & 20"
9 1.85Vp-p 14"
1.93Vp-p 21" & 20"
5 68.0Vp-p 14"
83.8Vp-p 21" & 20"
0 150Vp-p 14"
133Vp-p 21" & 20"
q 8.40Vp-p 14"
8.48Vp-p 21" & 20"
y 1,050Vp-p 14"
980Vp-p 21" & 20"
w 1.30Vp-p 14"
1.17Vp-p 21" & 20"
u 2.40Vp-p 14"
2.60Vp-p 21" & 20"
e 0.98Vp-p 14"
0.91Vp-p 21" & 20"
i 500Vp-p 14"
510Vp-p 21" & 20"
25
r 43.0Vp-p 14"
48.0Vp-p 21" & 20"
t 190.0Vp-p 14"
130.5Vp-p 21" & 20"
DESCRIPTION OF SCHEMATIC DIAGRAM
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
SAFETY NOTES:
1. DISCONNECT THE AC PLUG FROM THE AC OUTLET BEFORE
REPLACING PARTS.
2. SEMICONDUCTOR HEAT SINKS SHOULD BE REGARDED AS
POTENTIAL SHOCK HAZARDS WHEN THE CHASSIS IS OPERATING.
IMPORTANT SAFETY NOTICE:
PARTS MARKED WITH “å” ( ) ARE IMPORTANT FOR
MAINTAINING THE SAFETY OF THE SET. BE SURE TO REPLACE THESE PARTS WITH SPECIFIED ONES FOR MAINTAINING THE SAFETY AND PERFORMANCE OF THE SET.
SERVICE PRECAUTION:
THE AREA ENCLOSED BY THIS LINE (
CONNECTED WITH AC MAINS VOLTAGE.
WHEN SERVICING THE AREA, CONNECT AN ISOLATING TRANSFORMER BETWEEN TV RECEIVER AND AC LINE TO ELIMINATE
HAZARD OF ELECTRIC SHOCK.
) IS DIRECTLY
NOTES:
1. The unit of resistance “ohm” is omitted.
(K = 1000 ohms, M = Meg ohm).
2. All resistors are 1/16 watt, unless otherwise noted.
3. Unit of all capacitors are F with prefix symbol (
µ,
P, ETC) .
VOLTAGE MEASUREMENT CONDITIONS:
1. Voltage in parenthesis measured with no Signal.
2. Voltages without parenthesis measured with PAL Colour-Signal.
3. All the voltages in each point are measured with high impedence
volt-meter.
WAVEFORM MEASUREMENT CONDITIONS:
1. Colour bar generator signal of 1.8V peak to peak applied at Base
of Video Buffer Amp. Q203.
2. Approximately 4.0 V AGC bias.
27
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
J
I
H
MAIN UNIT : 14BM2S/G
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
G
F
E
D
C
B
A
1234567891011 12 13 14 15 16 17 18 19 20
28~29
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
J
I
H
MAIN UNIT : 20BM2S/G
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
G
F
E
D
C
B
A
1234567891011 12 13 14 15 16 17 18 19 20
30~31
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
J
I
H
MAIN UNIT : 21BM2S/G
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
G
F
E
D
C
B
A
1234567891011 12 13 14 15 16 17 18 19 20
32~33
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
J
H
G
CRT UNIT : 14BM2S/G
I
F
CRT UNIT : 20BM2S/G
E
D
C
B
A
12345678910
34
CRT UNIT : 21BM2S/G
J
I
H
G
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
F
E
D
C
B
A
12345678910
35
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
J
I
H
PRINTED WIRING BOARD ASSEMBLIES
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
G
F
E
D
C
B
A
1234567891011 12 13 14 15 16 17 18 19 20
PWB-A: MAIN Unit (Wiring Side)
36~37
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
J
I
H
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
G
F
E
D
C
B
A
1234567891011 12 13 14 15 16 17 18 19 20
PWB-A: MAIN Unit (Chip Parts Side)
38~39
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
J
I
H
G
F
E
D
C
B
PWB-B: CRT Unit (Wiring Side)
A
12345678910
40
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
REPLACEMENT PARTS LIST
PARTS REPLACEMENT
Replacement parts which have these special safety characteristics
identified in this manual: electrical components having such features
are identified by "å" in the Replacement Parts Lists.
The use of a substitute replacement part which does not have the
same safety characteristics as the factory recommended replacement parts shown in this service manual may create shock, fire or
other hazards.
"HOW TO ORDER REPLACEMENT PARTS"
To have your order filled promptly and correctly, please furnish the
following informations.
1. MODEL NUMBER 2. REF. NO.
3. PART NO. 4. DESCRIPTION
MARK ★: SPARE PARTS-DELIVERY SECTION
Ref. No. Part No. ★ Description Code
PICTURE TUBE
å VB37GDA86X/1E R Picture Tube (14BM2S/G) CB
å VB510CKAY1S3E R Picture Tube (20BM2S/G) CA
å VB51JSY63X/*S R Picture T ube (21BM2S/G) CE
å L708 RCiLG0068PEZZ R Degaussing Coil AH
(14BM2G)
å L708 RCiLG0095PEZZ R Degaussing Coil AH
(14BM2S/G(Y))
å L708 RCiLG0074PEZZ R Degaussing Coil AQ
(20BM2S/G)
å L708 RCiLG0069PEZZ R Degaussing Coil AR
(21BM2S/G)
RCiLH0149PEZZ R Deflection Yok e BA
(14BM2S/G)
RCiLH0146PEZZ R Deflection Yok e BF
(21BM2S/G)
PMAGF3045CEZZ R Magnet(14BM2S/G) AG
PMAGF3046CEZZ R Magnet(21BM2S/G) AF
QEARC1422PEZZ R Grounding Strap AD
(14BM2S/G)
QEARC2017PEZZ R Grounding Strap AE
(20BM2S/G)
QEARC2107PEZZ R Grounding Strap AE
(21BM2S/G)
DUNTK9988WEV6(14BM2S/G(Y))
DUNTK9988WEV7(14BM2G)
DUNTK9988WEW0(20BM2S)
DUNTK9988WEW1(20BM2G)
DUNTK9988WEW4(21BM2S/G)
PWB-A : MAIN UNIT
TUNER
NOTE: THE PARTS HERE SHOWN ARE SUPPLIED AS AN
ASSEMBLY BUT NOT INDEPENDENTLY.
å TU201 VTUATEDE9-023 R VHF Tuner(20BM2S/G) BB
å TU201 VTUVTST5HD84/ R VHF T uner BB
(14BM2S/G/21BM2S/G)
INTEGRATED CIRCUITS
IC301 VHiTDA7056A-1 R TDA7056A AP
IC304 VHiLA7016//-1 R LA7016, Audio SW AH
IC501 VHiTDA8357/-1 R TDA8357 AN
IC402 VHiLA7016//-1 R LA7016, Video SW AH
IC605 VHiKA7808AP-1 R KA7808AP AE
IC701 VHiSTRF6654-1 R STRF6654 AX
(20BM2S/G/21BM2S/G)
IC701 VHiSTRF6653-1 R STRF6653(14BM2S/G) AS
IC751 VHiTA48M033-1 R T A48M033 AH
IC753 VHiSE115N//-1 R SE115N AF
IC801 RH-iX3368CEN3 R IX3368CE BC
IC1002 VHiPST573J/-1 R PST573J, Reset AE
IC1003 VHiM24C04W/-1 R M24C04W AG
IC1005 VHiKA7805AP-1 R KA7805AP AE
TRANSISTORS
Q201 VS2SC2735//1E R 2SC2735 AC
Q203 VS2SD601A//-1 R 2SD601A AC
Q205 VS2SC1815GW-1 R 2SC1815GW AB
Q301 VS2SD601A//-1 R 2SD601A AC
Q302 VS2SD601A//-1 R 2SD601A AC
Q305 VS2SD601A//-1 R 2SD601A AC
Q601 VS2SC2482//-1 R 2SC2482 AD
Q602 VS2SD1877//1E R 2SD1877(14BM2S/G) AL
Q602 VS2SD2586//1E R 2SD2586 AM
(20BM2S/G/21BM2S/G)
Q603 VS2SD601A//-1 R 2SD601A AC
Q723 VS2SD601A//-1 R 2SD601A AC
Q752 VS2SC1815GW-1 R 2SC1815GW AB
Q753 VS2SC1815GW-1 R 2SC1815GW AB
Q801 VS2SB709A//-1 R 2SB709A AA
Q802 VS2SB709A//-1 R 2SB709A AA
Q1003 VS2SD601A//-1 R 2SD601A AC
Q1010 VS2SD601A//-1 R 2SD601A AC
PRINTED WIRING BOARD ASSEMBLIES
(NOT REPLACEMENT ITEM)
PWB-A DUNTK9988WEV6 - Main Unit(14BM2S/G(Y))—
PWB-A DUNTK9988WEV7 - Main Unit(14BM2G) —
PWB-A DUNTK9988WEW0 - Main Unit(20BM2S) —
PWB-A DUNTK9988WEW1 - Main Unit(20BM2G) —
PWB-A DUNTK9988WEW4 - Main Unit(21BM2S/G) —
PWB-B DUNTK9990WEV0 - CRT Unit(14BM2S/G(Y))—
PWB-B DUNTK9990WEV3 - CRT Unit(14BM2G) —
PWB-B DUNTK9990WEV6 - CRT Unit(20BM2S) —
PWB-B DUNTK9990WEV7 - CRT Unit(20BM2G) —
PWB-B DUNTK9990WEV9 - CRT Unit(21BM2S/G) —
DIODES
D201 RH-EX0676GEZZ R Zener Diode AA
D301 RH-DX0475CEZZ R DX0475CE AB
D305 RH-EX0631GEZZ R Zener Diode AA
D308 RH-EX0631GEZZ R Zener Diode AA
D311 VHDRL3Z////-1 R RL3Z AE
D401 RH-EX0631GEZZ R Zener Diode AA
D402 RH-EX0631GEZZ R Zener Diode AA
D501 RH-EX0640GEZZ R Zener Diode AA
D502 RH-DX0475CEZZ R DX0475CE AB
D503 RH-DX0475CEZZ R DX0475CE AB
D504 RH-DX0475CEZZ R DX0475CE AB
D505 RH-DX0127CEZZ R DX0127CE AC
D507 RH-DX0475CEZZ R DX0475CE AB
D508 RH-EX0647GEZZ R Zener Diode AA
D509 RH-EX0647GEZZ R Zener Diode AA
D510 RH-EX0867CEZZ R Zener Diode AC
D511 RH-EX0867CEZZ R Zener Diode AC
D512 RH-DX0475CEZZ R DX0475CE AB
D513 RH-DX0475CEZZ R DX0475CE AB
D514 RH-EX0903CEZZ R Zener Diode AC
D515 RH-EX0903CEZZ R Zener Diode AC
D602 RH-DX0475CEZZ R DX0475CE AB
D603 RH-DX0131CEZZ R DX0131CE AC
41
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
D604 RH-DX0475CEZZ R DX0475CE AB
D605 RH-EX0840CEZZ R Zener Diode AC
D606 RH-DX0475CEZZ R DX0475CE AB
D607 RH-EX0658GEZZ R Zener Diode AA
(20BM2S/G/21BM2S/G)
D607 RH-EX0662GEZZ R Zener Diode(14BM2S/G) AB
D608 RH-EX0604GEZZ R Zener Diode AB
D609 RH-DX0475CEZZ R DX0475CE AB
D610 RH-EX0662GEZZ R Zener Diode AB
D611 RH-DX0302CEZZ R DX0302CE AC
D612 RH-EX0627GEZZ R Zener Diode AA
D613 RH-DX0475CEZZ R DX0475CE AB
D614 RH-DX0475CEZZ R DX0475CE AB
D701 RH-DX0386CEZZ R DX0386CE AG
D702 VHD1SS82///1A R 1SS82 AC
D705 RH-DX0492CEZZ R DX0492CE AE
D706 VHD1SS82///1A R 1SS82 AC
D707 VHD1SS82///1A R 1SS82 AC
D708 RH-DX0400CEZZ R DX0400CE AC
D709 RH-DX0164CEZZ R DX0164CE AC
D710 RH-EX0601GEZZ R Zener Diode AA
D711 VHD1SS82///1A R 1SS82 AC
D713 RH-EX0621GEZZ R Zener Diode AB
D750 RH-DX0475CEZZ R DX0475CE AB
D752 RH-DX0475CEZZ R DX0475CE AB
D753 RH-DX0471CEZZ R DX0471CE AE
D758 RH-DX0461CEZZ R DX0461CE AG
D760 RH-DX0475CEZZ R DX0475CE AB
D763 RH-DX0475CEZZ R DX0475CE AB
D801 RH-DX0475CEZZ R DX0475CE AB
D802 RH-DX0475CEZZ R DX0475CE AB
D803 RH-DX0475CEZZ R DX0475CE AB
D804 RH-DX0475CEZZ R DX0475CE AB
D805 RH-DX0475CEZZ R DX0475CE AB
D806 RH-DX0475CEZZ R DX0475CE AB
D1001 RH-PX0423CEZZ R PhotoDiode AD
D1004 RH-DX0475CEZZ R DX0475CE AB
D1007 RH-EX0867CEZZ R Zener Diode AC
D1008 RH-EX0867CEZZ R Zener Diode AC
D1009 RH-EX0867CEZZ R Zener Diode AC
D1010 RH-EX0867CEZZ R Zener Diode AC
D1011 RH-EX0627GEZZ R Zener Diode AA
å IC702 RH-FX0008GEZZ R PC123FY8 AE
å VA700 RH-VX0047CEZZ R Varistor AF
PACKAGED CIRCUITS
PR701 RMPTP0001PEZZ R Packaged Circuit AN
(20BM2S/G/21BM2S/G)
PR702 RMPTP0028CEZZ R Packaged Circuit AG
(14BM2S/G)
X1001 RCRSB0281CEZZ R Crystal, 12MHz AG
FILTERS
CF201 RFiLC0024CEZZ R Filter, FiLC0024CE AE
CF202 RFiLC0318CEZZ R Filter, FiLC0318CE AG
SF201 RFiLC0442CEZZ R Filter, FiLC0442CE AL
COILS
L202 VP-DF270K0000 R Peaking, 27µHAB
L203 VP-DF270K0000 R Peaking, 27µHAB
L204 VP-XF1R2K0000 R Peaking, 1.2µHAB
L205 VP-DF1R0K0000 R Peaking, 1µHAB
L207 VP-DF1R0K0000 R Peaking, 1µHAB
L208 VP-XF100K0000 R Peaking, 10µHAB
L209 VP-XF6R8K0000 R Peaking, 6.8µHAB
L301 VP-DF1R0K0000 R Peaking, 1µHAB
L401 VP-DF1R0K0000 R Peaking, 1µHAB
L601 VP-CF1R0M0000 R Peaking, 1µHAB
L603 RCiLP0225CEZZ R Coil, CiLP0225CE AF
å L702 RCiLF0019PEZZ R Coil, CiLF0019PE AN
L802 VP-DF100K0000 R Peaking, 10µHAB
L803 VP-DF100K0000 R Peaking, 10µHAB
L1030 VP-DF100K0000 R Peaking, 10µHAB
L1050 VP-DF100K0000 R Peaking, 10µHAB
L1051 VP-DF100K0000 R Peaking, 10µHAB
å T601 RTRNZ0026PEZZ R Transformer AH
å T602 RTRNF0187PEZZ R H-Volt Transformer AY
å T602 RTRNF0194PEN1 R H-V olt Transformer AZ
å T603 RTRNZ0179CEZZ R Transformer(14BM2S/G) AE
å T701 RTRNZ0180PEZZ R Transformer(14BM2S/G(Y))AN
å T701 RTRNZ0140PEZZ R Transformer(14BM2G) AQ
å T701 RTRNZ0181PEZZ R Transformer AN
C200 VCEA0A1CW476M R 47 16V Electrolytic AB
C203 VCKYCY1HF103Z R 0.01 50V Ceramic AA
C204 VCEA0A1CW107M R 100 16V Electrolytic AC
C205 VCKYCY1HF103Z R 0.01 50V Ceramic AA
C206 VCEA0A1HW106M R 10 50V Electrolytic AB
C207 VCKYCY1HF103Z R 0.01 50V Ceramic AA
C208 VCKYCY1HF103Z R 0.01 50V Ceramic AA
C209 VCKYCY1HF103Z R 0.01 50V Ceramic AA
C210 VCKYCY1HF103Z R 0.01 50V Ceramic AA
C211 VCKYCY1EF104Z R 0.1 25V Ceramic AA
C212 VCEA0A1CW106M R 10 16V Electrolytic AB
C213 VCKYCY1HF223Z R 0.022 50V Ceramic AB
C215 VCEA0A1CW476M R 47 16V Electrolytic AB
C216 VCKYCY1HB821K R 820p 50V Ceramic AA
C217 VCKYCY1HB472K R 4700p 50V Ceramic AA
C302 VCEA0A1HW225M R 2.2 50V Electrolytic AB
C303 VCEA0A1CW106M R 10 16V Electrolytic AB
C304 VCQYTA1HM473J R 0.047 50V Mylar AA
C305 VCQYTA1HM473J R 0.047 50V Mylar AA
C312 VCQYTA1HM123J R 0.012 50V Mylar AA
C314 VCEA0A1EW477M R 470 25V Electrolytic AD
C315 VCKYPA1HF103Z R 0.01 50V Ceramic AA
C317 VCEA0A1HW224M R 0.22 50V Electrolytic AB
C318 VCKYCY1HB102K R 1000p 50V Ceramic AA
C331 VCEA0A1HW105M R 1 50V Electrolytic AB
C332 VCEA0A1EW477M R 470 25V Electrolytic AD
C333 VCKYPA2HB102K R 1000p 500V Ceramic AA
C356 VCKYCY1HB682K R 6800p 50V Ceramic AA
C359 VCEA9M1CW106M R 10 16V Electrolytic AB
C360 VCEA9M1HW225M R 2.2 50V Electrolytic AB
C364 VCEA0A1CW106M R 10 16V Electrolytic AB
C371 VCEA0A1CW476M R 47 16V Electrolytic AB
C373 VCEA0A1CW107M R 100 16V Electrolytic AC
C374 VCEA0A1HW225M R 2.2 50V Electrolytic AB
C375 VCEAEA1HW225M R 2.2 50V Electrolytic AB
C379 VCEA0A1HW335M R 3.3 50V Electrolytic AB
C390 VCEA0A1HW105M R 1 50V Electrolytic AB
C405 VCEA0A1CW107M R 100 16V Electrolytic AC
C406 VCEA0A1CW477M R 470 16V Electrolytic AC
C407 VCEA0A1CW106M R 10 16V Electrolytic AB
C408 VCEA0A1CW106M R 10 16V Electrolytic AB
C409 VCKYCY1EF104Z R 0.1 25V Ceramic AA
C410 VCKYCY1EF104Z R 0.1 25V Ceramic AA
C411 VCKYCY1HB102K R 1000p 50V Ceramic AA
C469 VCEA0A1HW105M R 1 50V Electrolytic AB
C501 VCKYCY1HF103Z R 0.01 50V Ceramic AA
C502 VCKYCY1HF103Z R 0.01 50V Ceramic AA
C503 VCEA0A1EW108M R 1000 25V Electrolytic AD
C504 VCKYCY1HF223Z R 0.022 50V Ceramic AB
C506 VCQYTA1HM104J R 0.1 50V Mylar AA
C507 VCEA0A1JW107M R 100 63V Electrolytic AC
C508 VCQYTA1HM103J R 0.01 50V Mylar AA
C512 VCKYCY1HB102K R 1000p 50V Ceramic AA
C513 VCKYCY1HB102K R 1000p 50V Ceramic AA
C514 VCKYPA1HF103Z R 0.01 50V Ceramic AA
C515 VCKYPA2HB102K R 1000p 500V Ceramic AA
C516 VCEA0A1JW477M R 470 63V Electrolytic AE
C517 VCQYTA1HM104J R 0.1 50V Mylar AA
C601 VCEAGA2EW106M R 10 250V Electrolytic AC
C602 VCQYTA1HM104J R 0.1 50V Mylar AA
C603 VCEA0A1HW105M R 1 50V Electrolytic AB
C604 VCEA0A1HW105M R 1 50V Electrolytic AB
C605 VCKYPA1HF103Z R 0.01 50V Ceramic AA
TRANSFORMERS
(20BM2S/G/21BM2S/G)
(14BM2S/G)
(20BM2S/G/21BM2S/G)
(20BM2S/G/21BM2S/G)
CAPACITORS
42
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
C606 VCKYCY1HF103Z R 0.01 50V Ceramic AA
C607 VCEA0A1CW477M R 470 16V Electrolytic AC
C608 VCEA0A1EW476M R 47 25V Electrolytic AB
C609 VCEA0A1EW108M R 1000 25V Electrolytic AD
C610 VCFYSB2EB823J R 0.082 250V AD
MetalIized Polypro Film
C611 VCKYPA2HB102K R 1000p 500V Ceramic AA
C612 RC-EZ0724CEZZ R 100 160V Electrolytic AG
C613 VCFPPD2DB564J R 0.56 200V AF
MetalIized Polypro Film
(21BM2S/G)
C613 VCFPPD2DB684J R 0.68 200V AE
MetalIized Polypro Film
(20BM2S/G)
C613 VCFPVC2DB394J R 0.39 200V AE
MetalIized Polypro Film
(14BM2S/G)
C614 RC-KZ0035CEZZ R 220 2kV Ceramic AB
(14BM2S/G)
C614 RC-KZ0039CEZZ R 680p 2kV Ceramic AB
(20BM2S/G)
C615 VCFPVC2DB224J R 0.22 200V AE
MetalIized Polypro Film
C616 VCFPPD3CA103H R 0.01 1600V AE
MetalIized Polypro Film
(20BM2S/G)
C616 VCFPPD3CA622H R 6200p 1600V AE
MetalIized Polypro Film
(14BM2S/G)
C616 VCFPPD3CA912H R 9100p 1600V AE
MetalIized Polypro Film
(21BM2S/G)
C617 VCKYPA2HB102K R 1000p 500V Ceramic AA
C620 VCKYCY1EF104Z R 0.1 25V Ceramic AA
C623 VCQYTA1HM222J R 2200p 50V Mylar AA
C624 VCQYTA1HM472J R 4700p 50V Mylar AB
C625 VCEA0A1HW105M R 1 50V Electrolytic AB
C626 VCKYCY1HF223Z R 0.022 50V Ceramic AB
C627 VCEA0A1HW106M R 10 50V Electrolytic AB
C628 VCEA0A1HW224M R 0.22 50V Electrolytic AB
C650 VCKYCY1EF104Z R 0.1 25V Ceramic AA
C654 VCEA0A1CW476M R 47 16V Electrolytic AB
C700 VCQYTA1HM103J R 0.01 50V Mylar AA
å C701 RC-FZ031SCEZZ R 0.1 AC250V AD
Plastic
C702 RC-KZ0160GEZZ R 0.01 250V Ceramic AC
C703 RC-KZ0160GEZZ R 0.01 250V Ceramic AC
C704 VCKYPA2HB102K R 1000p 500V Ceramic AA
C705 VCKYPA2HB102K R 1000p 500V Ceramic AA
C707 RC-EZ0804CEZZ R 220 400V Electrolytic AU
(20BM2S/G/21BM2S/G)
C707 RC-EZ1044CEZZ R 220 400V Electrolytic AM
(14BM2S/G)
C708 RC-KZ0160GEZZ R 0.01 250V Ceramic AC
C709 RC-QZA471TAYJ R 470 50V Mylar AB
C711 RC-KZ0339CEZZ R 680p 2kV Ceramic AD
C712 VCQYTA1HM102J R 1000p 50V Mylar AA
C713 RC-KZ007JCEZZ R 0.01 250V Ceramic AC
C714 RC-KZ0338CEZZ R 560p 2kV Ceramic AD
C715 VCKYPA2HB102K R 1000p 500V Ceramic AA
C716 VCEA0A1EW107M R 100 25V Electrolytic AC
C717 VCQYTA1HM182J R 1800p 50V Mylar AA
C718 VCEAGA2AW475M R 4.7 100V Electrolytic AB
å C721 RC-KZ0102GEZZ R 680p 2kV Ceramic AE
C752 VCEA0A0JW107M R 100 6.3V Electrolytic AB
C753 VCKYPA2HB102K R 1000p 500V Ceramic AA
C754 VCEA0A1CW476M R 47 16V Electrolytic AB
C755 VCEA0A1CW108M R 1000 16V Electrolytic AD
å C759 VCKYPA1HB102K R 1000p 50V Ceramic AA
C760 RC-KZ0339CEZZ R 680p 2kV Ceramic AD
C761 RC-EZ0724CEZZ R 100 160V Electrolytic AG
(14BM2S/G)
C761 VCEA4W2CN227M R 220 160V Electrolytic AG
(20BM2S/G/21BM2S/G)
C762 VCQYTA1HM473J R 0.047 50V Mylar AA
C801 VCEA0A1HW105M R 1 50V Electrolytic AB
C802 VCEA0A1CW337M R 330 16V Electrolytic AC
C803 VCEA9M1CW107M R 100 16V Electrolytic AB
C804 VCKYCY1HB222K R 2200p 50V Ceramic AA
C805 VCKYCY1HB102K R 1000p 50V Ceramic AA
C806 VCKYCY1HB102K R 1000p 50V Ceramic AA
C807 VCKYCY1HB102K R 1000p 50V Ceramic AA
C808 VCEA0A1CW107M R 100 16V Electrolytic AC
C809 VCKYCY1HF223Z R 0.022 50V Ceramic AB
C810 VCKYCY1EF104Z R 0.1 25V Ceramic AA
C811 VCEA0A1CW107M R 100 16V Electrolytic AC
C812 VCFYFA1HA224J R 0.22 50V Mylar AB
C813 VCFYFA1HA224J R 0.22 50V Mylar AB
C814 VCKYCY1HB471K R 470p 50V Ceramic AA
C1001 VCEA0A0JW107M R 100 6.3V Electrolytic AB
C1003 VCEA0A1CW106M R 10 16V Electrolytic AB
C1004 VCKYCY1CF474Z R 0.47 16V Ceramic AB
C1005 VCKYCY1HF223Z R 0.022 50V Ceramic AB
C1006 VCEA0A1CW106M R 10 16V Electrolytic AB
C1007 VCEA0A1CW106M R 10 16V Electrolytic AB
C1008 VCCCCY1HH330J R 33p 50V Ceramic AA
C1009 VCCCCY1HH330J R 33p 50V Ceramic AA
C1010 VCEA0A0JW107M R 100 6.3V Electrolytic AB
C1011 VCKYCY1HF223Z R 0.022 50V Ceramic AB
C1012 VCKYCY1HF223Z R 0.022 50V Ceramic AB
C1013 VCEA0A0JW107M R 100 6.3V Electrolytic AB
C1014 VCEA0A1CW106M R 10 16V Electrolytic AB
C1015 VCFYFA1HA474J R 0.47 50V Mylar AC
C1016 VCQYTA1HM104J R 0.1 50V Mylar AA
C1018 VCKYCY1HB221K R 220p 50V Ceramic AA
C1019 VCEA9M1HW225M R 2.2 50V Electrolytic AB
RESISTORS
JA160 VRD-RA2BE101J R 100 1/8W Carbon AB
(20BM2S/G/21BM2S/G)
RJ2 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ5 VRN-MD2AL000J R 0 0.1W Metal Film AA
(14BM2S/G/21BM2S/G)
RJ9 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ10 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ11 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ12 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ13 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ15 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ16 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ21 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ25 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ26 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ27 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ29 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ30 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ31 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ32 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ33 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ34 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ41 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ43 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ51 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ53 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ61 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ64 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ66 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ68 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ69 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ71 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ74 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ75 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ76 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ78 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ79 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ80 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ84 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ85 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ87 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ88 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ89 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ92 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ94 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ96 VRN-MD2AL000J R 0 0.1W Metal Film AA
43
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
RJ97 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ100 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ103 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ105 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ201 VRN-MD2AL000J R 0 0.1W Metal Film AA
(14BM2S/G/21BM2S/G)
RJ202 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ204 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ205 VRN-MD2AL000J R 0 0.1W Metal Film AA
RJ206 VRN-MD2AL000J R 0 0.1W Metal Film AA
(14BM2S/G)
RJ206 VRS-CY1JF000J R 0 1/16W Metal Oxide AA
(20BM2S/G/21BM2S/G)
R201 VRN-MD2AL101J R 100 0.1W Metal Film AA
R202 VRN-MD2AL101J R 100 0.1W Metal Film AA
R203 VRD-RM2HD102J R 1k 1/2W Carbon AA
R204 VRD-RM2HD102J R 1k 1/2W Carbon AA
R205 VRD-RA2BE680J R 68 1/8W Carbon AA
R206 VRN-MD2AL122J R 1.2k 0.1W Metal Film AA
R207 VRN-MD2AL221J R 220 0.1W Metal Film AA
R208 VRN-MD2AL122J R 1.2k 0.1W Metal Film AA
R209 VRN-MD2AL392J R 3.9k 0.1W Metal Film AA
R217 VRD-RA2BE392J R 3.9k 1/8W Carbon AA
R218 VRN-MD2AL102J R 1k 0.1W Metal Film AA
R219 VRN-MD2AL391J R 390 0.1W Metal Film AA
R220 VRN-MD2AL101J R 100 0.1W Metal Film AA
R221 VRN-MD2AL102J R 1k 0.1W Metal Film AA
R222 VRN-MD2AL681J R 680 0.1W Metal Film AA
R226 VRN-MD2AL750J R 75 0.1W Metal Film AA
R227 VRD-RM2HD330J R 33 1/2W Carbon AA
R228 VRD-RM2HD330J R 33 1/2W Carbon AA
R230 VRN-MD2AL101J R 100 0.1W Metal Film AA
R231 VRN-MD2AL153J R 15k 0.1W Metal Film AA
R232 VRD-RA2BE680J R 68 1/8W Carbon AA
R233 VRN-MD2AL181J R 180 0.1W Metal Film AA
R237 VRN-MD2AL272J R 2.7k 0.1W Metal Film AA
R238 VRN-MD2AL821J R 820 0.1W Metal Film AA
R239 VRN-MD2AL221J R 220 0.1W Metal Film AA
R302 VRN-MD2AL473J R 47k 0.1W Metal Film AA
R303 VRN-MD2AL473J R 47k 0.1W Metal Film AA
R304 VRN-MD2AL392J R 3.9k 0.1W Metal Film AA
R305 VRN-MD2AL100J R 10 0.1W Metal Film AA
R307 VRD-RA2BE182J R 1.8k 1/8W Carbon AA
R308 VRD-RA2BE472J R 4.7k 1/8W Carbon AA
R320 VRN-MD2AL101J R 100 0.1W Metal Film AA
R321 VRN-MD2AL561J R 560 0.1W Metal Film AA
R328 VRN-MD2AL564J R 560k 0.1W Metal Film AA
R329 VRN-MD2AL332J R 3.3k 0.1W Metal Film AA
R330 VRN-MD2AL101J R 100 0.1W Metal Film AA
R331 VRN-MD2AL102J R 1k 0.1W Metal Film AA
R332 VRN-MD2AL561J R 560 0.1W Metal Film AA
R333 VRN-MD2AL103J R 10k 0.1W Metal Film AA
R334 VRN-MD2AL102J R 1k 0.1W Metal Film AA
R341 VRN-MD2AL332J R 3.3k 0.1W Metal Film AA
R342 VRN-MD2AL564J R 560k 0.1W Metal Film AA
R343 VRN-MD2AL104J R 100k 0.1W Metal Film AA
R344 VRN-MD2AL101J R 100 0.1W Metal Film AA
R357 VRN-MD2AL100J R 10 0.1W Metal Film AA
R378 VRN-VV3DBR68J R 0.68 2W Metal Film AA
R403 VRN-MD2AL101J R 100 0.1W Metal Film AA
R404 VRD-RA2BE820J R 82 1/8W Carbon AA
R406 VRN-MD2AL103J R 10k 0.1W Metal Film AA
R407 VRN-MD2AL101J R 100 0.1W Metal Film AA
R411 VRD-RA2BE820J R 82 1/8W Carbon AA
R412 VRN-MD2AL101J R 100 0.1W Metal Film AA
R501 VRN-MD2AL182J R 1.8k 0.1W Metal Film AA
R502 VRN-MD2AL182J R 1.8k 0.1W Metal Film AA
R503 VRD-RM2HD1R5J R 1.5 1/2W Carbon AA
(20BM2S/G/21BM2S/G)
R503 VRD-RM2HD2R2J R 2.2 1/2W Carbon AA
(14BM2S/G)
R504 VRD-RM2HD150J R 15 1/2W Carbon AA
(14BM2S/G)
å R505 VRG-PD2HD330J R 33 1/2W Fuse Resistor AC
R506 VRD-RA2BE124J R 120k 1/8W Carbon AA
(14BM2S/G)
R506 VRD-RA2BE224J R 220k 1/8W Carbon AA
(20BM2S/G/21BM2S/G)
R508 VRD-RM2HD221J R 220 1/2W Carbon AA
R509 VRD-RM2HD1R0J R 1 1/2W Carbon AA
R510 VRN-MD2AL101J R 100 0.1W Metal Film AA
R511 VRN-MD2AL101J R 100 0.1W Metal Film AA
R513 VRD-RA2BE393J R 39k 1/8W Carbon AA
R514 VRN-MD2AL101J R 100 0.1W Metal Film AA
R515 VRN-MD2AL272J R 2.7k 0.1W Metal Film AA
R516 VRD-RM2HD223J R 22k 1/2W Carbon AA
R602 VRN-VV3AB1R5J R 1.5 1W Metal Film AA
(14BM2S/G)
R602 VRN-VV3DBR68J R 0.68 2W Metal Film AA
(20BM2S/G)
R602 VRN-VV3DBR82J R 0.82 2W Metal Film AB
(21BM2S/G)
R603 VRD-RM2HD102J R 1k 1/2W Carbon AA
R604 VRD-RA2BE393J R 39k 1/8W Carbon AA
R605 VRD-RM2HD101J R 100 1/2W Carbon AA
R606 VRD-RA2BE333J R 33k 1/8W Carbon AA
(20BM2S/G/21BM2S/G)
R607 VRN-MD2AL102J R 1k 0.1W Metal Film AA
R608 VRN-MD2AL123J R 12k 0.1W Metal Film AA
R609 VRD-RA2BE153G R 15k 1/8W Carbon AA
(21BM2S/G)
R609 VRD-RA2BE223G R 22k 1/8W Carbon AA
(20BM2S/G)
R609 VRD-RA2BE273G R 27k 1/8W Carbon AA
(14BM2S/G)
R610 VRD-RA2BE153J R 15k 1/8W Carbon AA
(14BM2S/G)
R610 VRD-RA2BE822J R 8.2k 1/8W Carbon AA
(20BM2S/G/21BM2S/G)
R611 VRD-RA2EE563G R 56k 1/4W Carbon AA
(20BM2S/G/21BM2S/G)
R611 VRD-RA2EE823G R 82k 1/4W Carbon AA
(14BM2S/G)
R612 VRD-RA2BE103J R 10k 1/8W Carbon AA
R613 VRD-RA2BE103J R 10k 1/8W Carbon AA
R614 VRN-MD2AL103J R 10k 0.1W Metal Film AA
R615 VRS-KT3LB332J R 3.3k 3W Metal Oxide AC
R616 VRN-MD2AL102J R 1k 0.1W Metal Film AA
R617 VRD-RM2HD472J R 4.7k 1/2W Carbon AA
R618 VRS-KA3HG3R3K R 3.3 5W Metal Oxide AD
(20BM2S/G/21BM2S/G)
R618 VRS-KA3HG4R7K R 4.7 5W Metal Oxide AD
(14BM2S/G)
R619 VRD-RM2HD682J R 6.8k 1/2W Carbon AA
R622 VRS-VV3DB331J R 330 2W Metal Oxide AA
(20BM2S/G/21BM2S/G)
R623 VRS-VV3DB150J R 15 2W Metal Oxide AA
(20BM2S/G/21BM2S/G)
R624 VRD-RA2BE101J R 100 1/8W Carbon AB
R625 VRN-MD2AL184J R 180k 0.1W Metal Film AA
R626 VRN-MD2AL472J R 4.7k 0.1W Metal Film AA
R627 VRD-RM2HD4R7J R 4.7 1/2W Carbon AA
(14BM2S/G)
R628 VRD-RM2HD470J R 47 1/2W Carbon AA
R630 VRN-MD2AL100J R 10 0.1W Metal Film AA
R631 VRN-MD2AL391J R 390 0.1W Metal Film AA
R632 VRN-MD2AL273J R 27k 0.1W Metal Film AA
R633 VRN-MD2AL102J R 1k 0.1W Metal Film AA
R635 VRN-MD2AL822J R 8.2k 0.1W Metal Film AA
R636 VRN-MD2AL223J R 22k 0.1W Metal Film AA
R637 VRD-RM2HD391J R 390 1/2W Carbon AA
(14BM2S/G)
R638 VRN-MD2AL103J R 10k 0.1W Metal Film AA
(20BM2S/G/21BM2S/G)
R638 VRN-MD2AL333J R 33k 0.1W Metal Film AA
(14BM2S/G)
R701 VRW-KQ3NC3R3K R 3.3 7W Cement AE
(14BM2S/G)
R701 VRW-KQ4AC3R3K R 3.3 10W Cement AE
(20BM2S/G/21BM2S/G)
R703 VRS-KT3LB473J R 47k 3W Metal Oxide AE
R705 VRD-RA2BE122J R 1.2k 1/8W Carbon AA
R706 VRD-RM2HD152J R 1.5k 1/2W Carbon AA
R707 VRS-KT3LB473J R 47k 3W Metal Oxide AE
R708 VRD-RM2HD272J R 2.7k 1/2W Carbon AA
44
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
R709 VRD-RA2BE681J R 680 1/8W Carbon AA
R710 VRN-VV3ABR39J R 0.39 1W Metal Film AA
R711 VRN-VV3ABR33J R 0.33 1W Metal Film AA
å R712 VRG-PD2HD150J R 15 1/2W AC
(20BM2S/G/21BM2S/G)
å R712 VRG-PD2HD4R7J R 4.7 1/2W (14BM2S/G) AC
R717 VRD-RM2HD124J R 120k 1/2W Carbon AA
R718 VRD-RM2HD124J R 120k 1/2W Carbon AA
å R719 VRC-UA2HG825K R 8.2M 1/2W Solid AA
R721 VRD-RA2BE393J R 39k 1/8W Carbon AA
R722 VRD-RM2HD124J R 120k 1/2W Carbon AA
R723 VRD-RA2BE684J R 680k 1/8W Carbon AA
å R726 VRC-UA2HG825K R 8.2M 1/2W Solid AA
R728 VRN-MD2AL272J R 2.7k 0.1W Metal Film AA
R750 VRD-RM2HD4R7J R 4.7 1/2W Carbon AA
R755 VRD-RA2BE222J R 2.2k 1/8W Carbon AA
R756 VRN-MD2AL152J R 1.5k 0.1W Metal Film AA
R758 VRD-RA2BE102J R 1k 1/8W Carbon AA
R759 VRN-MD2AL102J R 1k 0.1W Metal Film AA
R760 VRD-RA2BE471J R 470 1/8W Carbon AA
R761 VRD-RA2BE221J R 220 1/8W Carbon AA
R764 VRN-MD2AL272J R 2.7k 0.1W Metal Film AA
R766 VRD-RM2HD680J R 68 1/2W Carbon AA
R801 VRN-MD2AL101J R 100 0.1W Metal Film AA
R802 VRN-MD2AL101J R 100 0.1W Metal Film AA
R803 VRN-MD2AL101J R 100 0.1W Metal Film AA
R804 VRN-MD2AL101J R 100 0.1W Metal Film AA
R805 VRN-MD2AL822J R 8.2k 0.1W Metal Film AA
R806 VRD-RA2BE123J R 12k 1/8W Carbon AA
R807 VRN-MD2AL103J R 10k 0.1W Metal Film AA
R808 VRN-MD2AL221J R 220 0.1W Metal Film AA
R809 VRD-RA2BE224J R 220k 1/8W Carbon AA
R811 VRN-MD2AL563J R 56k 0.1W Metal Film AA
(20BM2S/G/21BM2S/G)
R812 VRN-MD2AL101J R 100 0.1W Metal Film AA
R813 VRN-MD2AL221J R 220 0.1W Metal Film AA
R1001 VRD-RA2BE221J R 220 1/8W Carbon AA
R1002 VRN-MD2AL331J R 330 0.1W Metal Film AA
R1003 VRN-MD2AL471J R 470 0.1W Metal Film AA
R1004 VRN-MD2AL821J R 820 0.1W Metal Film AA
R1005 VRD-RA2BE181J R 180 1/8W Carbon AA
R1011 VRN-MD2AL820J R 82 0.1W Metal Film AA
R1012 VRN-MD2AL391J R 390 0.1W Metal Film AA
R1013 VRN-MD2AL101J R 100 0.1W Metal Film AA
R1014 VRD-RA2BE101J R 100 1/8W Carbon AB
R1015 VRN-MD2AL332J R 3.3k 0.1W Metal Film AA
R1016 VRD-RA2BE101J R 100 1/8W Carbon AB
R1017 VRN-MD2AL332J R 3.3k 0.1W Metal Film AA
R1019 VRN-MD2AL472J R 4.7k 0.1W Metal Film AA
R1020 VRD-RA2BE101J R 100 1/8W Carbon AB
R1021 VRN-MD2AL153J R 15k 0.1W Metal Film AA
R1022 VRD-RA2BE101J R 100 1/8W Carbon AB
R1023 VRN-MD2AL101J R 100 0.1W Metal Film AA
R1024 VRN-MD2AL122J R 1.2k 0.1W Metal Film AA
R1025 VRN-MD2AL101J R 100 0.1W Metal Film AA
R1026 VRN-MD2AL224J R 220k 0.1W Metal Film AA
R1027 VRD-RA2BE101J R 100 1/8W Carbon AB
R1028 VRD-RA2BE101J R 100 1/8W Carbon AB
R1030 VRN-MD2AL102J R 1k 0.1W Metal Film AA
R1031 VRD-RA2BE562J R 5.6k 1/8W Carbon AA
R1032 VRN-MD2AL332J R 3.3k 0.1W Metal Film AA
R1033 VRD-RA2BE102J R 1k 1/8W Carbon AA
R1034 VRD-RA2BE101J R 100 1/8W Carbon AB
R1035 VRN-MD2AL332J R 3.3k 0.1W Metal Film AA
R1036 VRN-MD2AL332J R 3.3k 0.1W Metal Film AA
R1037 VRD-RA2BE101J R 100 1/8W Carbon AB
R1038 VRD-RA2BE101J R 100 1/8W Carbon AB
R1039 VRN-MD2AL223J R 22k 0.1W Metal Film AA
R1040 VRN-MD2AL101J R 100 0.1W Metal Film AA
R1041 VRN-MD2AL101J R 100 0.1W Metal Film AA
R1043 VRN-MD2AL153J R 15k 0.1W Metal Film AA
R1044 VRN-MD2AL153J R 15k 0.1W Metal Film AA
R1045 VRD-RA2BE271J R 270 1/8W Carbon AA
R1046 VRD-RA2BE101J R 100 1/8W Carbon AB
R1065 VRN-MD2AL101J R 100 0.1W Metal Film AA
R1067 VRN-MD2AL000J R 0 0.1W Metal Film AA
FB306 RBLN-0037CEZZ R Balun, BLN-0037CE AB
FB501 RBLN-0037CEZZ R Balun, BLN-0037CE AB
FB502 RBLN-0037CEZZ R Balun, BLN-0037CE AB
FB602 RBLN-0037CEZZ R Balun, BLN-0037CE AB
FB701 RBLN-0037CEZZ R Balun, BLN-0037CE AB
FB702 RBLN-0037CEZZ R Balun, BLN-0037CE AB
FB751 RBLN-0037CEZZ R Balun, BLN-0037CE AB
FB752 RBLN-0037CEZZ R Balun, BLN-0037CE AB
å S701 QSW-P0591CEZZ R Switch AQ
S1001 QSW-K0077GEZZ R Switch, CH Up AB
S1002 QSW-K0077GEZZ R Switch, CH Down AB
S1003 QSW-K0077GEZZ R Switch, VOL Up AB
S1004 QSW-K0077GEZZ R Switch, VOL Down AB
S1005 QSW-K0077GEZZ R Switch, Picture/Preset AB
MISCELLANEOUS PARTS
RDA754 PRDAR0224PEFW R Heat Sink, Q602 AF
RDA756 PRDAR0248PEFW R Heat Sink, IC301 AF
RDA701 PRDAR0260PEFW R Heat Sink, IC701 AH
RDA501 PRDAR0298PEFW R Heat Sink, IC501 AF
RDA501 PRDAR0283PEFW R Heat Sink, IC501 AF
å FH701 QFSHD1014CEZZ R Fuse Holder AC
å FH702 QFSHD1013CEZZ R Fuse Holder AC
å F701 QFS-C3229CEZZ R Fuse, T3.15A 250V AD
J402 QJAKE0205CE04 R Jack, 3Pin AD
J403 QJAKE0205CE09 R Jack, 3Pin AD
J405 QJAKH0011AJZZ R Jack, 18Pin AK
P301 QPLGN0441CEZZ R Plug, 4Pin AB
P502 QPLGN0660CEZZ R Plug, 6Pin AC
P602 QPLGN0641CEZZ R Plug, 6Pin AB
P701 QPLGN0260CEZZ R Plug, 2Pin AC
P712 QPLGN0269GEZZ R Plug, 2Pin AB
P1001 QPLGN0541CEZZ R Plug, 5Pin AB
P1002 QPLGN0541CEZZ R Plug, 5Pin AB
RMC1001
TP201 QLUGP0102PEZZ R Lug AA
RRMCU0235CEZZ R Remote Receiver AK
LHLDP1066PE00 R Holder AC
DUNTK9990WEV0(14BM2S/G(Y))
DUNTK9990WEV3(14BM2G)
DUNTK9990WEV6(20BM2S)
DUNTK9990WEV7(20BM2G)
DUNTK9990WEV9(21BM2S/G)
Q870 VSBF422////-1 R BF422 AC
Q871 VSBF422////-1 R BF422 AC
Q872 VSBF422////-1 R BF422 AC
Q883 VSBF421////-1 R BF421 AC
Q885 VSBF421////-1 R BF421 AC
Q887 VSBF421////-1 R BF421 AC
D811 RH-DX0475CEZZ R DX0475CE AB
D812 RH-DX0475CEZZ R DX0475CE AB
D880 RH-DX0475CEZZ R DX0475CE AB
D881 RH-DX0475CEZZ R DX0475CE AB
D882 RH-DX0475CEZZ R DX0475CE AB
D883 VHD1SS82///1A R 1SS82 AC
D884 VHD1SS82///1A R 1SS82 AC
D885 VHD1SS82///1A R 1SS82 AC
D886 VHD1SS82///1A R 1SS82 AC
D887 VHD1SS82///1A R 1SS82 AC
D888 VHD1SS82///1A R 1SS82 AC
D890 RH-EX0627GEZZ R Zener Diode AA
BALUNES
SWITCHES
(20BM2S/G/21BM2S/G)
(14BM2S/G)
CRT UNIT
TRANSISTORS
DIODES
(20BM2S/G/21BM2S/G)
45
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
C871 VCKYPA1HB471K R 470p 50V Ceramic AA
CAPACIT ORS
C872 VCKYPA1HB471K R 470p 50V Ceramic AA
C873 VCKYPA1HB471K R 470p 50V Ceramic AA
C875 VCKYPA2HB102K R 1000p 500V Ceramic AA
C876 RC-KZ0150CEZZ R Capacitor AB
C878 VCEAGA2EW106M R 10 250V Electrolytic AC
(14BM2S/G)
C878 VCEAGA2EW336M R 33 250V Electrolytic AD
(20BM2S/G/21BM2S/G)
C880 VCKYPA1HB471K R 470p 50V Ceramic AA
C881 VCKYPA1HB471K R 470p 50V Ceramic AA
C882 VCKYPA1HB471K R 470p 50V Ceramic AA
RESISTORS
R879 VRD-RA2BE471J R 470 1/8W Carbon AA
R880 VRD-RA2BE471J R 470 1/8W Carbon AA
R881 VRD-RA2BE471J R 470 1/8W Carbon AA
R882 VRS-VU3DE153J R 15k 2W Metal Oxide AB
R883 VRD-RM2HD272J R 2.7k 1/2W Carbon AA
R884 VRS-VU3DE153J R 15k 2W Metal Oxide AB
R885 VRD-RM2HD272J R 2.7k 1/2W Carbon AA
R886 VRS-VU3DE153J R 15k 2W Metal Oxide AB
R887 VRD-RM2HD272J R 2.7k 1/2W Carbon AA
R888 VRD-RA2BE471J R 470 1/8W Carbon AA
(14BM2S/G)
R892 VRD-RA2BE102J R 1k 1/8W Carbon AA
R893 VRD-RA2BE102J R 1k 1/8W Carbon AA
R894 VRD-RA2BE102J R 1k 1/8W Carbon AA
R895 VRD-RA2BE471J R 470 1/8W Carbon AA
(20BM2S/G/21BM2S/G)
R896 VRD-RA2BE471J R 470 1/8W Carbon AA
(20BM2S/G/21BM2S/G)
R898 VRD-RA2BE471J R 470 1/8W Carbon AA
(14BM2S/G)
R899 VRD-RA2BE471J R 470 1/8W Carbon AA
SUPPLIED ACCESSORIES
RRMCG1342PESA R Infrared R-C AU
TiNS-7170PEZZ R Instruction Book AK
QPLGJ0113CEZZ R Plug(14BM2S/G) AG
ACCESSORY
TCAUA0002PEZZ - Caution Card —
ACCESSORIES
(NOT REPLACEMENT ITEM)
PACKING PARTS
(NOT REPLACEMENT ITEM)
SPAKC6436PEZZ - Packing Case(21BM2S) —
SPAKC6437PEZZ - Packing Case(21BM2G) —
SPAKC6687PEZZ - Packing Case(14BM2S) —
SPAKC6688PEZZ - Packing Case(14BM2G/G(Y))—
SPAKC6691PEZZ - Packing Case(20BM2S) —
SPAKC6695PEZZ - Packing Case(20BM2G) —
SPAKX2755PEZZ - Packing Add.(14BM2S/G) —
SPAKX2756PEZZ - Packing Add. —
SSAKA0031PEZZ - Polyethylene Bag —
SSAKH0015PEZZ - Polyethylene Bag —
SSAKH0016PEZZ - Polyethylene Bag —
(20BM2S/G/21BM2S/G)
(14BM2S/G)
(20BM2S/G/21BM2S/G)
CABINET PARTS
MISCELLANEOUS PARTS
P851 QPLGN0641CEZZ R Plug AB
(20BM2S/G/21BM2S/G)
P851 QPLGN0661CEZZ R Plug, 6Pin(14BM2S/G) AD
P882 QPLGN0541CEZZ R Plug AB
(20BM2S/G/21BM2S/G)
P882 QPLGN0561CEZZ R Plug, 5Pin(14BM2S/G) AB
å SC882 QSOCV0931CEZZ R Socket AK
MISCELLANEOUS PARTS
QANTR0018PEZZ R Rod Antenna(14BM2S/G) AQ
QACCZ2008PEZZ R AC Cord AM
QCNW-2377PEZZ R Connecting Cord AE
(14BM2S/G)
QCNW-2380PEZZ R Connecting Cord AG
(14BM2S/G)
QCNW-2381PEZZ R Connecting Cord AG
(20BM2S/G/21BM2S/G)
QCNW-2405PEZZ R Connecting Cord AE
(20BM2S/G/21BM2S/G)
QCNW-2423PEN1 R Connecting Cord AF
(14BM2S/G)
QCNW-2433PEN1 R Connecting Cord AF
(20BM2S/G/21BM2S/G)
VSP1206PB50WA R Speaker AP
(20BM2S/G/21BM2S/G)
VSP9050PB25WA R Speaker(14BM2S/G) AM
14BM2S/G
1 CCABA2621WEV0 R Front Cabinet Ass'y BE
1 CCABA2621WEV1 R Front Cabinet Ass'y BE
1-1
1-2 HBDGB0019PESB R SHARP Badge AD
1-3 JBTN-0345PESA R Control Button(14BM2S) AG
1-3 JBTN-0345PESB R Control Button(14BM2G) AH
1-4 HDECQ0186PESA R LED, R/C Cover AD
1-5 JBTN-0346PESA R Power Button(14BM2S) AD
1-5 JBTN-0346PESB R Power Button(14BM2G) AD
1-6 MSPRC0068CEFW R Power Button Spring AA
1-7 HDECQ0184PESA R Right Speaker Net AK
1-8 HDECA0081PESA R Right Speaker Decoration AE
1-9 HDECQ0185PESA R Left Speaker Kit AK
1-10 HDECA0082PESA R Left Speaker Decoration AE
2 CCABB2432WEV0 R Rear Cabinet Ass'y AX
2-1
Not Available
Not Available
(14BM2S)
(14BM2G/G(Y))
- Front Cabinet —
- Rear Cabinet —
20BM2S/G
1 CCABA2628WEV0 R Front Cabinet Ass'y BM
1 CCABA2628WEV1 R Front Cabinet Ass'y BM
1-1
1-2 HBDGB0015PESB R SHARP Badge AE
1-3 HDECQ0186PESA R RC/LED Cover AD
1-4 HDECA0083PESA R SP Decoration-R AE
1-5 HDECA0084PESA R SP Decoration-L AE
1-6 HDECQ0187PESA R SP NET-R(20BM2S) AQ
1-6 HDECQ0187PESB R SP NET-R(20BM2G) AQ
1-7 HDECQ0188PESA R SP NET-L(20BM2S) AQ
1-7 HDECQ0188PESB R SP NET-L(20BM2G) AQ
1-8 JBTN-0345PESA R Control Button(20BM2S) AG
1-8 JBTN-0345PESB R Control Button(20BM2G) AH
1-9 JBTN-0347PESA R Power Button(20BM2S) AD
1-9 JBTN-0347PESB R Power Button(20BM2G) AD
Not Available
(20BM2S)
(20BM2G)
- Front Cabinet —
46
14BM2, 14BM2S/G
20BM2, 20BM2S/G
21BM2, 21BM2S/G
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
2 CCABB2434WEV0 R Rear Cabinet Ass'y BA
2-1
Not Available
- Rear Cabinet —
2-1
21BM2S/G
1 CCABA2648WEV0 R Front Cabinet Ass'y BL
1 CCABA2648WEV1 R Front Cabinet Ass'y BL
1-1
Not Available
1-2 HBDGB0015PESB R SHARP Badge AE
1-3 HDECQ0186PESA R RC/LED Cover AD
1-4 HDECA0083PESA R SP Decoration-R AE
1-5 HDECA0084PESA R SP Decoration-L AE
1-6 HDECQ0187PESA R SP NET-R AQ
1-6 HDECQ0187PESB R SP NET-R AQ
1-7 HDECQ0188PESA R SP NET-L AQ
1-7 HDECQ0188PESB R SP NET-L AQ
1-8 JBTN-0345PESA R Control Button(21BM2S) AG
1-8 JBTN-0345PESB R Control Button(21BM2G) AH
1-9 JBTN-0347PESA R Power Button AD
1-9 JBTN-0347PESB R Power Button AD
2-1 CCABB2434WEV0 R Rear Cabinet Ass'y BA
(21BM2S)
(21BM2G)
- Front Cabinet —
2-1
2
1-7
1-5
1-3
1-10
1-9 1-8
1-1
1
1-2
1-6
1-4
1-9
1-10
1-6
1-5 1-3
1-7
1-5
1-3
1-4
1-1
1-1
1-2
1
1-2
1
2-1
1-8
1-7
2
1-6
1-4
1-10
1-9 1-8
47
Loading...
