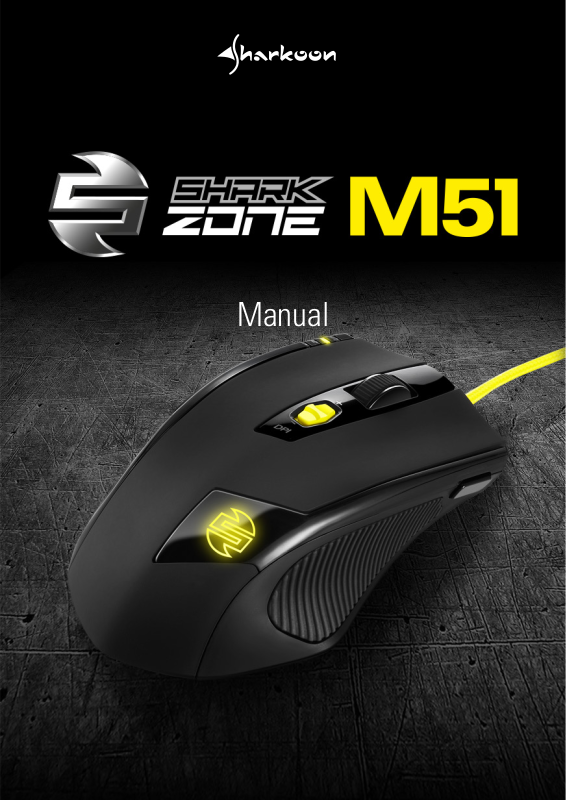

SHARKOON M51 User Manual
Manual
Content
1. Features 3
2. Specifications 3
3. Package contents 3
4. The mouse at a glance 4
5. Connecting to the PC 5
6. Installing the software 5
7. The Editor 6
7.1 Starting the editor 6
7.2 Main Control window 6
7.3 Pull down menus 7
7.3.1 Basic sub menu 8
7.3.2 Advanced sub menu 8
7.3.3 Media sub menu 8
7.4 Advanced setting window 9
7.5 Color Control window 10
CAUTION LASER! Avoid direct eye contact with the laser beam!
Dear customer!
Congratulations for purchasing one premium quality SHARKOON product.
For a long life time and to take full advantage of this product we recommend that you read this manual
completely.
Enjoy your time with our product!
SHARKOON Technologies
SHARK ZONE M51 2
1. Features
• Avago 9800 Laser sensor
• 11 programmable buttons
• 4-way scroll wheel
• LEDs for DPI indication
• Internal memory for user profiles
• Gold-plated USB connector
• Cable with textile sheathing
• Weight tuning System
• Rubberized surface for maximum grip
• Configuration software included
• Supported operating systems:
Windows XP/Vista/7/8
2. Specifications
Sensor type: Avago 9800
Max. DPI/CPI: 8200
Max. FPS: 12000
Max. IPS: 150
Buttons: 11 (Click switches: Omron)
Max. polling rate: 1000 Hz
Max. acceleration: 30 g
Lift-off sensitivity: 1 - 5 mm
Connector: USB
Mouse feet: 4, PTFE
Cable lenght: 180 cm (textile sheating)
Dimensions (L x W x H): 126 x 88.1 x 41.8 mm
Weight: 150 g (w/o cable)
3. Package contents
• SHARK ZONE M51
• Additional set of mouse feet
• Transport bag
• CD with software and manual (as PDF)
Note:
If you are missing any of the items listed above, please contact our customer service immediately:
support@sharkoon.com (Germany and Europe).
support@sharkoon.com.tw (international).
SHARK ZONE M51 3
4. The mouse at a glance
(A) DPI display
(B) Left mouse button
(C) 4-way scroll wheel and middle mouse button
(freely programmable)
(D) Right mouse button
(E) Game button
(F) DPI selector
(G) Thumb button 1
(H) Thumb button 2
(I) Thumb button 3
H
A
B
C
D
E
G
I
F
A
A
A
B
A
(A) Slide pads
(B) Weight tuning System
SHARK ZONE M51 4
