Shark TRS-2500, TRS-6000, TRS-3500 Service Manual

Download
Page 1
TRAILER
SERVICE MANUAL
■ TRS-2500
■ TRS-3500
■ TRS-6000
For technical assistance or the SHARK dealer nearest you
visit our website at www.sharkpw.com
98013020-1
9.801-302.0-C
Page 2
Page 3
CONTENTS
TRS-2500 Trailer Exploded View 4
TRS-2500 Trailer Exploded View, Parts List 5
Trailer with SSG Washer and Parts List 6-7
Trailer with SGP Washer and Parts List 8-9
TRS-3500 Trailer Exploded View 10
TRS-3500 Trailer Exploded View, Parts List 11
TRS-6000 Trailer Exploded View, Left Side 12
TRS-6000 Trailer Exploded View, Right Side 13
TRS-6000 Trailer Exploded View, Parts List 14
Optional Hose Reel Low Pressure 15
Optional Hose Reel HIgh Pressure 16
CONTENTS
Wiring Diagram 17-19
Model Number ______________________________
Serial Number ______________________________
Date of Purchase ___________________________ The model and serial numbers will be found on a decal attached
to the machine. You should record both serial number and date of purchase and keep in a safe place for future reference.
SHARK TRAILER SERVICE MANUAL • 9.801-302.0 • Rev. 4/14
Page 4
TRAILER
TRS-2500 TRAILER EXPLODED VIEW
53
5
67
28
60
34
24
33
26
35
53
50
33
48
13
51
66
12
30
52
36
28 21
25
4
27
31
35
31
63
26 43
20
SERVICE MANUAL
35
10
35
31
31
33
34
63
35
17
31
62
39
35
33
49
6
33
35
33
66
41
36
16
22
32
7
2
9
8
14
31
32
44
61
26
31
34
20
38
23
37
33
35
1
33
20
42
30
67
38
29
28
32
28
47
45
46
15
40
3
18
98013020-2
64
4
SHARK TRAILER SERVICE MANUAL • 9.801-302.0 • Rev. 4/14
65
31
33
35
19
11
35
Page 5
TRS-2500 TRAILER EXPLODED VIEW PARTS LIST
TRAILER
ITEM PART # DESCRIPTION QTY
1 8.917-302.0 Wlmt, Frame, Trailer, 3000# 1
2 8.917-303.0 Wlmt, Tongue, Hinged 1
8.917-535.0 Wlmt, Tongue, Hinged, Hydraulic Coupler 1
3 8.917-304.0
4 8.917-305.0 Wlmt, Hoop, Hose Reel 1
5 8.725-543.0 Rod, Tie-down, Tank 1
6 8.917-325.0 Bracket, Skid Mount, Adj. 2
7 8.917-326.0 Channel, Skid Mount, Adj. 1
8 8.917-341.0 Bar, Tank Tie-down 1
9 8.725-525.0 Tank, Water, 200 Gal 1
8.704-744.0 s Lid, 8" Threaded w/Air Breather 1
10 8.725-534.0
11 8.725-529.0 Wheel/Tire Assy, 15" ST205/75d15 TI 2
12 8.725-530.0 Lamp, Tail, 3-Way 2
13 8.725-531.0 Lamp, Side Marker, Red 2
14 8.725-532.0 Lamp, Side Marker, Amber 2
15 8.725-533.0 Lamp, License w/holder 1
16 8.707-497.0 Chain, 5/16 Zinc Plated 2 x 45" Long 7.5 ft
17 8.725-536.0 Connector, Socket, 4-Flat 1
8.707-510.0 Connector, Socket, 7-Prong (Electric Brakes) 1
18 8.725-537.0 Plug, 4-Flat 1
8.707-511.0 Plug, 7-Prong (Electric Brakes) 1
19 8.725-538.0 Axle, 3500 lb., 57", Idler 1
8.725-540.0 Axle, 3500 lb., 57" Electric Brakes 1
8.725-539.0 Axle, 3500 lb., 57" Hydraulic Brakes 1
20 8.706-412.0 Bushing, 1" x 3/4" MT x FT, PVC 80 Speers O 3
21 9.802-132.0 Elbow, 3/4" JIC x 1/2", 90° 1
22 8.707-498.0 Hook, "S", 5/16" Zinc Plated 2
23 8.707-526.0 Strainer, 1" T Line, Trailers 1
24 9.802-798.0 Screw, #10 x 1/2" Tek Hex Head" 2
25 8.719-946.0 Hanger, Hose 2
26 9.802-052.0 Bulkhead, 3/4" Polypro 3
27 9.802-146.0 Swivel, 1/2" MP x 3/4" GHF w/Strainer 1
28 9.802-152.0 Swivel, 3/4" SAE Fem, Push-on" 4
29 9.802-261.0 Hose 3/4", Push-on 24"
30 9.802-701.0 Bolt, 1/4" x 1" Hex Head Zinc Grade 3 (Break Away) 6
31 9.802-722.0 Bolt, 3/8" x 1-1/4", NC HH 34
Fender, w/Back, 15", Painted
Jack, Swivel w/Caster,1000 lb
SHARK TRAILER SERVICE MANUAL • 9.801-302.0 • Rev. 4/14
2
1
ITEM PART # DESCRIPTION QTY
32 9.802-773.0 Nut, 1/4-20 ESNA NC 5 (Break Away) 8
33 9.802-779.0 Nut 3/8" 42
34 9.802-802.0 Washer, 1/4" Flat SAE Zinc 12 (Break Away) 14
35 9.802-807.0 Washer, 3/8" Flat 72
36 9.802-812.0 Washer, 3/8" x 1-1/2", Fender, SAE 14
37 8.706-738.0 Plug, 3/4", Hole 2
38 8.706-899.0 Nipple, 3/4" JIC x 3/4" Pipe 2
39 9.802-724.0
40 8.900-522.0 Label, CLP Warning, Do Not Stand or Step 2
41 9.802-780.0 N
42 8.706-731.0 Bushing, 3/4" Snap Heyco 7
43 8.706-369.0 Nipple, 3/4", PVC 80, Close 1
44 8.710-036.0 Float Valve 1" Hudson 150d 130 PSI 1
45 8.718-592.0 Screw, 1/4" x 1-1/4" Shdr 1
46 8.719-079.0
47 8.719-112.0 Spring, 0.31OD x 1.0, Steel, Gen Wire J-1450 1
48 8.917-463.0 Latch, Wand Holder 1
49 8.917-319.0 Bracket, Alignment, Tank 2
50 8.706-395.0 Plug, 2", PVC 80 1
51 8.706-294.0 Bushing, 1/2" x 3/8", Steel 1
52 9.802-171.0 Nipple, 3/8" x 3/8" NPT ST 1
53 9.803-557.0 Elbow, 3/4 JIC x 3/4 2
54 8.725-541.0 s Hydraulic Line Kit (Hydraulic Brakes) 1
55 8.725-707.0 s Bolt, 1/2" x 4-1/2" Grade 5 (Hydraulic Brakes) 2
56 8.718-829.0 s Nut, 1/2" ESNA (Hydraulic Brakes) 2
57 9.802-809.0 s Washer, 1/2" SAE (Hydraulic Brakes) 4
58 8.912-403.0 s Bracket, Break Away (Break Away) 1
59 8.707-480.0 s Coupler, 2" Hydraulic Actuator (Hydraulic Brakes) 1
60 9.802-261.0 Hose, 3/4 Push-on 51"
61 8.706-890.0 Elbow, 1/2" JIC x 3/4" 1
62 8.917-328.0 Plate, Shark SS 1
62 8.718-607.0 Bolt, Carriage 1/4-20 x 3/4 2
63 8.706-397.0 Plug, 3/4 1
64 8.726-136.0 Hook, Latching 2
65 8.917-340.0 Bracket, Shipping 2
66 8.752-041.0 Grommet, Light, 2" 4
67 8.900-870.0 Label, Shark Logo 2
s Not Shown
Bolt, 3/8" x 1-1/2", NC, HH, SS
ut, 3/8" Stainless, ESNA, NC
Knob, Black Plastic,10-24 Thds
2
2
1
SERVICE MANUAL
5
Page 6
TRAILER
TRS-2500 WITH SSG WASHER
8
7
9
10
12
To
Valve
SERVICE MANUAL
3
1
2
Trailer Outlet
4
To
5
6
11
6
From
Tank
13
14
19
17
15
5
18
16
20
23
21
98013020-3
21
20
24
25
From
Coil
Outlet
22
21
22
22
4
21
20
6
SHARK TRAILER SERVICE MANUAL • 9.801-302.0 • Rev. 4/14
Page 7
TRS-2500 WITH SSG WASHER PARTS LIST
ITEM PART # DESCRIPTION QTY
1 8.706-207.0 Elbow, 3/8", Street 90°, Steel 1
2 9.802-171.0 Nipple, 3/8" x 3/8" NPT ST Male 1
3 9.802-166.0 Coupler, 3/8" Female, Brass 1
4 8.711-708.0 Hose, 1/2" x 90" 2 Wire, Pressure Loop 1
5 9.802-152.0 Swivel, Push-on
6 9.802-261.0 Hose 3/4" 3.417 ft
7 8.706-615.0 Tank, Fuel 8 Gal (All Models Except 600.0) 1
8 9.802-204.0 Clamp, Hose, CL13 (All Models Except 600.0) 1
9 9.802-056.0 Dip Tube Assy, Plastic,
10.75" Long (All Models Except 600.0) 1
10 9.802-089.0 Cap, Fuel Tank, Plastic H60-AV 1 (All Models Except 600.0) 1
11 9.802-053.0 Bushing, Fuel Line, Rubber (All Models Except 600.0) 1
12 9.800-008.0 Label, Danger Cool Engine (All Models Except 600.0) 1
13 9.800-001.0 Label, This Tank For Gas Only (All Models Except 600.0) 1
14 9.802-754.0 Screw, 1/4" x 1/2" NC, Whiz Loc Flange (All Models Except 600.0) 4
15 9.802-146.0 Swivel, 1/2" MP x 3/4" GHF w/Strainer 1
16 8.706-829.0 Elbow, 1/2" Street, Brass 1
17 8.707-212.0 Valve, 1/2" Brass, 3-Way Ball 1
18 8.706-797.0 Nipple, 1/2" Hex 1
19 8.706-902.0 Nipple, 3/4" JIC x 1/2" Pipe 1
20 9.802-722.0 Bolt, 3/8" x 1-1/4", NC HH 12
21 9.802-807.0 Washer, 3/8" Flat 24
22 9.802-779.0 Nut 3/8" 12
23 8.916-565.0 Bracket, Mounting 2
24 8.917-495.0 Bracket, Battery Mount 1
25 9.802-038.0 Nipple, 1/2" JIC x 1/2" Steel 1
26 9.802-204.0 s Clamp, Hose, CL13 1
27 9.802-799.0 s Screw, #14 x 1", Tek, Blk., Zinc 1
s Not Shown
3/4" SAE Fem,
2
TRAILER
SERVICE MANUAL
SHARK TRAILER SERVICE MANUAL • 9.801-302.0 • Rev. 4/14
7
Page 8
TRS-2500 WITH SGP WASHER
TRAILER
SERVICE MANUAL
From
Tank
To
Feed
Pump
12
22
22
11
5
To
10
30
4
3
1
15
14
7
6
8
9
7
13
2
CHAUD!
30
Pump
CHAUD!
From Feed
Pump
15
23
24
26
25
6
7
7
16
17
98013020-7
17
18
19
20
To Trailer
Outlet
21
20
From
Coil
Outlet
8
SHARK TRAILER SERVICE MANUAL • 9.801-302.0 • Rev. 4/14
Page 9
TRS-2500 WITH SGP WASHER PARTS LIST
ITEM PART NO. DESCRIPTION QTY
1 8.917-561.0 Wlmt, Mount, Feed Pump 1
2 8.917-564.0 Cover, Mount, Feed Pump 1
3 8.706-510.0 Bumper, Rubber, 3/4" w/Washer 4
4 8.725-945.0 Pump, 4.0 GPM, 12V, 10A 1
5 8.915-292.0 Reel, Hose, Bracket, Mount Retainer 2
6 8.706-902.0 Nipple, 3/4"JIC x 1/2" Pipe 1
7 9.802-152.0 Swivel, 3/4" SAE FEM, Push-on 4
8 8.706-984.0 Adapter, 1/2" FPT x 1/2" MPT, Brass 1
9 9.802-132.0 Elbow, 3/4" JIC x 1/2" MPT, 90° 1
10 8.718-626.0 Bolt, 5/16"-18 x 1-1/4", NC Carriage Z 8
11 8.718-980.0 Washer, 5/16", Flat, SAE (780452) 8
12 9.802-776.0 Nut, 5/16", ESNA, NC 8
13 9.802-453.0 Switch, Curvette RA901VB-B-1-V.Carling 1
14 9.803-551.0 Screw, 5/16" x 3/4" Whiz Loc Flange 2
15 9.802-261.0 Hose, 3/4" Push-on, /ft 2
16 9.802-722.0 Bolt, 3/8" x 1-1/4", NC HH 8
17 9.802-807.0 Washer, 3/8", SAE, Flat Zinc 16
18 9.802-779.0 Nut, 3/8", ENSA, NC 8
19 9.802-166.0 Coupler, 3/8" Female, Brass 1
20 8.711-708.0 Hose, 1/2" X 90" 2 Wire, Pressure Loop 1
21 9.802-038.0 Nipple, 1/2" JIC x 1/2" MPT, Steel 1
22 9.802-261.0 Hose, 3/4" Push-on, /ft 3
23 8.706-826.0 Elbow, 1/2" Street 1
24 8.706-797.0 Nipple, 1/2 Hex 1
25 8.707-212.0 Valve, 1/2" Brass, 3-way 1
26 9.802-146.0 Swivel, 1/2" MP x 3/4" GHF w/Strainer 1
27 9.802-204.0 s Clamp, Wire/Tube, 0.750D 1
28 9.802-799.0 s Screw, #14 x 1", Tek, Blk., Zinc 1
29 9.802-514.0 Strain Relief, Small 1
30 9.802-456.0 Light, Indicator, Green, 12V 1
s Not Shown
TRAILER
SERVICE MANUAL
SHARK TRAILER SERVICE MANUAL • 9.801-302.0 • Rev. 4/14
9
Page 10
TRAILER
98013020-8
SERVICE MANUAL
48
61
46
20
23
35
64
63
49
50
27
41
60
22
23
23
45
51
Breakaway Unit
(Optional)
35
EXPLODED VIEW — TRS-3500
38
15
12
30
69
22
21
23
19
29
17
65
68
60
22
20
Hydraulic
or Electric
Brakes
(Optional)
16
18
16
14
21
23
69
55
35
4
22
13
9
58
8
23
56
22 21
23
47
31
15
26
56
23
41
2
55
1
6
21
35
57
22
7
66
24
22
54
25
66
67
40
20
Hose Reel
(Optional)
23
28
65
67
67
42
23
20
22
33
34
Skid Mount
Plumbing W/O
Garden Hose
Option
32
28
38
39
67
62
61
36
10
23
59
Garden Hose
Reel
(Optional)
23
37
57
2
41
5
58
9
41
10
SHARK TRAILER SERVICE MANUAL • 9.801-302.0 • Rev. 4/14
5
3
4
Page 11
EXPLODED VIEW PARTS LIST — TRS-3500
TRAILER
ITEM PART NO. DESCRIPTION QTY
1 8.912-404.0 Frame, Assy (3500) 1
2 8.912-405.0 Fender, Single, Assy 2
3 8.707-500.0 Axle, 3500 lb. 64" Track 1
8.707-501.0 Axle, 3500 lbs, 64 Track, Elec. Brakes 1
8.707-502.0 Axle, 3500 lbs, 64 Track, Hyd. Brakes 1
4 8.753-334.0 Springs, Leaf, 3500 lb./Pr 1
5 8.725-529.0 Wheel/Tire Assy, 15" Wheel 2
6 8.707-497.0 Chain, 5/16 Zinc Plated 6 ft.
9.802-724.0 s Bolt, 3/8" x 1-1/2", NC, HH, SS 2
8.718-988.0 s Washer, 7/16" Flat, SAE 2
9.802-811.0 s Washer, 3/8" x 1-1/2", Fender 4
8.719-024.0 s Washer, 3/8", SS, Lock 2
8.719-089.0 s Nut, 3/8" HEX, NC, SS 2
7 8.707-498.0 s Hook "S" 5/16 Zinc 2
8 8.707-485.0 Jack,
9 8.707-512.0 Lamp, Stop/Tail/Turn, Red 2
10 8.707-513.0 Lamp, License W/Holder 1
11 8.707-510.0 s Connector, 7 Prong 1
12 8.707-524.0 Tank, 200 Gal, HDPE Const 1
13 8.707-526.0 Strainer, D1" T Line 1
14 8.706-376.0 Elbow, 1" PVC 80 1
15 8.706-424.0 Nipple, 1.5" Close PVC 80 2
16 8.706-439.0 Nipple, 1" Close PVC 80 2
17 8.706-484.0 Bulkhead, 1" Poly Pro 1
18 8.706-490.0 Bulkhead, 1-1/2" Poly Pro 1
19 8.706-512.0 Float, Ball, Black Plastic 1
20 9.803-557.0 Elbow, 3/4" x 3/4" 90° 4
21 8.706-899.0 Nipple, 3/4 JIC x 3/4" Pipe 4
22 8.706-929.0 Bushing 1" x 3/4" 7
23 9.802-152.0 Swivel, 3/4" SAE Fem Push-On 10 (Garden Hose Reel Option) 12
24 8.707-025.0 Stem, Float 10" 1
25 8.749-329.0 Valve, 3/4" Plastic Float 1
26 8.707-342.0 Valve, 1-1/2" Ball, Poly 1
27 8.918-206.0 Hose, 3/8 x 125", 2 Wire Swivel x Swivel 1
28 9.802-261.0 Hose, 3/4", Push-On 12.5 ft.
29 8.706-928.0 Bushing,
30 9.802-131.0 Elbow, 1/2" JIC x 1/2" 1
31 8.706-375.0 Elbow, 1-1/2"FT x FT 1
32 8.706-925.0 Bushing, 3/4" x 1/2" Pipe 1
Swivel/W/Caster 1500 lb.
1" x 1/2", Poly
1
1
ITEM PART NO. DESCRIPTION QTY
33 8.706-829.0 Elbow, 1/2" Street Brass 1
34 9.802-146.0 Swivel, 1/2" MP x 3/4" W/S 1
35 8.711-788.0 Hose, 3/4" Suction, Push-On 15.33 ft.
36 8.706-917.0 Bushing, 1/2" x 3/8" Brass 1
37 8.706-968.0 Fitting, 3/4", Garden, HS x 1/2" 1
38 9.802-132.0 Elbow, 3/4"JIC x 1/2" 2
39 9.802-041.0 Elbow, 3/8" Street, 45° 1
40 9.802-147.0 Swivel, 3/8" MP x 3/4" GHF W/S 1
41 9.802-767.0 Screw, 3/8" x 3/4" NC Whiz Loc 12
42 9.802-781.0 Nut, 3/8", NC, Whiz Loc 12
43 9.802-206.0 s Clamp, Hose 1
44 9.802-794.0 s Nut, Cage, 1/4" x 12 GA 8
45 9.807-349.0 Label, Clear lexan 1
46 9.802-166.0 Coupler, 3/8" Female, Brass 1
47 8.912-403.0 Bracket, Breakaway 1
48 8.706-167.0 Elbow, 3/8" FNPT 1
49 8.730-379.0 Nipple, 3/8" x 3"Pipe 1
50 8.706-294.0 Bushing, 1/2" x 3/8" Steel 1
51 8.707-506.0 Break Away Kit, W/Battery 1
52 9.802-064.0 s Grommet, Rubber, Nozzle Holder 6
53 8.900-522.0 s Label, CLP Warning, Do Not Stand or Step 2
54 9.802-052.0 Bulkhead, 3/4" Poly Pro 1
55 8.706-117.0 Nipple, 1" Pipe, Close 2
56 9.802-132.0 Elbow, 3/4" JIC x 1/2" 90° 2
57 8.912-399.0 Cover, Light Bracket 2
58 8.912-398.0 Bracket, Light Tail 2
59 8.706-207.0 Elbow, 3/8" Street 1
60 8.707-230.0 Valve, 3 Way Brass 1" 2
61 9.802-171.0 Nipple, 3/8" x 3/8" Male 2
62 8.706-992.0 Adapter, 1/2" x 3/8" 1
63 8.749-879.0 Adhesive, 10" Roll, 2.5" x 7" 1
64 Vin Plate 1
65 9.802-730.0 Bolt, 3/8" x 2-1/2" GR5 Zinc 2
66 9.802-807.0 Washer, 3/8", SAE, Flat Zinc 4
67 9.802-779.0 Nut, 3/8", ESNA, NC 2
68 8.916-826.0 Guard, Exhaust, Trailer (Super Skid Models Only) 1
69 9,802-799.0 Screw, # 14 x 1" TEK (Super Skid Models Only) 4
s Not Shown
SERVICE MANUAL
SHARK TRAILER SERVICE MANUAL • 9.801-302.0 • Rev. 4/14
11
Page 12
Yellow
15°
Red
Green
25°
White
40°
OPERA
TING INSTRUCTIONS
INSTRUCCIONES DE OPERACION
MODE D' EMPLOI
HOUR METER
BURNER
RESET
OFF
ON
TEMPER
ATURE CONTROL
O
I
A
P
AGAR
QUEMADOR/BRULEUR
HOROMETRO / CHRONOMETRE
CONTROL DE TEMER
ATUR
A / CONTROLE DE TEMPER
A
TURE
PRENDER
OFF
F°
10-02033
200
165
130
95
235
270
300
98013020-9

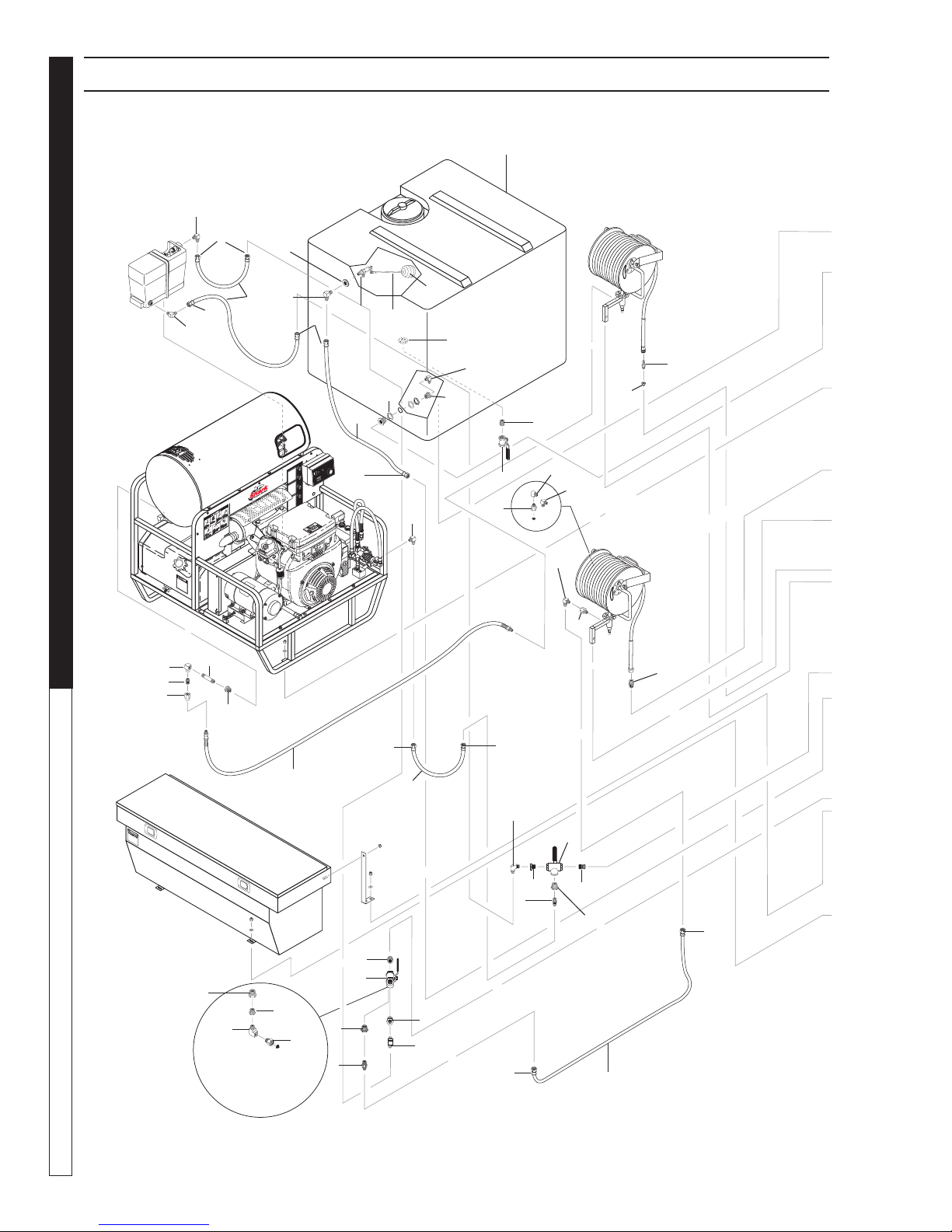

EXPLODED VIEW LEFT SIDE — TRS-6000
TRAILER
SERVICE MANUAL
24
Hose Reel (Optional)
35
10
64
4
11
62
6
5
57
28
29
34
2
13
37
36
52
Garden Hose
Reel (Optional)
35
7
10
33
10
12
62
27
10
14
50 57
51
53
9
31
Skid Mount
Plumbing W/O
Garden Hose
Option
30
26
32
65
55
10
10
33
7
61
9
8
63
9
10
63
61
9
9
7
8
10
27
12
SHARK TRAILER SERVICE MANUAL • 9.801-302.0 • Rev. 4/14
Page 13
98013020-10
EXPLODED VIEW RIGHT SIDE — TRS-6000
TRAILER
40
3
SERVICE MANUAL
3
25
1
49
60
59
72
21
72
71
68
69
69
70
68
69
Reversed
View
23
69
47
70
9
10
46
33
45
8
10
8
9
40
56
41
18, 19
44
Breakaway
(Optional)
15
42
66
67
39
48
41
17
16
7
58
9
40
20
Hydraulic or
Electric Brakes
(Optional)
40
56
SHARK TRAILER SERVICE MANUAL • 9.801-302.0 • Rev. 4/14
13
Page 14
EXPLODED VIEW PARTS LIST — TRS-6000
ITEM PART NO. DESCRIPTION QTY
1 8.706-376.0 Elbow, 1" FIPT x FIPT,
TRAILER
PVC 80 1
2 8.706-424.0 Nipple, 1.5 x Close, PVC 80 1
3 8.706-439.0 Nipple, 1", PVC 80, Close 2
4 8.706-484.0 Bulkhead, 1", Polypro 1
5 8.706-490.0 Bulkhead, 1-1/2" Polypro 1
6 8.706-512.0 Ball, Float, Black Plastic 1
SERVICE MANUAL
7 9.803-557.0 Elbow, 3/4" SAE x 3/4", 90° 4
8 8.706-899.0 Nipple, 3/4" JIC x 3/4" Pipe 4
9 8.706-929.0 Bushing, 1" x 3/4" 7
10 9.802-152.0 Swivel, 3/4" SAE Fem, Push-On 12
11 8.707-025.0 Stem, 10" Float 1
12 8.749-329.0 Valve, 3/4" Plastic Float 1
13 8.707-342.0 Valve, 1.5" Ball, FPT x FPT, Poly 1
14 9.802-166.0 Coupler, 3/8" Female, Brass 1
15 8.707-485.0 Jack, Swivel w/Caster, 1500 Lbs. 1
16 8.753-334.0 Springs, Leaf, 3500 Lb./Pr 2
17 8.725-529.0 Wheel/Tire Assy, 15" Wheel, ST205/75D15 Tire 4
18 8.707-497.0 Chain, 5/16 Zinc Plated 6 ft.
9.802-724.0 s Bolt, 3/8" x 1-1/2", NC, SS 2
8.718-988.0 s Washer, 7/16" Flat, SAE 2
9.802-811.0 s Washer, 3/8" x 1-1/2", Fender 4
8.719-024.0 s Washer, 3/8", SS, Lock 2
8.719-089.0 s Nut, 3/8" HEX, NC, SS 2
19 8.707-498.0 Hook, "S", 5/16" Zinc Plated 2
20 8.707-503.0 Axle, 3500 Lb. , 72" Track, Idler 2
8.707-504.0 Axle, 3500 lbs, 73" Track, Elec. Brakes 2
8.707-505.0 Axle, 3500 lbs, 73" Track, Hyd. Brakes 2
21 8.707-512.0 Lamp, Stop/Tail/Turn, Red 2
22 8.707-511.0 s Plug, 7-Prong 1
23 8.707-513.0 Lamp, License W/Holder 1
24 8.707-525.0 Tank, 330 Gal. HDPE Constr. 1
25 8.707-526.0 Strainer, 1" T-Line, Trailers 1
26 8.918-206.0 Hose, 3/8" x 125", 2 Wire, Swivel x Swivel 1
27 9.802-261.0 Hose, 3/4" Push-On 12.5 ft.
28 8.706-928.0
29 9.802-131.0 Elbow, 1/2" JIC x 1/2" 90° 1
30 8.706-925.0 Bushing, 3/4" x 1/2" Pipe 1
31 8.706-829.0 Elbow, 1/2" Street, Brass 1
32 9.802-146.0 Swivel, 1/2"MP x 3/4" GHF W/S 1
14
Bushing, 1" x 1/2" Black Poly
SHARK TRAILER SERVICE MANUAL • 9.801-302.0 • Rev. 4/14
1
ITEM PART NO. DESCRIPTION QTY
33 8.711-788.0 Hose, 3/4" Suction, Push-On 15.33 ft.
34 8.706-917.0 Bushing. 1/2" x 3/8" Brass 1
35 9.802-132.0 Elbow, 3/4" JIC x 1/2" MPT 2
36 9.802-041.0 Elbow, 3/8" Street 45° 1
37 9.802-147.0 Swivel, 3/8" MP x 3/4" GHF W/S 1
38 9.802-206.0 s Clamp, Hose 1
39 9.807-349.0 Label, Clear Lexan 1
40 9.802-767.0 Screw, 3/8" x 3/4" HH NC, Whiz Loc 12
41 9.802-781.0 Nut, 3/8", Whiz Loc, NC 12
42 8.912-403.0 Bracket, Breakaway 1
43 9.802-794.0 s Nut, Cage, 1/4" x 12 GA 8
44 8.707-506.0 Breakaway Kit W/Battery 1
45 8.912-396.0 Assy, Tandem Fender, TRK-6000 2
46 8.912-395.0 Assy, Tandem Axle Frame, TRK-6000 1
47 8.707-507.0 Lamp, Side Marker, Red 2
48 8.707-508.0 Lamp, Side Marker, Amber 2
49 8.707-509.0 Lamp, Identification Bar 1
50 8.706-167.0 Elbow, 3/8" FNPT 1
51 8.730-379.0 Nipple, 3/8" x 3.0 Pipe 1
52 8.706-207.0 Elbow, 3/8" Street 1
53 8.706-294.0 Bushing, 1/2" x 3/8" Street 1
54 9.802-064.0 s Grommet, Rubber, Nozzle Holder 7
55 8.706-968.0 Fitting, 3/4" Garden Hose x 1/2" 1
56 8.900-522.0 Label, Do Not Stand or Step 2
57 9.802-171.0 Nipple, 3/8" x 3/8" MPT 2
58 8.753-333.0 Hanger Kit, Tandem Axle 1
59 8.912-398.0 Bracket Tail Light 2
60 8.912-399.0 Cover, Light Bracket 2
61 8.707-230.0 Valve, 1" Brass 2
62 9.802-132.0 Elbow, 3/4" JIC x 1/2", 90° 2
63 8.706-117.0 Nipple, 1" Close, Black 2
64 9.802-052.0 Bulkhead, 3/4" Polypro 1
65 8.706-992.0 Adapter, 1/2" x 3/8" 1
66 8.749-879.0 Adhesive, 10" Roll, 2.5" x 7" 1
67 Vin Plate 1
68 9.802-730.0 Bolt, 3/8" x 2-1/2" GR5 Zinc 2
69 9.802-807.0 Washer, 3/8", SAE, Flat Zinc 4
70 9.802-779.0 Nut, 3/8", ESNA, NC 2
71 8.916-826.0 Guard, Exhaust, Trailer (Super Skid Models Only) 1
72 9.802-799.0 Screw, #14 x 1" TEK (Super Skid Models Only) 4
s Not Shown
Page 15
OPTIONAL HOSE REEL LOW PRESSURE 8.917-555.0
3
4
TRAILER
SERVICE MANUAL
5
2
11
8 9
6
7
14
9
10
1
5
12
13
OPTIONAL HOSE REEL LOW PRESSURE PARTS LIST
ITEM PART # DESCRIPTION QTY
1 9.122-002.0 Hose Reel,100 ft., Fixed Base 1
2 9.802-132.0 Elbow, 3/4" JIC x 1/2", 90° 1
3 8.706-834.0 Elbow, 3/8" Street, 45° 1
4 9.802-147.0 Swivel, 3/8" MP x 3/4" GHF W/Strainer 1
5 9.802-152.0 Swivel, 3/4" FEM, Push-on 2
6 9.802-261.0 Hose, 3/4" Push-on, /FT 30"
7 9.802-171.0 Coupler, 3/8" Plug, Male 2
SHARK TRAILER SERVICE MANUAL • 9.801-302.0 • Rev. 4/14
7
14
98013020-5
ITEM PART # DESCRIPTION QTY
8 9.802-722.0 Bolt, 3/8" x 1-1/4" 4
9 9.802-807.0 Washer, 3/8" SAE, Flat Zinc 8
10 9.802-779.0 Nut, 3/8", ESNA 4
11 8.706-984.0 Adapter, 1/2" FPT x 1/2" MPT, Brass 1
12 9.802-052.0 Bulkhead, 3/4" Polypro 1
13 8.706-397.0 Plug, 3/4" MT, SCH 80 PVC 1
14 8.706-294.0 Bushing, 1/2" x 3/8" Steel 2
NOTE: Garden hose not included
15
Page 16
OPTIONAL HOSE REEL HIGH PRESSURE 8.917-554.0
TRAILER
3
1
6
SERVICE MANUAL
7
7
8
2
4
5
OPTIONAL HOSE REEL HIGH PRESSURE PARTS LIST
ITEM PART # DESCRIPTION QTY
1 9.122-002.0 Hose Reel, Bolt on 100 ft., Fixed Base 1
2 9.802-036.0 Nipple, 1/2" JIC x 3/8" Pipe, Steel 1
3 9.802-041.0 Elbow, 3/8" Steel, Street, 45° 1
4 9.802-243.0 Hose, 3/8" x 32", 2 Wire 1
5 9.802-040.0 Elbow, 1/2" , JIC , 1/2, 90°, 1
16
SHARK TRAILER SERVICE MANUAL • 9.801-302.0 • Rev. 4/14
98013020-6
ITEM PART # DESCRIPTION QTY
6 9.802-722.0 Bolt, 3/8" x 1-1/4" 4
7 9.802-807.0 Washer, 3/8" SAE, Flat Zinc 8
8 9.802-779.0 Nut, 3/8", ESNA 4
Page 17
WIRING DIAGRAM
TRAILER Wiring Diagram
SHARK TRAILER SERVICE MANUAL • 9.801-302.0 • Rev. 4/14
17
Page 18
TRAILER Wiring Diagram
WIRING DIAGRAM
18
SHARK TRAILER SERVICE MANUAL • 9.801-302.0 • Rev. 4/14
Page 19
WIRING DIAGRAM
TRAILER Wiring Diagram
SHARK TRAILER SERVICE MANUAL • 9.801-302.0 • Rev. 4/14
19
Page 20
Form # 9.801-302.0 • Revised 4/14 • Printed in U.S.A.
www.sharkpw.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
