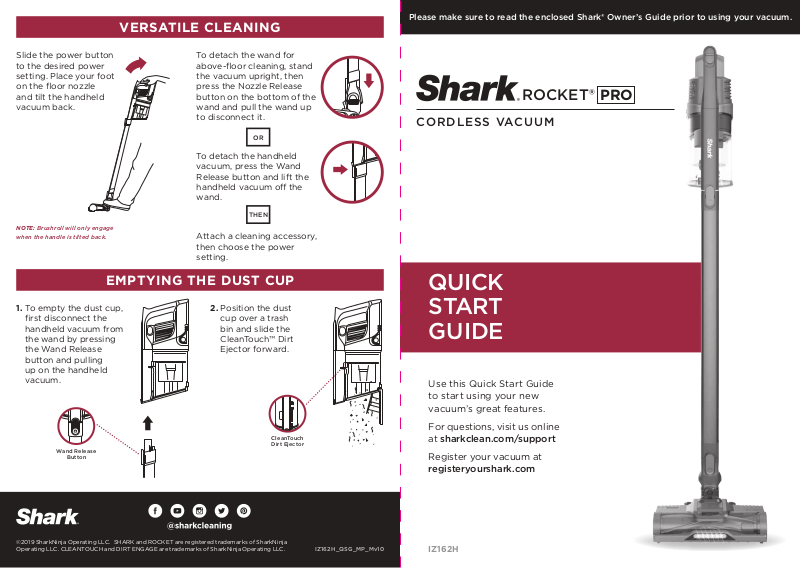

Shark Rocket PRO IZ162H Quick Start Manual
VERSATILE CLEANING
Please make sure to read the enclosed Shark® Owner’s Guide prior to using your vacuum.
Slide the power button
to the desired power
setting. Place your foot
on the floor nozzle
and tilt the handheld
vacuum back.
NOTE: B rush roll wi ll only engage
when the handle is tilt ed bac k.
EMPTYING THE DUST CUP
1. To empty the dust cup,
first disconnect the
handheld vacuum from
the wand by pressing
the Wand Release
button and pulling
up on the handheld
vacuum.
To detach the wand for
above-floor cleaning, stand
the vacuum upright, then
press the Nozzle Release
button on the bottom of the
wand and pull the wand up
to disconnect it.
OR
To detach the handheld
vacuum, press the Wand
Release button and lift the
handheld vacuum o the
wand.
THEN
Attach a cleaning accessory,
then choose the power
setting.
2. Position the dust
cup over a trash
bin and slide the
CleanTouch™ Dirt
Ejector forward.
ROCKET®
CORDLESS VACUUM
QUICK
START
GUIDE
Use this Quick Start Guide
to start using your new
vacuum’s great features.
PRO
CleanTouch
Wand Rel ease
Button
©2019 S hark Ninja Operating LLC. SH ARK an d ROCKET are regis tered tradem arks of SharkNinja
Operating LLC . CLEANTOUCH and DIRT ENGAGE are tradema rks of Sh arkN inja O perating LLC .
Dirt Ejector
IZ162H_QSG_MP_Mv10
For questions, visit us online
at sharkclean.com/support
Register your vacuum at
registeryourshark.com
IZ162H
WHAT’S INSIDE: POWER SETTINGS
A
Handheld Vacuum
B
Dirt Engage™ Floor Nozzle
C
Wand
D
P e t M ul t i -Tool
E
8" Crevice Tool
F
Charger
G
Li-Ion Battery (Pre-Installed)
H
HEPA Post Motor Filter (Pre-Installed)
D
E
F
ASSE M B LY
A
C
OFF
Slide switch to the
top to turn o power.
To begin vacuuming
in Standard Mode,
slide switch to the
appropriate setting.
NOTE: Fo r deep c leaning per ASTM F 6 08 (emb edde d dirt in carp ets) please s elec t the Carpet se tting and pull the
trigge r to go into Boost mode .
NOTE: Select Carpet setting for stuck- on dirt and d ebris.
BARE FLOOR
SETTING
Bare Floor/Area Rugs
The brushroll spins slowly
to clean bare floors and
small arearugs.
Carpet
The brushroll spins
faster to pick up debris
below the surface
ofyour carpets .
CHARGING
CARPET SETTING BOOST MODE
For an added boost in
power, pull the Trigger
on the handheld
vacuum . Release it
to return to standard
power.
2
(Click)
G
For complete maintenance instructions, see the enclosed Owner's Guide.
For additional parts and accessories, visit sharkaccessories.com.
For additional batteries and charging accessories, visit sharkclean.com/batteries.
H
B
1
(Click)
IN THE
VACU UM
OUT OF
TH E VAC UU M
BATTERY R ELEASE
LI-ION BATTERY
In Use
Full
Charge
Charging
Low
Charge
NOTE: Full charge takes approximately 3 hours.
Mid
Charge
Mid
Charge
Low
Charge
Nearly
Full
BUTTON
Nearly
Empty
Full
Charge
BAT TER Y
INDICATOR
LIGHTS
Easily Insert or Remove
the Li-Ion Battery
To insert, slide the Li-Ion
Battery into the slot in
the back of the handheld
vacuum. To remove, press
and hold the Battery
Release Button then slide
out the Power Pack.
NOTE: T he bat tery comes
partially ch arge d. Cha rge fu lly
before fi rst us e.
No
Charge
Battery Run Time
MODE MINUTES
Han d Vac 40
Bare Floo r/
Standard Mode
Carpet Mode 22
Boost Mode
(Hand Vac)
©2019 S hark Ninja Operating LLC.
25
10
