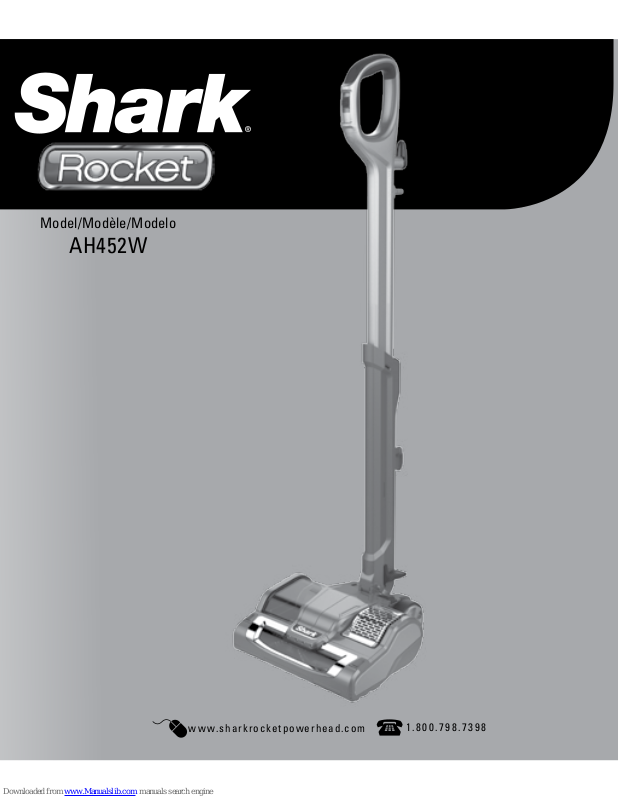

Shark Rocket AH452W User Manual
Model/Modèle/Modelo
AH452W
www.sharkrocketpowerhead.com
1.800.798.7398
www.sharkrocketpowerhead.com
1
TECHNICAL SPECIFICATIONS:
Voltage: 120V., 60Hz
Watts: 600W
Amps: 5 A
Contents
Getting to Know Your Shark® Rocket® Powerhead Vacuum ...................................................................3
Assembly ..................................................................................................................................................4
Selecting the Correct Brushroll .............................................................................................................4
Usage . .....................................................................................................................................................5
Choosing the Appropriate Setting ........................................................................................................5
Suction Release ....................................................................................................................................5
Vacuuming .............................................................................................................................................6
Storage ..................................................................................................................................................6
What Does the Brushroll Indicator Light Mean? ..................................................................................6
Maintenance ............................................................................................................................................7
Emptying the Dust Cup..........................................................................................................................7
Cleaning the Filters ...............................................................................................................................7
Cleaning the Powerhead .......................................................................................................................8
Troubleshooting Guide .............................................................................................................................9
Warranty ................................................................................................................................................26
Contenu
Índice
SPÉCIFICATIONS TECHNIQUES :
Tension : 120V., 60Hz
Watts : 600W
Ampères : 5 A
ESPECIFICACIONES TÉCNICAS:
Voltaje: 120V., 60Hz
Potencia: 600W
Amperes: 5 A
Thank you for
purchasing the
Shark® Rocket®
Powerhead.
Merci d’avoir
fait l’achat de
l’aspirateur à tête
motorisée Shark
MD
RocketMD.
Gracias por haber
comprado la
Shark
®
Rocket®
con cabezal
eléctrico.
English
FrançaisEspañol
Apprendre à connaître votre aspirateur à tête motorisée SharkMD RocketMD ......................................11
Assemblage ...........................................................................................................................................12
Choisir la bonne brosse ......................................................................................................................12
Utilisation . ............................................................................................................................................13
Choisir le réglage approprié................................................................................................................13
Relâchement de l’aspiration ..............................................................................................................13
Aspiration ...........................................................................................................................................14
Entreposage .......................................................................................................................................14
Que signifient les couleurs du témoin de la brosse motorisée?.........................................................14
Entretien ................................................................................................................................................15
Vider le récipient à poussière ............................................................................................................15
Entretien des filtres ............................................................................................................................15
Nettoyage de la tête motorisée .........................................................................................................16
Guide de dépannage .............................................................................................................................17
Garantie .................................................................................................................................................26
Partes de su aspiradora Shark® Rocket® con cabezal eléctrico ............................................................19
Armado ..................................................................................................................................................20
Selección del cepillo correcto ............................................................................................................20
Uso . ......................................................................................................................................................21
Escoger la posición adecuada ............................................................................................................21
Liberación de succión .........................................................................................................................21
Para aspirar ........................................................................................................................................22
Almacenamiento ................................................................................................................................22
¿Qué significa la luz indicadora del cepillo motorizado? ....................................................................22
Mantenimiento ......................................................................................................................................23
Vaciado del recipiente para la tierra .................................................................................................23
Limpieza de los filtros ........................................................................................................................23
Limpieza del cabezal eléctrico ...........................................................................................................24
Guía de solución de problemas .............................................................................................................25
Garantía..................................................................................................................................................26
FOR HOUSEHOLD USE ONLY
2
1.800.798.7398
SAVE THESE INSTRUCTIONS
When using an electrical appliance, basic safety precautions
should always be observed, including the following:
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:
1 DO NOT use outdoors or on wet surfaces.
2 Unplug from electrical outlet when not in use and before servicing.
3 Inspect power cord or plug for any damage before use. DO NOT use vacuum
cleaner with a damaged cord or plug.
4 If vacuum cleaner is not working as it should, has been dropped, damaged,
left outdoors, or dropped into water, return it to EURO-PRO Operating LLC
for examination, repair, or adjustment.
5 DO NOT pull or carry vacuum cleaner by the cord or use the cord as a
handle.
6 DO NOT unplug by pulling on cord; to unplug, grasp the plug, not the cord.
7 DO NOT handle plug or vacuum cleaner with wet hands.
8 DO NOT run the vacuum cleaner over the power cord, close a door on the
cord or pull cord around sharp corners.
9 The use of an extension cord is not recommended.
10 DO NOT leave vacuum cleaner when plugged in.
11 Keep cord away from heated surfaces.
12 Turn off all controls before plugging or unplugging the vacuum cleaner.
13 Store your vacuum cleaner with the power cord secured around the two
cord holders as shown in the STORAGE section.
14 DO NOT attempt to defeat the interlocks.
GENERAL USE
15 Use only as described in this manual.
16 DO NOT put any objects into openings. DO NOT use with any opening
blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
17 Keep your work area well lit.
18 Keep the vacuum cleaner moving over the carpet surface at all times to
avoid damaging the carpet fibers.
19 DO NOT place vacuum cleaner on unstable surfaces such as chairs or
tables.
20 DO NOT allow young children to operate the vacuum cleaner or use as a
toy. Close attention is necessary when used near children.
21 DO NOT use without Dust Cup and/or filters in place.
22 DO NOT use if airflow is restricted; if the air paths or the Motorized
Floor Nozzle become blocked, turn the vacuum cleaner off. Remove all
obstructions before you turn on the unit again.
23 Keep Motorized Floor Nozzle away from hair, face, fingers, uncovered feet,
and loose clothing.
24 Only use manufacturer’s recommended attachments.
DUST CUP/FILTERS
Before turning on the vacuum:
25 Make sure that all filters are thoroughly dry after routine cleaning.
26 Make sure that Dust Cup and all filters are in place after routine
maintenance. Refer to MAINTENANCE section for filter cleaning
instructions.
27 Make sure Motorized Floor Nozzle is free of blockages.
28 Only use filters and accessories provided by EURO-PRO Operating LLC.
[Failure to do so will void the warranty.]
GENERAL CLEANING
29 DO NOT pick up large-sized objects.
30 DO NOT pick up hard or sharp objects such as glass, nails, screws, or coins
that could damage the vacuum cleaner.
31 DO NOT use to pick up drywall dust.
32 DO NOT pick up smoking or burning objects such as hot coals, cigarette
butts, fireplace ash, or matches.
33 DO NOT pick up flammable or combustible materials such as lighter fluid,
gasoline, or kerosene or use vacuum in areas where they may be present.
34 DO NOT pick up toxic solutions such as chlorine bleach, ammonia, or drain
cleaner.
35 DO NOT use in an enclosed space where vapors are present from paint,
paint thinner, moth-proofing substances, flammable dust, or other explosive
or toxic materials.
36 DO NOT vacuum up any liquids.
37 DO NOT immerse vacuum cleaner in water or other liquids.
38 DO NOT use outdoors or on wet surfaces; use only on dry surfaces.
39 Use extra care when cleaning on stairs.
40 Remove brushroll from unit before rinsing.
POLARIZED PLUG
To reduce the risk of electric shock, this vacuum cleaner has a polarized plug (one blade is wider than the other). As a safety feature, this
plug will fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a
qualified electrician. DO NOT force into outlet or try to modify to fit.
English
READ ALL INSTRUCTIONS BEFORE USE
CAUTION: The Motorized Power Nozzle, Telescoping
Wand and Handle contain electrical connections:
- These are not serviceable parts.
- Do not use to vacuum any liquids.
- Do not immerse in water when cleaning.
- If Handle/Wand is damaged, discontinue use.
IMPORTANT SAFEGUARDS
3
www.sharkrocketpowerhead.com
MAIN UNIT
1 Power/LO/HI Switch
2 Upper Cord Hook
3 Height Adjust Button/Telescoping Wand
4 Lower Cord Hook
5 Dust Cup Release Foot Pedal
6 Suction Release
7 Brushroll Indicator Light
8 Dust Cup
9 Brushroll Cover Release
10 Headlights
ACCESSORIES
11 Deep Clean Carpet Brushroll
12 Gentle Touch Hard Floor Brushroll
13 Brushroll Holster
1
2
3
5
6
10
9
GETTING TO KNOW YOUR SHARK® ROCKET® POWERHEAD VACUUM
12
11
13
4
8
7
STEP 1 STEP 2 STEP 3
ASSEMBLY
IMPORTANT: Always inspect wires for damage
before assembly.
1 Insert the upper part of the Telescoping
Wand into the lower portion while pressing
the HEIGHT ADJUST button. Make sure not
to pinch the wires.
Push the two parts together until you hear
them click in place.
2 Push the Brushroll Holster onto the lower
part of the wand until you hear it click into
place.
3 Open the top of the Brushroll Holster and
insert the spare Brushroll. Close before
using vacuum.
SELECTING THE CORRECT BRUSHROLL
4
1.800.798.7398
English
Deep Clean Carpet Brushroll
327FFJ452
The Deep Clean Carpet Brushroll can be used
on all floor types. It is optimized for deep
carpet cleaning.
Gentle Touch Hard Floor Brushroll
323FFJ401
Use this Brushroll for enhanced hard-floor cleaning.
The Shark® Rocket® Powerhead has a 2-speed POWER slider switch on the handle.
The Motorized Floor Nozzle is equipped with headlights that illuminate the floor surface being cleaned. The lights turn on in either speed
setting.
Less Suction
open
More Suction
closed
SUCTION RELEASE
This unit has a Suction Control Button to help
with push and pull on high-pile carpets and to
release suction when vacuuming area rugs. Open
to minimize suction. Be sure to close again for
maximum suction.
LO HI
Brushroll spins quickly
www.sharkrocketpowerhead.com
5
USAGE
• LO - For gentle on hard floors and area rugs
• HI - For deep-cleans carpets by removing embedded dirt
NOTE: For deep cleaning per ASTM F 608 (embedded dirt in carpets) please use
the carpet brushroll on HI setting with the SUCTION CONTROL closed.
1 Plug the unit into an electrical outlet.
2 Slide the POWER switch to the LO position to gently clean hard floors and
area rugs. The Brushroll will spin slowly.
3 Slide the POWER switch to the HI position to deep-clean carpets by
removing embedded dirt. The Brushroll will spin quickly.
NOTE: Before vacuuming your delicate area rugs or carpets, refer to the
manufacturer’s recommended cleaning instructions.
Deep Clean Carpet Brushroll
• LO - For large and heavy debris pickup
• HI - For loose and stuck-on dust and debris
1 Plug the unit into an electrical outlet.
2 Slide the POWER switch to the LO position to clean large and heavy
debris. The Brushroll will spin slowly.
3 Slide the POWER switch to the HI position to clean loose and stuck-
on dust and debris. The Brushroll will spin quickly.
NOTE: The brushroll will not spin unless the Telescoping Wand is reclined.
Gentle Touch Hard Floor Brushroll
Brushroll spins slowly
CHOOSING THE APPROPRIATE SETTING
1 To adjust the height of the Telescoping Wand, unwrap power cord, press on
the HEIGHT ADJUST button, and pull up to increase height, or push down to
decrease height.
2 Stand the vacuum upright. Step on the Motorized Floor Nozzle and pull the
Telescoping Wand back to start vacuuming.
VACUUMING
STORAGE
1 To store the vacuum, press on the HEIGHT
ADJUST button and press down to
decrease the height of the Telescoping
Wand.
2 Wrap the power cord around the cord
hooks.
STEP 1 STEP 2
OR
WHAT DOES THE BRUSHROLL INDICATOR LIGHT MEAN?
• Solid Green: The brushroll is on and working as it should.
• Solid Red: There is a jam in the brushroll area. Turn your vacuum off and
remove the blockage.
• *Flashing Red: The Motorized Floor Nozzle is overheating. Turn your vacuum off
and wait for it to cool down.
*See Troubleshooting section for further instructions.
1.800.798.7398
6
English
FILTER
ACCESS
EMPTYING THE DUST CUP
1 Detach the removable Dust Cup from the Motorized Floor Nozzle by pressing the Dust Cup Release Foot Pedal located on the left side near the Nozzle.
2 Holding the Dust Cup by the handle, lift it up to remove it from the Motorized Floor Nozzle.
3 Hold the Dust Cup over a garbage bag or can, then press the Empty button on the side of the Dust Cup. The bottom lid will open, allowing the debris to
fall out.
4 Clean the dust screen inside the Dust Cup as required.
MAINTENANCE
To keep your vacuum’s suction power optimal, follow these instructions.
IMPORTANT: Allow ALL filters to dry completely before replacing in the vacuum.
Make sure unit is off and cord is unplugged.
CLEANING THE FILTERS
Pre-Motor Filters
Access the Pre-Motor Filters by pressing the FILTER ACCESS latch on the
top of the Dust Cup. Remove and rinse the foam and felt filters every
month. Let air-dry COMPLETELY before replacing in the vacuum. Hand
wash only. Tap loose dirt off filters between washes as needed. Insert the
felt filter first, and then place the foam filter on top of it.
Post-Motor Filter
Access the Post-Motor Filter on the top of the Motorized Floor Nozzle.
Remove and rinse once a year. Let air-dry completely before replacing.
Hand wash only.
Post-Motor Filter
Pre-Motor Filters
Filter Access Latch
Foam
Felt
STEP 1 STEP 2 STEP 3
RECOMMENDED FILTER CLEANING SCHEDULE:
Pre-Motor Filter Kit (Foam & Felt): XFFH400 Every month
Post-Motor Filter: XEXFH400 Every year
www.sharkrocketpowerhead.com
7
CLEANING THE POWERHEAD
TO ACCESS THE BRUSHROLL
1 Slide the Brushroll Cover Release Buttons
out.
2 Pull up to open the hood of the Motorized
Floor Nozzle.
3 Lift the tab on the Brushroll up to remove it
from the Motorized Floor Nozzle.
4 Remove any string, carpet fibers, or hair that
is wrapped around the Brushroll. The groove
on the Brushroll allows a pair of scissors to
cut the debris without damaging the bristles.
5 The Brushroll can be removed and rinsed
under running water. Let the Brushroll air-dry
completely before replacing in the Motorized
Floor Nozzle.
6 To reassemble, hold the Brushroll by the tab
and align the other end with the gear. Then
with the tab facing up, place the Brushroll in
the Motorized Floor Nozzle.
7 Close the Brushroll cover. Listen for a click
and make sure the release buttons are fully
closed.
IMPORTANT: DO NOT place the Brushroll in the
dishwasher to wash or the dryer to dry. DO NOT
submerge the Brushroll in water.
IMPORTANT: Using a wet Brushroll in
the Motorized Floor Nozzle will void your
warranty.
STEP 1 STEP 2 STEP 3
STEP 4 STEP 5 STEP 6 STEP 7
IMPORTANT: Remove Brushroll from unit before rinsing.
IMPORTANT: Make sure Brushrolls are completely dry before replacing in the vacuum.
Make sure unit is off and cord is unplugged.
1.800.798.7398
8
English
Loading...
