Page 1
■
CB-3010
MODEL: CB
OPERATING INSTRUCTION
AND PARTS MANUAL
■
CB-3530
■
CB-4020
SHARK PRESSURE WASHERS ■ 4275 N.W. Pacific Rim Blvd. ■ Camas, WA 98607 ■ USA
For technical assistance or the Shark Dealer nearest you, call 1-800-771-1881.
Page 2
Page 3
MACHINE SPECIFICATIONS
3
●●
●
●●
Pump Volume At Pump Head:
CB-3010 2.8 GPM
CB-3530 3.5 GPM
CB-4020 4.2 GPM
●●
●
●●
Pump Pressure At Pump Head:
CB-3010 1000 PSI
CB-3530 3000 PSI
CB-4020 2000 PSI
●●
●
●●
Machine Voltage:
CB-3010 120V/1Ph
CB-3530 230V/1Ph
CB-4020 230V/1Ph
●●
●
●●
Total Machine Amperage:
CB-3010 20 Amps
CB-3530 36 Amps
CB-4020 29 Amps
●●
●
●●
Shipping Weight:
CB-3010 D - 216 Lbs.
CB-3530 A - 300 Lbs.
CB-4020 A - 275 Lbs.
● ●
●
● ●
Machine Dimensions: CB-3010 Length = 39" Width = 31" Height = 35"
CB-3530 Length = 39" Width = 31" Height = 35"
CB-4020 Length = 39" Width = 31" Height = 35"
Page 4
4
CONTENTS
Introduction ............................................................. 5
General Safety Information ................................. 5, 7
Component Identification ......................................... 6
Pre-Operation Check ............................................... 7
Setup Procedures ................................................... 7
Operating Instructions ............................................. 7
Shutdown Procedures ............................................. 7
How To Use the Detergent Injector .......................... 8
General Washing Techniques ................................... 9
Maintenance ........................................................... 9
Exploded View, Left Side........................................ 10
Exploded View, Right Side .....................................11
Parts List .......................................................... 12-13

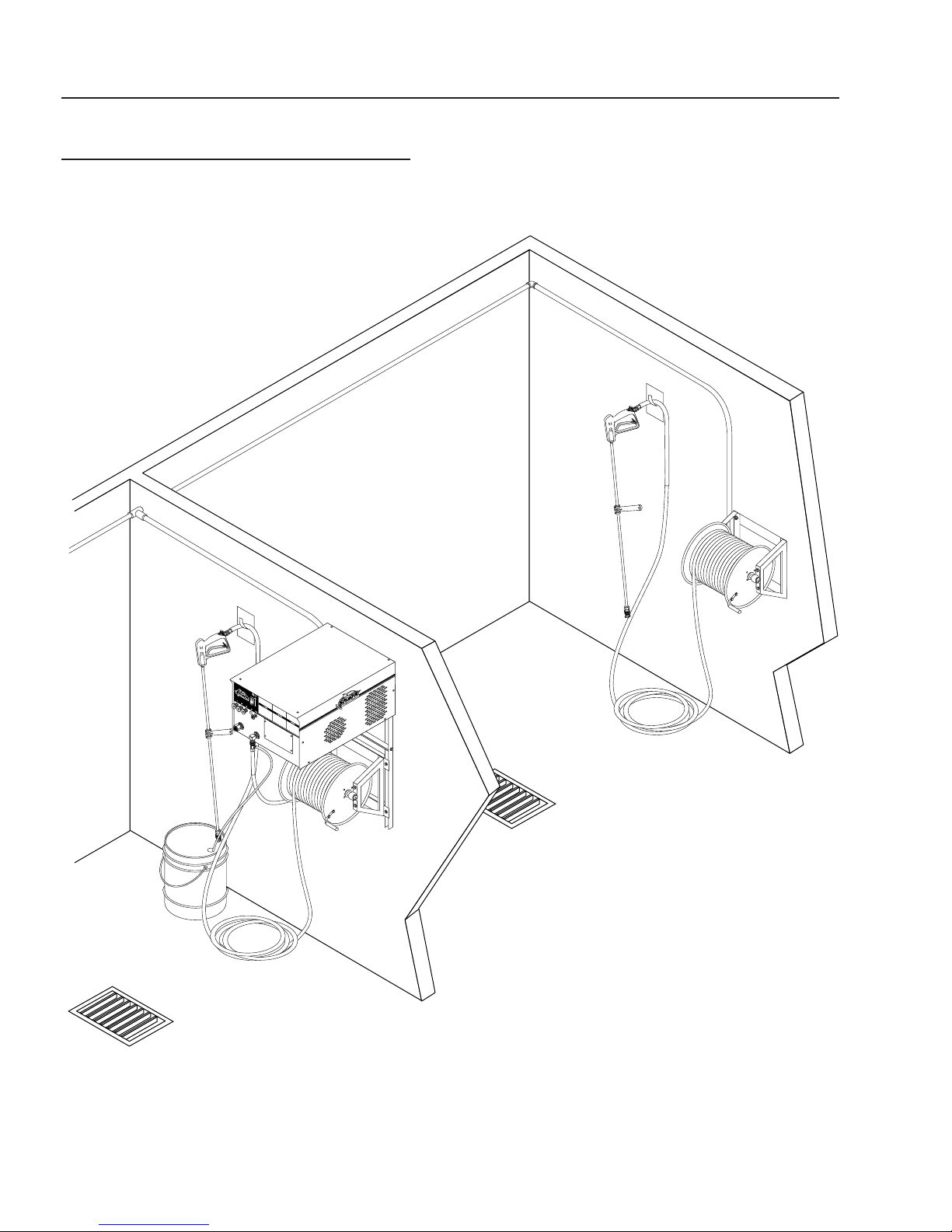

Multi-Room Installation........................................... 14
Hose & Spray Gun Assembly ................................15
Troubleshooting ................................................. 16-17
Preventive Maintenance .........................................18
Oil Change Record ................................................. 18
Warranty
SERIAL NUMBER:
DATE PURCHASED:
FOR SALES AND SERVICE, PLEASE CONTACT:
Shark CB Manual • Form #97-6128 • Revised 6/02
Page 5
CB SERIES PRESSURE WASHER
WARNING
WARNING
WARNING
OPERATOR’S MANUAL
5
INTRODUCTION
Thank you for purchasing a Shark Pressure Washer.
This manual covers the operation and maintenance of
the CB series pressure washers. All information in this
manual is based on the latest product information available at the time of printing.
We reserve the right to make changes at any time without incurring any obligation.
The CB Series was designed for maximum
use of 4 hours per day, 5 days per week.
Owner/User Responsibility:
The owner and/or user must have an understanding of
the manufacturer’s operating instructions and warnings
before using this pressure washer. Warning information
should be emphasized and understood. If the operator is
not fluent in English, the manufacturer’s instructions and
warnings shall be read to and discussed with the operator in the operator’s native language by the purchaser/
owner, making sure that the operator comprehends its
contents.
Owner and/or user must study and maintain for future
reference the manufacturers’ instructions.
This manual should be considered a permanent
part of the machine and should remain with it if
machine is resold.
When ordering parts, please specify model and
serial number.
GENERAL SAFETY
INFORMATION
CAUTION
READ OPERATOR’S
MANUAL THOROUGHLY
PRIOR TO USE.
2. Know how to stop the machine and bleed pressures
quickly. Be thoroughly familiar with the controls.
3. Stay alert—watch what you are doing.
4. All installations must comply with local codes. Contact your electrician, plumber, utility company or the
selling distributor for specific details.
CAUTION: To reduce the risk of injury, read operating instructions
carefully before using.
1. Read the owner's manual thoroughly. Failure to follow instructions could cause malfunction
of the machine and result in
death, serious bodily injury and/
or property damage.
To comply with the National Electrical code (NFPA70)
and provide additional protection from risk of electric
shock, these pressure washers are equipped with a
UL approved ground fault circuit interrupter (GFCI)
power cord.
WARNING: Risk of asphyxiation —
Use this product only in a well
ventilated area.
5. Risk of explosion - do not spray
flammable liquids or operate in
RISK OF
ASPHYXIATION.
USE ONLY IN A WELL
VENTILATED AREA.
an explosive location.
WARNING: Keep water spray away
from electric wiring or fatal electrical shock may result.
6. To protect the operator from
electrical shock, the machine
must beelectrically grounded. It
KEEP WATER SPRAY
AWAY FRO M
ELECTRICAL WIRING.
is the responsibility of the owner
to connect this machine to UL
grounded receptacle of proper
voltage.
Do not spray water on or near electrical components.
Do not touch machine with wet hands or while
standing in water. Always disconnect power before
servicing.
7. Grip wand securely with both hands before starting
the cleaner. Failure to do this could result in bodily
injury from a whipping wand.
WARNING: High pressure stream of
fluid that this equipment can produce can pierce skin and its underlying tissues, leading to serious injury and possible amputation.
8. High pressure developed by
HIGH PRESSURE
SPRAY CAN PIERCE
SKIN AND TISSUES.
these machines can cause
bodily injury or damage. Use
caution when operating. Do not
point the spray gun at anyone or at any part of body.
9. Never make adjustments on machine while it is in
operation.
WARNING
WARNING: High pressure spray
can cause paint chips or other particles to become airborne and fly
at high speeds.
10. Eye safety devices must be
PROTECTIVE
EYEWEAR AND
CLOTHING MUST BE
WORN.
worn when using this equipment.
Shark CB • Rev. 6/02
Page 6
6
CB SERIES PRESSURE WASHER
COMPONENT IDENTIFICATION
High Pressure
Nozzle
OPERATOR’S MANUAL
Water
Supply
Garden Hose
(not included)
Quick
Coupler
Garden Hose
High Pressure
Hose
Inlet
Hose
Coupler
On/Off
Switch
Detergent
Injector
Detergent
Pick-up
Tube
Wand Grip
Discharge
Nipple
Wand
Spray
Gun
Trigger
Shark CB • Rev. 6/02
Detergent Bucket
(not included)
Page 7
CB SERIES PRESSURE WASHER
OPERATOR’S MANUAL
7
11. When the machine is working, do not cover or place
in a closed space where ventilation is insufficient.
12. Protect from freezing.
13. Be certain all quick coupler fittings are secured before using pressure washer.
14. Do not allow acids, caustic, or abrasive fluids to pass
through the pump.
15. Inlet water must be cold and clean fresh water.
16. The best insurance against an accident is knowledge
of the machine and operator precaution.
17. We will not be liable for any changes made to our
standard machines, or any components not purchased
from us.
18. Do not allow CHILDREN to operate the pressure
washer at any time. THIS MACHINE MUST BE ATTENDED DURING OPERATION.
19. Do not operate this machine when fatigued or under
the influence of alcohol or drugs.
20. Keep operating area clear of all persons.
21. Do not overreach or stand on unstable support. Keep
good footing and balance at all times.
22. Follow the maintenance instructions specified in the
manual.
PRE-OPERATION CHECK
Read machine safety warnings
❑
Pump oil (SAE 30W non-detergent oil)
❑
Cold water supply (6 GPM • 5/8" • 20 PSI)
❑
Proper power supply and circuit protection
❑
Hose, wand, nozzle (nozzle size per serial plate)
❑
Water filter (intact, non restrictive)
❑
Read operation instructions
❑
This machine must be protected from the elements
❑
SETUP PROCEDURES
This machine is intended for indoor use. Machine
must be stored indoors when not in use.
1. Attach a 5/8" garden hose to inlet connector. Minimum flow should be 5 GPM.
2. Attach high pressure hose to discharge nipple using
quick coupler. Lock coupler securely into place by
pulling back coupler collar and inserting it onto discharge nipple, then pushing collar forward to lock in
place.
3. Attach wand to spray gun using teflon tape on threads
to prevent leakage.
4. Attach connector on discharge hose to spray gun
using teflon tape on threads.
5. Remove oil plug on top of pressure washer pump
and replace with dipstick supplied. (This may be installed from the factory.)
6. Check oil level on oil dipstick on top of pump. Oil
should be visible one half way up sight glass (30W
non-detergent).
OPERATING INSTRUCTIONS
1. Read safety and preventative maintenance instructions before starting machine.
2. With power switch in OFF position, plug power cord
into a grounded type of receptacle of proper voltage
and amperage reading. Then push GFCI reset button
at end of power cord if required.
3. Turn on water at faucet and pull trigger on spray gun
allowing water to flow until all air has discharged from
system. Check for water leaks; tighten as needed.
4. Push the switch on and pull the trigger on the spray
gun to activate a pressure switch which will then start
the machine. (Auto start option only).
5. Turn the variable pressure control handle clockwise
to increase pressure.
6. To apply detergent read “How to Use The Detergent
Injector.”
SHUTDOWN PROCEDURES
1. Rinse with clean water to remove any soap residue,
by placing detergent hose into fresh water bucket
and operating injector as described below.
2. Release the trigger on the spray gun which will activate a timer to shut the machine off after four (4)
seconds. Turn the switch off if the machine is going
to be left unattended. (Auto start option only).
3. Turn off water supply.
4. Open spray gun to relieve remaining pressure.
5. Remove water supply hose.
6. In freezing conditions, water should be drained from
machine. Run the pump dry for a few seconds and
then disconnect all hoses to allow water to drain.
CAUTION: When removing hose, spray gun, or detergent injector, the switch must be in the off position
followed by opening spray gun to relieve pressure,
or personal injury will occur.
Shark CB • Rev. 6/02
Page 8
8
CB SERIES PRESSURE WASHER
OPERATOR’S MANUAL
HOW TO USE
THE DETERGENT INJECTOR
WARNING
SOME DETERGENTS
MAY BE HARMFUL IF
INHALED OR
INGESTED
1. Pull injector quick coupler collar back and secure on
discharge nipple. Injector valve body arrow should
point in direction of flow.
2. Connect high pressure hose to injector nipple securing quick coupler.
3. Start machine as outlined in Operating Instructions.
4. Place detergent pickup tube into container of detergent solution.
WARNING: Some detergents may
be harmful if inhaled or ingested
causing severe nausea, fainting or
poisoning. The harmful elements
may cause property damage or
severe injury.
The machine can siphon and mix
detergents with the use of Shark's
detergent injector kit.
5. Install the brass soap nozzle provided with the injector into the quick coupler of the wand.
6. Open spray gun. Water detergent ratio is approximately 15 to 1.
7. When you finish washing, rinse by simply releasing
the spray gun, removing the soap nozzle, and replacing the pressure nozzle back into quick coupler.
NOTE: The detergent injector will not siphon with
the high pressure nozzle at the end of the wand.
8. If your machine has a variable pressure wand, turn
the pressure control handle counterclockwise to lower
the pressure. This directs the water flow through the
soap nozzle, allowing the detergent injector to siphon soap. To rinse with high pressure water, simply
turn the control handle clockwise.
9. For clean up, place detergent pickup tube into container of clear water and follow steps 5 and 8 to prevent detergent deposits from damaging the injector.
Soap Nozzle
Garden
Hose Inlet
Quick Coupler
High Pressure
Nozzle
Quick Coupler
Detergent Injector
On/Off
Switch
Wand Grip
Discharge
Nipple
Detergent
Pickup Tube
Wand
Spray
Gun
Trigger
High Pressure
Hose
Shark CB • Rev. 6/02
Page 9
CB SERIES PRESSURE WASHER
OPERATOR’S MANUAL
9
GENERAL WASHING
TECHNIQUES
Hold spray nozzle a foot or so from the surface being
cleaned. Spray at an angle to get under the material and
lift it off.
When washing large objects, use detergent injector to
apply detergent. Start washing from the bottom and work
up. Allow the detergent to set 5-10 minutes. After washing, rinse from the top down.
Cleaning heavy dirt or material away with a hard stream
of clear water is recommended before using a cleaning
agent.
MAINTENANCE
Pump Lubrication
The pump on your CB Pressure Washer is a triplex ceramic plunger pump. As the plungers move back, water
flows through the inlet valve into the manifold chamber.
Then, when the plungers move forward, the inlet valves
close and the discharge valves open to produce discharge
pressure.
Use only SAE 30 weight non-detergent oil; change oil
after first 50 hours of use. Thereafter, change oil every
three months or at 500 hour intervals. Oil level should be
checked through the use of the dipstick found on top of
the pump, or half way up on the oil gauge window. Oil
should be maintained at that level.
Winterizing Procedure
Damage due to freezing is not covered by warranty. Use
the following cold weather procedures whenever the
washer must be stored or operated outdoors under freezing conditions.
During winter months, when the temperature drops below
32°F, protecting your machine against freezing is necessary. A blowout valve is available which can be screwed
on in place of the garden hose to blow water out of the
system. When compressed air is not available or impractical, siphon a small amount of antifreeze into the machine and siphon a 50/50 mixture of antifreeze into the
pump. Run the pump dry for a few seconds and disconnect all hoses to allow water to drain.
Low Pressure Diagnosis
Refer to Troubleshooting Chart for low pressure. If, by
referring to the chart, the trouble is found to be either the
unloader or the pump, your next step is to determine
whether in fact the unloader or the pump is the problem.
This can be done by eliminating the unloader from the
system and attaching the discharge hose directly to the
pump. If high pressure is developed in this manner the
pump is good, and the unloader needs to be repaired or
replaced.
CAUTION: When using this procedure to test components, keep the spray gun open at all times.
Unloader Valves
The unloader valve is connected directly to the discharge
port of the pump. Its purpose is to allow recirculation
back into the pump inlet when the trigger on the spray
gun is closed.
Nozzles
Each machine is equipped with one spray nozzle depending on the flow and pressure of that particular model.
Spray nozzles vary in bore size and angle of spray. When
ordering replacement nozzles, please specify size and
angle of nozzle. Nozzle size for each machine is located
on the serial plate.
Shark CB • Rev. 6/02
Page 10
10
CB SERIES PRESSURE WASHER
CB, EXPLODED VIEW
LEFT SIDE
OPERATOR’S MANUAL
64
64
4
9
5
6
15
7
25
13
54
8
66
70
8
45
20
71
10
12
21
24
11
63
62
51
49
1
2
58
3
17
50
16
19
18
19
Shark CB • Rev. 6/02
52
19
19
50
14
19
Page 11
CB SERIES PRESSURE WASHER
CB, EXPLODED VIEW
RIGHT SIDE
27
43
OPERATOR’S MANUAL
39
11
46
53
32
35
29
46
37
31
33
36
65
34
42
38
40
46
67
44
41
48
19
60
68
19
48
19
28
59
19
48
50
22
26
49
69
50
57
56
30
47
55
Shark CB • Rev. 6/02
61
Page 12
12
CB SERIES PRESSURE WASHER
CB, EXPLODED VIEW
PARTS LIST
OPERATOR’S MANUAL
ITEM PART NO. DESCRIPTION QTY
1 5-3208 Unloader, AL607,
7.8 GPM @ 4200 PSI
(301001, 402001, 353001) 1
5-3150 Unloader, APR S 2000
(301007) 1
5-3151 Unloader, APR S 3000
(402007, 353007) 1
2 5-2302 Pump, General T-991 (301001) 1
5-2304 Pump, General T-1011
(402001) 1
5-2307 Pump, General, TS-2021
(353001) 1
5-1625 Pump, Legacy WML-2540
(301007) 1
5-1651 Pump, Legacy TML-3053
(402007, 353007) 1
3 5-1013 Motor, 7.5 HP, 1PH, 1725 RPM
230V (3530) 1
5-10401 Motor, 6 HP, 1PH, 1725 RPM
230V (4020) 1
5-1047 Motor, 2 HP, 3450 RPM,
120V (3010) 1
4 6-60101 Transformer, Micron,
240/480V-120V, 50/60 HZ,
.050KVA 1
5 6-02294 Fuse, ATMR, 1 Amp, 600 Volt 2
6 6-022970 Fuse, Paper, Buss FNM-1/2,
250V Midget 1
7 6-4018 Contactor, 120V, CH
CE15HNS3AB-09
(3530A, 4020) 1
6-4010 Contactor, 120V, CH (3530) 1
6-4013 Contactor, 120V, CH
CE15FNS3AB (3010D) 1
6-5015 ▲ Overload, 29-42 Amp, CH
C316KNA3C (3530A) 1
8 2-1105 1/2" JIC Fem, Push-On 4
9 6-021595 DM Rail, 35 mm, /in. 4"
10 6-03909 Box, Plastic, 10" x 8" x 6"
w/Lid (4020, 3530) 1
6-03907 Box, Plastic 8" x 8" x 4",
(3010) 1
11 95-07603907 Bracket, Support
for Electric Box 1
12 6-051595 Strain Relief, STRT, Large,
3234 1
6-05172 Locknut, 3/4 Conduit 1
Shark CB • Rev. 6/02
ITEM PART NO. DESCRIPTION QTY
13 6-05153 Strain Relief, STRT, 3200
Medium 2
6-05181 Locknut, 1/2" Conduit 2
14 4-02047725 Hose, 3/8" x 25", 2 Wire,
Pressure Loop (4020, 3530) 1
4-02047720 Hose, 3/8" x 20, 2 Wire,
Pressure Loop (3010) 1
15 4-02110000 Hose, 1/2" Push-On, /ft. 3
16 95-07141110 Retainer, Pump Take Up 1
17 95-07102112 Rail, Pump General 1
9507163136 Rail, Pump Legacy 1
18 90-10220 Bolt, 3/8" x 3-1/2" Tap 2
19 90-4002 Washer, 3/8", Flat, SAE 26
90-4001 Washer, 5/16", Flat, SAE (3010)4
20 2-00601 Elbow, 1/2" JIC x 3/8" FPT 90° 1
21 95-07290068 Standoff, Electrical Box 1
22 6-0517 Strain Relief, 3/4" 3303 1
24 2-0053 Elbow, 1/2" JIC x 3/8" 90° 2
25 6-01041 Cord, Serv, SEO, 10/3 Ft.
Coleman 3
26 10-08021 Label, Disconnect,
Power Supply 1
27 95-07102129 Cover, Hotsy Cold Water 1
28 95-07102122 Base, Shark CB 1
29 6-020240 Switch, Rocker, Carling
w/Green Lens 1
30 2-0104 Pad, Hard Rubber, 50 Duro 4
31 2-0103 Grommet, Rubber
(Nozzle Holder) 4
32 2-10942 Swivel, 1/2" MP x 3/4"
GHF w/strainer 1
33 2-11041 Connector, 1/2" Anchor 1
34 2-11039 Connector, 3/8" Anchor 1
35 4-011184 Downstream Injector Assembly,
Non-Adj. 1
36 2-2007 Nipple, 3/8" x 3/8"
NPT ST Male 1
37 4-12806000 Nozzle, SAQMEG 0006,
Red (4020) 1
4-12806015 Nozzle, SAQMEG 1506,
Yellow (4020) 1
4-12806025 Nozzle, SAQMEG 2506
Green (4020) 1
Page 13
CB SERIES PRESSURE WASHER
CB, EXPLODED VIEW
PARTS LIST
(CONT.)
OPERATOR’S MANUAL
13
ITEM PART NO. DESCRIPTION QTY
37 4-12806040 Nozzle, SAQMEG 4006
White (4020) 1
4-12804000 Nozzle, SAQMEG 0004,
Red (3530) 1
4-12804015 Nozzle, SAQMEG 1504
Yellow (3530) 1
4-12804025 Nozzle, SAQMEG 2504,
Green (3530) 1
4-12804040 Nozzle, SAQMEG 4004
White (3530) 1
4-12805500 Nozzle, SAQMEG 0005.5
Red (3010) 1
4-12805515 Nozzle, SAQMEG 1505.5
Yellow (3010) 1
4-12805525 Nozzle, SAQMEG 2505.5
Green (3010) 1
4-12805540 Nozzle, SAQMEG 4005.5
White (3010) 1
38 11-0308 Label, Shark CB,
Control Panel 1
39 11-0601 Label, Shark CB, Stripe 29" 2
40 5-512024 Bushing, H x 24mm 1
5-5120220 Bushing, 22mm (402007) 1
41 5-511113 Bushing, H x 1-1/8"
(4020) 1
5-511138 Bushing, H x 1-3/8" (3530) 1
42 5-40208401 Pulley, 2AK84H
(301007, 402001) 1
5-40207401 Pulley, 2AK74H (402007) 1
5-40508001 Pulley, 2BK80H (353001) 1
5-40507001 Pulley, 2BK70H (353007) 1
5-40107401 Pulley, AK74H (301001) 1
43 5-40102658 Pulley Bore, AK26 x 5/8"
(301001) 1
5-40102558 Pulley Bore, AK25 x 5/8"
(301007) 1
5-40205401 Pulley, 2AK54H
(402001, 402007) 1
5-40504501 Pulley, 2BK45H (353001) 1
5-40504001 Pulley, 2BK40H (353007) 1
44 5-602040 Belt, AX40 (301001, 301007
Qty 1; 402007 Qty 2)
5-602037 Belt, AX37 (402001) 2
5-604042 Belt, BX42 (353001) 2
5-602036 Belt, AX36 (402007) 2
ITEM PART NO. DESCRIPTION QTY
44 5-604037 Belt, BX37 (353007) 2
45 2-1053 Nipple, 1/2" JIC x 1/2" MNPT 1
46 90-1995 Screw, 1/4" x 1/2", BH SOC CS 8
47 90-40125 Washer, 3/8" x 1" Steel 4
90-1017 Bolt, 3/8" x 1-1/4", NC HH
(353001, 402001) 22
90-1007 Bolt, 5/16" x 1", NC HH (3010) 4
48 90-1016 Bolt, 3/8" x 1", NC HH 4
49 10-9999 Label, Clear Lexan,
2-1/4" x 4-1/2" 1
50 90-2002 Nut, 3/8", ESNA, NC 8
51 90-2002 Nut, 3/8" ESNA, NC
(3530, 4020) 4
90-2001 Nut, 5/16", ESNA, NC (3010) 4
52 90-2007 Nut, 3/8" HEX, NC 2
53 95-07102289 Cover, Access Hole 1
54 90-2000 Nut, 1/4", ESNA NC 2
55 90-1018 Bolt, 3/8" x 1-1/2", NC HH 4
56 2-0108 Bumper Pad, Engine 4
57 90-4007 Washer, 3/8" x 1-1/2" Fender 4
58 6-01060 GFCI, 120V 20A w/36' 12-3 Cord
(3010) 1
6-01059 GFCI, 240V 1 Ph, 30A, 36'
10-3 Cord (4020) 1
6-010690 GFCI 240V 1 Ph, 40A, 36'
8-3 Cord (3530) 1
59 90-202301 Nut, Cage, 1/4" x 12 GA 4
60 2-0114 Nut, 1/4" Square Head
Grommet, Nylon 4
61 95-07102124 Rail, Stabilizer 2
62 90-1994 Screw, 10/32" x 1-1/4" RH, SL 1
63 90-1991 Screw, 10/32" x 1/2" BHSOC 1
64 90-017 Nut, 10/32" KEPS 2
65 10-09003 Label, Cold Water Inlet, HS 1
66 2-300882 Pump Protector, 1/2" 90° 1
67 10-09002 Label, Cold Water Outlet
SE/SEA 1
68 10-02028 Label, Warning,
Exposed Pulleys 1
69 10-08016 Label, Intended for Indoor Use 1
70 2-1046 Plug, 1/4" MNPT (Legacy) 1
71 2-1040 Tee, 1/2" Street 1
▲ Not Shown
Shark CB • Rev. 6/02
Page 14
14
CB SERIES PRESSURE WASHER
CB MULTI-ROOM INSTALLATION
OPERATOR’S MANUAL
Shark CB • Rev. 6/02
Page 15
CB SERIES PRESSURE WASHER
CB HOSE & SPRAY GUN ASSEMBLY
12
11
1
OPERATOR’S MANUAL
3
5
15
6
8
7
9
10
ITEM PART NO. DESCRIPTION QTY
1 2-2000 Coupler, 1/4" Female 1
2-0119 ▲ Quick Coupler O-ring, Small 1
3 4-0110322 Wand, SS, VP, MTM SS,
w/Coupler, Soap Nozzle 1
4-011132 Wand Only, Adj. Side Grip 1
4 4-02093450BC Hose, 3/8" x 50', 1 Wire, Shark
w/Coupler 1
5 4-01246 Spray Gun, Shut-Off, AP-1000 1
6 4-011184 Detergent Injector Assy,
3-5 GPM, 0.83" 1
Shark CB • Rev. 6/02
4
ITEM PART NO. DESCRIPTION QTY
7 2-1904 Strainer, 1/4" Hose Barb 1
8 2-2002 Coupler, 3/8" Female 1
2-0121 ▲ Quick Coupler O-Ring,
Large 1
9 2-9000 Clamp, Screw #4 1
10 4-02080000 Tube, 1/4" x 1/2",
Clear Vinyl /ft. 1
11 4-16540 Nozzle, Brass Soap 1
12 High Pressure Nozzle (See page 13)
▲ Not Shown
Page 16
16
CB SERIES PRESSURE WASHER
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
LOW OPERATING
PRESSURE
FLUCTUATING
PRESSURE
Faulty pressure gauge Install new gauge.
Insufficient water supply Use larger supply hose; clean filter at water inlet.
Old, worn or incorrect spray nozzle Match nozzle number to machine and/or replace with
new nozzle.
Belt slippage Tighten or replace; use correct belt.
Plumbing or hose leak Check plumbing system for leaks. Retape leaks with
teflon tape.
Faulty or misadjusted unloader valve
(Where applicable)
Worn packing in pump Install new packing kit.
Fouled or dirty inlet or discharge
valves in pump
Worn inlet or discharge valves Replace with valve kit.
Obstruction in spray nozzle Remove obstruction.
Leaking pressure control valve
(where applicable)
Insufficient power supply Check voltage.
Valves worn Check and replace if necessary.
Blockage in valve Check and clean out if necessary.
Pump sucking air Check water supply and suction line for air seepage at
Worn piston packing Check and replace if necessary.
Call technical support.
Clean inlet and discharge valves.
Rebuild or replace as needed.
joints.
OPERATOR’S MANUAL
PRESSURE LOW
AFTER PERIOD OF
NORMAL USE
PUMP NOISY
PRESENCE OF
WATER IN P UMP
OIL
MOTOR STRAINS
UNDER LOAD
(CONTINUED ON
NEXT PAGE)
Shark CB • Rev. 6/02
Nozzle worn Check and replace if necessary.
Inlet or discharge valves worn Check and replace if necessary.
Inlet or discharge valves blocked Check and clean if necessary.
Unloader valve seat worn Check and replace if necessary.
Air in suction line Check water supply and connections on suction line.
Broken or weak inlet or discharge
valve springs
Foreign matter in valves Check and clean if necessary.
Worn bearings Check and replace if necessary.
Excessive temperature of liquid Reduce to below 75°C
Oil seal worn Check and replace if necessary.
High humidity in air Check and change oil twice as often.
Piston packing worn Check and replace if necessary.
Faulty motor Send to nearest Baldor repair center.
Incorrect spray nozzle Install proper nozzle size (see serial plate for proper size).
Obstruction in spray nozzle Remove obstruction.
Check and replace if necessary.
(180°F
).
Page 17
CB SERIES PRESSURE WASHER
OPERATOR’S MANUAL
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
17
MOTOR STRAINS
UNDER LOAD
(CONTINUED FROM
PREVIOUS PAGE)
OIL SQUIRTS OUT OF
OIL CAP ON PUMP
PUMP RUNNING
NORMALLY BUT
PRESSURE OUTPUT
LOW
WATER DRIPPING
FROM UNDER PUMP
OIL DRIPPING
EXCESSIVE VIBRATION
IN DELIVERY LINE
Misadjusted unloader valve Call technical support.
Pump low or out of oil Check oil level.
Pump over filled with oil Maintain oil level halfway up on the sight glass
at rear of pump or at top of notch on dipstick
(where applicable).
Pump sucking air Check water supply and possibility of air
seepage.
Valves sticking Check and clean or replace if necessary.
Unloader valve seat faulty Check and replace if necessary.
Nozzle incorrectly sized Check and replace if necessary (See serial
plate for proper size).
Worn piston packing Check and replace if necessary.
Piston packing worn Check and replace if necessary.
O-Ring plunger retainer worn Check and replace if necessary.
Cracked piston Check and replace if necessary.
Oil seal worn Check and replace if necessary.
Irregular functioning of the valves Check and replace if necessary.
SYSTEM WILL NOT
START
MOTOR “HUMS” BUT
DOES NOT TURN
SYSTEM WILL NOT
STOP
SYSTEM STOPS AFTER
APPROXIMATELY FOUR
(4) SECONDS AND
THEN RESTARTS
MACHINE WILL NOT
START WHEN SPRAY
GUN TRIGGER IS
PULLED
MACHINE DOES NOT
TURN OFF AFTER
FOUR (4) SECONDS
WHEN SPRAY GUN IS
RELEASED
Motor overload tripped Check and reset.
Pressure switch faulty (auto start only) Check, clean or replace.
Timer faulty (auto start only) Check and replace.
Electric motor single phasing Check for blown fuse or loose power line.
Pressure switch faulty Check clean or replace.
Timer faulty Check and replace.
Faulty pressure switch Check and replace.
Leak at discharge line Check for leak at hose and spray gun.
Loss of electrical power Check circuit breaker.
Faulty on/off switch, pressure switch,
timer or magnetic contactor
Test power control switch and solid
state timer faulty
Test and replace as needed.
Replace the defective component.
Shark CB • Rev. 6/02
Page 18
18
CB SERIES PRESSURE WASHER
OPERATOR’S MANUAL
PREVENTATIVE MAINTENANCE
This pressure washer was produced with the best available materials and quality craftsmanship. However, you as the
owner, have certain responsibilities for the correct care of the equipment. Attention to regular preventative maintenance procedure will assist in preserving the performance of your equipment. Contact your Shark dealer for maintenance. Regular preventative maintenance will add many hours to the life of your pressure washer. Perform maintenance more often under severe conditions.
MAINTENANCE SCHEDULE
Inspect 25 Hours or Weekly
Pump Oil
Change Yearly
Check Valve Clearance
Inspect Every 6 Hours or Daily
Water Filter
Clean Yearly
Ye a r l y
OIL CHANGE RECORD
Check pump oil level before first use. Change pump oil after first 50 hours and every month or 500 hours thereafter.
Use SAE 30 weight oil.
Date Oil Changed
Month/Day/Year
Estimated Operating
Hours Since Last
Oil Change
Date Oil Changed
Month/Day/Year
Estimated Operating
Hours Since Last
Oil Change
Shark CB • Rev. 6/02
Page 19
CB SERIES PRESSURE WASHER
WARRANTY
SHARK LIMITED NEW PRODUCT WARRANTY
PRESSURE WASHERS
WHAT THIS WARRANTY COVERS
All SHARK PRESSURE WASHERS are warranted by SHARK to the original purchaser to be free from defects in materials and
workmanship under normal use, for the periods specified below. This Limited Warranty is subject to the exclusions shown
below, is calculated from the date of the original purchase, and applies to the original components only. Any parts replaced
under this warranty will assume the remainder of the part’s warranty period. This warranty applies to the original purchaser and
is not transferable.
LIMITED LIFETIME PARTS WARRANTY:
Components manufactured by SHARK, such as frames, handles, coil wraps, float tanks, and belt guards. All heating coils will
have a one year warranty. Internal components on the oil-end of all pressure washer pumps will have a seven year warranty.
ONE YEAR PARTS WARRANTY:
All other components, excluding normal wear items as described below, will be warranted for one year on parts. Warranty on
these parts will be for one year regardless of the duration of the original component manufacturer’s part warranty.
WARRANTY PROVIDED BY OTHER MANUFACTURERS:
Motors, generators, and engines, which are warranted by their respective manufacturers, are serviced through these manufacturers’ local authorized service centers. SHARK cannot provide warranty on these items.
WHAT THIS WARRANTY DOES NOT COVER
This warranty does not cover the following items:
1. Normal wear items, such as nozzles, guns, discharge hoses, wands, quick couplers, seals, filters, gaskets, O-rings,
packings, pistons, pump valve assemblies, strainers, belts, brushes, rupture disks, fuses, pump protectors.
2. Damage or malfunctions resulting from accidents, abuse, modifications, alterations, incorrect installation, improper
servicing, failure to follow manufacturer’s maintenance instructions, or use of the equipment beyond its stated usage
specifications as contained in the operator’s manual.
3. Damage due to freezing, chemical deterioration, scale buildup, rust, corrosion, or thermal expansion.
4. Damage to components from fluctuations in electrical or water supply.
5. Normal maintenance service, including adjustments, fuel system cleaning, and clearing of obstructions.
6. Transportation to service center, shop labor charges, field labor charges, or freight damage.
WHAT YOU MUST DO TO OBTAIN WARRANTY SERVICE
While not required for warranty service, we request that you register your SHARK pressure washer by returning the completed
registration card. In order to obtain warranty service on items, you must return the product to an Authorized Dealer, freight
prepaid, with proof of purchase, within the applicable warranty period. If the product is permanently installed, you must notify
your Authorized Dealer of the defect. The Authorized Dealer will file a claim, which must subsequently verify the defect. In most
cases, the part must be returned to SHARK freight prepaid with the claim. For warranty service on components warranted by
other manufacturers, the Authorized Dealer can help you obtain warranty service through these manufacturers’ local authorized service centers. If you are unable to resolve the warranty claim satisfactorily, write to SHARK at 4275 N.W. Pacific Rim
Blvd., Camas, WA 98607, ATTN: Warranty Dept., detailing the nature of the defect, the name of the Authorized Dealer, and a
copy of the purchase invoice.
LIMITATION OF LIABILITY
SHARK’S liability for special, incidental, or consequential damages is expressly disclaimed. In no event shall SHARK’S liability
exceed the purchase price of the product in question. SHARK makes every effort to ensure that all illustrations and specifications are correct, however, these do not imply a warranty that the product is merchantable or fit for a particular purpose, or that
the product will actually conform to the illustrations and specifications. THE WARRANTY CONTAINED HEREIN IS IN LIEU OF
ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE. SHARK does not authorize any other party, including authorized Dealers, to make any representation or
promise on behalf of SHARK, or to modify the terms, conditions, or limitations in any way. It is the buyer’s responsibility to ensure
that the installation and use of SHARK products conforms to local codes. While SHARK attempts to assure that its products
meet national codes, it cannot be responsible for how the customer chooses to use or install the product.
SHARK PRESSURE WASHERS
4275 N.W. Pacific Rim Blvd. • Camas, WA 98607 • USA • 1-800-771-1881
Shark CB • Rev. 6/02
Page 20
4275 N.W. Pacific Rim Blvd. • Camas, WA 98607 • 1-800-771-1881
Form #97-6128 • Revised 6/02 • Printed in U.S.A.
Loading...
