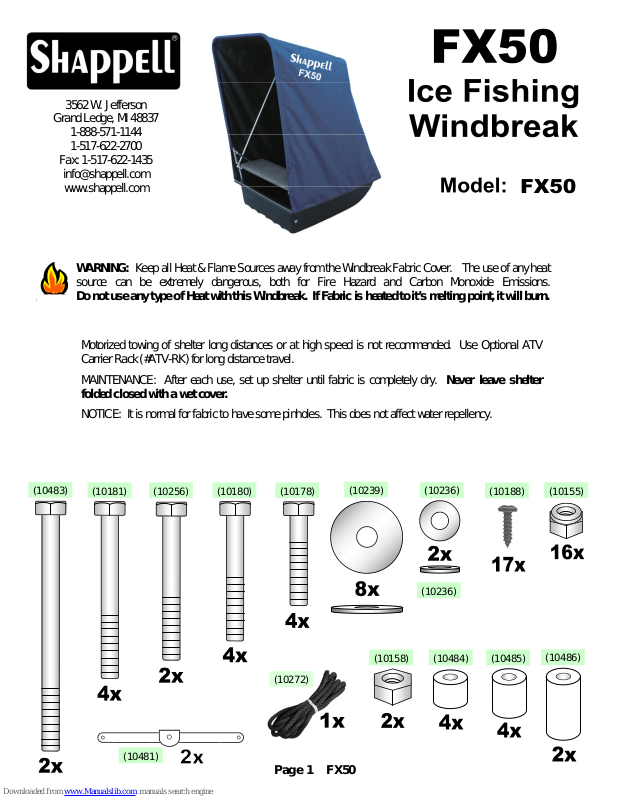

WARNING: Keep all Heat & Flame Sources away from the Windbreak FabricCover. The use of any heat
source can be extremely dangerous, both for Fire Hazard and Carbon Monoxide Emissions.
Do not use any type ofHeatwiththis Windbreak. IfFabric is heated to it’s melting point, it will burn.
Motorized towing of shelter long distances or at high speed is not recommended. Use Optional ATV
Carrier Rack (#ATV-RK) for long distance travel.
MAINTENANCE: After each use, set up shelter until fabric is completely dry. Never leave shelter
folded closed with a wet cover.
(10483)
NOTICE: Itis normal for fabric to have some pinholes. This does not affect water repellency.
(10178)(10180)(10256)(10181)
(10272)
(10239)
(10158)
(10236)
(10236)
(10484) (10485)
(10188)
(10155)
(10486)
(10481)
Page 1 FX50
(10488)
(1047
(10490)
(10491)
(10482)
(10297)
(10487)
(10489)
(10295)
2x (10482)
4x (10239)
4x (10178)
4x (10155)
(10488)
(104
Page 2 FX50
2x (10484)
(10297)
2x (10483)
4x (10239)
2x (10181)
2x (10491)
4x (10155)
2x (10486)
2x (10158)
(104
(10181) 2x
(10489)
2x (10484)
2x (10155)
(10
Page 3 FX50

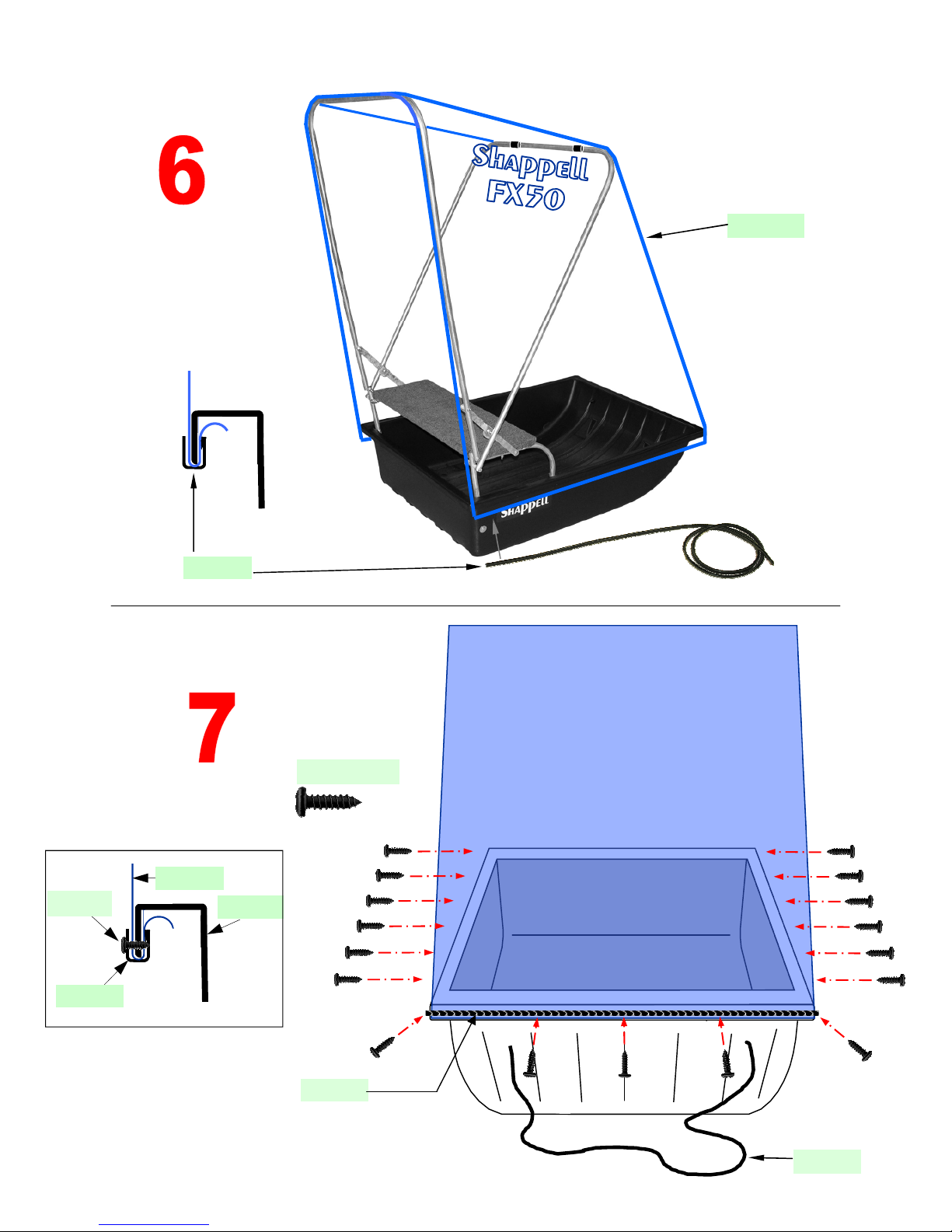

Thread (10487) U-Frame
through Front Hem of
Cover before Installing.
Page 3 FX50

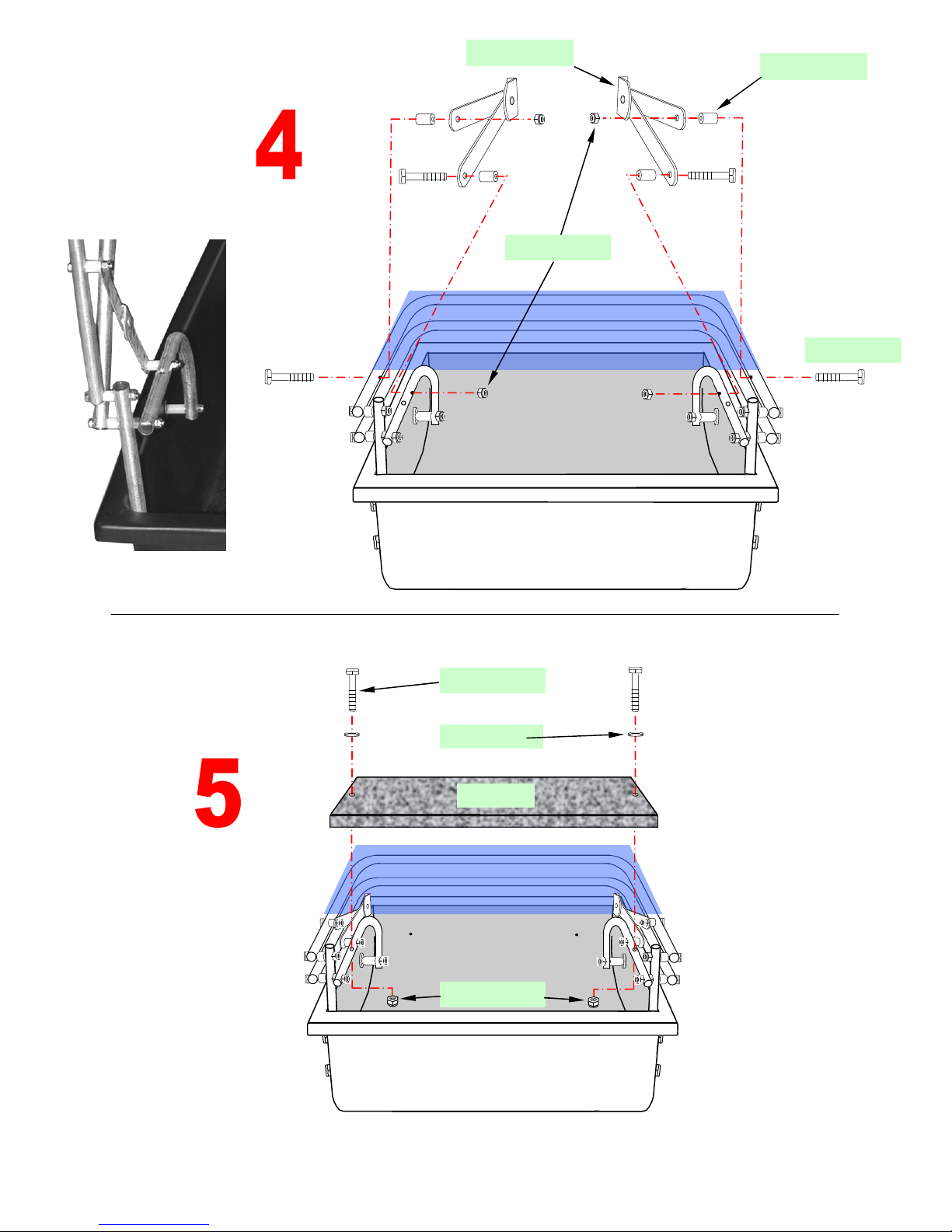

Locked Position
2x (10481)
4x (10485)
4x (10155)
4x (10180)
Page 3 FX50
2x (10256)
2x (10236)
(10490)
2x (10155)
(1047
(104
Page 3 FX50
Page 4 FX50
(10295)
(10489)
(10188) 17x
(10489)
(10188)
(10295)
(10488)
(10295)
(10272)
Page 5 FX50
Take Down Instructions.
Pull up on center of folding braces and rotate frames backward to sled.
Securing frames with a bungee cord or optional travel cover #TC-10
will help prolong life of Windbreak.
Pulling any distance with a motorized vehicle or pulling on asphalt,
concrete, dirt, etc., will cause premature wear of the sled base,
Optional wear bar kit #SWB1 is recommended.
Parts & Accessories available at www.shappell.com
