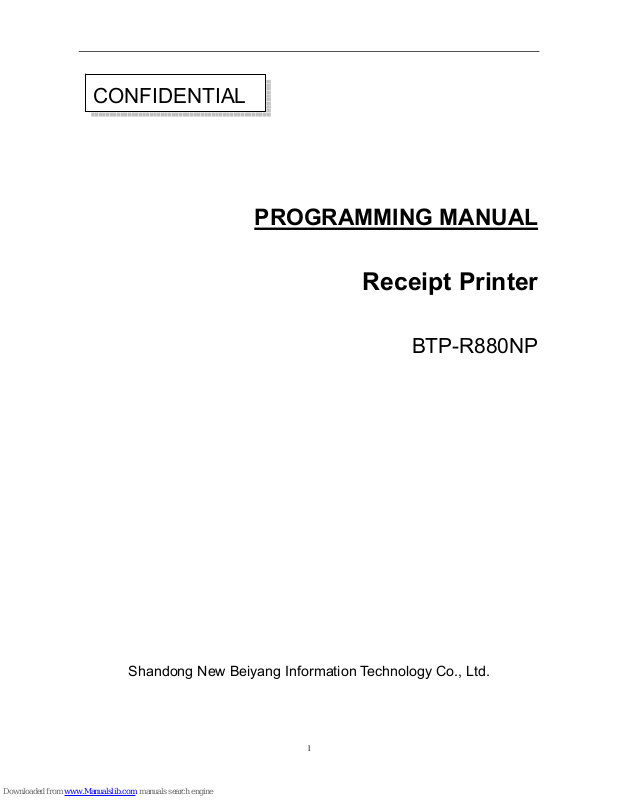

PROGRAMMING MANUAL

Receipt Printer

BTP-R880NP

Shandong New Beiyang Information Technology Co., Ltd.

CONFIDENTIAL

Confidential BTP-R880NP Programming Manual

- 1 -

REVISION HISTORY

Date Version Description Drafted by

2010-11-12 V100 Primary version

Ding Jinfeng, Cao

Yongkang

Confidential BTP-R880NP Programming Manual

- 2 -

Declaration

Information in this document is subject to change without notice. SHANDONG NEW BEIYANG

INFORMATION TECHNOLOGY CO., LTD. (hereinafter referred to as “SNBC”) reserves the right to

improve products as new technology, components, software, and firmware become available. If users

need further data about this products or have any doubt about safety issues that might arise from

using it, please feel free to contact SNBC or your local distributor.

No part of this document may be reproduced or transmitted in any form or by any means, electronic

or mechanical, for any purpose without the express written permission of SNBC.

Printed in China

Trademarks

Our registered trademarks are and

Address: No.169 Huoju Rd, Weihai, Shandong, China.

Order Tel: +86—631—5671111

Techinical support: +86—631—5675888 800861368

Fax: +86—631—5680499 5675111

PC: 264209

Website: www.newbeiyang.com

E—mail : support@newbeiyang.com

Confidential BTP-R880NP Programming Manual

- 3 -

Contents

1 Overview ......................................................................................................................................... - 1 -

1.1 Commands classification ..................................................................................................................... - 1 -

1.2 Key terms ............................................................................................................................................. - 1 -

1.3 Command format ................................................................................................................................. - 2 -

2 Command Description ................................................................................................................... - 3 -

2.1 Print command ..................................................................................................................................... - 3 -

LF ........................................................................................................................................................... - 3 -

FF ........................................................................................................................................................... - 3 -

CR .......................................................................................................................................................... - 3 -

ESC FF .................................................................................................................................................. - 3 -

ESC J n .................................................................................................................................................. - 4 -

ESC d n .................................................................................................................................................. - 4 -

2.2 Location command............................................................................................................................... - 5 -

HT ........................................................................................................................................................... - 5 -

ESC $ nL nH .......................................................................................................................................... - 6 -

ESC D n1...nk NUL ................................................................................................................................ - 6 -

ESC T n .................................................................................................................................................. - 7 -

ESC W xL xH yL yH dxL dxH dyL dyH .................................................................................................. - 9 -

ESC \ nL nH ......................................................................................................................................... - 10 -

ESC a n ................................................................................................................................................ - 11 -

GS $ nL nH .......................................................................................................................................... - 12 -

GS L nL nH .......................................................................................................................................... - 12 -

GS P x y ............................................................................................................................................... - 13 -

GS W nL nH ......................................................................................................................................... - 14 -

GS \ nL nH ........................................................................................................................................... - 14 -

2.3 Character command .......................................................................................................................... - 15 -

CAN ...................................................................................................................................................... - 15 -

ESC SP n ............................................................................................................................................. - 16 -

ESC ! n ................................................................................................................................................. - 17 -

ESC % n ............................................................................................................................................... - 18 -

ESC & y c1 c2 [x1 d1...d(y × x1)]...[xk d1...d(y × xk)] .......................................................................... - 18 -

ESC – n ................................................................................................................................................ - 20 -

ESC ? n ................................................................................................................................................ - 21 -

ESC E n ............................................................................................................................................... - 21 -

ESC G n ............................................................................................................................................... - 22 -

ESC M n ............................................................................................................................................... - 22 -

ESC R n ............................................................................................................................................... - 22 -

ESC V n ............................................................................................................................................... - 23 -

ESC t n ................................................................................................................................................. - 24 -

ESC { n ................................................................................................................................................. - 25 -

GS ! n ................................................................................................................................................... - 26 -

GS B n .................................................................................................................................................. - 26 -

FS ! n .................................................................................................................................................... - 27 -

FS & ..................................................................................................................................................... - 28 -

Confidential BTP-R880NP Programming Manual

- 4 -

FS - n ................................................................................................................................................... - 28 -

FS . ....................................................................................................................................................... - 29 -

FS 2 c1 c2 d1...dk ................................................................................................................................ - 29 -

FS C n .................................................................................................................................................. - 29 -

FS S n1 n2 ........................................................................................................................................... - 30 -

FS W n ................................................................................................................................................. - 31 -

2.4 Bitmap Command .............................................................................................................................. - 31 -

ESC * m nL nH d1... dk ........................................................................................................................ - 31 -

ESC # n ................................................................................................................................................ - 33 -

GS * x y d1...d(x × y × 8) ...................................................................................................................... - 33 -

GS / m .................................................................................................................................................. - 34 -

GS v 0 m xL xH yL yH d1....dk ............................................................................................................. - 34 -

FS p n m ............................................................................................................................................... - 35 -

FS q n [xL xH yL yH d1...dk]1...[xL xH yL yH d1...dk]n ........................................................................ - 36 -

2.5 Status command ................................................................................................................................ - 38 -

DLE EOT n ........................................................................................................................................... - 38 -

GS a n .................................................................................................................................................. - 40 -

GS r n ................................................................................................................................................... - 41 -

2.6 Barcode command ............................................................................................................................. - 42 -

GS H n ................................................................................................................................................. - 42 -

GS f n ................................................................................................................................................... - 42 -

GS h n .................................................................................................................................................. - 43 -

①GS k m d1...dk NUL②GS k m n d1...dn ........................................................................................... - 43 -

GS s n1 n2 n3 n4 n5 n6 n7 n8 ............................................................................................................. - 48 -

GS o n .................................................................................................................................................. - 50 -

GS p n .................................................................................................................................................. - 50 -

GS q n .................................................................................................................................................. - 51 -

GS w n ................................................................................................................................................. - 51 -

2.7 Bi-colour command ............................................................................................................................ - 51 -

ESC r n ................................................................................................................................................. - 51 -

ESC C n ............................................................................................................................................... - 52 -

GS ( N pL pH fn a............................................................................................................................ - 52 -

2.8 Upside-down print command ............................................................................................................. - 52 -

GS ( z nL nH 0 S .................................................................................................................................. - 52 -

GS ( z nL nH 0 E .................................................................................................................................. - 54 -

2.9 water based print command .............................................................................................................. - 54 -

GS { w f n1 n2 n3 n4 n5 ....................................................................................................................... - 54 -

GS { w n ............................................................................................................................................... - 55 -

2.10 Greyscale printing commannd ......................................................................................................... - 55 -

FS r n xl xh yl yh zl zh d1 d2 d3...d(k) .................................................................................................. - 55 -

ESC c 6 n yl yh zl zh d1 d2 d3 ...d(k) ................................................................................................... - 57 -

ESC c 7 n RAM .................................................................................................................................... - 58 -

2.11 Other commands ............................................................................................................................. - 59 -

ESC c : n .............................................................................................................................................. - 59 -

DLE ENQ n .......................................................................................................................................... - 59 -

DLE DC4 n m t ..................................................................................................................................... - 60 -

Confidential BTP-R880NP Programming Manual

- 5 -

ESC 2 ................................................................................................................................................... - 60 -

ESC 3 n ................................................................................................................................................ - 60 -

ESC = n ................................................................................................................................................ - 61 -

ESC @ ................................................................................................................................................. - 61 -

ESC L ................................................................................................................................................... - 62 -

ESC S .................................................................................................................................................. - 62 -

ESC c 0 n ............................................................................................................................................. - 63 -

ESC c 3 n ............................................................................................................................................. - 63 -

ESC c 4 n ............................................................................................................................................. - 64 -

ESC c 5 n ............................................................................................................................................. - 64 -

ESC p m t1 t2 ....................................................................................................................................... - 64 -

GS ( A pL pH n m ................................................................................................................................. - 65 -

GS ........................................................................................................................................................ - 66 -

①GS V m ②GS V m n ........................................................................................................................ - 66 -

GS ^ r t m ............................................................................................................................................. - 66 -

3 Programming Process Guide ...................................................................................................... - 68 -

Appendix .......................................................................................................................................... - 69 -

Appendix A: Code128 Bar Code .............................................................................................................. - 69 -

Appendix B: Print mode and its change ................................................................................................... - 73 -

Appendix C: Control Sequences .............................................................................................................. - 76 -

- 1 -

1 Overview

This manual classifies the printer commands into several kinds based on its functions, and also

describes the applications of relative commands in detail depending on its sorts. We hope that it is

helpful for programmers to get known of those commands.

1.1 Commands classification

This receipt printer commands are classified as below:

Print commands: used for printing and feeding paper;

Position commands: to control the print position;

Character commands: to set character property;

Bitmap commands: to download bitmap and print, including NV and RAM bitmap;

Status commands: used for printer status query;

Barcode commands: barcode print and property settings;

Other commands: used for periphery control, Macro-definition and initialization;

Command instruction refers to the detailed function of relative commands.

1.2 Key terms

Real-time commands – These commands are acted on immediately upon being received by the

printer;

Print buffers – used to store figure data to be printed;

Page mode –Under this mode, the printer stores all data in a specified memory and thinks of this as a

virtual page. The page is printed when the printer receives print command either FF or ESC FF;

Standard mode – Standard mode is the default mode of printer, namely line mode. Under this mode,

the printer prints data and feeds paper upon print line buffer full (data is enough for one print line) or

receiving print command like LF;

HRI character – Barcode note character. Human Readable Interface;

NV – Non-volatile memory in which data stored does not loss when powered off. NV: Non-volatile;

RAM –Random Access Memory;

DPI – Print dots per inch (one inch equals to 25.4mm). It is used to identify the resolution of a printer.

Example, 203DPI means 203 print dots per inch. DPI: Dot Per Inch

Baseline – The standard position where character data in print buffers are stored. The figure shows the

position of ordinary characters in standard mode and page mode:

Confidential BTP-R880NP Programming Manual

- 2 -

1.3 Command format

[Function] The name and function summary of commands;

[Format] The format of command data, such as ASCII, Hex and Decimal;

[Range] The value range of parameter in the command;

[Note] Explain the main features and application notices of commands;

[Default] The initial value used after the printer initialized;

[Relative] Other commands related to current command;

[Example] Example used for current or relative commands.

All command data in programming Demo use HEX. All normal font/characters are data.

There is no explanation for the data of command such as 42 43 which is data. The

font/character underlined and emphasized is a command such as 1B 40.

All the data

inside parentheses after all commands in Demo is used to explain the meanings of this

command. The parentheses and data inside it is not the command to be transmitted to

the printer.

Confidential BTP-R880NP Programming Manual

- 3 -

2 Command Description

2.1 Print command

[Function] Print and line feed

[Format] ASCII LF

Hex 0A

Decimal 10

[Note] This command sets the print position to the beginning of the line.

[Reference] ESC 2, ESC 3

[Function] Print all data in the print buffers and return to the standard mode.

[Format] ASCII FF

Hex 0C

Decimal 12

[Notes] · This command is valid only in page mode.

· The buffer data is deleted after being printed.

· The printer does not execute paper cutting.

· This command sets the print position to the beginning of the line.

[Relative] ESC FF, ESC L, ESC S

[Function] When the command is enabled, it equals to LF; it is ignored when disabled,

[Format] ASCII CR

Hex 0D

Decimal 13

[Notes] · Sets the print starting position to the beginning of the line.

· This command is set according to the printer configuration.

[Relative] LF

ESC FF

[Function] Print data in page mode

[Format] ASCII ESC FF

Hex 1B 0C

Decimal 27 12

[Notes] · This command is enabled only in page mode.

· After printing, the printer does not clear the buffered data, setting values for ESC T and

ESC W, and the position for buffering character data.

Confidential BTP-R880NP Programming Manual

- 4 -

[Relative] FF, ESC L, ESC S

ESC J n

[Function] Print and feed paper

[Format] ASCII ESC J n

Hex 1B 4A n

Decimal 27 74 n

[Range] 0 ≤n ≤ 255

[Notes] After printing is completed, this command sets the print starting position to the beginning

of the line.

The paper feed amount set by this command is not affected by the values set by ESC 2

or ESC 3.

The horizontal and vertical motion unit is specified by GS P.

In standard mode, the printer uses the vertical motion unit (y).

In page mode, this command functions as follows, depending on the starting position of

the printable area:

1)When the starting position is set to the upper left or lower right of the printable area

by ESC T, the vertical motion unit (y) is used.

2)When the starting position is set to the upper right or lower left of the print able area

by ESC T, the horizontal motion unit (x) is used.

The maximum paper feed amount is 1016mm (40 inches). When the setting value

exceeds the maximum, it is converted to the maximum automatically.

[Relative] GS P

[Example] 1B 40

(initialize printer)

1D 50 CB CB

(set the resolution 203×203)

41 41 41 41 41 41 41(data to be printed)

1B 4A 50

(print and feed paper 80/203 inches)

42 42 42 42 42 42 42 0A

(data to be printed)

Results:

ESC d n

[Function] Print and feed n lines

[Format] ASCII ESC d n

Hex 1B 64 n

Confidential BTP-R880NP Programming Manual

- 5 -

Decimal 27 100 n

[Range] 0 ≤n ≤ 255

[Notes] · This command sets the print starting position to the beginning of the line.

· This command does not affect the line spacing set by ESC 2 or ESC 3.

· The maximum paper feed amount is 1016 mm. If the paper feed amount is more than

1016 mm , the printer feeds paper only 1016 mm.

[Relative] ESC 2, ESC 3

[Example] 1B 40

(initialize printer)

41 41 41 41 41 41 41(data to be printed)

1B 64 02 (print and feed 2 character line spacing, 2/6 inches)

42 42 42 42 42 42 42 0A

(data to be printed)

Results:

2.2 Location command

[Function] Move the print position to the next tab position.

[Format] ASCII HT

Hex 09

Decimal 9

[Notes] · This command is ignored unless the next horizontal tab position has been set.

· If the next horizontal tab position exceeds the printing area, the printer sets the printing

position to [Print area width + 1].

· Horizontal tab positions are set with ESC D.

· If this command is received when the printing position is at [print area width + 1], the

printer executes print buffer-full printing of the current line and horizontal tab processing

from the beginning of the next line.

· The default setting of the horizontal tab position is 8 ASCII characters (12×24).

· When current buffer is full, the printer shall execute the actions as below:

1) In standard mode, the printer shall print current line and set the print position to the

beginning of next line;

2) In page mode, the printer shall shift the line and set the print position to the beginning

of next line.

[Reference]

ESC D

[Example] 0A (set the print starting position to the beginning of the line)

1B 40

(initialize printer)

1B 53

(enter standard mode)

33 33 33 33 33 33

Confidential BTP-R880NP Programming Manual

- 6 -

1B 44 08 10 1C 00（set the horizontal tab position）

（move the print position to the next tab）

33 33 33 33

（the same as above）

33 33 33 33

（the same as above）

33 33 33 33

（print）

33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33

（print）

Results:

ESC $ nL nH

[Function] The distance from the beginning of the line to the print position is [(nL + nH × 256) ×

(vertical or horizontal motion unit)] inches.

[Format] ASCII ESC $ nL nH

Hex 1B 24 nL nH

Decimal 27 36 nL nH

[Range] 0≤nL ≤ 255

0 ≤nH≤255

[Notes] · Settings outside the specified printable area are ignored.

· The horizontal and vertical motion units are specified by GS P.

· In standard mode, the horizontal motion unit (x) is used.

· In page mode, horizontal or vertical motion unit differs depending on the starting position

of the printable area as follows:

1) When the starting position is set to the upper left or lower right of the printable area

by ESC T, the horizontal motion unit (x) is used.

2) When the starting position is set to the upper right or lower left of the printable area

using ESC T, the vertical motion unit (y) is used.

[Reference] ESC \, GS $, GS \, GS P

[Example] Refer to ESC W

ESC D n1...nk NUL

[Function] Set horizontal tab positions.

Set a tab position at the nth column from the beginning of the line.

There are k tab positions in all,

[Format] ASCII ESC D n1... nk NUL

Confidential BTP-R880NP Programming Manual

- 7 -

Hex 1B 44 n1...nk 00

Decimal 27 68 n1...nk 0

[Range] 1 ≤ n ≤ 255

0 ≤ k ≤ 32

[Notes] · The horizontal tab position is stored as a value of [character width × n] measured from

the beginning of the line. The character width includes the right-side character spacing,

and double-width characters are set with twice the width of normal characters.

· This command cancels the previous horizontal tab settings.

·When setting n = 8, the print position is moved to column 9 by sending HT.

·Up to 32 tab positions (k = 32) can be set. Data exceeding 32 tab positions is processed

as normal data.

·Transmit [n] k in ascending order and place a NUL code 0 at the end.

·When [n] k is less than or equal to the preceding value [n] k-1, tab setting is finished and

the following data is processed as normal data.

· ESC D NUL cancels all horizontal tab positions settings.

·The previously specified horizontal tab positions do not change, even if the character

width changes.

·The character width is memorized for each standard and page mode.

[Default] The default tab positions are at intervals of 8 characters (columns 9, 17, 25...) for font A

(12 × 24).

[Reference] HT

[Example] Refer to HT

ESC T n

[Function] Select the print direction and starting position in page mode.

[Format] ASCII ESC T n

Hex 1B 54 n

Decimal 27 84 n

[Range] 0 ≤ n ≤ 3 48 ≤ n ≤ 51

n specifes print direction and starting position:

[Notes] · When the command is input in standard mode, the printer executes only internal flag

operation. This command does not affect printing in standard mode.

Confidential BTP-R880NP Programming Manual

- 8 -

· This command sets the position where data is buffered within the printing area.

Parameters for horizontal or vertical motion units (x or y) differ as follows, depending on

the starting position of the printing area:

1) If the starting position is the upper left or lower right of the printing area, data is

buffered in the direction perpendicular to the paper feed direction:

Commands using character width: ESC SP, ESC $, ESC \

Commands using vertical motion units: ESC 3, ESC J, GS $, GS \

2) If the starting position is the upper right or lower left of the printing area, data is

buffered in the paper feed direction:

Commands using horizontal motion units: ESC 3, ESC J, GS $, GS \

Commands using vertical motion units: ESC SP, ESC $, ESC \

[Default] n = 0

[Reference] ESC $, ESC L, ESC W, ESC \, GS $, GS P, GS \

[Example] 1B 4C

(enter page mode)

1D 50 CB CB

（set printer resolution）

1B 57 20 00 00 00 40 02 90 02

（set the print area in page mode）

1B 54 00

(select the print area direction in page mode)

30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 0A

(newline)

1B 54 01

(select the print area direction in page mode)

31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 0A

（newline）

1B 54 02

(select the print area direction in page mode)

32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 0A

(newline)

1B 54 03

(select the print area direction in page mode)

33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 0A

（print）

50 72 69 6E 74 20 45 6E 64

（print）

Results:

Confidential BTP-R880NP Programming Manual

- 9 -

ESC W xL xH yL yH dxL dxH dyL dyH

[Function] ·Define the horizontal starting position, vertical starting position, printing area width, and

printing area height.

Horizontal starting position: x0 = [( xL + xH × 256) × (horizontal motion unit)] Vertical starting posirion: y0 = [( yL + yH × 256) × (vertical motion unit)] Print area width: dx = [ (dxL + dxH × 256) ×(horizontal motion unit)] Print area height: dy = [ (dyL + dyH × 256) ×(vertical motion unit)]

[Format] ASCII ESC W xL xH yL yH dxL dxH dyL dyH

Hex 1B 57 xL xH yL yH dxL dxH dyL dyH Decimal 27 87 xL xH yL yH dxL dxH dyL dyH

[Range] 0 ≤ xL, xH, yL, yH, dxL, dxH, dyL, dyH ≤ 255 (except dxL= dxH=0 or dyL= dyH=0)

[Notes] · If this command is input in standard mode, the printer executes only internal flag

operation. This command does not affect printing in standard mode.

· If the horizontal or vertical starting position is set outside the printable area, the printer

stops command processing and processes the following data as normal data.

· If the printing area width or height is set to 0, the printer stops command processing and

processes the following data as normal data.

· This command sets the position where data is buffered to the position specified by ESC

T within the printing area.

· If (horizontal starting position + printing area width) exceeds the printable area, the

printing area width is automatically set to (horizontal printable area － horizontal starting

position).

· If (vertical starting position + printing area height) exceeds the printable area, the printing

area height is automatically set to (vertical printable area – vertical starting position).

· The horizontal and vertical motion units are specified by GS P. Changing the horizontal

or vertical motion unit does not affect the current printing area.

· Use the horizontal motion unit (x) for setting the horizontal starting position and printing

area width, and use the vertical motion unit ( y) for setting the vertical starting position

and printing area height.

· When the horizontal starting position, vertical starting position, printing area width, and

printing area height are defined as X, Y, Dx, and Dy respectively, the printing area is set

as shown in the figure below.

Confidential BTP-R880NP Programming Manual

- 10 -

[Default] Decided by printer configuration

[Reference] CAN, ESC L, ESC T, GS P [Example] 0A

1D 50 CB CB

（set printer resolution 203×203）

1B 4C

(enter page mode)

1B 57 20 00 00 00 40 01 90 01

（set print area in page mode）

1B 24 00 00

（set absolute horizontal starting position to be starting point）

1B 24 32 00

（set absolute horizontal starting position to be 50/203 inches）

1B 24 64 00

（set absolute horizontal starting position to be 100/203 inches）

（newline）

1B 24 00 00

（set absolute horizontal starting position to be starting point）

1B 5C 32 00

（set relative horizontal starting position to be 50/203 inches）

1B 5C 64 00

（set relative horizontal starting position to be 100/203 inches）

（newline）

（print in page mode）

Results:

ESC \ nL nH

[Function] Set the print starting position based on the current position by using the horizontal or

vertical motion unit.

This command sets the distance from the current position to the print position to be [(nL +

nH × 256) × horizontal or vertical motion unit]

[Format] ASCII ESC \ nL nH

Hex 1B 5C nL nH

Decimal 27 92 nL nH

[Range] 0 ≤ nL ≤ 255

0 ≤ nH ≤ 255

[Notes] ·Any setting that exceeds the printable area is ignored.

Confidential BTP-R880NP Programming Manual

- 11 -

·When pitch N is specified to the right: nL+ nH × 256 = N

·When pitch N is specified to the left (the negative direction), use the complement of

65536.

·When pitch N is specified to the left: nL+ nH × 256 = 65536 - N

·The print starting position moves from the current position to [N × horizontal or vertical

motion unit]

·The horizontal and vertical motion units are specified by GS P.

·In standard mode, the horizontal motion unit is used.

·In page mode, the horizontal or vertical motion unit differs as follows, depending on the

direction and starting point of the printing area:

1) When the starting position is set to the upper left or lower right of the printable area

using ESC T, the horizontal motion unit (x) is used.

2) When the starting position is set to the upper right or lower left of the printable area

using ESC T, the vertical motion unit (y) is used.

[Reference] ESC $, GS P

ESC a n

[Function] Align all the data in one line to the specified position

[Format] ASCII ESC a n

Hex 1B 61 n Decimal 27 97 n

[Range] 0 ≤ n ≤ 2, 48 ≤ n ≤ 50

n selects the justification as follows:

n Justification

0, 48 Left justification

1, 49 Centering

2, 50 Right justificatoin

[Notes] · This command is enabled only when processed at the beginning of the

line in the standard mode.

·If this command is input in page mode, the printer performs only internal flag operations.

· This command adjusts the space area according to HT, ESC $ or ESC\.

[Default] n = 0

[Example] 0A

（Entering line mode）

1B 40（Initialization） 1B 61 00

（Setting left justification）

41 42 43 0A 41 42 43 44 0A 41 42 43 44 45 0A

1B 61 01

（Setting centering ）

41 42 43 0A 41 42 43 44 0A 41 42 43 44 45 0A

1B 61 02

（Setting right justification）

Confidential BTP-R880NP Programming Manual

- 12 -

41 42 43 0A 41 42 43 44 0A 41 42 43 44 45 0A

Results:

GS $ nL nH

[Function] This command sets the absolute vertical position.

[Format] ASCII GS $ nL nH

Hex 1D 24 nL nH

Decimal 29 36 nL nH

[Range] 0 ≤ nL ≤ 255, 0 ≤ nH ≤ 255

[Notes] · This command is effective only in page mode.

· If the [( nL + nH × 256) × (vertical or horizontal motion unit)] exceeds the specified printing area, this command is ignored.

· The horizontal starting buffer position does not move after executing. this command.

·. The positions of relative commands are specified by ESC T.

· This command operates as follows, depending on the direction and starting position of the printing area specified by ESC T:

1) When the starting position is set to the upper left or lower right, this command sets the absolute position in the direction.

2) When the starting position is set to the upper right or lower left, this command sets

the absolute position in the vertical direction.

· The horizontal and vertical motion units are specified by GS P.

[Reference] ESC $, ESC T, ESC W, ESC \, GS P, GS \

[Example] See ESC W

GS L nL nH

[Function] Set left margin to [( nL + nH × 256) × horizontal motion unit)] inches

[Format] ASCII GS L nL nH

Hex 1D 4C nL nH

Decimal 29 76 nL nH

[Range] 0 ≤ nL ≤ 255

0 ≤ nH ≤ 255

[Notes] · This command is effective only when processed at the beginning of the line in standard

mode.

Confidential BTP-R880NP Programming Manual

- 13 -

· If this command is input in page mode, it is disabled.

· This command does not affect printing in page mode.

· If the setting exceeds the printable area, the maximum value of the printable area is used.

· The horizontal and vertical motion units are specified by GS P. Changing the horizontal and vertical motion unit does not affect the current left margin.

[Default] nL = 0, nH = 0

[Reference] GS P, GS W [Exmple] 0A

（Setting printing position at the beginning of the line）

1B 40

（Initialization）

30 31 32 33 34 35 36 37 38 39 30 31 32 33 34 35 36 37 38 39 30 31 32 33 34 35 36 37

38 39 0A

1D 4C 30 00

（Setting left margin to 48/203 inches）

30 31 32 33 34 35 36 37 38 39 30 31 32 33 34 35 36 37 38 39 30 31 32 33 34 35 36 37

38 39 0A

1D 57 C8 00

（Setting printing width to 200/203 inches）

30 31 32 33 34 35 36 37 38 39 30 31 32 33 34 35 36 37 38 39 30 31 32 33 34 35 36 37

38 39 0A

Results:

GS P x y

[Function] Set the horizontal and vertical motion units to approximately 25.4/ x mm { 1/ x inches}

and approximately 25.4/ y mm {1/ y inches}, respectively.

[Format] ASCII GS P x y

Hex 1D 50 x y Decimal 29 80 x y

[Range] 0 ≤ x ≤ 255

0 ≤ y ≤255

[Notes] · When x and y are set to 0, the default setting of each value is used.

· The horizontal direction is perpendicular to the paper feed direction and the vertical direction is the paper feed direction.

· In standard mode, the following commands use x or y, regardless of character rotation (upside-down or 90° clockwise rotation):

1)　 Commands using x: ESC SP, ESC $, ESC \, FS S, GS L, GS W

2) Commands using y:ESC 3, ESC J, GS V

· In page mode, the following commands use x or y, depending on the direction and starting position of print area :

1) When the print starting position is set to the upper left (Printing direction from left to right)or lower right(Printing direction from right to left) of the printing area by ESC T:

Confidential BTP-R880NP Programming Manual

- 14 -

Commands using x: ESC SP, ESC $, ESC W, ESC \, FS S Commands using y: ESC 3, ESC J, ESC W, GS $, GS \, GS V

2) When the print starting position is set to the upper right(Printing direction from top to

down) or lower left (Printing direction from down to top)of the printing area by ESC T: Commands using x: ESC 3, ESC J, ESC W, GS $, GS \ Commands using y: ESC SP, ESC $, ESC W, ESC \,FS S, GS V

· The command does not affect the previously specified values.

· The minimum motion unit is the compositive result of this command and other

commands.

· 1inch=25.4mm.

[Default] x = 203, y =203, at this time, one motion unit is a printing dot. The horizontal distances is

about 1/8mm and the vertical distance is about 1/8mm.

[

Reference] ESC SP, ESC $, ESC 3, ESC J, ESC W, ESC \, GS $, GS L, GS V, GS W, GS \

GS W nL nH

[Function] Set printing area width

[Format] ASCII GS W nL nH

Hex 1D 57 nL nH Decimal 29 87 nL nH

[Range] 0 ≤ nL ≤ 255

0 ≤ nH ≤ 255

[Notes] · The printing area width is set to [( nL + nH × 256) × horizontal motion unit)] inches.

· In standard mode,the command is enabled only when processed at the beginning of the line.

· In page mode, this command is disabled.

· This command does not affect the printing in page mode.

· If the [left margin + printing area width] exceeds the printable area, [printable area width left margin) is used.

· The horizontal and vertical motion units are specified by GS P. Changing the horizontal and vertical motion units does not affect the current left margin or print area width.

· The horizontal motion unit ( x) is used for calculating the printing area width.

[Default] nL = 76, nH = 2

[Reference] GS L, GS P

[Example] See GS L

GS \ nL nH

[Function] Set relative vertical print position in page mode [Format] ASCII GS \ nL nH

Hex 1D 5C nL nH Decimal 29 92 nL nH

[Range] 0 ≤ nL ≤ 255

Confidential BTP-R880NP Programming Manual

- 15 -

0 ≤ nH ≤ 255

[Notes] · This command sets the distance from the current position to [( nL + nH × 256) × vertical

or horizontal motion unit] inches.

· This command is ignored unless page mode is selected.

· When pitch N is specified to the movement downward:nL + nH × 256 = N When pitch N is specified to the movement upward:nL + nH × 256 = 65536 - N

· Any setting that exceeds the specified printing area is ignored.

· This command functions as follows, depending on the print starting position set by ESC T:

1) When the starting position is set to the upper left (printing from left to right )or lower right (printing from right to left )of the printing, the vertical motion unit (y) is used.

2) When the starting position is set to the upper right (printing from up to down )or lower left (printing from down to up)of the printing area, the horizontal motion unit (x) is used.

·The horizontal and vertical motion units are specified by GS P.

· The horizontal and vertical motion units can be changed by GS P.

[Reference] ESC $, ESC T, ESC W, ESC \, GS $, GS P

2.3 Character command

CAN

[Function] In page mode, delete all the print data in current area. [Format] ASCII CAN

Hex 18 Decimal 24

[Notes] ·This command is enabled only in page mode.

·If the previously specifited printing data also exists in the currentlly specified printing area, it is deleted.

[Reference] ESC L, ESC W

[Example] 1B 40

（Initialization ）

1D 50 CB CB（Setting resolution 203×203）

1B 4C

（Enter page mode）

1B 57 00 00 00 00 20 02 E8 00（Setting printing width and height in page mode） 31 32 33 34 35 36 37 38 39 30 61 62 63 64 65 64 66 67 68 69 6A 6B 6C 6D 6E 6F 70 71 72 73 74 75 76 77 78 79 7A 31 32 33 34 35 36 37 38 39 30 61 62 63 64 65 64 66 67 68 69 6A 6B 6C 6D 6E 6F 70 71 72 73 74 75 76 77 78 79 7A 31 32 33 34 35 36 37 38 39 30 61 62 63 64 65 64 66 67 68 69 6A 6B 6C 6D 6E 6F 70 71 72 73 74 75 76 77 78 79 7A 31 32 33 34 35 36 37 38 39 30 61 62 63 64 65 64 66 67 68 69 6A 6B 6C 6D 6E 6F 70 71 72 73 74 75 76 77 78 79 7A 31 32 33 34 35 36 37 38 39 30 61 62 63 64 65 64 66 67 68 69 6A 6B 6C 6D 6E 6F 70 71 72 73 74 75 76 77 78 79 7A 31 32 33 34 35 36 37 38 39 30 61 62 63 64 65 64 66 67 68 69 6A 6B 6C 6D 6E 6F 70 71 72 73 74 75 76 77 78 79 7A 31 32 33 34 35 36 37 38 39 30 61 62 63 64 65 64 66 67 68 69 6A 6B 6C 6D 6E 6F 70 71 72 73 74 75 76 77 78 79 31 32 33 34 35 36 37 38 39 30 61 62 63 64 65 64 66 67 68 69 6A 6B 6C 6D 6E 6F 70 71 72 73 74 75 76 77 78 79

1B 57 44 00 10 00 7C 01 AA 00（Setting the size of page needed to be deleted ）

（Delete data in page buffer）

Confidential BTP-R880NP Programming Manual

- 16 -

1B 24 64 00（Setting abosulute horizontal print position as 100 dots） 1D 24 60 00

（Setting abosulute vertical print position as 96 dots）

43 61 6E 63 65 6C 20 74 68 65 20 64 61 74 61 20

0A 0C

（Printing）

Results:

ESC SP n

[Function] Set right-side character spacing [Format] ASCII ESC SP n

Hex 1B 20 n Decimal 27 32 n

[Range] 0 ≤ n≤255 [Notes] · Set the character spacing for the right side of the character to [n×horizontal or vertical

motion unit] inch.

· When characters are enlarged, the right-side character spacing is enlarged the same times.

· This command sets values independently in each mode (standard and page modes)

· The horizontal and vertical motion units are specified by GS P. Changing the horizontal or vertical motion unit does not affect the current right-side spacing.

· In standard mode, the horizontal motion unit is used.

· In page mode, the horizontal or vertical motion unit differs in page mode, depending on starting position of the printable area as follows:

1) When the starting position is set to the upper left or lower right of the printable area by ESC T, the horizontal motion unit (x) is used.

2) When the starting position is set to the upper right or lower left of the printable area by ESC T, the vertical motion unit (y) is used.

· The maximum right-side spacing is 255/180 inches. Any setting exceeding the maximum is converted to the maximum automatically.

[Default] n = 0

[Example] 1B 40

1B 20 00（Set right-side character spacing as 0）

41 41 41 41 41 0A 1B 20 06

（Set character spacing as 6/203 inch）

42 42 42 42 42 0A 1B 20 0C

（Set character spacing as 12/203 inch）

43 43 43 43 43 0A Results:

Confidential BTP-R880NP Programming Manual

- 17 -

ESC ! n

[Function] Select print mode(s) [Format] ASCII ESC ! n

Hex 1B 21 n Decimal 27 33 n

[Range] 0 ≤ n ≤ 255 [Notes] · Select print mode(s) according to n as follow

Bit 1/0 HEX Decimal Function

0 0 00 0

Standard ASCII Font (12 × 24)

1 01 1

Compressd ASCII Font (9 × 17)

1,2

Undefined

3 0 00 0

Emphasized mode not selected

1 08 8

Emphasized mode selected

4 0 00 0

Double-height mode not selected

1 10 16

Double-height mode selected

5 0 00 0

Double-width mode not selected

1 20 32

Double-width mode selected

Undefined

7 0 00 0

Underline mode not selected

1 80 128

Underline mode selected

· When both double-height and double-width modes are selected, quadruple size

characters are printed.

· The printer can underline all characters, but can not underline the space set by HT or 90°

clockwise rotated characters.

· The thickness of the underline is decided by ESC -, regardless of the character size.

· When some characters in a line are double or higher, all the characters in the line are

aligned at the baseline.

· ESC E can also turn on or off emphasized mode. However, the setting of the last received

command is effective.

· ESC – can also turn on or off underline mode. However, the setting of the last received

command is effective.

· GS ! can also select character size. However, the setting of the last received command is

effective.

[Default] n = 0

[Reference] ESC -, ESC E, GS !

[Example] 1B 40

（Initialize printer）

1B 21 00（Select normal print mode）

48 1B 21 01

（Select compressed font mode）

Confidential BTP-R880NP Programming Manual

- 18 -

48 1B 21 08（Select emphasized mode） 48 1B 21 10

（Select double-height mode）

48 1B 21 20

（Select double-width mode）

48 1B 21 80

（Select underline mode）

48 1B 21 B9

（Select compressed, emphasized,double-width,double-height and underline

mode）

48 0A

Results:

ESC % n

[Function] Select/cancel user-defined character set [Format] ASCII ESC % n

Hex 1B 25 n Decimal 27 37 n

[Range] 0 ≤ n ≤255 [Notes] When the LSB of n is 0, the user-defined character set is canceled.

When the LSB of n is 1, the user-defined character set is selected. When the user-defined character set is canceled, the internal character set is automatically selected. n is available only for the least significant bit.

[Default] n = 0 [Reference] ESC &, ESC ?

ESC & y c1 c2 [x1 d1...d(y × x1)]...[xk d1...d(y × xk)]

[Function] Define user-defined characters [Format] ASCII ESC & y c1 c2 [x1 d1...d(y

× x1)]...[xk d1...d(y × xk)]

Hex 1B 26 y c1 c2 [x1 d1...d(y × x1)]...[xk d1...d(y × xk)] Decimal 27 38 y c1 c2 [x1 d1...d(y × x1)]...[xk d1...d(y × xk)]

[Range] y = 3

32 ≤ c1 ≤ c2 ≤ 127 0 ≤ x ≤ 12 Standard ASCII font (12

× 24)

Confidential BTP-R880NP Programming Manual

- 19 -

0 ≤ x ≤ 9 Compressed ASCII font (9 × 17) 0 ≤ d1 ... d(y

× xk) ≤ 255

· y specifies the number of bytes in the vertical direction.

· c1 specifies the beginning character code for the definition, and c2 specifies the final code.

· x specifies the number of dots in the horizontal direction.

[Notes] ·The allowable character code range is from ASCII code <20>H to <7F>H (96

characters).

· It is possible to define multiple characters for consecutive character codes. If only one character is desired, use c1 = c2.

· d is the data for downloaded characters. The dot pattern is in the horizontal direction from the left side.

· The data to define a user-defined character is (y × x) bytes.

· Set a corresponding bit to 1 to print a dot or 0 to not print a dot.

· The user-defined character definition is cleared when:

1) ESC ? is executed.

2)The power is turned off.

[Default] The internal character set [Reference] ESC %, ESC ? [Example] · When standard ASCII font (12

× 24) is selected

· When compressed ASCII font (9

× 17) is selected
