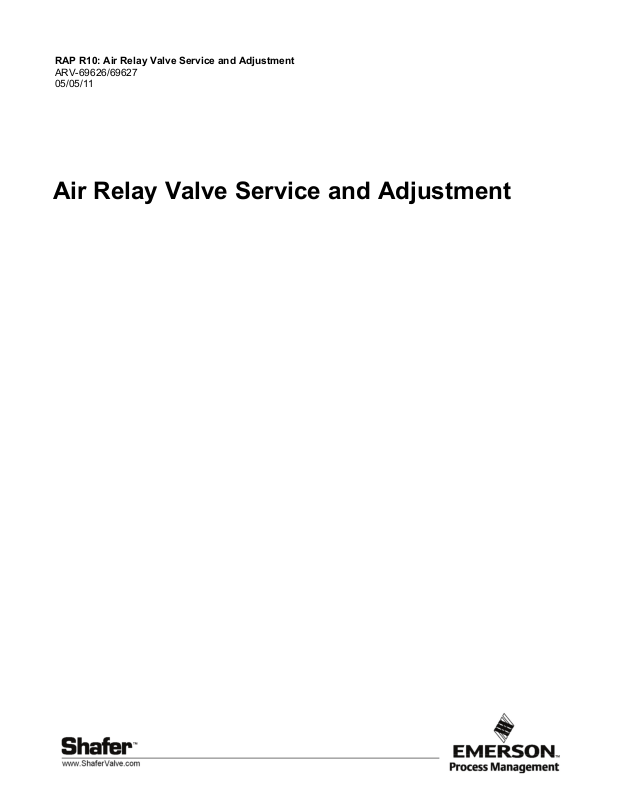

RAP R10: Air Relay Valve Service and Adjustment
ARV-69626/69627
05/05/11
Air Relay Valve Service and Adjustment
RAP R10: Air Relay Valve Service and Adjustment
ARV-69626/69627
05/05/11
Air Relay Valve
A. Disassemble and Clean
Information enclosed in brackets (item 1 etc.) is in reference to the complete assembly
drawings on page 6 and the illustrations throughout the document.
1. Remove spring retainer (item 3), adjusting cap (item 4) and locknut (item 5), as a
unit, from the body (item 1) and set aside.
2. Remove cylinder cap (item 6) and o-ring (item 12).
3. Remove Gits cup (item 19).
4. Remove cylinder (item 2).
5. Hold cylinder (item 2), and with a blunt rod, push piston (item 7) out of the cylinder.
Remove o-ring (item 13).
6. Clean cylinder, piston and cylinder cap.
7. Lubricate and install new o-ring (item 13) on piston (item 7) and new o-ring (item
(12) on cylinder cap (item 6). Set cylinder, piston and cylinder cap aside.
8. Slowly pull valve stem (item 10) out of body (item 1) and set aside on a clean
surface.
9. Carefully remove end valve sleeves (item 9) and center valve sleeve (item 8). Note
how they go together.
10. Clean stem (item 10) with a soft cloth, Do Not scratch the stem. Clean the end
sleeves (item 9) and center sleeve (item 8).
11. Lubricate and install new outer o-ring (item 14) and install new inner o-ring (item 15),
without lube, on one end sleeve (item 9). From the spring retainer end, fit the end
sleeve into the bore of the body with the o-rings toward the spring retainer threads.
Insert the sleeve until the outer o-ring is about to enter the bore. (See Figure 1)
Figure 1 Figure 2
12. Install the spring retainer (item 3), adjusting cap (item 4) and locknut (item 5), as a
unit. As you thread the spring retainer in, it will push the o-ring and sleeve into the
bore to the correct position. Tighten spring retainer hand tight. (See Figure 2)
Page 1
RAP R10: Air Relay Valve Service and Adjustment
ARV-69626/69627
05/05/11
Air Relay Valve
13. Turn the valve body (item 1) so that the open end of the bore is up. Install new inner
o-rings (item 15), without lube, in the center sleeve (item 8). Place new lubricated oring (item 14) in the bore of the body (item 1) on top of the end sleeve (item 9). (See
Figure 3)
14. Carefully slide the center sleeve (item 8) into the bore in of the body. When it
reaches the outer o-ring (item 14) laying on the end sleeve (item 9) press the center
sleeve to seat the o-ring. (See Figure 4)
Figure 3 Figure 4
15. Place a lubricated outer o-ring (item 14) in the bore of the body (item 1) on top of the
center sleeve (item 8). Do not try to seat o-ring at this time. (See Figure 5)
Figure 5
Page 2
RAP R10: Air Relay Valve Service and Adjustment
ARV-69626/69627
05/05/11
Air Relay Valve
16. Install new inner o-rings (item 15),
without lube, and lubricated outer
ring (14) in the second end sleeve
(item 9). Slide the end sleeve into
the bore of the body (item 1) with the
o-ring grooves out toward the
cylinder threads. Insert the sleeve
until the outer o-ring is about to enter
the bore. (See Figure 6)
Figure 6
17. Install the cylinder (item
2). As you thread the
cylinder in, it will push the
o-ring and sleeve into the
bore to the correct
position. This action will
also seat the o-ring in the
center sleeve. Tighten
cylinder (item 2) to the
body ( item 1) hand tight.
Figure 7
Page 3
RAP R10: Air Relay Valve Service and Adjustment
ARV-69626/69627
05/05/11
18. Lubricate the tip of the stem (item 10), note taper, and carefully insert, pushing
toward the spring end. (See Figure 8)
Air Relay Valve
Figure 8
19. Insert piston (item 7) into cylinder (item 2) and thread the cylinder cap (item 6) in
hand tight. (See Figure 8)
20. Replace Gits cup (item 19). (See Figure 8)
21. Hold the assembly by griping the spring retainer (item 3) on its flats and tighten the
complete assembly with the hex cylinder cap (item 6). Torque to 120 inch pounds.
B. Valve Setting Procedure
1. Mount the air relay valve in a stand that has a 1400-psi maximum supply with an
adjustable regulator. Connect the adjustable supply to the pilot port in the end of the
cylinder (item 6).
2. Install a pressure gauge that reads up to 300-psi in the body cylinder port.
3. Install a 150-psi air supply in the normally open or normally close port.
4. Gradually increase or decrease the pressure, at the pilot port until the valve trips.
When the valve trips read the pilot supply gage and make a note of the pressure.
Page 4
RAP R10: Air Relay Valve Service and Adjustment
ARV-69626/69627
05/05/11
Air Relay Valve
5. To adjust the trip point, remove pressure on the pilot and rotate the adjusting cap
(item 4) clockwise to increase or counter clockwise to decrease. Always remove
pressure at the pilot before adjusting the adjusting cap.
6. Adjust the cap (item 4) and take pressure readings until the valve trips at the
required pressure.
7. Tighten the locknut (item 5) to maintain the setting achieved.
If any further information is required, please feel free to contact:
Emerson Process Management
Valve Automation Inc.
2500 Park Avenue West
Mansfield, Ohio 44906
Phone: (419) 529-4311
Fax:
Please visit our website for up to date product data. www.shafervalve.com
