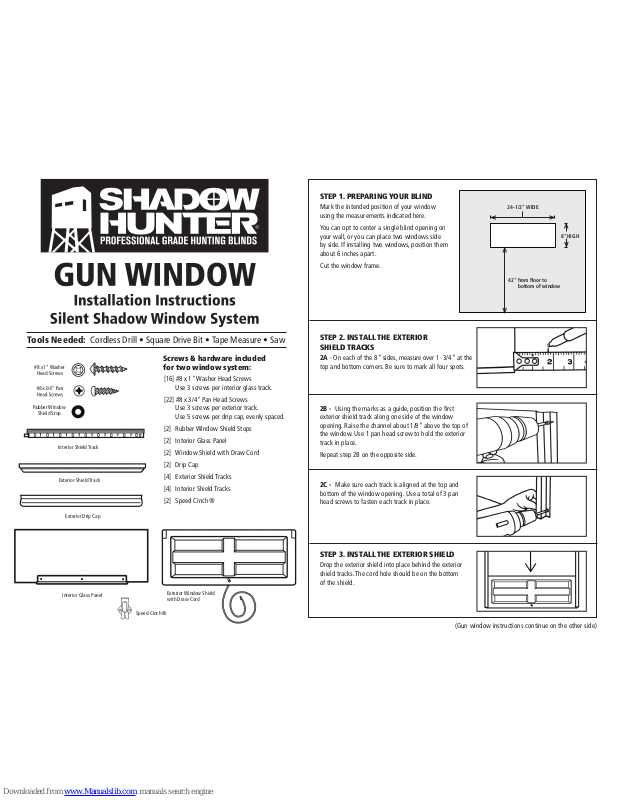

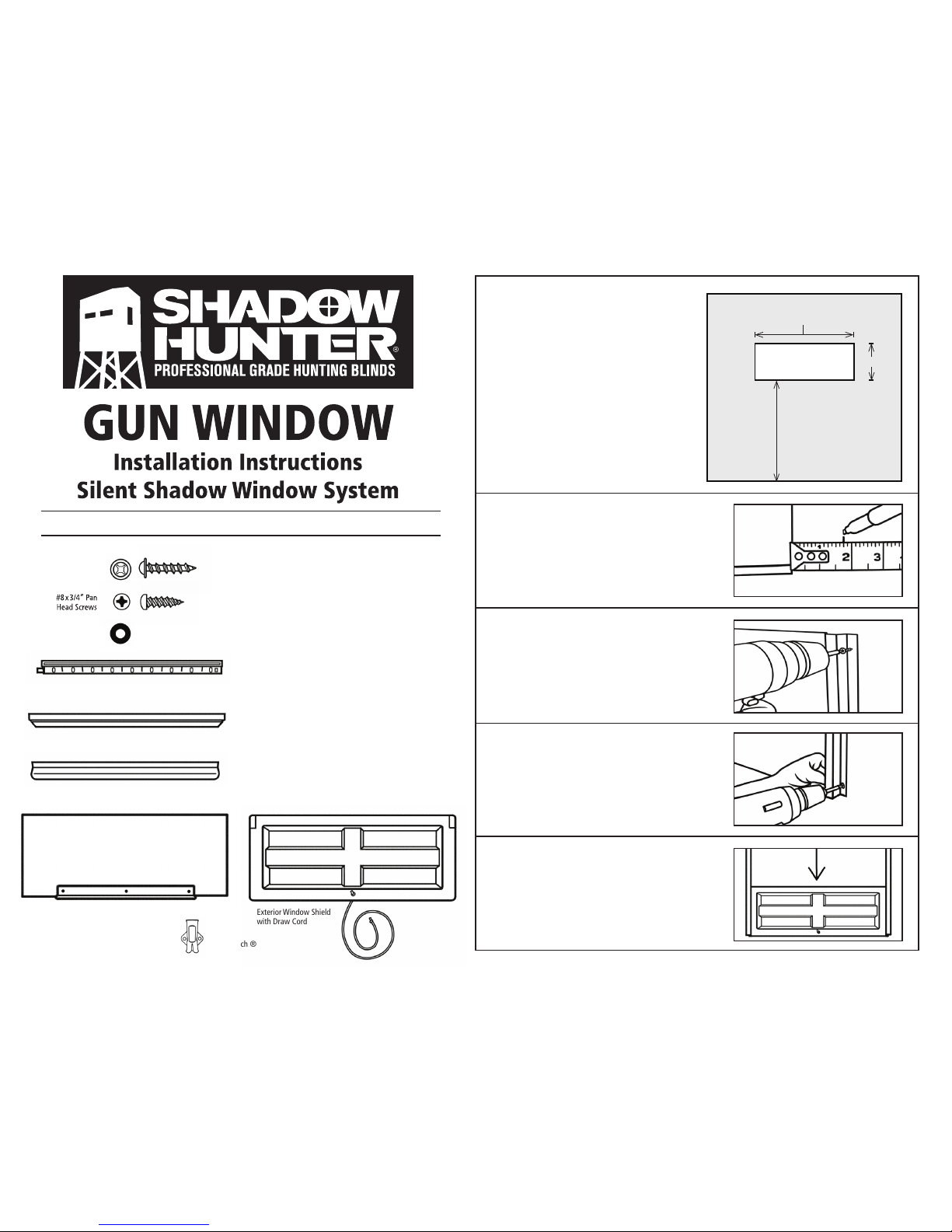

Shadow Hunter GUN WINDOW Installation Instructions Manual

STEP 1. PREPARING YOUR BLIND

Mark the intended position of your window
using the measurements indicated here.

You can opt to center a single blind opening on
your wall, or you can place two windows side
by side. If installing two windows, position them
about 6 inches apart.

Cut the window frame.

STEP 2. INSTALL THE EXTERIOR
SHIELD TRACKS

2A - On each of the 8” sides, measure over 1- 3/4” at the
top and bottom corners. Be sure to mark all four spots.

2B - Using the marks as a guide, position the first
exterior shield track along one side of the window
opening. Raise the channel about 1/8” above the top of
the window. Use 1 pan head screw to hold the exterior
track in place.

Repeat step 2B on the opposite side.

2C - Make sure each track is aligned at the top and
bottom of the window opening. Use a total of 3 pan
head screws to fasten each track in place.

(Gun window instructions continue on the other side)

Screws & hardware included
for two window system:

[16] #8 x1" Washer Head Screws

Use 3 screws per interior glass track.

[22] #8 x3/4" Pan Head Screws

Use 3 screws per exterior track.
Use 5 screws per drip cap, evenly spaced.

[2] Rubber Window Shield Stops

[2] Interior Glass Panel

[2] Window Shield with Draw Cord

[2] Drip Cap

[4] Exterior Shield Tracks

[4] Interior Shield Tracks

[2] Speed Cinch®

Speed Cinch ®

Exterior Window Shield
with Draw Cord

Exterior Shield Track

Exterior Drip Cap

Interior Shield Track

#8 x1” Washer

Head Screws

Tools Needed: Cordless Drill • Square Drive Bit • Tape Measure • Saw

Interior Glass Panel

Rubber Window

Shield Stop

STEP 3. INSTALL THE EXTERIOR SHIELD

Drop the exterior shield into place behind the exterior
shield tracks. The cord hole should be on the bottom
of the shield.

24-1/2" WIDE

8" HIGH

42" from floor to
bottom of window

STEP 4. INSTALL THE EXTERIOR DRIP CAP

4A - It is critical to place the Drip Cap on top of the
Shield Track as seen in the image.

Begin by making guide marks
1-9 /16” above the window.

4B - Secure the drip cap on the right side with 1 pan
head screw. Then, make sure the drip cap is level and
rests on the marks. If so, secure with another pan head
screw.

Use 5 evenly spaced pan head screws to finish securing
the Drip Cap.

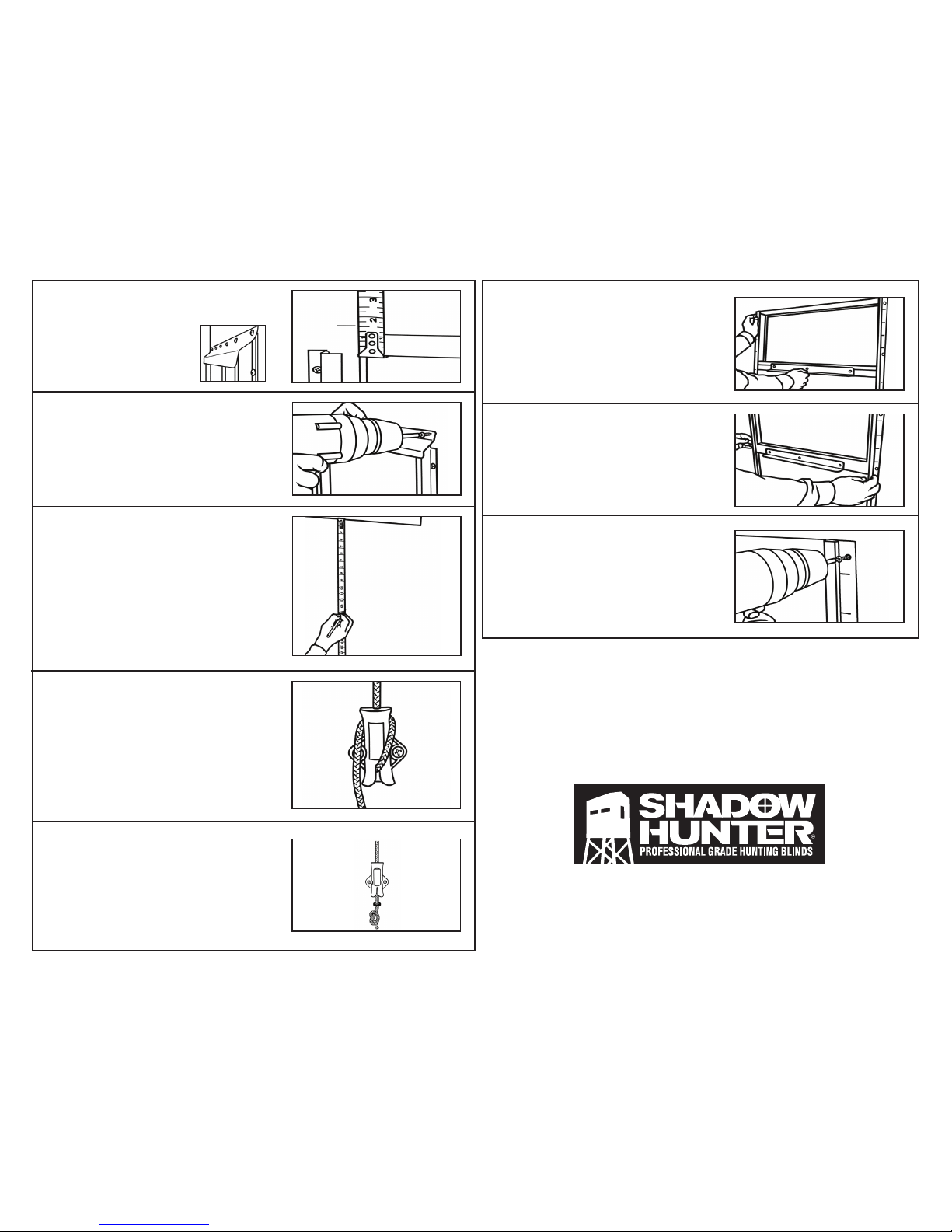

STEP 5. INSTALL THE INTERIOR DRAW
CORD LOCK

5A - Pull the shield up and down a few times to center
the cord in the window.

Once you’ve found the center, let the shield down.
Then measure 14” down from the center and mark
the position.

5B - Position the bracket over the mark, and place
the tube in a vertical position. The notch should be
at the bottom. Secure the Speed Cinch® with two
#8 x1”screws. Run cord through the tube.

STEP 6. INSTALL THE INTERIOR GLASS
AND TRACK

6A - Slide the plastic glass tracks onto each side
of glass panel.

6B - Hold the glass and tracks over the window
opening, making sure it is even on both sides. Hold
top of glass about ¾” above the top of the window
opening.

6C - Using washer head screws, secure one track
on the right side of the window (top and bottom).
On the left side of the window, place one washer
head screw in the top hole of the opposite track.
Lower the glass to ensure the glass is level and
will slide smoothly. Secure the bottom of track
with a washer head screw. Place the third screw
in middle of both tracks.

11/2018

Gun Window - Silent Shadow Window System

SUMMIT OUTDOORS, LLC

Fort Wayne, IN 46804 • Toll Free: 1-888-446-4868 Fax: [phone]

www.shadowhunterblinds.com

14” down
from the center

5C - Run the cord through the speed cinch tube. Then
thread the cord throught the rubber shield stop. Now
tie a knot at the end of the cord. You may need to
adjust the knot to make sure the shield is at or just
below the window.
