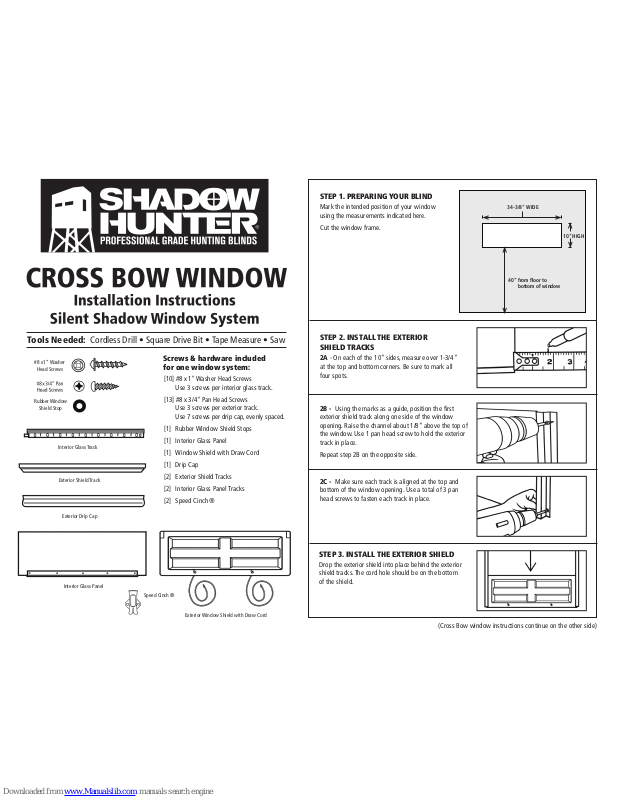

STEP 1. PREPARING YOUR BLIND
Mark the intended position of your window
using the measurements indicated here.
Cut the window frame.
STEP 2. INSTALL THE EXTERIOR
SHIELD TRACKS
2A - On each of the 10” sides, measure over 1-3/4”
at the top and bottom corners. Be sure to mark all
four spots.
2B - Using the marks as a guide, position the first
exterior shield track along one side of the window
opening. Raise the channel about 1/8” above the top of
the window. Use 1 pan head screw to hold the exterior
track in place.
Repeat step 2B on the opposite side.
2C - Make sure each track is aligned at the top and
bottom of the window opening. Use a total of 3 pan
head screws to fasten each track in place.
(Cross Bow window instructions continue on the other side)
Screws & hardware included
for one window system:
[10] #8 x 1" Washer Head Screws
Use 3 screws per interior glass track.
[13] #8 x3/4" Pan Head Screws
Use 3 screws per exterior track.
Use 7 screws per drip cap, evenly spaced.
[1] Rubber Window Shield Stops
[1] Interior Glass Panel
[1] Window Shield with Draw Cord
[1] Drip Cap
[2] Exterior Shield Tracks
[2] Interior Glass Panel Tracks
[2] Speed Cinch®
Speed Cinch ®
Exterior Window Shield with Draw Cord
Interior Glass Panel
Exterior Shield Track
Exterior Drip Cap
Interior Glass Track
#8 x1” Washer
Head Screws
Tools Needed: Cordless Drill • Square Drive Bit • Tape Measure • Saw
Rubber Window
Shield Stop
STEP 3. INSTALL THE EXTERIOR SHIELD
Drop the exterior shield into place behind the exterior
shield tracks. The cord hole should be on the bottom
of the shield.
34-3/8" WIDE
10" HIGH
40" from floor to
bottom of window
STEP 4. INSTALL THE EXTERIOR DRIP CAP
4A - It is critical to place the Drip Cap on top of the
Shield Track as seen in the image.
Begin by making guide marks
1-9 /16” above the window.
4B - Secure the drip cap on the right side with 1 pan
head screw. Then, make sure the drip cap is level and
rests on the marks. If so, secure with another pan head
screw.
Use 7 evenly spaced pan head screws to finish securing
the Drip Cap.
STEP 5. INSTALL THE INTERIOR DRAW
CORD LOCKS
5A - Pull the shield up and down a few times to center
the cord in the window.
Once you’ve found the correct position for each cord,
let the shield down. Then measure 18” down from the
bottom at the opening where each cord is located and
mark the position.
5B - Position the brackets over each mark, and place
the tube in a vertical position. The notch should be at
the bottom. Secure the Speed Cinch® with two #8 x1”
screws. Run cord through the tube.
STEP 6. INSTALL THE INTERIOR GLASS
AND TRACK
6A - Slide the plastic glass tracks onto each side
of glass panel.
6B - Hold the glass and tracks over the window
opening, making sure it is 2 ½” down from the top
of window opening.
6C - Using washer head screws, secure one track
on the right side of window (top and bottom).
On the left side of the window, place one washer
head screw in the top hole of the opposite track.
Lower the glass to ensure the glass is level and
will slide smoothly. Secure the bottom of track
with a washer head screw. Place the third screw
in middle of both tracks.
11/2018
Cross Bow Window - Silent Shadow Window System
SUMMIT OUTDOORS, LLC
Fort Wayne, IN 46804 • Toll Free: 1-888-446-4868 Fax: 260-483-2070
www.shadowhunterblinds.com
18” down
from the bottom
at the opening
where each cord
is located
5C - Run the cord through the speed cinch tube. Then
thread the cord throught the rubber shield stop. Now
tie a knot at the end of the cord. You may need to
adjust the knot to make sure the shield is at or just
below the window.
