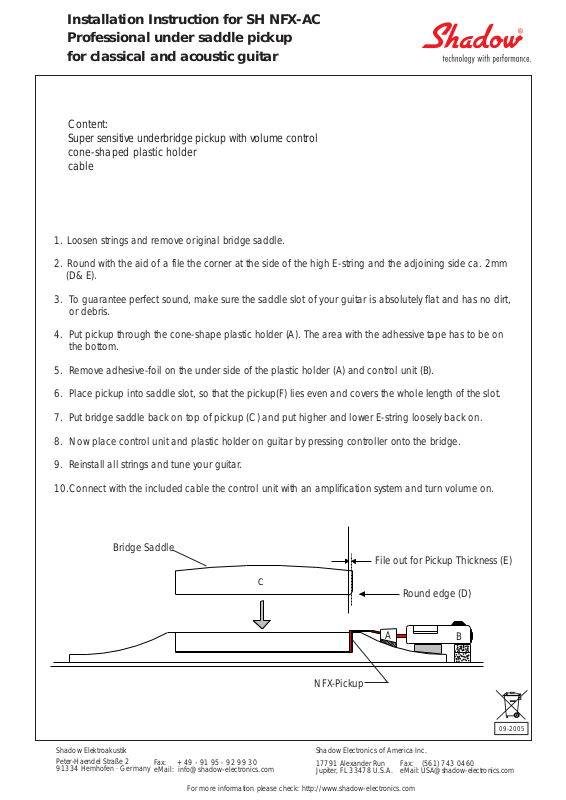

Installation Instruction for SH NFX-AC
Professional under saddle pickup
for classical and acoustic guitar
Content:
Super sensitive underbridge pickup with volume control
cone-shaped plastic holder
cable
1. Loosen strings and remove original bridge saddle.
2. Round with the aid of a file the corner at the side of the high E-string and the adjoining side ca. 2mm
(D& E).
3. To guarantee perfect sound, make sure the saddle slot of your guitar is absolutely flat and has no dirt,
or debris.
4. Put pickup through the cone-shape plastic holder (A). The area with the adhessive tape has to be on
the bottom.
5. Remove adhesive-foil on the under side of the plastic holder (A) and control unit (B).
6. Place pickup into saddle slot, so that the pickup(F) lies even and covers the whole length of the slot.
7. Put bridge saddle back on top of pickup (C) and put higher and lower E-string loosely back on.
8. Now place control unit and plastic holder on guitar by pressing controller onto the bridge.
9. Reinstall all strings and tune your guitar.
10.Connect with the included cable the control unit with an amplification system and turn volume on.

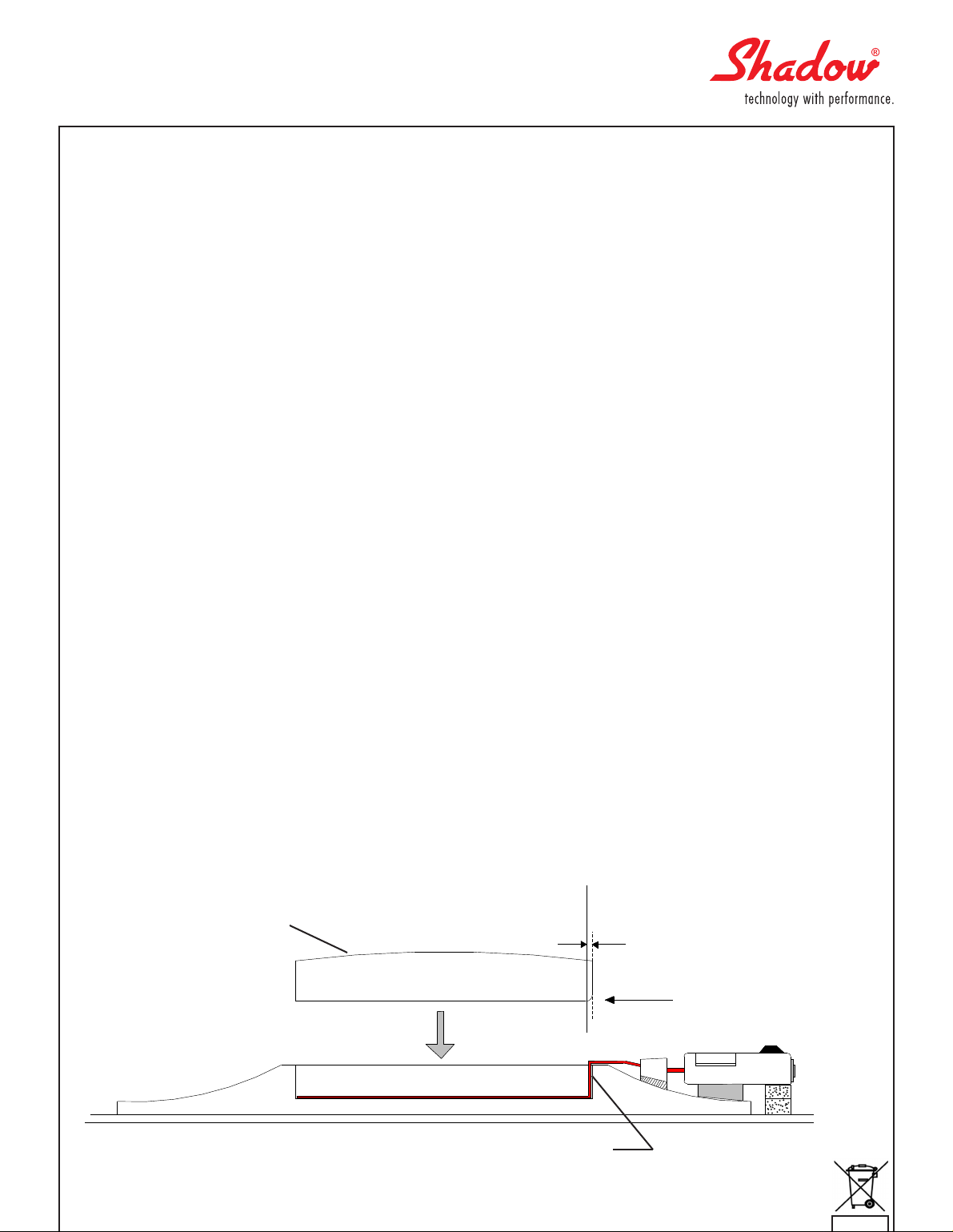

Bridge Saddle
File out for Pickup Thickness (E)
Round edge (D)
NFX-Pickup
A
B
09-2005
