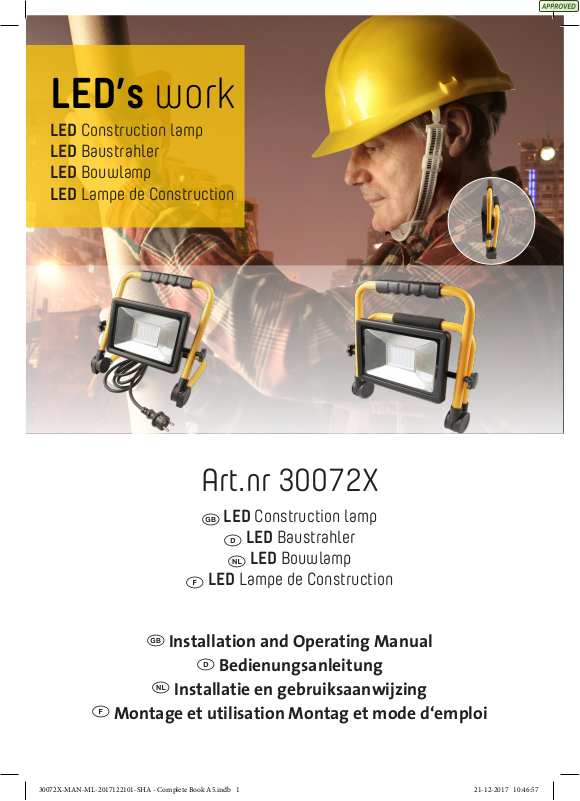

Shada 300721, 300720 User guide [ml]
Installation and Operating Manual
D
Bedienungsanleitung
Installatie en gebruiksaanwijzing
F
Montage et utilisation Montag et mode d‘emploi
Art.nr 30072X
LED Construction lamp
D LED Baustrahler
LED Bouwlamp
F LED Lampe de Construction
LED’s work
LED Construction lamp
LED Baustrahler
LED Bouwlamp
LED Lampe de Construction
30072X-MAN-ML-2017122101-SHA - Complete Book A5.indb 1 21-12-2017 10:46:57
2
30072X-MAN-ML-2017122101-SHA - Complete Book A5.indb 2 21-12-2017 10:46:57
Table of contents 4
D
Inhaltsverzeichnis 8
Inhoudsopgave 12
F
Table des matières 16
3
30072X-MAN-ML-2017122101-SHA - Complete Book A5.indb 3 21-12-2017 10:46:57
Table of contents
box contents 4
01 Manualidentication 4
02 General 4
03 Uniqueidenticationoftheproduct 4
Table1-TechnicalSpecications 5
04 Modicationoftheproduct 5
05 Security related information 5
06 Conformity of the product with legislation 5
07 Storage of the Manual 5
08 Use of the product / Installation 6
09 Operating the product 6
10 Product maintenance 6
11 Accessories, consumables, spare parts 6
12 Information about special tools, devices 6
13 Information about repair, replacement of parts 7
14 Instructions for disposal 7
15 Documentation 7
16 CE-Declaration 7
17 Explanation of symbols, concepts and particularities of the product 7
box contents
1x LED Driverless floodlight on foldable rack
1x manual
01 Manual identification
Shada B.V, 7323-AM Apeldoorn, Kanaal Noord 350, The Netherlands
www.shada.nl
Date of Issue: 16.11.2017
Article number: 300720, 300721.
02 General
This product is designed for outdoor use. It is equipped with a LED
module, Foldable rack and 3m Cable.
03 Unique identification of the product
LED Driverless floodlight on foldable rack/ Article number: 300720, 300721.
The product meets the requirements of protection class 1. Level of protection
IP65, dustproof, protected against water jets. 3 meter H07RN-F 3G 1.0mm²
cable. Further technical data can be found in the table.
4
30072X-MAN-ML-2017122101-SHA - Complete Book A5.indb 4 21-12-2017 10:46:57
Table 1 - Technical Specifications
Specications
Art Nr.
power (W):
Input voltage (V AC):
Luminous flux (lm):
Color temperature (K):
LED-Lifetime (St):
Beam angle:
Dimensions (mm):
Protection class IP
Housing
300720 300721
30 50
220-240 V - 50/60 Hz
2.250 3.850
4.000
30.000
100°
L 180 x B 62 x H 156.5 L 230 x B 67 x H 202
IP65
Aluminium, Powder Coated
04 Modification of the product
The product may not be changed or adapted. Do not use the product for other
purposes than described in the manual.
05 Security related information
When using the product, make sure the unit is suciently ventilated, never
cover the unit during operation and keep it out of reach of children or animals.
This product is not a toy, LED lights are extremely bright and looking directly at
the light source during operation can lead to serious eye damage. Any other use
of the device than described in the manual may damage the product or cause
danger to the user, e.g. due to a short circuit, fire or electric shock. The safety
instructions must be observed at all times.
06 Conformity of the product with legislation
The warranty expires in the event of damage due to non-compliance with the
safety instructions of the device. Furthermore, we are not liable for consequential damage, damage to objects or persons resulting from failure to observe the
safety instructions and improper use/handling of the device due to wear and
tear. Product design and specifications are subject to change without notice. All
logos and trade names are registered trademarks of their respective owners and
are hereby acknowledged as such.
07 Storage of the Manual
Please read the operating instructions carefully and completely before use.
The operating instructions are part of the product, they contain important
information on the commissioning and handling of the device. Keep all enclosed
operating instructions for future reference. If the device is sold or passed on to
third parties, you are obliged to pass on the operating instructions as these are
lawfully part of the product.
5
30072X-MAN-ML-2017122101-SHA - Complete Book A5.indb 5 21-12-2017 10:46:57
08 Use of the product / Installation
Before use, check the completeness of the parts supplied and the intactness of
the product. If damaged, it must not be put into operation.
09 Operating the product
The safety instructions and warnings must be observed to ensure both the
perfect condition of the product and safe operation.
10 Product maintenance
The driverless floodlight can be cleaned with clear water and a soft cloth. Do not
use detergents containing surface active agents or scouring agents.
11 Accessories, consumables, spare parts
3 meter H07RN-F 3G 1.0mm² cable / foldable rack.
12 Information about special tools, devices
Place the floodlight on a safe and stable surface.
