RF & MICROWAVE TRANSISTORS
■ 960 MHz
■ 13.5 VOLTS
■ COMMONBASE
■ P
DESCRIPTION
The SD1414-12 is a 13.5 V Class C Epitaxial
silicon NPN planar transistor designed for
amplifierapplicationsup to960 MHz.
Internal input matching and common base
configuration assure optimum gain and efficiency
in broad bandapplications.
= 40 W MIN. WITH 4.3 dBgain
OUT
SD1414-12
800-900 MHz APPLICATIONS
PRELIMINARY DATA
.230 6LFL (M142)
epoxy sealed
ORDER CODE BRANDING
SD1414-12 SD1414-12
PIN CONNECTION
1. Collector 3. Base
2. Emitter
ABSOLUTE MAXIMUM RATINGS (T
Symb o l Para meter Val u e Uni t
V
V
V
V
P
DISS
T
Collector-Base Voltage 36 V
CBO
Collector-Emitter Voltage 18 V
CEO
Collector-Emitter Voltage 36 V
CES
Emitter-Bas e Voltage 4.0 V
EBO
Device Current 9.0 A
I
C
Power Dissipation 150 W
Max. Operating Junction T e m per at ure +200
T
j
Sto rage Temperature -65 to 1 50
STG
case
=25oC)
THERMAL DATA
R
th(j-c)
December 1999
Junct ion-Case Thermal R e s ist ance 1.2
o
o
o
C/W
C
C
1/6
SD1414-12
ELECTRICAL SPECIFICATION (T
case
=25oC)
STATIC
Symbol Para met e r Min. Typ . Ma x. Unit
BV
CESIC
BV
CEOIC
BV
EBOIE
I
CBO
h
FE
=50mA VBE=0V 36 V
=50mA IB=0mA 18 V
=10mA IC=0mA 4.0 V
VCB=15V IE=0mA 5 mA
VCE=5V IC=1A 20 200
DYNAMIC
Symbol Para met e r Min. Typ . Ma x. Unit
P
OUT
G
η
Load
Mismatch
C
f = 960 M Hz PIN=15W VCC=13.5V 40 W
f = 960 M Hz PIN=15W VCC=13.5V 4.3 dB
P
f = 960 M Hz PIN=15W VCC= 13.5 V 50 %
C
f = 960 M Hz P
f=1MHz VCB= 1 3.5 V 8 0 pF
OB
=15W VCC= 15 V All Ph ases 10: 1 VSW R
IN
2/6
960 MHz Test Circuit Schematic
SD1414-12
+13.5V
960 MHz Test CircuitComponentPart List
3/6
SD1414-12

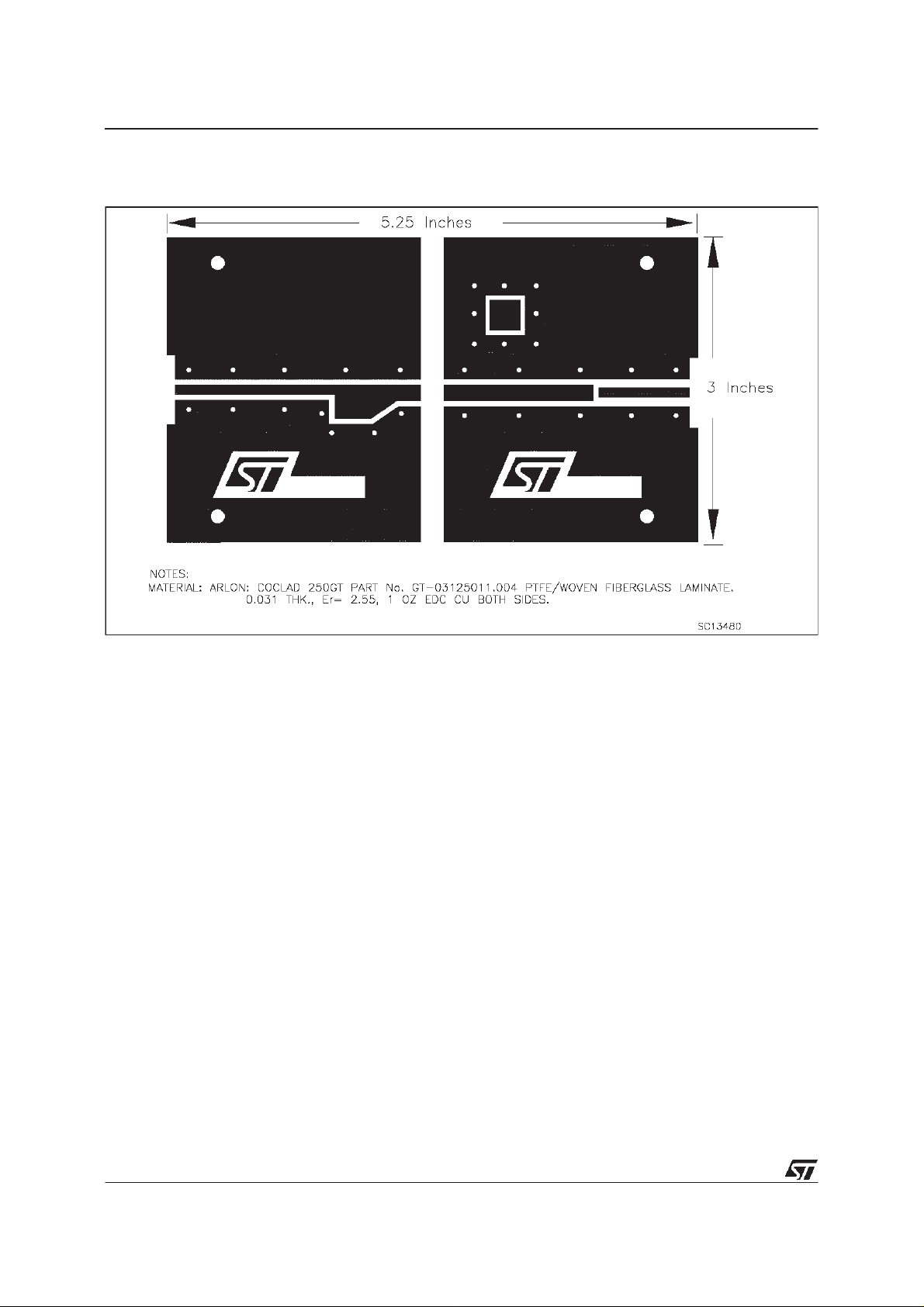

960 MHz Test Circuit Photomaster
LOG NO . 654
LOG NO . 654
4/6
M142 MECHANICALDATA
SD1414-12
DIM.
MIN. TYP. MAX. MIN. TYP. MAX.
A 9.02 9.27 0.355 0.365
B 2.92 3.18 0.115 0.125
C 1.91 2.16 0.075 0.085
D 5.72 5.97 0.225 0.235
E 2.29 2.79 0.090 0.110
F 18.29 18.54 0.720 0.730
G 24.64 24.89 0.970 0.980
H 9.02 9.27 0.355 0.365
I 0.10 0.15 0.004 0.006
J 3.05 3.30 0.120 0.130
K 4.06 4.57 0.160 0.180
L 5.84 6.60 0.230 0.260
mm inch
1010968C
5/6
SD1414-12
