1/11June 2001
■ HIGH SPEED:
f
MAX
= 170 MHz (TYP.) at VCC = 5V
■ LOW POWER DISSIPATION:
I
CC
= 2 µA (MAX.) at TA=25°C
■ HIGH NOISE IMMUNITY:
V
NIH
= V
NIL
= 28% VCC (MIN.)
■ POWER DOWN PROTECTION ON INPUTS
■ SYMMETRICAL OUTPUT IMPEDANCE:
|I
OH
| = IOL = 8 mA (MIN)
■ BALANCED PROPAGATION DELAYS:
t
PLH
≅ t
PHL
■ OPERATING VOLTAGE RANGE:
V
CC
(OPR) = 2V to 5.5V
■ PIN AND FUNCTION COMPATIBLE WITH
74 SERIES 74
■ IMPROVED LATCH-UP IMMUNITY
DESCRIPTION
The 74VHC74 is a n advanced high-speed CMOS
DUAL D-TYPE FLIP FLOP WITH PRESET AND
CLEAR fabricated with sub-micron silicon gate
and double-layer metal wiring C
2
MOS technology.
A signal on the D INPUT is transferred to the Q
OUTPUTS during the positive go ing transition of
the clock pulse.
CLR
and PR are independent of the clock and
accomplished by a l ow setting on the app ropriate
input.
Power down protection is provided on all inputs
and 0 to 7V can be accepted on inputs with no
regard to the supply voltage. This device can be
used to interface 5V to 3V.
All inputs and outputs are equipped with
protection circuits against stat ic discharge, giving
them 2KV ESD immunity and transient excess
voltage.
74VHC74
DUAL D-TYPE FLIP FLOP WITH PRESET AND CLEAR
PIN CONNECTION AND IEC LOGIC SYMBOLS
ORDER CODES
PACKAGE TUBE T & R
SOP 74VHC74M 74VHC74MTR
TSSOP 74VHC74TTR
TSSOPSOP
74VHC74
2/11
INPUT EQUIVALENT CIRCUIT PIN DESCRIPTION
TRUTH TABLE
X : Don’t Care
LOGIC DIAGRAM
This log i c diagram has not be used to estimate propagation delays
PIN No SYMBOL NAME AND FUNCTION
1, 13 1CLR
, 2CLR
Asynchronous Reset -
Direct Input
2, 12 1D, 2D Data Inputs
3, 11 1CK, 2CK Clock Input
(LOW to HIGH, Edge
Triggered)
4, 10 1PR
, 2PR Asynchronous Set - Direct
Input
5, 9 1Q, 2Q True Flip-Flop Outputs
6, 8 1Q
, 2Q Complement Flip-Flop
Outputs
7 GND Ground (0V)
14 V
CC
Positive Supply Voltage
INPUTS OUTPUTS
FUNCTION
CLR
PR DCKQ Q
L H X X L H CLEAR
H L X X H L PRESET
LLXXHH
HHL LH
HHH HL
HHX
Q
n
Q
n
NO CHANGE
74VHC74
3/11
ABSOLUTE MAXIMUM RATINGS
Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is
not implied
RECOMMENDED OPERATING CONDITIONS
1) VIN from 30 % to 70% of V
CC
Symbol Parameter Value Unit
V
CC
Supply Voltage
-0.5 to +7.0 V
V
I
DC Input Voltage
-0.5 to +7.0 V
V
O
DC Output Voltage -0.5 to VCC + 0.5
V
I
IK
DC Input Diode Current
- 20 mA
I
OK
DC Output Diode Current
± 20 mA
I
O
DC Output Current
± 25 mA
I
CC
or I
GND
DC VCC or Ground Current
± 50 mA
T
stg
Storage Temperature
-65 to +150 °C
T
L
Lead Temperature (10 sec)
300 °C
Symbol Parameter Value Unit
V
CC
Supply Voltage
2 to 5.5 V
V
I
Input Voltage
0 to 5.5 V
V
O
Output Voltage 0 to V
CC
V
T
op
Operating Temperature
-55 to 125 °C
dt/dv
Input Rise and Fall Time (note 1) (V
CC
= 3.3 ± 0.3V)
(V
CC
= 5.0 ± 0.5V)
0 to 100
0 to 20
ns/V
74VHC74
4/11
DC SPECIFICATIONS
Symbol Parameter
Test Condition Value
Unit
V
CC
(V)
T
A
= 25°C
-40 to 85°C -55 to 125°C
Min. Typ. Max. Min. Max. Min. Max.
V
IH
High Level Input
Voltage
2.0 1.5 1.5 1.5
V
3.0 to
5.5
0.7V
CC
0.7V
CC
0.7V
CC
V
IL
Low Level Input
Voltage
2.0 0.5 0.5 0.5
V
3.0 to
5.5
0.3V
CC
0.3V
CC
0.3V
CC
V
OH
High Level Output
Voltage
2.0
I
O
=-50 µA
1.9 2.0 1.9 1.9
V
3.0
I
O
=-50 µA
2.9 3.0 2.9 2.9
4.5
I
O
=-50 µA
4.4 4.5 4.4 4.4
3.0
I
O
=-4 mA
2.58 2.48 2.4
4.5
I
O
=-8 mA
3.94 3.8 3.7
V
OL
Low Level Output
Voltage
2.0
IO=50 µA
0.0 0.1 0.1 0.1
V
3.0
I
O
=50 µA
0.0 0.1 0.1 0.1
4.5
I
O
=50 µA
0.0 0.1 0.1 0.1
3.0
I
O
=4 mA
0.36 0.44 0.55
4.5
I
O
=8 mA
0.36 0.44 0.55
I
I
Input Leakage
Current
0 to
5.5
V
I
= 5.5V or GND
± 0.1 ± 1 ± 1 µA
I
CC
Quiescent Supply
Current
5.5
V
I
= VCC or GND
22020µA
74VHC74
5/11
AC ELECTRICAL CHARACTERISTICS (Input tr = tf = 3ns)
(*) Vol tage range is 3.3V ± 0.3V
(**) Voltage range is 5.0V ±
0.5V
CAPACITIVE CHARACTERISTICS
1) CPD is defined as the value of the IC’s internal equivalent capacitance which is calculated from the operating current consumption without
load. (R ef er to Test Circuit). Average operating current can be obtai ned by the followi ng equation. I
CC(opr)
= CPD x VCC x fIN + ICC/2 (per
flip-flop)
Symbol Parameter
Test Condition Value
Unit
V
CC
(V)
C
L
(pF)
T
A
= 25°C
-40 to 85°C -55 to 125°C
Min. Typ. Max. Min. Max. Min. Max.
t
PLH
t
PHL
Propagation Delay
Time CK to Q or Q
3.3
(*)
15 6.7 11.9 1.0 14.0 1.0 14.0
ns
3.3
(*)
50 9.2 15.4 1.0 17.5 1.0 17.5
5.0
(**)
15 4.6 7.3 1.0 8.5 1.0 8.5
5.0
(**)
50 6.1 9.3 1.0 10.5 1.0 10.5
t
PLH
t
PHL
Propagation Delay
Time PR
or CLR to
Q or Q
3.3
(*)
15 7.6 12.3 1.0 14.5 1.0 14.5
ns
3.3
(*)
50 10.1 15.8 1.0 18.0 1.0 18.0
5.0
(**)
15 4.8 7.7 1.0 9.0 1.0 9.0
5.0
(**)
50 6.3 9.7 1.0 11.0 1.0 11.0
t
W
CK Pulse Width
HIGH or LOW
3.3
(*)
6.0 7.0 7.0
ns
5.0
(**)
5.0 5.0 5.0
t
W
PR or CLR Pulse
Width LOW
3.3
(*)
6.0 7.0 7.0
ns
5.0
(**)
5.0 5.0 5.0
t
s
Setup Time D to CK
HIGH or LOW
3.3
(*)
6.0 7.0 7.0
ns
5.0
(**)
5.0 5.0 5.0
t
h
Hold Time D to CK
HIGH or LOW
3.3
(*)
0.5 0.5 0.5
ns
5.0
(**)
0.5 0.5 0.5
t
REM
Removal Time
PR
or CLR to CK
3.3
(*)
5.0 5.0 5.0
ns
5.0
(**)
3.0 3.0 3.0
f
MAX
Maximum Clock
Frequency
3.3
(*)
15 80 125 70 70
MHz
3.3
(*)
50 50 75 45 45
5.0
(**)
15 130 170 110 110
5.0
(**)
50 90 115 75 75
Symbol Parameter
Test Condition Value
Unit
V
CC
(V)
T
A
= 25°C
-40 to 85°C -55 to 125°C
Min. Typ. Max. Min. Max. Min. Max.
C
IN
Input Capacitance
5.0 7101010pF
C
PD
Power Dissipation
Capacitance
(note 1)
5.0
f
IN
= 10MHz
25 pF
74VHC74
6/11
TEST CIRCUIT
CL =15/50pF or equivalent (inc l udes jig and probe capacitanc e)
R
T
= Z
OUT
of pulse generator (typically 50Ω)
WAVEFORM 1: PROPAGATION DELAYS, SETUP AND HOLD TIMES (f=1MHz; 50% duty cycle)
74VHC74
7/11

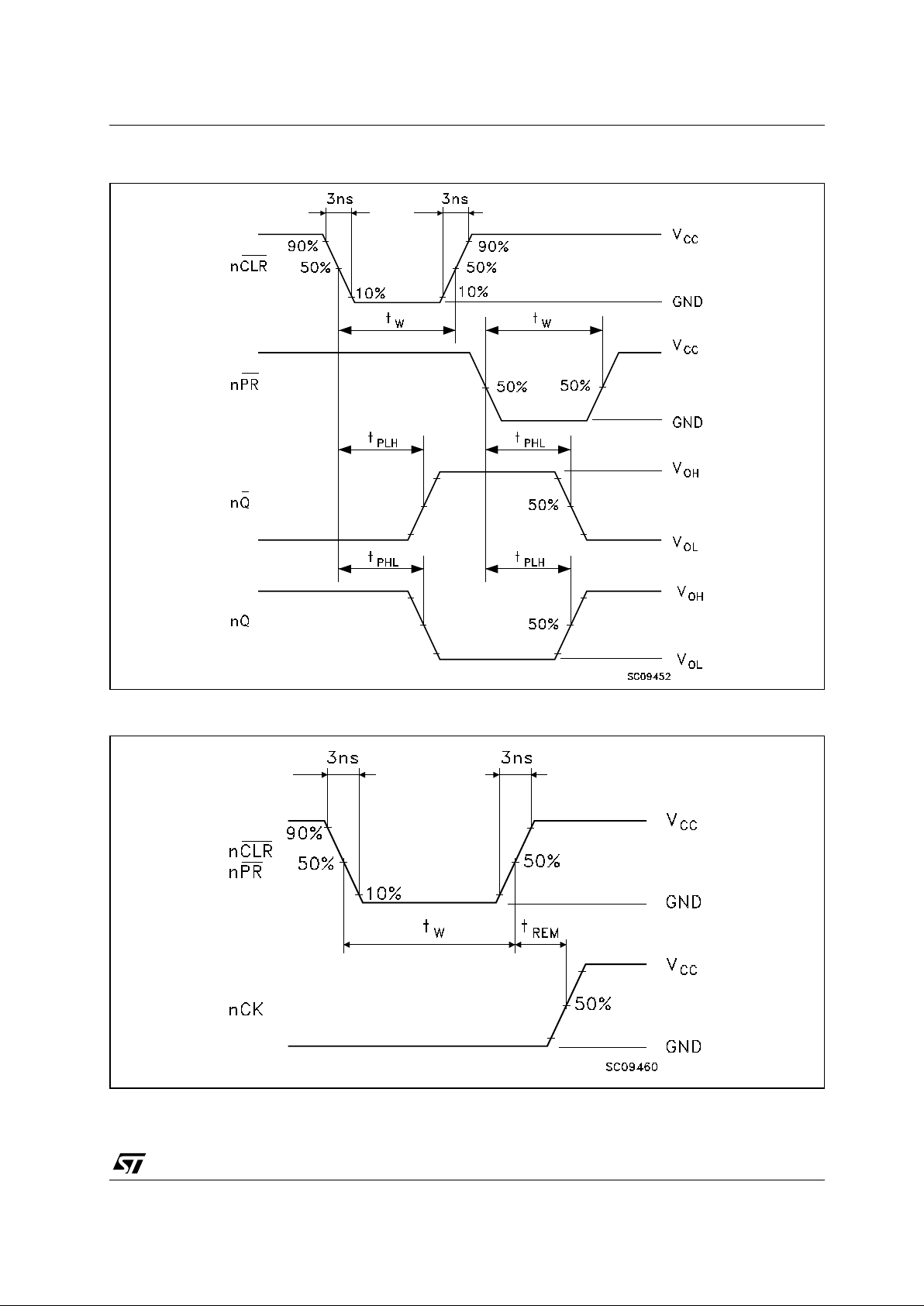

WAVEFORM 2: PROPAGATION DELAYS (f=1MHz; 50% duty cycle)
WAVEFORM 3: RECOVERY TIMES (f=1MHz; 50% duty cycle)
74VHC74
8/11
WAVEFORM 4: PULSE WIDTH
74VHC74
9/11
DIM.
mm. inch
MIN. TYP MAX. MIN. TYP. MAX.
A 1.75 0.068
a1 0.1 0.2 0.003 0.007
a2 1.65 0.064
b 0.35 0.46 0.013 0.018
b1 0.19 0.25 0.007 0.010
C 0.5 0.019
c1 45° (typ.)
D 8.55 8.75 0.336 0.344
E 5.8 6.2 0.228 0.244
e 1.27 0.050
e3 7.62 0.300
F 3.8 4.0 0.149 0.157
G 4.6 5.3 0.181 0.208
L 0.5 1.27 0.019 0.050
M 0.68 0.026
S8° (max.)
SO-14 MECHANICAL DATA
PO13G
74VHC74
10/11
DIM.
mm. inch
MIN. TYP MAX. MIN. TYP. MAX.
A 1.2 0.047
A1 0.05 0.15 0.002 0.004 0.006
A2 0.8 1 1.05 0.031 0.039 0.041
b 0.19 0.30 0.007 0.012
c 0.09 0.20 0.004 0.0089
D 4.9 5 5.1 0.193 0.197 0.201
E 6.2 6.4 6.6 0.244 0.252 0.260
E1 4.3 4.4 4.48 0.169 0.173 0.176
e 0.65 BSC 0.0256 BSC
K0° 8°0° 8°
L 0.45 0.60 0.75 0.018 0.024 0.030
TSSOP14 MECHANICAL DATA
c
E
b
A2
A
E1
D
1
PIN 1 IDENTIFICATION
A1
L
K
e
0080337D
74VHC74
