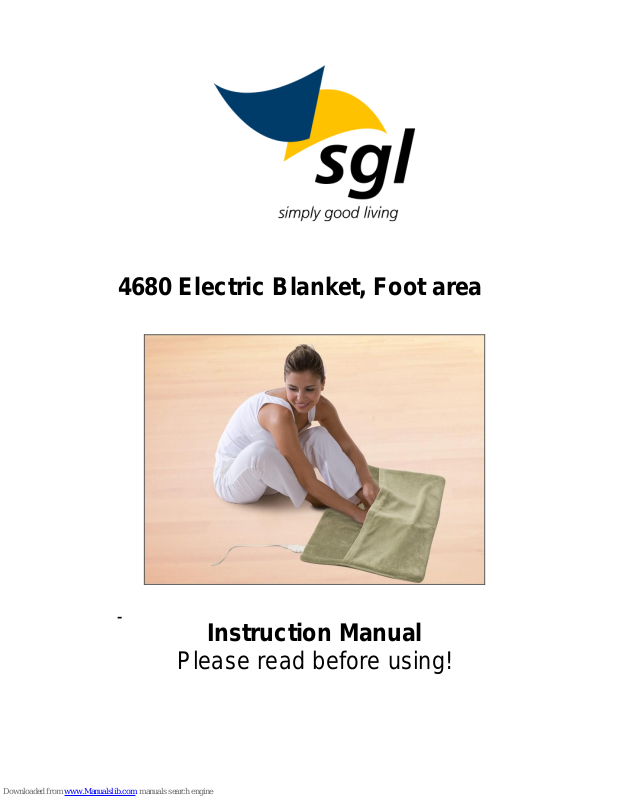

SGL 4680 Instruction Manual

4680 Electric Blanket, Foot area

Instruction Manual

Please read before using!

Introduction

Thank you for choosing the electric blanket. The electric blanket is a product of
high standard that will last for a very long time if properly used and handled. You
use the blanket to warm your bed; it is not meant for medical purposes. There are
three heat levels, the blanket will switch off automatically after 120 minutes. A

sensor cable provides for double protection against overheating.

The product is tested according to European standard and therefore technically

safe. Please read the safety instructions in your user manual carefully.

Electric Blanket Components

Electric Blanket, Foot area (1)
On/Off switch (2)

Intensity display (3)

Use

The electric blanket is placed on the mattress and under the sheet. It is not
designed for use with animals. Inappropriate use can damage the surface of the
blanket and the fixing of the heating wires. If damaged the blanket must not be

used anymore. In this case please contact the SGL service hotline.

After 30 minutes pre-heating the desired temperature is reached, and will be
maintained for another 90 minutes unless the blanket gets switched off before.
The bed should be warm not hot. The heat is difficult to determine when touching
with your hands, other than the heat pillow. The hand is not as sensitive towards
heat as other body parts. After usage, fold the blanket and put it back into the

package.

Turn on heat

Put plug into power point. The Electric Blanket is ready for use. The switch has

four levels:

Level 0 appliance off
Level 1 minimum heat
Level 2 medium heat

Level 3 maximum heat
(setting 1 is recommended for all night use)

Automatic switch off

120 minutes after switching on (30 minutes pre- heat and 90 minutes
maintenance) the electric blanket switches off automatically. If the blanket should
stay in use you have to switch on to level 0. Afterwards the blanket is ready for

another 120 minutes use.

2

1

Maintenance:

The electric blanket can not be washed in the washing machine. You may remove

stains with a damp cloth.

Important Safety hints
RETAIN MANUAL FOR
FURTHER USE

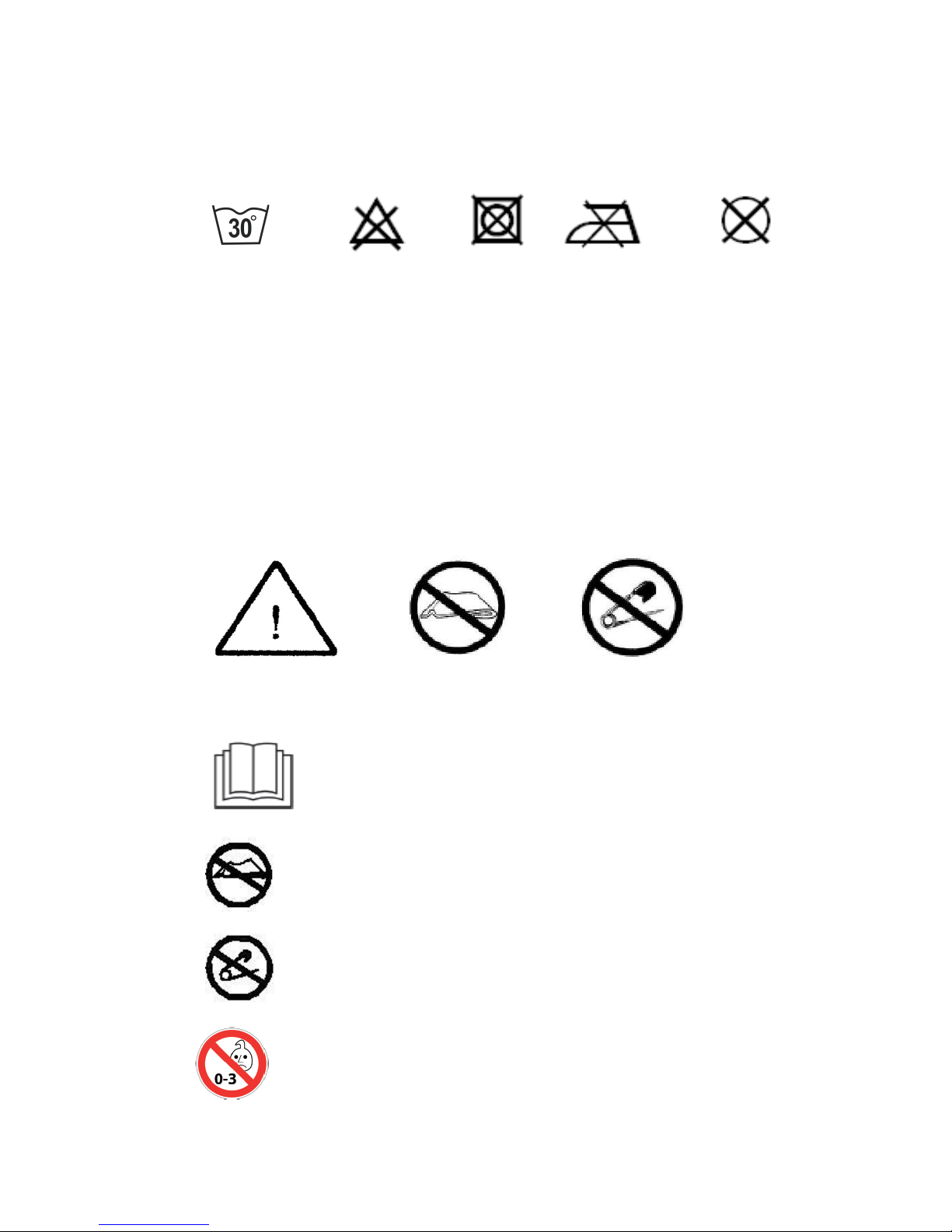

Symbol explanation

„ Please, read the instructions

„ Do not use if folded or creased

„ Do not insert pins or needles

Not to be used by very young children (0-3 years)

3

Do not
dryclean

Do not
iron

Do not
tumble dry

Do not
bleach

Machine wash
water temperature
below 30℃

 Retain the manual for future use
 Do not prick in with needles or other sharp objects.
 Heating Pad

 only plug into adequate power point
 do not use if wet or damp
 do not use on heat insensitive persons, children or
 pets
 do not use if bent or folded
 do not use on helpless persons
 do not fall asleep if Heating Pad is switched on

 do not fold Heating Pad if still warm
 do not place heavy or edged objects on the Heating Pad, which may
 damage or bend the electrical wires inside the Heating Pad (eg. Suit
 cases )
 Keep plug and connecting cable dry at all times.
 The switch will get warm and therefore should not be covered, danger
 of overheating.
 Persons who only experience heat to a certain level should only use
 the Heating Pad under supervision
 If the Heating Pad or parts of it are damaged the Heating Pad should
 not be used
 After use pull plug out off power point
 Do not place other heaters or heat producing objects onto the
 switched on cushion.
 Always supervise if used for children
 Avoid creasing the appliance
 Examine the appliance frequently for signs of wear or damage. If there
 are such signs or if the appliance has been misused, return it to the
 supplier prior to any further use
 This appliance is not intended for medical use in hospitals
 If the supply cords damaged, it must be replaced by the manufacturer,
 its service agent or similarly qualified persons in order to avoid a
 hazard.

 Do not use if wet.

Delivery contents

ƒ Electric blanket, Foot area
ƒ User manual

4

Technical data:

Model: 4680
Alternating current 220-240V~ 50Hz
Max. power ca. 50W
Measurements 70*46cm

For the sake of the environment, we request that you take packaging material to

be recycled (collection points).

Disposal of appliances and batteries

After the implementation of the European Directive 2002/96/EU in the

national legal system, the following applies:

Electrical and electronic devices may not be disposed of with domestic

waste. Consumers are obliged by law to return electrical and electronic

devices at the end of their service lives to the public collecting points

set up for this purpose or point of sale . Details to this are defined by the national
law of the respective country. This symbol on the product, the instruction manual
or the package indicates that a product is subject to these regulations. By
recycling, reusing the materials or other forms of utilising old devices, you are

making an important contribution to protecting our environment.

5
