R303A Series
Fingerprint Identification Module
User Manual
ZheJiang SFG Technology Co., Ltd
Feb 2009 Ver: 0.87
Preface & Declaration
Thank you for you selection of R301 series Fingerprint Identification Module (Module)
of SFG.
The Manual is targeted for hardware & software developing engineer, covering
hardware interface, system resource, instruction system, installment information, etc.
To ensure the developing process goes smoothly, it is highly recommended the
Manual is read through carefully.
We will try our best to assure you the correctness of the Manual. However, should you
find any problem or error with it, feel free to contact us or the sales representative of
us. We would be very grateful.
Holding the principle of constantly improving and perfecting products, so both the
module and contents of the Manual might subject to changes. Sorry for separate notice.
You may visit our website or call us for the latest information.
The Manual contains proprietary information of SFG, which shall not be used by or
disclosed to third parties without the permission of SFG, nor for any reproduction and
alteration of information without any associated warranties, conditions, limitations, or
notices.
No responsibility or liability is assumed by SFG for the application or use, nor for any
infringements of patents or other intellectual property rights of third parties that may
result from its use.
All products are sold subject to SFG’s terms and conditions of sale supplied at the
time of order acknowledgment. Testing, tool and other quality control techniques are
used to the extent SFG considers necessary to support the warranty of relevant
performance of its products to the specifications, except as expressly agreed to in
writing by government requirements, testing of all parameters of each product is not
necessarily performed.
.
I
I Introduction
Power
DC 3.6V-6.0V
Interface
UART(TTL logical
level)/ USB 1.1
Working current
T y pical: 100mA
Peak: 150mA
Matching Mode
1:1 and 1:N
Baud rate
(9600*N)bps,
N=1～12 (default N=6）
Character file size
256 bytes
Image acquiring time
<0.5s
Template size
512 bytes
Storage capacity
120/ 375/ 880
Security level
5 (1, 2, 3, 4, 5(highest))
FAR
<0.001%
FRR
<0.1%
Average searching time
< 0.8s (1:880)
Window dimension
18mm*22mm
Temp: -10℃- +40℃ Temp: -40℃- +85℃
Working enviro nment
RH: 40%-85%
Storage environment
RH: <85%
Split type Module: 42*38*7mm
Sensor:56*20*21.5mm
Outline Dimention
Integral type 54.5*20.6*23.8mm
Operation Principle
Fingerprint processing includes two parts: fingerprint enrollment and fingerprint matching (the
matching can be 1:1 or 1:N).
When enrolling, user needs to enter the finger two times. The system will process the two time
finger images, generate a template of the finger based on processing results and store the template.
When matching, user enters the finger through optical sensor and system will generate a template
of the finger and compare it with templates of the finger library. For 1:1 matching, system will
compare the live finger with specific template designated in the Module; for 1:N matching, or
searching, system will search the whole finger library for the matching finger. In both
circumstances, system will return the matching result, success or failure.
- 1 -
II Main Parameters
III Hardware Interface

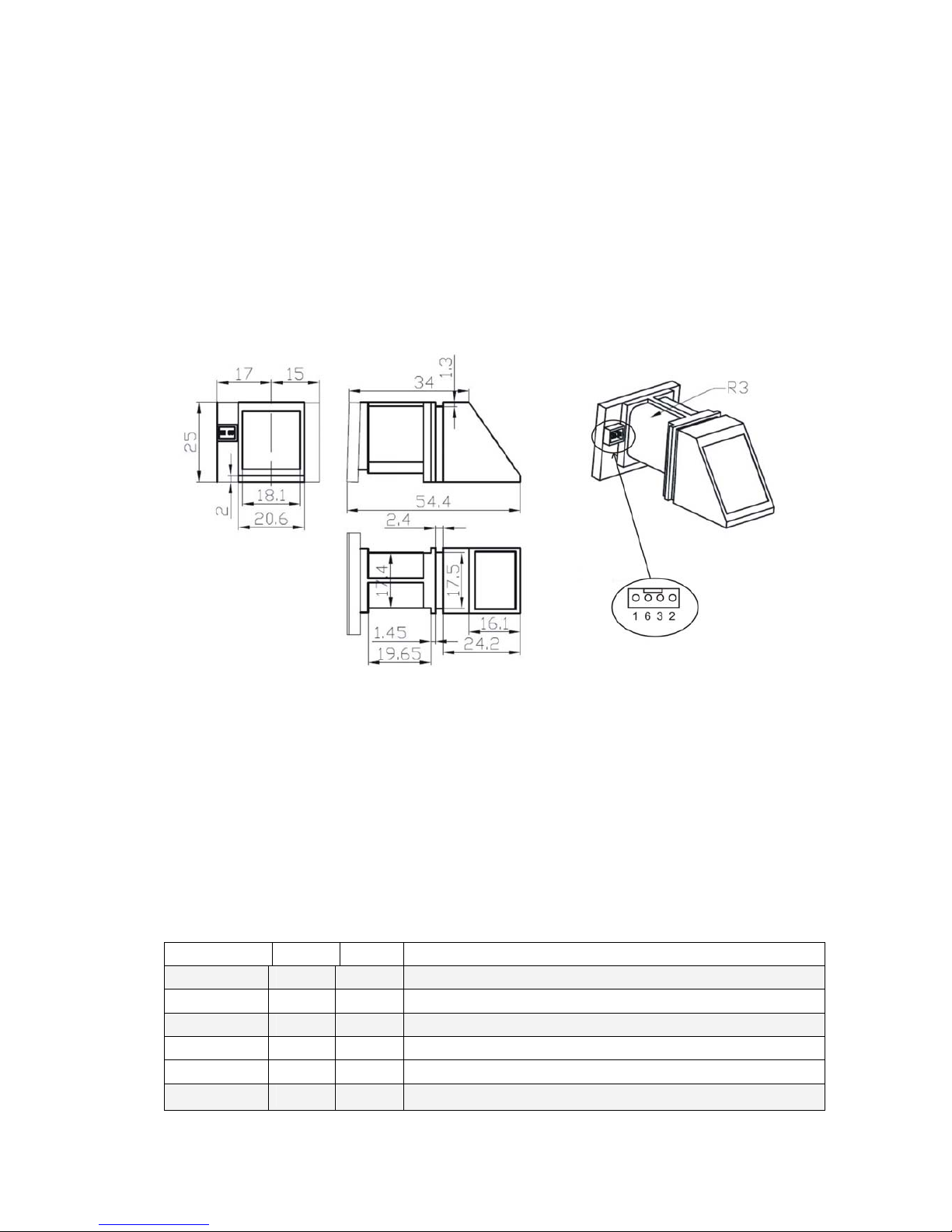

Exterior Interface
R303A (All in one)
Connecting with PC (P1/P2 on board)
Serial Communication(P1)
When the FP module communicates with user device, definition of J1 is as follows:
Pin Nmuber
Name Type Function Description
1 Vin in Power input
2 TD in Data output. TTL logical level
3 RD out Data input. TTL logical level
4 NC － Not connect.
5 NC － Not connect.
6 GND － Signal ground. Connected to power ground (color: black）
- 2 -
Hardware connection
Via serial interface, the Module may communicate with MCU of 3.3V or 5V power: TD (pin 2 of
P1) connects with RXD (receiving pin of MCU), RD (pin 3 of P1) connects with TXD (transferring
pin of MCU). Should the upper computer (PC) be in RS-232 mode, please add level converting
circuit, like MAX232, between the Module and PC.
Serial communication protocol
The mode is semiduplex asychronism serial communication. And the default baud rate is 57600bps.
User may set the baud rate in 9600～115200bps。

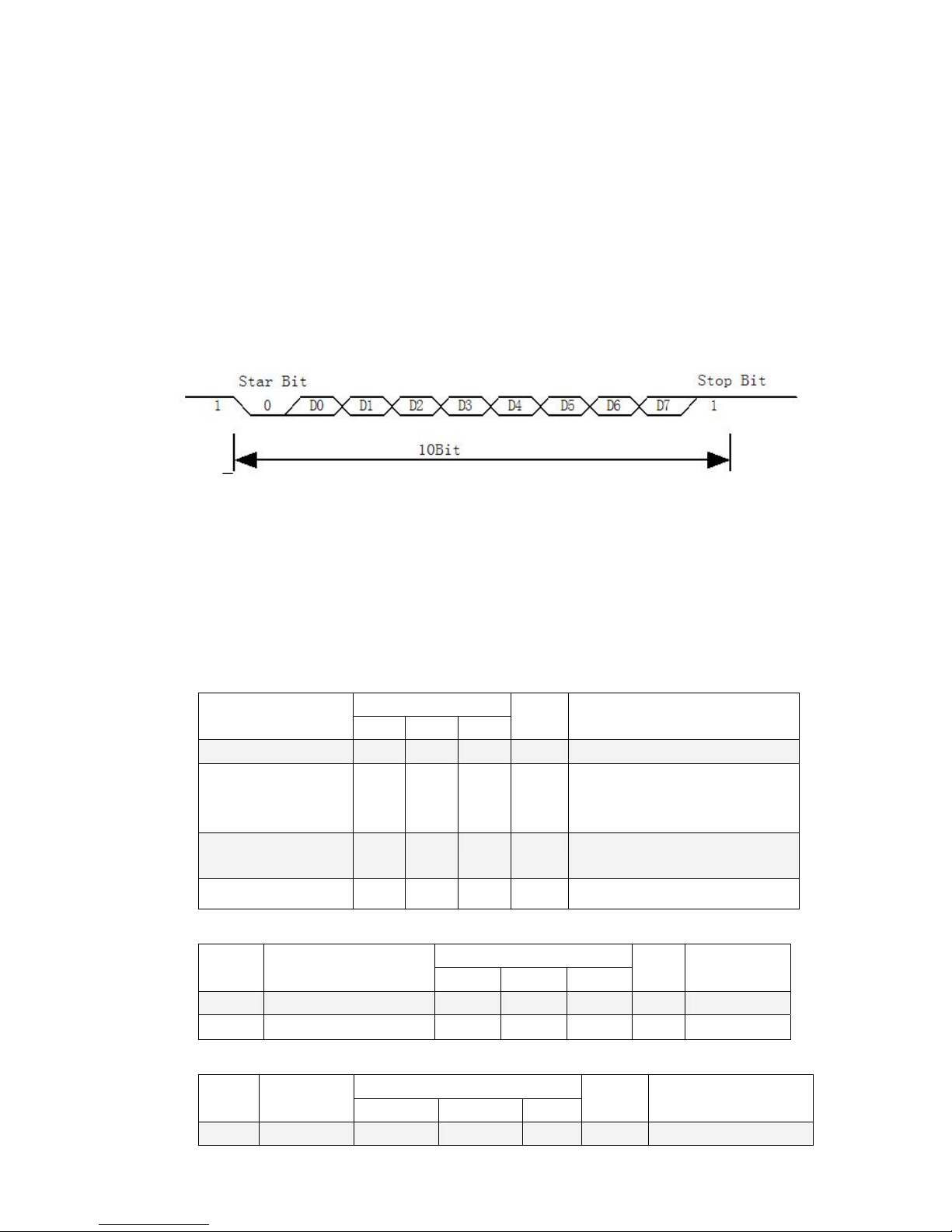

Transferring frame format is 10 bit: the low-level starting bit, 8-bit data with the LSB first, and an
ending bit. There is no check bit.
Reset time
At power on, it takes about 500ms for initialization. During this period, the Module can’t accept
commands for upper computer.
Electrical paramenter (All electrical level takes GND as reference)
Power supply
Parameter
Item
Min Typ Max
Unit Note
Power Voltage (Vin) 3.6 6.0 V Normal working value.
Maximum Voltage
(Vin
max)
－0.3 7.0 V
Exceeding the Maximum rating
may cause permant harm to the
Module.
Operation Current
(Icc)
90 100 110 mA
Peak Current (Ipeak) 150 mA
TD（output, TTL logic level）
Parameter
Item Condition
Min Typ Max
Unit Note
VOL IOL=－4mA 0.4 V Logic 0
VOH IOH= 4mA 2.4
3.3
V Logic 1
RD（input, TTL logic level）
Parameter
Item Condition
Min Typ Max
Unit Note
VIL 0.6 V Loigc 0
- 3 -
VIH 2.4 V Logic 1
VIH =5V 1 mA
IIH
V
IH
=3.3V 30 uA
V
Imax
－0.3 5.5 V
Maximum input voltage
IV System Resources
To address demands of different customer, Module system provides abundant resources at user’s
use.
Notepad
The system sets aside a 512-bytes memory (16 pages* 32 bytes) for user’s notepad, where data
requiring power-off protection can be stored. The host can access the page by instructions of
PS_WriteNotepad and PS_Read Notepad.
Note: when write on one page of the pad, the entire 32 bytes will be written in wholly covering the
original contents.
Buffer
There are an image buffer and two 512-byte-character-file buffer within the RAM space of the
module. Users can read & write any of the buffers by instructions.
Note: Contents of the above buffers will be lost at power-off.
Image buffer
ImageBuffer serves for image storage and the image format is 256*288 pixels.
When transferring through UART, to quicken speed, only the upper 4 bits of the pixel is transferred
(that is 16 grey degrees). And two adjacent pixels of the same row will form a byte before the
transferring. When uploaded to PC, the 16-grey-degree image will be extended to 256-grey-degree
format. That’s 8-bit BMP format.
When transferring through USB, the image is 8-bit pixel, that’s 256 grey degrees.
Character file buffer
Character file buffer, CharBuffer1, CharBuffer2, can be used to store both character file and
template file.
4.3Fingerprint Library
Synstem sets aside a certain space within Flash for fingerprint template storage, that’s fingerprint
library. Co nte nts of the libr ary remain at power off.
Capacity of the library changes with the capacity of Flash, system will recognize the latter
automatically. Fingerprint template’s storage in Flash is in sequential order. Assume the fingerprint
capacity N, then the serial number of template in library is 0, 1, 2, 3 … N. User can only access
library by template number.
- 4 -
System Confiuration Parameter
To facilitate user’s developing, Module opens part system parameters for use. And the basic
instructions are SetSysPara & ReadSysPara. Both instructions take Parameter Number as
parameter.
When upper computer sends command to modify parameter, Module first responses with original
configurations, then performs the parameter modification and writes configuration record into Flash.
At the next startup, system will run with the new configurations.
Baud rate control (Parameter Number: 4)
The Parameter controls the UART communication speed of the Modul. Its value is an integer N,
N= [1, 12]. Cooresponding baud rate is 9600*N bps。
Security Level (Parameter Number: 5)
The Parameter controls the matching threshold value of fingerprint searching and matching.
Security level is divided into 5 grades, and cooresponding value is 1, 2, 3, 4, 5. At level 1, FAR is
the highest and FRR is the lowest; however at level 5, FAR is the lowest and FRR is the highest.
Data package length (Parameter Number: 6)
The parameter decides the max length of the transferring data package wh en communicating with
upper computer. Its value is 0, 1, 2, 3, corresponding to 32 bytes, 64 bytes, 128 bytes, 256 bytes
respectively.
System status register
System status register indicates the current operation status of the Module. Its length is 1 word, and
can be read via instruction ReadSysPara. Definition of the register is as follows:
Bit Num 15 4 3 2 1 0
Description Reserved ImgBufStat PWD Pass Busy
Note:
Busy：1 bit. 1: system is executing commands; 0: system is free;
Pass：1 bit. 1: find the matching finger; 0: wrong finger;
PWD：1 bit. 1: Verified device’s handshaking password.
ImgBufStat：1 bit. 1: image buffer contains valid image.
Module password
At power-on reset, system first checks whether the handshaking password has been modified. If not,
system deems upper computer has no requirement of verifying password and will enter into normal
operation mode. That’s, when Module password remains the default, verifying process can be
jumped. The password length is 4 bytes, and its default factory value is 0FFH, 0FFH, 0FFH, 0FFH.
Should the password have be modified, refer to instruction SetPwd, then Module (or device)
handshaking password must be verified before the system enter into normal operation mode. Or
else, system will refuse to execute and command.
- 5 -
The new modified password is stored in Flash and remains at power off.
Module address
Each module has an identifying address. When communicating with upper computer, each
instruction/data is transferred in data package form, which contains the address item. Module
system only responds to data package whose address item value is the same with its identifying
address.
The address length is 4 bytes, and its default factory value is 0xFFFFFFFF. User may modify the
address via instruction SetAdder. The new modified address remains at power off.
Random number generator
Module integrates a hardware 32-bit random number generator (RNG) (without seed). Via
instruction GetRandomCode, system will generate a random number and upload it.
V Communication Protocol
The protocol defines the data exchanging format when ZFM-20 series communicates with upper
computer. The protocol and instruction sets apples for both UART and USB communication mode.
For PC, USB interface is strongly recommended to improve the exchanging speed, especially in
fingerprint scanning device.
5.1Data package format
When communicating, the transferring and receiving of command/data/result are all wrapped in
data package format.
Data package format
Header Adder Package
identifier
Package
length
Package content
(instuction/data/Parameter）
Checksum
Definition of Data package
Name Symbol Length Description
Header Start 2 bytes Fixed value of 0xEF01; High byte transferred first.
Adder ADDER 4 bytes
Default value is 0xFFFFFFFF, which can be modified by
command. High byte transferred first and at wrong adder value,
module will reject to transfer.
01H Command packet;
02H
Data packet; Data packet shall not appear alone in
executing processs, must follow command packet or
acknowledge packet.
Package
identifier
PID 1 byte
07H Acknowledge packet;
- 6 -
08H End of Data packet.
Package
length
LENGTH 2 bytes
Refers to the length of package content (command packets and
data packets) plus the length of Checksum( 2 bytes). Unit is
byte. Max length is 256 bytes. And high byte is transferred first.
Package
contents
DATA －
It can be commands, data, command’s parameters,
acknowledge result, etc. (fingerprint character value, template
are all deemed as data);
Checksum SUM 2 bytes
The arithmetic sum of package identifier, package length and
all package contens. Overflowing bits are omitted. high byte is
transferred first.
Check and acknowledgement of data package
Note: Commands shall only be sent from upper computer to the Module, and the Module
acknowledges the commands.
Upon receipt of commands, Module will report the commands execution status and results to upper
computer through acknowledge packet. Acknowledge packet has parameters and may also have
following data packet. Upper computer can’t ascertain Module’s package receiving status or
command execution results unless through acknowledge packet sent from Module. Acknowledge
packet includes 1 byte confirmation code and maybe also the returned parameter.
Confirmation code’s definition is :
00h: commad execution complete;
01h: error when receiving data package;
02h: no finger on the sensor;
03h: fail to enroll the finger;
06h: fail to generate character file due to the over-disorderly fingerprint image;
07h: fail to generate character file due to lackness of character point or over-smallness of
fingerprint image
08h: finger doesn’t match;
09h: fail to find the matching finger;
0Ah: fail to combine the character files;
0Bh: addressing PageID is beyond the finger library;
0Ch: error when reading template from library or the template is invalid;
0Dh: error when uploading template;
0Eh: Module can’t receive the following data packages.
0Fh: error when uploading image;
10h: fail to delete the template;
11h: fail to clear finger library;
13h: wrong password!
15h: fail to generate the image for the lackness of valid primary image;
18h: error when writing flash;
19h: No definition error;
1Ah: invalid register number;
1Bh: incorrect configuration of register;
- 7 -
1Ch: wrong notepad page number;
1Dh: fail to operate the communication port;
others: system reserved;
VI Module Instruction System
R303A series provide 23 instructions. Through combination of different instructions, application
program may realize muti finger authentication functions. All commands/data are transferred in
package format. Refer to 5.1 for the detailed information of package.
System-related instructions
Verify passwoard VfyPwd
Description: Verify Module’s handshaking password. (Refer to 4.6 for details)
Input Parameter: PassWord (4 bytes)
Return Parameter: Confirmation code (1 byte)
Instruction code: 13H
Command (or instruction) package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 4 byte 2 bytes
Header Module
address
Package
identifier
Instruction
code
Password Checksum
0xEF01 xxxx 01H 07H 13H PassWord sum
Acknowledge package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 2 bytes
Header Module address Package
identifier
Package
Length
Confirmation
code
Checksum
0xEF01 xxxx 07H 03H xxH sum
Note: Confirmation code = 00H: Correct password;
Confirmation code = 01H: error when receiving package;
Confirmation code = 13H: Wrong password;
Set password SetPwd
Description: Set Module’s handshaking password. (Refer to 4.6 for details)
Input Parameter: PassWord (4 bytes)
Return Parameter: Confirmation code (1 byte)
Instruction code: 12H
Command (or instruction) package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 4 byte 2 bytes
Header Module
address
Package
identifier
Package
length
Instruction
code
Password Checksum
0xEF01 xxxx 01H 07H 12H PassWord sum
- 8 -
Acknowledge package format:
2 bytes 4 byte 2 bytes 1 byte 2 bytes
Header Module address Package length Confirmation
code
Checksum
0xEF01 xxxx 03H xxH Sum
Note: Confirmation code=00H: password setting complete;
Confirmation code=01H: error when receiving package;
Set Module address SetAdder
Description: Set Module address. (Refer to 4.7 for adderss information)
Input Parameter: None;
Return Parameter: Confirmation code (1 byte)
Instruction code: 15H
Command (or instruction) package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 4 bytes 2 bytes
Header Original
Module address
Package
identifier
Package
length
Instruction
code
New Module
address
Checksum
0xEF01 xxxx 01H 07H 15H xxxx sum
Acknowledge package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 2 bytes
Header New Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
0xEF01 xxxx 07H 07H xxH Sum
Note: Confirmation code=00H: address setting complete;
Confirmation code=01H: error when receiving package;
Set module system’s basic parameter SetSysPara
Description: Operation parameter settings. (Refer to 4.4 for more information)
Input Parameter: Parameter number;
Return Parameter: Confirmation code (1 byte)
Instruction code: 0eH
Command (or instruction) package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 1byte 1byte 2 bytes
Header Module
address
Package
identifier
Package
length
Instruction
code
Parameter
number
Contents Checksum
0xEF01 Xxxx 01H 05H 0eH 4/5/6 xx sum
Acknowledge package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 2 bytes
Header Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
0xEF01 Xxxx 07H 03H xxH Sum
Note: Confirmation code=00H: parameter setting complete;
Confirmation code=01H: error when receiving package;
- 9 -
Confirmation code=1aH: wrong register number;
Port Control Control
Description:
For UART protocol, it control the “on/off” of USB port;
For USB protocol, it control the “on/off” of UART port;
Input Parameter: control code
Control code ”0” means turns off the port;
Control code ”1” means turns on the port;
Return Parameter: confirmation code;
Instruction code: 17H
Command (or instruction) package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 1byte 2 bytes
Header Chip
address
Package
identifier
Package
length
Instruction
code
Control
code
Checksum
0xEF01 xxxx 01H 04H 17H 0/1 sum
Acknowledge package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 2 bytes
Header Chip
address
Package
identifier
Package
length
Confirmation
code
Checksum
0xEF01 xxxx 07H 03H xxH sum
Note: Confirmation code=00H: Port operation complete;
Confirmation code=01H: error when receiving package;
Confirmation code=1dH: fail to operate the communication port;
Read system Parameter ReadSysPara
Description: Read Module’s status register and system basic configuration parameters;（Refer to 4.4
for system configuration parameter and 4.5 for system status register）.
Input Parameter：none
Return Parameter：Confirmation code (1 byte) + basic parameter（16bytes）
Instuction code: 0fH
Command (or instruction) package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 2 bytes
Header Module
address
Package
identifier
Package length Instruction
code
Checksum
0xEF01 Xxxx 01H 03H 0fH sum
Acknowledge package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 16 bytes 2 bytes
Header Module
address
Package
identifier
Package
length
Confirmation
code
Basic parameter
list
Checksum
0xEF01 xxxx 07H 3+16 xxH See following
table
sum
Note: Confirmation code=00H: read complete;
Confirmation code=01H: error when receiving package;
- 10 -
Name Description Offset (word) Size (word)
Status register Contents of system status register 0 1
System identifier code Fixed value: 0x0009 1 1
Finger library size Finger li brary size 2 1
Security level Security level (1, 2, 3, 4, 5) 3 1
Device address 32-bit device address 4 2
Data packet size Size code (0, 1, 2, 3) 6 1
Baud settings
N (baud = 9600*N bps)
7 1
Read valid template number TempleteNum
Description: read the current valid template number of the Module
Input Parameter: none
Return Parameter: Confirmation code (1 byte)，template number:N
Instuction code: 1dH
Command (or instruction) package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 2 bytes
Header Module address Package
identifier
Package
length
Instruction
code
Checksum
0xEF01 xxxx 01H 0003H 1dH 0021H
Acknowledge package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 2 bytes 2 bytes
Header Module
address
Package
identifier
Package
length
Confirmation
code
Template
number
Checksum
0xEF01 xxxx 07H 5 xxH N sum
Note: Confirmation code=00H: read complete;
Confirmation code=01H: error when receiving package;
Fingerprint-processing instructions
To collect finger image GenImg
Description: detecting finger and store the detected finger image in ImageBuffer while
returning successfull confirmation code; If there is no finger, returned confirmation code
would be “can’t detect finger”.
Input Parameter: none
Return Parameter: Confirmation code (1 byte)
Instuction code: 01H
Command (or instruction) package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 2 bytes
Header Module
address
Package
identifier
Package length Instruction
code
Checksum
0xEF01 Xxxx 01H 03H 01H 05H
Acknowledge package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 2 bytes
- 11 -
Header Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
0xEF01 Xxxx 07H 03H xxH Sum
Note: Confirmation code=00H: finger collection successs;
Confirmation code=01H: error when receiving package;
Confirmation code=02H: can’t detect fing er;
Confirmation code=03H: fail to collect finger;
Upload image UpImage
Description: to upload the image i n Img_Buffer to upper computer. Refer to 1.1.1 for more about
image buffer.
Input Parameter: none
Return Parameter: Confirmation code (1 byte)
Instuction code: 0aH
Command (or instruction) package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 2 bytes
Header Module address Package
identifier
Package length Instruction code Checksum
0xEF01 Xxxx 01H 03H 0aH 000eH
Acknowledge package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 2 bytes
Header Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
0xEF01 Xxxx 07H 03H xxH sum
Note 1： Confirmation code=00H: ready to transfer the following data packet;
Confirmation code=01H: error when receiving package;
Confirmation code=0fH: fail to transfer the following data packet;
2：Module shall transfer the following data packet after responding to the upper
computer.
Download the image DownImage
Description: to download image from upper computer to Img_Buffer. Refer to 1.1.1 for more about
the image buffer.
Input Parameter: none
Return Parameter: Confirmation code (1 byte)
Instuction code: 0bH
Command (or instruction) package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 2 bytes
Header Module address Package
identifier
Package
length
Instruction
code
Checksum
0xEF01 Xxxx 01H 03H 0bH 000fH
Acknowledge package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 2 bytes
Header Module Package Package Confirmation Checksum
- 12 -
address identifier length code
0xEF01 Xxxx 07H 03H xxH sum
Note: 1：Confirmation code=00H: ready to transfer the following data packet;
Confirmation code=01H: error when receiving package;
Confirmation code=0eH: fail to transfer the following data packet;
2：Module shall transfer the following data packet after responding to the upper computer.
Data package length must be 64, 128, or 256。
To generate character file from image Img2Tz
Description: to generate character file from the original finger image in ImageBuffer and
store the file in CharBuffer1 or CharBuffer2.
Input Parameter: BufferID (character file buffer number)
Return Parameter: Confirmation code (1 byte)
Instuction code: 02H
Command (or instruction) package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 1 byte 2 bytes
Header Module
address
Package
identifier
Package
length
Instruction
code
Buffer
number
Checksum
0xEF01 xxxx 01H 04H 02H BufferID sum
Note: BufferID of CharBuffer1 and CharBuffer2 are 1h and 2h respectively. Other values
(except 1h, 2h) would be processed as CharBuffer2.
Acknowledge package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 2 bytes
Header Module
address
Package
identifier
Package length Confirmation
code
Checksum
0xEF01 xxxx 07H 03H XxH sum
Note: Confirmation code=00H: generate character file com plete;
Confirmation code=01H: error when receiving package;
Confirmation code=06H: fail to generate character file due to the over-disorderly
fingerprint image;
Confirmation code=07H: fail to generate character file due to lackness of character
point or over-smallness of fingerprint image;
Confirmation code=15H: fail to generate the image for the lackness of valid primary
image;
To generate template RegModel
Description: To combine information of character files from CharBuffer1 and CharBuffer2 and
generate a template which is stroed back in both CharBuffer1 and CharBuffer2.
Input Parameter：none
Return Parameter：Confirmation code (1 byte)
Instuction code: 05H
Command (or instruction) package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 2 bytes
- 13 -
Header Module
address
Package
identifier
Package
length
Instruction
code
Checksum
0xEF01 xxxx 01H 03H 05H 09H
Acknowledge package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 2 bytes
Header Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
0xEF01 xxxx 07H 03H xxH sum
Note: Confirmation code=00H: operation success;
Confirmation code=01H: error when receiving package;
Confirmation code=0aH: fail to combine the character files. That’s, the character files
don’t belong to one finger.
To upload character or template UpChar
Description: to upload the character file or template of CharBuffer1/CharBuffer2 to upper
computer;
Input Parameter: BufferID (Buffer number)
Return Parameter: Confirmation code (1 byte)
Instuction code: 08H
Command (or instruction) package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 1 byte 2 bytes
Header Module
address
Package
identifier
Package
length
Instruction
code
Buffer
number
Checksum
0xEF01 xxxx 01H 04H 08H BufferID sum
Note: BufferID of CharBuffer1 and CharBuffer2 are 1h and 2h respectively. Other values
(except 1h, 2h) would be processed as CharBuffer2.
Acknowledge package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 2 bytes
Header Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
0xEF01 xxxx 07H 03H xxH sum
Note 1: Confirmation code=00H: ready to transfer the following data packet;
Confirmation code=01H: error when receiving package;
Confirmation code=0dH: error when uploading template;
2: Module shall transfer following data packet after responding to the upper computer.;
3: The instruction doesn’t affect buffer contents.
To download character file or template DownChar
Description: to download character file or template from upper computer to the specified buffer of
Module;
Input Parameter: BufferID (buffer number)
Return Parameter: Confirmation code (1 byte)
Instuction code: 09H
Command (or instruction) package format:
- 14 -
2 bytes 4bytes 1 byte 2 bytes 1 byte 1 byte 2 bytes
Header Module
address
Package
identifier
Package
length
Instruction
code
buffer
number
Checksum
0xEF01 xxxx 01H 04H 09H BufferID sum
Note: BufferID of CharBuffer1 and CharBuffer2 are 1h and 2h respectively. Other values (except
1h, 2h) would be processed as CharBuffer2.
Acknowledge package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 2 bytes
Header Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
0xEF01 xxxx 07H 03H xxH sum
Note 1: Confirmation code=00H: ready to transfer the following data packet;
Confirmation code=01H: error when receiving package;
Confirmation code=0eH: fail to receive the following data pack ages.
2: Module shall transfer the following data packet after responding to the upper
computer.
To store template Store
Description: to store the template of specified buffer (Buffer1/Buffer2) at the designated location of
Flash library.
Input Parameter: BufferID(buffer number), PageID（Flash location of the template, two bytes with
high byte front and low byte behind）
Return Parameter: Confirmation code (1 byte)
Instuction code: 06H
Command (or instruction) package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 1 byte 2 bytes 2 bytes
Header Module
address
Package
identifier
Package
length
Instruction
code
buffer
number
Location
number
Checksum
0xEF01 xxxx 01H 06H 06H BufferID PageID sum
Note: BufferID of CharBuffer1 and CharBuffer2 are 1h and 2h respectively. Other values
(except 1h, 2h) would be processed as CharBuffer2.
Acknowledge package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 2 bytes
Header Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
0xEF01 Xxxx 07H 03H xxH sum
Note: Confirmation code=00H: storage success;
Confirmation code=01H: error when receiving package;
Confirmation code=0bH: addressing PageID is beyond the finger library;
Confirmation code=18H: error when writing Flash.
To read template from Flash library LoadChar
Description: to load template at the specified location (PageID) of Flash library to template buffer
CharBuffer1/CharBuffer2
- 15 -
Input Parameter: BufferID(buffer number), PageID (Flash location of the template, two bytes with
high byte front and low byte behind)。
Return Parameter: Confirmation code (1 byte)
Instuction code: 07H
Command (or instruction) package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 1 byte 2 bytes 2 bytes
Header Module
address
Package
identifier
Package
length
Instruction
code
buffer
number
Page
number
Checksum
0xEF01 xxxx 01H 06H 07H BufferID PageID sum
Note: BufferID of CharBuffer1 and CharBuffer2 are 1h and 2h respectively. Other values (except
1h, 2h) would be processed as CharBuffer2.
Acknowledge package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 2 bytes
Header Module address Package
identifier
Package
length
Confirmation
code
Checksum
0xEF01 xxxx 07H 03H XxH sum
Note: Confirmation code=00H: load success;
Confirmation code=01H: error when receiving package;
Confirmation code=0cH: error when reading template fro m library or the readout template is
invalid;
Confirmation code=0BH: addressing PageID is beyond the finger library;
To delete template DeletChar
Description: to delete a segment (N) of templates of Flash library started from the specified
location (or PageID);
Input Parameter: PageID (template number in Flash), N (number of templates to be deleted)
Return Parameter: Confirmation code (1 byte)
Instuction code: 0cH
Command (or instruction) package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 2 bytes 2bytes 2 bytes
Header Module
address
Package
identifier
Package
length
Instruction
code
Page
number
number of
templates to
be deleted
Checksum
0xEF01 Xxxx 01H 07H 0cH PageID N sum
Acknowledge package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 2 bytes
Header Module
address
Package identifier Package
length
Confirmation
code
Checksum
0xEF01 Xxxx 07H 03H xxH sum
Note: Confirmation code=00H: delete success;
Confirmation code=01H: error when receiving package;
Confirmation code=10H: faile to delete templates;
- 16 -
To empty finger library Empty
Description: to delete all the templates in the Flash library
Input Parameter: none
Return Parameter: Confirmation code (1 byte)
Instuction code: 0dH
Command (or instruction) package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 2 bytes
Header Module
address
Package
identifier
Package
length
Instruction
code
Checksum
0xEF01 Xxxx 01H 03H 0dH 0011H
Acknowledge package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 2 bytes
Header Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
0xEF01 Xxxx 07H 03H xxH sum
Note: Confirmation code=00H: empty success;
Confirmation code=01H: error when receiving package;
Confirmation code=11H: fail to clear finger library;
To carry out precise matching of two finger templates Match
Description: to carry out precise matching of templates from CharBuffer1 and CharBuffer2,
providing matching results.
Input Parameter: none
Return Parameter: Confirmation code (1 byte)，matching score.
Instuction code: 03H
Command (or instruction) package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 2 bytes
Header Module
address
Package
identifier
Package length Instruction code Checksum
0xEF01 Xxxx 01H 03H 03H 07H
Acknowledge package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 2 bytes 2 bytes
Header Module
address
Package
identifier
Package
length
Confirmation
code
Matching
score
Checksum
0xEF01 Xxxx 07H 05H XxH XxH sum
Note 1: Confirmation code=00H: templates of the two buffers are matching!
Confirmation code=01H: error when receiving package;
Confirmation code=08H: templates of the two buffers ar en’t matching;
2: The instruction doesn’t affect the contents of the buffers.
To search finger library Search
Description: to search the whole finger library for the template that matches the one in CharBuffer1
or CharBuffer2. When found , PageID will be returned.
- 17 -
Input Parameter: BufferID, StartPage (searching start address), PageNum（searching numbers）
Return Parameter: Confirmation code (1 byte), PageID (matching templates location）
Instuction code: 04H
Command (or instruction) package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 1 byte 2 bytes 2 bytes 2 bytes
Header Module
address
Package
identifie
r
Package
length
Instructio
n code
buffer
number
Parameter Parameter Checks
um
0xEF01 xxxx 01H 08H 04H BufferID StartPage PageNum sum
Note: BufferID of CharBuffer1 and CharBuffer2 are 1h and 2h respectively. Other values
(except 1h, 2h) would be processed as CharBuffer2.
Acknowledge package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 2 bytes 2 bytes 2 bytes
Header Module
address
Package
identifier
Package
length
Confirmation
code
页码 得分 Checksum
0xEF01 xxxx 07H 7 xxH PageID MatchScore sum
Note 1: Confirmation code=00H: found the matching finer;
Confirmation code=01H: error when receiving package;
Confirmation code=09H: No matching in the library (both the PageID and
matching score are 0);
2: The instruction doesn’t affect the contents of the buffers.
Other instructions
To generate a random code GetRandomCode
Description: to command the Module to generate a random number and return it to upper
computer;Refer to 4.8 for more about Random Number Generator;
Input Parameter: none
Return Parameter: Confirmation code (1 byte)
Instuction code: 14H
Command (or instruction) package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 2 bytes
Header Module
address
Package
identifier
Package length Instruction
code
Checksum
0xEF01 xxxx 01H 03H 14H 0018H
Acknowledge package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 4 bytes 2 bytes
Header Module
address
Package
identifier
Package
length
Confirmation
code
Random
number
Checksum
0xEF01 xxxx 07H 07H xxH xxxx sum
Note: Confirmation code=00H: generation success;
Confirmation code=01H: error when receiving package;
- 18 -
To write note pad WriteNotepad
Description: for upper computer to write data to the specified Flash page (refer to 4.1 for more
about Note pad). Also see ReadNotepad;
Input Parameter: NotePageNum, user content (or data content)
Return Parameter: Confirmation code (1 byte)
Instuction code: 18H
Command (or instruction) package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 1byte 32 bytes 2 bytes
Header Module
address
Package
identifier
Package
length
Instruction
code
Page
number
Data
content
Checksum
0xEF01 xxxx 01H 36 18H 0~15 content sum
Acknowledge package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 2 bytes
Header Module address Package
identifier
Package
length
Confirmation code Checksum
0xEF01 xxxx 07H 03H xxH sum
Note: Confirmation code=00H: write success;
Confirmation code=01H: error when receiving package;
To read note pad ReadNotepad
Description: to read the specified page’s data content; Refer to 4.1 for more about user note pad.
Also see WriteNotepad.
Input Parameter: none
Return Parameter: Confirmation code (1 byte) + data content
Instuction code: 19H
Command (or instruction) package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 1byte 2 bytes
Header Module
address
Package
identifier
Package
length
Instruction
code
Page
number
Checksum
0xEF01 xxxx 01H 04H 19H 0~15 xxH
Acknowledge package format:
2 bytes 4bytes 1 byte 2 bytes 1 byte 32bytes 2 bytes
Header Module
address
Package
identifier
Package
length
Confirmation
code
User content Checksum
0xEF01 xxxx 07H 3+32 xxH User content sum
Note: Confirmation code=00H: read success;
Confirmation code=01H: error when receiving package;
- 19 -
Instruction Table
Classified by functions
type num code description Type num Code description
1 13H To verify password 13 08H to upload template
2 12H To set password 14 09H To download template
3 15H To set device address 15 06H To store template;
4 0EH To set system
Parameter
16 07H to read/load template
5 17H Port control 17 0CH to delete tempates
6 0FH To read system
Parameter
18 0DH to empty the library
System-related
7 1DH To read finger
template numbers
19 03H Carry out precise
matching of two
templates;
8 01H Collect finger image 20 04H Search the finger library
9 0AH To upload image
Finerprint processing
10 0BH To download image 21 14H to get random code
11 02H To generate character
file from image
22 18H to write note pad
Finerprint processing
12
05H To combine character
files and generate
template
others
23 19H To read note pad
Classified by instruction code
code identifier Description Code Identifier Description
01H GenImg Collect finger image 0DH Empty to empty the library
02H Img2Tz To generate character
file from image
0EH SetSysPara To set system Parameter
03H Match Carry out precise
matching of two
templates;
0FH ReadSysPara To read system
Parameter
04H Serach Search the finger
library
12H SetPwd To set password
05H RegModel To combine character
files and generate
template
13H VfyPwd To verify password
06H Store To store template; 14H GetRandomCode to get random code
07H LoadChar to read/load template 15H SetAdder To set device address
08H UpChar to upload template 17H Control Port control
09H DownChr to download template 18H WriteNotepad to write note pad
0AH UpImage To upload image 19H ReadNotepad To read note pad
- 20 -
0BH DownImage To download image 1BH HiSpeedSearch Search the library fastly
0CH DeletChar to delete tempates 1DH TempleteNum To read finger template
numbers
- 21 -
- 22 -
Loading...
