1. Product Overview
1.1. FW-3170
FW-3170 server is 1ch Network Video Server, which transmits digital images captured by Analog CCD
camera over the Internet. So users can view real-time live images over the Internet at anytime and anywhere
using the standard web browser such as MS Internet Explorer or Netscape Communicator. There is no need
other specific software to view real-time live images over the Internet. FW-3170 server is state-of-the art
device and leads new generation of monitoring and security solution.

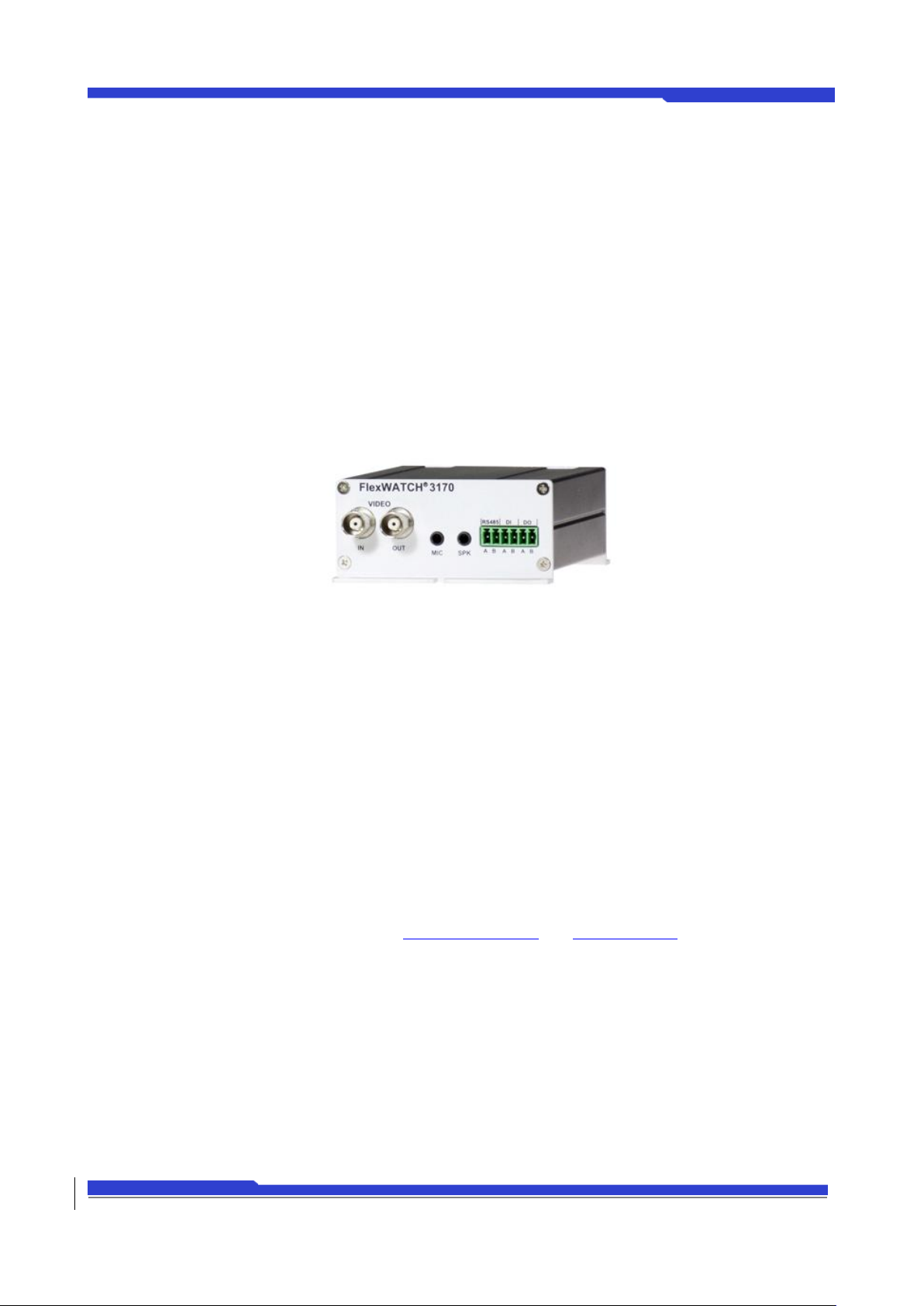

Picture 1 : FW-3170
1.2. Key Functions of FW-3170
1. Standalone device built-in web server
2. Max 30 fps transmission speed on TCP/IP network
1. 10M/100M Auto Sensing Ethernet
2. Effective Bandwidth & Bit-rate Control by H.264
3. Built-in 2 way Audio transmission (1ch A-in, 1 A-out)
4. Supports Dynamic IP users by www.ipcctvdns.com and www.aoip.co.kr server
5. Supports Sensor Input, Digital Output
6. Supports Transparent mode
7. Encryption function by user authentication
8. Image transmission function via FTP, Email
9. Supports Various PTZ (Pan/Tilt/Zoom) Devices
10. 1CH V-out for displaying on analog monitor
4041-00 4 Seyeon Tech Co., Ltd
FW-3170 User’s Manual Part 1
1.3. Technical Specification of FW-315
Model Name FW-3170
32bit Embedded CPU
Hardware
Video
compression
Resolution
Frame rate
(each channel)
Video Streaming
Image setting
Audio
LAN interface 10/100BaseT Ethernet auto sensing
Flash 8Mbytes /SDRAM: 128Mbytes
Linux version 2.6.14 operating system
Battery backed up real-time clock
Motion JPEG
H.264
NTSC: 704x480,352x240,176x112
PAL: 704x576,352x288,176x144
Motion JPEG: Up to
30/25 fps at D1 (Secondary Stream at QCIF)
H.264: Up to
30/25 fps at D1 (Secondary Stream at QCIF)
Motion JPEG and H.264 Dual Streaming (Simultaneously)
Controllable frame rate and bandwidth
Compression levels: 6 (Motion JPEG) / 6 (H.264)
Color: color, black & white
8 bit PCM(G.711-u-low), Sampling rates 8KHz, Mono Audio
1ch in & 1ch out
Alarm I/O Interf ace 1 Photo-coupled inputs and 1 Relay output
Video Input 1 Channel Composite Video Input
Video Output 1 loop through analog video outputs
Two serial ports for console, modem(PSTN & GSM), serial input/output
device, PTZ
Serial Interface
Security features
Advanced Service
Built-in Motion detections
PTZ & UART Control
Support
Others
Management
Developer support
PWR Supply
COM Port is RS-232,
AUX port can be configured as RS-485
Max Baudrate: 115200 bit/s
Multi user level protection for camera access,
PTZ, Alarm I/O
Up to 15.5M memory for Pre/Post alarm buffer
e-mail, FTP, alarm Buffer by event or schedule
IP notification, Alarm Notification to e-mail,
CGI Call by event or schedule
Accuracy: 12x12=144 blocks
Motion Sensitivity : -100 ~ 100 : 100 is hypersensitive
PTZ and UART device control through serial interface Up to 35 PTZ
protocols from Pelco “ P” & “ D” protocol, Vicon V1311RB,
Samsung, Honeywell and Etc., X10 device control
Dial in/out via PSTN or GSM modem
Transmit Serial input data transfer with Video
IP notification by e-mail
Configurable by serial, web or telnet
Remote system update via telnet, FTP OR web browser.
Provides HTTP CGI API
ActiveX control development kit
SMPS input: 100~240VAC, 300mA
Output: DC 12 Volt, 800mA
4041-00 5 Seyeon Tech Co., Ltd
FW-3170 User’s Manual Part 1
PWR Consumption DC 12Volt 500 mA
Operating Environment
Accessories
Miscellaneous
Users 16 simultaneous users
Installation, management
and maintenance
Video access from Web
browser
Minimum Web browsing
requirements
System integration support
Supported protocols
Temperature: 32° ~ 122°F (0° ~ 50°C)
Humidity: 20 ~ 80% RH(non-condensing)
Console cable for system set up
Test LAN cable
CD for User Guide, Installation wizard
Quick Installation guide
Freely downloadable NDVR Software
AVI conversion tool support by FW-voyager.
Work with FW-Manager( NDVR S/W)
Dynamic IP support through AOIP
Installation CD and web-based configuration
Firmware upgrades over HTTP or FTP , firmware available at
www.flexwatch.com
Video access from Web browser
Pentium III CPU 500 MHz or higher
Windows XP, 2000, NT4.0*,
Internet Explorer 6.x or later
Powerful API for software integration available at
http://www.flexwatch.com, including Simple Viewer API, FlexWATCH
Control SDK, event trigger data in video stream, embedded scripting
and access to serial port peripherals over HTTP/TCP
User can be installed user program daemon for event notification or
sending image.
Embedded operating system: Linux 2.6
HTTP, TCP/IP, FTP, Telnet, RARP, PPP, PAP, CHAP, DHCP, SMTP
client(e- mail), NTP, Java, RTP/RTSP, UPnP
Applications FlexWATCH Manager 16/32/128/256 (not included)
FCC : Class A
Approvals
Dimensions (HxWxD) and
weight
CE : Class A
RoHS
Size :110 mm(L) x 84 mm(W)X 35 mm(H)
4.3 ”(L) x 3.3 ”(W)X 1.37”(H)
Weight : 310 g (0.47 lbs) without power supply.
Table 1 : FW-3170 Specification
4041-00 6 Seyeon Tech Co., Ltd
FW-3170 User’s Manual Part 1
1.4. FW-3170 Packing List
FW-3170’s packing box includes the following items.
FW-3170 1ea
Power Supply Unit
(Power Cable & SMPS DC12V 0.8A Adapter)
Direct Cable 1ea
CD (User’s Manual, Installation wizard, Picture, etc) 1ea
Table 2 : FW-3170 Packing List
1ea
F Please check all the listed items are included in your package. For any missing items, please contact
your local distributor.
4041-00 7 Seyeon Tech Co., Ltd
FW-3170 User’s Manual Part 1
2. Hardware Description
2.1. FW-3170 Front Panel View
Picture 2 : FW-3170 Front Panel
A B C D E F G
Name Description
A Power
B Grounding Connector Grounding Connector
Factory Default
C
Button
D LAN LAN Port for 10/100M Base T Auto sensing.
E COM
POWER LED
F
(RED/GREEN)
LAN(Tx/Rx) LED
G
(RED/GREEN)
Power input ports for DC 12V 0.8A [SMPS].
Ensure to use the original power supply unit from the package.
This button can reset the factory default settings at the system.
Especially when a user lost his/her admin-password, or when it got any
uncertain faulty operation.
- After reboot the system, wait until hearing two times of beep sound.
- Keep pressing FD button for 5~10 seconds until hearing three times
short beep sound. ACT LED blinks during the process. The system will
reboot automatically when it’s completed.
RS-232 ports for Serial input device, Modem or
Console (HyperTerminal connection).
RED light – It blinks RED when power on.
GREEN light – It blinks GREEN when IP setup is done.
RED light – It blinks RED when data is being transmitted on the
connected LAN port
GREEN light – It blinks GREEN only when LAN port is connected
without data transmission.
Table 3 : FW-3170 Front Panel Description
4041-00 8 Seyeon Tech Co., Ltd
FW-3170 User’s Manual Part 1
2.2. FW-3170 Rear Panel View
Picture 3 : FW-3150 Rear Panel View
A B C D E F
Name Description
A Video In BNC cable port for 1ch Video input.
B Video Out 1ch Video Output port displaying on Analog Monitor.
C MIC, SPK 1ch Audio Output and Input
D RS485 RS-485 Ports for PTZ
E DI (SENSOR) Signal input ports for sensor and contact.
F DO (ALARM) Signal output ports for alarm and light.
Table 4 : FW-3170 Rear Panel Description
3. FW-3170 H/W installation and basic setup
3.1. Before installation,
1. Read carefully User’s Manual
2. Check-out if the power source is stable or not at the environment.
4041-00 9 Seyeon Tech Co., Ltd
FW-3170 User’s Manual Part 1
3.2. Factory Default Condition
The following table shows the factory default condition. Please refer to this when you need to change
the values on admin menu.
Factory Default Condition
Admin ID root
Admin password root
IP address 10.20.30.40
Network mask 255.255.255.0
Gateway 10.20.30.1
Table 5 : Factory Default Condition
F Factory default Admin ID and Password are all lower case letters. You can change the password
with Capital letters.
3.3. FW-3170 H/W Installation
Following steps show the physical installation process for FW-3170.
1. Install CCTV cameras at each required position.
2. Connect BNC cable between CCTV camera’s V-out and FW-3170’s V-in.
3. Connect a LAN cable at FW-3170 in your local network.
4. Connect the power cable at FW-3170.
After that, you need to follow the steps below.
5. First, Network Configuration by FW-installer.
6. Second, Camera Configuration by FW-installer or admin-menu.
7. Third, Service Configuration by FW-installer or admin-menu.
F For IP setup, refer to “Chapter 2.Network Configuration” on User’s Manual Part2.
4041-00 10 Seyeon Tech Co., Ltd
