Seyeon FlexWatcher FW2170 User Manual

FW2170 User’s Manual

M4067-00 1 Seyeon Tech Co., Ltd

FW2170 User’s Manual

(Product Guide)

Version 4.16(Rev.E)

Sep. 27, 2012

Class A Digital Device (industrial & commercial environment)

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to CE
and FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.

FW2170 User’s Manual

M4067-00 2 Seyeon Tech Co., Ltd

FW2170 User’s Manual

Document Part Number: M4067-00
Document Version: 4.16(Rev.E)
Revised: September 27, 2012

About This Document

This document is prepared for users of FW2170 supplied by Seyeon Tech Co., Ltd. It is assumed that the
users are familiar with Microsoft Windows operating systems and Web browsers such as Internet Explorer.
It is also assumed that the users are well aware of how to install and use the network equipment such as
LAN, Hub, router, and having basic knowledge of network terminologies. If you have any questions
regarding network installations, please contact your network equipment vendor or network administrator
or Internet service providers.

For updated contents, detailed features and other applications from Seyeon Tech, please refer to the user’s
manual in CD-ROM provided with the product you purchased, or visit Seyeon Tech’s Internet homepage at

http://www.flexwatch.com/.

Copyright Notice

Copyright © 2012 Seyeon Tech Co., Ltd. All rights reserved.
No part of this document may be reproduced in any form or by any means without the prior written

permission of Seyeon Tech Co., Ltd.

Disclaimer

Seyeon Tech Co., Ltd. (Seyeon Tech) Makes no representations or warranties with respect to the contents
hereof. In addition, information contained herein is subject to change without notice. Every precaution has
been taken in the preparation of this manual, nevertheless, Seyeon Tech assumes no responsibility for
errors or omissions or any damages resulting from the use of the information contained in this document.

Trademarks

FlexWATCH® and FlexWATCH® Logo are trademarks of Seyeon Tech Co., Ltd.
Windows and Internet Explorer are a trademark of Microsoft Corporation.
All other trademarks belong to their respective owners.

Technical Support

For technical support call, email, or visit our web site.
Telephone: [phone]~1
Email: [e-mail]
Web site: http://www.flexwatch.com or http://www.seyeon.co.kr

FW2170 User’s Manual

M4067-00 3 Seyeon Tech Co., Ltd

Contents

1. PRODUCT OVERVIEW ......................................................................................................................... 5

1.1. FW2170 ........................................................................................................................................................................ 5

1.2. KEY FEATURES ................................................................................................................................................................ 6

1.3. PRELIMINARY SPECIFICATION ........................................................................................................................................ 7

1.4. FW2170 PACKING LIST ................................................................................................................................................ 8

1.5. NETWORK DIAGRAM ...................................................................................................................................................... 9

1.5.1. Private Network ..................................................................................................................................................... 9

1.5.2. Wide Area Network ............................................................................................................................................. 9

1.5.3. FW2170 with the existing Analog System ..............................................................................................10

1.6. APPLICATION .................................................................................................................................................................11

2. HARDWARE DESCRIPTION .............................................................................................................. 12

2.1. FRONT VIEW ..................................................................................................................................................................12

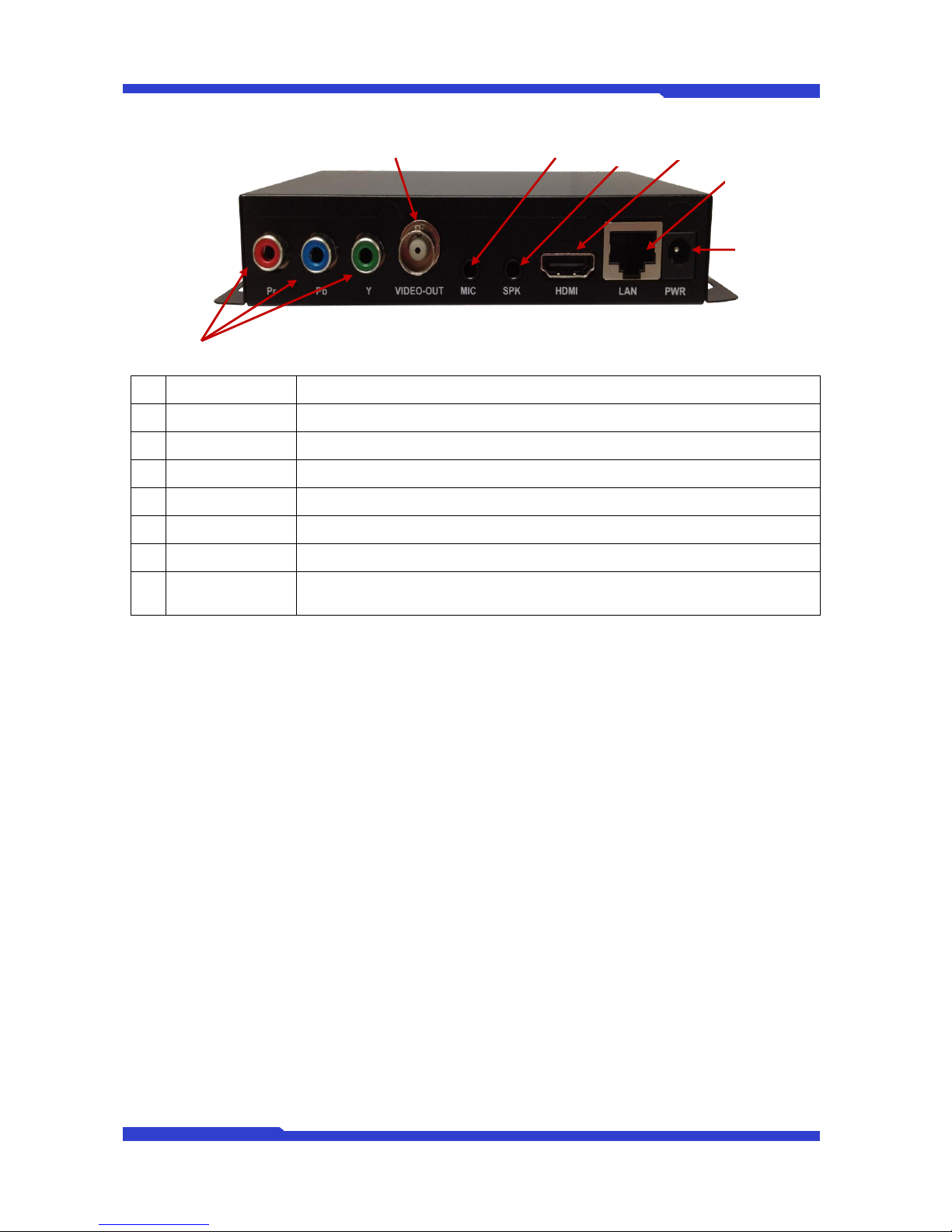

2.2. REAR VIEW .....................................................................................................................................................................13

2.2.1. CTL Port Description .........................................................................................................................................14

2.2.2. Speaker V-out Jack Description...................................................................................................................14

2.2.3. MIC Jack Description ........................................................................................................................................14

3. FW2170 INSTALLATION AND BASIC SETUP ................................................................................ 15

3.1. BEFORE INSTALLATION .................................................................................................................................................15

3.2. FACTORY DEFAULT SETTINGS .....................................................................................................................................15

3.3. INSTALLING FW2170 ..................................................................................................................................................15

3.4. NETWORK CONFIGURATION

.......................................................................................................................................15

4. ADMIN MENU .................................................................................................................................... 17

4.1. ENTERING ADMIN MENU ............................................................................................................................................17

4.2. ADMIN MENU STRUCTURE .........................................................................................................................................18

FW2170 User’s Manual

M4067-00 4 Seyeon Tech Co., Ltd

5. SYSTEM CONFIGURATION MENU .................................................................................................. 18

5.1. SERVER NAME SETUP ...................................................................................................................................................19

5.2. ADMIN PASSWORD ......................................................................................................................................................19

6. NETWORK CONFIGURATION .......................................................................................................... 20

6.1. NETWORK CONFIGURATION .......................................................................................................................................20

6.1.1. Static IP Configuration .....................................................................................................................................20

6.1.2. DHCP Client Configuration ............................................................................................................................21

6.2. NETWORK PORTS ..........................................................................................................................................................21

6.3. VIEW NETWORK STATUS .............................................................................................................................................22

6.4. NETWORK STATUS NOTIFY .........................................................................................................................................22

7. DISPLAY CONFIGURATION ............................................................................................................ 244

7.1. DISPLAY OUTPUT DEVICE ............................................................................................................................................24

7.1.1. Channel Configuration .....................................................................................................................................25

8. DEVICE CONFIGURATION ................................................................................................................ 26

8.1. DEVICE NUMBER CONFIGURATION............................................................................................................................26

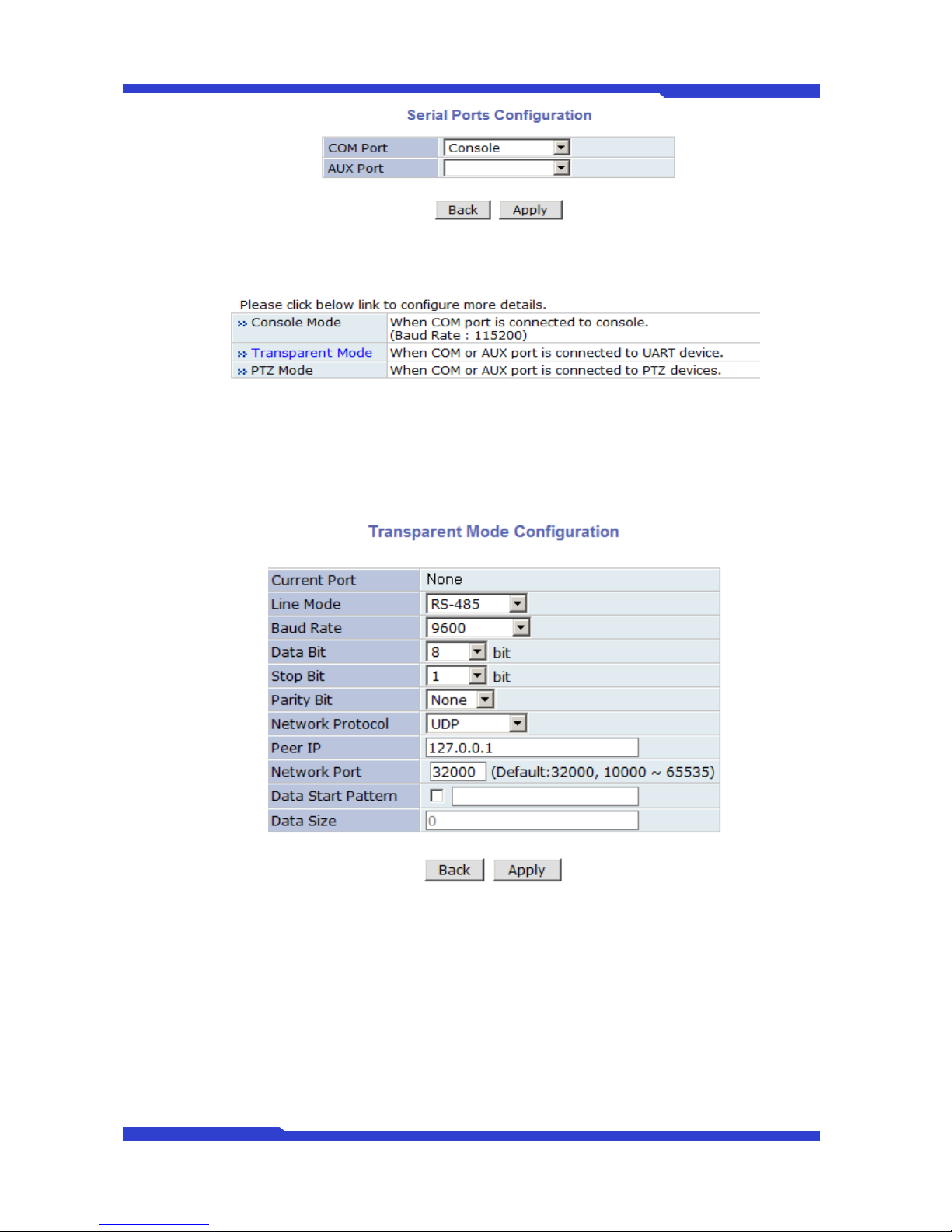

8.2. SERIAL PORTS CONFIGURATION .................................................................................................................................26

8.2.1. Transparent Mode ..............................................................................................................................................27

9. UTILITIES ............................................................................................................................................. 28

9.1. REBOOT ..........................................................................................................................................................................28

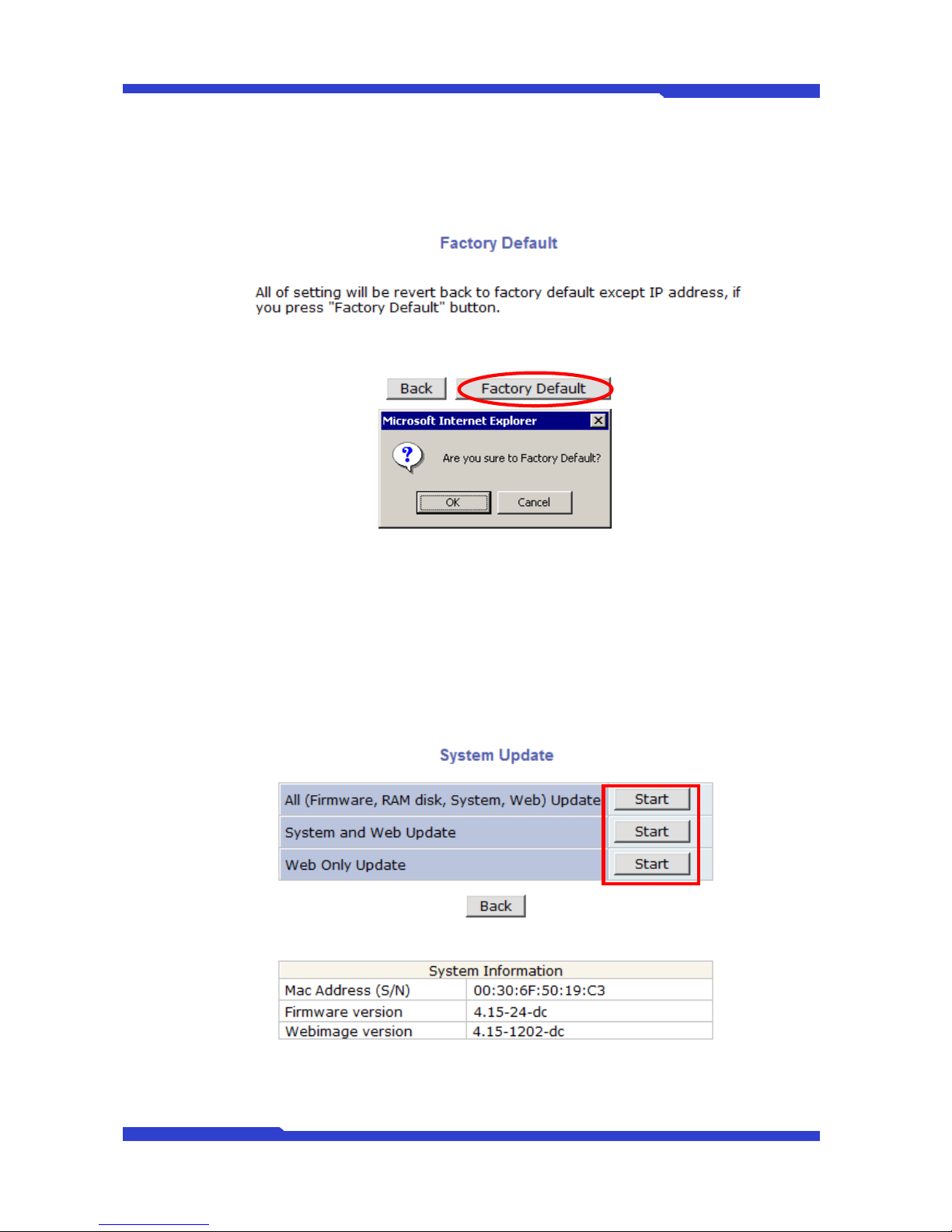

9.2. FACTORY DEFAULT .......................................................................................................................................................28

9.3. SYSTEM UPDATE ...........................................................................................................................................................29

9.3.1. All (Kernel, RAM disk, System, Web) Update ........................................................................................30

9.3.2. System and Web Update ................................................................................................................................32

9.3.3. Web Only Update ..............................................................................................................................................32

FW2170 User’s Manual

M4067-00 5 Seyeon Tech Co., Ltd

1. Product Overview

1.1. FW2170

FlexWATCH™ 2170 is a stand-alone 4ch network media decoder which converts four streams of

Motion JPEG or H. 264 from 4 different FlexWATCH™ Video/Camera servers in real-time into the high
quality analog signals. It support 4 screens output and the FlexWATCH™ Video/Camera input sources from
the encoder device

The server of FlexWATCH™ 2170 Network media decoder is used in combination with FlexWATCH™

video & camera servers. Users are able to use existing video matrices and other analog technology to
receive video and audio from distant analog cameras or systems

FlexWATCH™ 2170 is ideal package solution with FlexWATCH™ cameras or servers for remote

monitoring using TV sets and Analog monitors. Also, instead of these multi channeled servers, you can use
single channel servers together. Thus, if you install cameras in remote site, you can watch the remote site
using video server and FlexWATCH® 2170 even though it might be located in a different city.

Picture 1 : FW2170

FW2170 User’s Manual

M4067-00 6 Seyeon Tech Co., Ltd

1.2. Key Features

 Decodes network video without the need of a PC
 Provides four channels of video up to 30fps decoding 1.3M per each channel.
 Single Serial interface for Voice kit. Two way voice communication will be supported by software

upgrade later.

 Single RS-485, RS-232 interface for future use. It can be used for Pan Tilt Zoom device control

using controller.

 Supports dynamic IP at remote site using IPCCTVDNS.

 Built-in Web server for administration.
 Advanced alarm notification and service

When sensor or motion is triggered at FlexWATCH™ 2170 Network media decoder invokes the

4ch Rotation view immediately and displays the alarm status.

 Factory Default Button for system initialization.

FW2170 User’s Manual

M4067-00 7 Seyeon Tech Co., Ltd

1.3. Preliminary Specification

Model

FW2170-DB

System

CPU

32bit Embedded Processor

OS

Embedded Linux

Flash

128M Byte

SDRAM

128M Byte

Video

Output

HDMI : HDMI Connector
Component : RCA Connector

Composite : BNC Connector

Input

M-JPEG, H.264 IP stream ( JES format stream only )

Decoding

Performance

Max

resolution

1.3M, @1024P
Max Rate

30 fps@1024p

Interoperable Devices

FlexWATCH®-IP Camera/NVS/NVR
( FW-1xxx / 3xxx/ 5xxx series )

Audio

Codec

1ch in & 1ch out, Mono Audio
8 bit PCM (G.711-u-low), Sampling rates 8KHz, Bandwidth: 8KByte/sec

Min/Max Audio Freq.: 300Hz ~ 3.4KHz

Network Protocol

HTTP, RTP/RTSP, TCP/IP, FTP, Telnet, RARP, PPPoE, PAP, CHAP,
DHCP, SMTP client(e- mail), NTP

Network I/F

LAN

10/100BaseT Ethernet auto sensing

Serial I/F

RS-232
RS-485

COM : console, serial input/output
RS-485 : joystick or Transparent mode

Alarm I/F

DI/DO

1 Photo-coupled Input and 1 Relay Output

Management

Web based configuration / Control
Web based upgrade

Function ( reserved )

Multi-Channel Circulation
Various Display Mode Selection by Push Button

Alarm / Status display

Operating Condition

Temperature -5℃ ~ +50℃, humidity 20~80% ( non-condensing )

Power

DC 12V/1A [SMPS], max power consumption ( DC12V, 600mA )

Certification

FCC / CE / KCC

Dimension(WXDXH) /

Weight

148(W)X118(D)X25(H) mm / about 0.25 Kg

* All specifications are subject to change without prior notice.

Table 1 : Specification for FW2170

FW2170 User’s Manual

M4067-00 8 Seyeon Tech Co., Ltd

1.4. FW2170 Packing List

FW-2170

1ea

Power Supply Unit

(Power Cable & SMPS DC12V 1A Adapter)

1ea

CD (User’s Manual, installation wizard and

Pictures)

1 ea

Table 2 : FW2170 Packing List

Note: Please check all the listed items are included in your package. For any missing items,

please contact your local distributor.

FW2170 User’s Manual

M4067-00 9 Seyeon Tech Co., Ltd

1.5. Network Diagram

FW2170 works over IP network such as leased line, cable model, XDSL modem, PSTN modem. FW­2170 can also works over public network or private network. The network environment will vary with users’
goals and needs; however, basic applications with FW2170 can be as below.

1.5.1. Private Network

Private network without Internet connection.

1.5.2. Wide Area Network

FW2170 is able to decode Video stream Over IP network by IP Address and domain name, and AOIP
Service. Once FW2170 is assigned Dynamic IP Address, it is possible to decode Video stream from Wide
Area Network.

FW2170 User’s Manual

M4067-00 10 Seyeon Tech Co., Ltd

1.5.3. FW-2170 with the existing Analog System

FW2170 decode and transmits Video stream to analog system so that it an can be applied with Video
Matrix.

FW2170 User’s Manual

M4067-00 11 Seyeon Tech Co., Ltd

1.6. Application

FW2170 is born to provide reliable and flexible TCP IP network in the remote video surveillance
industry. Decoded Video stream by FW2170 can be monitored on standard TV or Audio/Video Devices.
Users easily monitor, search, and save Video stream by FlexWATCHTM server and FW2170 efficiently.

By combining with FlexWATCHTM server series, following can be suggested application area.

 Chain store, and Franchised restaurant monitoring
 Remote branch office monitoring
 Plant, Oil refinery, Power station monitoring
 Globally presented branch office monitoring
 Parking Lots, Gas Station monitoring

FW2170 User’s Manual

M4067-00 12 Seyeon Tech Co., Ltd

2. Hardware Description

2.1. Front View

Picture 2 : FW2170 Front View

Name

Description

A

LAN LINK LED

Green light blinks when LAN is physically connected

B

Power LED

Red light blinks when power is provided

C

Factory Default

Button

This button can reset the factory default settings at the system.
Keep pressing FD button for about 5 seconds, after reboot the system. While pressing
this button, ACT LED is flickering.

D

CONTROL

CTL Port (RS-485, RS-232, DI, DO)

E

Display Mode

Switch

This button changes Display Mode. As you press the button, the Display Mode will be
changed one by one from Channel 1 to Channel 4. If you press the button for 2 sec., you
can apply Rotation Mode directly.

Table 3 : FW2170 Front View

A

B

C

FW2170 User’s Manual

M4067-00 13 Seyeon Tech Co., Ltd

2.2. Rear View

Picture 3 : FW2170 Rear View

Name

Description

A

Component

Component Port

B

V-OUT

Composite Port (Video Output Port)

C

MIC

Audio Input Port

D

SPK

Audio Output Port

E

HDMI

HDMI Port

F

LAN

LAN Connector (10/100BaseT Ethernet auto sensing)

G

POWER ON/OFF

Power (DC 12V/1A [SMPS])

Table 4 : FW2170 Rear View

A

G

E

D

C

FW2170 User’s Manual

M4067-00 14 Seyeon Tech Co., Ltd

2.2.1. CTL Port Description

It’s RS-232 port for Serial input device, Modem or Console (Hyperterminal.connection). For RS-232
connection, RXD, TXD and GND are used. For connection to PC, RXD and TXD are used. RXD and TXD
should be cross to communicate properly

Picture 4 : CTL Port Description

2.2.2. Speaker V-out Jack Description

Jack information for Mono Speaker or Video Out Jack.

1 : GND
2 : SPK
3 : V-OUT

Picture 5 : V-out Jack

2.2.3. MIC Jack Description

Jack information for MIC

1 : GND
2 : NC

Picture 6 : MIC Jack

FW2170 User’s Manual

M4067-00 15 Seyeon Tech Co., Ltd

3. FW2170 Installation and Basic Setup

3.1. Before Installation

 Read carefully User's Manual.

 Check User’s Network (IP Address, Network Mask and default gateway)

 Secure IP address for FW2170.

3.2. Factory Default Settings

The following table shows the factory default condition. Please refer to this when you need to change

the values on admin menu.

Factory Default

Admin ID

root

Admin password

root

IP address

10.20.30.40

Network mask

255.255.255.0

Gateway

10.20.30.1

Table 5 : Factory Default

Note: Factory default Admin ID and Password are all lower case letters. You can change the
password with Capital letters.

3.3. Installing FW2170

Following steps are the physical installation process for FW2170.

1. Fix the FW2170 in place

2. Connect the FW2170 to the Internet cable through the LAN port.

3. Connect the power supply of FW2170.

After that, you need to follow the steps below.

 Network Configuration: Refer to “IP Installer User’s Manual”

 Camera Configuration: Refer to “FlexWATCH™ Admin Menu User’s Manual”

 Service Configuration: Refer to “FlexWATCH™ Admin Menu User’s Manual”

3.4 Network Configuration

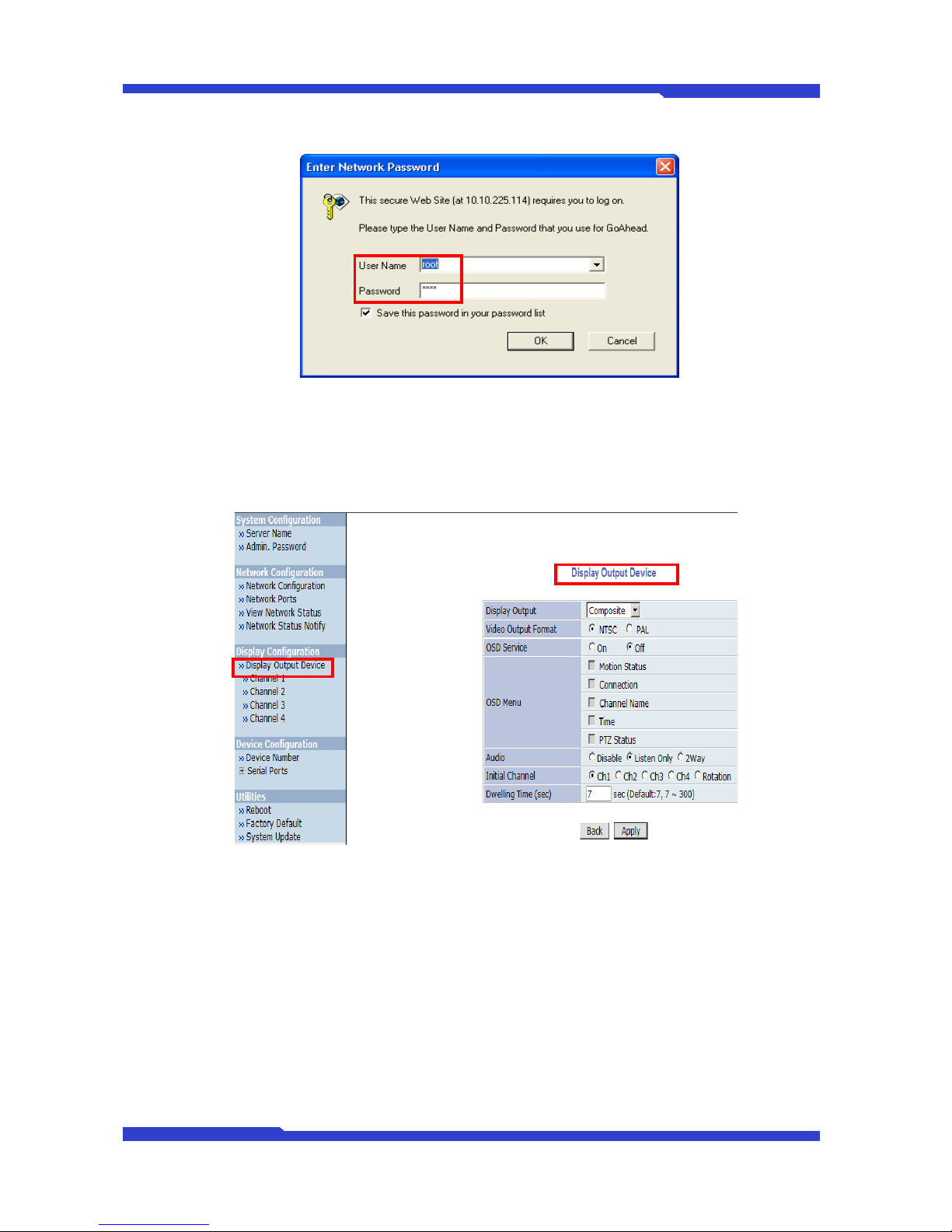

1) Run Internet Explorer and input IP address of FW2170. You will see log in window as below.

FW2170 User’s Manual

M4067-00 16 Seyeon Tech Co., Ltd

Input ID and Password of Admin. (Default ID : root / Default Password: root)

2) If you succeed in connecting to FW2170 Network Decoder System, “Display Output Device”
menu will be shown on the right side immediately and whole menus on the left side.
Because, you mainly need this menu “Display Output Device” while using FW2170.

FW2170 User’s Manual

M4067-00 17 Seyeon Tech Co., Ltd

4. Admin Menu

After connecting to a FlexWATCH™ server on the web browser, you’ll find the web page as shown
below. The rightmost item of the menu is Admin, where you can set up the most of features in the
FlexWATCH™ Server you’re connecting to.

4.1. Entering Admin Menu

Click “Admin” item of the menu, then you’ll see a login window. In the login window, enter “root” for
both ID and password as they are the factory defaults. Press Enter key or click “OK” button. Once logged in,
you can change the password to a new one.

Now the Admin Menu will be displayed as shown below. This will guide you to the top level menu
items, which are System, Network, Display, Device and Utilities. Clicking any of these top level menu items
will display submenu items and brief descriptions.

FW2170 User’s Manual

M4067-00 18 Seyeon Tech Co., Ltd

4.2. Admin Menu Structure

The following table shows the hierarchy of the Admin menu structure that we’re going to deal with in
this manual.

Category

Main Menu

Level 1 Sub-Menu

Level 2 Sub-Menu

System
configuration

Server Name

n/a

n/a
Admin. Password

Network
Configuration

Network Configuration

n/a

n/a

Network Ports

View Network Status

Network Status Notify

Display
Configuration

Display Output Device

Channel 1

n/a

Channel 2

Channel 3

Channel 4

Device Configuration
Device Number

n/a

n/a

Serial Ports

Transparent Mode

n/a

Utilities

Reboot

n/a

n/a

Factory Default

n/a

n/a

System Update

n/a

n/a

5. System Configuration Menu

When you click on “System Configuration” item on Admin Menu, the following sub menu will be
displayed.

FW2170 User’s Manual

M4067-00 19 Seyeon Tech Co., Ltd

5.1. Server Name Setup

Click Step 1 on Quick Configuration, then the following will be displayed and you will find out the
system information such as model name of the FlexWATCH™ Server, server name, MAC address (serial
number), firmware version, and Web image version.

As an administrator, you can change the name of the server name, but other values are not allowed to
change. To change the server name, enter a new server name in the Server Name filed. You may use up to
21 alphanumeric or up to 10 Unicode characters. Tab or any other special characters are not allowed. Click
“Apply” button to save the setting and it will take effect immediately.

5.2. Admin Password

To change the password for the administrator, click Admin Password on System Configuration menu.

Default ID for admin account is fixed as “root” and not allowed to change. In Old Password field,
enter the current password. In both New Password and Confirm Password fields, enter the same new
password. The password must be between 4 and 23 alphanumeric letters. Click “Apply” button to put it into
effect.

Because you have replaced the password with a new one, the existing network connection made with
old password to FlexWATCH™ Server is lost now. You will have to reconnect to the FlexWATCH™ server
using new password.

FW2170 User’s Manual

M4067-00 20 Seyeon Tech Co., Ltd

6. Network Configuration

Configuration the network is dependent on how an IP address is assigned in Ethernet-based
environment, which is static IP, dynamic IP (DHCP). For wireless LAN, additional configuration is necessary
to have a connection with wireless AP.

In the case of wireless models, users have to choose between wired or wireless connection. In other

words, both connections can’t be used at the same time. The way how to choose one of them is whether

wired LAN cable is plugged into the product. When LAN cable is plugged in for longer than 5 seconds, the
wired LAN is activated for data transmission. If LAN cable is unplugged more than 5secconds, wireless LAN
is activated instead. If DHCP Client is selected by user, wired LAN will be activated regardless of condition of
LAN cable. For network configuration, select Network configuration from Admin page.

To make a connection to the Internet, it is required to figure out the type of the Internet service you’re

using. Depending on the service type, the network configuration can be in any of Static IP, DHCP Client.
You need to set up the FlexWATCH™ Server according to your network type.

6.1. Network Configuration

6.1.1. Static IP Configuration

Selecting Network Configuration under Network configuration will show variables. Below picture is for
products without wireless LAN.

For static IP, select static IP and input values for IP address, NetMask, Gateway, DNS1, DNS2 and

FW2170 User’s Manual

M4067-00 21 Seyeon Tech Co., Ltd

click apply for saving settings. After “Apply”, program will ask closing web browser for updates, which will
take 20~30 seconds. If “Back” button is pushed while configuration, all values will be discarded. If “Refresh”
button is pushed, the program will load previous values.

6.1.2. DHCP Client Configuration

For DHCP, DHCP server must exist in the network environment. Select DHCP Client from Network
Configuration, click “Apply”.

6.2. Network Ports

In this configuration, you set up the HTTP port for FlexWATCH™ Server to communicate with the
Client PC. HTTP Port is the network port that is used when a Client PC connects to the FlexWATCH™
Server’s Web page. It can be assigned between 80 and 65535 and the default value is 80.

Note: If the HTTP port number is changed to other value than default (80), make sure

the new HTTP port number goes together with the FlexWATCH™ Server's
Internet address. For example, when FlexWATCH

™

’'s IP address is

192.168.1.00 and set the HTTP port to 8080, you will have to enter
http://192.168.1.100:8080 to connect to the server.

FW2170 User’s Manual

M4067-00 22 Seyeon Tech Co., Ltd

6.3. View Network Status

This menu shows network status of FW products. Wireless LAN status will be added for wireless
models.

6.4. Network Status Notify

This feature helps to send updated network status information to registered email address if any
changes happen. This function will work under DHCP or PPPoE.

If Network Status Notify is set to Enable, FlexWATCH™ Server’s network status will be emailed to a
specific person in case of the following events:

 When it is set to Dynamic IP on Network Configuration menu, and the FlexWATCH™ server has

been given a new dynamic IP address and connected to the network.

Or,

 When it is set to PPP Client on WAN-Modem menu, and the FlexWATCH™ server has been

connected to the network with ISP or PPP server.

To configure, click “Network Status Notify” on Network Configuration menu. The following window
will be shown.

FW2170 User’s Manual

M4067-00 23 Seyeon Tech Co., Ltd

First, select Enable to use the feature. Then enter the address of the SMTP server which is needed for
email service. If your SMTP server requires a user ID and a password for authentication, you will have to get
them from ISP or network admin. Enter the ID and password.

In Sender field, enter your email address or other meaningful words that will show the message was
sent from the FlexWATCH™ server as a notification. Now enter the email addresses of the recipients in the
Recipient fields, up to 3 persons. In the User-Defined Message box, you may put a message to explain
why the message was sent. After finishing the setup, click “Apply” to save settings.

6.5.

Mail Notification

Enable: Send email
Disable: Do not send email

SMTP Server

SMTP Server address for email service

Authentication Login

Enable: user ID and password are required for SMTP
server
Disable: user ID and password are not required

User ID

User ID for SMTP server

Password

Password for SMTP server

Sender

Email address of Sender

1st / 2nd / 3rd Recipient

Email Addresses of the Recipients (up to 3 persons)

User Defined Message

Message to be included in the Notification email

FW2170 User’s Manual

M4067-00 24 Seyeon Tech Co., Ltd

7. Display Configuration

You can configurate Display mode of FW2170 connected to FlewWATCH™ cameras in this part of
Display Configuration, for properly controlling analog monitor according to each of channel. Before viewing

the monitor, you have to configure Display Output Device first and then register the information about each
channel of FlewWATCH™ cameras. But FlewWATCH™ server is required in advance for video stream
running.

7.1. Display Output Device

In this part, you can configure “Display Output”, “Video Output”, “OSD Service”, “Audio”, “Initial
Channel” and “Channel Dwelling Time” by choosing options. In other words, you can choose one option

for each of items as below

FW2170 User’s Manual

M4067-00 25 Seyeon Tech Co., Ltd

Option Details for Display Output Device Configuration are as below.

 Display Output: Composite, Component, HDMI
 Video Output Format: NTSC, PAL
 OSD Service: Turn on, Turn off
 OSD Menu: Motion Status, Connection, Channel Name, Time, PTZ Status
 Audio: Disable, Listen Only, 2Way
 Initial Channel: Ch1, Ch2, Ch3, Ch4, Rotation

Single Channel Rotation Channel

 Dwelling Time (sec): The Default value is7 ( 7~300)

7.1.1. Channel Configuration

You can configure each of channels as below. Also you can add more Channels up to 4 Channels for
viewing and controlling Cameras coincidentally connected to FW2170.

Option Details for Channel Configuration are as below.

 Service: The choice of using Channel Service or not
 Name: Designation of the name of Channel connected to FlexWATCH™Camera.
 IP Address: IP address of FlexWATCH™ camera connected to server.
 Service Port: The default value is 80
 VS Module ID: The default value is 0
 Camera Number: The number of the Camera connected to FW2170
 Login ID: ID for connecting to Admin. of FW2170
 Login Password: Password to login
 Confirm Password: Affirmation of the Password you entered
 Display Mode: The type of display

FW2170 User’s Manual

M4067-00 26 Seyeon Tech Co., Ltd

8. Device Configuration

You set up the connection between FlexWATCH™ Server and the camera in this part of configuration.
That includes Video data, external devices, Input / Output, Alarm control, and etc.

8.1. Device Number Configuration

 Click “Device Number Configuration” of Device Configuration.

 Input Device number of FW2170

 Click “Apply” button to save the change. If you do not want to save, click “Back” button.

8.2. Serial Ports Configuration

There are two serial ports configurable in the system, COM and AUX. COM port is primarily used for
console, and AUX is for PTZ control, but they both can be used for other purposes when necessary.

FW2170 User’s Manual

M4067-00 27 Seyeon Tech Co., Ltd

8.2.1. Transparent Mode

When there are two FlexWATCH™ Servers present on the network, they can act like a transparent
interface between two different UART devices so that the communication between the UART devices can be

made transparently without a flaw.

 Line Mode: The type of communication protocol
 Baud Rate: Data transfer rate
 Data Bit: The number of bits in data
 Stop Bit: The number of stop bit
 Parity Bit: Parity bit characteristic
 Network Protocol: The type of protocol used to send data
 Peer IP: IP address of other FlexWATCH™ server
 Network Port: Network port number of the server
 Data Start Pattern: Data start pattern (Not used if unchecked)
 Data Size: Data size in single transfer (Not used if unchecked)

FW2170 User’s Manual

M4067-00 28 Seyeon Tech Co., Ltd

9. Utilities

In Utilities part of the Admin menu, you can view the system log file, save the changed value during
the configuration, reboot, restore the factory default condition, and update the system.

9.1. Reboot

It is recommended to reboot the system after making changes and saving the configuration. To reboot,
click “Reboot" on Utilities menu. A confirmation screen will be displayed as shown Click “Save
Configuration” button, otherwise click “Back” button to cancel the rebooting.

The second confirmation screen will be shown. This is only to confirm closing of web browser that
FlexWATCH™ Server is on. Click “OK” button to close the web browser and reboot right away. If you click

“Cancel”, the web browser is still open, but you will not be able to access the FlexWATCH™ Server until
the rebooting is finished.

9.2. Factory Default

Whenever it is required to restore the configuration of Camera setup to factory default condition, you
can do it here. Network configuration is not affected by this action.

FW2170 User’s Manual

M4067-00 29 Seyeon Tech Co., Ltd

Click “Factory Default” on Utilities menu. A confirmation screen will be displayed as shown Click
“Factory Default” button, otherwise click “Back” button to cancel it. The second confirmation screen will

appear. Click “OK” button to restore the factory default condition right away. If you click “Cancel”, web
browser will go back to the previous screen without any change made.

9.3. System Update

FlexWATCH™ Server’s system program and data are stored in Flash memory, and it consists of
Kernel Image, RAM Disk Image, System Image, and Web Image. In order to update the system of the server,

you should have proper image files ready in your PC.

Click “System Update” on Utilities menu, then the following window will be displayed. From the Start
buttons displayed, choose the one that meets your needs.

 All (Firmware, RAM disk, System, Web) Update: Update all four system images.
 System and Web Update: Only System and Web images are to be updated.

FW2170 User’s Manual

M4067-00 30 Seyeon Tech Co., Ltd

 Web Only Update: Only Web image is to be updated.

Up-to-date system files can be downloaded in Support page of Seyeon Tech’s homepages at
http://www.flexwatch.com. After the update is done, it is required to reboot the server.

9.3.1. All (Kernel, RAM disk, System, Web) Update

Click the “Start” button next to All (Firmware, RAM disk, System, Web) Update item on the menu,
and a confirmation window will appear. Click “OK” button to proceed the update, otherwise click “Cancel”.

In the next window, enter the location of the Firmware Image file to update with. You can use the

“Browse” button to navigate the directories in your PC to find the file. Once the image file is selected, click
“Next” button to proceed. You can cancel the update by clicking “Skip” button.

Note: If your web browser’s pop-up blocker is enabled, your PC many not display

the confirmation window above. In that case, the pop-up blocking feature of
the web browser should be disabled for system update to be completed.

FW2170 User’s Manual

M4067-00 31 Seyeon Tech Co., Ltd

Now you can check the file name and the size in the new window. If you want to go back to the
previous stage, click the “Previous” button. Click the “Next” button to update the firmware right away and
proceed to next stage. If you want to stop the update process, click the “Cancel” button.

The next window is for locating the RAM Disk Update file.

Go through the same steps as in Firmware Update, and do the same in update process for System
and Web Update files.

After all the update processes pare finished, the window for Factory Default is displayed. If there was
no problem in the entire update processes and you want to continue, click “Next” button. If you’re not sure
about the system update, you can restore the Factory Default condition by clicking “Factory Default” button.

FW2170 User’s Manual

M4067-00 32 Seyeon Tech Co., Ltd

Now the final confirmation window will appear. Click “Reboot” button and the system will reboot.

9.3.2. System and Web Update

Click the “Start” button next to System and Web Update item on the menu, and a confirmation
window will appear. Click “OK” button to proceed the update, otherwise click “Cancel”.

Go through the same steps as in All Update process (Kernel and RAM Disk updates are not made
here). After update is done, click “Reboot” to start the system over.

9.3.3. Web Only Update

Click the “Start” button next to Web Only Update item on the menu, and a confirmation window will
appear. Click “OK” button to proceed the update, otherwise click “Cancel”. The rest of the process is the
same as in All Update part. After update is done, click “Reboot” to start the system over.
