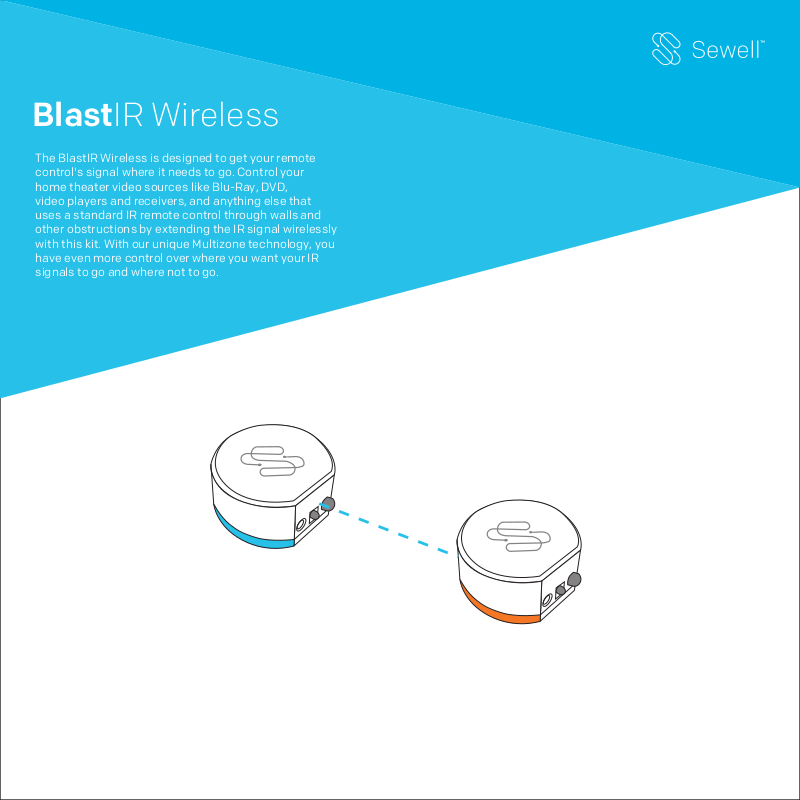

BlastIR Wireless
The BlastIR Wireless is designed to get your remote
control's signal where it needs to go. Control your
home theater video sources like Blu-Ray, DVD,
video players and receivers, and anything else that
uses a standard IR remote control through walls and
other obstructions by extending the IR signal wirelessly
with this kit. With our unique Multizone technology, you
have even more control over where you want your IR
signals to go and where not to go.
Box Contents
BlastIR Wireless IR Receiver
BlastIR Wireless IR Emitter
Dual IR Emitter Cable
IR Receiver Cable
(2) Airstick™ Microsuction Tape
(2) 3M Adhesive
(2) 5V .5A Power Supply
(2) USB to DC Cable
1
Insert power
cable here on
both units
Setup: Step One
Connect each unit to power using either the
included power supplies or the USB to DC cables.
It is easy to mistake the IR cable port on the front
for the power port. Please ensure that the power
adapter is plugged into the appropriate port at
the back.
2
Setup: Step Two
Place the blue unit next to your display.
3
Setup: Step Three

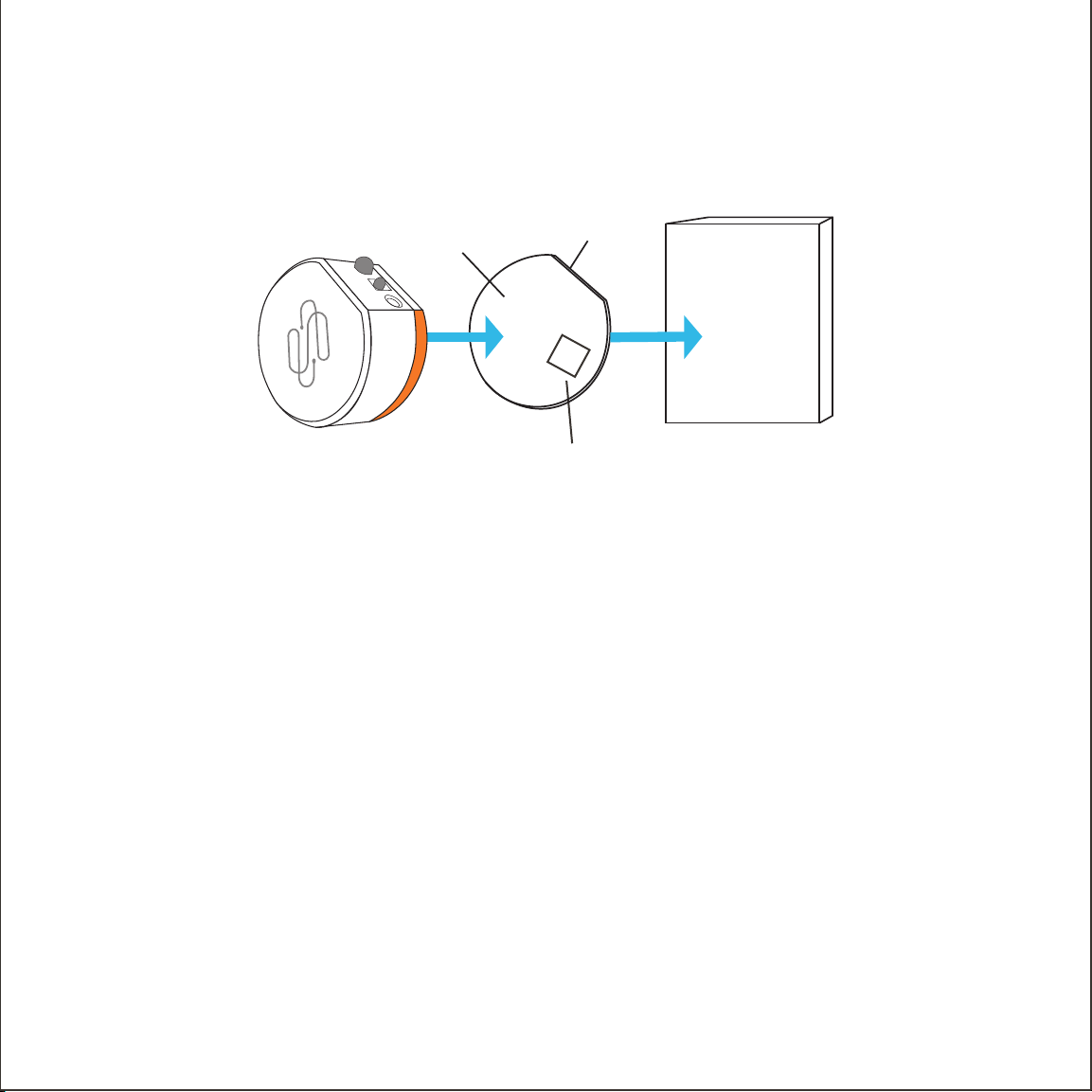

Place the orange unit in front of the device that you wish to
control. Ensure that the IR emitter has a clear line of sight to
the IR “eye” of your device.
4
Optional IR Cables
IR Receiver
Cable
IR Emitter
Cable
If you want to extend the reach or hide the receiver or emitter,
connect the appropriate color-coded cable to the device. The
blue IR receiver cable will add another receiver you can point your
remote at. The orange IR emitter cable can attach to the IR “eye”
of the device you wish to control.
5
Adhesive Placement
AirStick™
White Side
AirStick™
Clear Side
Surface
Hole for the channel
selector on the bottom.
*Please carefully line
up when placing.
To keep the BlastIR Wireless in one place, we have included Airstick™
and 3M™ adhesive. Airstick™ is used as pictured above and it is designed
to be reusable and leave no residue. The 3M™ adhesive is used the same
way and is used for a more permanent placement.
6
8
7
6
5
4
2
3
Channel 7
8
7
6
5
4
2
3
Multizone
Channel 5Channel 7
8
7
9
0
1
9
0
1
6
5
4
2
3
Channel 5
8
7
6
5
4
2
3
9
0
1
8
7
9
6
0
5
1
4
2
9
0
1
3
BlastIR Wireless Receivers will only communicate with the BlastIR
Wireless Emitters that are set to the same zone. The Blast IR
Wireless supports up to ten unique zones of communication.
Setting the zone to “0” will allow communication to previous
models of the BlastIR Wireless. After changing the zone, please
reset the device.
7
Possible Setups
8
Port Diagram
Status LED Status LED
Optional IR
emitter cable
port
Built-in
IR Emitter
Optional IR
receiver cable
port
Built-in
IR Receiver
9
Safety
Please read all instructions carefully before using the device.
- Unpack the equipment carefully and save the original box and packing material for possible future
shipment.
- Follow basic safety precautions to reduce the risk of fire, electical shock and injury.
- Do not dismantle the housing or modify the module in any way. It may result in electrical shock or burn.
- Using equipment or parts not meeting the product’s specifications may cause damage, deterioration or
malfunction.
- Refer all servicing to qualified service personnel at Sewell Direct.
- To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this product near water.
- Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before
cleaning.
- Unplug the power cord when left unused for a long period of time.
- Please do not burn or mix with general household waste.
