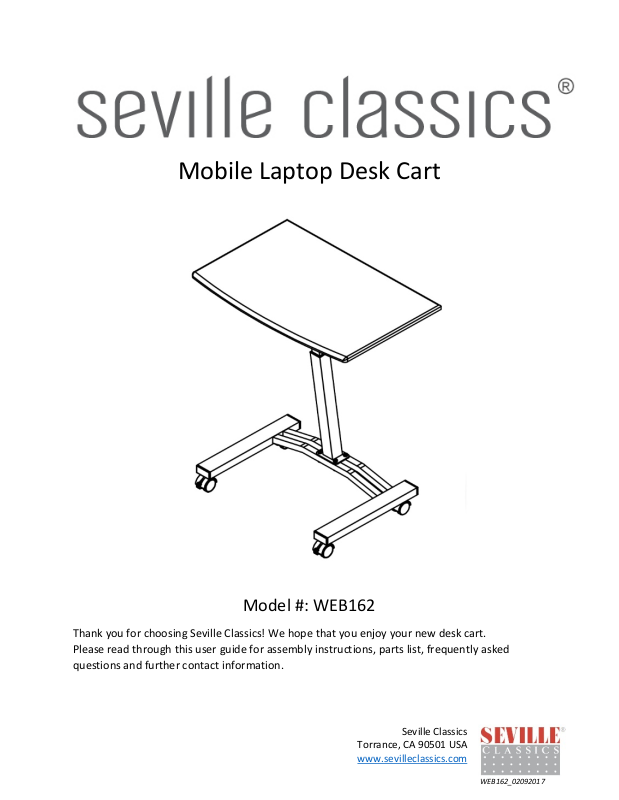

Page 1
Seville Classics
WEB162_02092017
Mobile Laptop Desk Cart
Model #: WEB162
Thank you for choosing Seville Classics! We hope that you enjoy your new desk cart.
Please read through this user guide for assembly instructions, parts list, frequently asked
questions and further contact information.
Torrance, CA 90501 USA
www.sevilleclassics.com
Page 2
Seville Classics
WEB162_02092017
Parts List
A. Base Frame (1)
B. T-bar (1)
C. Neck Frame (1)
D. Top (1)
E. Locking Caster (2)
F. Caster (2)
G. T-bar Cap (2)
H. Nut (4)
I. Crush Washer (4)
J. Screw (8)
K. Washer (4)
L. Tension Knob (1)
M. 12 mm Wrench (1)
N. 11 mm Wrench (1)
O. Allen Key (1)
Please make sure you have all the parts on this list.
If you’re missing parts, contact us for replacements at (800) 323-5565 or
send an email to [email protected]
Torrance, CA 90501 USA
www.sevilleclassics.com
Page 3
Seville Classics
WEB162_02092017
Assembly
Step 1. Assemble Base
Tool required: 12 mm wrench (M)
Screw the stem of the casters (F) into the
base by hand. Install the locking casters (E)
on the open end of the base (A). Tighten
until snug with 12 mm wrench (M)
Step 2. Install Neck Frame
Tools required: Allen key (O), 11 mm
wrench (N)
Mount the neck frame (C) to the base
assembly. Secure the screws (J) with the
Allen wrench (O) and tighten the nuts (H)
with the open-end 11 mm wrench (N).
IMPORTANT: Make sure the neck frame is
angled toward the OPENING of the base
Step 3. Assemble Top
Tool required: Allen key (O)
Firmly press the T-bar caps (G) into either
end of the T-bar (B). Install screws (J) with
washers (K) through the T-bar into the table
top using the Allen key (O)
IMPORTANT: Make sure the T-bar is angled
AWAY from the curve
Torrance, CA 90501 USA
www.sevilleclassics.com
Page 4
Seville Classics
WEB162_02092017
Correct
Incorrect
When installed correctly, the T-bar should
point away from the curved table edge
If T-bar is angled toward the curved edge,
the installation is backwards and will slant
Step 4. Install Top
Insert assembled top into frame neck with
curved edge facing toward user. Install
tension knob (L) to secure height.
IMPORTANT: Tighten the locking screw
against the T-bar to prevent the desk from
moving up and down by turning the tension
knob (L) clockwise until snug. Turn counterclockwise until loose to adjust desk height.
Step 5. Complete!
Congratulations! Your desk is ready to use.
IMPORTANT: If the desk top is slanted,
remove it from assembly, rotate 180
degrees and reinsert.
Torrance, CA 90501 USA
www.sevilleclassics.com
Page 5
Seville Classics
WEB162_02092017
Use Instructions
1. Roll desk into desired position.
2. Lock casters to prevent the table from rolling.
3. Turn the tension knob counter-clockwise to unlock height adjustment
4. Place hands on both sides of the top and pull up to lift; press down to lower the height
5. Turn tension knob clockwise until snug to secure the table height
FAQs
Q: My table top is slanted when I install it into the base, help!
A: Pull the table top assembly from the base on the desk, rotate it 180 degrees and reinsert it. If
the straight edge of the desk is faces the base opening while the table is flat, the T-bar is
installed incorrectly.
Q. Can I use it without the wheels?
A. Sure! Leave the wheels off to use directly on the floor. This works well on carpeted surfaces
and near furniture with low floor clearance. Be careful! The base is steel and can scratch
flooring when used without wheels.
Q: Can I use as a sit-stand workstation?
A: Yes, but the table only rises to 33 inches—about the average height of a normal desk. Seville
Classics offers a different Sit-Stand Desk Cart /w Side Table (model #: WEB234) that lifts up to a
full 40 inches.
Safety
Do not tip the cart over or place upside down
Do not place more than 15 lbs. on the desk top
Customer Service Information
Telephone: (800) 323-5565
Fax: (310) 533-3899
Hours: 8:30 AM – 4:30 PM (PST)
Email: [email protected]
Homepage: http://www.SevilleClassics.com
Torrance, CA 90501 USA
www.sevilleclassics.com
