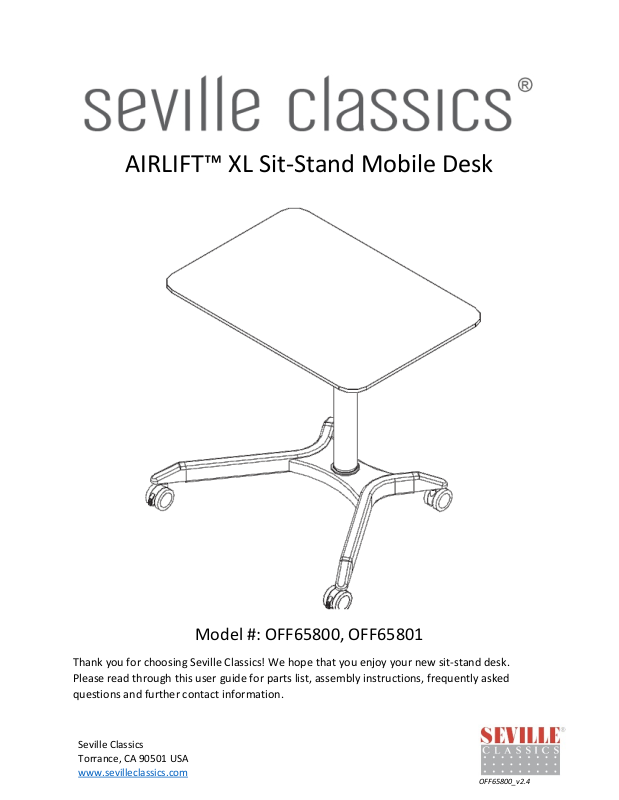

AIRLIFT™ XL Sit-Stand Mobile Desk
Model #: OFF65800, OFF65801
Thank you for choosing Seville Classics! We hope that you enjoy your new sit-stand desk.
Please read through this user guide for parts list, assembly instructions, frequently asked
questions and further contact information.
Seville Classics
Torrance, CA 90501 USA
www.sevilleclassics.com
OFF65800_v2.4
Page 2
Parts List
M6x15
Ø 8
Ø 8
12, 14 mm
5 mm
Ø6
A. Top G. Screws (10)
B. Cylinder H. Washer (4)
C. Adjustment
Lever
D. Base J. Wrench
E. Caster (2) K. Allen key
F. Locking
Caster (2)
I. Crush washer (4)
L. Locking washers
(3)
Please make sure you have all the parts on this list.
If you’re missing parts, contact us for replacements at (800) 323-5565 or
send an email to [email protected]
Seville Classics
Torrance, CA 90501 USA
www.sevilleclassics.com
OFF65800_v2.4
1
Page 3
Assembly

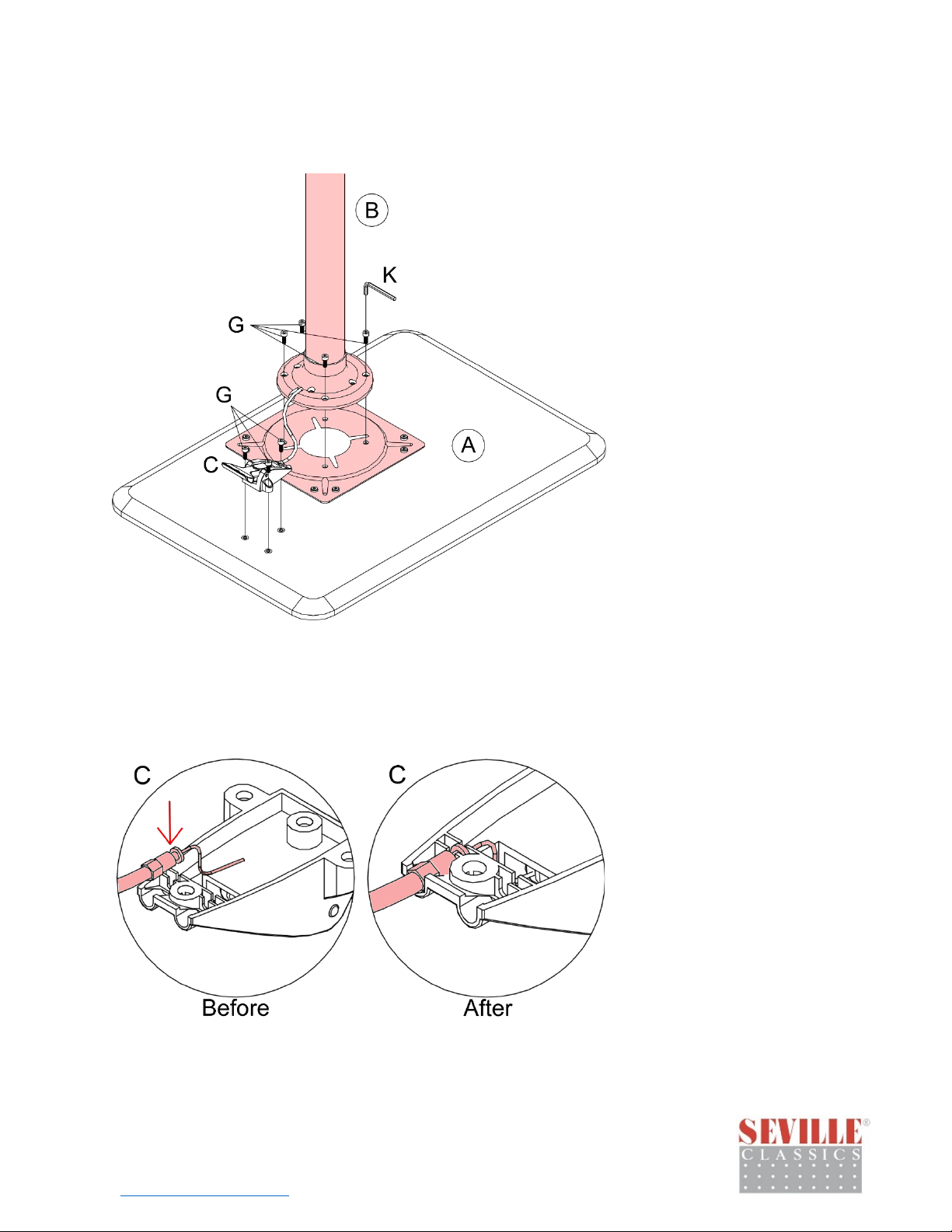

Step 1. Attach
Cylinder to Top
Tool required: Allen key (K)
Place the top of the desk
ace down so the
(A) f
mounting plate faces up.
CAUTION: Place a blanket
between the top and hard
floors to avoid scratches.
Line up the holes on the
cylinder (B) with holes on
the mounting plate. Secure
cylinder with four screws
(G) and Allen key. Tighten
until snug.
IMPORTANT: Make sure
adjustment lever (C) can
reach the mounting holes
on the back of the top (A).
Step 2. Install
Adjustment Wire
Press the adjustment wire
into the bracket on the
back side adjustment lever
(C).
Important: Lever will not
work and height will not
adjust if wire is not clipped
in correctly.
Seville Classics
Torrance, CA 90501 USA
www.sevilleclassics.com
OFF65800_v2.4
2
Page 4

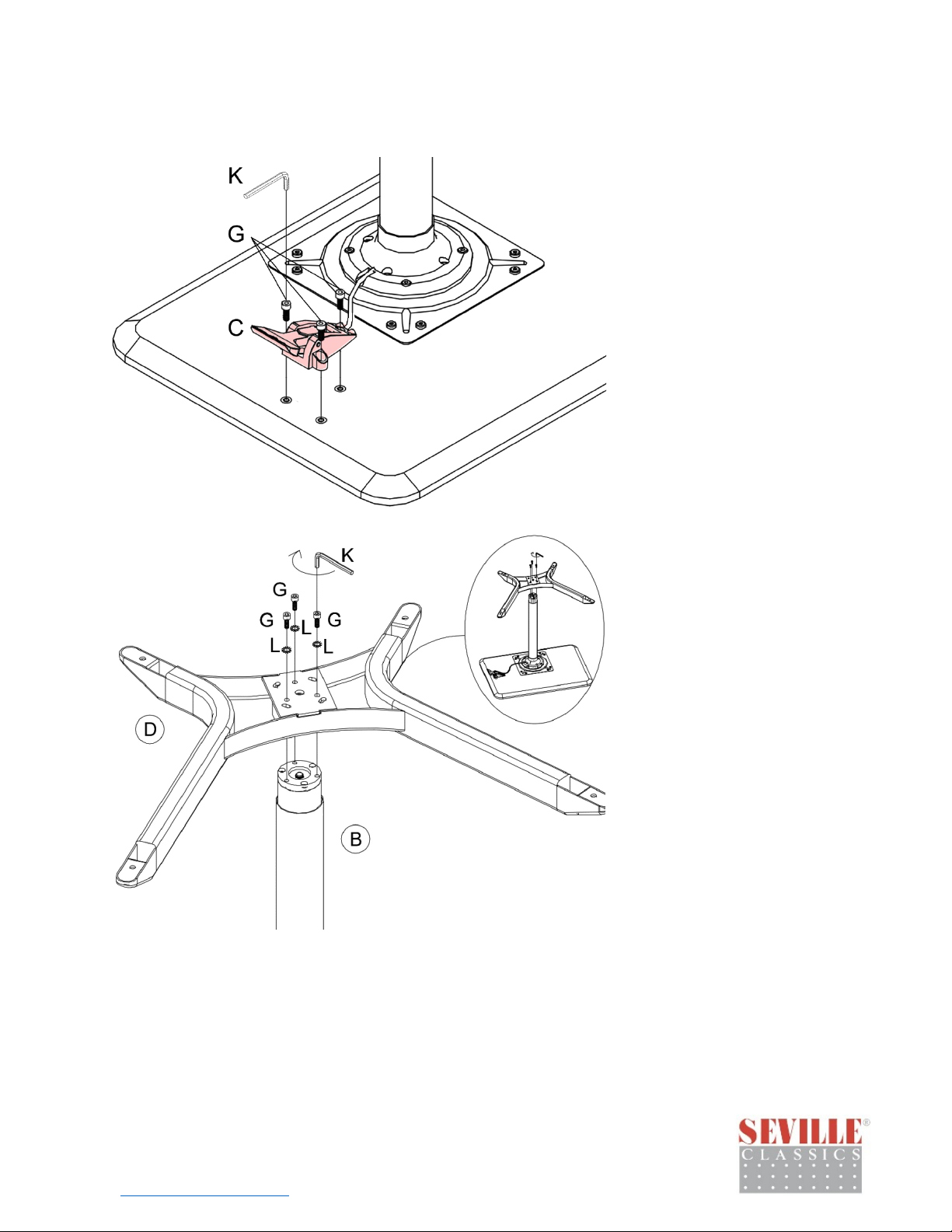

Step 3. Install
Adjustment Paddle
Tool required: Allen key (K)
Line up the holes of the
adjustment lever (C) with
the holes on the back of
the desk. Secure
adjustment lever with
three screws (G) and Allen
key (K). Tighten until snug.
Step 4. Attach Base
to Cylinder
Tool required: Allen key (K)
Turn the base (D) upside
down and fit it to the small
end of the cylinder (B).
Match the three holes on
the bottom of the base
with the three holes in the
cylinder. Slip the locking
washers (L) over three
screws (G). Use the screws
and washers to secure the
base (D) to the cylinder
(B).
Tighten screws until snug
with the Allen key (K).
Seville Classics
Torrance, CA 90501 USA
www.sevilleclassics.com
OFF65800_v2.4
3
Page 5

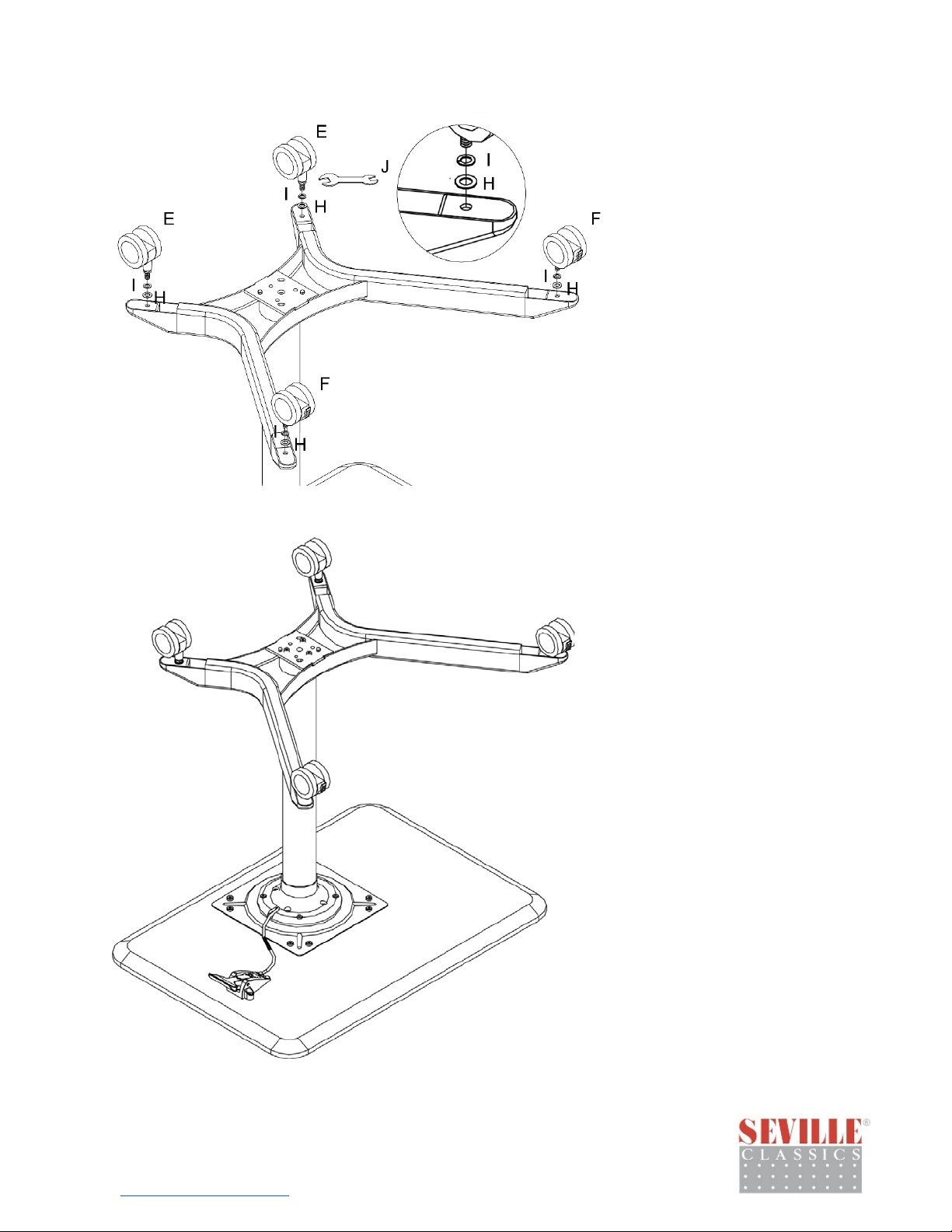

Step 5. Install
Casters
Tools required: Wrench (J)
Install locking casters (F)
on the long legs of the
base and normal casters
(E) on the short legs of the
base. Screw the casters in
by hand through a crush
washer (I) and regular
washer (H). Snug tight
with included wrench (J).
Step 6. Tighten All
Screws
Tool required: Allen key (K)
Tighten all screws on the
top, cylinder, adjustment
lever, and base until snug.
Flip the desk onto its
wheels.
Congratulations!
Enjoy Your New
AIRLIFT™ Desk!
Seville Classics
Torrance, CA 90501 USA
www.sevilleclassics.com
OFF65800_v2.4
4
Page 6
Use Instructions
1. Roll desk into desired position.
2. Lock casters to prevent the table from rolling.
3. To lift, pull up on the adjustment lever.
4. To lower, pull up on the adjustment lever while pressing down on the table top.
5. Release adjustment lever to lock-in table height.
FAQs
Q. Can I use it without the wheels?
A. No. The base is not flat and will wobble without wheels.
Q. How high and how low can my desk go?
A. Maximum height is 41.9 inches. Minimum height is 27.1 inches.
Q. Why won’t my desk adjust its height?
A. The adjustment wire is likely not clipped into the adjustment lever correctly. Reference the
diagram in Step 2 for an example of the correct installation.
Safety
Do not tip the desk over or place upside down.
Do not place more than 35 lbs. on the desk top.
Customer Service Information
Telephone: (800) 323-5565
Fax: (310) 533-3899
Hours: 8:30 AM – 4:30 PM (PST)
Email: [email protected]
Homepage: www.SevilleClassics.com
