GB Instructions for use
Rotisserie toast oven 10
www.severin.com
welcome home
Page 2
3
1
5
4
7
2
3
6
9
8
11
Page 3
10
Rotisserie toast oven
Dear Customer,
Before using the appliance, please read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.
Connection to the mains supply
The appliance should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label. This product complies with all binding CE labelling directives.
Familiarisation

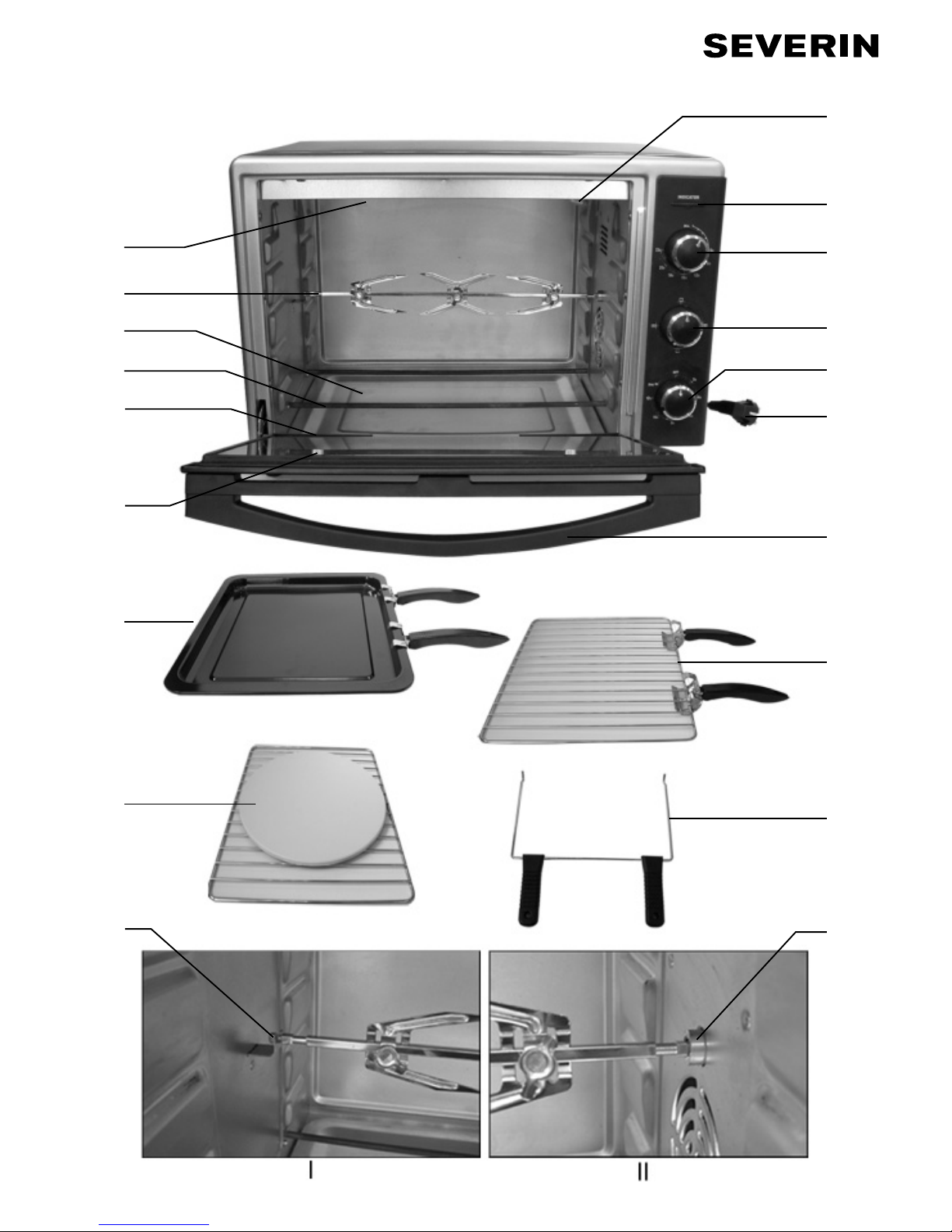

1. Interior light
2. Indicator lamp
3. Temperature control knob
4. 4-position switch
5. Timer
6. Power cord with plug
7. Door handle
8. Baking rack with handles
9. Spit handle assembly
10. Spit end-piece (drive unit connection)
11. Spit end-piece (idle)
12. Pizza stone on baking rack
13. Baking tray with handles
14. Screws for inner glass plate
15. Guide slots for inner glass plate
16. Lower heating elements
17. Crumb tray
18. Rotating spit with holding clamps
19. Upper heating elements
Important safety instructions
Warning: the door as well
as the accessible surfaces of the appliance become hot during operation. Burns can occur from touching the hot parts!
In order to avoid hazards, repairs
to this electrical appliance or its power cord must be carried out by our customer service. If repairs are needed, please send the appliance to our customer service department (see appendix).
Before cleaning the appliance,
ensure it is disconnected from the power supply and has cooled down completely.
To avoid the risk of electric shock, do
not clean the appliance with water and do not immerse it in water.
Always clean the appliance after
use. For detailed information, please refer to the section 'General care and cleaning’.
The appliance is not intended to be
operated by means of an external timer or separate remote-control system
This appliance may be used by
GB
Page 4
11
children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.
Children must not be permitted to
play with the appliance.
Children must not be permitted
to carry out any cleaning or maintenance work on the appliance unless they are supervised and at least 8 years of age.
The appliance and its power cord
must be kept well away from children under 8 at all times.
Caution: Keep any packaging materials
well away from children – such materials are a potential source of danger, e.g. of suffocation.
Every time the appliance is used, the
main body including the power cord as well as any attachment fi tted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, or if excessive force has been used to pull the power cord, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the
appliance.
Do not touch the heating elements. Before the appliance is used, the crumb
tray must be fi tted in its proper position under the lower heating elements.
Overheated oil or fat may ignite.
Therefore do not overfi ll the baking tray; this will prevent fat from dripping onto the heating elements below.
Do not leave the appliance unattended
while in use.
Do not use the appliance outdoors. Suf cient ventilation must be ensured
at all times. Do not place any objects on the unit, and make sure that the following minimum distances from any wall or other object are maintained: Side: 12 cm Rear: 12 cm Top: 30 cm
The unit must not be installed inside a
cupboard; when positioning the unit, also ensure that it is not placed directly underneath a shelf or any other similar object.
The feet on the base of the unit must not
be removed.
Do not position or operate the appliance
close to or underneath any wall­cupboards or hanging objects such as curtains or any infl ammable materials.
During operation, the appliance must
be placed on a heat-resistant surface, impervious to splashes and stains. Do not position the appliance on or near hot surfaces, open fl ames or infl ammable vapours.
Caution: the pizza stone becomes very
hot during use, and will only cool down very slowly after the appliance has been switched off and disconnected from mains
Page 5
12
power. There is a severe danger of burns in any case of contact.
Always let the pizza stone cool down
completely before it is removed from the appliance.
Caution: do not place aluminium foil or
anything similar between the grill rack and the pizza stone. Place the stone directly onto the rack.
Do not allow the power cord to touch any
hot parts of the appliance.
Do not let the power cord hang free. Always switch off and remove the plug
from the wall socket
- after use, as well as
- in cases of malfunction, and
- during cleaning.
When removing the plug from the wall
socket, never pull on the power cord; always grip the plug itself.
No responsibility is accepted if damage
results from improper use, or if these instructions are not complied with.
This appliance is intended for domestic or
similar applications, such as
- in shops, offi ces and other similar working environments,
- in agricultural working environments,
- by customers in hotels, motels etc. and similar establishments,
- in bed-and breakfast type environments.
Temperature control
With the temperature control knob, the temperature can be set to the desired level.
4-position switch settings
Upper heat Upper heat and lower heat with hot-air
convection
Lower heat
Upper heat with rotating spit
The heating elements will only be switched on after the timer is activated.
Timer
The timer can be used for selecting either a certain cooking time (up to 120 minutes) or continuous operation. For continuous operation, turn the timer knob anti-clockwise to the position
. To turn the
appliance off, turn the timer knob back to position ‘0’. To programme a time, turn the timer knob clockwise to the desired value. To set a time of less than 20 minutes, turn the timer to a somewhat higher setting fi rst and then slowly turn it back to the desired time setting. After the pre-programmed time has elapsed, an acoustic signal indicates that the heating elements are switched off.
Indicator lamp
The indicator lamp lights up when the appliance is switched on. It goes out once the pre-programmed time has elapsed, or if the switch is turned back to position 0.
Rotating spit
When using the rotating spit, only the upper heating function is used.
When the food to be cooked is put onto
the spit, make sure that it does not come into contact with the upper or lower heating elements; ensure suffi cient distance.
Pierce the food to be cooked on the spit,
making sure that the spit goes through the middle. This is to ensure that the food does not go to near the interior walls or the heating elements. Use the holding
Page 6
13
clamps to secure the food in the centre of the spit.
To fasten two smaller pieces of food, the
bracket with the four prongs may be fi tted to the centre of the spit.
Any parts sticking out (e.g. wings of a
chicken) should be held in with a tooth­pick, a piece of string or other suitable means. This ensures that no part of the food can protrude or come off during the cooking process.
Inserting and removing the rotating spit:
∙ Once the food has been securely
attached, place the spit onto the handle assembly. Ensure that the spit is safely supported in the recesses in the handle.
∙ Slide the spit end-piece with the drive
unit connection into the drive unit (see picture II).
Place the idle end of the spit into its
holding bracket on the opposite side (see picture I).
∙ To remove the rotating spit, follow these
steps in reverse order.
Pizza stone
Always place the pizza stone on the
middle of the grill rack before inserting the rack into the appliance.
Preheat the appliance to the required
temperature as described in the section Operation.
With certain pre-baked pizzas made from
especially light dough, the pre-heating phase should be shortened; this is to prevent the bottom layer of the pizza dough from browning too fast.
After pre-heating, open the door and use
a spatula to place the pizza on the centre of the stone. The pizza should be slightly smaller than the stone so that there is a
clear space all round it.
The pizza is ready once the cheese
topping has melted and the bottom of the dough is slightly brown. Use a spatula for removing the pizza and serving it.
Start up
Clean the appliance (see General care
and cleaning) and remove any packing
materials completely.
Before using the appliance for the fi rst
time, let it heat up for 10 minutes with both heating elements on. When the appliance is switched on for the fi rst time, a slight smell may be emitted. This is normal and will only last for a very short time. For that reason, adequate ventilation should be ensured by opening windows or balcony doors.
Operation
Before using the appliance, make sure
that the crumb tray is fi tted in its proper position underneath the lower heating element.
Pre-heat the oven compartment for
several minutes with the door closed, using both heating elements. Set the temperature control knob to the required level and use the timer control knob to select the desired pre-heating time.
Place the food to be cooked on the baking
rack. When cooking food containing fat or moisture, use the baking tray to stop any dripping into the interior of the appliance. If the pizza stone is used, it should be placed straight onto the grill rack.
Close the door, set the temperature
control knob to the required level and use the timer knob to select the desired cooking time.
Page 7
14
For overhead baking or grilling, either the
upper or the upper and lower elements may be selected.
The switch settings (upper heat/lower
heat) may be changed during the cooking process.
After the pre-programmed cooking time
has elapsed, the timer will automatically switch off the heating elements.
To switch off the appliance earlier, set the
timer to ‘0’.
Always use the door handle to open
the hot door after use. When removing the baking tray or rack, use the handles provided. Likewise, when removing the spit, the spit handle must be used. Always place the baking tray and rack on a heat­resistant surface.
Remove the plug from the wall socket
after use.
Cooking times
The grilling/cooking times listed are approximate times only, as each food to be grilled or cooked is of a different nature and consistency; please also refer to the information contained on the food packaging.
Food
Temperature
/ setting
Grilling/ cooking
time
Chicken (rotating spit)
180°C
60 mins.
Pizza (deep­frozen)
200°C
9-10
mins.
Toast Hawaii
220°C
10-14
mins.
Baguette (deep-frozen)
200°C
14-15
mins.
General care and cleaning
Before cleaning the appliance, ensure it is
disconnected from the power supply and has completely cooled down.
To avoid the risk of electric shock, do not
clean the appliance with water and do not immerse it in water.
Do not use abrasives, harsh cleaning
solutions or spray-type oven cleaners.
The exterior of the housing may be
cleaned with a damp, lint-free cloth.
After cooking a chicken, ensure that any
fat that may have dripped onto the lower heating elements is completely removed using a damp cloth.
The baking tray, baking rack, spit and
holding clamps may be cleaned using hot water and a mild detergent, or in a dish­washer.
The crumb tray may be taken out for
cleaning. Any large accumulation of fat in the tray should fi rst be cleaned up with a paper towel. Make sure that the tray is refi tted in its proper position under the heating elements.
Allow the pizza stone to cool down
completely before cleaning. Any remaining food can be scraped off with a wooden spatula. Because the surface is porous, discoloration as a result of contact with food is normal. If the stone has been rinsed in water during the cleaning process, ensure that it has dried of completely before it is used again. Only a completely dry stone ensures best baking results.
The inner glass plate of the door may
also be removed for cleaning. Loosen the two screws and pull the glass plate out, cleaning and drying it thoroughly afterwards. To replace, fi t it between the
Page 8
15
guide slots in the glass door, ensuring that it is properly located above the centre guide slots and below the two outer slots. Retighten the screws.
Changing the interior lamp bulb
A defective bulb may be replaced. Remove the screws and take off the lamp cover. Replace the defective bulb with a commercially available type E14 (15-25 W), and refi t the cover.
Disposal
Devices marked with this symbol must be disposed of separately from your household waste, as
they contain valuable materials which can be recycled. Proper disposal protects the environment and human health. Your local authority or retailer can provide information on the matter.
Guarantee
This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modifi ed, repaired or interfered with by any unauthorised person, or damaged through misuse. This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have
as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.
Page 9
82
Kundendienstzentralen Service Centres Centrales service-après-vente Oficinas centrales del servicio Centros de serviço Centrale del servizio clienti Service-centrales Centrale serviceafdelinger Centrala kundtjänstplatser Keskushuollot Servisné stredisko Centrala obsługi klientów Szerviz Κεντρικό σέρβις
SEVERIN Service Am Brühl 27 59846 Sundern Telefon (02933) 982-460 Telefax (02933) 982-480 service@severin.de
Kundendienst Ausland
Belgique
Dancal N.V. Bavikhoofsestraat 72 8520 Kuurne Tel.: 056/71 54 51 Fax: 056/70 04 49
Bosnia i Herzegovina
Malisic MP d.o.o Tromeda Medugorje bb 88260 Citluk Tel: + 387 36 650 446 Fax: + 387 36 651 062
Bulgaria
Noviz AG Khan Kubrat 1 Str. BG-4000 Plovdiv Tel.: + 359 32 275 617, 275 614 e-mail: sales@noviz.com
Czech Republic
ARGO spol. s r.o. Žihobce 137 CZ 342 01 Sušice Tel.: + 376 597 197 Fax: + 376 597 197 http://argo.zihobce.cz argo@zihobce.cz
Croatia
TD Medimurka d.d. Trg. Republike 6 HR-40000 Cakovec Croatia Tel: +385-40 328 650 Fax: + 385 40 328 134 e-mail: marija.s@medjimurka.hr
Cyprus
G.L.G. Trading 4-6, Oidipodos Street Larnaca, Cyprus Tel.: 024/633133 Fax: 024/635992
Danmark
Scandia Serviceteknik A/S Hedeager 5 2605 Brondby Tel.: 45-43202700 Fax: 45-43202709
Estonia:
Tallinn: CENTRALSERVICE, Tammsaare tee 134B, tel: 654 3000 Tartu: CENTRALSERVICE, Aleksandri 6, tel: 7 344 299, 7 344 337, 56 697 843 Pärnu: CENTRALSERVICE, Riia mnt. 64, tel: 44 25 175 Narva: CENTRALSERVICE, Tallinna 6A, tel: 35 60 708 Haapsalu: Teco KM OÜ, Jalaka 1A, tel: 47 56 900 Rakvere: Nirgi Tõnu FIE, tel: 32 40 515 Viljandi: Aaber OÜ, Vabaduse pl. 4, tel: 43 33 802 Kuressaare: Toomas Teder FIE, Pikk 1B, tel: 45 55 978 Käina: Ilmar Pauk Elektroonika FIE, Mäe2S, tel: 46 36 379, 51 87 444
Espana
Severin Electrodom. España S.L. Plaza de la Almazara Portal 4, 1º E. 45200 ILLESCAS(Toledo) Tel: 925 51 34 05 Fax: 925 54 19 40 eMail: severin@severin.es http://www.severin.es
France
SEVERIN France Sarl 4, rue de Thal B.P. 38 67211 OBERNAI CEDEX Tel.: 03 88 47 62 08 Fax: 03 88 47 62 09
Greece
BERSON C. Sara dis Bros. S.A. Agamemnonos 47 176 75 Kallithea, Athens Tel.: 0030-210 9478700
Philippos Business Center Agias Anastasias & Laertou, Pilea Service Post of Thermi 570 01 Thessaloniki, Greece Tel.: 0030-2310954020
Iran IRAN-SEVERIN KISH CO. LTD. No. 668, 7th. Floor Bahar Tower Ave. South Bahar TEHRAN - IRAN Tel. : 009821 - 77616767 Fax : 009821 - 77616534 Info@iranseverin.com www.iranseverin.com
Israel
Eatay Agencies 109 Herzel St. Haifa Phone: 050-5358648 Email: service@severin.co.il
Italia
Videoellettronica di Sgambati & Gabrini C.S.N.C. via Dino Col 52r-54r-56r, I - 16149 Genova Green Number: 800240279 Tel.: 010/6 45 11 02 - 01041 86 09 Fax: 010/6 42 50 09 e-mail: videoelettronica@panet.it
Jordan
F.A. Kettaneh P.O. Box 485 Amman, 11118, Jordan Tel: 00962-6-439 8642 e-mail: app@kettaneh.com.jo
Page 10
83
Korea
Jung Shin Electronics co., ltd. 501, Megaventuretower 77-9, Moonrae-Dong 3ga, Yongdeungpo-Gu Seoul, Korea Tel: +82-22-637 3245~7 Fax: +82-22-637 3244 Service Hotline: 080-001-0190
Latvia
SERVO Ltd. Mr. Janis Pivovarenoks Tel: + 371 7279892 servo@apollo.lv
Lebanon
Khoury Home 7th Floor, Cité Dora 3 Building, Dora P.O.Box 70611 Antelias, Lebanon Telephone 01 244200, Fax 01 253535 eMail: info@khouryhome.com Internet: www.khouryhome.com
Luxembourg
Ser-Tec Rue du Chateau d´Eua 3364 Leudelange Tel.: 00352 -37 94 94 402 Fax 00352 -37 94 94 400
Macedonia
Agrotehna St.Prvomajska bb 1000-Skopje MACEDONIA e-mail: servis@agrotehna.com.mk Tel : +389 2 / 24 45 009 or - 019 Fax : +389 2 24 63 270
Magyarország
TFK Elektronik Kft. Gyar u.2 H-2040 Budaörs Tel.: (+36) 23 444 266 Fax: (+36) 23 444 267
Nederland
HAS b.v. Stedenbaan 8 NL-5121 DP Rijen Tel: 0161-22 00 00 Fax: 0161-29 00 50
Norway
Løkken Trading AS Trollåsveien 34 1414 Trollåsen Tel: 40 00 67 34 Fax: 66 80 45 60
Österreich
Degupa Vertriebsgesellschaft m.b.H. Gewerbeparkstr. 7 5081 Anif / Salzburg Tel.: 0 62 46 / 73 58 10 Fax:. 0 62 46 / 72 70 2
Polska
SERV- SERWIS SP. Z O.O. UL. CYGANA 4 45-131 OPOLE Tel/Fax 0048 77 453 86 42 e-mail: centralny@serv-serwis.pl
Portugal
Auferma Comercio Internacional SA Aguda Parque Lago de Arcozelo No 76-Armazem-H3 4410 455 Arcozelo Tel.: 022/616 7300 Fax: 022/616 7325 auferma@auferma.pt
Russian Federation
Orbita Service 123362 Moskau ul. Svobody 18, Tel.: (495) 585 05 73
Орбита Сервис 123362 г. Москва, ул. Свободы, д. 18. Тел.: (495)585-05-73
Romania
For Brands srl Str. Capitan Aviator Alexandru Serbanescu Nr. 33-35, Bl. 20
E
Sc. 2 Et.1, Ap. 27, Sector 1 Bucuresti Tel: + 40 21 233 41 12 + 40 21 233 41 13 + 40 21 688 66 13 Fax: + 40 21 233 41 03 + 40 21 688 66 13 E-mail: o ce@forbrands.ro Web site: www.forbrands.ro
Schweiz
VB Handels Sàrl GmbH Postfach 306 1040 Echallens Tel: 021 881 60 45 Fax: 021 881 60 46 mail: severin@helt.ch
Serbia
SMIL doo Pasiceva 28, Novi Sad Serbia and Montenegro tel: + 381-21-524-638 tel: +381-21-553-594 fax: +381-21-522-096
Slowak Republic
PREMT,s.r.o. Skladová 1 917 01 Trnava Tel: 033/544 7177
Finland
Oy Harry Marcell Ab Rälssitie 6, PL 63 01511 Vantaa Tel.: 00358 / 2 07 599 860 Fax: 00358 / 2 07 599 803
Svenska
Rakspecialisten HS Möllevångsgatan 34 214 20 Malmö Tel.: 040/12 07 70 Fax: 040/6 11 03 35
Slovenia
SEVTIS d.o.o. Smartinska 130 1000 Ljubljana Tel: 00386 1 542 1927 Fax: 00386 1 542 1926
Stand: 03.2012
Page 11
Technische Änderungen vorbehalten. / Model specifi cations are subject to change.
I/M No.: 8837.0000
www.severin.com
SEVERIN Elektrogeräte GmbH
Röhre 27 D-59846 Sundern Tel +49 2933 982-0 Fax +49 2933 982-333 information@severin.de
Loading...
