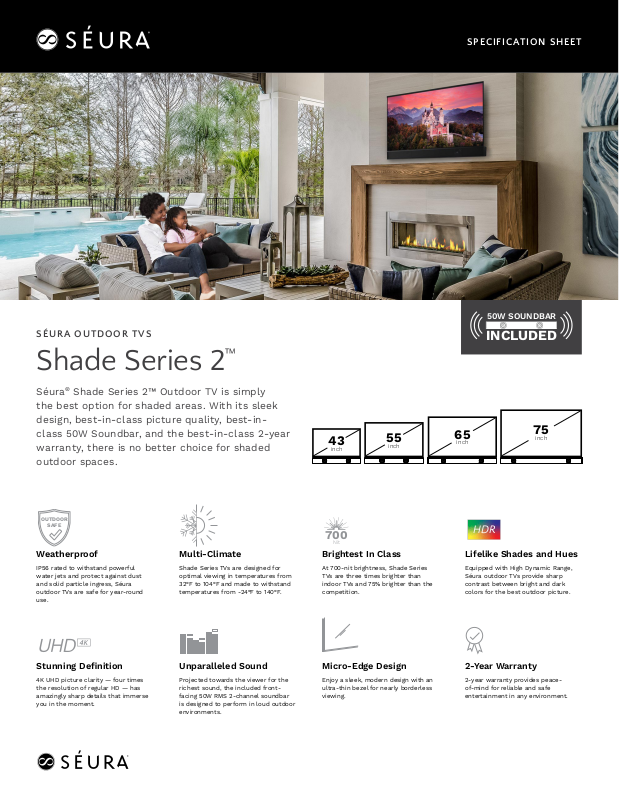

Seura SHD2-43, SHD2-65, SHD2-55, SHD2-75 Specification Sheet

SPECIFICATION SHEET

50W SOUNDBAR

INCLUDED

inch

450

Nit

inch

RELIABILITY

CUSTOM

CAPABILITY

QUALITY SPEED

SÉURA STYLE

RELIABILITY

CUSTOM

CAPABILITY

QUALITY

SPEED

NTP

SÉURA STYLE

SMART

MIRROR

CERTIFIED

1000

Nit

inch

HDR

Nit

450

Nit

inch

50W SOUNDBAR

SÉURA OUTDOOR TVS

Shade Series 2

Séura the best option for shaded areas. With its sleek design, best-in-class picture quality, best-inclass 50W Soundbar, and the best-in-class 2-year warranty, there is no better choice for shaded outdoor spaces.

OUTDOOR

Weatherproof

IP56 rated to withstand powerful water jets and protect against dust and solid particle ingress, Séura outdoor TVs are safe for year-round use.

Stunning Denition

4K UHD picture clarity — four times the resolution of regular HD — has amazingly sharp details that immerse you in the moment.

SAFE

Shade Series 2™ Outdoor TV is simply

Multi-Climate

Shade Series TVs are designed for optimal viewing in temperatures from 32°F to 104°F and made to withstand temperatures from -24°F to 140°F.

Unparalleled Sound

Projected towards the viewer for the richest sound, the included frontfacing 50W RMS 2-channel soundbar is designed to perform in loud outdoor environments.

™

INCLUDED

inch

700

Nit

Brightest In Class

At 700-nit brightness, Shade Series TVs are three times brighter than indoor TVs and 75% brighter than the competition.

Micro-Edge Design

Enjoy a sleek, modern design with an ultra-thin bezel for nearly borderless viewing.

inch

HDR

Lifelike Shades and Hues

Equipped with High Dynamic Range, Séura outdoor TVs provide sharp contrast between bright and dark colors for the best outdoor picture.

2-Year Warranty

2-year warranty provides peaceof-mind for reliable and safe entertainment in any environment.

inch

SÉURA OUTDOOR TVS

Input

(DC 5V 0.5A)

Optical

Digital

Audio Out

Coaxial

Digital

Audio Out

Output

RS232

Analog

Audio

Variable Output/

120v Output

(Soundbar)

InputIROutput

RS232

Analog

Audio

Variable Output/

Soundbar

120v Output

(Soundbar)

MEDIA COMPARTMENT CONNECTIONS

Shade Series 2

™

OPERATING TEMPERATURE RANGE -24°F to 104°F*

IDEAL OPERATING TEMPERATURE 32°F to 104°F

NON-OPERATING TEMPERATURE -24°F to 140°F

GENERAL

OPERATING HUMIDITY RANGE

WATERPROOF RATING IP56 Certied

DISPLAY RESOLUTION 4K UHD 3840 x 2160

DISPLAY BRIGHTNESS 700 nits

ASPECT RATIO 16:9

CONTRAST RATIO 5000:1

REFRESH RATE 60Hz

VIEWING ANGLE 178° Horizontal/Vertical

RESPONSE TIME 8 ms

HDMI

VIDEO

COMPONENT YPbPr 1

COMPOSITE (AV) 1

USB

DOLBY DIGITAL SUPPORT Dolby Digital 5.1

HDR HDR 10 Compatible

TUNER ATV(NTSC)/DTV(ATSC)

INCLUDED SOUNDBAR 50W RMS 2-channel soundbar

ANALOG AUDIO INPUT RCA x1

ANALOG AUDIO – VARIABLE OUTPUT / SOUNDBAR

AUDIO

DIGITAL AUDIO OUT 1 x Optical, 1 x Coax

BLUETOOTH® AUDIO BROADCASTING Bluetooth® 4.2, 50-foot Clear Span

10%-90% Relative Humidity,

Non-Condensing

3 x HDMI 2.0 with HDCP 2.2

(2 x HDMI, 1 x HDMI ARC)

Capable of Playback and Updates

DC 5V 0.5A

Stereo 3.5mm Variable

†

Hinged Media Compartment Cover

RF Window

VESA Pattern Mounting Holes

120v Output

Power In

Cable Entry with Gasket

43 INCH 4K UHD

Model: SHD2-43

DIMENSIONS 37.7" w x 21.6" h x 2.9" d 48.3" w x 27.6" h x 2.9" d 57.1" w x 32.4" h x 2.9" d 65.8" w x 37.3" h x 2.9" d

DISPLAY WITH SOUNDBAR DIMENSIONS 37.9" w x 26.6" h x 3.3" d 48.7" w x 32.6" h x 3.3" d 57.2" w x 37.5" h x 3.3" d 66" w x 43.3" h x 3.3" d

TV WEIGHT 25 lbs. 38 lbs. 56 lbs. 78 lbs.

TV + SOUNDBAR WEIGHT 35 lbs. 52 lbs. 74 lbs. 100 lbs.

MEDIA COMPARTMENT DIMENSIONS 3.75" w x 4" h x 1.125" d 3.75" w x 4" h x 1.125" d 3.75" w x 4" h x 1.125" d 3.75" w x 4" h x 1.125" d

WEATHERPROOF MEDIA COMPARTMENT Space for easier utilization of smart devices. Easy access via hinged cover.

WEIGHTS/MEASURES

VESA PATTERN 300 x 300mm 400 x 200mm 400 x 200mm 400 x 200mm

POWER CONSUMPTION, DISPLAY 138 watts / 1.26a @ 120v 210 watts / 1.91a @ 120v 280 watts / 2.55a @ 120v 360 watts / 3.28a @ 120v

INTEGRATION IP Control, RS-232, and IR

IR SIGNAL RECEPTION Menu controlled modulated and unmodulated IR signal reception

RF WINDOW Allows better transfer for streaming devices, RF remotes, and WiFi connectivity

AUXILIARY POWER PASS-THROUGH 3-prong 120V

OTHER

CERTIFICATIONS AND COMPLIANCE IP56 Certied, FCC, CEC, UL and cUL Listed

REMOTE

WARRANTY

* The scre en is mos t optim ally vie wed at amb ient tem perat ures of 32 °F to 10 4°F

† IP Rating is a n interna tiona l stand ard that sp ecie s the degr ee of protec tion ag ainst du st and wate r ingres s. Séur a Outdoo r Displ ays are IP rate d and desi gned to prot ect aga inst ra in, snow, ice , dust, a nd other ou tdoor el ement s. The Bluet ooth® word mar k and logos are reg ister ed tradem arks owne d by the Bluetoot h SIG, Inc. and any use of such ma rks by Séura is unde r license . Other tra demar ks and trade nam es are those of the ir respec tive owne rs.

1230 Ontar io Road , Gree n Bay, Wiscons in 54 311 1-800-957-3872 contacts@seura.com www.seura.com

Séura warr ants O utdo or Disp lays w ith re spec t to Séu ra’s la bor, str uct ure, a ssem bly, disp lay includi ng remo te,

55 INCH 4K UHD

Model: SHD2-55

Séura Water Resistant IR Remote Control

and power supp ly for t wo (2) year s.

Publi sh date: Septe mber 1 8, 2020 . Infor matio n is subj ect to c hang e with out not ice.

65 INCH 4K UHD

Model: SHD2-65

75 INCH 4K UHD

Model: SHD2-75
