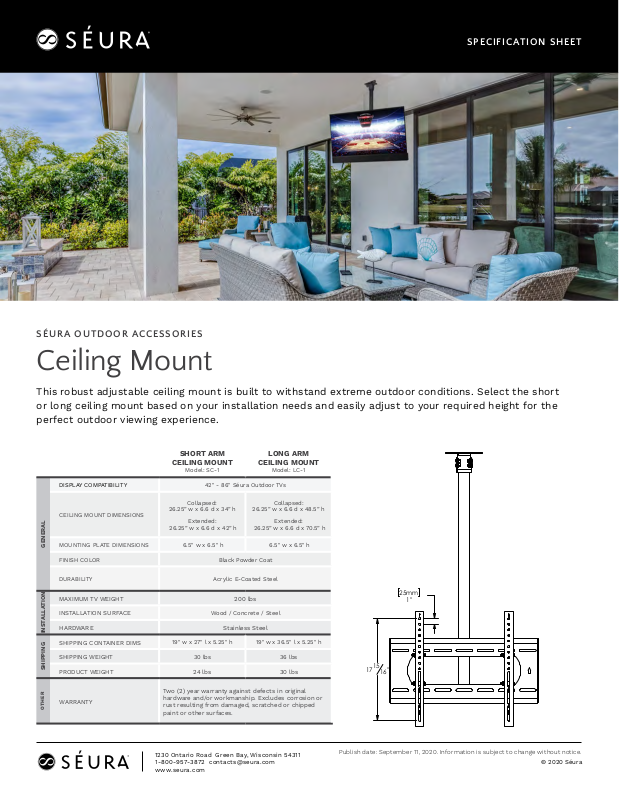

Seura LC-1, SC-1 Specification Sheet
SÉURA OUTDOOR ACCESSORIES
SPECIFICATION SHEET
Ceiling Mount
This robust adjustable ceiling mount is built to withstand extreme outdoor conditions. Select the short
or long ceiling mount based on your installation needs and easily adjust to your required height for the
perfect outdoor viewing experience.
SHORT ARM
CEILING MOUNT
Model: SC-1
DISPLAY COMPATIBILITY 42" - 86" Séura Outdoor TVs
Collapsed:
CEILING MOUNT DIMENSIONS
MOUNTING PLATE DIMENSIONS 6.5" w x 6.5" h 6.5" w x 6.5" h
GENERAL
FINISH COLOR Black Powder Coat
DURABILITY Acrylic E-Coated Steel
MAXIMUM TV WEIGHT 200 lbs
INSTALLATION SURFACE
HARDWARE Stainless Steel
INSTALLATION
SHIPPING CONTAINER DIMS
SHIPPING WEIGHT
SHIPPING
PRODUCT WEIGHT 24 lbs 30 lbs
26.25” w x 6.6 d x 34” h
Extended:
26.25” w x 6.6 d x 42” h
Wood / Concrete / Steel
19" w x 27" l x 5.25" h 19" w x 36.5" l x 5.25" h
30 lbs 36 lbs
LONG ARM
CEILING MOUNT
Model: LC-1
Collapsed:
26.25” w x 6.6 d x 48.5” h
Extended:
26.25” w x 6.6 d x 70.5” h
17
25mm
1"
15
"
16
OTHER
WARRANTY
Two (2) year warranty against defects in original
hardware and/or workmanship. Excludes corrosion or
rust resulting from damaged, scratched or chipped
paint or other surfaces.
1230 Ontari o Road Gr een Bay, Wi scons in 543 11
1-800-957-3872 contacts@seura.com
www.seura.com
Publi sh date: S eptemb er 11, 20 20. Info rmation is subject to change without n otice.
© 2020 Séura
