USER’S MANUAL
self-levelling
laser level
Page 2
2
EK-118
EK-118EK-118
USER’S MANUAL
Índice
Equipment included 3
Exterior composition of the Settop EK-118 4
Specifications 5
Instructions 7
Automatic Leveling 7
Low Battery Alarm 7
Page 3
3
EK-118
EK-118EK-118
USER’S MANUAL

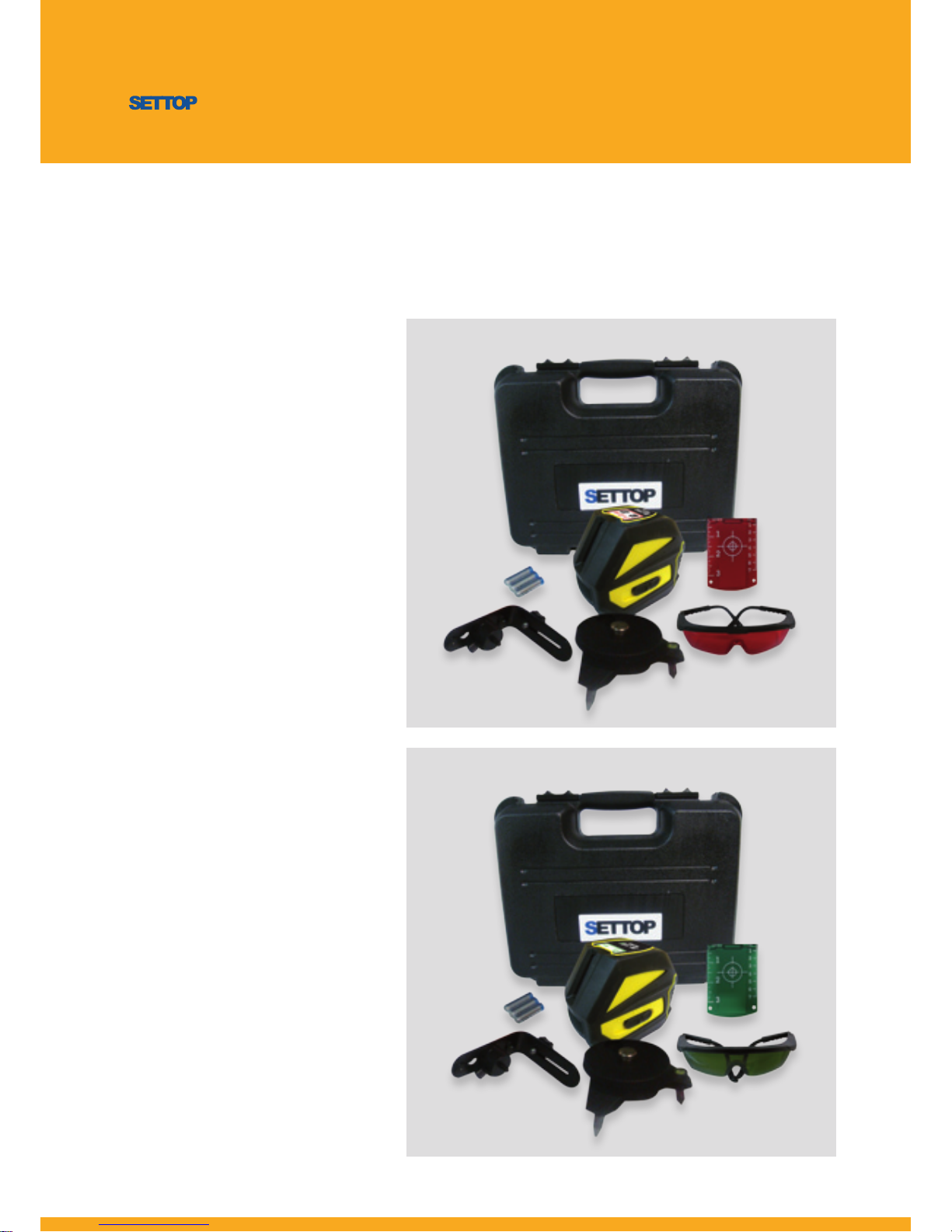

Instrument Red
Laser Plate
Alkaline batteries
Magnetic adapter
User manual
Rotatable base
Glasses
Instrument GReen
Laser Plate
Alkaline batteries
Magnetic adapter
User manual
Rotatable base
Glasses
WHAT iS incLUded WiTH YOUR cROSS Line LASeR
Page 4
4
EK-118
EK-118EK-118
USER’S MANUAL
cOMPOSiTiOn OF THe SeTTOP eK-118

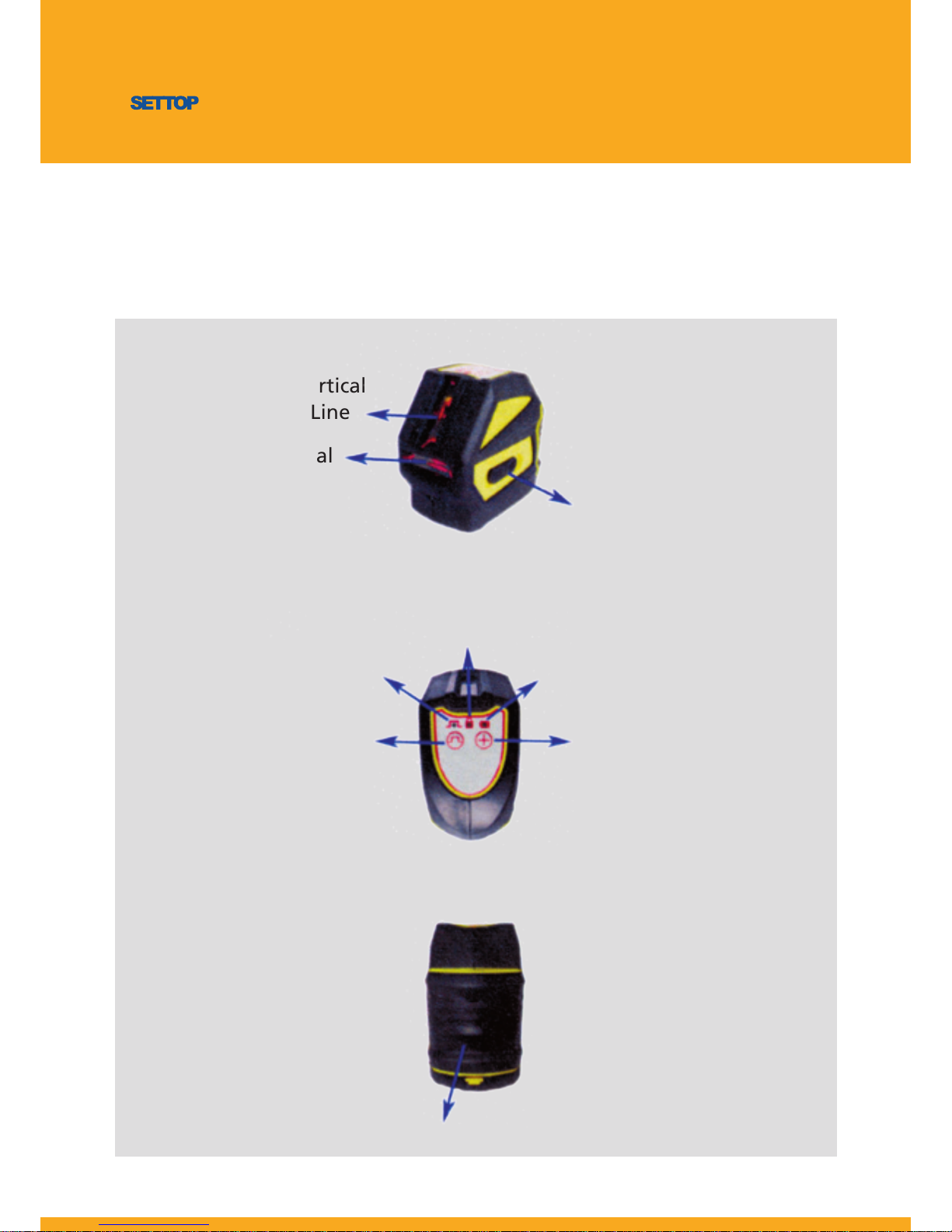

Pulse
Green LED
Low
Battery

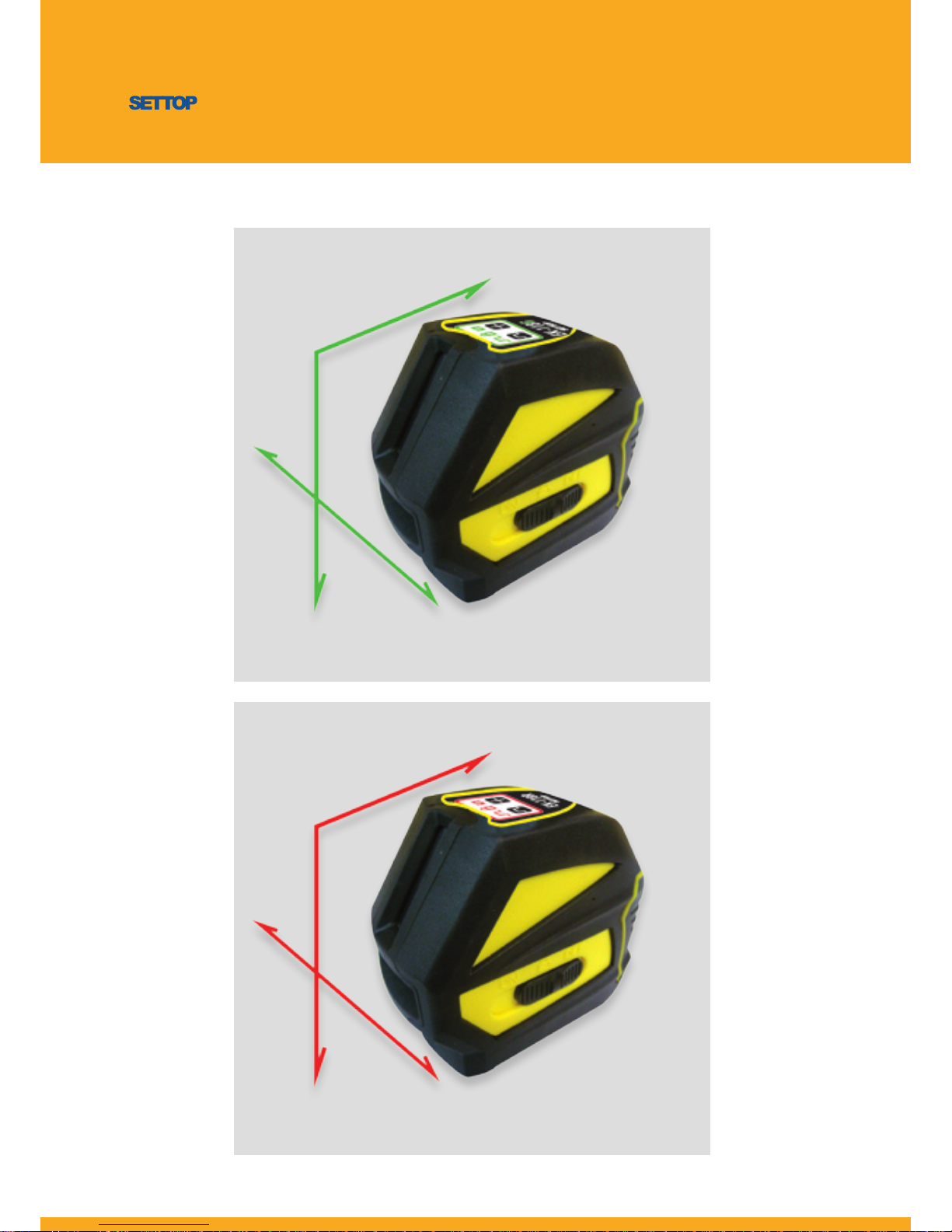

Line OptionPulse Mode
Lock LED
Vertical
Line
Horizontal
Line
OFF/
LOCK/ON
Battery
Compartment
(3 x AA Batteries)
Page 5
5
EK-118
EK-118EK-118
USER’S MANUAL

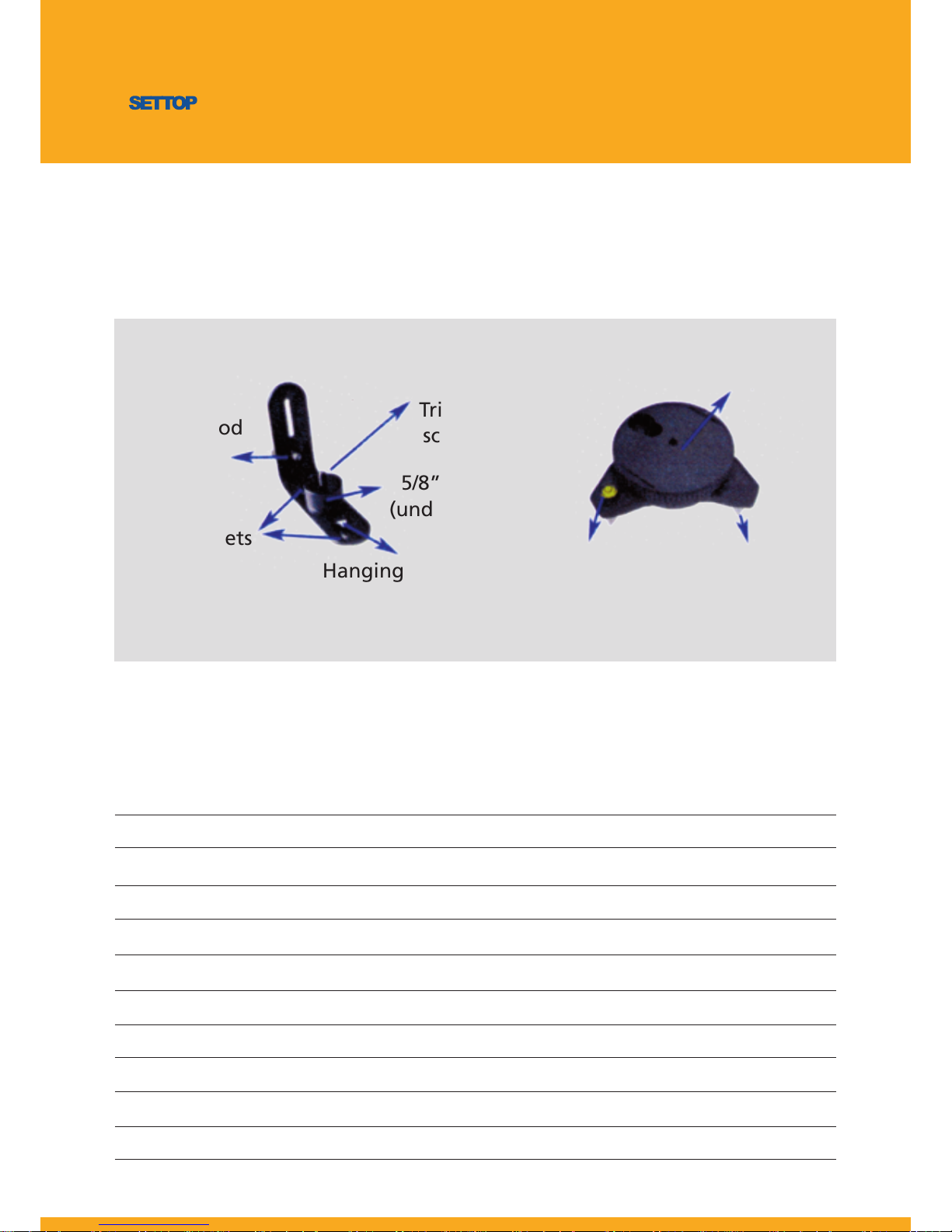

1/4” Tripod
screw
1/4”
Tripod
screw
5/8” Mount
(undersneath)
Hanging
Hole
Magnets
Level
Bubble
Height
adjustable leg
Rotatable Base with 5/8”
Mount (underneath)
SPeciFicATiOn
Accuracy of horizontal line +-3 mm@10m
Vertical accuracy +-2.5 mm@10m
Leveling Range 4º+-0.5º
Working Range 30 m.
Tripod Thread 1/4”
Laser Type 635 nm, laser class II
Operating Temperature -10ºC to 45ºC
Storage Temperature -20ºC to 60ºC
Dimension 119 x 62 x 95/cm3
Continuous Working Time (All Diodes) >8hour
Page 6
6
EK-118
EK-118EK-118
USER’S MANUAL
OPeRATinG THe UniT
PendULUM LOcK
The Fukuda Cross Line Laser is a precision instrument and should be treated with care.
When not in use, the pendulum should always be in the Off position (Figure 1). Locking
the pendulum allows the Cross Line Laser to better withstand vibration and trauma incurred during transportation or if the unit is dropped.

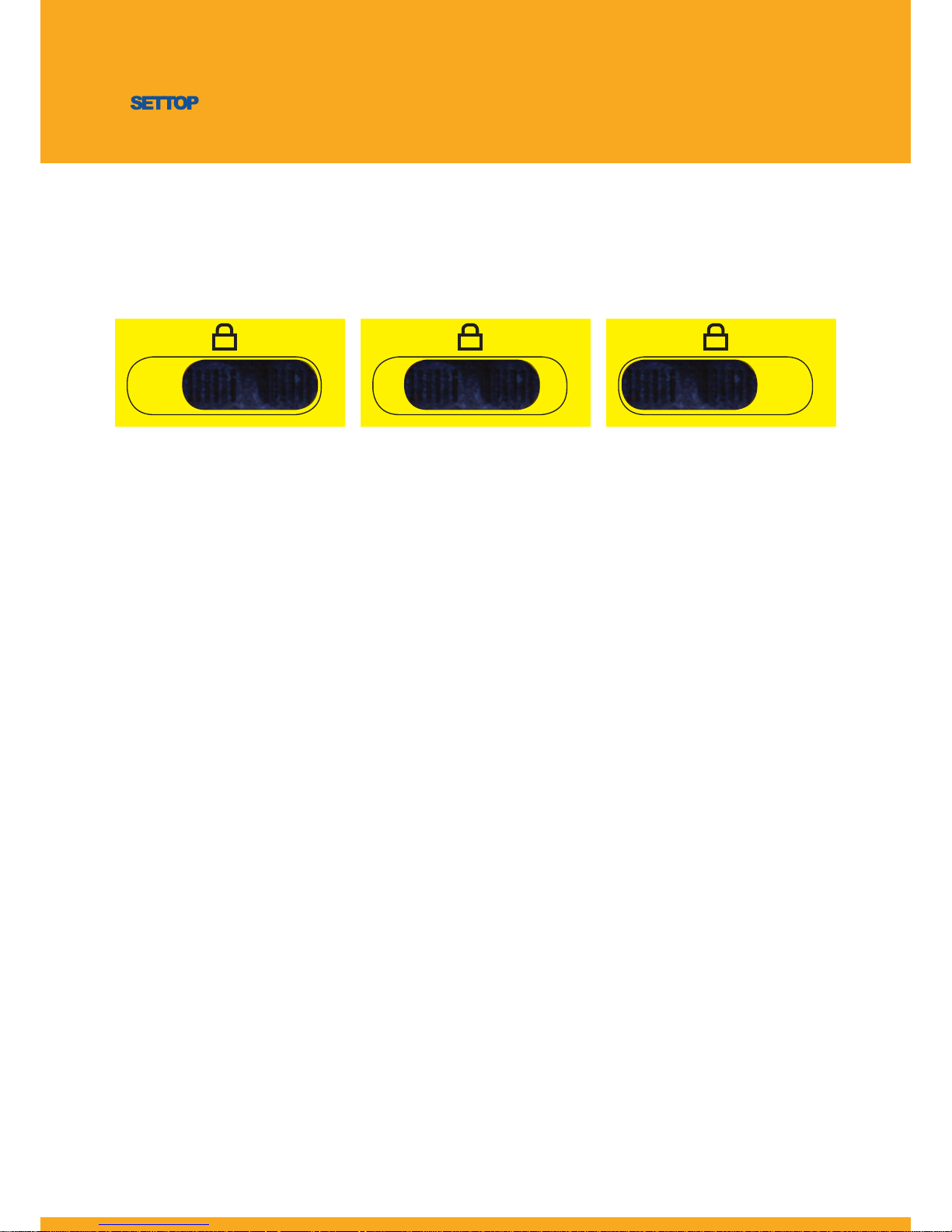

LOcKed Line AnGLe
In the locked line angel position (figure 2), the pendulum is in the locked position and
will not automatically level. When in the locked line position, both two laser lines will be
on and flash slowly. The Red Lock LED will be on as well.
AUTOMATic LeveLinG
When the pendulum is unlocked (figure 3), the pendulum is free to automatically level,
in order for the Cross Line laser to automatically level, the base of the unit needs to be
within 5º of level.
When the pendulum is unlocked and the Cross Line Laser is within 5º of level, the unit
will be in automatic leveling range, in this situation no LED light will be on. Should the
base of the unit be outside the 5º leveling range the laser beam will flash meanwhile an
audibly warning will be sent out from Cross Line Laser.
LOW BATTeRY ALARM
The Green battery LED will be on and keep flashing slowly when the working voltage is
V3V. At this situation the batteries are required to be replaced.
Figure 1 Figure 2 Figure 3
ON OFF ON OFF ON OFF
Page 7
7
EK-118
EK-118EK-118
USER’S MANUAL
Page 8
