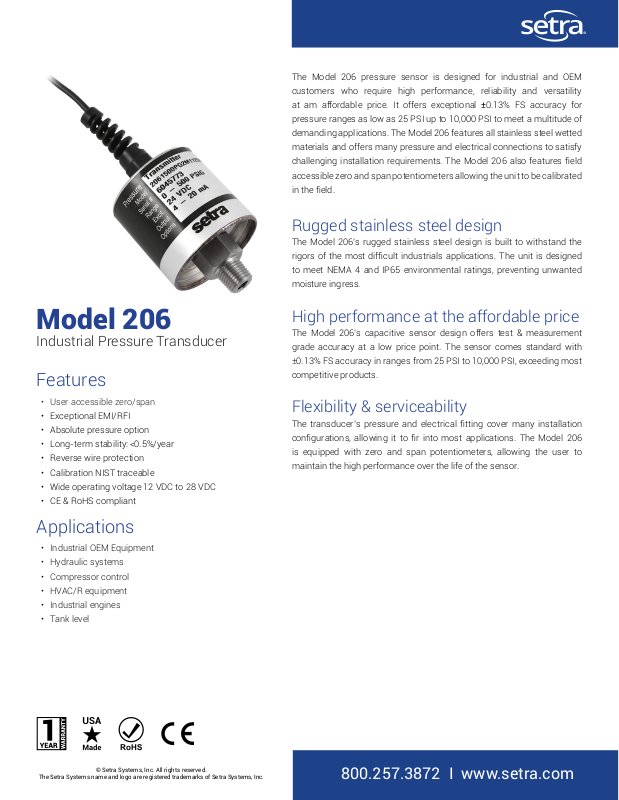

Setra 206 Specifications
The Model 206 pressure sensor is designed for industrial and OEM
customers who require high performance, reliability and versatility
at am affordable price. It offers exceptional ±0.13% FS accuracy for
pressure ranges as low as 25 PSI up to 10,000 PSI to meet a multitude of
demanding applications. The Model 206 features all stainless steel wetted
materials and offers many pressure and electrical connections to satisfy
challenging installation requirements. The Model 206 also features eld
accessible zero and span potentiometers allowing the unit to be calibrated
in the eld.
Rugged stainless steel design
The Model 206’s rugged stainless steel design is built to withstand the
rigors of the most difcult industrials applications. The unit is designed
to meet NEMA 4 and IP65 environmental ratings, preventing unwanted
moisture ingress.
Model 206
Industrial Pressure Transducer
Features
• User accessible zero/span
• Exceptional EMI/RFI
• Absolute pressure option
• Long-term stability: <0.5%/year
• Reverse wire protection
• Calibration NIST traceable
• Wide operating voltage 12 VDC to 28 VDC
• CE & RoHS compliant
Applications
• Industrial OEM Equipment
• Hydraulic systems
• Compressor control
• HVAC/R equipment
• Industrial engines
• Tank level
High performance at the affordable price
The Model 206’s capacitive sensor design offers test & measurement
grade accuracy at a low price point. The sensor comes standard with
±0.13% FS accuracy in ranges from 25 PSI to 10,000 PSI, exceeding most
competitive products.
Flexibility & serviceability
The transducer’s pressure and electrical tting cover many installation
congurations, allowing it to r into most applications. The Model 206
is equipped with zero and span potentiometers, allowing the user to
maintain the high performance over the life of the sensor.
The Setra Systems name and logo are registered trademarks of Setra Systems, Inc.
© Setra Systems, Inc. All rights reserved.
800.257.3872 I www.setra.com
Model 206 I Industrial Pressure Transducer
Specications
Performance data
Accuracy RSS
(at constant temperature)
Non-linearity, (BFSL) 25 PSIG range
Hysteresis ±0.08% FS
Non-repeatability ±0.02% FS
Response time 5 milliseconds
Long term stability 0.5% FS/YR
1
2
±0.13% FS
±0.1% FS
±0.2% FS
Thermal effects
Compensated range -4 to +176°F (-20 to +80ºC)
Zero shift ±1% FS/100°F (±0.9% FS/50ºC)
Span shift ±1.5% FS/100°F (±1.4% FS/50ºC)
Electrical data (voltage)
Excitation/ output
Power consumption
8
Output
reverse excitation protected
(approx. 5mA @24VDC)
See ordering information
Output impedance 100 ohms
Circuit 3-wire (exc, out, com)
Vibration 200g operating
12 to 28 VDC
<0.15 watts
Physical description
Pressure ttings See ordering information
Vent Through electrical termination
Electrical connection See ordering information
Case Stainless steel
Zero/Span adjustments Top external access
Weight (approx.) 6 oz.
Environmental data
Operating temperature4 -40 to 185°F (-40 to +85°C)
Storage temperature -40 to +185°F (-40 to +85°C)
Acceleration 10g Maximum
6
Shock
Vibration 20g 50-2000 Hz
Electrical data (current)
Circuit 2-wire
9
10
Output
External load See ordering information
Min. supply voltage (VDC)= 9 + 0.02 x (resistance of receiver plus line)
Max. supply voltage (VDC)= 30 + 0.004 x (resistance of receiver plus line)
200g operating
4 to 20 mA
5
11
Approvals
CE, RoHS
1
RSS of non-linearity, non-repeatability hysteresis
2
25 PSIG range accuracy is ±0.22% of full scale output
3
Hydrogen not recommended for use with 17-4 PH stainless steel
4
The high temperature limit of the cable is 200°F (95°C)
5
Shift in output reading <0.05 psi/g typical: pressure port axis only
6
Mil-Std. 202, method 213B, cond. C
Overpressure capability
Bar ranges
Gauge pressure Proof pressure Burst pressure
0-1.6 6 32
0-4.0 10 50
0-6.0 18 60
0-10 30 80
1-16 32 130
0-25 50 170
0-40 80 240
0-60 120 300
0-100 200 400
0-160 250 500
0-250 380 550
0-400 600 800
0-700 800 1,350
Pressure media
Gases or liquids compatible with 17-4 PH stainless steel.
7
Mil-Std, 202, method 204, cond. C
8
Calibrated into a 50K ohm load, operable into a 5000 ohm load or greater
9
Zero output factory set to w/in ±25mV. Span (FS) output factory set to w/in ±50mV
10
Calibrated at factory with ±25VDC loop supply voltage and 250ohm load
11
Zero output factory set to w/in ±0,08mA. Span (FS) output factory set to win ±0,16mA
*Specifications subject to change without notice.
3
PSIG ranges
Gauge pressure Proof pressure Burst pressure
0-25 100 500
0-50 150 750
0-100 300 1,000
0-250 500 2,000
1-500 1,000 3,000
0-1,000 2,000 5,000
0-3,000 4,500 7,500
0-5,000 7,500 10,000
0-10,000 12,500 20,000
NOTE: Setra quality standards are based on ANSI-Z540-1. The calibration of this product is NIST traceable.
