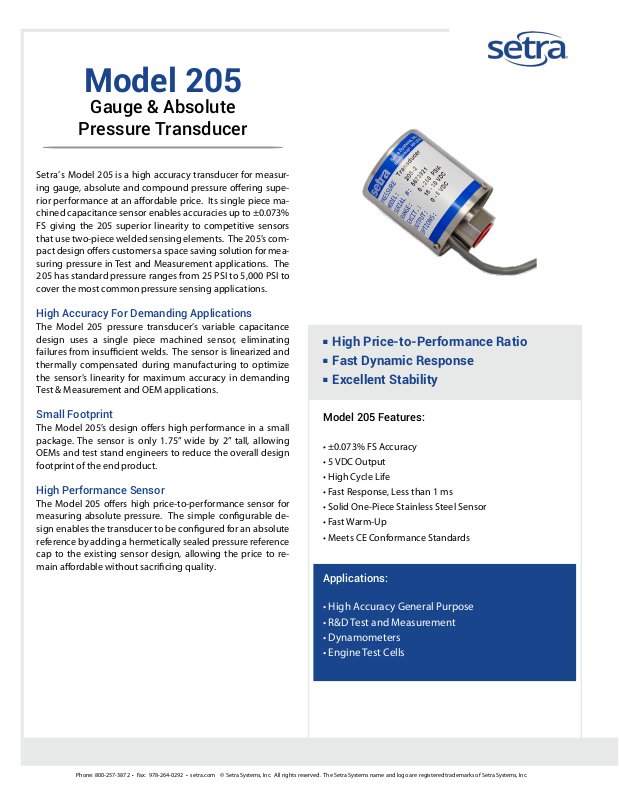

Setra 205 Specifications

Model 205

Gauge & Absolute

Pressure Transducer

Setra’ s Model 205 is a high accuracy transducer for measuring gauge, absolute and compound pressure oering superior performance at an aordable price. Its single piece machined capacitance sensor enables accuracies up to ±0.073% FS giving the 205 superior linearity to competitive sensors that use two-piece welded sensing elements. The 205’s compact design oers customers a space saving solution for measuring pressure in Test and Measurement applications. The 205 has standard pressure ranges from 25 PSI to 5,000 PSI to cover the most common pressure sensing applications.

High Accuracy For Demanding Applications

The Model 205 pressure transducer’s variable capacitance design uses a single piece machined sensor, eliminating failures from insucient welds. The sensor is linearized and thermally compensated during manufacturing to optimize the sensor’s linearity for maximum accuracy in demanding Test & Measurement and OEM applications.

High Price-to-Performance Ratio

Fast Dynamic Response

Excellent Stability

Small Footprint

The Model 205’s design oers high performance in a small package. The sensor is only 1.75” wide by 2” tall, allowing OEMs and test stand engineers to reduce the overall design footprint of the end product.

High Performance Sensor

The Model 205 oers high price-to-performance sensor for measuring absolute pressure. The simple congurable design enables the transducer to be congured for an absolute reference by adding a hermetically sealed pressure reference cap to the existing sensor design, allowing the price to remain aordable without sacricing quality.

Model 205 Features:

• ±0.073% FS Accuracy

• 5 VDC Output

• High Cycle Life

• Fast Response, Less than 1 ms

• Solid One-Piece Stainless Steel Sensor

• Fast Warm-Up

• Meets CE Conformance Standards

Applications:

• High Accuracy General Purpose

• R&D Test and Measurement

• Dynamometers

• Engine Test Cells

Model 205

Gauge & Absolute Pressure Transducer

ORDERING INFORMATION

2 0 5 1

Model Pressure Range Units Pressure Type Fitting Output Termination Accuracy Options

2051=Model 205 025 25 PSI P PSI G Gauge 2F 1/4” NPT Internal 2B 0 to 5 VDC 02 2’ Cable W ±0.11% FS NN None

050 50 PSI A Absolute 27 1 to 5 VDC 10 10’ Cable 9

100 100 PSI 25 25’ Cable D Mate with Datum

250 250 PSI XX Consult factory for other lengths F Nema 4 Enclosure

500 500 PSI L Etched SS Tag

10C 1000 PSI Y Clean for Oxygen SVC

30C 3000 PSI 3

50C 5000 PSI

Ordering Example: 2051025PG2F2B02WNN - Model 205, 0 to 25 PSI, Gauge pressure, 1/4” NPT Internal tting, 0 to 5 VDC output, 2’ Cable Length, ±0.11% FS Accuracy, no options.

2 F

Option 710

Both boxes must lled in alphabetical order:

• If No options: N + N

• If 1 option: Option Code + N

• If 2 options: Option Code + Option Code

±0.073% C 11 PT Cal. Certicate

-65 to 250 oF Compensated Range

DIMENSIONS GENERAL SPECIFICATIONS

PRESSURE PORT 1/4” - 18 NPT

205-2 1030725 0-100 PSIG 18-30 VDC 0-5 VDC

0.875

2.00 51

INTERNAL

2.42 62

BOTTOM VIEW

PROOF PRESSURE

Standard Pressure

Ranges (PSI)

0-25 50 150 2.0

0-50 75 200 2.5

0-100 150 500 3.5

0-250 375 1000 5.0

0-500 750 1500 8.0

0-1000 1250 3000 11.0

0-3000 3750 4500 15.0

0-5000 6000 7500 25.0

NOTE: Setra quality standards are based on ANSI-Z540-1. The calibration of this product traceable.

Proof Pressure

(PSI)

Burst Pressure

Rating (PSI)

Approx. Natural

Frequency

Performance Data Physical Description

Accuracy RSS

±0.11% FS Case Stainless Steel

(at constant temperature)

Non-Linearity, (BFSL) ±0.10% FS Electrical Connection 2ft. Multiconductor Cable

1.75

Hysteresis 0.05% FS Pressure Fitting 1/4” - 18 NPT Internal

Non-Repeatability 0.02% FS Weight 4 ounces

Thermal Eects

Environmental Data

Compensated Range °F(ºC) +32 to +150 (0 to +650) Temperature

Zero Shift %FS/°F (%FS/ºC) ±0.02 (±0.036) Operating °F(ºC)

0 to +175 (-18 to +79)

Span Shift %FS/°F (%FS/ºC) ±0015 (±0.027) Storage °F(ºC) -65 to +250 (-54 to +121)

Warm-Up Shift 0.5% FS (0.1% FS residual shift after

Vibration 2g from 5 Hz to 500 Hz

5 minutes)

Response Time 1 Millisecond Shock 50g

Static Acceleration Eect 0.05 psig Accceleration 10g Maximum

Pressure Media Available Options

Gases or liquids compatible with 17-4 PH and 15-5 PH Stainless Steel.3Elelctrical Options

Electrical Data (Voltage)

Circuit 4-Wire (+Exc, -Exc, +Out, -Out) Performance Options

Excitation 18 to 30 VDC Option #702 Extended Compensated Tem-

Output

Output Impedance 400 ohms

Output Noise 100 Microvolts RMS (0 Hz to 10 KHz) Mechanical Options

1 RSS of Non-Linearity, Hysteresis and Non-Repeatability.

Units calibrated at nominal 70oF. Maximum thermal error is computed from this

datum.

Hydrogyn not recommended for use with 17-4 PH or 15-5 PH Stainless Steels.

Operating temperature limits of the electronics only. Pressure media temperatures

may be considerably higher or lower.

Calibrated into a 50K ohm load.

Zero output factory set to within ±50mV. Span (Full Scale) output factory set to within ±50mV. NOTE: Both output leads are nominally 1.6 VDC above the negative excitation lead at zero pressure. Either negative excitation or negative output should be connected to case (ground). But both leads cannot be connected to case (ground). Unit is calibrated at the factory with the negative excitation connected to case (ground).

0 to 5 VDC

Option #602 Special Output 1-5 VDC

perature -65oF to +250oF (-55oC to +121oC). Results in 2x the standard thermal eect error.

Option #803-#825 Up to 25 ft. of cable can be sup-

plied. Specify cable length when ordering (i.e. 805 for 5 ft. cable). Consult factory for cable lengths longer than 25 ft.

Option #865 NEMA4 Weatherproof Enclosure

Calibration Certicate Option

Option #901 11-Point Calibration Certicate

SSP205 REV G 9/2014
