Set-N-Serv WU-WUD-24 Specifications

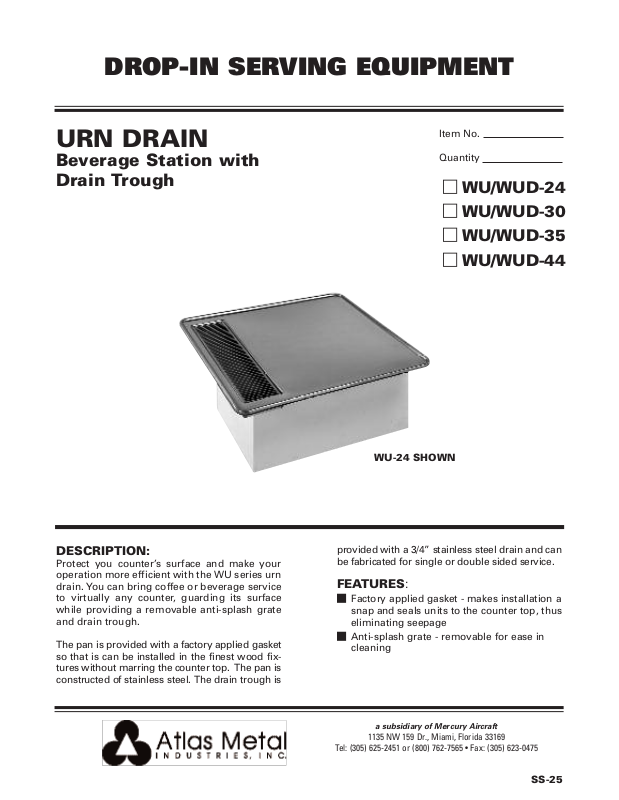

DROP-IN SERVING EQUIPMENT
URN DRAIN
Beverage Station with
Item No.
Quantity
Drain Trough
WU-24 SHOWN
WU/WUD-24
WU/WUD-30
WU/WUD-35
WU/WUD-44
DESCRIPTION:
Protect you counter’s surface and make your
operation more efficient with the WU series urn
drain. You can bring coffee or beverage service
to virtually any counter, guarding its surface
while providing a removable anti-splash grate
and drain trough.
The pan is provided with a factory applied gasket
so that is can be installed in the finest wood fixtures without marring the counter top. The pan is
constructed of stainless steel. The drain trough is
provided with a 3/4” stainless steel drain and can
be fabricated for single or double sided service.
FEATURES:
Factory applied gasket - makes installation a
snap and seals units to the counter top, thus
eliminating seepage
Anti-splash grate - removable for ease in
cleaning
a subsidiary of Mercury Aircraft
1135 NW 159 Dr., Miami, Florida 33169
Tel: (305) 625-2451 or (800) 762-7565 • Fax: (305) 623-0475
SS-25
URN DRAIN
Beverage Station with Drain Trough
WU-Series Single Urn Drain
MODEL “A”
WU-24 24 4-3/4” X 20” 5” X 20-1/2” 30
WU-30 30 4-3/4” X 25-5/8” 5” X 26-1/4” 30
WU-35 35 4-3/4” X 31” 5” X 31-1/2” 30
WU-44 44 4-3/4” X 39-1/2” 5” X 40” 45
TROUGH
DIMENSION
24”
CUT-OUT
REQUIRED
A
SHIP WT.
(lbs.)
WUD-Series Double Urn Drain
MODEL “A”
WUD-24 24 4-3/4” X 20” (2) 5” X 20-1/2” 30
WUD-30 30 4-3/4” X 25-5/8” (2) 5” X 26-1/4” 30
WUD-35 35 4-3/4” X 31” (2) 5” X 31-1/2” 40
WUD-44 44 4-3/4” X 39-1/2” (2) 5” X 40” 50
UT-OUTS IN COUNTER TOP
C
TROUGH
DIMENSION
CUT-OUT
REQUIRED
SHIP WT.
(lbs.)
Plan View
2 1/2”
2 3/8”
4”
Elevation End View
SPECIFICATIONS:
TOP: Constructed of 18 gauge, type 304 stainless
steel, die stamped with a raised perimeter bead.
There shall be a solid vinyl gasket under the beaded
edge to form a seal to the counter top, thus preventing seepage or marring of the counter top. Stainless
steel flat top extends the full length and width.
URN TROUGH: (1EA.), on WU-series units; (2 EA.),
on WUD- series units - 4-3/4” x 1-3/4” deep drain
trough is/are provided in each top section, with 1/4”
minimum coved corners for ease in cleaning. The
trough has a 3/4” dia. stainless steel drain fitting
1 3/16”
4 3/4”
welded to one end on operator’s left. The trough is
provided with a removable, die stamped anti-splash
grate.
Specifications subject to change without notice.
