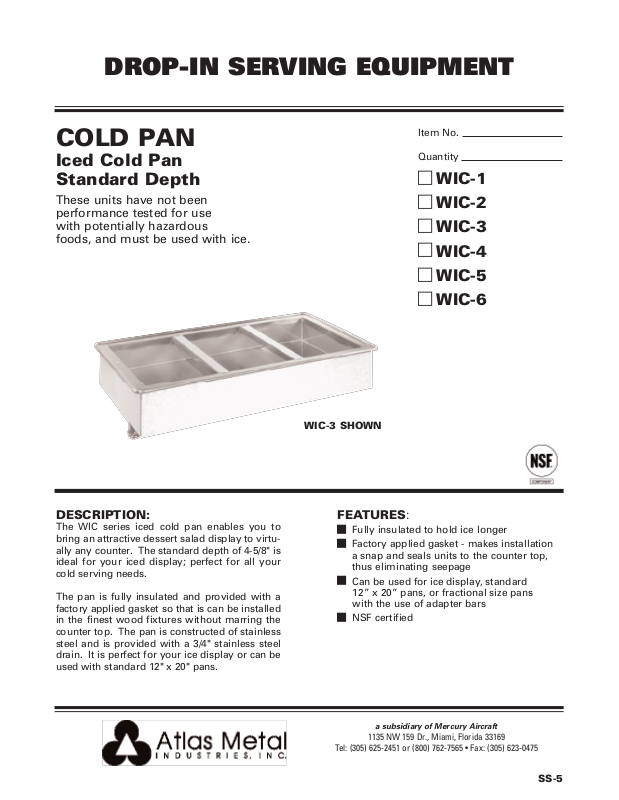

Set-N-Serv WIC-1 Specifications
DROP-IN SERVING EQUIPMENT
COLD PAN
Iced Cold Pan
Standard Depth
Item No.
Quantity
WIC-1
These units have not been
performance tested for use
with potentially hazardous
foods, and must be used with ice.
WIC-3 SHOWN
WIC-2
WIC-3
WIC-4
WIC-5
WIC-6
DESCRIPTION:
The WIC series iced cold pan enables you to
bring an attractive dessert salad display to virtually any counter. The standard depth of 4-5/8" is
ideal for your iced display; perfect for all your
cold serving needs.
The pan is fully insulated and provided with a
factory applied gasket so that is can be installed
in the finest wood fixtures without marring the
counter top. The pan is constructed of stainless
steel and is provided with a 3/4" stainless steel
drain. It is perfect for your ice display or can be
used with standard 12" x 20" pans.
FEATURES:
Fully insulated to hold ice longer
Factory applied gasket - makes installation
a snap and seals units to the counter top,
thus eliminating seepage
Can be used for ice display, standard
12” x 20” pans, or fractional size pans
with the use of adapter bars
NSF certified
a subsidiary of Mercury Aircraft
1135 NW 159 Dr., Miami, Florida 33169
Tel: (305) 625-2451 or (800) 762-7565 • Fax: (305) 623-0475
SS-5
COLD PAN
Iced Cold Pan Standard Depth
MODEL
WIC-1 1 16” 19-7/8” X 11-3/4” X 4-5/8” 22-1/4” X 14-1/4” 25
WIC-2 2 29-3/4” 19-7/8” X 25-1/2” X 4-5/8” 22-1/4” X 28” 42
WIC-3 3 43-1/2” 19-7/8” X 39-1/4” X 4-5/8” 22-1/4” X 41-3/4” 60
WIC-4 4 57-1/4” 19-7/8” X 53” X 4-5/8” 22-1/4” X 55-1/2” 70
WIC-5 5 71” 19-7/8” X 66-3/4” X 4-5/8” 22-1/4” X 69-1/4” 85
WIC-6 6 84-3/4” 19-7/8” X 80-1/2” X 4-5/8” 22-1/4” X 83” 100
PAN
OPENINGS
12”
24”
1
“A” PAN SIZE
A
2”
Plan View
CUT-OUT
REQUIRED
Removable separator
channels
SHIP WT.
(lbs.)
19 7/8” ID
6 5/8”
2 3/4”
Elevation
SPECIFICATIONS:
TOP: Constructed of 18 gauge, type 304 stainless
steel, die stamped with a raised perimeter bead.
There shall be a solid vinyl gasket under the beaded
edge to form a seal to the counter top, thus preventing seepage or marring of the counter top.
Embossed mounting lugs are provided along the
inner surface of the top to hold the removable
adapter bars in place.
LINER: The inner liner shall be 18 gauge, type 304
stainless steel, one piece construction, all welded,
ground and polished to a uniform finish. All corners
are coved with a minimum 1/4" radius. A 3/4" dia.
drain with strainer, 4" PVC nipple, and valve is provided.
4 5/8” ID
4 1/2”
End View
INSULATION: The pain is fully insulated with high
density polystyrene, 1" thick on all sides, 2" thick on
the bottom and enclosed with a 22 gauge galvanized
steel outer lines. the entire unit is removable without the use of tools.
Specifications subject to change without notice.
ACCESSORIES:
Stainless steel adapter bars
Stainless steel perforated false bottom
SS-6
a subsidiary of Mercury Aircraft
1135 NW 159 Dr., Miami, Florida 33169
Tel: (305) 625-2451 or (800) 762-7565 • Fax: (305) 623-0475
10/07-SC
