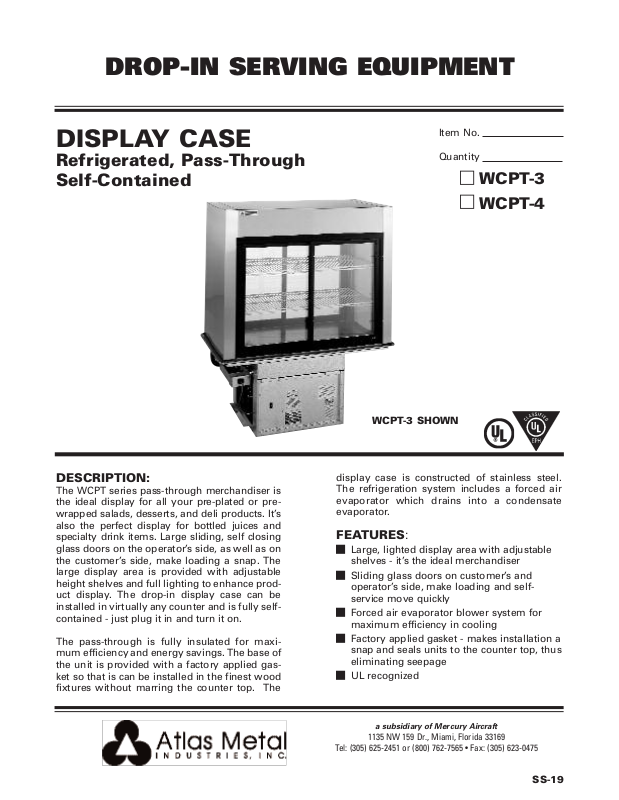

Set-N-Serv WCPT-3 Specifications
DROP-IN SERVING EQUIPMENT
DISPLAY CASE
Refrigerated, Pass-Through
Self-Contained
Item No.
Quantity
c
WCPT-3
c
WCPT-4
DESCRIPTION:
The WCPT series pass-through merchandiser is
the ideal display for all your pre-plated or prewrapped salads, desserts, and deli products. It’s
also the perfect display for bottled juices and
specialty drink items. Large sliding, self closing
glass doors on the operator’s side, as well as on
the customer’s side, make loading a snap. The
large display area is provided with adjustable
height shelves and full lighting to enhance product display. The drop-in display case can be
installed in virtually any counter and is fully selfcontained - just plug it in and turn it on.
The pass-through is fully insulated for maximum efficiency and energy savings. The base of
the unit is provided with a factory applied gasket so that is can be installed in the finest wood
fixtures without marring the counter top. The
WCPT-3 SHOWN
display case is constructed of stainless steel.
The refrigeration system includes a forced air
evaporator which drains into a condensate
evaporator.
FEATURES:
g
Large, lighted display area with adjustable
shelves - it’s the ideal merchandiser
g
Sliding glass doors on customer’s and
operator’s side, make loading and selfservice move quickly
g
Forced air evaporator blower system for
maximum efficiency in cooling
g
Factory applied gasket - makes installation a
snap and seals units to the counter top, thus
eliminating seepage
g
UL recognized
a subsidiary of Mercury Aircraft
1135 NW 159 Dr., Miami, Florida 33169
Tel: (305) 625-2451 or (800) 762-7565 • Fax: (305) 623-0475
SS-19
DISPLAY CASE
Refrigerated, Pass-Through Self-Contained
MODEL “A”
WCPT-3 43-1/2
c
WCPT-4 57-1/4
c
24”
ELECTRICAL
CHARACTERISTICS
11.0 amps. - 120V
1/2 HP
11.0 amps. - 120V
1/2 HP
A
Plan View
CUT-OUT
REQUIRED
22-1/4” X 41-3/4” 440 12 CU FT.
22-1/4” X 55-1/2” 520 16 CU FT.
SHIP WT.
(lbs.)
1/2”
6
1”
3 1/2”
”
3
CUBIC
FEET
27”
7”
21 1/2”
Elevation
33 1/2”
3 1/2”
13”
21 1/2”
End View
SPECIFICATIONS:
TOP: Constructed of 18 gauge, type 304 stainless
steel, die stamped with a raised perimeter bead. The
top is solid, full-length, to support the refrigerated display case. There shall be a solid vinyl gasket under the
beaded edge to form a seal to the counter top, thus
preventing seepage or marring of the counter top.
DISPLAY CASE: Double wall constructed of type
304 stainless steel - 20 gauge, both interior and exterior, and filled with 2" of foamed-in-place polyurethane insulation. Customer's side and operator's
side are provided with a set of two (2) sliding, selfclosing, thermo-pane insulated glass doors. The
doors are removable for ease of cleaning. The display
case is provided with two (2) plastic coated wire
shelves, adjustable on 1" increments and two (2) sets
of fluorescent light fixtures mounted behind plastic
guards, which are recessed into the side panels. The
light fixtures are provided with a separate on/off
switch. An internal thermometer is provided.
REFRIGERATION SYSTEM:
ing shall be fabricated from 14 gauge galvanized and
bolted to the base of the unit. A fully self-contained
condensing unit is provided with a hermetically
sealed compressor and a thermostat control. The
system is also provided with a forced air evaporator
The compressor hous-
for even temperature throughout the display case,
and drains into a condensate evaporator pre-wired
in the unit. The system is fully charged with CFC free
refrigerant and ready to operate.
NOTE: Proper ventilation must be provided in counter.
ELECTRICAL: The unit will be wired for 15 amps., 120
volt, single phase operation with an on/off thermostat
switch and pilot light. A 6' long, 3-wire cord and plug
(NEMA 5-15P) will be provided.
Specifications subject to change without notice.
ACCESSORIES:
c
5-year compressor warranty
c
Solid back for single sided service
c
Extra shelf
c
Plastic laminate trim, specify color
c
* 220V - 50 cycle compressor
c
Transparent mirror on one side
c
Door locking device
c
Solid glass front
c
Remote compressor
c
Remote switch
Note: Units with these accessories * are not currently UL listed
a subsidiary of Mercury Aircraft
1135 NW 159 Dr., Miami, Florida 33169
Tel: (305) 625-2451 or (800) 762-7565 • Fax: (305) 623-0475
SS-20
01/10-SC
