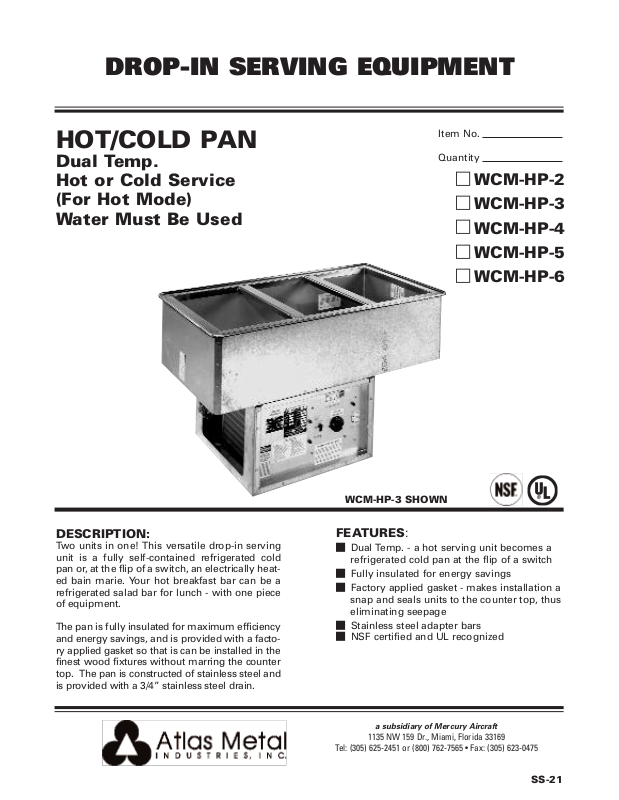

Set-N-Serv WCM-HP-3 Specifications
DROP-IN SERVING EQUIPMENT
HOT/COLD PAN
Dual Temp.
Hot or Cold Service
Item No.
Quantity
c
WCM-HP-2
(For Hot Mode)
Water Must Be Used
c
WCM-HP-3
c
WCM-HP-4
c
WCM-HP-5
c
WCM-HP-6
DESCRIPTION:
Two units in one! This versatile drop-in serving
unit is a fully self-contained refrigerated cold
pan or, at the flip of a switch, an electrically heated bain marie. Your hot breakfast bar can be a
refrigerated salad bar for lunch - with one piece
of equipment.
The pan is fully insulated for maximum efficiency
and energy savings, and is provided with a factory applied gasket so that is can be installed in the
finest wood fixtures without marring the counter
top. The pan is constructed of stainless steel and
is provided with a 3/4” stainless steel drain.
WCM-HP-3 SHOWN
FEATURES:
g
Dual Temp. - a hot serving unit becomes a
refrigerated cold pan at the flip of a switch
g
Fully insulated for energy savings
g
Factory applied gasket - makes installation a
snap and seals units to the counter top, thus
eliminating seepage
g
Stainless steel adapter bars
g
NSF certified and UL recognized
a subsidiary of Mercury Aircraft
1135 NW 159 Dr., Miami, Florida 33169
Tel: (305) 625-2451 or (800) 762-7565 • Fax: (305) 623-0475
SS-21
HOT/COLD PAN
Dual Temp. Hot or Cold Service
MODEL “A” PAN SIZE
WCM-HP-2 29-3/4 19-7/8” X 25-1/2” X 9-1/2” 16.7 amps. - 2KW - 120V 2.4 amps. - 120V - 1/5 HP L5-30P 170
c
WCM-HP-3 43-1/2 19-7/8” X 39-1/4” X 9-1/2” 16.7 amps. - 2KW - 120V 2.4 amps. - 120V - 1/5 HP L5-30P 185
c
WCM-HP-4 57-1/4 19-7/8” X 53” X 9-1/2”
c
WCM-HP-5 71 19-7/8” X 66-3/4” X 9-1/2”
c
WCM-HP-6 84-3/4 19-7/8” X 80-1/2” X 9-1/2”
c
COUNTER
CUT-OUT REQUIRED
* Units are wired to prevent simultaneous operation in the hot and cold mode. NOTE: 240 volt units are also available in
08 volts. Numeral following the model letters denotes the 12” x 20” pan capacity.
2
14.4 amps. - 3KW - 208V
12.8 amps. - 3KW- 240V
19.3 amps. - 4KW- 208V
16.7 amps. - 4KW - 240V
19.3 amps. - 4KW- 208V
16.7 amps. - 4KW - 240V
ELECTRICAL CHARACTERISTICS
HOT OPERATION COLD OPERATION
7.5 amps. - 120V - 1/4 HP
7.5 amps. - 120
9.8 amps. - 120V - 1/3 HP
9.8 amps. - 120V - 1/3 HP
9.8 amps. - 120V - 1/3 HP
9.8 amps. - 120V - 1/3 HP
V - 1/4 HP
2 28 3/4 X 23 1/4
3 42 1/2 X 23 1/4
4 56 1/4 X 23 1/4
5 70 X 23 1/4
6 83 3/4 X 23 1/4
19 7/8”
24”
12”
12”
A
11”
13”
NEMA
CONFIGURATION
L14-20P
L14-20P
L14-30P
L14-30P
L14-30P
L14-30P
WCM-HP-2 4 3/8” 14”
WCM-HP-3 6 1/2” 21 1/2”
CM-HP-46 1/2”21 1/2”
W
WCM-HP-5 6 1/2” 21 1/2”
CM-HP-66 1/2”21 1/2”
W
1/2”
9
SHIP WT.
(lbs.)
235
265
310
B C
2 3/4”
Plan View
B
SPECIFICATIONS:
TOP: Constructed of 18 gauge, type 304 stainless
steel, die stamped with a raised perimeter bead.
There shall be a solid vinyl gasket under the beaded
edge to form a seal to the counter top, thus preventing seepage or marring of the counter top.
Embossed mounting lugs are provided along the
inner surface of the top to hold the removable adapter
bars in place. A full set of adapter bars is provided.
LINER: The inner liner shall be 18 gauge, type 304
stainless steel, one piece construction, all welded,
ground and polished to a uniform finish. All corners
are coved with a minimum 1/4" radius. The liner has
copper tubing firmly soldered to the exterior sides. A
3/4" dia. drain with strainer, 4" PVC nipple, and valve
is provided.
INSULATION: The pan is fully insulated with high
density polystyrene, 1-3/8" thick on all sides, 1-1/2"
thick on the bottom and enclosed with a 22 gauge
galvanized steel outer liner. The entire unit is removable without the use of tools.
HEATING ELEMENT: The bottom of the pan is provided with an immersion type heating element, covered with a perforated stainless steel sheath and a
thermostat control. For safety, the element will oper-
C
Elevation
21 1/2”
End View
ate only when fully submerged in water
REFRIGERATION SYSTEM:
The compressor housing
shall be fabricated from formed angles and bolted to
the base of the unit. A fully self-contained condensing
unit is provided with a hermetically sealed compressor
and a thermostat control. The system is fully charged
with CFC free refrigerant and ready to operate.
NOTE: Proper ventilation must be provided in counter.
ELECTRICAL: The unit is pre-wired with a hot/cold
selector switch that prevents dual operation and the
required thermostat controls and pilot light. The unit
is provided with a 6' long, 3-wire cord and a twist lock
plug.
Specifications subject to change without notice.
ACCESSORIES:
c
Stainless steel adapter plate
c
5-year compressor warranty
c
Remote compressor
c
Automatic water fill
c
Remote switch
SS-22
