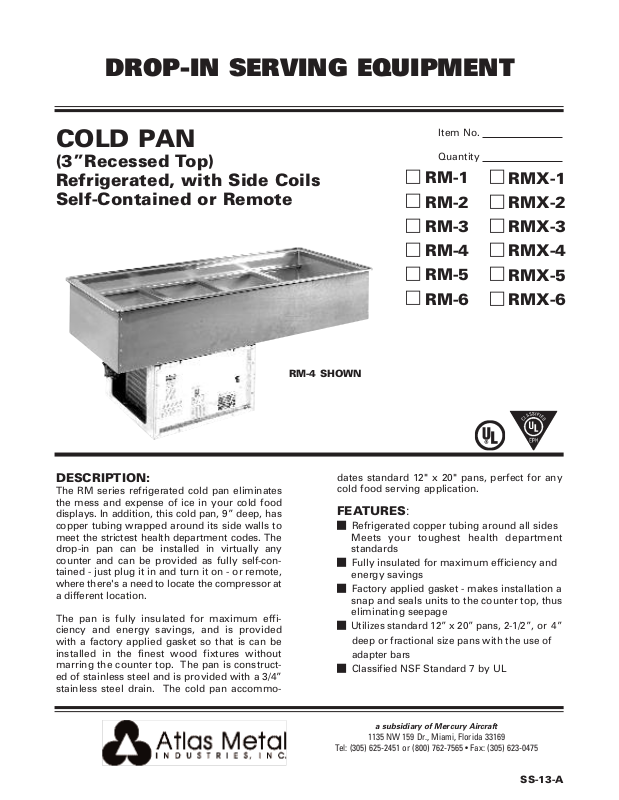

Set-N-Serv RM-RMX-3 Specifications
DROP-IN SERVING EQUIPMENT
COLD PAN
(3”Recessed Top)
Refrigerated, with Side Coils
c
Item No.
Quantity
RM-1
c
RMX-1
Self-Contained or Remote
DESCRIPTION:
The RM series refrigerated cold pan eliminates
the mess and expense of ice in your cold food
displays. In addition, this cold pan, 9” deep, has
copper tubing wrapped around its side walls to
meet the strictest health department codes. The
drop-in pan can be installed in virtually any
counter and can be provided as fully self-contained - just plug it in and turn it on - or remote,
where there's a need to locate the compressor at
a different location.
The pan is fully insulated for maximum efficiency and energy savings, and is provided
with a factory applied gasket so that is can be
installed in the finest wood fixtures without
marring the counter top. The pan is constructed of stainless steel and is provided with a 3/4”
stainless steel drain. The cold pan accommo-
RM-4 SHOWN
dates standard 12" x 20" pans, perfect for any
cold food serving application.
FEATURES:
g
Refrigerated copper tubing around all sides
Meets your toughest health department
standards
g
Fully insulated for maximum efficiency and
energy savings
g
Factory applied gasket - makes installation a
snap and seals units to the counter top, thus
eliminating seepage
g
Utilizes standard 12” x 20” pans, 2-1/2”, or 4”
deep or fractional size pans with the use of
adapter bars
g
Classified NSF Standard 7 by UL
c
c
c
c
c
RM-2
RM-3
RM-4
RM-5
RM-6
c
RMX-2
c
RMX-3
c
RMX-4
c
RMX-5
c
RMX-6
a subsidiary of Mercury Aircraft
1135 NW 159 Dr., Miami, Florida 33169
Tel: (305) 625-2451 or (800) 762-7565 • Fax: (305) 623-0475
SS-13-A
COLD PAN
Refrigerated, with Side Coils Self-Contained or Remote
MODEL
RM-1 1 18-1/4 19-7/8” X 11-7/8” X 9”
c
c
RM-2 2 32 19-7/8” X 25-5/8” X 9”
RM-3 3 45-3/4 19-7/8” X 39-3/8” X 9”
c
RM-4 4 59-1/2 19-7/8” X 53-1/8” X 9”
c
RM-5 5 73-1/4 19-7/8” X 66-7/8” X 9”
c
RM-6 6 87 19-7/8” X 80-5/8” X 9”
c
** Remote refrigeration does not include compressor.
3 1/8”
1
6 1/4”
2
13 1/8”
S/S Inserts
PAN
OPENINGS
A
Plan View
“A” PAN SIZE
10 1/2”
13”
ELECTRICAL
CHARACTERISTICS
3.0 amps. - 120V
6.0 amps. - 120V
6.0 amps. - 120V
7.8 amps. - 120V
10.7 amps. - 120V
10.7 amps. - 120V
Removable separator
channels
B
C
Elevation
1/5 HP
1/4 HP
1/4 HP
1/3 HP
1/2 HP
1/2 HP
CUT-OUT
REQUIRED
24-1/2” X 16-1/2” 146
24-1/2” X 30-1/4” 205
24-1/2” X 44” 250
24-1/2” X 57-3/4” 280
24-1/2” X 71-1/2” 305
24-1/2” X 85-1/4” 370
22 1/8” ID
D
End View
RM
WEIGHT
REMOTE*
REFRIGERATION
MODEL
RMX-1 85
c
RMX-2 140
c
RMX-3 185
c
RMX-4 215
c
RMX-5 240
c
RMX-6 300
c
”
3
6”
2”
B C D
RM-1 6” 18” 13 3/4”
RM-2 7” 21 1/2” 21 5/8”
RM-3 7” 21 1/2” 21 5/8”
RM-4 7” 21 1/2” 21 5/8”
RM-5 7” 21 1/2” 21 5/8”
RM-6 7” 21 1/2” 21 5/8”
RMX
LESS COMP.
SPECIFICATIONS:
TOP: Constructed of 18 gauge, type 304 stainless
steel, die stamped with a raised perimeter bead.
There shall be a solid vinyl gasket under the beaded
edge to form a seal to the counter top, thus preventing seepage or marring of the counter top.
LINER: The inner liner shall be 18 gauge, type 304
stainless steel with 3” recessed top, one piece construction, all welded, ground and polished to a uniform finish. All corners are coved with a minimum
1/4" radius. The liner has copper tubing firmly soldered to the top 3” of all sides. A 3/4" dia. drain with
strainer, 4" PVC nipple, and valve is provided.
INSULATION: The pan is fully insulated with high
density polystyrene, 1" thick on all sides, 2" thick on
the bottom and enclosed with a 22 gauge galvanized
steel outer lines. The entire unit is removable without the use of tools.
REFRIGERATION SYSTEM:
shall be fabricated from formed angles /and bolted to
the base of the unit. A fully self-contained condensing
unit is provided with a hermetically sealed compressor
and a thermostat control. The system is fully charged
with HFC free refrigerant and ready to operate.
The compressor housing
NOTE: Proper ventilation must be provided in counter.
ELECTRICAL: (RM series only) The unit will be wired
for 15 amps., 120 volt, single phase operation with an
on/off thermostat switch and pilot light. A 6' long, 3wire cord and plug (NEMA 5-15P) will be provided.
Specifications subject to change without notice.
ACCESSORIES:
c
Remote switch
c
Stainless steel adapter bars
c
5-year extended compressor warranty
c
Remote compressor (hook-up in field by others)
c
1/5 HP for RM-1
c
1/4 HP for RM-2 & RM-3
c
1/3 HP for RM-4
c
1/2 HP for RM-5
c
1/2 HP for RM-6
c
Condensate evaporator
SS-14-A
a subsidiary of Mercury Aircraft
1135 NW 159 Dr., Miami, Florida 33169
Tel: (305) 625-2451 or (800) 762-7565 • Fax: (305) 623-0475
01/10-SC
