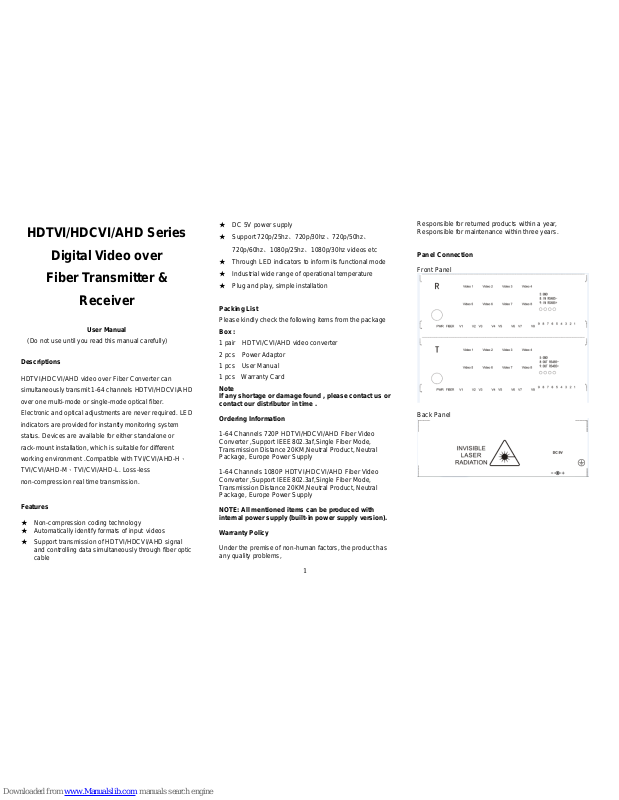

HDTVI/HDCVI/AHD Series

Digital Video over

Fiber Transmitter &

Receiver

User Manual

(Do not use until you read this manual carefully)

Descriptions

HDTVI/HDCVI/AHD video over Fiber Converter can
simultaneously transmit 1-64 channels HDTVI/HDCVI/AHD
over one multi-mode or single-mode optical fiber.
Electronic and optical adjustments are never required. LED
indicators are provided for instantly monitoring system
status. Devices are available for either standalone or
rack-mount installation, which is suitable for different
working environment .Compatible with TVI/CVI/AHD-H、
TVI/CVI/AHD-M、TVI/CVI/AHD-L. Loss-less
non-compression real time transmission.

Features

★ Non-compression coding technology
★ Automatically identify formats of input videos

★ Support transmission of HDTVI/HDCVI/AHD signal

and controlling data simultaneously through fiber optic
cable

★ DC 5V power supply
★ Support 720p/25hz、720p/30hz、720p/50hz、

720p/60hz、1080p/25hz、1080p/30hz videos etc

★ Through LED indicators to inform its functional mode
★ Industrial wide range of operational temperature
★ Plug and play, simple installation

Packing List

Please kindly check the following items from the package

Box :

1 pair HDTVI/CVI/AHD video converter
2 pcs Power Adaptor
1 pcs User Manual
1 pcs Warranty Card

Note
If any shortage or damage found , please contact us or
contact our distributor in time .

Ordering Information

1-64 Channels 720P HDTVI/HDCVI/AHD Fiber Video
Converter ,Support IEEE802.3af,Single Fiber Mode,
Transmission Distance 20KM,Neutral Product, Neutral
Package, Europe Power Supply

1-64 Channels 1080P HDTVI/HDCVI/AHD Fiber Video
Converter ,Support IEEE802.3af,Single Fiber Mode,
Transmission Distance 20KM,Neutral Product, Neutral
Package, Europe Power Supply

NOTE: All mentioned items can be produced with
internal power supply (built-in power supply version).

Warranty Policy

Under the premise of non-human factors, the product has
any quality problems,

Responsible for returned products within a year,
Responsible for maintenance within three years.

Panel Connection

Front Panel

Back Panel

2

LED Indicator description :

LED

Description

Fiber interface

Warning: When the device is power on

don’t

look directly into the eyes，in order to

avoid eyesight damage

Video

interface

VIDEO INPUT

PWR

After power on ,pointing lights, cut off the

power, lights off

RX

Light on when optical signal received,

Lights off when no signal pass

Instruction of installation

Before you install

（1）Here we have 5 pieces of product in total.1
piece of transmitter,1 piece of receiver, I piece of user’s
manual and 2 pieces of power supply unit.

（2）Please read the user’s manual carefully before
you install the product.

（3）Please read safety instruction carefully.

（4）Please note the sticker on the device,T is

transmitter, R is receiver.

Procedure of installation

（1）Connect optical Transmitter and camera or
other output device. And connect with fiber. Then power

device on.

（2）Connect optical Receiver and monitor. And

connect with fiber. Then power device on.

（3）Responsibility instruction
（4）Customer will take the responsibility for the loss

if returns/replacement is damaged during transportation.

（5）Please contact us directly if devices are

damaged during transportation from our side.

（6）We’ll not be responsible for the damage if

devices are damaged with customers’ own power

supply.

（7）Please use the power supply strictly as per the

user’s manual.

（8）We’ll not be responsible for anyone who amend
the manual or add some features our product. This may
cause damage for other external devices.

Warning

（I）in order to save the loss, please read the
following item carefully.

（2）The product has a good reliability on original
design. But still need avoid human damage.

（3）Please read the instruction carefully, and keep it
well .

（4）Please keep the device away from water or
other damp place

（5）Please don’t cover anything on the wire of
power supply and arrange it a safe place.

（6）Please connect all part tightly, especially the
power supply unit with the socket.

（7）When power devices on, please make sure the
power supply you are using can meet the below
request：

AC input：220V（100～260V）， 50～60Hz

DC output：5V/1A

Please cut off the power and contact us with
below situation.

（1）water ruin the equipment
（2）Devices break(including the shell break)
（3）Devices work abnormally
（4） Gas ,smog or noise from equipment.

Do not repair the device on your own.

Please arrange thunder protect device when

install the product outdoor.

Applications Diagram
