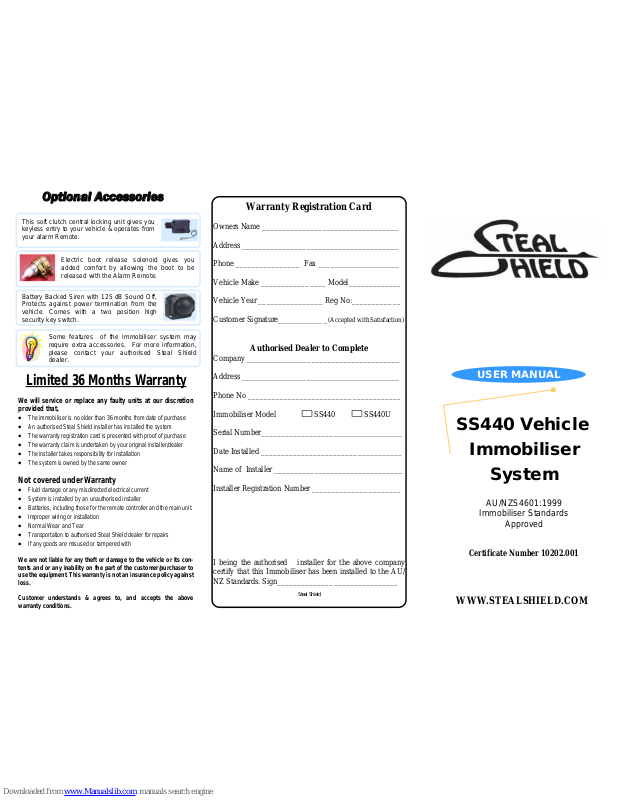

Seteal Shield SS440 User Manual

USER MANUAL

AU/NZS4601:1999

Immobiliser Standards

Approved

SS440 Vehicle

Immobiliser

System

WWW.STEALSHIELD.COM

Limited 36 Months Warranty

We will service or replace any faulty units at our discretion
provided that,

•

The immobiliser is no older than 36 months from date of purchase

• An authorised Steal Shield installer has installed the system

• The warranty registration card is presented with proof of purchase

• The warranty claim is undertaken by your original installer/dealer

• The installer takes responsibility for installation

• The system is owned by the same owner

Not covered under Warranty

• Fluid damage or any misdirected electrical current

• System is installed by an unauthorised installer

• Batteries, including those for the remote controller and the main unit.

• Improper wiring or installation

• Normal Wear and Tear

• Transportation to authorised Steal Shield dealer for repairs

• If any goods are misused or tampered with

We are not liable for any theft or damage to the vehicle or its con­tents and or any inability on the part of the customer/purchaser to
use the equipment. This warranty is not an insurance policy against
loss.

Customer understands & agrees to, and accepts the above
warranty conditions.

Warranty Registration Card

Owners Name __________________________________

Address _______________________________________

Phone ________________ Fax ____________________

Vehicle Make ________________ Model_____________

Vehicle Year ________________ Reg No:____________

Customer Signature___________ _

(Accepted with Satisfaction)

Authorised Dealer to Complete

Company ______________________________________

Address _______________________________________

Phone No ______________________________________

Immobiliser Model SS440 SS440U

Serial Number___________________________________

Date Installed ___________________________________

Name of Installer ________________________________

Installer Registration Number ______________________

I being the authorised installer for the above company
certify that this Immobiliser has been installed to the AU/
NZ Standards. Sign______________________________

Steal Shield

Certificate Number 10202.001

Battery Backed Siren with 125 dB Sound Off,
Protects against power termination from the
vehicle. Comes with a two position high
security key switch.

Electric boot release solenoid gives you
added comfort by allowing the boot to be
released with the Alarm Remote.

This soft clutch central locking unit gives you
keyless entry to your vehicle & operates from
your alarm Remote.

Some features of the Immobiliser system may
require extra accessories. For more information,
please contact your authorised Steal Shield
dealer.

Optional Accessories

INTRODUCTION

Congratulations! on being a proud owner of a Steal Shield.
This Immobiliser system will give you piece of mind against
burglars and intruders.

This Product has been approved by the AU/NZS4601:1999
Immobiliser Standards. To obtain the best results from your
security system, we suggest you read the instruction manual
carefully.

STEAL SHIELD “a shield you can trust”

EMERGENCY DISARM

Digital Pin Code Override System!

The system can be disarmed by entering 5 digits of the over­ride no. Each digit is entered individually using the ignition
switch. Following example shows how the override number
45258 would be used. “Digital pin should have been given by
the installer”

1. Turn the ignition on while the system is armed, the LED will
stay on.

2. Turn the ignition OFF, the LED will start flashing. Count the
number of flashes. After the 4

th

flash, turn the ignition on. The

LED will stay on.

3. Turn the ignition off, and count the number of flashes. After
the 5

th

flash, turn the ignition on. The LED will stay on.

4. Turn the ignition off, and count the number of flashes. After
the 2

nd

flash, turn the ignition on. The LED will stay on.

5. Turn the ignition off, and count the number of flashes. After
the 5

th

flash, turn the ignition on. The LED will stay on.

6. Turn the ignition off, and count the number of flashes. After
the 8

th

flash, turn the ignition on. The siren will chirp once and

the system will disarm.

Note

If the digit is a “0”, wait 10 flashes before turning ignition “on”
Should you miss the LED flashes or enter a digit incorrectly,
wait for 11 flashes and simply repeat the procedure from step
one then re-enter from the first digit of the override code.

SYSTEM FEATURES

Rolling Code Remote’s

Each time the remote is used, the code changes. The system brain will
only respond to a certain code once, so any attempt to "record and play
back" a remote transmission with a code copier , will not be accepted by
the system brain.

Auto Engine Immobilliser

35 seconds after you turn the ignition off, system immobilise the vehicle.

Security Re-Arm

System will re-arm if it is disarmed & a door is not opened within 35 sec­onds.

Indicator Flash

Gives a visual indication of the system arm, disarm & trigger.

Theft Deterrent LED

This is normally installed in the dash board, to desc ribe the visual s tatus of
the system to warn the intruders.

Immobiliser

When ever the system is armed, it disables the car engine from being
started, making it harder to steal. If the battery is disconnected and re­reconnected, the system will return to the original state.

Personal Protection Alarm
Works as a personal alarm to grab attention.

Digital LED Reporting

The LED will give a digital diagnostic code to tell you the status;
2 F/S System Armed & 10 F/S Auto Arming, and Security Re-Arm.

Error Sector Isolation
If any sector triggers for 3 times or more when armed, it will automatically
isolate it, till the next arm.

IMPORTANT NOTICE

The digital pin card supplied by the Installer mus t be kept in a sec ure plac e
as this contains your unique pin number to disable the system in an emer­gency.

SYSTEM OPERATION

Arming the System

1. Press & release the transmitter button #1.

2. Two chirp & Indicators flash verifies system is on.

3. Doors will lock ( Central Locking must be installed).

4. LED will flash slowly.

Disarming the System

1. Press and release the transmitter button #1.

2. One chirp & Indicators will stay on for 10 Sec. System is off
doors will unlock (Central locking must be installed).

Personal Protection Alarm (Panic)

1. Press and hold the transmitter button #1 for 3 sec.

2. Siren will sound & Indicators will flash for 3 min’s.

3. To cancel Panic press button #1.

Trunk Release Option

Press and hold the transmitter button #2 for 3 sec. Two chirps & Indi­cators flash indicates operation of trunk release (if installed).

One Time Soft Chirp

(Arm/Disarm chirp can be temporarily disabled from your remote)

1. Press & release transmitter button #2

2. Press & release transmitter button for desired function.

Precautions

• We suggest you test the system weekly to maximize protection for your car

• If you jump start your car, always use a surge protected jump lead to prevent any damage to the

alarm system

• If a mobile phone is left in the car with the power on, it can give false alarms due to the radio
waves emitted from the phone

Button #2

Button #1
