SES- FA1
USER MANUAL
Sescom SES-FA1 2-Channel Line Level
Audio Over Fiber Extender Kit
Page 2
812 Kings Hwy • Saugerties, NY 12477 • www.sescom.com
2
Sescom SES-FA1 2-Channel Line Level
Audio Over Fiber Extender Kit
Perfect for many types of studios, broadcasting, OB vans, rental & staging, auditoriums,
stadiums, houses of worship and theaters & more!
AC Powered
The Sescom FA1 is powered by world voltage ac adapters, the kit includes two power adapters: one
for the transmitter unit (Tx) and one for the receiver unit (Rx).
Line Level Audio Over Fiber
The Sescom FA1 provides two unbalanced inputs via RCA connectors.
Ready to Use Out of the Box, Just Add Fiber
Complete transmitter & receiver system with professional ST fiber Connectors and XLR audio XLR’s!
The SES-FA1 has a range of 20Km using singlemode fiber and up to 2Km on multimode fiber cable.
Page 3
812 Kings Hwy • Saugerties, NY 12477 • www.sescom.com
3
Features and Specifications
• Complete Transmitter and Receiver System
• 24-Bit Digitally Encoded Analog Audio
• Supports Multimode Fiber up to 2km [50/125u multimode, 62.5/125u multimode]
• Supports Singlemode Fiber up to 20km [9/125u Single mode]
• Single-Fiber Digital Transmission
• Stand-Alone or Rack-Shelf Mountable
• 2-Channel Line Level Analog Audio to Fiber Converter
• AC world voltage adapters [100v-240v AC 50/60Hz input range]
• Max Input Level: +3dB
• Gold Plated RCA inputs and outputs
• Sampling Rate: 48Khz
• Signal to Noise Ratio >70 dB
• Industry Standard Operational Temperature Range: -10*C to +75*C
• Storage Temperature Range: -40*C to +85*C
• Humidity Operating Range up to 95%/non-condensing
• 30mS delay from input to output over operating system
• Large Dynamic Optical Budget Range Requires No Optical Adjustments
Page 4
812 Kings Hwy • Saugerties, NY 12477 • www.sescom.com
4
INCLUDED COMPONENTS WITH THE SES- FA1

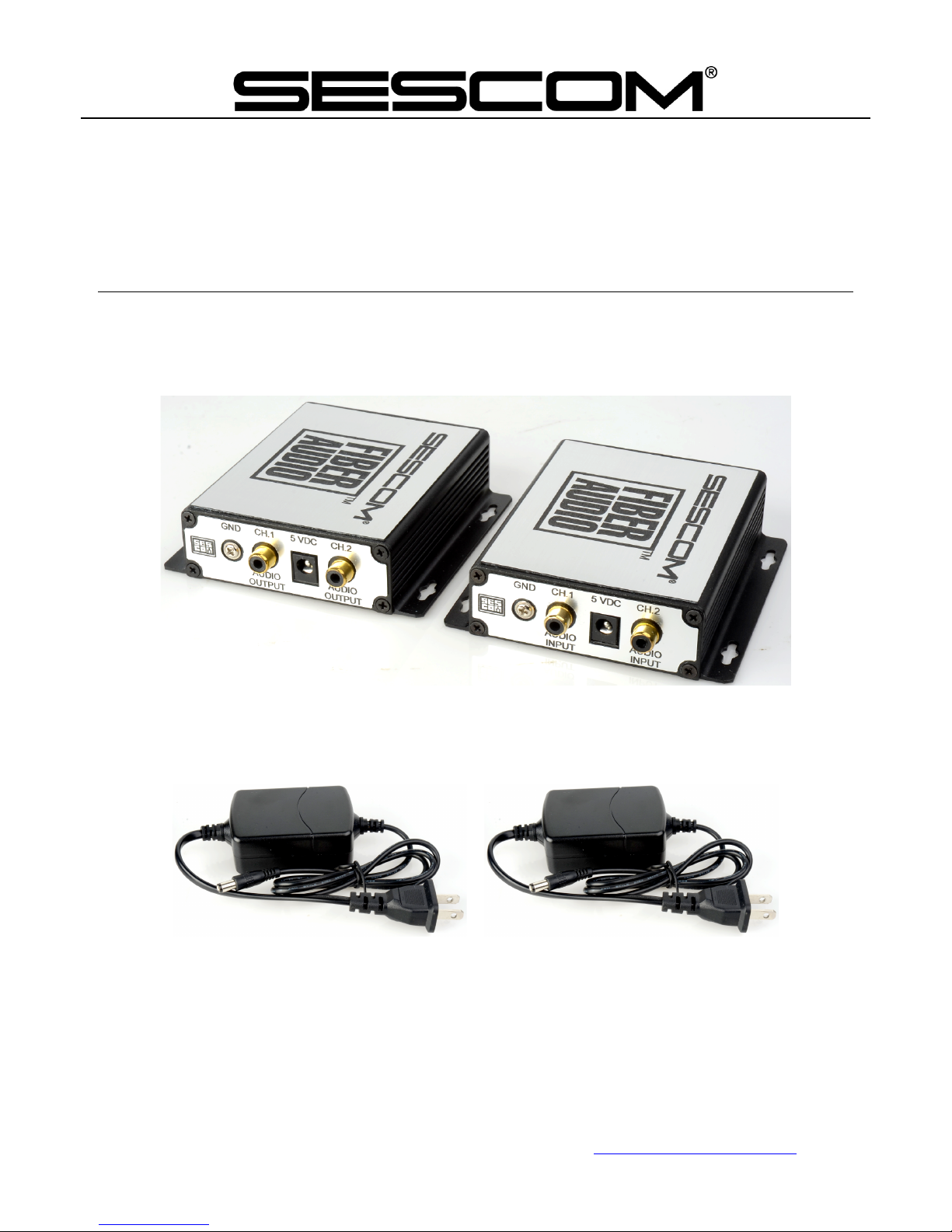

The main transmitter unit and receiver unit comprise the SES-FA1 system:
Two AC power adapters*
*The Tx and Rx units are powered by the 5VDC 2Amp world voltage [100v-240v AC 50/60Hz input
range] AC power adpaters shown above
Page 5
812 Kings Hwy • Saugerties, NY 12477 • www.sescom.com
5
The SES-FA1 is shipped in environmentally conscious packaging material to keep the SES-FA1 safe
for transportation and can be used for temporary storage when better forms of storage are not
available
SES- FA1 S ET UP INSTRUCTIONS
1. Secure the units in a safe location, where they will not be bumped or dropped or fall and where
there is room around the unit so nothing will interfere with the fiber optic cabling causing it to
bend in a tight radius or bend sharply in any way as this can severely affect the signal transfer
2. Carefully connect your source(s) to the transmitters input(s) and the receiver units output(s) to
your receiving devices input(s) using the RCA inputs on the transmitter and the RCA output
connectors on the receiver unit,
3. Please note that all audio, on either the transmitter (Tx) or receiver (Rx) unit, must be line level!
4. CLEAN* the ST fiber optical cable contacts that will be used for connecting the Tx and Rx units
and insert the fiber into the ST connections and secure like you would secure a bayonet BNC:
while pressing lightly in on the connector twist it in a clockwise direction about 1/8 to 1/4 of a
turn and then release, the connector should stay inserted and have backwards spring pressure
holding the bayonet in place
5. Lastly connect the AC power supplies to the units and plug the power adapters into an ac
power source: 100v-240v AC 50/60Hz input range –this will power up the units
*ALL FIBER OPTICAL CABLE CONTACTS [THE ENDS ARE CALLED CONTACTS: THE PART THAT IS
INSERTED AND MAKES CONTACT TO ENABLE THE TRANSMISSION OF THE LIGHTWAVES THROUGH THE
Page 6
812 Kings Hwy • Saugerties, NY 12477 • www.sescom.com
6
FIBER] REQUIRE CLEANING EVERYTIME BEFORE INSERTING INTO A DEVICES OUTPUTS OR
INPUTS.FAILURE TO CLEAN THE CONTACTS CAN NOT ONLY DAMAGE THE UNITS OPTICS OVER TIME BUT
CAN RENDER THE CABLE AND THE DEVICE USELESS PERMANENTLY. FURTHERMORE CLEANING WITH
CLEANING METHODS OTHER THAN CLEANING KITS SPECIFICALLY FOR FIBER OPTICS ARE
UNACCEPTBLE AND MAY EVEN ADD CONTAMINANTS THAT CANNOT BE SEEN BY THE NAKED EYE TO
THE FIBER AGAIN RENDERING THE SYSTEM USELESS, PLEASE CLEAN THE FIBER OPTICAL CONTACTS
EVERYTIME PRIOR TO INSERTING THE CONNECTOR INTO THE JACK ON THE UNITS –FIBER OPTIC
CLEANING KITS ARE AVAILABLE FROM YOUR DEALER/SUPPLIER
SAFETY PRECAUTIONS
1. To prevent fire or shock hazard, do not expose this equipment to an environment of high
humidity and/or dust. Do not use in an unprotected outdoor installation or any area classified
as overly damp or wet
2. The temperature for installation should be kept between 0°C - 60°C. Avoid direct sunlight
exposure or extreme changes of temperature over a short period of time
3. Do not disassemble the unit or put it on an unstable base
4. Do not drop it and avoid heavy impact
5. Ventilation: Any openings in the enclosure are provided for ventilation and to ensure
reliable operation of the unit and to protect it from overheating. These openings, if any, must
not be blocked or covered. This unit should not be placed in a built-in installation unless
proper ventilation is provided
6. Cleaning: Unplug the unit from the mains outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners, only use a damp cloth
7. Do not overload outlets and extension cords as this may result in a risk of fire or electric
shock
Page 7
812 Kings Hwy • Saugerties, NY 12477 • www.sescom.com
7
8. Enclosure Entry of any kind is dangerous. Never push objects of any kind, including
liquids, into this unit through openings as they may touch dangerous voltage points or
short-out parts that could result in a fire or electric shock
9. Service: Do not attempt to open or service this unit yourself as opening or removing
covers may expose you to dangerous voltage of other hazards
10. There are no user-serviceable parts inside the unit. If the unit requires service please
contact your authorized dealer, or an authorized repair service company
