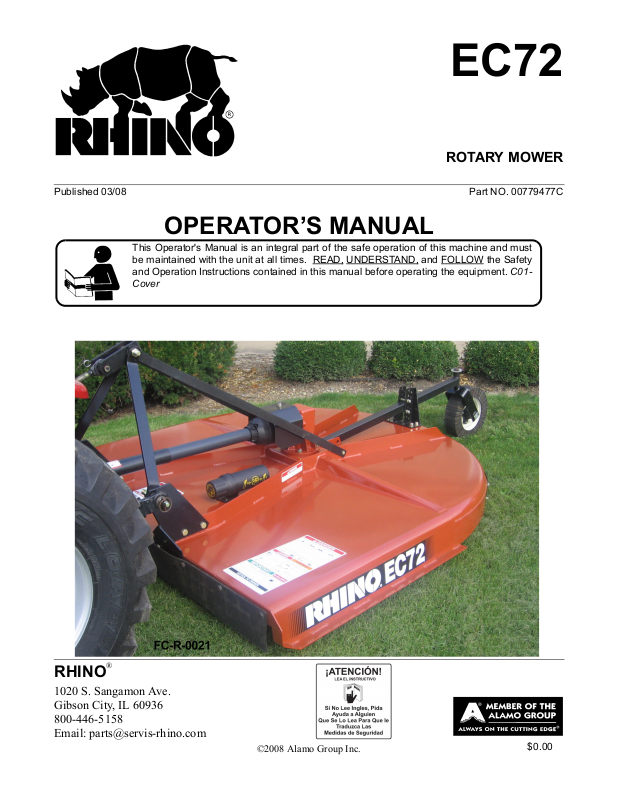

Servis-Rhino EC72 User Manual

Page 1

EC72

ROTARY MOWER

Published 03/08 Part NO. 00779477C

OPERATOR’S MANUAL

This Operator's Manual is an integral part of the safe operation of this machine and must be maintained with the unit at all times. READ, and Operation Instructions contained in this manual before operating the equipment. C01-

Cover

UNDERSTAND, and FOLLOW the Safety

RHINO®

1020 S. Sangamon Ave. Gibson City, IL 60936 800-446-5158 Email: parts@servis-rhino.com

$0.00

Page 2

To the Owner/Operator/Dealer

All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded operator who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance of accidents.

BEFORE YOU START!! Read the safety messages on the implement and shown in your manual. Observe the rules of safety and common sense!

WARRANTY INFORMATION:

Read and understand the complete Warranty Statement found in this Manual. Fill out the Warranty Registration Form in full and return it to within 30 Days. Make certain the Serial Number of the Machine is recorded on the Warranty Card and on the Warranty Form that you retain

Page 3

SAFETY SECTION ........................................................................................ 1-1

General Safety Instructions and Practices ........................................................................................................ 1-2

Operator Safety Instructions and Practices ...................................................................................................... 1-3

Equipment Operation Safety Instructions and Practices................................................................................... 1-5

Connecting or Disconnecting Implement Safety Instructions and Practices ................................................... 1-10

Transporting Safety Instructions and Practices .............................................................................................. 1-11

Maintenance and Service Safety Instructions and Practices .......................................................................... 1-13

Storage and Parking Safety Instructions and Practices .................................................................................. 1-15

Concluding Safety Instructions and Practices................................................................................................. 1-15

Decal Location ................................................................................................................................................ 1-16

Decal Description............................................................................................................................................ 1-18

Federal Laws and Regulations ....................................................................................................................... 1-23

INTRODUCTION SECTION ........................................................................... 2-1

ASSEMBLY SECTION................................................................................... 3-1

DEALER SETUP INSTRUCTIONS................................................................................................................... 3-2

SHIELD ASSEMBLY......................................................................................................................................... 3-2

A-FRAME INSTALLATION ............................................................................................................................... 3-3

TAILWHEEL INSTALLATION ........................................................................................................................... 3-4

SHEAR BOLT or SLIP CLUTCH DRIVELINE INSTALLATION ........................................................................ 3-5

Front Deflectors and Rear Metal Band (Standard Equipment) ........................................................................ 3-5

CHECK CHAINS (Extra Equipment) - FIGURE Asm-R-0279 ........................................................................... 3-7

OFFSET ADAPTER HITCH (EXTRA EQUIPMENT) ........................................................................................ 3-8

OPERATION SECTION ................................................................................. 4-1

Standard Equipment and Specifications ........................................................................................................... 4-3

OPERATOR REQUIREMENTS ........................................................................................................................ 4-4

TRACTOR REQUIREMENTS........................................................................................................................... 4-5

ROPS and Seat Belt ......................................................................................................................................... 4-5

Tractor Safety Devices...................................................................................................................................... 4-5

Tractor Horsepower .......................................................................................................................................... 4-6

3-Point Hitch ..................................................................................................................................................... 4-6

Front End Weight .............................................................................................................................................. 4-6

Power Take Off (PTO) ...................................................................................................................................... 4-6

GETTING ON AND OFF THE TRACTOR ........................................................................................................ 4-7

Boarding the Tractor ......................................................................................................................................... 4-7

Dismounting the Tractor.................................................................................................................................... 4-8

STARTING THE TRACTOR ............................................................................................................................. 4-8

CONNECTING THE MOWER TO THE TRACTOR .......................................................................................... 4-9

Connecting Mower ............................................................................................................................................ 4-9

Safety Chains.................................................................................................................................................. 4-10

SETTING THE MOWER ................................................................................................................................. 4-10

Setting Mower Height- Lift Type - (Standard or Quick Hitch) .......................................................................... 4-10

Setting Deck Pitch........................................................................................................................................... 4-11

DRIVELINE ATTACHMENT ........................................................................................................................... 4-12

Driveline Length Check................................................................................................................................... 4-12

PRE-OPERATION INSPECTION AND SERVICE.......................................................................................... 4-14

Tractor Pre-Operation Inspection/Service....................................................................................................... 4-15

Page 4

Mower Pre-Operation Inspection/Service ....................................................................................................... 4-15

Cutting Component Inspection........................................................................................................................ 4-18

Blade Bolt Inspection ...................................................................................................................................... 4-20

DRIVING THE TRACTOR AND IMPLEMENT ................................................................................................ 4-23

Starting the Tractor ......................................................................................................................................... 4-24

Brake and Differential Lock Setting................................................................................................................. 4-24

Raising the Mower .......................................................................................................................................... 4-25

Driving the Tractor and Mower........................................................................................................................ 4-25

Crossing Ditches and Steep Inclines .............................................................................................................. 4-26

OPERATING THE TRACTOR AND IMPLEMENT.......................................................................................... 4-27

Foreign Debris Hazards .................................................................................................................................. 4-28

Bystanders/Passersby Precautions ................................................................................................................ 4-28

Engaging the Power Take Off (PTO) .............................................................................................................. 4-29

PTO RPM and Ground Speed ........................................................................................................................ 4-30

Operating the Mower ...................................................................................................................................... 4-30

Shutting Down the Implement ......................................................................................................................... 4-33

DISCONNECTING THE MOWER FROM THE TRACTOR ............................................................................ 4-34

MOWER STORAGE ....................................................................................................................................... 4-36

TRANSPORTING THE TRACTOR AND IMPLEMENT .................................................................................. 4-36

Transporting on Public Roadways .................................................................................................................. 4-37

Hauling the Tractor and Implement................................................................................................................. 4-39

TROUBLESHOOTING GUIDE ....................................................................................................................... 4-41

MAINTENANCE SECTION ............................................................................ 5-1

Lubrication ........................................................................................................................................................ 5-2

GEARBOX ........................................................................................................................................................ 5-3

DRIVELINE LUBRICATION .............................................................................................................................. 5-4

BLADE SERVICING ......................................................................................................................................... 5-5

BLADE SHARPENING ..................................................................................................................................... 5-5

BLADE CARRIER REMOVAL/INSTALLATION ................................................................................................ 5-6

BLADE CARRIER REMOVAL .......................................................................................................................... 5-6

BLADE CARRIER INSTALLATION .................................................................................................................. 5-6

BLADE REMOVAL............................................................................................................................................ 5-7

MOWER STORAGE ......................................................................................................................................... 5-8

TORQUE CHART ............................................................................................................................................. 5-8

GEARBOX SERVICING ................................................................................................................................... 5-9

GEARBOX DISASSEMBLY............................................................................................................................ 5-10

INPUT SHAFT DISASSEMBLY AND ASSEMBLY (Figure Mnt-R-0212)........................................................ 5-11

GEARBOX INPUT SHAFT REAR BEARING.................................................................................................. 5-13

Page 5

In order to reduce accidents and enhance the safe operation of mowers, Alamo Group Ag Division, in cooperation with other industry manufacturers has developed the AEM/FEMA Industrial and Agricultural Mower Safety Practices video and guide book.

The video will familiarize and instruct mower-tractor operators in safe practices when using industrial and agricultural mowing equipment. It is important that Every Mower Operator be educated in the operation of their mowing equipment and be able to recognize the potential hazards that can occur while operating a mower. This video, along with the mower operator’s manual and the warning messages on the mower, will significantly assist in this important education.

Your Authorized Alamo Ag Dealer may have shown this video and presented you a DVD Video when you purchased your mower. If you or any mower operator have not seen this video, Watch the Video, Read this Operator’s Manual, and Complete the Video Guidebook before operating your new mower. If you do not understand any of the instructions included in the video or operator’s manual or if you have any questions concerning safety of operation, contact your supervisor, dealer or Alamo Group Ag.

If you would like a VHS video tape of the video, please e-mail AEMVideo@alamo-group.com or Fax AEM VHS Video at (830) 372-9529 or mail in a completed copy of the form on the back of this page to AEM VHS Video 1502 E Walnut Street, Seguin, TX 78155. and request the VHS video version. Please include your name, mailing address, mower model and serial number.

Every operator should be trained for each piece of equipment (Tractor and Mower), understand the intended use, and the potential hazards before operating the equipment.

Page 6

Alamo Group Ag. Division is willing to provide

one (1) AEM Mower Safety Practices Video

Please Send Me: VHS Format – AEM/FEMA Mower Operator Safety Video

DVD Format – AEM/FEMA Mower Operator Safety Video

Mower Operator’s Manual

AEM Mower Operator’s Safety Manual

Requester Name Phone:

Requester Address:

City

State

Zip Code

Mower Model: Serial Number:

Date Purchased: Dealer Salesperson:

Dealership Name: Dealership Location:

Mail to:

AEM Video Services

1502 E Walnut street

Seguin, TX 78155

Or Fax to:

(830) 372-9529

Or E-mail to:

AEMVideo@alamo-group.com

Page 7

SAFETY SECTION

Safety Section 1-1

Page 8

SAFETY

General Safety Instructions and Practices

A careful operator is the best operator. Safety is of primary importance to the manufacturer and should be to the owner/operator. Most accidents can be avoided by being aware of your equipment, your surroundings, and observing certain precautions. The first section of this manual includes a list of Safety Messages that, if followed, will help protect the operator and bystanders from injury or death. Read and understand these Safety Messages before assembling, operating or servicing this Implement. This equipment should only be operated by those persons who have read the Manual, who are responsible and trained, and who know how to do so responsibly.

The Safety Alert Symbol combined with a Signal Word, as seen below, is used throughout this manual and on decals which are attached to the equipment. The Safety Alert Symbol means: “ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!” The Symbol and Signal Word are intended to warn the owner/operator of impending hazards and the degree of possible injury faced when operating this equipment.

SAFETY

Practice all usual and customary safe working precautions and above all---remember safety is up to YOU

. Only YOU can prevent serious injury or death from unsafe practices.

Indicates an imminently hazardous situation that, if not avoided, WILL result in DEATH OR VERY SERIOUS INJURY.

Indicates an imminently hazardous situation that, if not avoided, COULD result in DEATH OR SERIOUS INJURY.

Indicates an imminently hazardous situation that, if not avoided, MAY result in MINOR INJURY.

Identifies special instructions or procedures that, if not strictly observed, could result in damage to, or destruction of the machine, attachments or the environment.

NOTE: Identifies points of particular interest for more efficient and convenient operation or

(SG-1)

repair.

READ, UNDERSTAND, and FOLLOW the following Safety Messages. Serious injury or death may occur unless care is taken to follow the warnings and instructions stated in the Safety Messages. Always use good common sense to avoid hazards.

Si no lee ingles, pida ayuda a alguien que si lo lea para que le traduzca las medidas de seguridad.

(SG-3)

(SG-2)

EC72 03/08 Safety Section 1-2

Page 9

SAFETY

til

Engine Exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the state of California to cause cancer and birth defects or other reproductive harm.

Operator Safety Instructions and Practices

The rotating parts of this machine continue to rotate even after the PTO has been turned off. The operator should remain in his seat for 60 seconds after the brake has been set, the PTO disengaged, the tractor turned off, and all evidence of rotation has ceased.

Never crawl under a raised Implement supported solely by the Tractor 3-Point hitch. Release of the control lever or mechanical failure will result in the Implement falling and possible injury or death. Always securely block up the Implement before crawling underneath to perform repairs and service.

(SG-30)

“Wait a minute...Save a life!”

(S3PT-19)

(S3PT-10)

SAFETY

ever operate the Tractor or Implement un

you have read an completely understand this Manual, the Tractor Operator’s Manual, and each of the Safety Messages found in the Manual or on the Tractor and Implement. Learn how to stop the tractor engine suddenly in an emergency. Never allow inexperienced or untrained personnel to operate the Tractor and Implement without supervision. Make sure the operator has fully read and understood the manuals prior to operation.

(SG-4)

The operator and all support personnel should wear hard hats, safety shoes, safety glasses, and proper hearing protection at all times for protection from injury including injury from items that may be thrown by the equipment.

(SG-16)

PROLONGED EXPOSURE TO LOUD NOISE MAY CAUSE PERMANENT HEARING LOSS! Tractors with or without an Implement attached can often be noisy enough to cause permanent hearing loss. We recommend that you always wear hearing protection if the noise in the Operator’s position exceeds 80db. Noise over 85db over an extended period of time will cause severe hearing loss. Noise over 90db adjacent to the Operator over an extended period of time will cause permanent or total hearing loss. NOTE: Hearing loss from loud noise

[from tractors, chain saws, radios, and other such sources close to the ear] is cumulative over a lifetime without hope of natural recovery.

(SG-I7)

EC72 03/08 Safety Section 1-3

Page 10

SAFETY

ith th

Prol

tti

SAFETY

ways read carefully and comply fully w

e manufacturer’s instructions when handling oil, solvents, cleansers, and any other chemical agent.

(SG-22)

KEEP AWAY FROM ROTATING ELEMENTS to prevent entanglement and possible serious injury or death.

(SG-24)

Never allow children to play on or around Tractor or Implement. Children can slip or fall off the Equipment and be injured or killed. Children can cause the Implement to shift or fall crushing themselves or others.

(SG-25)

NEVER use drugs or alcohol immediately before or while operating the Tractor and Implement. Drugs and alcohol will affect an operator’s alertness and coordination and therefore affect the operator’s ability to operate the equipment safely. Before operating the Tractor or Implement, an operator on prescription or over-the-counter medication must consult a medical professional regarding any side effects of the medication that would hinder their ability to operate the Equipment safely. NEVER knowingly allow anyone to operate this equipment when their alertness or coordination is impaired.

Serious injury or death to the

operator or others could result if the operator is under the influence of drugs or alcohol.

(SG-27)

onged operation may cause operator boredom and fatigue affecting safe operation. Take scheduled work breaks to help prevent these potentially impaired operating conditions. Never operate the Implement and Tractor in a fatigued or bored mental state which impairs proper and safe operation.

se extreme caution when ge

ng onto the Implement to perform repairs, maintenance an

(SG-32)

when removing accumulated material. Only stand on solid flat surfaces to ensure good footing. Use a ladder or raised stand to access high spots which cannot be reached from gound level. Slipping and falling can cause serious injury or death.

Avoid contact with hot surfaces including hydraulic oil tanks, pumps, motors, valves and hose connections. Relieve hydraulic pressure before performing maintenance or repairs. Use gloves and eye protection when servicing hot components. Contact with a hot surface or fluid can cause serious injury from burns or scalding.

EC72 03/08 Safety Section 1-4

(SG-33)

(SG-34)

Page 11

SAFETY

ill b

DO NOT operate this Implement on a Tractor that is not properly maintained. Should a mechanical or Tractor control failure occur while operating, immediately shut down the Tractor and perform repairs before resuming operation. Serious injury and possible death could occur from not maintaining this Implement and Tractor in good operating condition.

(SG-36)

Avoid contact with hot surfaces of the engine or muffler. Use gloves and eye protection when servicing hot components. Contact with a hot surface or fluid can cause serious injury from burns or scalding.

Do not put hands or feet under mower decks. Blade Contact can result in serious injury or even death. Stay away until all motion has stopped and the decks are securely blocked up.

Always keep a careful lookout and use extreme care when working around utility and municipal obstructions. Never allow the Mower to contact any utility, municipal, or other type structure. Clearly mark all mowing obstructions and consult local utility providers for a safe code of operation.

(SG-38)

(SGM-9)

(SPU-5)

SAFETY

Do not operate the implement while wearing loose fitting clothing. Entanglement of th clothing with the rotating elements can result in serious injury or even death. Stay clear o all rotating elements at all times. (SSP-3)

Equipment Operation Safety Instructions and Practices

Never leave the Tractor and Implement unattended while the Implement is in the lifted position. Accidental operation of lifting lever or a hydraulic failure may cause sudden drop

of unit with injury or death by crushing. To properly park the implement when disconnecting it from the tractor, lower the stand and put the retaining pin securely in place, or put a secure support under the A-Frame. Lower the implement carefully to the ground. Do not put hands or feet under lifted components.

(S3PT-1)

This Implement is wider than the Tractor. Be careful when operating or transporting this

equipment to prevent the Implement from running into or striking sign posts, guard rails,

concrete abutments or other solid objects. Such an impact could cause the Implement and

Tractor to pivot violently resulting in loss of steering control, serious injury, or even death.

Never allow the Implement to contact obstacles.

e sure you have adequate knowledge of the property you w make yourself aware of any area underground lines or cables. Contact with buried lines o cable could result in serious injury or death. If in doubt about buried utility lines call 811 before digging or 1-800-258-0808.

(SBH-6)

(S3PT-12)

e working on. Take time to

EC72 03/08 Safety Section 1-5

Page 12

SAFETY

Do not operate Mower if excessive vibration exists. Shut down PTO and the Tractor engine. Inspect the Mower to determine the source of the vibration. If Mower blades are

missing or damaged replace them immediately. Do not operate the mower until the blades have been replaced and the Mower operates smoothly. Operating the Mower with excessive vibration can result in component failure and broken objects to be thrown outward at very high velocities. To reduce the possibility of property damage, serious injury, or even death, never allow the Mower to be operated with blades missing.

(SFL-4)

Operate this Equipment only with a Tractor equipped with an approved roll-

over-protective system (ROPS). Always wear seat belts. Serious injury or

even death could result from falling off the tractor--particularly during a turnover

when the operator could be pinned under the ROPS.

(SG-7)

SAFETY

BEFORE leaving the tractor seat, always engage the brake and/or set

the tractor transmission in parking gear, disengage the PTO, stop the

engine, remove the key, and wait for all moving parts to stop. Place the

tractor shift lever into a low range or parking gear to prevent the tractor

from rolling. Never dismount a Tractor that is moving or while the engine

is running. Operate the Tractor controls from the tractor seat only.

(SG-9)

Never allow children or other persons to ride on the Tractor or Implement. Falling off can result in serious injury or death.

(SG-10)

Never allow children to operate, ride on, or come close to the Tractor or Implement. Usually, 16-17 year-old children who are mature and responsible can operate the implement with adult supervision, if they have read and understand the Operator’s Manuals, been trained in proper operation of the tractor and Implement, and are physically large enough to reach and operate the controls easily.

(SG-11)

Do not mount the Tractor while the tractor is moving. Mount the Tractor only when the Tractor and all moving parts are completely stopped.

(SG-12)

EC72 03/08 Safety Section 1-6

Page 13

SAFETY

difficulty duri

Start tractor only when properly seated in the Tractor seat. Starting a

tractor in gear can result in injury or death. Read the Tractor operators

manual for proper starting instructions.

Do not operate this Equipment with hydraulic oil or fuel leaking. Oil and fuel are explosive and their presence could present a hazard. Do not check for leaks with your hand! High-pressure oil streams from breaks in the line could penetrate the skin and cause tissue damage including gangrene. To check for a hose leak, SHUT the unit ENGINE OFF and remove all hydraulic pressure. Wear oil impenetrable gloves, safety glasses and use Cardboard to check for evidence of oil leaks. If you suspect a leak, REMOVE the HOSE and have it tested at a Dealer. If oil does penetrate the skin, have the injury treated immediately by a physician knowledgeable and skilled in this procedure.

(SG-13)

(SG-15)

SAFETY

Never run the Tractor engine in a closed building or without adequate ventilation. The exhaust fumes can be hazardous to your health.

(SG-23)

Do not exceed the rated PTO speed for the Implement. Excessive PTO speeds can cause

Implement driveline or blade failures resulting in serious injury or death.

(SG-26)

Operate the Tractor and/or Implement controls only while properly seated in the Tractor seat with the seat belt securely fastened around you. Inadvertent movement of the Tractor or Implement may cause serious injury or death.

n case of mechanical

ng operation, place the transmission in the par

(SG-29)

position, set the parking brake, shut down all power, including the PTO and the engine and

remove the key. Wait until all rotating motion has stopped before dismounting.

(SG-39)

Do Not operate this equipment in areas where insects such as bees may attack you and/or cause you to lose control of the equipment. If you must enter in such areas, use a tractor with an enclosed Cab and close the windows to prevent insects from entering. If a tractor cab is not available, wear suitable clothing including head, face, and hand protection to shield you from the insects. Attacking insects can cause you to lose control of the tractor, which can result in serious injury or death to you or bystanders. Never dismount a moving tractor.

(SG-40)

EC72 03/08 Safety Section 1-7

Page 14

SAFETY

Ext

M M

Mow only in conditions where you have clear visibility in daylight or with adequate artificial lighting. Never mow in darkness or foggy conditions where you cannot clearly see at least 100 yards(90 m) in front and to the sides of the tractor and mower. Make sure that you can clearly see and identify passersby, steep slopes, ditches, drop-offs, overhead obstructions, power lines, debris and foreign objects. If you are unable to clearly see these type of items discontinue mowing.

There are obvious and hidden potential hazards in the operation of this Mower. REMEMBER! This machine is often operated in heavy brush

and in heavy weeds. The Blades of this Mower can throw objects if shields are not properly installed and maintained. Serious injury or even death may occur unless care is taken to insure the safety of the operator, bystanders, or passersby in the area. Do not operate this machine with anyone in the immediate area. Stop mowing if anyone is within 100 yards of mower.

(SGM-1)

(SGM-2)

SAFETY

The rotating parts of this machine have been designed and tested for rugged use. However, the blades could fail upon impact with heavy, solid objects such as metal guard rails and concrete structures. Such impact could cause the broken objects to be thrown outward at very high velocities. To reduce the possibility of property damage, serious injury, or even death, never allow the cutting blades to contact such obstacles.

(SGM-4)

reme care should be taken when operating near loose objects suc as gravel, rocks, wire, and other debris. Inspect the area before mowing. Foreign objects should be removed from the site to prevent

machine damage and/or bodily injury or even death. Any objects that cannot be removed must be clearly marked and carefully avoided by the operator. Stop mowing immediately if blades strike a foreign object. Repair all damage and make certain rotor or blade carrier is balanced before resuming mowing.

(SGM-5)

any varied objects, such as wire, cable, rope, or chains, can become entangled in the operating parts of the mower head. These items could then swing outside the housing at greater velocities than the blades. Such a situation is extremely hazardous and could result

in serious injury or even death. Inspect the cutting area for such objects before mowing. Remove any like object from the site. Never allow the cutting blades to contact such items.

(SGM-6)

ow at the speed that you can safely operate and control the tractor and mower. The correct mowing speed depends on terrain condition and grass type, density, and height of cut. Normal ground speed range is from 2 to 5 mph(3-8 kph). Use slow mowing speeds

when operating on or near steep slopes, ditches, drop-offs, overhead obstructions, power lines, or when debris and foreign objects are to be avoided.

(SGM-7)

EC72 03/08 Safety Section 1-8

Page 15

SAFETY

The M

ifi

Avoid mowing in reverse direction when possible. Check to make sure there are no persons behind the mower and use extreme care when mowing in reverse. Mow only at a slow ground speed where you can safely operate and control the tractor and mower. Never mow an area that you have not inspected and removed debris or foreign material.

(SGM-8)

Do not mow with two machines in the same area except with Cab tractors with the windows closed.

Follow these guidelines to reduce the risk of equipment and grass fires while operating, servicing, and repairing the Mower and Tractor:

-Equip the Tractor with a fire extinguisher in an accesible location.

-Do Not operate the Mower on a Tractor with an underframe exhaust.

-Do Not smoke or have an open flame near the Mower and Tractor.

-Do Not drive into burning debris or freshly burnt areas.

-Ensure slip clutches are properly adjusted to prevent excessive slippage and plate heating.

(SGM-11)

SAFETY

-Never allow clippings or debris to collect near drivelines, slip clutches, and gearboxes. Periodically shut down the Tractor and Mower and clean clippings and collected debris from the mower deck.

(SGM-12)

ower is designed for certain mowing applications and is rated to cut up to a spec size vegetation (see Mower Standard Equipment and Specifications). DO NOT use this mower to cut vegetation above the Mower’s rated capacity or to cut any type of non-

vegetative material. Only operate this Mower on a properly sized and equipped Tractor. Operating this Mower in an application for which it is not designed and/or operating the Mower with the wrong size Tractor can cause Mower component damage and equipment failure resulting in possible serious injury or death.

(SGM-14)

Do not operate or pull the mower into standing water. When uplift or fan type mower blades contact water they can be severely deflected downward causing possible failure of blade resulting in serious boldly injury to the operator or bystanders.

(SGM-15)

Use extreme caution when raising the Mower above ground level. Stop the Blades from turning when the Mower is raised and passersby are within 100 yards. Raising the Mower exposes the Cutting Blades which creates a potentially serious hazard and can

cause serious injury by objects thrown from the Blades or by contact with the Blades.

(SPU-1)

EC72 03/08 Safety Section 1-9

Page 16

SAFETY

Rotary Mowers are capable under adverse conditions of throwing objects for great distances (300 feet or more) and causing serious injury or death. Follow safety messages carefully.

STOP MOWING IF PASSERSBY ARE WITHIN 100 YARDS UNLESS:

-Front and Rear Deflectors, Chain Guards, or Bands are installed and in good, workable condition;

-Mower sections or Wings are running close to and parallel to the ground without exposed Blades;

-Passersby are outside the existing thrown-object zone;

-All areas have been thoroughly inspected and all foreign material such as rocks, cans, glass, and general debris has been removed.

NOTE: Where there are grass and weeds high enough to hide debris that could be struck by the blades, the area should be: inspected and large debris removed, mowed at an intermediate height, inspected, closely with any remaining debris being removed, and

SAFETY

mowed again at desired final height. (This will also reduce power required to mow, reduce wear and tear on the Mower drivetrain, spread cut material better, reduce streaking, and make the final cut more uniform).

(SRM-1)

Do not turn so sharp or lift mower so high to produce a severe "knocking" of the Driveline which will cause accelerated wear and breakage of drive train components and could result in possible injury from the separated Driveline sections.

Do not let the Blades turn when the Mower Deck is raised for any reason, including clearance or for turning. Raising the Mower deck exposes the Cutting Blades which creates a potentially serious hazard

and could cause serious injury or even death from objects thrown from the Blades.

(SRM-4)

(SRM-7)

Connecting or Disconnecting Implement Safety Instructions and Practices

DO NOT use a PTO adapter to attach a non-matching Implement driveline to a Tractor

PTO. Use of an adapter can double the operating speed of the Implement resulting in excessive vibration, thrown objects, and blade and implement failure. Adapter use will also change the working length of the driveline exposing unshielded driveline areas. Serious bodily injury and/or equipment failure can result from using a PTO adapter. Consult an authorized dealer for assistance if the Implement driveline does not match the Tractor PTO.

(S3PT-14)

EC72 03/08 Safety Section 1-10

Page 17

SAFETY

PTO, it is i

f t

Always shut the Tractor completely down, place the transmission in park, and set the parking brake before you or anyone else attempts to connect or disconnect the Implement and Tractor hitches.

Never operate the Tractor and Mower if the Implement input driveline is directly connected to the Tractor transmission. Tractor braking distances can be substantially increased by the momentum of the rotating Mower blades driving the Tractor transmission even though the Tractor clutch has been disengaged. Install an over running clutch between the Tractor PTO and the Mower driveline to prevent this potentially dangerous situation.

(S3PT-15)

(S3PT-16)

SAFETY

en attaching the Implement input driveline to the Tractor

mportant that the connecting yoke spring activated locking collar slides freely and the locking balls are seated securely in the groove on the Tractor PTO shaft. A driveline not attached correctly to the Tractor PTO shaft could come loose and result in personal injury and damage to the Implement.

(S3PT-17)

Before operating the Implement, check to make sure the Implement input driveline will not bottom out or become disengaged. Bottoming out occurs when the inner shaft penetrates the outer housing until the assembly becomes solid-it can shorten no more. Bottoming out can cause serious damage to the Tractor PTO by pushing the PTO into the Tractor and through the support bearings or downward onto the PTO shaft, breaking it off. A broken driveline can cause personal injury.

(S3PT-18)

Transporting Safety Instructions and Practices

Be particularly careful when transporting the Implement with the Tractor. Turn curves or go up hills only at a low speed and using a gradual steering angle. Rear mounted implements

move the center of gravity to the rear and remove weight from the front wheels. Make certain, by adding front ballast, that at least 20% of the tractor’s weight is on the front wheels to prevent rearing up, loss of steering control or Tractor tip-over. Slow down on rough or uneven surfaces to prevent loss o steering control which could result in property damage or possible injury. Do not transport unless 3-Point lif lever is fully raised and in the latched transport position. Dropping implement in transport can cause serious damage to the tractor and/or Implement and possibly cause the operator or others to be injured or killed.

(S3PT-2)

Allow sufficient clearance for the Implement to swing outward while turning. Implements

carried behind the Tractor will swing outside the tire path when making turns. Contacting a

solid object while turning will cause equipment damage and possible injury.

Make certain that the “Slow Moving Vehicle” (SMV) sign is installed in such a way as to be clearly visible and legible. When transporting the Equipment use the Tractor flashing warning lights and follow all local traffic regulations.

EC72 03/08 Safety Section 1-11

(SG-6)

(S3PT-20)

Page 18

SAFETY

Only t

Transport only at speeds where you can maintain control of the equipment. Serious accidents and injuries can result from operating this

equipment at high speeds. Understand the Tractor and Implement and how it handles before transporting on streets and highways. Make sure the Tractor steering and brakes are in good condition and operate properly.

Before transporting the Tractor and Implement, determine the proper transport speeds for you and the equipment. Make sure you abide by the following rules:

Test the tractor at a slow speed and increase the speed slowly. Apply the Brakes smoothly to determine the stopping characteristics of the Tractor and Implement. As you increase the speed of the Tractor the stopping distance increases. Determine the maximum transport speed not to exceed 20 mph (30 kph) for transporting this equipment.

Test the equipment at a slow speed in turns. Increase the speed through the turn only after you determine that the equipment can be operated at a higher speed. Use extreme care and reduce your speed when turning sharply to prevent the tractor and implement from turning over. Determine the maximum turning speed for you and this equipment before

SAFETY

operating on roads or uneven ground.

Only transport the Tractor and Implement at the speeds which allow you to properly control the equipment.

Be aware of the operating conditions. Do not operate the Tractor with weak or faulty brakes or worn tires. When operating down a hill or on wet or rain slick roads, the braking distance increases: use extreme care and reduce your speed. When operating in traffic always use the Tractor’s flashing warning lights and reduce your speed. Be aware of traffic around you and watch out for the other guy. (SG-19)

e particularly careful when transporting the Implement using the tractor. Turn curves or go up or down hills only at a low speed and at a gradual steering angle. Make certain that at least 20% of the tractor’s weight is on the front wheels to maintain safe steerage. Slow down on rough or uneven surfaces.

ransport the Implement behind a properly sized and equippe Tractor which exceeds the weight of the Implement by at least 20%. DO NOT transport the Implement behind a truck or other type of vehicle. Never transport the Implement and another Implement connected in tandem. Never transport the Implement at speeds over 20 MPH.

Your driving vision may be reduced or impaired by the tractor, cab, or implement. Before driving on public roadways identify any limited vision areas, and make adjustments to your operating position, mirrors, and the implement transport position so that you can clearly see the area where you will be traveling, and any traffic that may approach you. Failure to maintain adequate vision of the public roadway and traffic can result in serious injury or even death.

EC72 03/08 Safety Section 1-12

(STI-10)

(STI-1)

(STI-6)

Page 19

SAFETY

ith fact

librati

dif

this Impl

dif

thi

Maintenance and Service Safety Instructions and Practices

Make sure the PTO shield, integral driveline shields, and input shields are is installed when using PTO-driven equipment. Always replace any shield if it is damaged or missing.

Relieve hydraulic pressure prior to doing any maintenance or repair work on the Implement. Place the Implement on the ground or securely blocked up, disengage the PTO, and turn off the tractor engine. Push and pull the Remote Cylinder lever in and out several times prior to starting any maintenance or repair work.

Always disconnect the main PTO Driveline from the Tractor before performing service on the Implement. Never work on the Implement with the tractor PTO driveline connected and running. Rotating Parts, Blades or Drivelines could turn without warning and cause immediate entanglement, injury or death.

(S3PT-8)

(S3PT-9)

(S3PT-11)

SAFETY

ever interfere w

ory-set hydraulic ca

ons. Any change in ca

on cou

cause a failure of the equipment and may result in injury. (SBH-13)

Always maintain the safety signs in good readable condition. If the safety signs are missing, damaged, or unreadable, obtain and install replacement safety signs immediately.

(SG-5)

o not mo

Implement, any of its components or any Implement function.

y or alter

ement. Do not permit anyone to mo

(SG-8)

y or alter

Never work under the Implement, the framework, or any lifted component unless the Implement is securely supported or blocked up to prevent sudden or inadvertent falling which could cause serious injury or even death.

(SG-14)

Never attempt to lubricate, adjust, or remove material from the Implement while it is in motion or while tractor engine is running.

(SG-20)

EC72 03/08 Safety Section 1-13

Page 20

SAFETY

dli

SAFETY

Periodically inspect all moving parts for wear and replace when necessary with authorized service parts. Look for loose fasteners, worn or broken parts, and leaky or loose fittings. Make sure all pins have cotter pins and washers. Serious injury may occur from not maintaining this machine in good working order.

Do Not fill gasoline tank while engine is running. Refuel only after engine has cooled down. If gasoline is spilled, move machine away from the area of the spill and avoid creating any source of ignition until the gasoline has evaporated.

Perform service, repairs and lubrication according to the maintenance section. Ensure the unit is properly lubricated as specified in the lubrication schedule and all bolts and nuts are properly torqued. Failure to properly service, repair and maintain this Implement in good operating condition could cause component failure and possible serious injury or even death.

(SG-35)

(SG-21)

(SG-28)

se caution and wear protective gloves when han

ng sharp objects such as blades, knives, and other cutting edges. Be alert to worn component surfaces which have sharp edges. Sharp surfaces can inflict severe laceration injuries if proper hand protection is not worn.

(SG-37)

All Safety Shields, Guards and Safety devices including (but not limited to) - the Deflectors, Chain Guards, Steel Guards, Gearbox

Shields, PTO integral shields, and Retractable Door Shields should be used and maintained in good working condition. All safety devices should be inspected carefully at least daily for missing or broken components. Missing, broken, or worn items must be replaced at once to reduce the possibility of injury or death from thrown objects, entanglement, or blade contact.

(SGM-3)

Replace bent or broken blades with new blades. NEVER ATTEMPT TO STRAIGHTEN, WELD, OR WELD HARDFACING ON BLADES SINCE THIS WILL LIKELY CRACK OR OTHERWISE DAMAGE THE BLADE WITH SUBSEQUENT FAILURE AND POSSIBLE SERIOUS INJURY FROM THROWN BLADES.

(SGM-10)

EC72 03/08 Safety Section 1-14

Page 21

SAFETY

ill b

diti

likelihood of

dditi

this Impl

PARTS INF O RMATIO N Rhino mowers use balanced and matched system components for blade carriers, blades, cuttershafts, knives, knife hangers, rollers, drivetrain components, and bearings. These parts are made and tested to Rhino specifications. Non-genuine "will fit" parts do not consistently meet these specifications. The use of “will fit” parts may reduce mower performance, void warranties, and present a safety hazard. Use genuine Rhino mower parts for economy and safety.

(SPRM-1)

SEE YOUR RHINO DEALER

e sure you have adequate knowledge of the property you w make yourself aware of any area underground lines or cables. Contact with buried lines or cable could result in serious injury or death.

n wet con

certain that this material is removed before traveling on public roadways.

ons where there is a

(STL-1)

material collecting on the Implement, make

e working on. Take time to

(STL-7)

Storage and Parking Safety Instructions and Practices

To prevent tipping of Implement when stored in folded position, use carrying wheels or adequate stands on center frame.

(S3PT-6)

Concluding Safety Instructions and Practices

In a hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper training of personnel involved in the operation, transport, maintenance, and storage of the machine. Refer also to Safety Messages and operation instruction in each of the appropriate sections of the Tractor and Equipment Manuals. Pay close attention to the Safety Signs affixed to the Tractor and Equipment.

on to the design and configuration of

ement, including Safety Signs and Safety Equipment,

(SG-18)

SAFETY

EC72 03/08 Safety Section 1-15

Page 22

SAFETY

Decal Location

NOTE: Rhino supplies safety decals on this product to promote safe operation. Damage to the decals may occur while in shipping, use, or reconditioning. Rhino cares about the safety of its customers, operators, and bystanders, and will replace the safety decals on this product in the field, free of charge (Some shipping and handling charges may apply). Contact your Rhino dealer to order replacement decals.

SAFETY

EC72 03/08 Safety Section 1-16

Page 23

SAFETY

ITEM PART NO. QTY TYPE DESCRIPTION

1. D389 1 Decal Sheet Multi Hazard

2. D388 1 Decal Sheet Driveline Hazards

3. D395 1 IMPORTANT Replace Blades in Pairs

4. 00776678 1 DANGER Shear Bolt Length

5. 00760657 1 IMPORTANT Genuine Parts

6. D302 2 LOGO Rhino (4x6)

7. D303 2 LOGO Rhino (4x16)

8. 00785185 2 NAME EC72

9. 2738332 2 REFLECT Red Reflectors

10. nfs 1 SERIAL PLATE Serial Number Plate

11. 00756004 1** DANGER Shield Missing (Not Shown)

12. 00756005 1** DANGER Rotating Driveline (Not Shown)

13. 03200347 * REFLECT SMV

14. 00776031 1 Canister, Operators Manual

15. 00779477C 1 Operator’s Manual

16. 10058000 3 Bolt

17. 00024100 3 Flatwasher

18. 02959924 3 Locknut

19. D454 1 WARNING Crushing Hazard (Decal Under Deck)

SAFETY

* Furnished by Tractor Manufacturer

** Furnished by Driveline Manufacturer

Decal Sheets Name 00781352 (SAFETY) Name 00785176 (LOGOS)

EC72 03/08 Safety Section 1-17

Page 24

Decal Description

Multi Hazard Decal Sheet

P/N D389

Decal D389 consists of the following multi-hazards.

SAFETY

EC72 03/08 Safety Section 1-18

Page 25

Driveline Hazards

SAFETY

P/N D388

Decal D388 consists of the following multi-hazards.

SAFETY

EC72 03/08 Safety Section 1-19

Page 26

IMPORTANT! Always replace blades in pairs.

P/N D395

DANGER! Shear Bolt Entanglement.

SAFETY

P/N 00776678

For safety and to guarantee optimum product reliability always use genuine RHINO replacement parts.

P/N 00760657

Logo Product Name: Rhino

P/N D302

EC72 03/08 Safety Section 1-20

Page 27

Logo Product Name: Rhino

SAFETY

P/N D303

EC72 Logo

P/N 00785185

Red Reflectors

SAFETY

P/N 2738332

DANGER! Guard Missing, Do Not Operate. If you see this decal, Do Not Operate the mower until the shield has been replaced.

P/N 00756004

EC72 03/08 Safety Section 1-21

Page 28

DANGER! Rotating Driveline Keep Away, Contact can cause death.

P/N 00756005

Slow Moving Vehicle Decal. Keep SMV reflector clean and visible. DO NOT transport or operate without the SMV.

Provided by Tractor Manufacturer. Replace if

SAFETY

missing on tractor.

SAFETY

P/N 03200347

Read Operator’s Manual! The operator’s manual is located inside this canister. If the manual is missing order one from your dealer.

P/N 00776031

WARNING! Do not store mower vertically on shipping brackets. To avoid injury store mower lying down.

P/N D454

EC72 03/08 Safety Section 1-22

Page 29

SAFETY

Federal Laws and Regulations

This section is intended to explain in broad terms the concept and effect of federal laws and regulations concerning employer and employee equipment operators. This section is not intended as a legal interpretation of the law and should not be considered as such.

Employer-Employee Operator Regulations

U.S. Public Law 91-596 (The Williams-Steiger Occupational and Health Act of 1970) OSHA

This Act Seeks:

“...to assure so far as possible every working man and woman in the nation safe and healthful working conditions and to preserve our human resources...”

DUTIES

Sec. 5 (a) Each employer-

(1) shall furnish to each of his employees employment and a place of employment which are free from recognized hazards that are causing or are likely to cause death or serious physical harm to his employees;

(2) shall comply with occupational safety and health standards promulgated under this Act.

(b) Each employee shall comply with occupational safety and health standards and all rules,regulations and orders issued pursuant to this Act which are applicable to his own actions and conduct.

OSHA Regulations

OSHA regulations state in part: “At the time of initial assignment and at least annually thereafter, the employer shall instruct every employee in the safe operation and servicing of all equipment with which the employee is, or will be involved.”

Employer Responsibilities:

SAFETY

To ensure employee safety during Tractor and Implement operation, it is the employer’s responsibility to:

1. Train the employee in the proper and safe operation of the Tractor and Implement.

2. Require that the employee read and fully understand the Tractor and Implement Operator’s manual.

3. Permit only qualified and properly trained employees to operate the Tractor and Implement.

4. Maintain the Tractor and Implement in a safe operational condition and maintain all shields and guards on the equipment.

5. Ensure the Tractor is equipped with a functional ROPS and seat belt and require that the employee operator securely fasten the safety belt and operate with the ROPS in the raised position at all times.

6. Forbid the employee operator to carry additional riders on the Tractor or Implement.

7. Provide the required tools to maintain the Tractor and Implement in a good safe working condition and provide the necessary support devices to secure the equipment safely while performing repairs and service.

8. Require that the employee operator stop operation if bystanders or passerbys come within 25 feet.

Child Labor Under 16 Years of Age

Some regulations specify that no one under the age of 16 may operate power machinery. It is your responsibility to know what these regulations are in your own area or situation. (Refer to U.S. Dept. of Labor, Employment Standard Administration, Wage & Home Division, Child Labor Bulletin #102.)

EC72 03/08 Safety Section 1-23

Page 30

Page 31

Page 32

Page 33

Page 34

Page 35

Page 36

Page 37

Page 38

Page 39

Page 40

Page 41

Page 42

Page 43

Page 44

Page 45

Page 46

Page 47

Page 48

Page 49

Page 50

Page 51

Page 52

Page 53

Page 54

Page 55

Page 56

Page 57

Page 58

Page 59

Page 60

Page 61

Page 62

Page 63

Page 64

Page 65

Page 66

Page 67

Page 68

Page 69

Page 70

Page 71

Page 72

Page 73

Page 74

Page 75

INTRODUCTION SECTION

Introduction Section 2-1

Page 76

INTRODUCTION

This Rotary Mower is designed with care and built with quality materials by skilled workers. Proper assembly, maintenance, and operating practices, as described in this manual, will help the owner/operator get years of satisfactory service from the machine.

The purpose of this manual is to familiarize, instruct, and train. The Assembly Section instructs the owner/ operator in the correct assembly of the Mower using standard and optional equipment. The Parts Listing section is designed to familiarize the owner/operator with replaceable parts on the Mower. This section provides exploded assembly drawings of each mower component illustrating each piece and the corresponding part number.

Careful use and timely service saves extensive repairs and costly downtime losses. The Operation and Maintenance Sections of the manual train the owner/operator how to work the Mower correctly and attend to appropriate maintenance. The Trouble Shooting Guide helps diagnose difficulties with mower and offers solution to the problems.

Safety is of primary importance to the owner/operator and to the manufacturer. The first section of this manual includes a list of Safety Messages, that, if followed, will help protect the operator and bystanders from injury or death. Many of the Safety Messages will be repeated throughout the manual. The owner/operator/dealer should know these Safety Messages before assembly and be aware of the hazards of operating this mower during assembly, use, and maintenance. The Safety Alert Symbol combined with a Signal Word, as seen below, is intended to warn the owner/operator of impending hazards and the degree of possible injury faced

INTRODUCTION

when operating this machine.

The lowest level of Safety Message; warns of possible minor injury. Decals located on the Cutter with this Signal Word are Black and Yellow.

Serious injury or possible death! Decals are Black and Orange.

Imminent death/critical injury. Decals are Red and White.

EC72 03/08 Introduction Section 2-2

Page 77

INTRODUCTION

Your RHINO EC72 mower is designed for light-duty cutting such as pasture mowing, weed and grass control, and cutting brush up to 1" in diameter. With a reasonable amount of preventive maintenance, your Mower will provide years of dependable service.

For Non-Agricultural use, OSHA, ASAE, SAE, and ANSI standards require the use of Chain Guards, Deflectors, or Solid Skirts at all times. The Mower manufacturer strongly recommends the use of Chain Guards or Rubber Deflectors for Agricultural purposes as well, to reduce the risk of property damage, serious bodily injury, or even death from objects thrown out by or from contact with the Cutting Blades.

At least 20% or the tractor’s weight must be on the front tires with the Mower lifted to provide adequate traction for safe steering under good conditions. Slow down on hills, rough terrain, and curves.

The front, rear, left, and right are determined by the normal direction of travel, the same as driving an automobile.

EC72 03/08 Introduction Section 2-3

Page 78

INTRODUCTION

Attention Owner/Operator

BEFORE OPERATING THIS MACHINE:

1. Carefully read the Operator’s Manual, completely understand the Safety Messages and instructions, and know how to operate correctly both the tractor and implement.

2. Fill out the Warranty Card in full. Be sure to answer all questions, including the Serial Number of the implement. Mail within 30 days of delivery date of this implement.

NOTE: Warranties are honored only if completed “Owner Registration and Warranty” forms are received by Alamo Group within thirty days of delivery of the implement.

3. Record the Mower Model and Serial Numbers on the Warranty page at the front of the Operator’s Manual. Keep this as part of the permanent maintenance file for the implement.

INTRODUCTION

EC72 03/08 Introduction Section 2-4

Page 79

ASSEMBLY SECTION

Assembly Section 3-1

Page 80

ASSEMBLY

DEALER SETUP INSTRUCTIONS

Set up mower as received from factory with these instructions.

This mower is shipped partially assembled. Assembly will be easier if components are aligned and loosely assembled before tightening hardware. Refer to bolt torque chart in Maintenance Section. All bolts are Grade 5 unless otherwise specified.

1. Position on flat surface.

2. Apply light oil to gear box input shaft.

SHIELD ASSEMBLY

Before installing gearbox shields, check lubricant level in gearbox. Refer to Maintenance Section - Gearbox. Attach cotter pin and cable assembly (3) through top shield bracket (2) from outside in. Remove the bolts (4) on the front of the gearbox housing. Align holes in the top shield bracket (2) and gearbox. Reinstall the bolts and lockwasher (Torque to 33 ft. lbs.). Attach cotter pin (3) through top shield (1) from outside in. Attach shield (1) to top bracket (2) and secure with flatwasher (5) and nut (6). Figure AsmP-R-0068 & 0069

ASSEMBLY

EC72 03/08 Assembly Section 3-2

Page 81

ASSEMBLY

A-FRAME INSTALLATION

1. Attach the A-Frame Bars (1) to the right and left Hitch Lugs (2) with two Cat. 1 Hitch Pins (3), 5/8” Flatwashers (4), and Nuts (5).

2. Attach the Lift Strap Bars (6) to the Mainframe with two M12 x 40 Bolts (7), Flatwashers (8) and Nuts (9).

3. Attach the Lift Strap Bars (6) to the A-Frame Bars (1) with one Bolt (10), Top Link (11), Bushing, (12), and Nut (19).

4. Tighten all bolts to the proper torque.

ASSEMBLY

EC72 03/08 Assembly Section 3-3

Page 82

ASSEMBLY

TAILWHEEL INSTALLATION

1. Align Tail Wheel Beam Weldment (1) between pivot brackets located behind gearbox mount on the Mainframe Weldment. Note: Long side of caster fork pivot tube is positioned up. Attach the Tail Wheel Beam Weldment (1) to the Mainframe Weldment with one Bolt (2), and Nut (3). Slide Tail Wheel Beam Weldment (1) into Gauge Wheel Mount and retain with two Bolts, (4) Flatwasher (5), and Nuts (6).

2. Insert the Tail Wheel Assembly into the Tail Wheel Beam (1) and retain with Flatwasher (8), and Cotter Pin (8).

3. Tighten all Bolts to the proper torque.

ASSEMBLY

EC72 03/08 Assembly Section 3-4

Page 83

ASSEMBLY

SHEAR BOLT or SLIP CLUTCH DRIVELINE INSTALLATION

Attach rear driveline of U-Joint to input shaft on gearbox, install snap ring in groove on input shaft. NOTE: Check that Snap Ring is properly seated in groove. This snap ring retains driveline when shear bolt shears. Install Grad 2 (Only) shear bolt 1/2” x 2-3/4”. Use of a stronger shear bolt other than Grade 2, will result in driveline failure and will void warranty. Figure AsmP-R-0043

ASSEMBLY

Front Deflectors and Rear Metal Band (Standard Equipment)

Front rubber-fabric Deflectors are Standard Equipment. Guard must be installed

(and maintained in good repair) except for agricultural purposes only in areas where persons, vehicles, livestock, or other property will not be endangered by thrown objects and where such safety equipment would prevent the mower's reasonable performance of its assigned agricultural task. Assy02-Shielding

Deflectors: Front Deflectors (Standard Equipment) are recommended for the average user and will provide protection from thrown objects with proper operation under normal conditions. Deflectors must be maintained in good repair or replaced after no more than two inches of wear off lower edge.

EC72 03/08 Assembly Section 3-5

Page 84

ASSEMBLY

Front Rubber Fabric Deflectors (Standard Equipment)

Front Deflector (Figure AsmP-R-0064)

Attach the Front Deflector to the Mower with Bolts, Flatwashers, and Locknuts.

ASSEMBLY

Rear Metal Band - Figure AsmP-R-0063

Attach Deflectors to deck using 1/2” x 1-1/4” Bolts and Locknuts (6). r.

EC72 03/08 Assembly Section 3-6

Page 85

ASSEMBLY

CHECK CHAINS (Extra Equipment) - FIGURE Asm-R-0279

Check chains are available for attachment to front of cutter as an accessory. Check chains are used to control cut height and especially allows cutter to always be lowered to the same preset cut height.

Drill a 11/16" hole through each lifting lug 2-1/2" below the lift pins and 5/8" from the front of the lug.

Install lower end of check chain (2) to hitch ears (4), through lower holes using bolts and lockwashers. Tighten securely.

Install chain lugs (3) on either side of tractor top link mounting (1) using bolt or pin of required diameter and length. Cat. I kit requires a 3/4" diameter bolt. Install top end of check chains in brackets.

Cutting height is then set by placing proper chain link in keyhole slot. Cutting height is easily adjusted by hooking chain higher or lower in the keyhole brackets (5).

1. Tractor Top Link

2. Check Chain

3. Chain Lug

4. Hitch Ears

5. Keyhole Bracket

ASSEMBLY

NOTE: For additional safety in transport, raise mower as high as possible without allowing the driveline to contact the deck, and shorten the chains as much as possible to prevent inadvertent falling in transport.

EC72 03/08 Assembly Section 3-7

Page 86

ASSEMBLY

OFFSET ADAPTER HITCH (EXTRA EQUIPMENT)

Fasten the Offset Adapter Tube to the three-Point Lift Lugs using the hitch Pin Holes. Fasten the Adjustable Leg to the right Lug to offset the Mower to the right. Fasten the Adjustable Leg to the left Lug to offset the Mower to the Left. The Mower will cut cleaner behind the wheel tracks if it is offset to the left.

Install the Adapter Brace Bar to one gearbox mounting bolt. Fasten the Chain End to the Mainframe (hole in left Stiffener). Adjust the Brace Bar so the Adapter is in a near perpendicular position.

Attach the Mower to the tractor. Attach Stabilizer Bars to prevent side sway of Mower.

Stabilizer Bars or Sway Chains must be installed and adjusted tightly. Without these bars or

chains, serious damage to the Driveline can occur, and broken parts could cause bodily

injury to the operator or bystanders. Stabilizer Bars or Sway Chains are available at most

tractor dealerships.

Raise the mower to check clearance between the Driveline and Mower Deck. Set the lift stop on the tractor to ascertain that the Driveline does not strike the deck.

ASSEMBLY

EC72 03/08 Assembly Section 3-8

Page 87

OPERATION SECTION

Operation Section 4-1

Page 88

OPERATION

RHINO EC72 ROTARY MOWER

OPERATION INSTRUCTIONS

Rhino EC72 rotary mowers are manufactured with quality material by skilled workers. These mowers are designed to cut grass, weeds, small brush and other vegetative material up to 1” diameter in areas such as pastures, industrial areas, and roadsides. The mower is equipped with protective deflectors and/or chain guards to prevent objects being thrown from the mower by the blades, however, no shielding is 100% effective. All shields, guards, deflectors, and chains equipped on the unit must be maintained on the mower in good operational condition.

It is the operator’s responsibility to be knowledgeable of all potential operating hazards and to take every reasonable precaution to ensure oneself, others, animals, and property are not injured or damaged by the mower, tractor, or a thrown object. Do not operate the mower if passersby, pets, livestock, or property are directly in front or to the rear of the unit.

This section of the Operator’s Manual is designed to familiarize, instruct, and educate safe and proper mower use to the operator. Pictures contained in this section are intended to be used as a visual aid to assist in explaining the operation of a rotary mower and are not of a EC72 cutter. Some pictures may show shields removed for purposes of clarity. NEVER OPERATE this implement without all shields in place and in good

OPERATION

operational condition. The operator must be familiar with the mower and tractor operation and all associated safety practices before operating the mower and tractor. Proper operation of the EC72 mower, as detailed in this manual, will help ensure years of safe and satisfactory use of the mower.

IMPORTANT: To avoid mower damage, retorque all bolts after the first 10 hours of operation. Retighten blade carrier retaining nut on gearbox lower shaft to 350 ft. lbs.

READ AND UNDERSTAND THE ENTIRE OPERATING INSTRUCTIONS AND SAFETY SECTION OF THIS MANUAL AND THE TRACTOR MANUAL BEFORE ATTEMPTING TO USE THE TRACTOR AND IMPLEMENT. If you do not understand any of the instructions, contact your nearest authorized dealer for a

full explanation. Pay close attention to all safety signs and safety messages contained in this manual and those affixed to the implement and tractor. OPS-U- 0001

READ, UNDERSTAND, and FOLLOW death may occur unless care is taken to follow the warnings and instructions stated in the Safety Messages. Always use good common sense to avoid hazards.

Si no lee ingles, pida ayuda a alguien que si lo lea para que le traduzca las medidas de seguridad.

the following Safety Messages. Serious injury or

(SG-2)

(SG-3)

EC72 03/08 Operation Section 4-2

Page 89

OPERATION

The M

ifi

1. Standard Equipment and Specifications

EC72

Horsepower Required 30 Min. HP

Cutting Capacity (Max.) 1”

Cutting Height 1” Min.

Safety Deflector Std. Front, Metal Band Rear

Cutting Width 72”

Overall Length 128

Weight (Approx.) 675 lbs

Hitch CAT I (lift)

Blade Carrier Pan

Blade Tip Speed (FPM) 14,930

Gearbox Rating:

540 RPM 60 HP*

Output Shaft Diameter 1-9/16”

OPERATION

Driveline Size Cat 3

Deck Thickness 11 Ga.

Side Skirt 6-7/8”

Transport Width 79”

*Ratings based on actual field performance.

(SGM-14)

EC72 03/08 Operation Section 4-3

Page 90

OPERATION

2. OPERATOR REQUIREMENTS

Safe operation of the unit is the responsibility of a qualified operator. A qualified operator has read and understands the implement and tractor Operator’s Manuals and is experienced in implement and tractor operation and all associated safety practices. In addition to the safety messages contained in this manual, safety signs are affixed to the implement and tractor. If any part of the operation and safe use of this equipment is not completely understood, consult an authorized dealer for a complete explanation.

If the operator cannot read the manuals for themselves or does not completely understand the operation of the equipment, it is the responsibility of the supervisor to read and explain the manuals, safety practices, and operating instructions to the operator.

Safe operation of equipment requires that the operator wear approved Personal Protective Equipment (PPE) for the job conditions when attaching, operating, servicing, and repairing the equipment. PPE is designed to provide operator protection and includes the following safety wear:

PERSONAL PROTECTIVE EQUIPMENT (PPE)

• Protective Eye Glasses, Goggles, or Face

OPERATION

Shield

•Hard Hat

• Steel Toe Safety Footwear

• Gloves

• Hearing Protection

• Close Fitting Clothing

• Respirator or Filter Mask (depends on operating conditions) OPS-U- 0002

EC72 03/08 Operation Section 4-4

(SG-27)

Serious injury or death to the

Page 91

OPERATION

3. TRACTOR REQUIREMENTS

The tractor used to operate the mower must have the power capacity to lift, pull, and operate the Power Take Off (PTO) at the mower’s rated speed while traveling at a ground speed between 2 and 5 MPH. Operating the mower with a tractor that does not meet the following requirements may cause tractor or mower damage and be a potential danger to the operator and passersby.

Tractor Requirements and Capabilities

• ASABE approved Roll-Over Protective Structure (ROPS) or ROPS cab and seat belt.

• Tractor Safety Devices ..................... Slow Moving Vehicle (SMV) emblem, lighting, PTO master shield

• Tractor Horsepower:

-Minimum .................. 30 HP

-Maximum .................. 75 HP

• Hitch -Lift Type Mower:

- Lifting Capacity ........700 lbs.

- 3-Point Hitch ............ CAT I

• Front End Weight ............................. As needed to maintain 20% weight on front axle

• Power Take Off................................. 540 RPM 6-spline, 1-3/6” diameter output shaft

3.1 ROPS and Seat Belt

The tractor must be equipped with a Roll-Over-Protective-Structure (ROPS) (tractor cab or roll-bar) and seat belt to protect the operator from falling off the tractor, especially during a roll over where the driver could be crushed and killed. Only operate the tractor with the ROPS in the raised position and seat belt fastened. Tractor model not equipped with a ROPS and seat belt should have these life saving features installed by an authorized dealer. OPS-U- 0003

OPERATION

Operate this Equipment only with a Tractor equipped with an approved rollover-protective system (ROPS). Always wear seat belts. Serious injury or even death could result from falling off the tractor--particularly during a turnover when the operator could be pinned under the ROPS.

(SG-7)

3.2 Tractor Safety Devices

If transporting or operating the tractor and implement near a public roadway, the tractor must be equipped with proper warning lighting and a Slow Moving Vehicle (SMV) emblem which are clearly visible from the rear of the unit. Lights and a SMV emblem must be equipped directly on implements if the visibility of the tractor warning signals are obscured.

Maintain all manufacturer equipped safety shields and guards. Always replace shields and guards that were removed for access to connect, service, or repair the tractor or implement. Never operate the tractor PTO with the PTO master shield missing or in the raised position. OPS-U- 0004

EC72 03/08 Operation Section 4-5

Page 92

OPERATION

3.3 Tractor Horsepower

The power required to operate a mower is determined by the tractor PTO horsepower. For most mowing conditions, the EC72 mower requires a tractor with at least 30 HP. Operating the mower with a tractor that does not have adequate power may damage the tractor engine. Exceeding 75 HP may cause mower damage by overpowering the unit in heavy cutting conditions.

3.4 3-Point Hitch

The tractor 3-point hitch must be rated to lift at least 700 lbs.

The EC72 mower is designed to be mounted on a tractor with a CAT I 3-point hitch. Refer to the tractor operator’s manual for the category of the tractor being used. If the hitch does not conform to ASAE CAT I dimensions, the mower may not fit or raise properly. Consult an authorized dealer for possible modification procedures to mount nonconforming hitches.

OPERATION

Depending on the hitch category, certain size pins are used to attach the mower to the tractor. CAT I hitches require 7/8” lower and 3/4” upper diameter hitch pins.

3.5 Front End Weight

A minimum of 20% total tractor weight must be maintained on the tractor front end at all times. Front end weight is critical to maintain steering control and to prevent the tractor from rearing up while driving. If the front end is too light, add weight until a minimum of 20% total weight is reached on the front tires. Front weights and weight carriers can be purchased through an authorized tractor dealership. OPS-U- 0005

Standard Hitch

3.6 Power Take Off (PTO)

This mower is designed to operate at a PTO speed of 540. Most tractors operate at either 540, or a combination of 540 and 1000 RPM PTO speeds. The operating speed of the mower and tractor can be determined by the number of splines on the driveline yoke and PTO output shaft. Those operating at 540 RPM will have a 6-spline shaft and those operating at 1000 RPM will have a 21-spline shaft. Note: The mower will not operate on tractors equipped with a 1000 RPM 21-spline or 1000 RPM 20-spline, 1-3/4” shaft. Refer to the tractor owner’s manual for instructions to change PTO speeds on models that operate at more than one speed.

If operating an older model tractor where the tractor’s transmission and PTO utilize one master clutch, an over-running clutch must be used between the PTO output shaft and the driveline of the mower. An authorized tractor dealer can provide the over-running clutch and its installation if needed. OPS-R- 0066

EC72 03/08 Operation Section 4-6

Page 93

OPERATION

DO NOT use a PTO adapter to attach a non-matching Implement driveline to a Tractor

(S3PT-14)

(S3PT-16)

4. GETTING ON AND OFF THE TRACTOR

Before getting onto the tractor, the operator must read and completely understand the implement and tractor operator manuals. If any part of either manual is not completely understood, consult an authorized dealer for a complete explanation. OPS-U- 0007

Do not mount the Tractor while the tractor is moving. Mount the Tractor only when the Tractor and all moving parts are completely stopped.

4.1 Boarding the Tractor

Use both hands and equipped handrails and steps for support when boarding the tractor. Never use control levers for support when mounting the tractor. Seat yourself in the operator’s seat and secure the seat belt around you.

(SG-12)

OPERATION

Never allow passengers to ride on the tractor or attached equipment. Riders can easily fall off and be seriously injured or killed from falling off and being ran over. It is the operator’s responsibility to forbid all extra riders at all times. OPS-U- 0008

EC72 03/08 Operation Section 4-7

(SG-11)

Page 94

OPERATION

Never allow children or other persons to ride on the Tractor or Implement. Falling off can result in serious injury or death.

4.2 Dismounting the Tractor

Before dismounting, park the tractor and implement on a reasonably level surface, apply the parking brake, idle the engine down, disengage the PTO, and lower the implement to the ground. Shut down the tractor engine according to the operator’s manual, remove the key, and wait for all motion to completely stop. Never leave the seat until the tractor, its engine and all moving parts have come to a complete stop.

Use hand rails and steps when exiting the tractor. Be careful of your step and use extra caution when mud, ice, snow or other matter has accumulated on the steps or hand rails. Use all handrails and steps for support and never rush or jump off the tractor. OPS-U- 0009

5. STARTING THE TRACTOR

OPERATION

The operator must have a complete understanding of the placement, function, and operational use of all tractor controls before starting the tractor. Review the tractor operator’s manual and consult an authorized dealer for tractor operation instructions if needed.

(SG-10)

Essential Tractor Controls:

• Locate the light control lever.

• Locate the engine shut off control.

• Locate the brake pedals and the clutch.

• Locate the PTO control.

• Locate the 3-point hitch control lever.

• Locate the hydraulic remote control levers.

Before starting the tractor ensure the following:

• Conduct all pre-start operation inspection and service according to the tractor operator’s manual.

• Make sure all guards, shields, and other safety devices are securely in place.

• The parking brake is on.

• The PTO control lever is disengaged.

• The 3-point hitch control lever is in the lowered position.

• The hydraulic remote control levers are in the neutral position.

• The tractor transmission levers are in park or neutral.

Refer to the tractor owner’s manual for tractor starting procedures. Only start the tractor while seated and belted in the tractor operator’s seat. Never bypass the ignition switch by short circuiting the starter solenoid.

After the tractor engine is running, avoid accidental contact with the tractor transmission to prevent sudden and unexpected tractor movement. OPS-U-0028

Never run the Tractor engine in a closed building or without adequate ventilation. The exhaust fumes can be hazardous to your health.

(SG-23)

EC72 03/08 Operation Section 4-8

Page 95

OPERATION

Start tractor only when properly seated in the Tractor seat. Starting a tractor in gear can result in injury or death. Read the Tractor operators manual for proper starting instructions.

(SG-13)

6. CONNECTING THE MOWER TO THE TRACTOR

Use extreme caution when connecting the mower to the tractor. The mower should be securely resting at ground level or setting on blocks. Keep hands and feet from under the mower deck and clear of pinch points between the tractor hitch arms and mower pins. OPS-R-0001

Always shut the Tractor completely down, place the transmission in park, and set the parking brake before you or anyone else attempts to connect or disconnect the Implement and Tractor hitches.

6.1 Connecting Mower

1. Make sure the tractor is equipped with the correct PTO shaft. Change shafts if needed.

2. Shorten or remove the tractor drawbar to avoid interference when raising and lowering the mower.

3. Board the tractor and start the engine. Position the tractor to the mower with the 3-point lift arms positioned at the same height and to the outside of the mower hitch pins. Note: Set the

3-point lift control to “Position Control” so that the lift arms maintain a constant height when attaching the mower. See the tractor Operator’s Manual for correct settings when attaching 3point equipment.

4. Turn off the tractor engine and dismount.

5. One lift arm at a time, align arm end hole between the set of A-frame lift lugs. Insert hitch pin through the lug and arm holes and insert retaining pin into hitch pin.

6. Walk around to opposite side and repeat procedure for remaining lift arm and hitch pin.

7. Extend or retract 3-point top link to align its end hole with the holes of the mower’s top link. Insert the top link hitch pin and insert retaining pin into hitch pin.

8. Adjust any lower link check chains, guide blocks, or sway blocks to prevent the mower from swaying side to side and possible contact with tractor rear tires.

(S3PT-15)

OPERATION

EC72 03/08 Operation Section 4-9

Page 96

OPERATION

Note: Offset Adaptor Hitches are available to position the mower to the left or right. Mowers with Offset Adaptor hitches connect to the 3-Point hitch the same way as the mower A-frame. Mowers with Cat 1 Hitch will be offset approximately 13” with the use of this accessory. See Offset Hitch in the Assembly Section for details to equip the mower with this feature.

6.2 Safety Chains

When towing implements on a public roadway, use a safety chain with tensile strength equal to or greater than the gross weight of the unit being towed. This will control the implement in the event the hitch pin is lost during transport.

After the ends of the safety chain are attached to the implement and the tractor, make a trial run by driving the tractor to the right and to the left to check for proper length. If necessary readjust the chain to eliminate loose or tight chain lengths.

7. SETTING THE MOWER

Properly setting the cutting height is essential for efficient and safe operation. A properly set mower will make a more uniform cut, distribute clippings more evenly, require minimal tractor work, and follow the contour of uneven terrain. NOTE: Avoid very low cutting heights, striking the ground with the blades gives the most

OPERATION

damaging shock loads and will cause damage to the mower and drive. Blades contacting the ground may cause objects to be thrown out from under the mower deck. Always avoid operating the mower at a height which causes the blades to contact the ground. OPS-U- 0010

(SG-14)

7.1 Setting Mower Height- Lift Type - (Standard or Quick Hitch)

1. Park the tractor and mower on level ground.

2. Using the 3-point hitch control lever, position

the front of the mower with the side skids 1” less off the ground than desired cut height. For example, for a 3” cut, position the skids 2” from the ground. Set the 3-point control lever stop at this position to maintain this height when raising and lowering the mower.

3. Shut down the tractor and remove the key.

4. Adjust the mower deck front to rear by

extending or retracting the 3-point top link. Always set front of deck 3/4” lower than rear for best performance.

EC72 03/08 Operation Section 4-10

Page 97

OPERATION

5. Level the mower side to side by manipulating one lower lift arm length. On most tractors, at least one of the lift arms is designed to allow for manipulation of its length. Shortening or extending will allow for deck leveling from side to side.

6. Securely block up the mower at this height.

7. Remove the bolts securing the tailwheel beam in position and allow the tailwheel to rest at ground level. Align tailwheel beam between nearest sets of holes in beam support brackets and reinstall support bolts on each side of beam. Tighten all bolts and nuts.

8. Extend the tractor’s top 3-point link so that when lifting the mower, the front of the deck will raise 2 to 2½" before the tail wheel leaves the ground. This will allow the mower to follow the contour of uneven terrain.

NOTE: Install optional check chains when there is a problem with the hydraulic 3-Point lift maintaining a set height or when a constant pre-adjusted cut height is required. See Check Chains in the Assembly Section for this accessory.

OPERATION

7.2 Setting Deck Pitch

To facilitate safe and efficient operation, the mower should be operated with the deck approximately 3/4” LOWER IN THE FRONT THAN THE REAR.

Setting Deck Pitch-Lift and Semi-Mount Type

1. Lower the mower until the rear of the mower is

resting securely on its tail wheel.

2. Lower the 3-point lift arms further until the front

of the mower is at least 3/4” lower than the rear.

3. Place the tractor’s 3-point control lever stop at

this point to maintain the deck pitch.

OPS-R-0067

EC72 03/08 Operation Section 4-11

Page 98

OPERATION

PTO, it is i

DRIVELINE ATTACHMENT

The driveline yoke and tractor PTO shaft must be dirt free and greased for attachment.

To connect the mower driveline to the tractor PTO output shaft, twist the driveline yoke collar and align the grooves and splines of the yoke with those of the PTO shaft. Push the driveline yoke onto the PTO shaft, release the locking collar, and position the yoke until the locking collar balls are seated onto the PTO shaft. Push and pull the driveline back and forth several times to ensure a secure attachment. OPS-R-0003_C

OPERATION

en attaching the Implement input driveline to the Tractor connecting yoke spring activated locking collar slides freely and the locking balls are seated securely in the groove on the Tractor PTO shaft. A driveline not attached correctly to the Tractor PTO shaft could come loose and result in personal injury and damage to the Implement.

(S3PT-17)

mportant that the

7.3 Driveline Length Check

When fitting the mower to the tractor, the telescoping driveline must be inspected to ensure that at its most compressed position, the profiles do not “bottom out”, and when at its farthest extended position, there is sufficient engagement between the profiles to operate safely. At its shortest length, there must be at least a 1” clearance between each profile end and opposite profile universal joint. At its farthest operating extension, a minimum profile engagement of 9” must be maintained.

(S3PT-18)

EC72 03/08 Operation Section 4-12

Page 99

OPERATION

“Bottoming Out” Check Procedure

• Disconnect driveline from the tractor and slide the profiles together until fully compressed.

• Place a mark on the inner shield 1/8” from the end of the outer shield.

• Reattach the driveline to the PTO Shaft.

• Raise the mower. Drive through a typical ditch which the unit may encounter and watch marks on the driveline. If the distance between the mark and the outer shield becomes less than 2” at any point there is a potential problem bottoming out the driveline and the driveline should be shortened. OPS-R-0004_F

Shorten the driveline profiles as follows:

• Remove the driveline from the tractor.

• Raise and lower the mower to find the position

with the shortest distance between the tractor PTO shaft and cutter gearbox. Shut down the tractor and securely block the mower in this position.

• Pull driveline apart and reattach yoke to PTO

shaft.

• Hold driveline sections parallel to one another

and measure back 1” from yoke of each shaft and place mark on opposite section. Cut this length off with a saw.

• Round off all sharp edges and debur.

• Thoroughly grease then reinstall the driveline.

• Recheck for proper operation.

OPERATION

Engagement Check Procedure

• With the driveline attached, raise and lower the mower within its operating range. Position the mower to

the point where the telescoping driveline is at its maximum extension. Completely shut down the tractor and secure in position.

• Mark the inner driveline shield 1/8” from the end of the outer shield.

• Disconnect the driveline from the tractor and separate the two driveline halves.

• Measure the distance from the mark to the end of the inner profile. This length is the amount the driveline

profiles were engaged.

• If the engaged length is less than 9”, the shaft is considered too short and should be replaced with a longer

shaft. Consult an authorized dealer to purchase the required driveline length.

NOTE: When raising the mower, at least 1” clearance must be maintained between the driveline and the mower deck. If necessary, place an upper lift stop on the 3-point hitch control lever to limit the height the mower can be raised. OPS-R-0005_E

EC72 03/08 Operation Section 4-13

Page 100

OPERATION

8. PRE-OPERATION INSPECTION AND SERVICE

Before each use, a pre-operation inspection and service of the implement and tractor must be performed. This includes routine maintenance and scheduled lubrication, inspecting that all safety devices are equipped and functional, and performing needed repairs. DO NOT operate the unit if the pre-operation inspection reveals any condition affecting safe operation. Perform repairs and replacement of damaged and missing parts as soon as noticed. By performing a thorough pre-operation inspection and service, valuable down time and repair cost can be avoided. OPS-U-0029

(S3PT-11)

OPERATION

(SG-21)

EC72 03/08 Operation Section 4-14

Servis-Rhino EC72 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

EC72

ROTARY MOWER

OPERATOR’S MANUAL

RHINO®

To the Owner/Operator/Dealer

TABLE OF CONTENTS

Alamo Group Ag. Division is willing to provide

one (1) AEM Mower Safety Practices Video

SAFETY SECTION

General Safety Instructions and Practices

Operator Safety Instructions and Practices

Equipment Operation Safety Instructions and Practices

Connecting or Disconnecting Implement Safety Instructions and Practices

Transporting Safety Instructions and Practices

Maintenance and Service Safety Instructions and Practices

Storage and Parking Safety Instructions and Practices

Concluding Safety Instructions and Practices

Decal Location

1. D389 1 Decal Sheet Multi Hazard

2. D388 1 Decal Sheet Driveline Hazards

3. D395 1 IMPORTANT Replace Blades in Pairs

4. 00776678 1 DANGER Shear Bolt Length

5. 00760657 1 IMPORTANT Genuine Parts

6. D302 2 LOGO Rhino (4x6)

7. D303 2 LOGO Rhino (4x16)

8. 00785185 2 NAME EC72

9. 2738332 2 REFLECT Red Reflectors

10. nfs 1 SERIAL PLATE Serial Number Plate

11. 00756004 1** DANGER Shield Missing (Not Shown)

12. 00756005 1** DANGER Rotating Driveline (Not Shown)

13. 03200347 * REFLECT SMV

14. 00776031 1 Canister, Operators Manual

15. 00779477C 1 Operator’s Manual

16. 10058000 3 Bolt

17. 00024100 3 Flatwasher

18. 02959924 3 Locknut

19. D454 1 WARNING Crushing Hazard (Decal Under Deck)

Decal Description

Federal Laws and Regulations

INTRODUCTION SECTION

ASSEMBLY SECTION

DEALER SETUP INSTRUCTIONS

1. Position on flat surface.

2. Apply light oil to gear box input shaft.

SHIELD ASSEMBLY

A-FRAME INSTALLATION

1. Attach the A-Frame Bars (1) to the right and left Hitch Lugs (2) with two Cat. 1 Hitch Pins (3), 5/8” Flatwashers (4), and Nuts (5).

2. Attach the Lift Strap Bars (6) to the Mainframe with two M12 x 40 Bolts (7), Flatwashers (8) and Nuts (9).

3. Attach the Lift Strap Bars (6) to the A-Frame Bars (1) with one Bolt (10), Top Link (11), Bushing, (12), and Nut (19).

4. Tighten all bolts to the proper torque.

TAILWHEEL INSTALLATION

2. Insert the Tail Wheel Assembly into the Tail Wheel Beam (1) and retain with Flatwasher (8), and Cotter Pin (8).

3. Tighten all Bolts to the proper torque.

SHEAR BOLT or SLIP CLUTCH DRIVELINE INSTALLATION

Front Deflectors and Rear Metal Band (Standard Equipment)

Front Rubber Fabric Deflectors (Standard Equipment)

CHECK CHAINS (Extra Equipment) - FIGURE Asm-R-0279

1. Tractor Top Link

2. Check Chain

3. Chain Lug

4. Hitch Ears

5. Keyhole Bracket

OFFSET ADAPTER HITCH (EXTRA EQUIPMENT)

OPERATION SECTION

RHINO EC72 ROTARY MOWER

OPERATION INSTRUCTIONS

1. Standard Equipment and Specifications

EC72

2. OPERATOR REQUIREMENTS

3. TRACTOR REQUIREMENTS

Tractor Requirements and Capabilities

3.1 ROPS and Seat Belt

3.2 Tractor Safety Devices

3.3 Tractor Horsepower

3.4 3-Point Hitch

3.5 Front End Weight
