7600A
Snow Blower
Pub 06-05
P ART'S MANUAL
READ, UNDERSTAND, and FOLLOW
Part No. 5047P
RHINO
1020 S. Sangamon Ave. Gibson City , IL 60936 800-446-5158 Email: parts@servis-rhino.com
®
© 2005 Alamo Group Inc.
TO THE OWNER/OPERATOR/DEALER
All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded operator who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance of accidents.
BEFORE YOU START!! Read the safety messages on the implement and shown in your manual.
Observe the rules of safety and common sense!
WARRANTY INFORMATION:
Read and understand the complete Warranty Statement found in this Manual. Fill out the Warranty Registration Form in full and return it within 30 Days. Make certain the Serial Number of the Machine is recorded on the Warranty Card and on the Warranty Form that you retain. The use of "will-fit" parts will void your warranty and can cause catastrophic failure with possible injury or death.
PARTS
SECTION
Parts Section – 1
PARTS ORDERING GUIDE
The following instructions are offered to help eliminate needless delay and error in processing purchase orders for the equipment in this section.
1. The Parts Section is prepared in logical sequence and grouping of parts that belong to the basic machine featured in this manual. Part Numbers and Descriptions are given to help locate the parts and quantities required.
2. The Purchase Order must include the name and address of the person or organization ordering the parts, who should be charged, and if possible, the serial number of the machine for which the parts are ordered.
3. The Purchase Order must clearly list the quantity of each part, the complete and correct part number (be sure to include all periods), and the basic name of the part.
4. The Manufacturer reserves the right to substitute parts where applicable.
5. Some parts are unlisted items which are special production items not normally stocked and are subject to special handling. Request a quotation for such parts before sending a Purchase Order.
6. The Manufacturer reserves the right to change prices without prior notice.
NOTE: Please refer to The Safety Section in the front of this Manual for the proper
Part Number when ordering Replacement Safety Decals.
For maximum safety and to guarantee optimum product reliability, always use genuine Servis-Rhino Parts. The use of inferior replacement parts may cause premature or catastrophic failure which could result in serious injury or death. Direct any questions regarding parts to:
RHINO
®
1020 S. Sangamon Ave. Gibson City, IL 60936 800-446-5158 Email: parts@servis-rhino.com
©2005 Alamo Group Inc.
Parts Section – 2
PART NAME INDEX
CABLE ASSEMBLY ................................................................................................................................................................ 6
CATEGORY 2 & 3 QUICK HITCH ASSEMBLY ................................................................................................................... 13
CATEGORY 2 QUICK HITCH ASSEMBLY.......................................................................................................................... 11
CHAIN IDLER ASSEMBLY..................................................................................................................................................... 9
DRIVELINE ASSEMBLY (OPTIONAL) - 00784015 ............................................................................................................. 16
DRIVELINE ASSEMBLY (OPTIONAL) - 00784016 ............................................................................................................. 17
FAN DRIVE ASSEMBLY........................................................................................................................................................ 4
HYDRAULIC CYLINDER & HOSE KIT (OPTIONAL)........................................................................................................... 15
INTERNAL DRIVE ASSEMBLY.............................................................................................................................................. 8
OIL TANK PARTS .................................................................................................................................................................. 7
STANDARD CATEGORY 2 & 3 WITHOUT QUICK HITCH ASSEMBLY............................................................................ 12
STANDARD CATEGORY 3 HITCH WITHOUT QUICK HITCH ASSEMBLY....................................................................... 14
3-POINT HITCH ASSEMBLY............................................................................................................................................... 10
7600A Snowblower (June-05) -Current ©2005 Alamo Group Inc. Parts Section – 3
FAN DRIVE ASSEMBLY
7600A Snowblower (June-05) -Current ©2005 Alamo Group Inc. Parts Section – 4
FAN DRIVE ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 00784674 1 FAN -CW 2 00784695 4 INNER BUSHING 3 00783596 2 1 15/16" BEARING, FLANGED 4 00783720 2 SPROCKET 5 00783737 2 # 80 ROLLER CHAIN 6 7D5118 1 CONNECTOR LINK #80 7 00783051 2 FAN SHAFT 8 00783105 2 CAP 9 00784547 2 SHEAR BOLT 10 00001200 4 1/2-UNC NUT 11 00035900 4 HHCS 5/16-18UNC 3/4 PL5 12 00011700 4 LOCKWASHER 5/16 PL STD 13 00001200 16 NUT,HEX 1/2 NC PL 14 00725073 2 SQ KEY, 1/2 X 2-1/2 15 00784702 2 SPACER, FAN UHMW
7600A Snowblower (June-05) -Current ©2005 Alamo Group Inc. Parts Section – 5

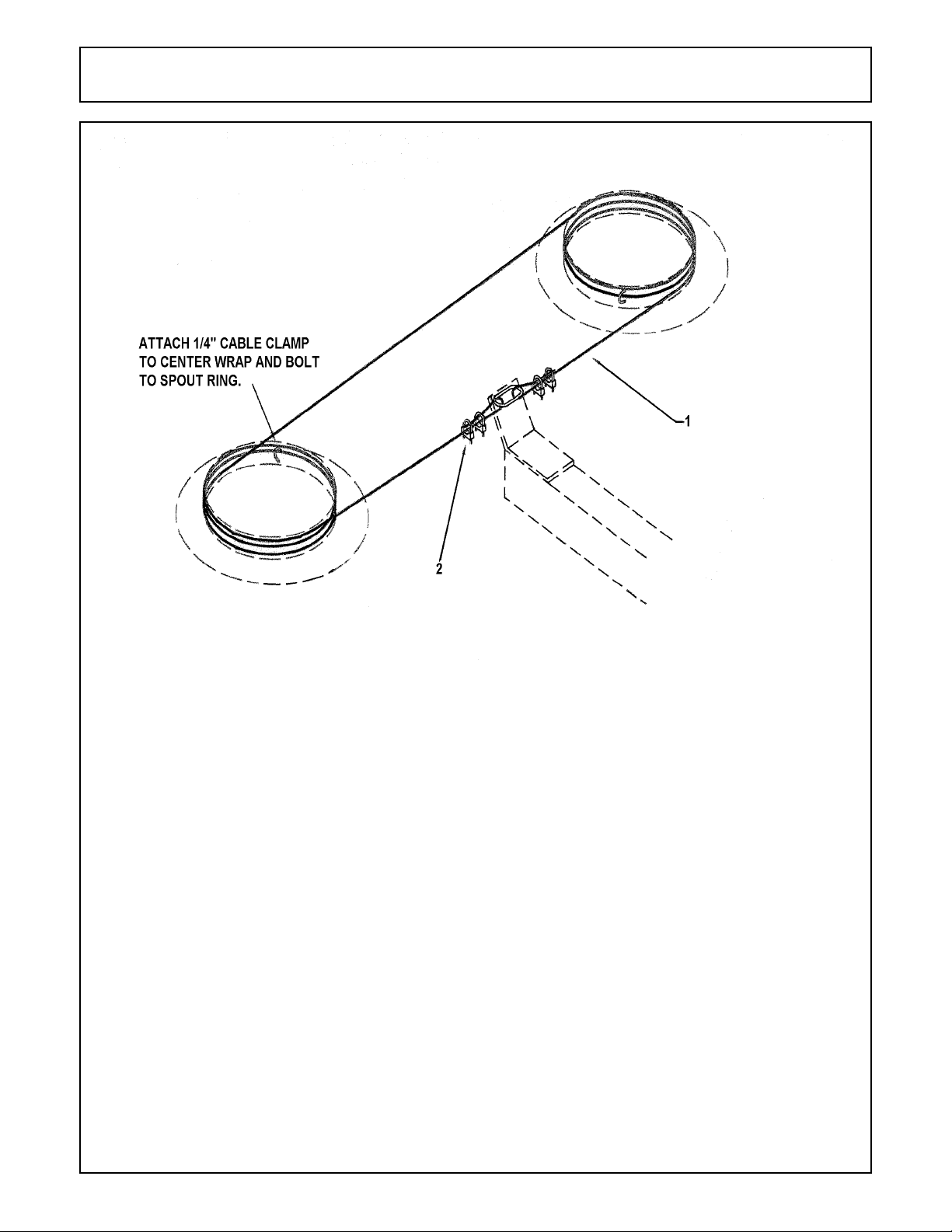

CABLE ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 00992000 35 CABLE, 1/4 X 35 -1/2FT
1/2’
2 60042 6 WIRE ROPE CLAMP 1/4
7600A Snowblower (June-05) -Current ©2005 Alamo Group Inc. Parts Section – 6

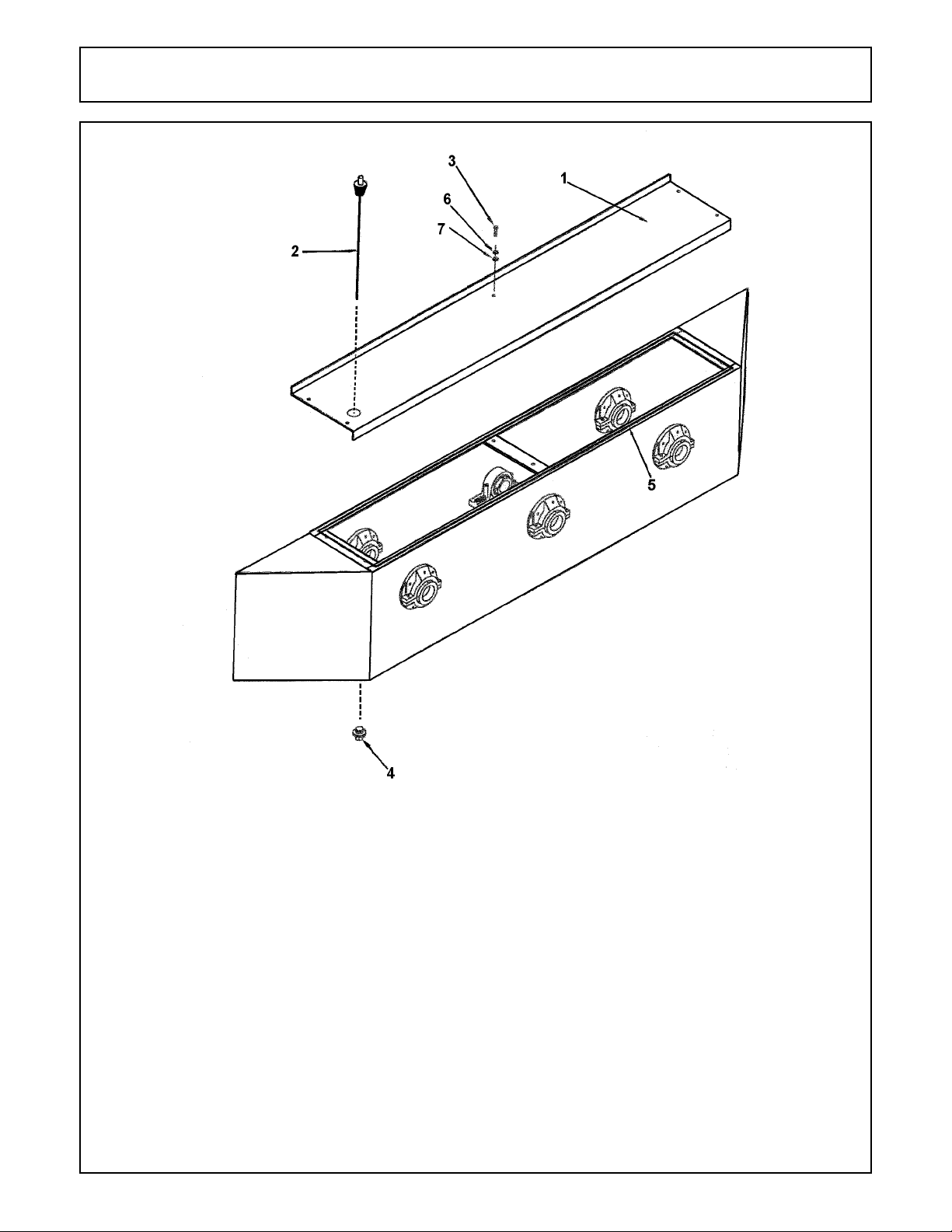

OIL TANK PARTS
ITEM PART NO. QTY. DESCRIPTION
1 00783029 1 COVER, CHAIN CASE 2 00783037 1 DIPSTICK 3 00011400 6 HHCS 3/8 NC 1 PL5 4 00784028 1 1" MAGNETIC DRAIN PLUG 5 00783692 14’ 3/8" X 1" OIL BATH SEALER 15’ 6 03101646 6 LOCKWASHER,3/8,MEDIUM-ZP 7 00011100 6 FLATWASHER 3/8 PL STD
7600A Snowblower (June-05) -Current ©2005 Alamo Group Inc. Parts Section – 7

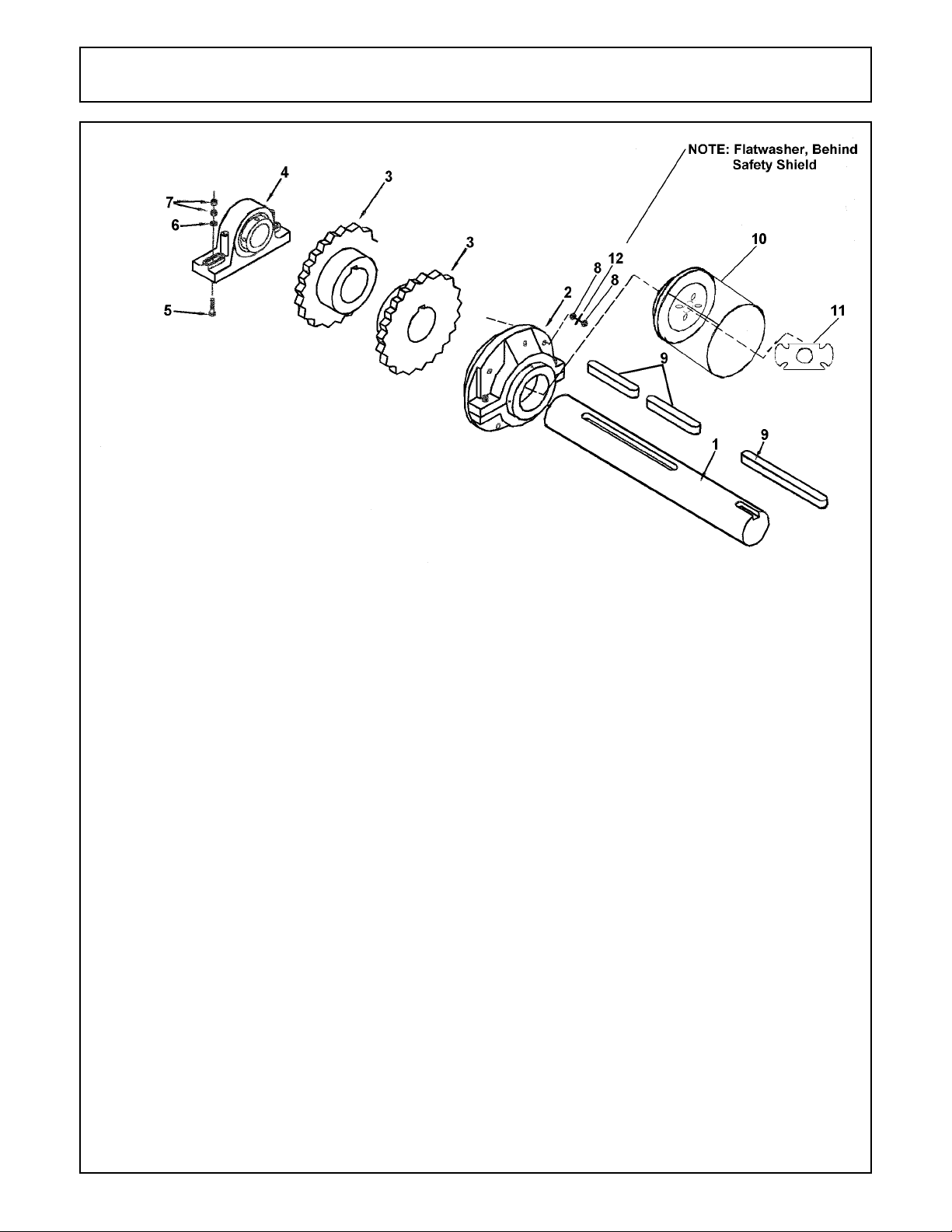

INTERNAL DRIVE ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 00783050 1 DRIVE SHAFT 2 00783596 5 FLANGE BEARING 1-5/16" 3 00783720 4 SPROCKET X 21 TOOTH 4 00783598 1 PILLOW BLOCK BEARING, 1-5/16" 5 00750952 2 HEXB,5/8NC X 2-1/2,ZP,GRD5 6 00001400 2 FLATWASHER 5/8 PL STD 7 33007C 4 HEX NUT 5/8-11 8 00001200 40 NUT,HEX 1/2 NC PL 9 40662.75 2 KEY, 1/2 X 1/2 X 2-1/4 10 00784566 1 SHIELD, SAFETY DRIVE 11 00784565 1 PLATE, REINFORCEMENT 12 00002700 4 FLATWASHER 1/2 PL
7600A Snowblower (June-05) -Current ©2005 Alamo Group Inc. Parts Section – 8

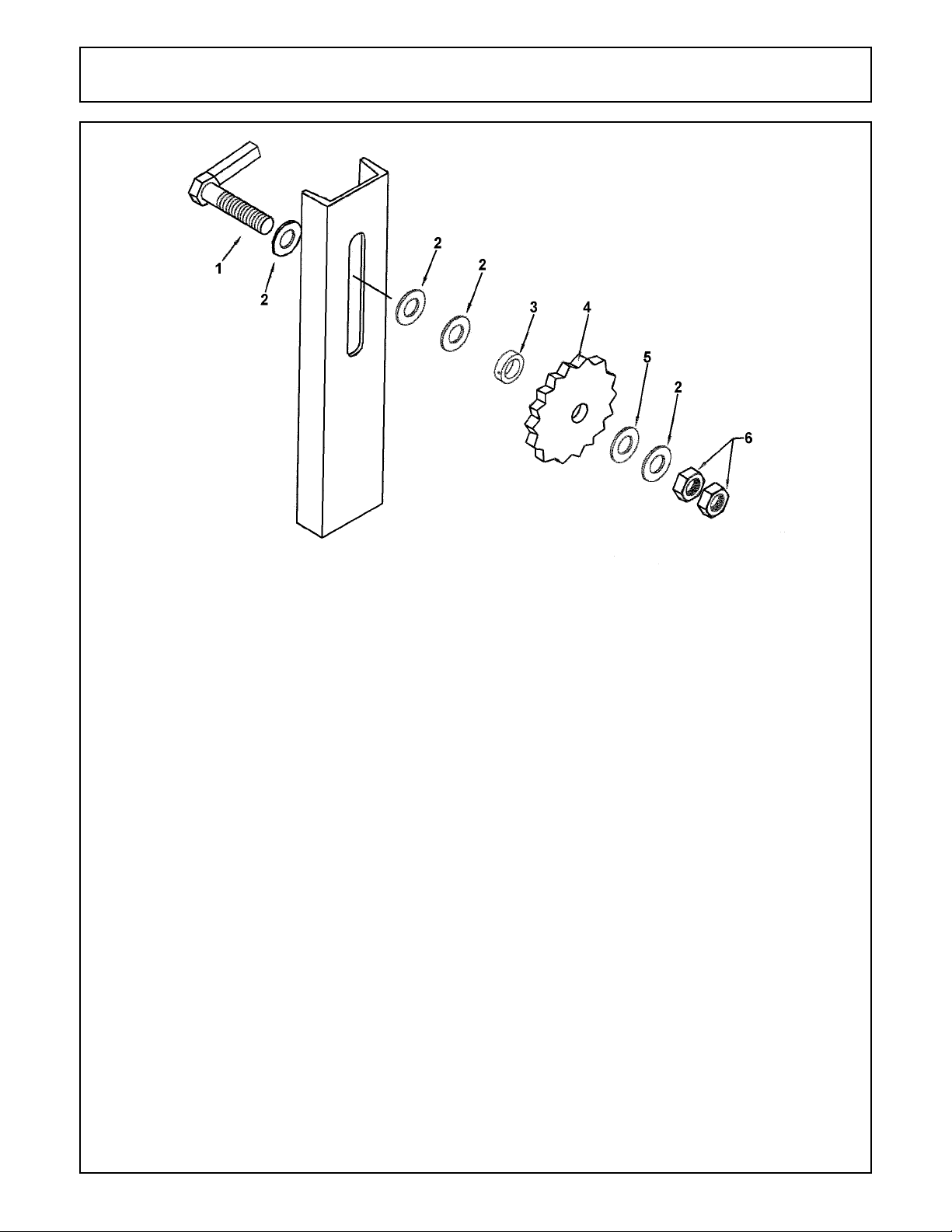

CHAIN IDLER ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 00784038 2 BOLT, CHAIN IDLER 2 00002701 8 FLATWASHER,3/4,TYPE AW,ZP 3 6D5557 2 3/4 SET COLLAR 4 1436356 2 IDLER SPROCKET 5 03100104 2 FLATWASHER 3/4 X 1-1/4 X 14GA 6 00000200 4 NUT 3/4 NC HEX PL
7600A Snowblower (June-05) -Current ©2005 Alamo Group Inc. Parts Section – 9

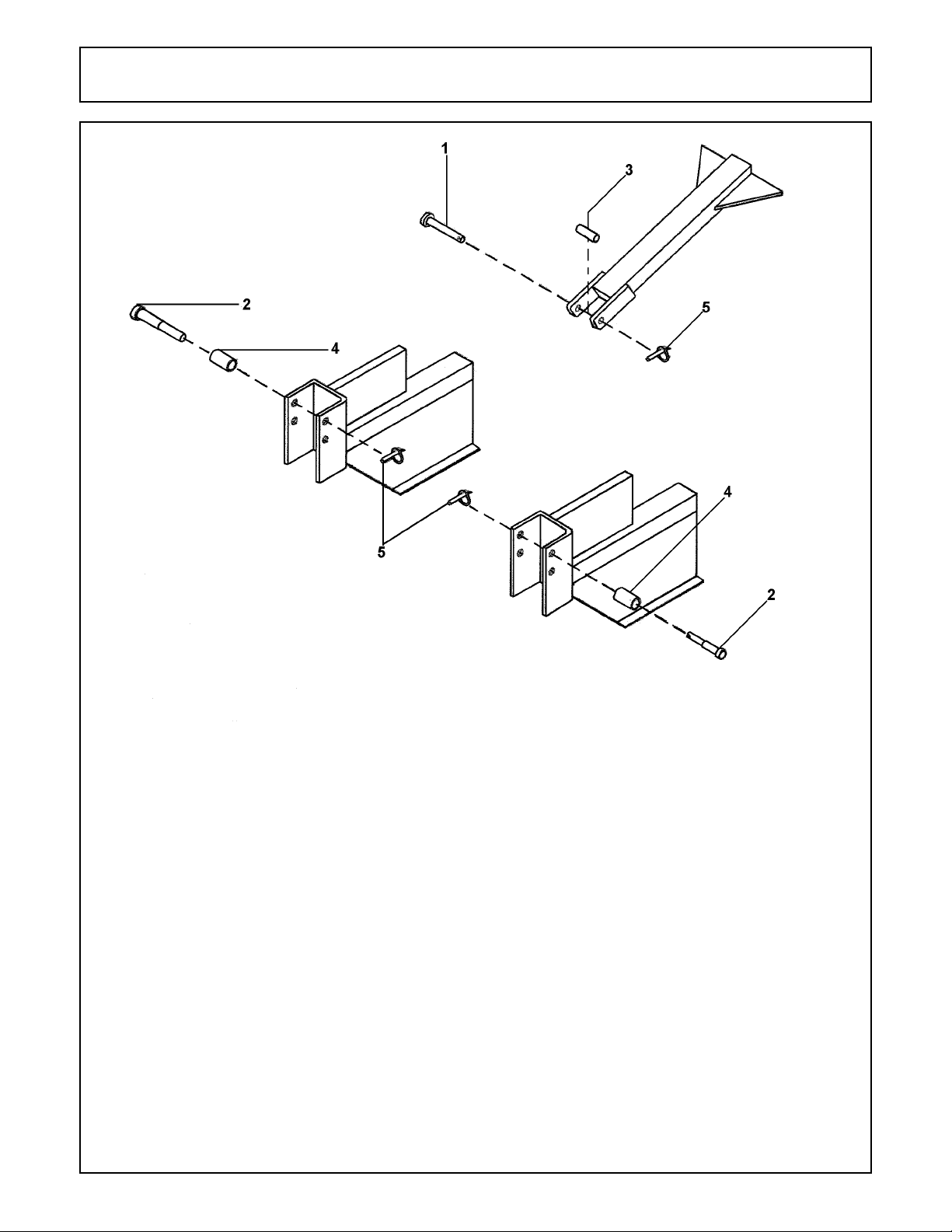

3-POINT HITCH ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 00784030 1 UPPER 3PT HITCH PIN 2 00784031 2 LOWER CAT III HITCH PIN 3 00784032 2 LOWER CAT II HITCH PIN 4 00784033 1 BUSHING, UPPER HITCH PIN 5 00784034 2 BUSHING, LOWER INNER HITCH PIN 6 00784035 2 BUSHING, LOWER OUTER HITCH PIN 7 0838404 5 KLICK PIN 7/16 X 2
7600A Snowblower (June-05) -Current ©2005 Alamo Group Inc. Parts Section – 10
CATEGORY 2 QUICK HITCH ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 00784030 1 UPPER 3PT HITCH PIN 2 00784031 2 LOWER CAT III HITCH PIN 3 00784033 1 BUSHING, UPPER HITCH PIN 4 0838404 3 KLICK PIN 7/16 X 2
7600A Snowblower (June-05) -Current ©2005 Alamo Group Inc. Parts Section – 11

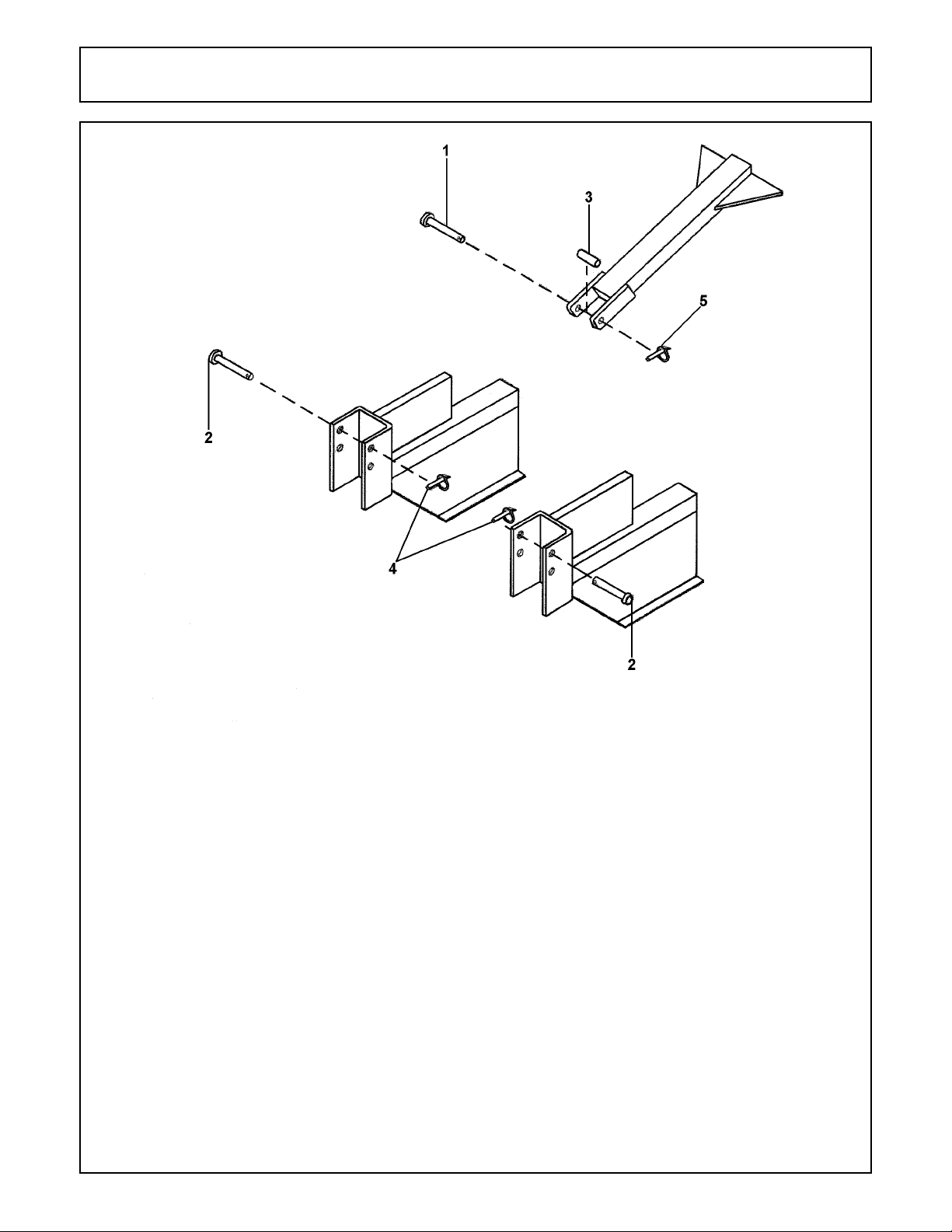

STANDARD CATEGORY 2 & 3 WITHOUT QUICK HITCH ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 00784030 1 UPPER 3PT HITCH PIN 2 00784032 2 LOWER CAT II HITCH PIN 3 00784034 2 BUSHING, LOWER INNER HITCH PIN 4 00784035 2 BUSHING, LOWER OUTER HITCH PIN 5 0838404 3 KLICK PIN 7/16 X 2
7600A Snowblower (June-05) -Current ©2005 Alamo Group Inc. Parts Section – 12

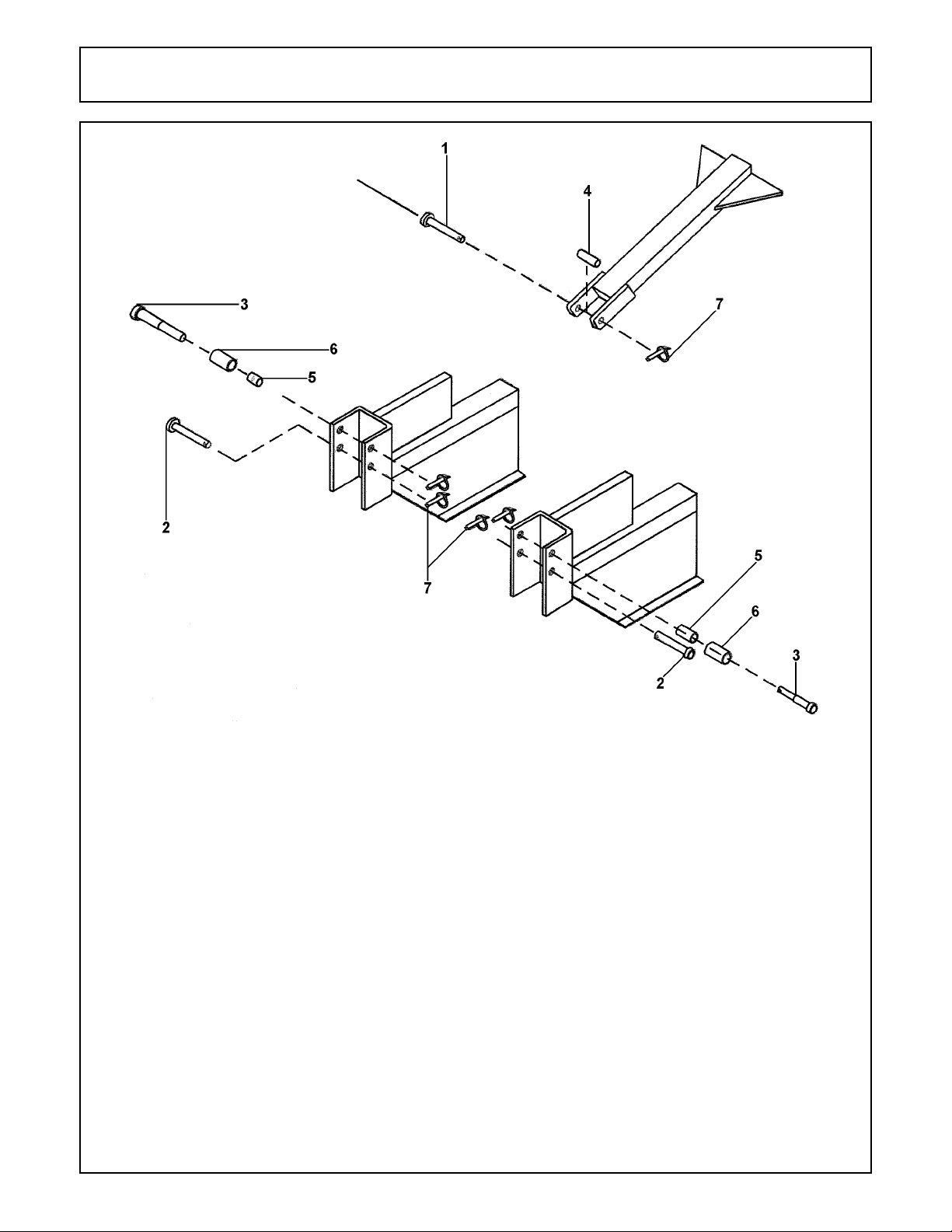

CATEGORY 2 & 3 QUICK HITCH ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 00784030 1 UPPER 3PT HITCH PIN 2 00784031 2 LOWER CAT III HITCH PIN 3 00784033 1 BUSHING, UPPER HITCH PIN 4 0838404 3 KLICK PIN 7/16 X 2
7600A Snowblower (June-05) -Current ©2005 Alamo Group Inc. Parts Section – 13

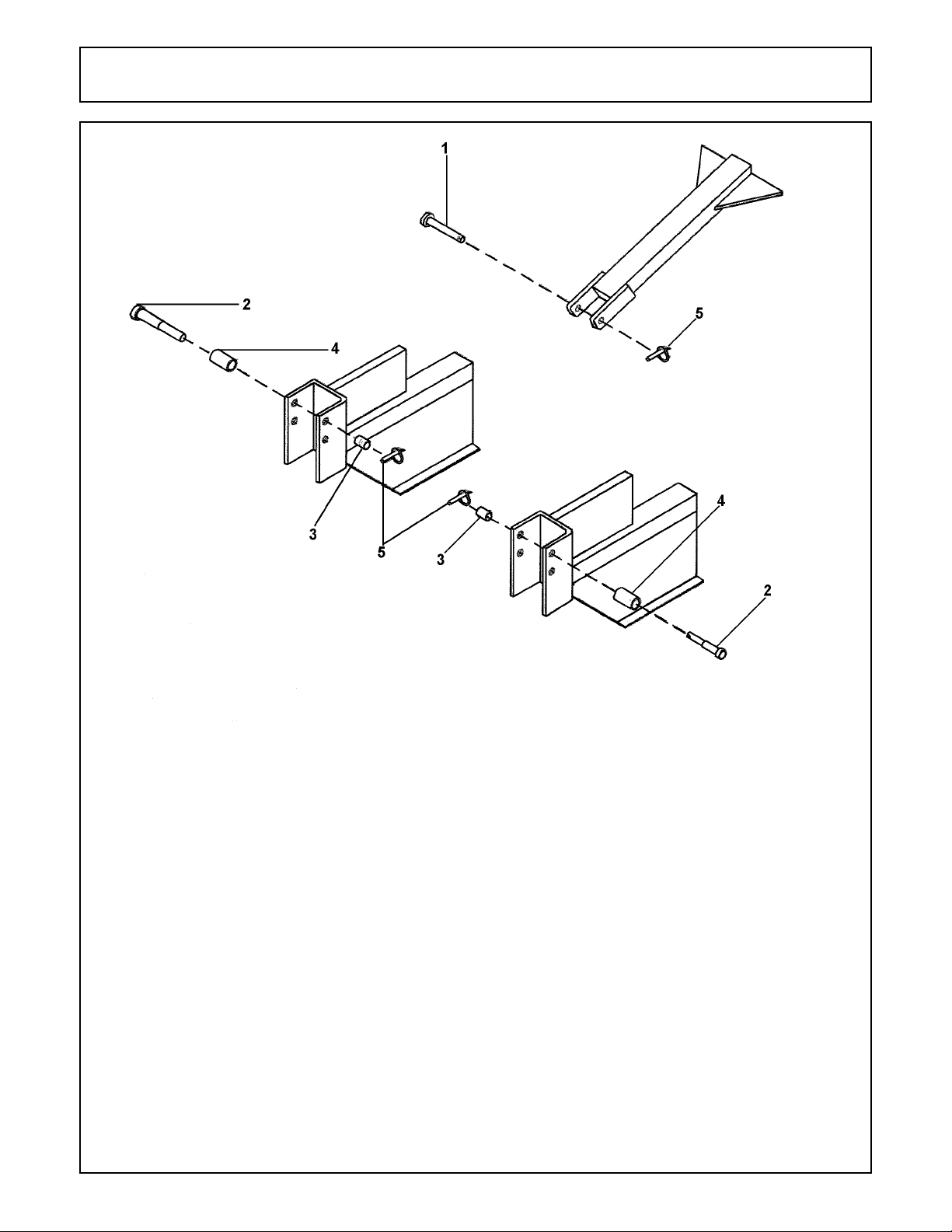

STANDARD CATEGORY 3 HITCH WITHOUT QUICK HITCH ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 00784030 1 UPPER 3PT HITCH PIN 2 00784031 2 CAT III HITCH PIN 3 00784033 1 BUSHING, UPPER HITCH PIN 4 00784035 2 BUSHING, LOWER OUTER HITCH PIN 5 0838404 3 KLICK PIN 7/16 X 2
7600A Snowblower (June-05) -Current ©2005 Alamo Group Inc. Parts Section – 14

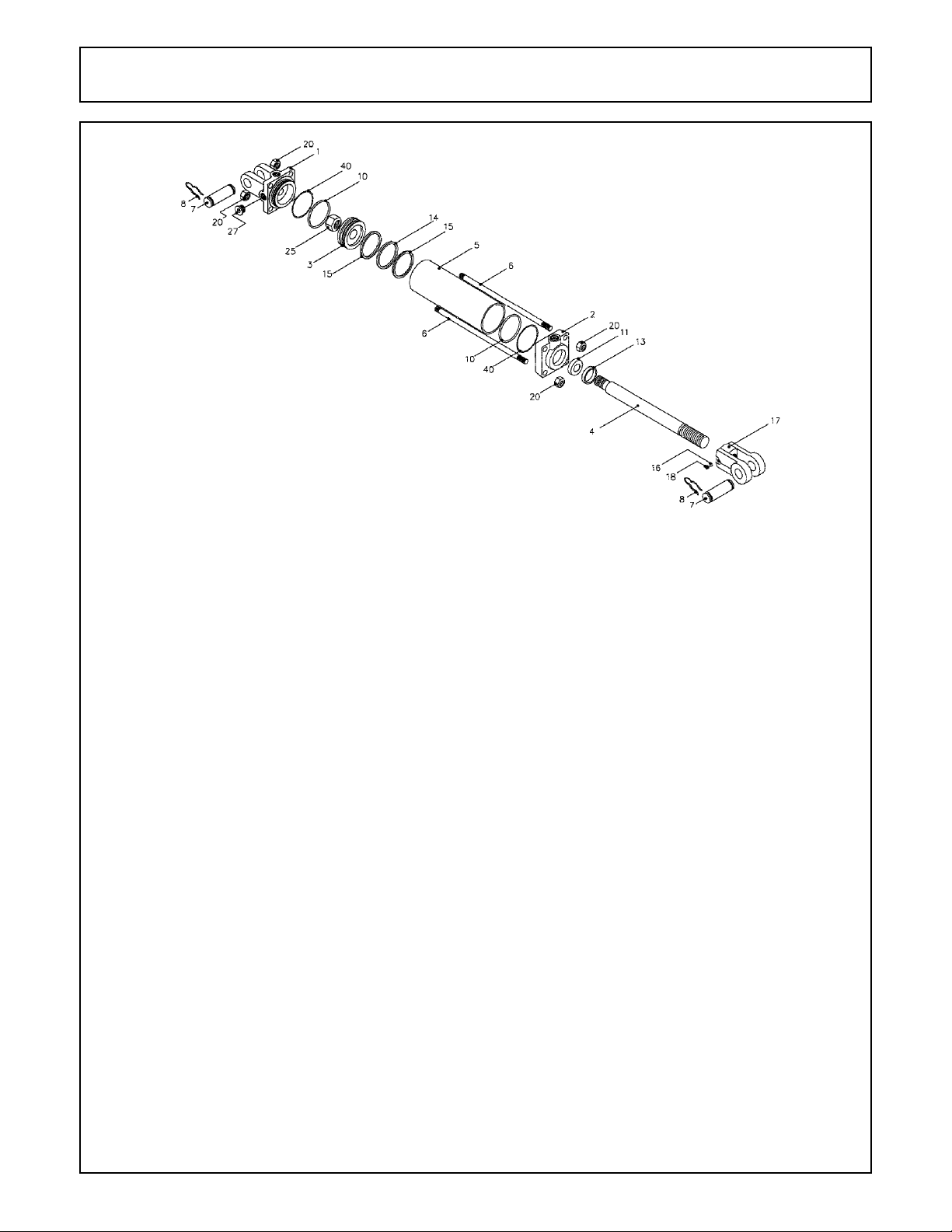

HYDRAULIC CYLINDER & HOSE KIT (OPTIONAL)
ITEM PART NO. QTY. DESCRIPTION
2457104 1 CYLINDER,HYDRAULIC 3 X 8
1 2417158 1 CAP,CYLINDER CLEVIS 2 2417157 1 CAP,CYLINDER ROD 3 2417160 1 PISTON,CYLINDER 4 00774737 1 ROD CYL 1.25-08-1.00-1.25-A 5 00774748 1 TUBE CYL 3.00-08.00 6 00774742 4 TIE ROD 1/2-08 7 3047104 2 PIN, 1 8 492110 4 HAIRPIN CLIP 7/8 10 ----------- 4 END CAP O-RING 11 ----------- 1 ROD WIPER SEAL 13 ----------- 1 ROD DUST SEAL 14 ----------- 1 PISTON SEAL 15 ----------- 2 PISTON WEAR RING 16 3047117 1 THREAD LOCK 17 1917140 1 ROD CLEVIS 18 0116000 1 SHSS 3/8 NC 1/2 20 33005H5C 8 NUT,HEX 1/2-13 UNC GR.5 PLT 25 5JRC16140 1 LOCKNUT 1 -14 TLDT GC ZP 27 1917132 1 SCKT HD O-RNG PLUG,3/4-16 UNF, 40 ---------- 2 END CAP BACKUP WASHERS 41 1937156 1* ADAPTER, ELBOW-W/RESTRICTOR -8MB -6MJ 42 03200588 1* ADAPTER, ELBOW- 8MB -6MJ 43 00784528 2* ASY, HOSE # 6 X 120 LG. 44 02975530 1* SEAL KIT (NOT SHOWN) * 00784087 INCLUDED IN HOSE KIT
7600A Snowblower (June-05) -Current ©2005 Alamo Group Inc. Parts Section – 15

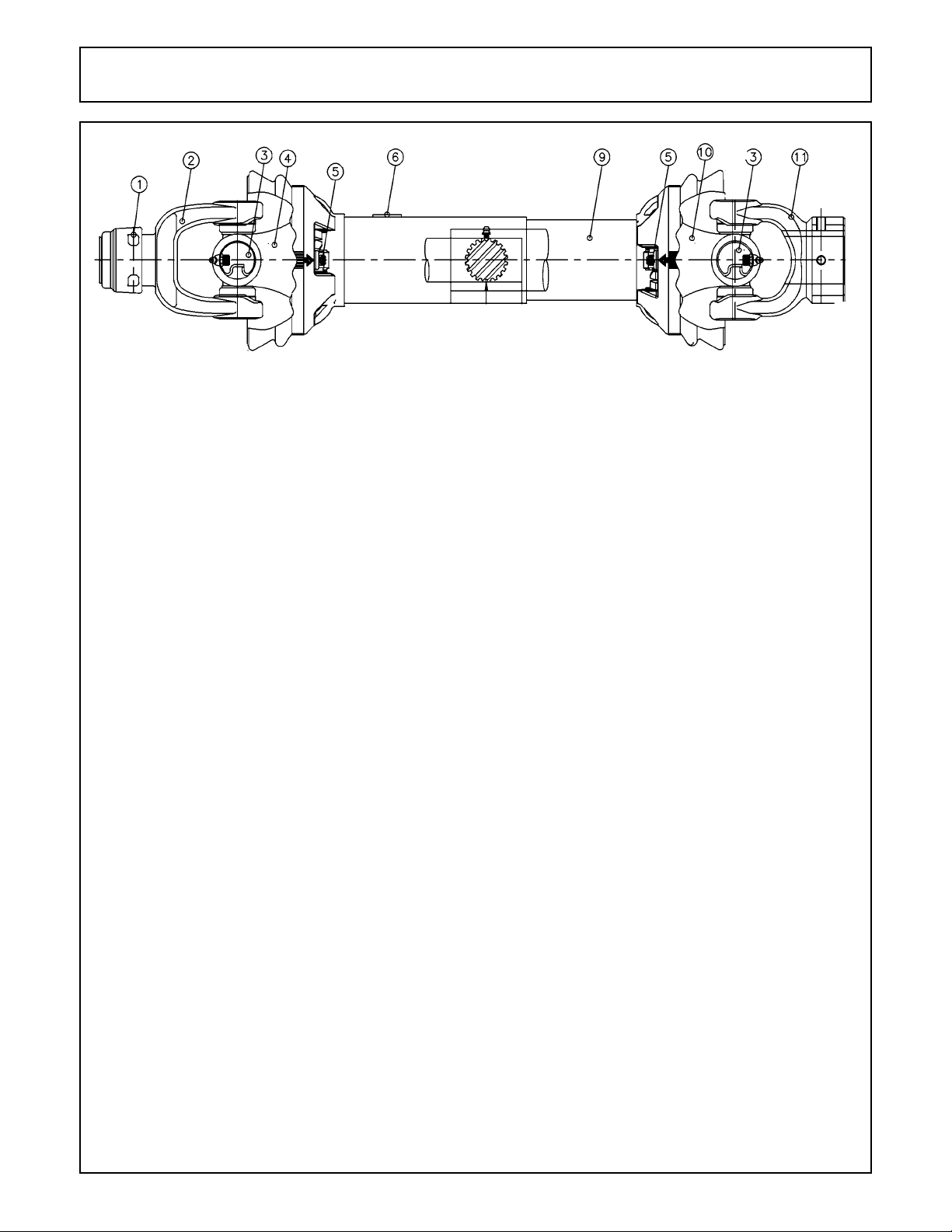

DRIVELINE ASSEMBLY (OPTIONAL) - 00784015
ITEM PART NO. QTY. DESCRIPTION
1 2716820 1 REPAIR KIT-SAFETY SLIDE LOCK Y 2 0136416 1 SLIDE LOCK YOKE-1 3/8-21 SPL,5 3 W507 2 CTR CROSS KIT 4 00784049 1 YOKE & SHAFT 5 00780376 2 NYLON BEARING & KEEPER 6 00756005 1 DECAL-ROTATING DRIVELINE 9 00756004 1 DECAL-SHIELD MISSING 10 00784050 1 YOKE, TUBE & SLIP SLEEVE 11 00784051 1 YOKE 12 00784046 1 SET, SHIELD GUARD 13 00784047 1 ASY, JOINT & TUBE 1/2 W/ GUARD (NOT SHOWN) 14 00784048 1 ASY, JOINT & SHAFT 1/2 W/ GUARD (NOT SHOWN)
7600A Snowblower (June-05) -Current ©2005 Alamo Group Inc. Parts Section – 16

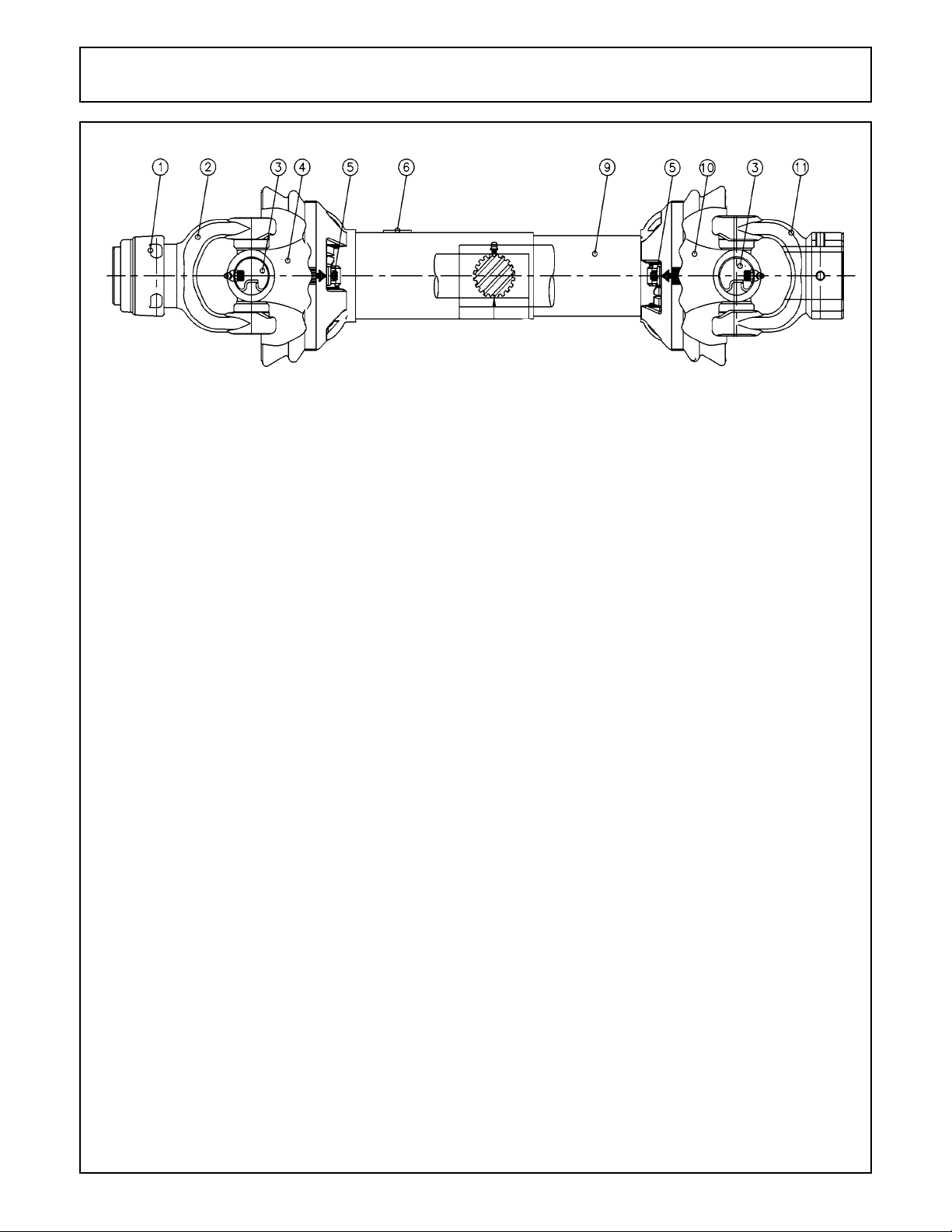

DRIVELINE ASSEMBLY (OPTIONAL) - 00784016
ITEM PART NO. QTY. DESCRIPTION
1 00724738 1 KIT-SLIDE COLLAR REPAIR 2 00725126 1 YOKE SLIDE LOCK 1-3/4-20 SPL. 3 W507 2 CTR CROSS KIT 4 00784049 1 YOKE & SHAFT 5 00780376 2 NYLON BEARING & KEEPER 6 00756005 1 DECAL-ROTATING DRIVELINE 9 00756004 1 DECAL-SHIELD MISSING (NOT SHOWN) 10 00784050 1 YOKE, TUBE & SLIP SLEEVE 11 00784051 1 YOKE 12 00784046 1 SET, SHIELD GUARD (NOT SHOWN) 13 00784047 1 ASY, JOINT & TUBE 1/2 W/ GUARD (NOT SHOWN) 14 00784052 1 ASY, JOINT & SHAFT 1/2 W/ GUARD (NOT SHOWN)
7600A Snowblower (June-05) -Current ©2005 Alamo Group Inc. Parts Section – 17
SERVIS-RHINO
LIMITED WARRANTY
1. LIMITED WARRANTIES
1.01.Servis-Rhino warrants for one year from the purchase date to the original non-commercial, governmental, or municipal purchaser (“Purchaser”) and warrants for six months to the original commercial or industrial purchaser (“Purchaser”) that the goods purchased are free from defects in material or workmanship.
1.02.Manufacturer will replace for the Purchaser any part or parts found, upon examination at one of its factories, to be defective under normal use and service due to defects in material or workmanship.
1.03.This limited warranty does not apply to any part of the goods which has been subjected to improper or abnormal use, negligence, alteration, modification, or accident, damaged due to lack of maintenance or use of wrong fuel, oil, or lubricants, or which has served its normal life. This limited warranty does not apply to any part of any internal combustion engine, or expendable items such as blades, shields, guards, or pneumatic tires except as specifically found in your Operator’s Manual.
1.04.Except as provided herein, no employee, agent, Dealer, or other person is authorized to give any warranties of any nature on behalf of Manufacturer.
2. REMEDIES AND PROCEDURES.
2.01.This limited warranty is not effective unless the Purchaser returns the Registration and Warranty Form to Manufacturer within 30 days of purchase.
2.02.Purchaser claims must be made in writing to the Authorized Dealer (“Dealer”) from whom Purchaser purchased the goods or an approved Authorized Dealer (“Dealer”) within 30 days after Purchaser learns of the facts on which the claim is based.
2.03.Purchaser is responsible for returning the goods in question to the Dealer.
2.04.If after examining the goods and/or parts in question, Manufacturer finds them to be defective under normal use and service due to defects in material or workmanship, Manufacturer will: (a) Repair or replace the defective goods or part(s) or (b) Reimburse Purchaser for the cost of the part(s) and reasonable labor charges (as determined by Manufacturer)
if Purchaser paid for the repair and/or replacement prior to the final determination of applicability of the warranty by Manufacturer.
The choice of remedy shall belong to Manufacturer.
2.05.Purchaser is responsible for any labor charges exceeding a reasonable amount as determined by Manufacturer and for returning the goods to the Dealer, whether or not the claim is approved. Purchaser is responsible for the trans­portation cost for the goods or part(s) from the Dealer to the designated factory.
3. LIMITATION OF LIABILITY.
3.01.MANUFACTURER DISCLAIMS ANY EXPRESS (EXCEPT AS SET FORTH HEREIN) AND IMPLIED WARRANTIES
WITH RESPECT TO THE GOODS INCLUDING, BUT NOT LIMITED TO, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
3.02.MANUFACTURER MAKES NO WARRANTY AS TO THE DESIGN, CAPABILITY, CAPACITY, OR SUITABILITY FOR
USE OF THE GOODS.
3.03.EXCEPT AS PROVIDED HEREIN, MANUFACTURER SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO
PURCHASER OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS, OR DAMAGE CAUSED OR ALLEGED TO BE CAUSED DIRECTLY OR INDIRECTLY BY THE GOODS INCLUDING, BUT NOT LIMITED TO, ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES RESULTING FROM
THE USE OR OPERATION OF THE GOODS OR ANY BREACH OF THIS WARRANTY. NOT WITHSTANDING THE
ABOVE LIMITATIONS AND WARRANTIES, MANUFACTURER’S LIABILITY HEREUNDER FOR DAMAGES INCURRED BY PURCHASER OR OTHERS SHALL NOT EXCEED THE PRICE OF THE GOODS.
3.04.NO ACTION ARISING OUT OF ANY CLAIMED BREACH OF THIS WARRANTY OR TRANSACTIONS UNDER THIS WARRANTY MAY BE BROUGHT MORE THAN TWO (2) YEARS AFTER THE CAUSE OF ACTION HAS
OCCURRED.
4. MISCELLANEOUS.
4.01.Proper Venue for any lawsuits arising from or related to this limited warranty shall be only in Guadalupe County,
Texas.
4.02.Manufacturer may waive compliance with any of the terms of this limited warranty, but no waiver of any terms shall
be deemed to be a waiver of any other term.
4.03.If any provision of this limited warranty shall violate any applicable law and is held to be unenforceable, then the
invalidity of such provision shall not invalidate any other provisions herein.
4.04.Applicable law may provide rights and benefits to purchaser in addition to those provided herein.
KEEP FOR YOUR RECORDS
ATTENTION: Purchaser should fill in the blanks below for his reference when buying repair parts and/or for proper machine identification when applying for warranty.
Servis-Rhino Implement Model _______________________________ Serial Number________________________________ Date Purchased __________________________________________ Dealer ______________________________________ ATTENTION:
READ YOUR OPERATOR'S MANUAL
RHINO
1020 S. Sangamon A ve.
®
Gibson City, IL 60936 800-446-5158 Email: parts@servis-rhino.com
R
TO THE OWNER/OPERATOR/DEALER
To keep your implement running efficiently and safely, read your manual thoroughly and follow these directions and the Safety Messages in this Manual. The Table of Contents clearly identifies each section where you can easily find the information you need.
The OCCUPATIONAL SAFETY AND HEALTH ACT (1928.51 Subpart C) makes these minimum safety requirements of tractor operators:
REQUIRED OF THE OWNER:
1. Provide a Roll-Over-Protective Structure that meets the requirements of this Standard; and
2. Provide Seatbelts that meet the requirements of this paragraph of this Standard and SAE J4C; and
3. Ensure that each employee uses such Seatbelt while the tractor is moving; and
4. Ensure that each employee tightens the Seatbelt sufficiently to confine the employee to the protected area provided by the ROPS.
REQUIRED OF THE OPERATOR
1. Securely fasten seatbelt if the tractor has a ROPS.
2. Where possible, avoid operating the tractor near ditches, embankments, and holes.
3. Reduce speed when turning, crossing slopes, and on rough, slick, or muddy surfaces.
4. Stay off slopes too steep for safe operation.
5. Watch where you are going - especially at row ends, on roads, and around trees.
6. Do not permit others to ride.
7. Operate the tractor smoothly - no jerky turns, starts, or stops.
8. Hitch only to the drawbar and hitch points recommended by the tractor manufacturer.
9. When the tractor is stopped, set brakes securely and use park lock, if available.
Keep children away from danger all day, every day...
Equip tractors with rollover protection (ROPS) and keep all machinery guards in place...
Please work, drive, play and live each day with care and concern for your safety and that of your family and fellow citizens.
Printed U.S.A.
P/N 504 7P7600A PL 06/05
