This Operator's Manual is an integral part of the safe operation of this machine and must be maintained with the unit at all times. READ,

UNDERSTAND, and FOLLOW the Safety

and Operation Instructions contained in this manual before operating the equipment. C01-

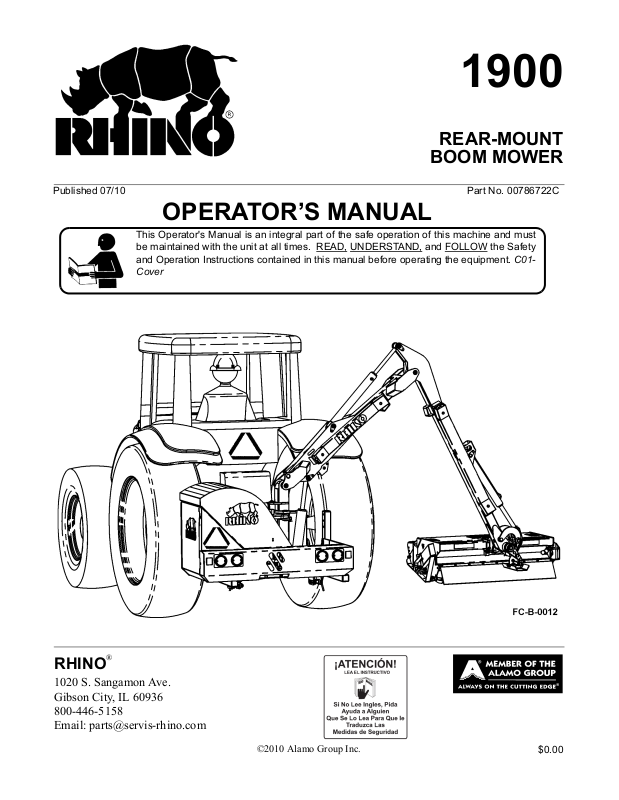

Cover

1900

REAR-MOUNT

BOOM MOWER

Published 07/10 Part No. 00786722C

OPERATOR’S MANUAL

RHINO®

1020 S. Sangamon Ave. Gibson City, IL 60936 800-446-5158 Email: parts@servis-rhino.com

$0.00

To the Owner/Operator/Dealer

All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded operator who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance of accidents.

BEFORE YOU START!!Read the safety messages on the implement and shown in your manual. Observe the rules of safety and common sense!

WARRANTY INFORMATION:

Read and understand the complete Warranty Statement found in this Manual. Fill out the Warranty Registration Form in full and return it to within 30 Days. Make certain the Serial Number of the Machine is recorded on the Warranty Card and on the Warranty Form that you retain.

In order to reduce accidents and enhance the safe operation of mowers, Alamo Group Ag Division, in cooperation with other industry manufacturers has developed the AEM/FEMA Industrial and Agricultural Mower Safety Practices video and guide book.

The video will familiarize and instruct mower-tractor operators in safe practices when using industrial and agricultural mowing equipment. It is important that Every Mower Operator be educated in the operation of their mowing equipment and be able to recognize the potential hazards that can occur while operating a mower. This video, along with the mower operator’s manual and the warning messages on the mower, will significantly assist in this important education.

Your Authorized Rhino Dealer may have shown this video and presented you a DVD Video when you purchased your mower. If you or any mower operator have not seen this video, Watch the Video, Read this Operator’s Manual, and Complete the Video Guidebook before operating your new mower. If you do not understand any of the instructions included in the video or operator’s manual or if you have any questions concerning safety of operation, contact your supervisor, dealer or Alamo Group Ag.

If you would like a VHS video tape of the video, please mail AEMVideo@alamo-group.com or Fax AEM VHS Video at (830) 372-9529 or mail in a completed copy of the form on the back of this page to AEM VHS Video 1502 E Walnut Street, Seguin, TX 78155. and request the VHS video version. Please include your name, mailing address, mower model and serial number.

Every operator should be trained for each piece of equipment (Tractor and Mower), understand the intended use, and the potential hazards before operating the equipment.

The information and material listed above along with this Operator’s Manual can assist you in meeting the OSHA requirement for annual operator training.

OSHA TRAINING REQUIREMENTS

The following training requirements have been taken from Title 29, Code of Federal Regulations Part 1928.57 (a) (6). www.osha.gov

Operator instructions. At the time of initial assignment and at least annually thereafter the employer shall instruct every employee who operates an agricultural tractor and implements in the safe operating practices and servicing of equipment with which they are or will be involved, and of any other practices dictated by the work environment.

Alamo Group Ag. Division is willing to provide

one (1) AEM Mower Safety Practices Video

Please Send Me: VHS Format – AEM/FEMA Mower Operator Safety Video

DVD Format – AEM/FEMA Mower Operator Safety Video

Mower Operator’s Manual

AEM Mower Operator’s Safety Manual

Requester Name Phone:

Requester Address:

City

State

Zip Code

Mower Model: Serial Number:

Date Purchased: Dealer Salesperson:

Dealership Name: Dealership Location:

Mail to:

AEM Video Services

1502 E. Walnut Street

Seguin, TX 78155

Or Fax to:

(830) 372-9529

Or Email to:

AEMVideo@alamo-group.com

TABLE OF CONTENTS

SAFETY SECTION .............................................................................................................. 1-1

General Safety Instructions and Practices ......................................................................................................... 1-2

Operator Safety Instructions and Practices ....................................................................................................... 1-3

Connecting & Disconnecting Implement Safety Instructions & Practices .......................................................... 1-5

Equipment Operation Safety Instructions and Practices .................................................................................... 1-6

Maintenance and Service Safety Instructions and Practices ........................................................................... 1-12

Transporting Safety Instructions and Practices ............................................................................................... 1-14

Concluding Safety Instructions and Practices .................................................................................................. 1-16

Decal Location ................................................................................................................................................. 1-17

Decal Description ............................................................................................................................................. 1-21

Federal Laws and Regulations ........................................................................................................................ 1-30

INTRODUCTION SECTION ................................................................................................. 2-1

ASSEMBLY SECTION ........................................................................................................ 3-1

TRACTOR SELECTION .................................................................................................................................... 3-2

TRACTOR PREPARATION ............................................................................................................................... 3-3

Fitting Operator Guard ....................................................................................................................................... 3-3

DEALER SETUP INSTRUCTIONS .................................................................................................................... 3-4

ATTACHMENT TO TRACTOR .......................................................................................................................... 3-5

Flailhead Attachment ....................................................................................................................................... 3-11

OIL REQUIREMENTS ..................................................................................................................................... 3-12

Tank ................................................................................................................................................................. 3-12

FITTING CONTROL UNIT IN CAB .................................................................................................................. 3-12

RUNNING UP PROCEDURE .......................................................................................................................... 3-12

REMOVAL FROM TRACTOR ......................................................................................................................... 3-13

STORAGE ....................................................................................................................................................... 3-14

OPERATION SECTION ....................................................................................................... 4-1

Standard Equipment and Specifications ............................................................................................................ 4-3

OPERATOR REQUIREMENTS ......................................................................................................................... 4-4

TRACTOR REQUIREMENTS ............................................................................................................................ 4-5

ROPS and Seat Belt .......................................................................................................................................... 4-5

Operator Thrown Object Protection ................................................................................................................... 4-5

Tractor Lighting and SMV Emblem .................................................................................................................... 4-6

Tractor Ballast .................................................................................................................................................... 4-6

Tractor Safety Devices ....................................................................................................................................... 4-7

Tractor Horsepower ........................................................................................................................................... 4-7

3-Point Hitch ...................................................................................................................................................... 4-7

Hydraulics .......................................................................................................................................................... 4-8

Front End Weight ............................................................................................................................................... 4-8

Power Take Off (PTO) ....................................................................................................................................... 4-8

GETTING ON AND OFF THE TRACTOR ......................................................................................................... 4-8

Boarding the Tractor .......................................................................................................................................... 4-9

Dismounting the Tractor ..................................................................................................................................... 4-9

STARTING THE TRACTOR ............................................................................................................................ 4-10

PRE-OPERATION INSPECTION AND SERVICE ...........................................................................................4-11

Tractor Pre-Operation Inspection/Service ........................................................................................................ 4-11

MACHINE CONTROLS ................................................................................................................................... 4-19

Cable Controlled Models Only ......................................................................................................................... 4-19

Lever Functions ............................................................................................................................................... 4-19

Rotor Controls-Gear Hydraulic Machine Only .................................................................................................. 4-21

BREAKAWAY .................................................................................................................................................. 4-22

POWERED SLEW ........................................................................................................................................... 4-23

WIRE TRAP ..................................................................................................................................................... 4-24

Rotor Operating Speed .................................................................................................................................... 4-24

Forward Speed ................................................................................................................................................ 4-24

High Voltage Cables ........................................................................................................................................ 4-25

Hedge Cutting Procedure ................................................................................................................................ 4-26

DRIVING THE TRACTOR AND IMPLEMENT ................................................................................................. 4-27

Starting the Tractor .......................................................................................................................................... 4-28

Brake and Differential Lock Setting .................................................................................................................. 4-28

Driving the Tractor and Boom .......................................................................................................................... 4-29

OPERATING THE TRACTOR AND IMPLEMENT ........................................................................................... 4-30

Foreign Debris Hazards ................................................................................................................................... 4-30

Bystanders/Passersby Precautions ................................................................................................................. 4-31

Engaging the Power Take Off (PTO) ............................................................................................................... 4-31

Operating Speed and Ground Speed .............................................................................................................. 4-32

Operating the Mower ....................................................................................................................................... 4-32

Operating the Attached Mower Heads ............................................................................................................. 4-34

Shutting Down the Attached Head ................................................................................................................... 4-35

TRACTOR, BOOM, AND ATTACHED HEAD STORAGE ............................................................................... 4-35

TRANSPORTING THE TRACTOR AND IMPLEMENT ................................................................................... 4-36

TRANSPORT POSITION-Head Attached ........................................................................................................ 4-38

TRANSPORT POSITION-Head Removal ........................................................................................................ 4-38

Transporting on Public Roadways ................................................................................................................... 4-39

Hauling the Tractor and Implement .................................................................................................................. 4-41

TROUBLESHOOTING GUIDE ........................................................................................................................ 4-43

MAINTENANCE SECTION .................................................................................................. 5-1

LUBRICATION ................................................................................................................................................... 5-2

HYDRAULIC SYSTEM ...................................................................................................................................... 5-3

Oil Supply ........................................................................................................................................................... 5-3

Filtration Maintenance ........................................................................................................................................ 5-3

HYDRAULIC HOSES ......................................................................................................................................... 5-3

Hose Replacement ............................................................................................................................................ 5-4

Hose Warranty ................................................................................................................................................... 5-4

FLAILHEAD ....................................................................................................................................................... 5-5

CABLES ............................................................................................................................................................. 5-5

PTO GEARBOX ................................................................................................................................................. 5-6

STORAGE ......................................................................................................................................................... 5-6

PROPER TORQUE VALUES FOR FASTENERS .............................................................................................5-7

SAFETY SECTION

Safety Section 1-1

SAFETY

A careful operator is the best operator. Safety is of primary importance to the manufacturer and should be to the owner/operator. Most accidents can be avoided by being aware of your equipment, your surroundings, and observing certain precautions. The first section of this manual includes a list of Safety Messages that, if followed, will help protect the operator and bystanders from injury or death. Read and understand these Safety Messages before assembling, operating or servicing this Implement. This equipment should only be operated by those persons who have read the manual, who are responsible and trained, and who know how to do so responsibly.

The Safety Alert Symbol combined with a Signal Word, as seen below, is used throughout this manual and on decals which are attached to the equipment. The Safety Alert Symbol means: “ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!” The Symbol and Signal Word are intended to warn the owner/operator of impending hazards and the degree of possible injury faced when operating this equipment.

Indicates an imminently hazardous situation that, if not avoided, WILL result in DEATH OR VERY SERIOUS INJURY.

Indicates an imminently hazardous situation that, if not avoided, COULD result in DEATH OR SERIOUS INJURY.

Indicates an imminently hazardous situation that, if not avoided, MAY result in MINOR INJURY.

Identifies special instructions or procedures that, if not strictly observed, could result in damage to, or destruction of the machine, attachments or the environment.

NOTE: Identifies points of particular interest for more efficient and convenient operation or repair.

(SG-1)

Practice all usual and customary safe working precautions and above all---remember safety is up to YOU

. Only YOU can prevent serious injury or death from unsafe practices.

READ, UNDERSTAND, and FOLLOW the following Safety Messages. Serious injury or death may occur unless care is taken to follow the warnings and instructions stated in the Safety Messages. Always use good common sense to avoid hazards.

(SG-2)

Si no lee ingles, pida ayuda a alguien que si lo lea para que le traduzca las medidas de seguridad.

(SG-3)

General Safety Instructions and Practices

SAFETY

1900 07/10 Safety Section 1-2

SAFETY

Engine Exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the state of California to cause cancer and birth defects or other reproductive harm.

(SG-30)

Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the state of California to cause cancer, birth defects or other reproductive harm.

(SG-31)

Never operate the Tractor or Implement until you have read and completely understand this Manual, the Tractor Operator’s Manual, and each of the Safety Messages found in the Manual or on the Tractor and Implement. Learn how to stop the tractor engine suddenly in an emergency. Never allow inexperienced or untrained personnel to operate the Tractor or Implement without supervision. Make sure the operator has fully read and understood the manuals prior to operation.

The operator and all support personnel should wear hard hats, safety shoes, safety glasses, and proper hearing protection at all times for protection from injury including injury from items that may be thrown by the equipment.

(SG-16)

PROLONGED EXPOSURE TO LOUD NOISE MAY CAUSE PERMANENT HEARING LOSS! Tractors with or without an Implement attached can often be noisy enough to cause permanent hearing loss. We recommend that you always wear hearing protection if the noise in the Operator’s position exceeds 80db. Noise over 85db over an extended period of time will cause severe hearing loss. Noise over 90db adjacent to the Operator over an extended period of time will cause permanent or total hearing loss. NOTE: Hearing loss from loud noise

[from tractors, chain saws, radios, and other such sources close to the ear] is cumulative over a lifetime without hope of natural recovery.

(SG-I7)

Always read carefully and comply fully with the manufacturer’s instructions when handling oil, solvents, cleansers, and any other chemical agent.

(SG-22)

KEEP AWAY FROM ROTATING ELEMENTS to prevent entanglement and possible serious injury or death.

(SG-24)

Operator Safety Instructions and Practices

SAFETY

1900 07/10 Safety Section 1-3

SAFETY

Never allow children to play on or around Tractor or Implement. Children can slip or fall off the Equipment and be injured or killed. Children can cause the Implement to shift or fall crushing themselves or others.

(SG-25)

NEVER use drugs or alcohol immediately before or while operating the Tractor and Implement. Drugs and alcohol will affect an operator’s alertness and coordination and therefore affect the operator’s ability to operate the equipment safely. Before operating the Tractor or Implement, an operator on prescription or over-the-counter medication must consult a medical professional regarding any side effects of the medication that would hinder their ability to operate the Equipment safely. NEVER knowingly allow anyone to operate this equipment when their alertness or coordination is impaired. Serious injury or death to the operator or others could result if the operator is under the influence of drugs or alcohol.

(SG-27)

Prolonged operation may cause operator boredom and fatigue affecting safe operation. Take scheduled work breaks to help prevent these potentially impaired operating conditions. Never operate the Implement and Tractor in a fatigued or bored mental state which impairs proper and safe operation.

(SG-32)

Use extreme caution when getting onto the Implement to perform repairs, maintenance and when removing accumulated material. Only stand on solid flat surfaces to ensure good footing. Use a ladder or raised stand to access high spots which cannot be reached from ground level. Slipping and falling can cause serious injury or death.

(SG-33)

Avoid contact with hot surfaces including hydraulic oil tanks, pumps, motors, valves and hose connections. Relieve hydraulic pressure before performing maintenance or repairs. Use gloves and eye protection when servicing hot components. Contact with a hot surface or fluid can cause serious injury from burns or scalding.

(SG-34)

DO NOT operate this Implement on a Tractor that is not properly maintained. Should a mechanical or Tractor control failure occur while operating, immediately shut down the Tractor and perform repairs before resuming operation. Serious injury and possible death could occur from not maintaining this Implement and Tractor in good operating condition.

(SG-36)

Avoid contact with hot surfaces of the engine or muffler. Use gloves and eye protection when servicing hot components. Contact with a hot surface or fluid can cause serious injury from burns or scalding.

(SG-38)

SAFETY

1900 07/10 Safety Section 1-4

SAFETY

The rotating parts of this machine continue to rotate even after the Tractor has been turned off. The operator should remain in his seat for 60 seconds after the brake has been set, the PTO disengaged, the tractor turned off, and all evidence of rotation has ceased.

(SBM-5)

“Wait a minute...Save a life!”

Do not put hands or feet under mower decks. Blade Contact can result in serious injury or even death. Stay away until all motion has stopped and the decks are securely blocked up.

(SFL-2)

Do not put hands or feet under mower decks. Blade Contact can result in serious injury or even death. Stay away until all motion has stopped and the decks are securely blocked up.

(SGM-09)

Do not put hands or feet near the cutter bar. Blade contact can result in serious injury. Stay away until all motion has stopped and the mower is securely blocked up.

(SSM-1)

Do not operate the implement while wearing loose fitting clothing. Entanglement of the clothing with the rotating elements can result in serious injury or even death. Stay clear of all rotating elements at all times.

(SSP-03)

Each Rear Wheel must have a minimum of 1500 pound contact with the

surface to prevent lateral instability and possible tip-over which could result in serious bodily injury or even death. Widen the wheel tread and add weights if needed. Refer to the mounting instructions or call Customer Service if you need assistance with Counterweight Procedure.

(SBM-11)

Do Not attempt to raise or lower the boom or mower head unless the Implement is securely attached to the Tractor. The Implement could tip over and cause equipment damage and possible serious injury or death. Do Not use the boom controls to assist in installing the implement on the tractor. Raise or Lower the boom and mower head only while seated in the Tractor operator’s seat with the seat belt securely fastened. Inadvertent contact with the boom controls could allow a component to fall. A sudden or inadvertent fall by any of these components could cause serious injury or even death.

(SBM-23)

SAFETY

Connecting & Disconnecting Implement Safety Instructions & Practices

1900 07/10 Safety Section 1-5

SAFETY

Never leave the Tractor and Implement unattended while the Implement is in the lifted

position. Accidental operation of lifting lever or a hydraulic failure may cause sudden drop

of unit with injury or death by crushing. To properly park the implement when disconnecting

it from the tractor, lower the stand and put the retaining pin securely in place, or put a secure

support under the A-Frame. Lower the implement carefully to the ground. Do not put hands

or feet under lifted components.

(S3PT-1)

This Implement may be wider than the Tractor. Be careful when operating or transporting

this equipment to prevent the Implement from running into or striking sign posts, guard rails,

concrete abutments or other solid objects. Such an impact could cause the Implement and

Tractor to pivot violently resulting in loss of steering control, serious injury, or even death.

Never allow the Implement to contact obstacles.

(S3PT-12)

Use extreme caution when raising the Mower head. Stop the Blades from turning when the Mower Head is raised and passersby are within 300 feet. Raising the Mower head exposes the Cutting Blades which creates a potentially serious hazard and can cause serious injury by objects thrown from the Blades or by contact with the Blades.

(SBM-2)

Never Leave the mower unattended while the head is in the raised position. The mower could fall causing serious injury to anyone who

might inadvertently be under the mower

. (SBM-4)

Always keep a careful lookout and use extreme care when working

around overhead obstructions. Never allow the Mower head or boom

within 10 feet of any power line. When working close to overhead power lines consult your electric company for a safe code of operation.

(SBM-7)

The center of Gravity of Tractors equipped with a Rear-Mounted Boom Mower is shifted to the rear and removes weight from the front wheels. Add front ballast until at least 20% of the tractors weight is on the front wheels to prevent rearing up, loss of steering control, and possibly injury.

(SBM-10)

The Mower shaft speed must not - UNDER ANY CIRCUMSTANCES - exceed 1800 RPM.

(SBM-15)

Use extreme care and Safety Awareness when using the boom mower head to mulch loose

brush or wood that has fallen on the ground from overhead trimming. DO NOT mulch this debris if bystanders, vehicles, livestock or buildings are within 300 feet of the mower. This cut debris can be thrown at great velocities and could result in serious injury or even death.

(SBM-17)

Equipment Operation Safety Instructions and Practices

SAFETY

1900 07/10 Safety Section 1-6

SAFETY

Do not back up this implement when the boom or mower head is extended. Backing could

damage the machine or its components.

(SBM-19)

Follow these guidelines to reduce the risk of equipment and grass fires while operating, servicing, and repairing the Mower and Tractor:

-Equip the Tractor with a fire extinguisher in an accessible location.

-Do Not operate the Mower on a Tractor with an underframe exhaust.

-Do Not smoke or have an open flame near the Mower and Tractor.

-Do Not drive into burning debris or freshly burnt areas.

-Do Not attempt to mow or place the mower head close to burning debris.

-Never allow clippings or debris to collect near drivelines, gearboxes or hydraulic components such as valves, tanks, pumps and motors. Periodically shut down the Tractor and Mower and clean clippings and collected debris from the mower deck.

(SBM-20)

Do not operate Mower if excessive vibration exists. Shut down PTO and the Tractor

engine. Inspect the Mower to determine the source of the vibration. If Mower blades are

missing or damaged replace them immediately. Do not operate the mower until the

blades have been replaced and the Mower operates smoothly. Operating the Mower with

excessive vibration can result in component failure and broken objects to be thrown

outward at very high velocities. To reduce the possibility of property damage, serious injury,

or even death, never allow the Mower to be operated with blades missing.

(SFL-4)

SAFETY

1900 07/10 Safety Section 1-7

SAFETY

Flail Mowers are capable under adverse conditions of throwing objects for great distances (300 feet or more) and causing serious injury or death. Follow safety messages carefully.

STOP MOWING IF PASSERSBY ARE WITHIN 300 FEET UNLESS:

-Front and Rear Deflectors, Chain Guards, or Bands are installed and in good, workable condition;

-Mower sections or Wings are running close to and parallel to the ground without exposed Blades;

-All areas have been thoroughly inspected and all foreign material such as rocks, cans, glass, and general debris has been removed.

NOTE: Where there are grass and weeds high enough to hide debris that could be struck by the blades, the area should be: inspected and large debris removed, mowed at an intermediate height, inspected closely with any remaining debris being removed, and mowed again at desired final height. (This will also reduce power required to mow, reduce wear and tear on the Mower drivetrain, spread cut material better, eliminate streaking, and make the final cut more uniform.)

(SFL-6)

Operate this Equipment only with a Tractor equipped with an approved roll-

over-protective system (ROPS). Always wear seat belts. Serious injury or

even death could result from falling off the tractor--particularly during a turnover

when the operator could be pinned under the ROPS.

(SG-7)

BEFORE leaving the tractor seat, always set the parking brake and/or set

the tractor transmission in parking gear, disengage the PTO, stop the

engine, remove the key, and wait for all moving parts to stop. Place the

tractor shift lever into a low range or parking gear to prevent the tractor

from rolling. Never dismount a Tractor that is moving or while the engine

is running. Operate the Tractor controls from the tractor seat only.

(SG-9)

Never allow children or other persons to ride on the Tractor or Implement. Falling off can result in serious injury or death.

(SG-10)

Never allow children to operate, ride on, or come close to the Tractor or Implement. Usually, 16-17 year-old children who are mature and responsible can operate the implement with adult supervision, if they have read and understand the Operator’s Manuals, been trained in proper operation of the tractor and Implement, and are physically large enough to reach and operate the controls easily.

(SG-11)

SAFETY

1900 07/10 Safety Section 1-8

SAFETY

Do not mount or dismount the Tractor while the tractor is moving. Mount the Tractor only when the Tractor and all moving parts are completely stopped.

(SG-12)

Start tractor only when properly seated in the Tractor seat. Starting a

tractor in gear can result in injury or death. Read the Tractor operators

manual for proper starting instructions.

(SG-13)

Do not operate this Equipment with hydraulic oil or fuel leaking. Oil

and fuel are explosive and their presence could present a hazard. Do

not check for leaks with your hand! High-pressure oil streams from

breaks in the line could penetrate the skin and cause tissue damage

including gangrene. To check for a hose leak, SHUT the unit ENGINE

OFF and remove all hydraulic pressure. Wear oil impenetrable gloves,

safety glasses and use Cardboard to check for evidence of oil leaks. If

you suspect a leak, REMOVE the HOSE and have it tested at a Dealer.

If oil does penetrate the skin, have the injury treated immediately by a

physician knowledgeable and skilled in this procedure.

(SG-15)

Never run the Tractor engine in a closed building or without adequate ventilation. The exhaust fumes can be hazardous to your health.

(SG-23)

Do not exceed the rated PTO speed for the Implement. Excessive PTO speeds can cause

Implement driveline or blade failures resulting in serious injury or death.

(SG-26)

Operate the Tractor and/or Implement controls only while properly seated in the Tractor seat with the seat belt securely fastened around you. Inadvertent movement of the Tractor or Implement may cause serious injury or death.

(SG-29)

In case of mechanical difficulty during operation, place the transmission in the park

position, set the parking brake, shut down all power, including the PTO and the engine and

remove the key. Wait until all rotating motion has stopped before dismounting.

(SG-39)

SAFETY

1900 07/10 Safety Section 1-9

SAFETY

Do Not operate this equipment in areas where insects such as bees may attack you and/or cause you to lose control of the equipment. If you must enter in such areas, use a tractor with an enclosed Cab and close the windows to prevent insects from entering. If a tractor cab is not available, wear suitable clothing including head, face, and hand protection to shield you from the insects. Attacking insects can cause you to lose control of the tractor, which can result in serious injury or death to you or bystanders. Never dismount a moving tractor.

(SG-40)

Mow only in conditions where you have clear visibility in daylight or with adequate artificial lighting. Never mow in darkness or foggy conditions where you cannot clearly see at least 300 feet (90 m) in front and to the sides of the tractor and mower. Make sure that you can clearly see and identify passersby, steep slopes, ditches, drop-offs, overhead obstructions, power lines, debris and foreign objects. If you are unable to clearly see these type of items discontinue mowing.

(SGM-1)

There are obvious and hidden potential hazards in the operation of this Mower. REMEMBER! This machine is often operated in heavy brush and in heavy weeds. The Blades of this Mower can throw objects if shields are not properly installed and maintained. Serious injury or even death may occur unless care is taken to insure the safety of the operator, bystanders, or passersby in the area. Do not operate this machine with anyone in the immediate area. Stop mowing if anyone is within 300 feet of mower.

(SGM-02)

The rotating parts of this machine have been designed and tested for rugged use.

However, the blades could fail upon impact with heavy, solid objects such as metal guard

rails and concrete structures. Such impact could cause the broken objects to be thrown

outward at very high velocities. To reduce the possibility of property damage, serious

injury, or even death, never allow the cutting blades to contact such obstacles.

(SGM-4)

Extreme care should be taken when operating near loose objects such

as gravel, rocks, wire, and other debris. Inspect the area before

mowing. Foreign objects should be removed from the site to prevent

machine damage and/or bodily injury or even death. Any objects that

cannot be removed must be clearly marked and carefully avoided by the

operator. Stop mowing immediately if blades strike a foreign object.

Repair all damage and make certain rotor or blade carrier is balanced

before resuming mowing.

(SGM-05)

Many varied objects, such as wire, cable, rope, or chains, can become entangled in the operating parts of the mower head. These items could then swing outside the housing at greater velocities than the blades. Such a situation is extremely hazardous and could result in serious injury or even death. Inspect the cutting area for such objects before mowing. Remove any like object from the site. Never allow the cutting blades to contact such items.

(SGM-06)

SAFETY

1900 07/10 Safety Section 1-10

SAFETY

Mow at the speed that you can safely operate and control the tractor and mower. The

correct mowing speed depends on terrain condition and grass type, density, and height of

cut. Normal ground speed range is from 2 to 5 mph(3-8 kph). Use slow mowing speeds

when operating on or near steep slopes, ditches, drop-offs, overhead obstructions, power

lines, or when debris and foreign objects are to be avoided.

(SGM-07)

Avoid mowing in reverse direction when possible. Check to make sure there are no persons behind the mower and use extreme care when mowing in reverse. Mow only at a slow ground speed where you can safely operate and control the tractor and mower. Never mow an area that you have not inspected and removed debris or foreign material.

(SGM-08)

Do not mow with two machines in the same area except with Cab tractors with the windows

closed.

(SGM-11)

Follow these guidelines to reduce the risk of equipment and grass fires while operating, servicing, and repairing the Mower and Tractor:

-Equip the Tractor with a fire extinguisher in an accesible location.

-Do Not operate the Mower on a Tractor with an underframe exhaust.

-Do Not smoke or have an open flame near the Mower and Tractor.

-Do Not drive into burning debris or freshly burnt areas.

-Ensure slip clutches are properly adjusted to prevent excessive slippage and plate heating.

-Never allow clippings or debris to collect near drivelines, slip clutches, and gearboxes. Periodically shut down the Tractor and Mower and clean clippings and collected debris from the mower deck.

(SGM-12)

The Mower is designed for certain mowing applications and is rated to cut up to a specific

size vegetation (see Mower Standard Equipment and Specifications). DO NOT use this

mower to cut vegetation above the Mower’s rated capacity or to cut any type of non-

vegetative material. Only operate this Mower on a properly sized and equipped Tractor.

Operating this Mower in an application for which it is not designed and/or operating the

Mower with the wrong size Tractor can cause Mower component damage and equipment

failure resulting in possible serious injury or death.

(SGM-14)

Never leave the Implement and Power Unit unattended while the Implement is in the raised

position. Accidental operation of a lifting lever or a hydraulic failure may cause the

implement to suddenly fall causing serious injury or possible death to anyone who might

inadvertently be under the Implement. Lower the implement carefully to the ground. Do not

put hands or feet under lifted components.

(SPU-3)

SAFETY

1900 07/10 Safety Section 1-11

SAFETY

Do not let the Blades turn when the Mower Deck is raised for any

reason, including clearance or for turning. Raising the Mower deck

exposes the Cutting Blades which creates a potentially serious hazard

and could cause serious injury or even death from objects thrown from

the Blades.

(SRM-07)

Make sure the PTO shield, integral driveline shields, and input shields are installed when using PTO-driven equipment. Always replace any shield if it is damaged or missing.

(S3PT-8)

Always disconnect the main PTO Driveline from the Tractor before performing service on the Implement. Never work on the Implement with the tractor PTO driveline connected and running. Rotating Parts, Blades or Drivelines could turn without warning and cause immediate entanglement, injury or death.

(S3PT-11)

Never interfere with factory-set hydraulic calibrations. Any change in calibration could

cause a failure of the equipment and may result in injury.

(SBH-13)

Relieve hydraulic pressure prior to doing any maintenance or repair work on the Implement.

Place the Mower Head on the ground or securely supported on blocks or stands, disengage the PTO, and turn off the engine. Push and pull the control Levers or Joystick several times to relieve pressure prior to starting any maintenance or repair work.

(SBM-6)

All Safety Shields, Guards and Safety devices including (but not limited to) - the Deflectors, Chain Guards, Steel Guards,

Gearbox Shields, PTO integral shields , and Retractable Door Shields should be used and maintained in good working condition. All safety devices should be inspected carefully at least daily for missing or broken components. Missing, broken, or worn items must be replaced at once to reduce the possibility of injury or death from thrown objects, entanglement, or blade contact.

(SBM-18)

DO NOT allow any person under a raised boom or mower head unless

it is securely locked up or supported. DO NOT approach the Implement unless the Tractor is turned off and all motion has ceased. Never work under the frame work, or any lifted component unless the implement is securely supported or blocked up. Inadvertent contact with the controls could allow a component to fall. A sudden or inadvertent fall by any of these components could cause serious injury or even death.

(SBM-22)

Maintenance and Service Safety Instructions and Practices

SAFETY

1900 07/10 Safety Section 1-12

SAFETY

Always maintain the safety signs in good readable condition. If the safety signs are missing, damaged, or unreadable, obtain and install replacement safety signs immediately.

(SG-5)

Do not modify or alter this Implement. Do not permit anyone to modify or alter this

Implement, any of its components or any Implement function.

(SG-8)

Never work under the Implement, the framework, or any lifted component unless the Implement is securely supported or blocked up to prevent sudden or inadvertent falling which could cause serious injury or even death.

(SG-14)

Never attempt to lubricate, adjust, or remove material from the Implement while it is in

motion or while tractor engine is running.

(SG-20)

Periodically inspect all moving parts for wear and replace when necessary with authorized service parts. Look for loose fasteners, worn or broken parts, and leaky or loose fittings. Make sure all pins have cotter pins and washers. Serious injury may occur from not maintaining this machine in good working order.

(SG-21)

Do Not fill fuel tank while engine is running. Refuel only after engine has cooled down. If

fuel is spilled, move machine away from the area of the spill and avoid creating any source

of ignition until the gasoline has evaporated.

(SG-28)

Perform service, repairs and lubrication according to the maintenance section. Ensure the

unit is properly lubricated as specified in the lubrication schedule and all bolts and nuts are

properly torqued. Failure to properly service, repair and maintain this Implement in good

operating condition could cause component failure and possible serious injury or even

death.

(SG-35)

Use caution and wear protective gloves when handling sharp objects such as blades, knives, and other cutting edges. Be alert to worn component surfaces which have sharp edges. Sharp surfaces can inflict severe laceration injuries if proper hand protection is not worn.

(SG-37)

SAFETY

1900 07/10 Safety Section 1-13

SAFETY

Replace bent or broken blades with new blades. NEVER ATTEMPT TO STRAIGHTEN, WELD, OR WELD HARDFACING ON BLADES SINCE THIS WILL LIKELY CRACK OR OTHERWISE DAMAGE THE BLADE WITH SUBSEQUENT FAILURE AND POSSIBLY CAUSE SERIOUS INJURY FROM THROWN BLADES.

(SGM-10)

DO NOT weld or repair rotating mower components. Welds and other repairs may cause severe vibration and/or component failure resulting in part being thrown from the mower causing serious bodily injury. See your Authorized Dealer for proper repairs.

(SGM-13)

PARTS INF O RMATION Rhino mowers use balanced and matched system components for blade carriers, blades, cuttershafts, knives, knife hangers, rollers, drivetrain components, and bearings. These parts are made and tested to Rhino specifications. Non-genuine "will fit" parts do not consistently meet these specifications. The use of “will fit”

parts may reduce mower performance, void warranties, and present a safety hazard. Use genuine Rhino mower parts for economy and safety.

(SPRM-1)

SEE YOUR RHINO DEALER

Be particularly careful when transporting the Implement with the Tractor. Turn curves or go up hills only at a low speed and using a gradual steering angle. Rear mounted implements move the center of gravity to the rear and remove weight from the front wheels. Make certain, by adding front ballast, that at least 20% of the tractor’s weight is on the front wheels to prevent rearing up, loss of steering control or Tractor tip-over. Slow down on rough or uneven surfaces to prevent loss of steering control which could result in property damage or possible injury. Do not transport unless 3-Point lift lever is fully raised and in the latched transport position. Dropping implement in transport can cause serious damage to the tractor and/or Implement and possibly cause the operator or others to be injured or killed.

(S3PT-02)

Allow sufficient clearance for the Implement to swing outward while turning. Implements carried behind the Tractor will swing outside the tire path when making turns. Contacting a solid object while turning will cause equipment damage and possible injury.

(S3PT-20)

Be particularly careful in transport. The Mower has raised the center of

gravity for the tractor and has increased the possibility of overturn. Turn curves or go up slopes only at low speed and using a gradual turning angle. Slow down on rough or uneven surfaces.

(SBM-3)

SAFETY

Transporting Safety Instructions and Practices

1900 07/10 Safety Section 1-14

SAFETY

When transporting Boom Mower on a truck or trailer, the height or width

may exceed legal limits when the boom is in the transport position. Contact with side or overhead structures or power lines can cause property damage or serious injury or death. If necessary lower boom to reduce height and/or remove mowing head to reduce width to the legal limits.

(SBM-8)

Never operate the Tractor and Mower Unit without an OPS (Operators Protective Structure) or Cab to prevent injury from objects thrown from ground or from overhead trimming. Stop mowing if workers or passersby are within 300 feet.

(SBM-9)

Make certain that the “Slow Moving Vehicle” (SMV) sign is installed in such a way as to be clearly visible and legible. When transporting the Equipment use the Tractor flashing warning lights and follow all local traffic regulations.

(SG-6)

Secure the boom and mower head in the transport position before traveling on public roads. Never transport on public roads with the boom and mower head extended. Always disengage and lock out the hydraulic controls for the boom mower before transporting. Inadvertent boom movement on public roads may contact with other vehicles resulting in serious bodily injuries or even death.

(SBM-21)

SAFETY

1900 07/10 Safety Section 1-15

SAFETY

Transport only at speeds where you can maintain control of the

equipment. Serious accidents and injuries can result from operating this equipment at high speeds. Understand the Tractor and Implement and how it handles before transporting on streets and highways. Make sure the Tractor steering and brakes are in good condition and operate properly.

Before transporting the Tractor and Implement, determine the proper transport speeds for you and the equipment. Make sure you abide by the following rules:

Test the tractor at a slow speed and increase the speed slowly. Apply the Brakes smoothly to determine the stopping characteristics of the Tractor and Implement. As you increase the speed of the Tractor the stopping distance increases. Determine the maximum transport speed not to exceed 20 mph (30 kph) for transporting this equipment.

Test the equipment at a slow speed in turns. Increase the speed through the turn only after you determine that the equipment can be operated at a higher speed. Use extreme care and reduce your speed when turning sharply to prevent the tractor and implement from turning over. Determine the maximum turning speed for you and this equipment before operating on roads or uneven ground.

Only transport the Tractor and Implement at the speeds which allow you to properly control the equipment.

Be aware of the operating conditions. Do not operate the Tractor with weak or faulty brakes or worn tires. When operating down a hill or on wet or rain slick roads, the braking distance increases: use extreme care and reduce your speed. When operating in traffic always use the Tractor’s flashing warning lights and reduce your speed. Be aware of traffic around you and watch out for the other guy.

(SG-19)

Your driving vision may be reduced or impaired by the tractor, cab, or implement. Before driving on public roadways identify any limited vision areas, and make adjustments to your operating position, mirrors, and the implement transport position so that you can clearly see the area where you will be traveling, and any traffic that may approach you. Failure to maintain adequate vision of the public roadway and traffic can result in serious injury or even death.

(STI-10)

In addition to the design and configuration of this Implement, including Safety Signs and Safety Equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper training of personnel involved in the operation, transport, maintenance, and storage of the machine. Refer also to Safety Messages and operation instruction in each of the appropriate sections of the Tractor and Equipment Manuals. Pay close attention to the Safety Signs affixed to the Tractor and Equipment.

(SG-18)

SAFETY

Concluding Safety Instructions and Practices

1900 07/10 Safety Section 1-16

Decal Location

SAFETY

1900 07/10 Safety Section 1-17

SAFETY

ITEM PART NO. QTY LEVEL DESCRIPTION

1. D433 1 Decal Sheet Multiple Hazard

2. D388 1 Decal Sheet Driveline Hazards

3. D355 1 IMPORTANT Check Chains

4. 02962764 6 WARNING Pinch Points/Scissors

5. 02962765 1 DANGER Multiple Hazard/Crushing

6. 02965262 1 WARNING Oil Leaks

7. D354 1 DANGER Crushing Hazard

8. 1290809 1 LOGO Rhino Name Decal

9. 1290810 1 NAME DECAL 1900 Model Name

10. 1290632 1 LOGO Rhino (7x11)

11. D524 1 BOOKLET Safety Booklet

12. 9313043 3 _________ Bolt

13. 9100103 3 _________ Flatwasher

14. 9143003 3 _________ Locknut

SAFETY

15. 46503.01 1 _________ Seal

16. 46505.01 1 Canister, Operators Manual

17. 03200347 1 REFLECT SMV Sign

18. nfs 1 SERIAL PLATE Serial Number Plate

19. 00786722C 1 _________ Operator’s Manual

20. D568 1 DANGER Operate with Enclosed Cab (Inside Cab)

21. D569 1 DANGER Operate Only with Cab Tractor

NOTE: Rhino supplies safety decals on this product to promote safe operation. Damage to the decals may occur while in shipping, use, or reconditioning. Rhino cares about the safety of its customers, operators, and bystanders, and will replace the safety decals on this product in the field, free of charge (some shipping and handling charges may apply). Contact your Rhino dealer to order replacement decals.

1900 07/10 Safety Section 1-18

SAFETY

ITEM PART NO. QTY LEVEL DESCRIPTION

1. 1290632 1 LOGO Rhino Decal

2. 24028 1 WARNING Rubber Deflectors

3. 02965141 1 WARNING Thrown Objects

4. 1290738 1 INSTRUCT Euro Mult-Instruction

5. 09.821.35 1 MULTI-DECAL

6. 1458392 1 REFLECT Red Reflector

7. 1458393 1 REFLECT Yellow Reflector

8. 1290826 1 NAME DECAL F48 Name Decal 1290825 1 NAME DECAL H48 Name Decal

9. nfs 1 SERIAL PLATE Serial Number Plate

10. 09.810.01 2 INSTRUCT Grease 8 Hours

1900 07/10 Safety Section 1-19

SAFETY

ITEM PART NO. QTY LEVEL DESCRIPTION

1. 3688303 1 DANGER Sharp Blades

2. 09.821.35 1 MULTI-DECAL Euro Multi-Decal

3. 1290824 1 NAME Name Decal D58

4. 1458392 1 REFLECT Red Reflector

5. 1458393 1 REFLECT Yellow Reflector

6. nfs 1 SERIAL PLATE Serial Number Plate

1900 07/10 Safety Section 1-20

Decal Description

Multi Hazard Decal Sheet

P/N D433

Decal D433 consists of the following multi-hazards.

SAFETY

1900 07/10 Safety Section 1-21

Driveline Hazards

P/N D388

Decal D388 consists of the following multi-hazards.

SAFETY

1900 07/10 Safety Section 1-22

SAFETY

IMPORTANT! Keep Sway Bar Chains Tight

P/N D355

WARNING! Pinch Points

P/N 02962764

DANGER! Crushing and Pinch Points. Moving machinery parts can pinch or crush or fallwhich may cause injury or death.

P/N 02962765

WARNING! Failure to INSPECT and REPAIR or REPLACE Hoses may allow worn Hoses to rupture SUDDENLY and VIOLENTLY with resulting serious BODILY INJURY from SCALDING or FIRE with resulting BURN INJURY or DEATH.

P/N 02965262

SAFETY

1900 07/10 Safety Section 1-23

SAFETY

DANGER! Crushing Hazard Serious injury can result from contact with moving boom. Stay clear of boom swing are.

P/N D354

RHINO LOGO

P/N 1290809

RHINO 1900 NAME DECAL

P/N 1290810

Logo Name: RHINO

P/N 1290632

SAFETY

1900 07/10 Safety Section 1-24

+ 124 hidden pages
