Fridge - Freezer
Model Number: FF1480W
BCF148W
Page 2
EN - 1 -
Index
BEFORE USING YOUR REFRIGERATOR ........................................................... 2
General warnings .............................................................................................................. 2
Safety warnings .................................................................................................................. 4
Old and out-of-order fridges ............................................................................................. 4
Installing and operating your fridge ................................................................................. 5
Electrical connection (For UK type plug) ......................................................................... 6
Before using your fridge .................................................................................................... 6
Information on the frost free technology .......................................................................... 7
USER INFORMATION ........................................................................................ 8
Temperature settings ........................................................................................................ 8
Warnings for temperature settings .................................................................................. 8
Accessories ........................................................................................................................ 9
Ice tray .......................................................................................................................................... 9
Bottle holder .................................................................................................................................. 9
FOOD PLACEMENT .......................................................................................... 10
Cooling compartment ..................................................................................................... 10
The deep freeze compartment .......................................................................................1 0
CLEANING AND MAINTENANCE ...................................................................... 12
Defrosting ......................................................................................................................... 13
Replacing the light bulb .................................................................................................. 13
TRANSPORTATION AND CHANGING OF INSTALLATION POSITION ..............14
Repositioning the door ...................................................................................................14
BEFORE CALLING FOR AFTER SALES SERVICE ........................................... 14
Tips for saving energy ..................................................................................................... 16
THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ....................... 17
Page 3
EN - 2 -
PART 1.
BEFORE USING YOUR REFRIGERATOR
General warnings
WARNING: Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means to
accelerate the defrosting process, other than those recommended
by the manufacturer.
WARNING: Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type
recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: To avoid a hazard due to the instability of the appliance,
it must be fixed in accordance with the instructions.
• If your appliance uses R600a as a refrigerant – you can learn
this information from the label on the cooler- you should be careful
during shipment and installation to prevent your appliance’s cooler
elements from being damaged. Although R600a is an
environmentally friendly and natural gas. As it is explosive, in the
event of a leak due to damage to the cooler elements, move your
fridge from open flame or heat sources and ventilate the room
where the appliance is located for a few minutes.
• Whilst carrying and positioning the fridge, do not damage the
cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
• This appliance is intended to be used in household and similar
applications such as;
- staff kitchen areas in shops, offices and other working
environments
- farm houses and by clients in hotels, motels and other residential
type environments
Page 4
EN - 3 -
- bed and breakfast type environments;
- catering and similar non-retail applications
• If the socket does not match the refrigerator plug, it must be
replaced by the manufacturer, its' service agent or similarly
qualified persons in order to avoid a hazard.
• A specially grounded plug has been connected to the power
cable of your refrigerator. This plug should be used with a
specially grounded socket of 16 amperes. If there is no such
socket in your house, please have it installed by an authorized
electrician.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazard involved.
Children shall not play with the appliance. Cleaning and user
maintenance, shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similar qualified persons in
order to avoid a hazard.
Page 5
EN - 4 -
Safety warnings
• Do not use multiple sockets or extension cords.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• This appliance is designed for use by adults, do not allow children
to play with the appliance or let them to hang over the door.
• Do not plug-in or un-plug from the socket with wet hands to prevent
electrocution!
• Do not plac e glass bottles or beverage cans in th e freez er
compartment. Bottles or cans may explode.
• Do not place explosive or flammable material in your fridge for your
safety. Place drinks with higher alcohol amount vertically and by
closing their necks tightly in the fridge compartment.
• W hen taking ice made in the freezer department, do not touch it, ice
may cause ice burns and/or cuts.
• Do not touch frozen goods with wet hands! Do not eat ice-cream and ice
cubes immediately after you take them out of the freezer compartment!
• Do not re-freeze frozen goods after being defrosted. This may cause health
issues like food poisoning.
• Do not cover the body or top of fridge with lace. This affects the performance of your
fridge.
• Fix the acc essories in the fridge during transportation to prevent damage to
accessories.
Old and out-of-order fridges
• If your old fridge has a lock, break or remove the lock before discarding it, because
children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with
CFC. Therefore, take care not to harm environment when you are discarding
your old fridges.
Please ask your local authority about the disposal of the WEEE for the
reuse, recycle and recovery purposes.
Notes:
• Please read the instruction manual car efully before installing and using your
appliance. W e are not responsible for damage incurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep th is
manual in a safe place to resolve problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic
environments and for the specified purposes. It is not suitable for commercial or
common use. Such use will cause the guarantee of the appliance to be cancelled
and our company will not be responsible for losses incurred.
Page 6
EN - 5 -
Installing and operating your fridge
Before starting to use your fridge, you should pay attention to the following points:
• Operating voltage for your fridge is 220-240 V at 50Hz.
• The plug must be accessible after installation.
• There can be an odour when you first switch on the appliance. It will disappear after
the appliance starts to cool.
• Before making the connection to the power supply, ensure that the voltage on the
nameplate corresponds to the voltage of electrical system in your home.
• Insert the plug into a socket with an efficient ground connection. If the socket has no
ground contact or the plug does not match, we suggest you to call an authorized
electrician for assistance.
• The appliance must be connected with a properly installed fused socket. Power
supply (AC) and voltage at the operating point must correspond with the details on
the name plate of the appliance (name plate is located on the inside left of the
appliance).
• We do not take responsibility for damages that occur due to ungrounded usage.
• Place your fridge in a place where it won't be exposed to direct sunlight.
• Your fridge should never be used outdoors or left under the rain.
• Your appliance should be at least 50 cm away from stoves, Gas ovens and heaters,
and should be at least 5 cm away from electrical ovens.
• When your fridge is placed next to a deep freezer, there should be at
least 2 cm between them to prevent humidity on the outer surface.
• Do not place heavy items on the appliance.
• Clean the appliance thoroughly, especially in the interior, before use
(See Cleaning and Maintenance).
• Installation procedure into the kitchen unit is given in the installation
manual. This product is intended to be used in proper kitchen units
only.
• The adjustable front legs should be adjusted to make sure your appliance is level
and stable. You can adjust the legs by turning them clockwise (or in the opposite
direction). This should be done before placing food in the fridge.
• Before using your fridge, wipe all parts back with warm water added with a tea
spoonful of sodium bicarbonate, and then rinse with clean water
and dry. Replace all parts after cleaning.
• Install the plastic distance guide (the part with black vanes at the
rear) by turning it 90° as shown in the figure to prevent the condenser
from touching the wall.
• The refrigerator should be placed against a wall with a free distance
not exceeding 75 mm.
Page 7
EN - 6 -
Electrical connection (For UK type plug)
For your safety please read the following information
Warning: This appliance must be earthed.
This appliance operates from 220-240 volts and should be protected by a 13 amp fuse in
the plug.
The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp
fuse. Should the fuse require replacement, it must be replaced with a fuse rated at 13
amp and approved to BS1362.
If the mains plug which is fitted is unsuitable for the socket outlet in your home or is
removed for any other reason, please follow the instructions below on how to wire a 13
amp 3 pin plug..

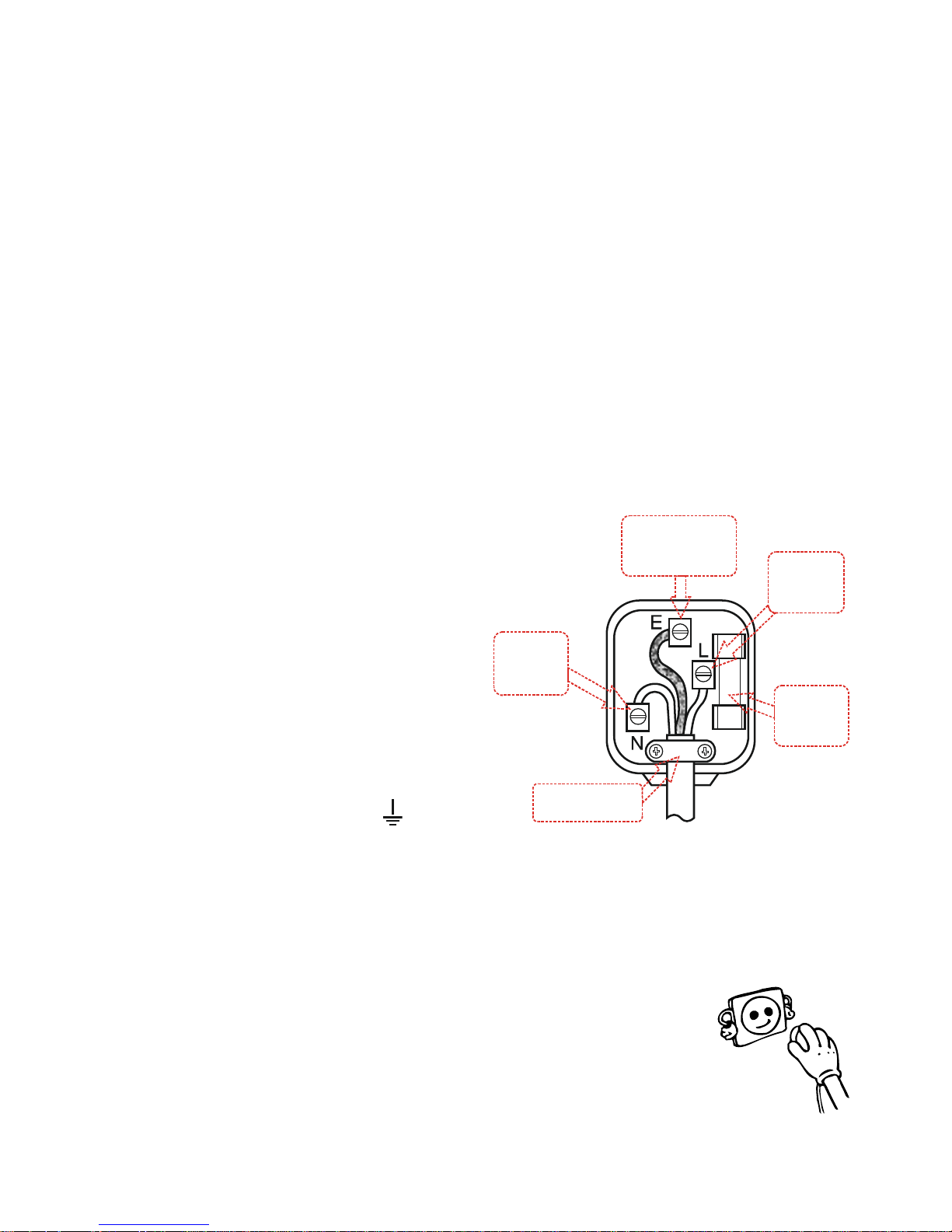

How to wire a 13 amp plug.
Important
The wires in the mains lead on this appliance are coloured in accordance with the following
code:
Green and Yellow - Earth
Blue – Neutral
Brown – Live
As the colours may not correspond with the
markings identifying the terminals in your
plug proceed as follows.
The green and yellow wire must be connected
to the terminal in the plug which is marked with
the letter E or with the earth symbol or coloured
green and yellow.
The blue wire must be connected to the terminal marked N.
The brown wire must be connected to the terminal marked L.
You must make sure the lead is firmly secured under the cord clamp.
GREEN / YELLOW
Earth
BLUE
Neutral
Cord Clamp
BROWN
Live
FUSE
13 Amps
Before using your fridge
• When it is operated for the first time or after transportation, keep
your fridge in the upright position for 3 hours and plug it on to
allo w efficient operation. Otherwise, you may damage the
compressor.
• Your fridge may have a smell when it is operated for the first time; the smell will fade
away when your fridge starts to cool.
Page 8
EN - 7 -

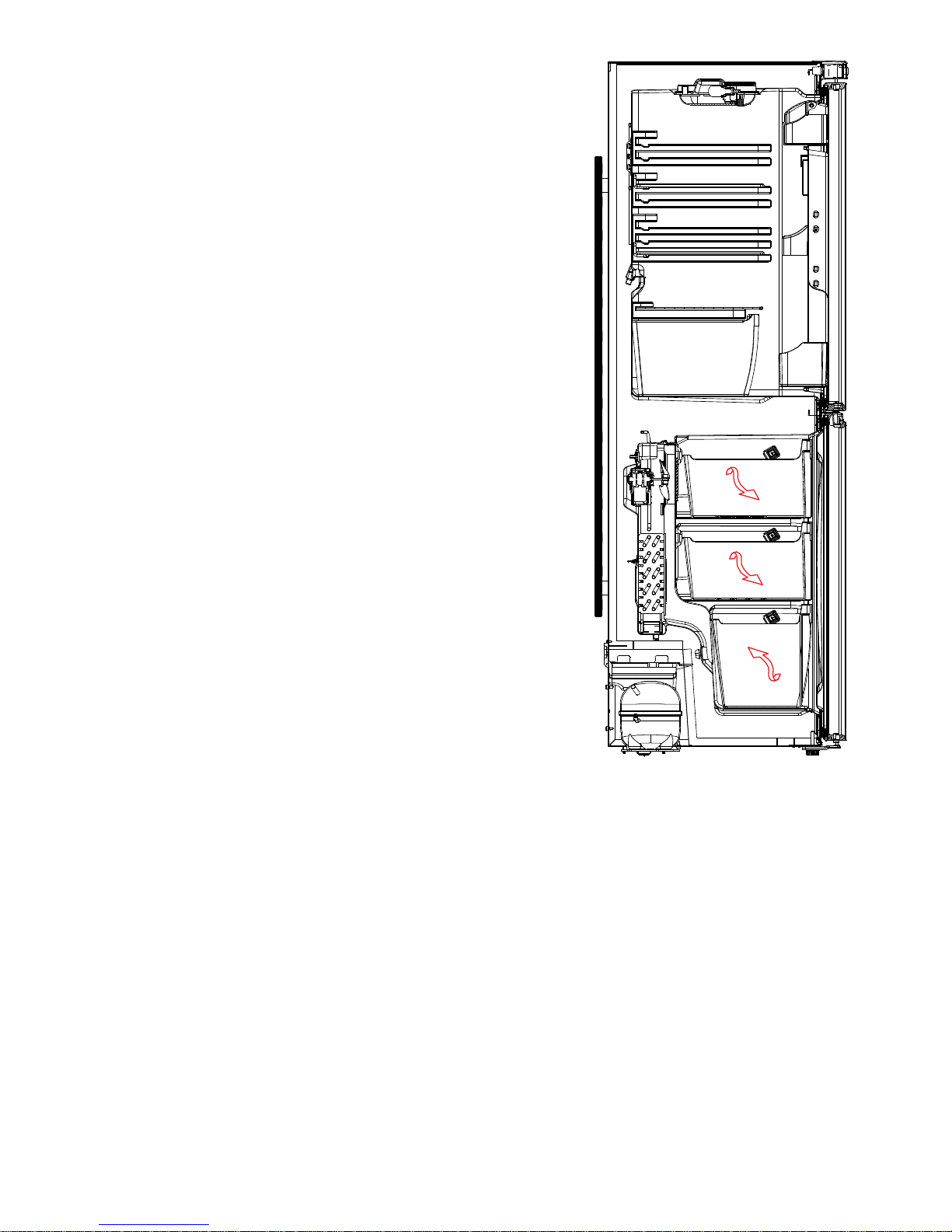

Information on the frost free technology
Frost Free refrigerators are different from other static
refrigerators in terms of their operational system.
In normal refrigerators, in the freezing section, the
humidity from opening and closing the refrigerator door
when putting food in or out causes frost to form inside
the freezer section. For melting frost that has formed, it
is necessary to carry out processes such as turning off
the refrigerator, taking out the food that needs to be
kept cold during th is pro cess an d remo ving the
accumulated frost.
In the case of frost free refrigerators, it is an entirely
different freezer compartment. The dry and cold air is
blown to many points by a fan. The cold air is distributed
evenly in the inter-spaces among shelves making sure
that all your food is cooled equally and prevents frosting.
The cooling compartment is cooled statically.
Page 9
EN - 8 -
PART 2. USER INFORMATION
Temperature settings
Cooling compartment thermostat control
It ensures that the temperature settings in the cooling and freezing compartments of your
refrigerator can be performed automatically. It may be set to any value ranging from the
values 1 to 5. As you turn the thermostat setting knob from 1 to 5, you increase the cooling
effect. To save energy in winter months, you may operate your refrigerator at a lower
position.
Cooling compartment thermostat knob;
5 : For further cooling.
3 - 4 : For normal usage.
1 - 2 : For less cooling.
Thermostat control
Warnings for temperature settings
• The thermostat setting should be done by taking into consideration how often the
cooler and freezer door is opened and closed, how much food is stored in it and the
environment in which the refrigerator is found.
• In order for the refrigerator to be completely cooled after its first connection to the
socket, it has to operated for up to 24 hours.
• Throughout this period of time, do not frequently open and close the doors of your
refrigerator and do not overfill it.
• When you would like to re-operate your refrigerator after disconnecting its plug from
the socket, wait for at least 5 minutes to insert the plug again so that no damage is
incurred by the compressor.
Page 10
EN - 9 -
• Your fridge is designed to operate in the ambient temperature intervals stated in the
standards, according to the climate class stated in the information label. W e do not
recommend operating your fridge out of stated temperatures value limits in terms of
cooling effectiveness.
Climate Class Ambient Temperature (°C)
T
Between 16 and 43 (°C)
ST Between 16 and 38 (°C)
N Between 16 and 32 (°C)
SN
Between 10 and 32 (°C)
Accessories

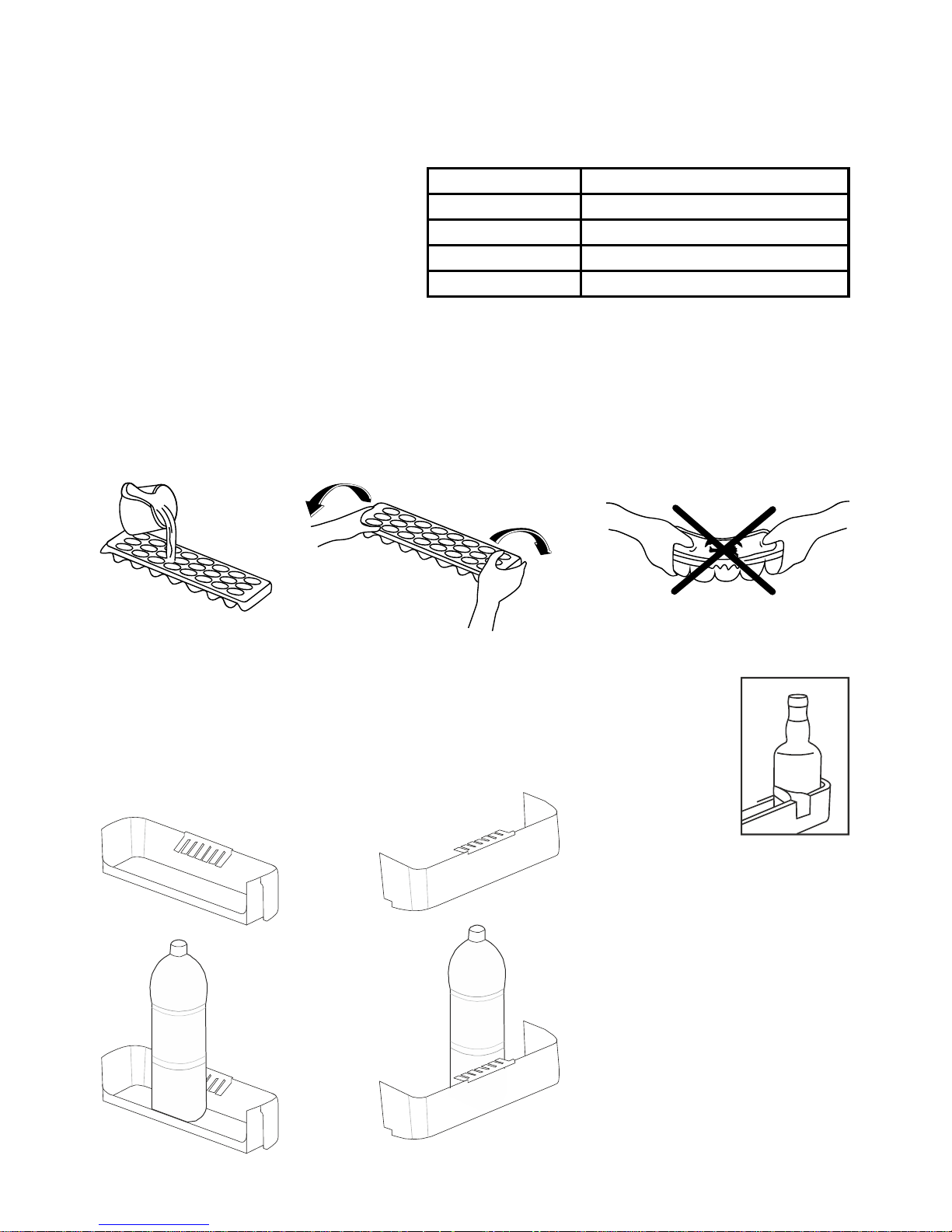

Ice tray
• Fill the ice tray with water and place in freezer compartment.
• After the water completely turned into ice, you can twist the tray as shown below to get
the ice cube.
Bottle holder
In order to prevent bottles from slipping or falling over you can use the
bottle holder. It also helps prevent noise when you open or close the door.
(Only some models)
Page 11
EN - 10 -
PART 3.
FOOD PLACEMENT
Cooling compartment
• The refrigerator compartment is used for storing fresh food for a few days.
• Do not place food in direct contact with the rear wall of the refrigerator compartment.
Leave some space around food to allow circulation of air.
• Do not place hot food or evaporating liquid in the refrigerator.
• Always store food in closed containers or wrapped.
• To reduce humidity and avoid formation of frost, never place liquids in unsealed
containers in the refrigerator.
• Meat of all types, wrapped in packages, is recommended to be placed on the glass
shelf just above the vegetable bin, where the air is colder.
• You can put fruit and vegetables into the crisper without packaging.
• To avoid cold air escaping, try not to open the door too often, and not leave the door
open for a long time.
NOTE: Potatoes, onions and garlic should not be stored in the refrigerator. Meat should
never ever be frozen after it is thawed if it has not been cooked.
Some recommendations have been specified below for the placement and storage of
your food in the cooling compartment.
Food Storage Duration
Location where it will be placed in the
cooling compartment
Fruits and
Vegetables
1 Week
In the vegetable holder (without being
wrapped in anything)
Fish and meat 2-3 days
Wrapped in plastic folio or bag or within a
meat box (on the glass shelf)
Fresh cheese 3-4 days In the special door shelf
Butter, margarine 1 Week In the special door shelf
Bottled products,
Milk and yoghurt
The period
recommended by
the manufacturer
In the special door shelf
Egg 1 month In the egg-holder shelf
Cooked food In every shelf
The deep freeze compartment
• Use the deep freeze compartment of your refrigerator for storing frozen food for a long
time and producing ice.
• Place the food you would like to freeze initially in the upper basket of the freezer.
Please do not place food nearby the already frozen food. You may place your food
next to the other frozen food after they are frozen (for at least 24 hours).
Page 12
EN - 11 -
• You should freeze your food (meat, minced meat, fish, etc.) by dividing them into
portions in such a way that they can be consumed in portions.
• Please do not refreeze frozen food once it is thawed. It may pose a danger for your
health.
• Do not place hot meals in your deep freeze before they are cold.
• As you buy frozen food, make sure they were frozen under appropriate conditions and
that the packaging is not torn.
• While storing frozen food, the storage conditions on the package must be be observed.
If there are no instructions, the food has to be consumed in the shortest possible
period of time.
• Frozen food has to be transported before it perishes and it should be placed in the
fast freezing shelf as soon as possible. Do not use the door shelves for freezing
purp oses.
• The storage durations of fro zen food changes depending on the environment
temperature, the frequent opening and closing of the doors, thermostat settings,
food type and the length of period that elapsed from the time the food was bought to
the time it entered the freezer. Always abide by the instructions on the package and
never exceed the storage duration.
• During long lasting power cuts, do not open the door of the deep freeze compartment.
Your refrigerator will preserve your frozen food in the environment condition of 25°C
for about 12 hours. This value falls in high environmental temperatures. During
longer lasting power cuts, do not refreeze your food and consume it as soon as
possib le.
Page 13
EN - 12 -

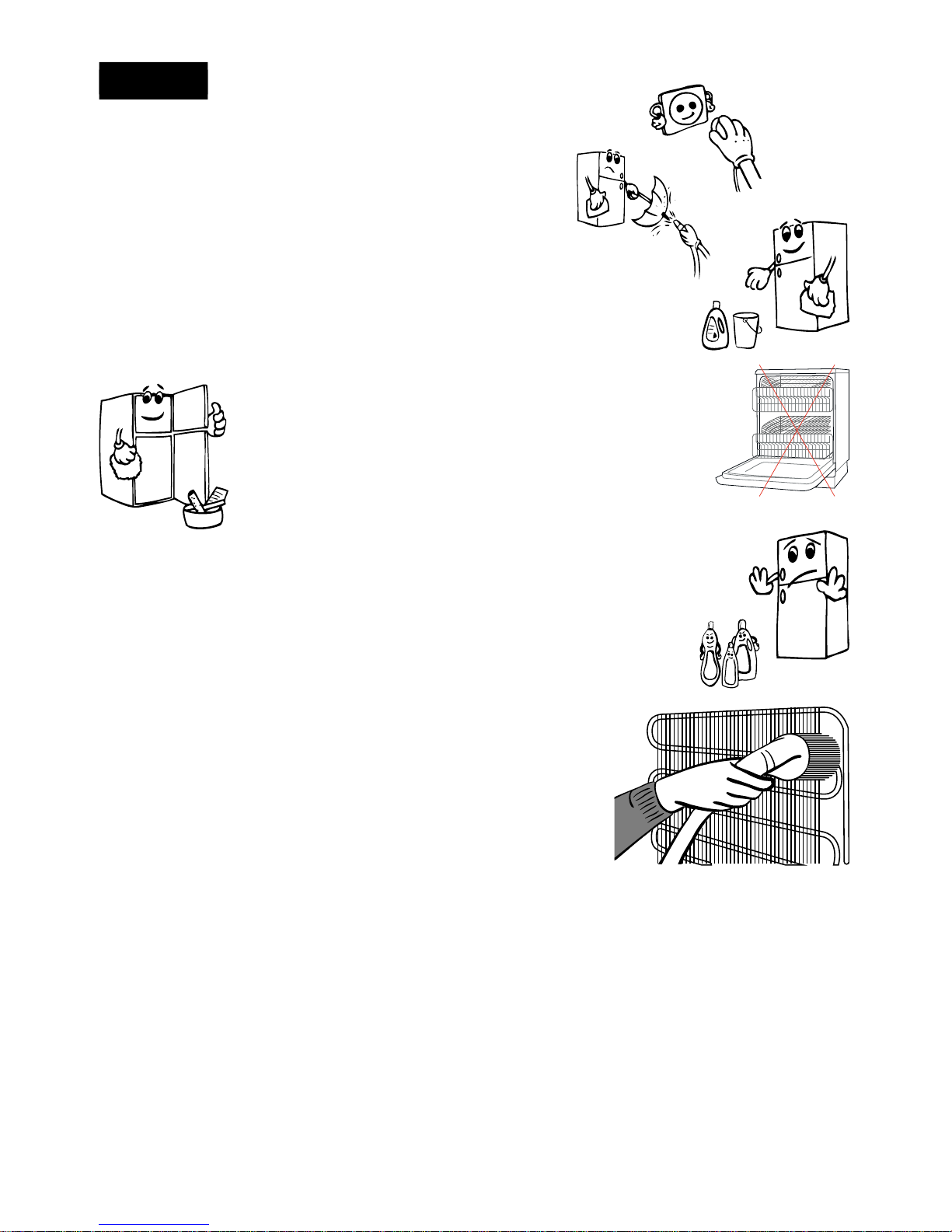

PART 4. CLEANING AND MAINTENANCE
• Disconnect unit from the power supply before cleaning.
• Do not clean the appliance by pouring water on it.
• The refrigerator and freezer compartment should be cleaned
perio dically u sin g a solu tion of bicarbo nate of sod a an d
lukewarm water
• Clean the accessories separately with soap and
water. Do not clean them in the washing machine.
• Do not use abrasive products, detergents or soaps. After
washing, rinse with clean water and dry carefully. W hen the
cleaning operations have been completed reconnect the plug
of the unit with dry hands.
• The condenser (the black finned part at the back)
must be cleaned with a vacuum cleaner or a brush at
least once a year. This will allow your freezer to
operate more efficiently and help you to save energy.
THE POWER SUPPLY MUST BE DISCONNECTED.
Page 14
EN - 13 -
Defrosting
You refrigerator has fully automatic defrosting. The
water formed as a result of defrosting passes through
the water collection spout, flows into the vaporisation
container below the cond enser and e vapo rates
there.
Evaporation
container

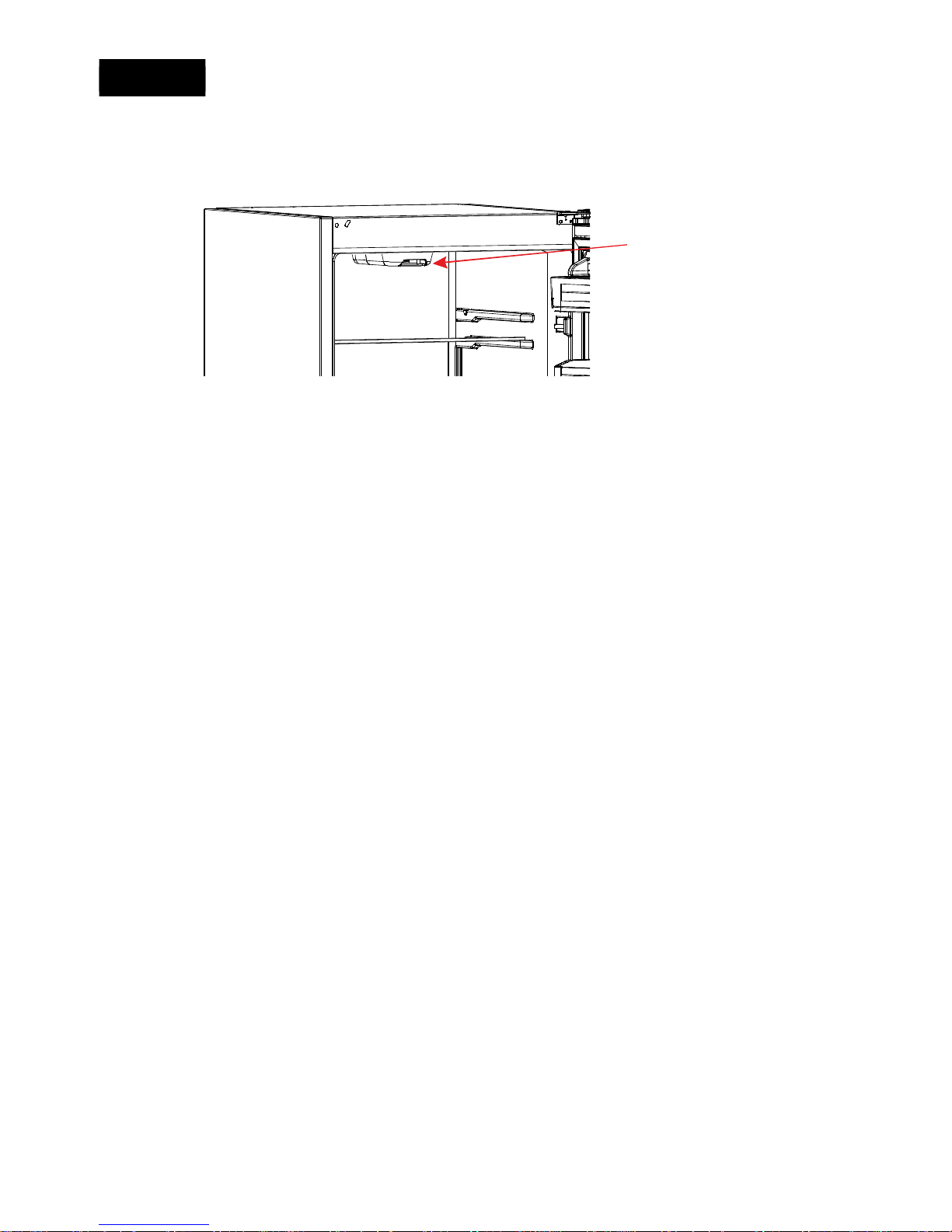

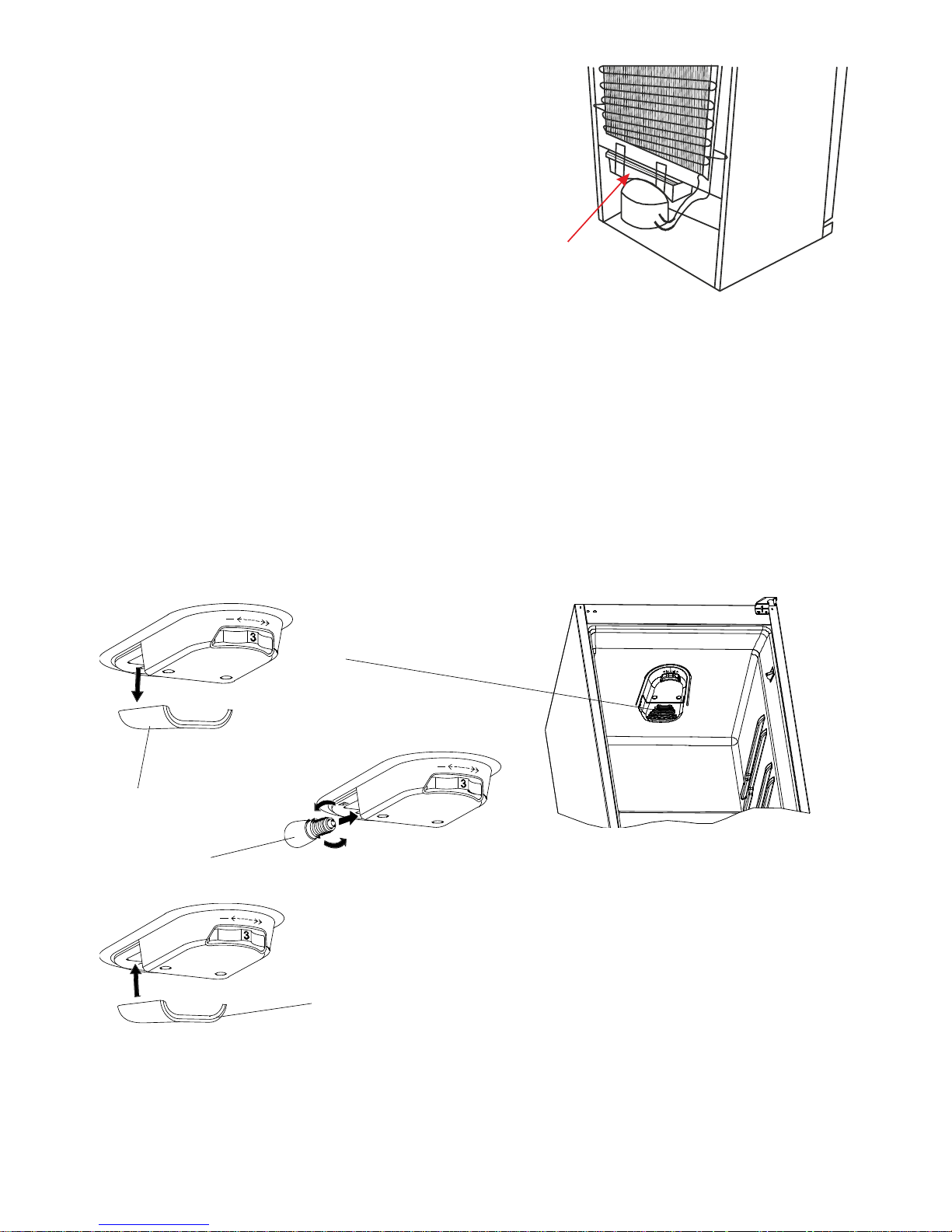

Replacing the light bulb
To replace the bulb in the freezer and fridge compartments;
1- Unplug your fridge.
2- Using a screwdriver, carefully remove the light cover from the top panel. (A)
3- Replace with a 15 watt bulb. (B)
4- Reinstall the light cover. (A)
5- Wait for 5 minutes before re-plugging the fridge in and restore the thermostat to
its original position.
A
A
B
Replacing LED lighting
If your refrigerator has LED lighting contact the help desk as this should be changed by
authorized personnel only.
Page 15
EN - 14 -
TRANSPORTATION AND CHANGING OF
INSTALLATION POSITION
Transportation and changing of installation position
• Please keep the packaging if the appliance will be moved in the future.
• In transportation the appliance should be tied with a strong rope. The rules written on
the corrugated box must be applied while transporting.
• Before transporting or changing an old
installation position, all the moving
objects (i.e. shelves, crisper …) should
be taken out or fixed with bands in order
to prevent movement.
Carry your fridge in the upright position.
PART 5.
Repositioning the door
• It is not possible to change the opening direction of your fridge door, if the door
handles on your fridge are installed from the front surface of the door.
• It is possible to change the opening direction of the door on models without any
hand les.
• If the door opening direction of your fridge may be changed, you should contact the
nearest authorised service centre to have the opening direction changed.
PART 6.
BEFORE CALLING FOR AFTER SALES SERVICE
If your refrigerator is not working properly, it may be a minor problem, therefore check the
following, before calling an electrician to save time and money.
What to do if your appliance does not operate;
Check if;
• There is no power,
• The general switch in your home is disconnected ,
• The socket is working. To check this, plug in another appliance that you know which
is working into the same socket.
What to do if your appliance performs poorly;
Check if;
• You have overloaded the appliance ,
• The thermostat setting is “1” position (if so set the thermostat dial suitable value)
• The doors are closed perfectly ,
• There is no dust on the condenser ,
• There is enough place at the rear and side walls.
Page 16
EN - 15 -
If your fridge is operating too loudly;
Normal Noises
Cracking (Ice cracking) Noise:
• During automatic defrosting.
• When the appliance is cooled or warmed (due to expansion of appliance material).
• Heard when the thermostat switches the compressor on/off.
Compressor noise
• Normal motor noise. This noise means that the compressor operates normally
• Compressor may cause more noise for a short time when it is activated.
Bubbling noise and splash:
• This noise is caused by the flow of the refrigerant in the tubes of the system.
Water flow noise:
• Normal flow noise of water flowing to the evaporation container during defrosting.
This noise can be heard during defrosting.
Air Blow Noise:
• Normal fan noise. This noise can be heard in No-Frost fridges during normal operation
of the system due to the circulation of air.
• If these sounds are different check that;
- The appliance is well levelled
- Nothing is touching the rear.
- Items on the appliance are vibrating.
If there is water in the lower part of the refrigerator,
Check that;
• The drain hole for defrost water is not clogged (Use defrost drain plug to clean the
drain hole)
Recommendations
• If the appliance is not used for long time (for example during the summer holidays)
unplug and clean the appliance and leave the door open to prevent the formation of
mildew and smell.
• To stop the appliance completely, unplug from the mains socket (for cleaning and
when the doors are left open)
• If there is still a problem with your refrigerator although you have followed the
instructions in this book, please consult your nearest authorized service center.
• The life cycle of this product as determined and proclaimed by the Ministry of Industry
(the period for making spare parts available for the product to be able to fulfill its
functions) is 10 years.
Page 17
EN - 16 -
Tips for saving energy
1– Install the appliance in a cool, well ventilated room , but not in direct sunlight and not
near a heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
2– Allow warm food and drinks to cool down outside the appliance.
3– W hen thawing frozen food, place it in the refrigerator compartment. The low temperature
of the frozen food will help to cool the refrigerator compartment when it is thawing. So
it reduces the energy requirements.
4– W hen placing, drinks and liquids they must be covered. Otherwise humidity increases
in the app liance, therefore the working time gets longer. Also covering drinks and
liquids helps preserve the smell and taste.
5– W hen placing food and drinks, open the appliance door as briefly as possible.
6– Keep the covers closed of any different temperature compartment in the appliance
(crisper, chiller ...etc ).
7– Door gasket must be clean and pliable. Replace gaskets if worn.
Conformity information
• This appliance is designed for use at an ambient temperature within the 16°C - 32°C
range.
• The appliance is designed in compliance with the , IEC60335-1 / IEC60335-2-24,
2004/108/EC standards.
Page 18
EN - 17 -
This presentation is only for information about the parts of the appliance.
Parts may vary according to the appliance model.
PART- 7.
THE PARTS OF THE APPLIANCE AND THE
COMPARTMENTS
1
2
A
3
4
5
67B
9
10
11
13
14812

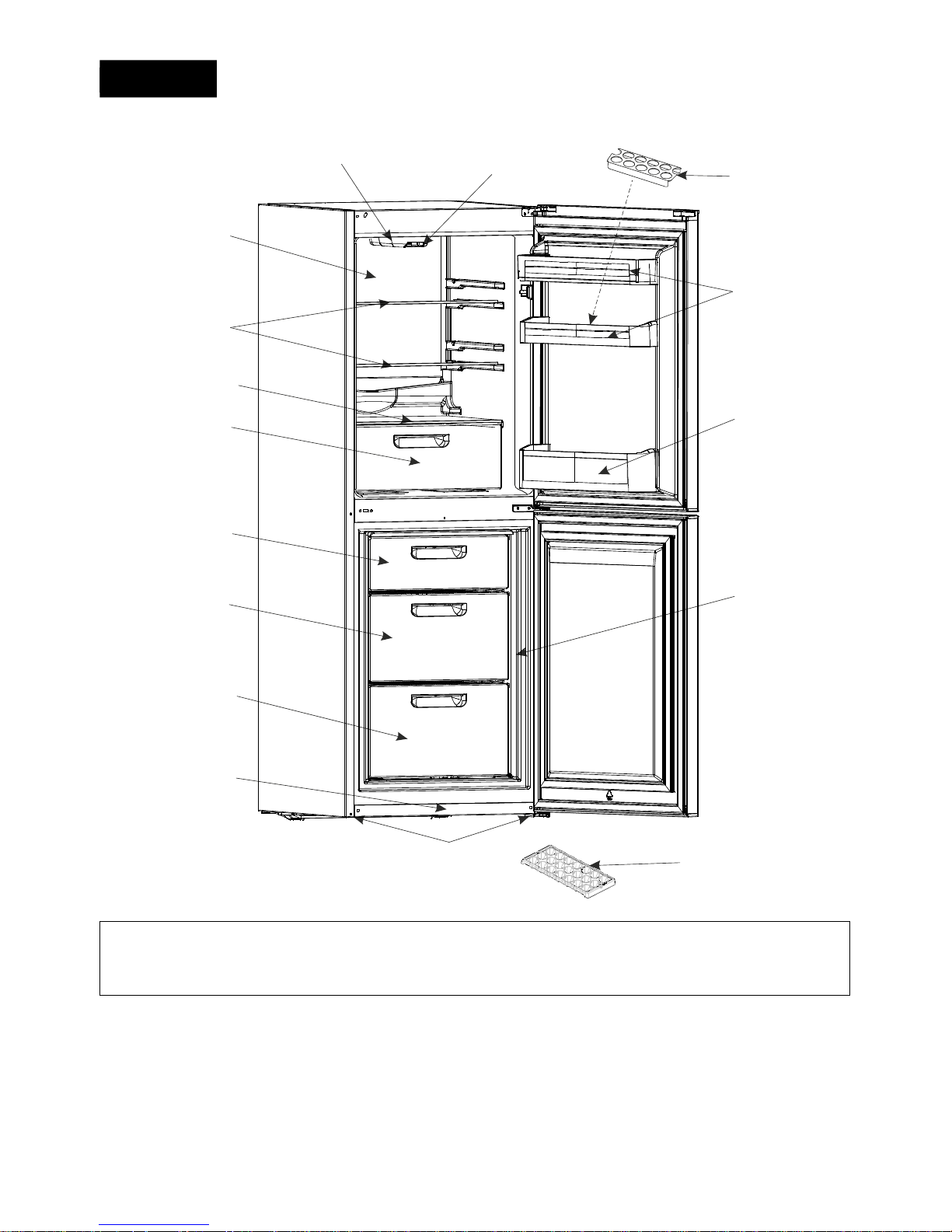

A) Cooling compartment
B) Freezing compartment
1) Thermostat control
2) Interior lighting
3) Cooling wire or glass shelf
4) Glass above the vegetable holder
5) Vegetable holder
6) Bottle shelf
7) Cheese - butter shelf
8) Egg holder
9) Upper basket
10) Middle basket
11) Lower basket
12) Ice tray
13) Kick plate
14) Levelling feet
Page 19
Page 20
52188049
The symbol on the product or on its packaging indicates that this product may not be treated as
household waste. Instead it shall be handed over to the applicable collection point for the recycling
of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will
help prevent potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. For more detailed information
about recycling of this product, please contact your local city offi ce, your household waste disposal
service or the shop where you purchased the product.
EFFICIENCY BY DESIGN
Visit
Servis.co.uk
Tel: 0333 577 7232
Loading...
