Overview

HP ProLiant BL20p p-Class Server Blade

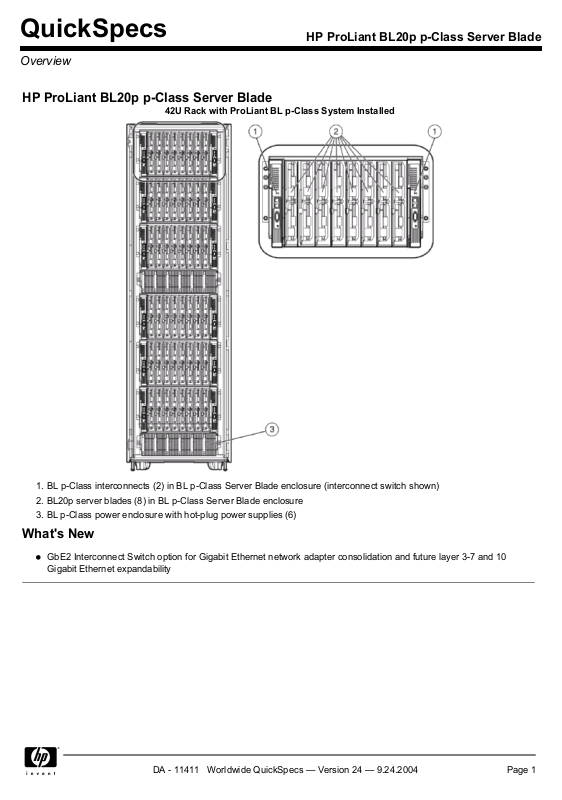

42U Rack with ProLiant BL p-Class System Installed

HP ProLiant BL20p p-Class Server Blade

BL p-Class interconnects (2) in BL p-Class Server Blade enclosure (interconnect switch shown)

BL20p server blades (8) in BL p-Class Server Blade enclosure

BL p-Class power enclosure with hot-plug power supplies (6)

What's New

GbE2 Interconnect Switch option for Gigabit Ethernet network adapter consolidation and future layer 3-7 and 10 Gigabit Ethernet expandability

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 1

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Overview

At A Glance

Performance dual processor server blade designed with enterprise availability

ProLiant BL20p Server Blade includes:

Intel® Pentium® III FC-PGA2 1.40 GHz processor (dual capability) ServerWorks HE- SuperLite Chipset 512-MB or 1024-MB PC133-MHz Registered ECC SDRAM memory, (2 x 1 Interleaved Memory), expandable to 4 GB Three NC3163 Fast Ethernet 10/100T NICs (embedded) with WOL (Wake On LAN) and PXE (Preboot eXecution Environment) Two NICs are upgradeable to 10/100/1000T using the Dual Gigabit Ethernet NC7780 NIC option kit One additional 10/100 port dedicated to Integrated Lights-Out (iLO) Management Smart Array 5i Controller with optional battery-backed write cache Wide Ultra3 SCSI Drive Cage standard supports up to two 1" Wide Ultra3 or Ultra 320 hot plug hard drives Integrated Lights-Out (iLO) Advanced Management (ASIC on motherboard) Plugs vertically into 6U enclosure Up to 48 BL20p blades fit in 42U rack

ProLiant BL p-Class Server Blade Enclosure:

Server blades and interconnects blind mate into server blade enclosures for network connection and power Server blade enclosure is 6U and holds up to 8 ProLiant BL20p server blades and 2 interconnects 2 types of interconnects available: interconnect switches or patch panels

ProLiant BL p-Class Power Enclosure:

Use BL p-Class sizing tool to determine power based on your configuration

http://h30099.www3.hp.com/configurator/calc/Power%20Calculator%20Catalog.xls

BL p-Class power enclosure provides shared, external, redundant power Power enclosure is 3U and holds up to 6 hot-plug power supplies Choose single-phase or three-phase power BL p-Class power enclosure with power supplies not needed if using facility

-48VDC ± 10% in this case purchase DC option kit

ProLiant BL p-Class Power Distribution:

Distributes power from the power enclosure to the server blade enclosures Three power distribution choices:

BL p-Class scalable bus bar BL p-Class mini bus bar

BL p-Class power bus box BL p-Class server blade, server blade enclosure, interconnects and power enclosure protected by a limited three year warranty with optional service uplifts available

NOTE:

Power requirements for a ProLiant BL p-Class system: 200V - 240V AC, 30 amp or facility DC -48V ± 10%.

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 2

QuickSpecs

Overview

HP ProLiant BL20p p-Class Server Blade

ProLiant BL20p Server Blade

BL p-Class Server Blade Enclosure

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 3

QuickSpecs

Overview

Patch panel

HP ProLiant BL20p p-Class Server Blade

Interconnect Switch

(fiber or copper based)

BL p-Class Interconnects

Facility DC

BL p-Class power enclosure and power supplies

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 4

QuickSpecs

Overview

HP ProLiant BL20p p-Class Server Blade

OR OR

Scalable bus bar

BL p-Class power distribution

Mini bus bar

Bus boxes

Configuration Steps

For a complete configuration of the ProLiant BL20p, do the following:

Select BL p-Class server blades:

1. Single Intel Pentium III 1.40 GHz processor, 512-MB ECC SDRAM (2 X 256MB) (230040-B21) or Two Intel Pentium III 1.40 GHz processors, 1-GB ECC SDRAM (2 X 512MB) (257959-B21) (Not offered in NA)

(NOTE: Additional options include processors, memory, and gigabit NICs.)

PLUS

Decide how many BL p-Class Server Blade Enclosures to purchase (each enclosure can hold up to 8 ProLiant BL20p

2. server blades): BL p-Class server blade enclosure with 8 Rapid Deployment Pack licenses (281404-B21) or BL p-Class server blade enclosure with Rapid Deployment Pack trial (243564-B21)

PLUS

Select an interconnect. Interconnects are sold in pairs. One pair of interconnects is required with each BL p-Class

3. server blade enclosure: BL p-Class RJ-45 Patch Panel (with 32 RJ-45 connectors) (230766-B21) or BL p-Class RJ-45 Patch Panel 2 (with Fibre Channel pass through and 32 RJ-45 connectors) (306465-B21)

NOTE:

or BL p-Class C-GbE2 Interconnect Kit (with 12 RJ-45 10/100/1000 T/TX/T external ports) (283192-B21) or BL p-Class F-GbE2 Interconnect (with 8 LC 1000 SX and 4 RJ-45 10/100/1000 T/TX/T external ports) (283193-B21) or BL p-Class C-GbE Interconnect Kit (with 4 RJ-45 10/100/1000 T/TX/T and 8 RJ-45 10/100 T/TX external ports (249655-B21)

Fibre Channel connectivity is not available on the BL20p.

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 5

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Overview

or BL p-Class F-GbE Interconnect Kit (with 4 LC 1000 SX and 8 RJ-45 10/100 T/TX external ports) (279720-B21)

PLUS

4. Select BL p-Class power enclosure and power supplies based on configuration. Use p-Class sizing tool to help

4. determine power configuration:

NOTE:

Single phase power enclosure with four hot-plug power supplies (NA/JPN- 239162-001) (Single-phase power enclosure holds a max of four power supplies; no need to order additional power supplies with this option kit) (INTL 239162-421) or Three-phase power enclosure with six hot-plug power supplies (NA/JPN- 230769-001) (INTL - 230769-421) (Threephase power enclosure holds a max of six power supplies no need to order additional power supplies with this option kit) (Power enclosures and power supplies can also be purchased separately see options list for part numbers)

PLUS

5. Select power distribution: Scalable bus bar - Supports up to 5 server blade enclosures (240560-B21)

5. or Mini bus bar - Supports up to 3 server blade enclosures (240559-B21) or Power Bus Box - connects 1 power enclosure to 1 server blade enclosure (240562-B21

Power enclosures and supplies are not needed if using facility DC (-48V ± 10%).

http://h30099.www3.hp.com/configurator/calc/Power%20Calculator%20Catalog.xls

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 6

QuickSpecs

Standard Features (Server Blade)

HP ProLiant BL20p p-Class Server Blade

Processor

Upgradeability

Cache Memory

Chipset

Memory

Intel Pentium III FC-PGA2 Processor 1.40 GHz

Upgradeable to dual processing

512-KB Level 2 Cache

ServerWorks HE- SuperLite Chipset

NOTE:

For more information regarding ServerWorks, please see the following URL:

http://www.serverworks.com/products/overview.html

Standard

Maximum

Standard

Maximum

NOTE:

Memory must be installed in pairs.

512MB PC133-MHz Registered ECC SDRAM DIMM Memory (2 X 256 MB) (1 processor model)

4096 MB

1024MB PC133-MHz Registered ECC SDRAM DIMM Memory (2 x 512 MB) (2 processor model - not available in NA)

4096 MB

Network Controller

Manageability

Internal Storage

Expansion Slots

Product Demo

Four NICs total: Three NC3163 Fast Ethernet 10/100T NICs (embedded) with WOL and PXE One 10/100 NIC dedicated to iLO management Two NC3163 NICs are upgradeable to 10/100/1000T using the Dual Gigabit Ethernet NC7780 NIC option kit

Integrated Lights-Out (iLO) Management Advanced (ASIC on the System Board)

Hard Drives

Maximum Internal Storage

No PCI slots all features are integrated

To view the Product Demo, please see the following URL, then click on "PRODUCT DEMO":

http://h18000.www1.hp.com/products/servers/proliant-bl/p-class/index.html

None shipped standard

145.6 GB (internal drive cage) (2 x 72.8 GB Ultra320, 1" drives)

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 7

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Standard Features (Server Blade)

ProLiant BL p-Class Server Blade Enclosure and Interconnects

ProLiant BL p-Class Server Blade Enclosure

6U (10.5-inch), 19-inch wide Holds up to 8 ProLiant BL20p servers blades 10 bays per server blade enclosure 8 bays for server blades 2 outside bays for interconnect modules (RJ-45 Patch Panel, RJ-45 Patch Panel 2, GbE Interconnect Switch, or GbE2 Interconnect Switch) Server blades blind mate into the server blade enclosure backplane for power and data connections Up to 6 BL p-Class 6U server blade enclosures fit in a 42U rack Server blade management module attached to the back of each BL p-Class 6U server blade enclosure to report events all servers and provide asset and inventory information

ProLiant BL p-Class Power Requirements

Redundant 200V - 240V AC, 30 amp single-phase for NA and International Redundant 208V 30amp 3-phase 4 wire, NA Redundant 380 - 415V 20A 3-phase 5 wire, Intl Redundant -48VDC ± 10%

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 8

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Standard Features (Server Blade Enclosure and Interconnects)

ProLiant BL p-Class Interconnect Switch Option

(Two switches per kit) (Every BL p-Class server blade enclosure requires two interconnect switches OR two RJ-45 patch panels)

Provides up to a 32 to 1 server networking cable reduction per server enclosure depending on the mix of BL20p, BL20p G2, and BL40p servers. Each interconnect switch (two per enclosure) reduces up to sixteen internal server network (NIC) ports to six external ports (four on a modular rear mounting interconnect module and two on the switch front panel). This provides a total of twelve external ports per server blade enclosure. Only one to all twelve external ports may be used per server blade enclosure.

The GbE2 Interconnect Kits (C-GbE2 and F-GbE2) are for applications that require network adapter consolidation to 1000 Mbps (Gigabit Ethernet), advanced network feature support including up to layer 7 switching, BL20p G2 Fibre Channel pass-through, and 10 Gigabit Ethernet bandwidth connectivity to the network. Expandability of both layer 3-7 switching and 10 Gigabit Ethernet is supported with future GbE2 Interconnect Switch upgrade options. The optional GbE2 Storage Connectivity Kit is required for BL20p G2 Fibre Channel pass-through when using the GbE2 Interconnect Switch.

The ProLiant BL p-Class F-GbE2 Interconnect Kit includes two GbE2 Interconnect Switches and two QuadSX Interconnect Modules that provide eight (8) LC 1000 SX and four (4) RJ45 10/100/1000 T/TX/T external ports per server blade enclosure. The ProLiant BL p-Class C-GbE2 Interconnect Kit includes two GbE2 Interconnect Switches and two QuadT2 Interconnect Modules that provide twelve (12) RJ-45 10/100/1000 T/TX/T external ports per server blade enclosure.

The GbE Interconnect Kits (C-GbE and F-GbE) are for applications that require network adapter consolidation to 100 Mbps (Fast Ethernet).

The ProLiant BL p-Class F-GbE Interconnect Kit includes two GbE Interconnect Switches and two DualTSX Interconnect Modules that provide four (4) LC 1000 SX and eight (8) RJ45 10/100 T/TX external ports per server blade enclosure. The ProLiant BL p-Class C-GbE Interconnect Kit includes two GbE Interconnect Switches and two QuadT Interconnect Modules that provide four (4) RJ-45 10/100/1000 T/TX/T and eight (8) RJ-45 10/100 T/TX external ports per server blade enclosure.

Also included (per Interconnect Switch):

One (1) RS-232 DB-9 front panel out-of-band management port Redundant cross links ports connecting the two interconnect switches Redundant power inputs and on-board redundant fans Hot-plug and hot- remove with configuration retention and no need to cable/re-cable Power ON, management, and per port status and speed LED indicators Reset/power momentary push-button switch HP ProLiant BL Interconnect Switch Management Utilities and User Documentation CD Fully pre-configured for rapid deployment and immediate operation

The GbE Interconnect Kits (C-GbE and F-GbE) are for applications that require network adapter consolidation to 100 Mbps (Fast Ethernet).

ProLiant BL Interconnect Switch Management System and Utilities:

Full featured web-based and scriptable command line (CLI) interfaces, password protected multilevel user accounts, Telnet, SNMP, BootP client, port mirroring, port-based VLANs and VLAN tagging, EtherChannel compatible multi-port trunking, network time protocol, spanning tree protocol, broadcast/multicast storm control, flow control, human readable/writeable configuration file, TFTP client, IP address security restrictions, auto-MDI/MDIX, auto-negotiation and autosensing with full-duplex support, and more.

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 9

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Standard Features (Server Blade Enclosure and Interconnects)

ProLiant BL p-Class RJ-45 patch panel and Patch Panel 2

patch panels per kit) (Every BL p-Class server blade enclosure requires two Interconnect switches OR two RJ-45 patch panels)

Required Network Cabling

(Two

6U (10.5-inch), Plugs into BL p-Class 6U server blade enclosures

Used to pass NIC signals from all server blades in server blade enclosure out as RJ-45 connections

Supports Gigabit Ethernet network controllers

16 RJ-45 connectors on the back of each BL p-Class 6U RJ-45 patch panel (32 RJ-45 connections per server blade enclosure)

NOTE:

The BL20p does not have Fibre Channel functionality. Although the RJ-45 Patch Panel 2

can be used for Ethernet pass through.

10Base-T

100Base-TX

1000Base-T

!000Base-SX

NOTE:

For cabling information, refer to the Web site at:

http://www.hp.com/country/us/eng/prodserv/servers.html

Categories 3, 4 or 5 UTP (100 meters) EIA/TIA-568 100-ohm STP (100 meters)

Category 5 UTP (100 meters) EIA/TIA-568 100-ohm STP (100 meters)

50/125 µm Multimode Fiber, 400 MHz/Km (500 meters) 50/125 µm Multimode Fiber, 500 MHz/Km (550 meters)

62.5/125 µm Multimode Fiber, 160 MHz/Km (220 meters)

62.5/125 µm Multimode Fiber, 200 MHz/Km (275 meters)

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 10

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Standard Features (Power System and Rack Information)

ProLiant BL p-Class Power System and Rack Information

ProLiant BL p-Class Power Enclosure

BL p-Class Power Distribution

Scalable Bus Bar Mini Bus Bar Power Bus Box

Required Power Source

NOTE:

To determine power configuration please refer to the ProLiant BL p-Class Overview and Planning Whitepaper and sizing tool, please see the following URL:

http://h18000.www1.hp.com/products/servers/proliant-bl/p-class/20p/documentation.html

3U (5.25-inch), 19-inch wide, 29-inch deep (0.48-meter wide, 0.74-meter deep), Dual input single phase and three phase models available.

BL p-Class power enclosure provides external, shared hot-plug power. Each three-phase power enclosure houses up to six hot-plug power supplies each single-phase power enclosures hold up to four hot-plug power supplies to power the BL p-Class server blades and interconnects Please use the sizing utility to determine the power needed for each configuration

http://h30099.www3.hp.com/configurator/powercalcs.asp

Power enclosures and power supplies are not needed if using facility DC (-48V DC ± 10%). If using facility DC, only Facility DC Power Connection kit part number (240563-B21) is needed.

In the ProLiant BL p-Class infrastructure, redundant -48 VDC power (from the power enclosures or facility DC power) is distributed from the power enclosures to the server blade enclosures through the bus bar system. Hinges attach the ProLiant BL bus bars to the rails in a rack. The bus bars swing open from the center to enable easy rear access to the server blades and network cables. Power is distributed redundantly through independent A- and B-sided bus bars.

Three different power distribution solutions are available depending on the maximum number of server blade enclosures planned for the rack:

ProLiant BL p-Class scalable bus bar ProLiant BL p-Class mini bus bar

NOTE:

bus bars are needed.

Two 30amp redundant power feeds per power enclosure

Connectors

Optimized for power cabling from bottom and network cabling from top For cabling information, refer to the Web site at

http://www.hp.com/country/us/eng/prodserv/servers.html

To support a full 42U rack of BL20p server blades (6 server blade enclosures), two mini

ProLiant BL p-Class power bus box

Power Enclosures Supported

1 or 2

1 1 1

–NEMA receptacles (NA/Japan)

NA 1-phase

NA 3-phase

–IEC 309 Pin & Sleeve connectors (International)

Intl 1-phase

Intl 3-phase

Server Blade Enclosures

Supported

up to 5 up to 3

L6-30, 250v, 30A 3-wire

L15-30, 250V, 30A, 4-wire

250V, 32A, 3- pin (2 pole + ground)

380-415V, 32A, 5--pin (4 pole + ground)

Max. Rack Space Occupied

36U 21U

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 11

QuickSpecs

Standard Features

HP ProLiant BL20p p-Class Server Blade

ProLiant Essentials Foundation Pack Software for the ProLiant BL Server

ProLiant Essentials Rapid Deployment Pack

HP Systems Insight Manager

Management Agents

Rapid Deployment Pack (RDP) is an automated deployment and provisioning solution for all ProLiant servers. RDP includes the Altiris Deployment Solution and ProLiant Integration Module featuring ProLiant server pre-configured events for OS installation, and optimized software drivers, firmware and management agents. Every RDP CD includes 10node trial licenses for evaluation purposes. RDP requires a license for each server deployed and are available for purchase with blade servers. For more information, visit

HP Systems Insight Manager (HP SIM) help maximize system uptime and performance and reduce system maintenance costs by providing proactive notification of problems before those problems result in unplanned downtime or reduced productivity. HP SIM is easy to set up to work with the Insight Management Agents, integrated Light-Out and Remote Insight Light-Out Edition, and Version Control Agents to deliver robust fault, configuration, and asset management as well as remote administration. With HP Systems Insight Manager customers will also be able to take advantage of role-based security; the ability to manage ProLiant, Integrity, and HP9000 systems; and plug-ins for storage, client, printer, and power management as well as server rapid deployment, performance management, and workload management. For more details on HP Systems Insight Manager visit

http://www.hp.com/go/hpsim

The Management Agents form the foundation for HP's Intelligent Manageability strategy. They provide direct, browser-based access to in-depth instrumentation built into HP servers, workstations, desktops, and portables, and send alerts to HP Systems Insight Manager and other enterprise management applications in case of subsystem or environmental failures. For additional information about the Management Agents and other management products from HP, please visit the management Web site at

http://www.hp.com/servers/rdp

http://www.hp.com/servers/manage

Subscriber's Choice

ROMPaq software, and configuration utilities

Survey Utility and diagnostics utilities

NOTE:

URL:

, support

For more information regarding ProLiant Essentials Software, please see the following

http://www.hp.com/servers/proliantessentials

Subscriber's Choice Driver and Support Alerts/Notifications is a webbased email subscription service that provides software and driver change notifications for ProLiant products. Sign up at

http://www.hp.com/go/subscriberschoice

and customize your profile to receive various new alerts as they become available, on a weekly or monthly basis.

The latest software, drivers, and firmware fully optimized and tested for your ProLiant server and options, available in the RDP CD, SmartStart or downloadable from Software and Drivers download pages, linked from the SmartStart website at

The most advanced configuration analysis, reporting and troubleshooting utilities used by HP and at your fingertips, available in SmartStart.

http://www.hp.com/servers/smartstart

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 12

QuickSpecs

Standard Features

HP ProLiant BL20p p-Class Server Blade

Optional ProLiant Essentials Value Packs

SmartStart

Optional software offerings that selectively extend the functionality of an Adaptive Infrastructure to address specific business problems and needs:

Workload Management Pack - provides easier management of complex environments, improving overall server utilization and enabling Windows® 2000 customers for the first time to confidently deploy multiple applications on a single multiprocessor ProLiant Server. Performance Management Pack - a performance management solution that identifies and explains hardware performance bottlenecks on ProLiant servers and attached options enabling users to better utilize their valuable resources.

NOTE:

Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to Value Pack product QuickSpecs for more information.

SmartStart is a tool that simplifies single server setup, providing a rapid way to deploy reliable and consistent server configurations. SmartStart 7.00 and later can now deploy the ProLiant BL20P G3 and ProLiant BL40P servers, using the I/O port with an attached USB CD-ROM device. To obtain a copy of SmartStart for your blade server, redeem the coupon that is included with your Blade server or order your copy from the SmartStart web site. For more information, please visit the SmartStart Web site at SmartStart version supported (minimum): SmartStart 6.20

http://www.hp.com/servers/proliantessentials

http://www.hp.com/servers/smartstart

or the various ProLiant Essentials

OS Support

Intelligent Manageability

Microsoft® Windows LINUX

NOTE:

For a more complete and up-to-date listing of supported OSs and versions, please visit our OS Support Matrix at:

NOTE:

For an up-to-date listing of the latest drivers available for the ProLiant BL p-Class, please see:

http://h18023.www1.hp.com/support/files/server/us/index.htm

NOTE:

For a more complete and up-to-date information on Linux support, please visit HP Linux Web site at

Integrated Lights-Out Advanced (iLO) Virtual Text and Graphical Remote Console * Virtual CD-ROM * Virtual Floppy * Virtual Power Button Control Dedicated LAN Connectivity Automatic IP Configuration via DHCP/DNS/WINS Industry Standard 128-bit Secure Sockets Layer (SSL) Security IML and iLO Event Logging Support for 12 user accounts with customizable access privileges Automatic Server Recovery-2 (ASR-2) Insight Manager 7 Redundant ROM Remote Flash ROM ROM Based Setup Utility (RBSU) Advanced Configuration and Power Interface Specification Ready (ACPI) Server and Interconnect Switch Health Logs Redundant Power Supply Utility Pre-Failure Warranty (covers processors, as well as hard drives and memory) Interconnect Switch Management System and Utilities (interconnect switch option) Integrated Management Log (IML) Hot Spare Boot

environment, the system will automatically reboot and use the remaining good processor(s).)

http://h18000.www1.hp.com/products/servers/linux/hpLinuxcert.html

http://www.hp.com/go/supportos

(NOTE:

Upon the event of a failed processor or VRM in a multi-processing

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 13

QuickSpecs

Standard Features

Dynamic sector repairing and drive parameter tracking (with Smart Array controllers) ProLiant network adapter teaming set-up utility

NOTE:

with the BL p-Class server.

HP ProLiant BL20p p-Class Server Blade

Advanced features such as Graphical Remote Console and Virtual Floppy are included

Availability

Power redundancy: Redundant AC feeds into power enclosures, redundant DC feeds from power enclosure to server blade enclosures, N + N redundant power supplies Two hot-plug SCSI hard drive bays and integrated RAID (Smart Array 5i) on every server blade (Battery-backed write cache is optional.) Redundant ROM on each server blade ECC Memory Network adapter teaming (network fault tolerance, transmit load balancing, switch-assisted load balancing) Interconnects switch availability

Hot-plug and hot- remove with configuration retention and no need to cable/re-cable Two network connections per server blade bay (four NICs total) routed to two redundant interconnect switches Redundant inter-switch communication and two sets of redundant Ethernet uplink ports per each interconnect switch Redundant front panel Ethernet ports per each interconnect switch for diagnostics, management, and additional uplinks Redundant serial ports Compatibility with PVST+ (GbE2 switch) and 802.1D Spanning tree protocol support for loop-free path redundancy Static IEEE 802.3ad (EtherChannel compatible) trunking with automatic port load balancing and failover Redundant switch configuration files and operating system firmware images in memory (GbE2 switch) Redundant fans per each interconnect switch Redundant 1+1 power to each interconnect switch Support for ProLiant network adapter teaming Redundant configurable community strings and SNMP trap manager hosts Redundant configurable syslog servers, DNS servers, and default gateways (GbE2 switch)

Security

Power-on password Administrator's password Integrated Lights-Out has 12 customizable user accounts and SSL encryption Integrated Lights-Out can be disabled via a Global Setting Interconnect switch multilevel user names and passwords, management interface time out period setting, SSH*, SCP secure copy protocol*, port-based IEEE 802.1Q tagged VLANs, RADIUS user authentication and authorization*, and IP address restriction

* GbE2 Interconnect Switch only.

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 14

QuickSpecs

Standard Features

HP ProLiant BL20p p-Class Server Blade

Minimum Rack Requirements

Rack Airflow Requirements

Mounts in Compaq/HP, Telco racks and Third Party racks that meet the following criteria:

Compatible with 19-inch Standard EIA rail sets EIA rail-to-rail depth is 29 - 30" Cabinet depth must be at least 36-inch deep overall (Additional min. 3.5-inch clearance from rear RETMA rail to rear door, inclusive in the 36-inch overall depth) Ample room for top and bottom cable egress (approximately 8 square inches for full rack configuration with patch panel) Must be capable of supporting 1600 lb (for full rack configuration) Perforated front and rear doors to accommodate front-to-back cooling Must have 65% open perforation on server blade enclosure doors to support airflow requirements Optimized for use with the HP 10000 Series racks

NOTE:

required.

If using HP 7000 Series rack, Rack Extension Kit and High Air Flow Rack Door options are

Rack 9000 and 10000 series Cabinets The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 9000 Series and the 10000 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.

Rack 7000 series Cabinets When installing a server with processors running at speeds of 550 MHz or greater in Rack 7000 series racks with glass doors (165753-001 (42U), and 163747-001 (22U)), the new processor technology requires the installation of the High Airflow Rack Door Inserts (327281-B21 (42U), 327281-B22 (42U 6 pack), or 157847-B21 (22U)) to promote enhanced airflow for maximum cooling.

CAUTION:

adequate airflow and to prevent damage to the equipment:

CAUTION:

This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.

NOTE:

CD provided with the server, or to the server documentation located in the Support section at the following URL:

If a third-party rack is used, observe the following additional requirements to ensure

Front and rear doors: you must allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation). Side:

The clearance between the installed rack component and the side panels of the

rack must be a minimum of 2.75 inches (7 cm).

Always use blanking panels to fill all remaining empty front panel U-spaces in the rack.

For additional information, refer to the Setup and Installation Guide or the Documentation

http://wwss1pro.compaq.com/support/home/index.asp

If your 42U server rack includes closing front and rear doors,

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 15

QuickSpecs

Standard Features

HP ProLiant BL20p p-Class Server Blade

Service and Support

Three-year limited warranty, including hardware diagnostic support, pre-failure warranty (coverage of hard drives, memory and processors). The warranty is fully supported by HP Services and a worldwide network of resellers and service providers. In addition 90-day's getting started software telephone support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack services.

NOTE:

Sever Blade Limited Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support.

NOTE:

Server Blade Enclosure and Interconnects Limited Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support.

Care Pack services provide a range of life cycle support options that let you choose the service levels that meet your business requirements, from basic to mission-critical.

A full range of HP Care Pack hardware and software services are available including:

Installation and start up Education courses Extended onsite hardware coverage hours from same business day 13 hours, 5 day to 24 hours, 7 days call window with options including 4-hour response or 6-hour Call To Repair Comprehensive range of software technical support for Microsoft, Linux, ProLiant Essentials and VMWare-based IT solutions helping to deliver high level of application availability. Response times range from 30 mins for critical problems to 2 hours. System Management, Performance Services and Mission Critical Support Solution

HP Care Pack services for ProLiant BL p-Class server blades, cover the server blade and the pClass blade enclosure that the server blade is installed in as well as interconnects, power enclosure with power supplies and power distribution.

NOTE:

offices or resellers or visit our worldwide Web site on the internet at:

http://www.hp.com/hps/carepack

NOTE:

visit us at:

NOTE:

available at:

http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

For more information on HP Care Pack services, contact any of our worldwide sales

For more complete information on HP Services offerings, customers and resellers, please

http://www.hp.com/hps

Additional information regarding worldwide limited warranty and technical support is

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 16

QuickSpecs

Models

HP ProLiant BL20p p-Class Server Blade

ProLiant BL20p P1400512KB, 512MB (1P)

230040-B21

ProLiant BL20p P1400512KB, 1GB (2P)

257959-B21

*Not available in North America.

Processor(s)

Cache Memory

Memory

Network Controller

Storage Controller

Hard Drives

Internal Storage

Optical Drive

Form Factor

Processor(s)

Cache Memory

Memory

Network Controller

Storage Controller

Hard Drives

Internal Storage

Optical Drive

Form Factor

(1) Intel Pentium III 1.40 GHz standard (up to 2 supported)

512-KB Level 2 writeback per processor

512 MB (Standard) (2 X 256MB) to 4096 MB PC133-MHz Registered ECC SDRAM DIMM Memory

Three NC3163 Fast Ethernet NIC PCI 10/100 with full WOL and PXE One additional 10/100 port dedicated to iLO Management

Smart Array 5i Controller (integrated on system board)

None ship standard

Up to 145.6-GB maximum (with optional hard drives)

None

Plugs vertically into ProLiant BL p-Class Server Blade Enclosure

(2) Intel Pentium III 1.40 GHz standard (up to 2 supported)

512-KB Level 2 writeback per processor

1024 MB (Standard) (2 X 512MB) to 4096 MB PC133-MHz Registered ECC SDRAM DIMM Memory

Three NC3163 Fast Ethernet NIC PCI 10/100 with full WOL and PXE One additional 10/100 port dedicated to iLO Management

Smart Array 5i Controller (integrated on system board)

None ship standard

Up to 145.6-GB maximum (with optional hard drives)

None

Plugs vertically into ProLiant BL p-Class Server Blade Enclosure

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 17

QuickSpecs

Options

HP ProLiant BL20p p-Class Server Blade

ProLiant BL20p Unique Options

ProLiant Essentials Value Pack Software

Dual NC7780 Gigabit Upgrade Module for ProLiant BL20p

NOTE:

NC3163 Fast Ethernet Embedded WOL and PXE NICs to two 10/10/1000T NC7780 NICs.

NOTE:

Mbps. It is recommended that the patch panel or GbE2 Interconnect Switch options be used with the Dual NC7780 Gigabit Upgrade Module if server NIC speeds to 1000 Mbps are required.

Rapid Deployment Pack, 10 User, V1.x

NOTE: This license allows 10 servers to be managed and deployed via the

Deployment Server.

NOTE:

Deployment Pack licenses 281404-B21.

Rapid Deployment Pack, 10 User, V1.x (Japan)

NOTE:

Deployment Server.

NOTE:

Deployment Pack licenses 281404-B21.

Rapid Deployment Pack, 1 User, V1.x

NOTE:

Deployment Server.

NOTE:

Deployment Pack licenses 281404-B21.

Rapid Deployment Pack, 1 User, V1.x (Japan)

NOTE:

Deployment Server.

NOTE:

Deployment Pack licenses 281404-B21.

ProLiant Essentials Workload Management Pack (Featuring Resource Partitioning Manager version 2.0)

ProLiant Essentials Performance Management Pack, 10-Server License

NOTE:

license activation key and documentation.

ProLiant Essentials Intelligent Networking Pack, Single Server License

NOTE:

activation key and documentation.

ProLiant Essentials Intelligent Networking Pack, Flexible License

NOTE:

multiple licenses with a single activation key. The quantity ordered for this part number will be the quantity of licenses included in the kit in the form of a corresponding activation key. Use the same key to activate all licenses in the actual quantity ordered. For a given order, one kit will be delivered with the activation key, and documentation.

ProLiant Essentials Intelligent Networking Pack, Tracking License

NOTE:

Purchase of this part number entitles the customer to deploy additional licenses of the product under the terms of the existing Activation Key Agreement.

NOTE:

Visit

http://h18004.www1.hp.com/products/servers/proliantessentials/license/akalic.htm

for more information on Activation Key Agreements.

The Dual NC7780 Gigabit Upgrade Module replaces two of the standard

The GbE Interconnect Switch options support server NIC speeds to 100

Not necessary if you purchase the server blade enclosure with 8 Rapid

This license allows 10 servers to be managed and deployed via the

Not necessary if you purchase the server blade enclosure with 8 Rapid

This license allows 1 server to be managed and deployed via the

Not necessary if you purchase the server blade enclosure with 8 Rapid

This license allows 1 server to be managed and deployed via the

Not necessary if you purchase the server blade enclosure with 8 Rapid

For use with up to 10 servers. Contains 10 licenses with one unique

For use with a single server. Contains one license with a unique license

For use with multiple servers. This part number can be used to purchase

For use with signed and implemented Activation Key Agreements only.

Nothing is delivered in conjunction with the purchase of this part number.

230255-B21

306696-B21

269817-291

267196-B21

267196-291

303284-B21

374055-B21

372906-B21

372950-B21

372951-B21

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 18

QuickSpecs

Options

HP ProLiant BL20p p-Class Server Blade

Processor

Memory

(SDRAM DIMMs)

Hard Drives

NOTE:

the following URL:

NOTE:

Essentials Value Packs. Refer to URL

http://www.hp.com/servers/proliantessentials

Value Pack product QuickSpecs for more information.

For more information regarding ProLiant Essentials Software, please see

http://www.hp.com/servers/proliantessentials

Flexible and volume quantity license kits are available for ProLiant

or the various ProLiant Essentials

Pentium III P1400-512KB Processor Option Kit

2048 MB PC133MHz Registered ECC SDRAM Memory Kit (2x1024 MB)

1024 MB PC133MHz Registered ECC SDRAM Memory Kit (2x512 MB)

512 MB PC133MHz Registered ECC SDRAM Memory Kit (2x256 MB)

256 MB PC133MHz Registered ECC SDRAM Memory Kit (2x128 MB)

Ultra 320 SCSI – Universal Hot Plug

72.8GB 10,000 rpm, U320 Universal Hard Drive, 1"

300-GB 10,000 rpm, U320 Universal Hard Drive 1"

36.4GB 15,000 rpm, U320 Universal Hard Drive, 1"

72.8GB 15,000 rpm, U320 Universal Hard Drive, 1"

NOTE:

speeds.

NOTE:

as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature: U320 Hard Drive QS:

http://h18000.www1.hp.com/products/quickspecs/11531_div/11531_div.HTML

(Worldwide)

http://h18000.www1.hp.com/products/quickspecs/11531_na/11531_na.HTML

(North America)

All U320 Universal Hard Drives are backward compatible to U2 or U3

Please see the Hard Drive QuickSpecs for Technical Specifications such

234277-B21

201695-B21

201694-B21

201693-B21

201692-B21

286714-B22

350964-B22

286776-B22

286778-B22

Storage Controllers

Communications

Battery Backed Write Cache Enabler Option Kit

Battery Backed Write Cache Enabler Option Kit (Japan)

NOTE:

Please see the following Controller QuickSpecs for Technical Specifications such as PCI Bus, PCI Peak Data Transfer Rate, SCSI Protocols supported, SCSI Peak Data Transfer Rate, Channels, SCSI Ports, Drives supported, Cache, RAID support, and additional information:

http://h18000.www1.hp.com/products/quickspecs/11063_div/11063_div.HTML

(Smart Array 5I)

Dual NC7780 Gigabit Upgrade Module for ProLiant BL20p

NOTE:

The Dual NC7780 Gigabit Upgrade Module replaces two of the standard NC3163 Fast Ethernet Embedded WOL (Wake On LAN) NICs to two 10/10/1000T NC7780 NICs.

NOTE:

The GbE Interconnect Switch options support server NIC speeds to 100 Mbps. It is recommended that the patch panel or GbE2 Interconnect Switch options be used with the Dual NC7780 Gigabit Upgrade Module if server NIC speeds to 1000 Mbps are required.

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

255514-B21

255514-291

230255-B21

Page 19

QuickSpecs

Options

HP ProLiant BL20p p-Class Server Blade

BL p-Class Server Blade Enclosures

BL p-Class Interconnects

ProLiant BL p-Class Server Blade Enclosure (ProLiant Essentials Rapid Deployment Pack Trial)

ProLiant BL p-Class Server Blade Enclosure (8 ProLiant Essentials Rapid Deployment Pack Licenses)

ProLiant BL p-Class RJ-45 Patch Panel (pair)

NOTE:

ProLiant BL p-Class RJ-45 Patch Panel 2 (pair)

NOTE:

ProLiant BL p-Class C-GbE2 Interconnect Kit (with pair of GbE2 Interconnect Switches and two QuadT2 Interconnect Modules)

NOTE:

ProLiant BL p-Class F-GbE2 Interconnect Kit (with pair of GbE2 Interconnect Switches and two QuadSX Interconnect Modules)

NOTE:

ProLiant BL p-Class C-GbE Interconnect Kit (with pair of GbE Interconnect Switches and two QuadT Interconnect Modules)

NOTE:

It is recommended that the GbE2 Interconnect Kit or patch panel be used if server NIC speeds to 1000 Mbps are required.

NOTE:

panels on the ends of any individual rack or a series of coupled racks and the front and rear doors must be installed in any racks containing more than one ProLiant BL p-Class GbE Interconnect Kit.

ProLiant BL p-Class F-GbE Interconnect Kit (with pair of GbE Interconnect Switches and two DualTSX Interconnect Modules)

NOTE: Only one interconnect kit required per server blade enclosure.

NOTE:

It is recommended that the GbE2 Interconnect Kit or patch panel be used if server NIC speeds to 1000 Mbps are required.

NOTE:

panels on the ends of any individual rack or a series of coupled racks and the front and rear doors must be installed in any racks containing more than one ProLiant BL p-Class GbE Interconnect Kit.

Only one interconnect kit required per server blade enclosure.

The GbE Interconnect Switch supports server NIC speeds to 100 Mbps.

To meet applicable radio frequency (RF) emission limits, the sidewall

The GbE Interconnect Switch supports server NIC speeds to 100 Mbps.

To meet applicable radio frequency (RF) emission limits, the sidewall

243564-B21

281404-B21

230766-B21

306465-B21

283192-B21

283193-B21

249655-B21

279720-B21

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 20

QuickSpecs

Options

HP ProLiant BL20p p-Class Server Blade

BL p-Class Power options

NOTE:

Use p-Class sizing tool to help determine power configuration:

http://h30099.www3.hp.com/configurator/calc/Power%20Calculator%20Catalog.xls

Single Phase Redundant Power Enclosure with 4 power supplies (NA/JPN)

(Single Phase Power Enclosure holds a maximum of 4 power supplies; no need to order additional power supplies with this option kit)

Single Phase Redundant Power Enclosure with 4 power supplies (Int'l)

(Single Phase Power Enclosure holds a maximum of 4 power supplies; no need to order additional power supplies with this option kit)

3 Phase Redundant Power Enclosure with 6 power supplies (NA/JPN)

(3 Phase Power Enclosure holds a maximum of 4 power supplies; no need to order additional power supplies with this option kit)

3 Phase Redundant Power Enclosure with 6 power supplies (Int'l)

(3 Phase Power Enclosure holds a maximum of 4 power supplies; no need to order additional power supplies with this option kit)

Single Phase Power Enclosure (empty) (NA/JPN) (Holds up to 4 power supplies; power supplies are not included in this kit)

Single Phase Power Enclosure (empty) (Int'l) (Holds up to 4 power supplies; power supplies are not included in this kit)

3 Phase Power Enclosure (empty) (NA/JPN) (Holds up to 6 power supplies; power supplies are not included in this kit)

3 Phase Power Enclosure (empty) (Int'l) (Holds up to 6 power supplies; power supplies are not included in this kit)

Single Power Supply

Facility DC Power Connection

239162-001

239162-421

230769-001

230769-421

231710-001

231710-421

231709-001

231709-421

239161-B21

240563-B21

Power Distribution

Diagnostic Options

USB Options

ProLiant p-Class Scalable Bus Bar

ProLiant p-Class Mini Bus Bar

ProLiant p-Class Diagnostic Station

NOTE:

The Diagnostic Station allows access to the ProLiant BL20p server blade and the BL p-Class interconnect switch outside of the server enclosure. The option provides power and a data interface so that "offline" upgrade and diagnostic functions may be performed.

USB Easy Access Keyboard (Carbonite/Silver)

USB Optical Scroll Mouse (Carbonite)

USB 1.44-MB External Diskette Drive (Carbonite)

240560-B21

240559-B21

240562-B21

230743-B21

DC168B#

DD441B

DC141B

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 21

QuickSpecs

Options

HP ProLiant BL20p p-Class Server Blade

USB Easy Access Keyboard (Carbonite) Country Key Code

Dash #

A2M

AB0

AB1

AB2

AB6

AB7

AB8

AB9

ABA

ABB

ABC

ABD

ABE SP

ABF

ABH

ABJ

ABM

ABN

ABS

Description

ICELAND

TAWA

KOR

PRC

FRA

GRK

TURK

PORT

EURO

FCAN

Japan

NOR

Dash #

ABT

ABU

ABV

ABX

ABY

ABZ

AC0

AC4

ACB

AKB

AKC

AKD

AKL

AKN

AKR

ARK

B15

UUZ

Description

ARA

FIN

DEN

ITL

BEL

BRZ

RUSS

CZE

HUNG

POL

THAI

BHCSY

SLOV

ICELAND

KAZ

SWISS

Custom Builder

HP Rack 10000 Series

(Graphite Metallic)

Please see the Enterprise Configurator for configuration assistance at:

http://www.hp.com/products/configurator

S10614 (14U) Rack Cabinet - Shock Pallet

HP Rack 10647 (47U) – Pallet

HP Rack 10647 (47U) – Crated

HP Rack 10642 (42U) – Pallet

HP Rack 10642 (42U) – Shock Pallet

HP Rack 10642 (42U) – Crated

HP Rack 10636 (36U) – Pallet

HP Rack 10636 (36U) – Shock Pallet

HP Rack 10636 (36U) – Crated

HP Rack 10622 (22U) – Pallet

HP Rack 10622 (22U) – Shock Pallet

HP Rack 10622 (22U) – Crated

NOTE:

-B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels)

-B23 (crated) used for air shipments of empty racks Not all Compaq equipment is qualified to be shipped in the Rack 10000 series.

NOTE:

such as height, width, depth, weight, and color:

http://h18000.www1.hp.com/products/quickspecs/10995_div/10995_div.HTML

(Worldwide)

http://h18000.www1.hp.com/products/quickspecs/10995_na/10995_na.HTML

(North America)

-B21 (pallet) used to ship empty racks shipped on a truck

Please see the Rack 10000 QuickSpecs for Technical Specifications

292302-B22

245160-B21

245160-B23

245161-B21

245161-B22

245161-B23

245162-B21

245162-B22

245162-B23

245163-B21

245163-B22

245163-B23

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 22

QuickSpecs

Options

HP ProLiant BL20p p-Class Server Blade

Rack Options for HP Rack 10000 Series

NOTE:

following URL:

http://h18000.www1.hp.com/products/servers/proliantstorage/racks/index.html

HP Rack Plinth Kit (Carbon)

HP Rack Light Kit (Neon)

800mm Wide Stabilizer Kit (Graphite)

NOTE:

600mm Stabilizer Kit – Graphite

Baying Kit for Rack 10000 series (Carbon)

42U Side Panel – Graphite Metallic

110V Fan Kit (Graphite)

NOTE:

220V Fan Kit (Graphite)

NOTE:

36U Side Panel – Graphite Metallic

47U Side Panel – Graphite Metallic

9000/10000 Series Offset Baying Kit (42U)

NOTE:

U height together. Kit contents include hardware for connecting racks and a panel to cover the 100mm gap at the rear of the two racks.

NOTE: For additional information regarding Rack Options, please see the

following URL:

options/index.html

Ballast Option Kit

9000/10000 Series Offset Baying Kit (42U)

NOTE:

U height together. Kit contents include hardware for connecting racks and a panel to cover the 100mm gap at the rear of the two racks.

NOTE:

following URL:

options/index.html

Rack Rail Adapter Kit (25" depth)

100 kg Sliding Shelf

Monitor/Utility Shelf - Graphite

Depth Adjustable Fixed Rail

Cable Management D-Rings Kit

Server Console Switch 1 x 4 port (100-230 VAC)

Server Console Switch 1 x 4 port (100-230 VAC) (Int’l)

Server Console Switch 1 x 4 port (100-230 VAC) (Japan)

IP Console Switch Box, 1 x 1 x 16

IP Console Switch Box, 3 x 1 x 16

CPU to Server Console Cable, 12’

CPU to Server Console Cable, 3’

CPU to Server Console Cable, 7’

IP CAT5 Cable 3’, 4 pack

IP CAT5 Cable 6’, 8 pack

IP CAT5 Cable 12’, 8 pack

For additional information regarding Rack Cabinets, please see the

Supported by the Rack 10842 cabinet only.

Roof Mount Includes power cord with IEC320-C13 to Nema 5-15P.

Roof Mount Includes power cord with IEC320-C13 to Nema 6-15P.

This kit can be used to connect 9000 and 10000 series racks of the same

http://h18000.www1.hp.com/products/servers/proliantstorage/rack-

This kit can be used to connect 9000 and 10000 series racks of the same

For additional information regarding Rack Cabinets, please see the

http://h18000.www1.hp.com/products/servers/proliantstorage/rack-

251960-B21

361589-B21

255488-B21

246107-B21

248929-B21

246099-B21

257413-B21

257414-B21

246102-B21

255486-B21

248931-B21

120672-B21

248931-B21

120675-B21

234672-B21

253449-B21

332558-B21

168233-B21

400336-001

400336-B31

400336-291

262585-B21

262586-B21

110936-B21

110936-B24

110936-B25

263474-B21

263474-B22

263474-B23

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 23

QuickSpecs

Options

HP ProLiant BL20p p-Class Server Blade

IP CAT5 Cable 20’, 4 pack

IP CAT5 Cable 40’, 1 pack

Switch Box Connector Kit (high voltage) (Int'l)

TFT5600 Rack Keyboard Monitor

TFT7210R Rack Mounted 17" Monitor

NOTE:

For a complete list of Monitors please view the following URL:

http://h18004.www1.hp.com/products/monitors/

1U Rack Keyboard & Drawer (Carbon)

Country Code Key

XX = 001

XX = 031

XX = 041

XX = 051

XX = 061

XX = 071

XX = 081

NOTE:

following URL:

options/index.html

For additional information regarding Rack Options, please see the

(for 1U Rack Keyboard & Drawer (PN 257054-xx1))

Germany

France

Italy

Spain

Denmark

http://h18000.www1.hp.com/products/servers/proliantstorage/rack-

XX = 091

XX = 101

XX = 111

XX = 131

XX = 181

XX = 291

XX = B31

263474-B24

263474-B25

144007-B33

221546-xx1

348373-B21

257054-xx1

Norway

Sweden/Finland

Switzerland

Portugal

Belgium

Japan

International

Rack Options for HP, Compaq-branded, Third Party and Telco racks

Service and Support Offerings

Pack Services)

(HP Care

Telco rack-mounting hardware kit for ProLiant BL e-Class Server Blade Enclosure

Enclosure Shipping Bracket Kit

NOTE:

installed to the rack.

NOTE:

the server blade and the p-Class blade enclosure that the server blade is installed in as well as interconnects, power enclosure with power supplies and power distribution.

Hardware Services On-site Service

Next Business Day On-site Service, 5-Day x 9-Hour Coverage, 3 Years

Next Business Day On-site Service, 5-Day x 9-Hour Coverage, 3 Years, Electronic

4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years

4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years

6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

When shipping an enclosure in a rack shipping brackets must be

The HP Care Pack services for ProLiant BL p-Class server blades, cover

266076-B21

293119-B21

UA203A

UA203E

UA204A

UA204E

UA205A

UA205E

UA206A

UA206E

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 24

QuickSpecs

Options

Installation & Start-up Services

ProLiant BL p-Class Blade Server Hardware Installation

HP ProLiant BL20p p-Class Server Blade

UA219A

ProLiant BL p-Class Blade Server Hardware Installation, Electronic

ProLiant BL p-Class Enclosure and Server Blade Hardware Installation

ProLiant BL p-Class Enclosure and Server Blade Hardware Installation, Electronic

Provides for the Installation and Start-up of Compaq's Rapid Deployment Pack on a Customer supplied server designated as a Deployment Server. Includes the deployment of a single server. This new server will be deployed using either one of the pre-configured scripts or an image. In addition, the service will provide for the capture and storage of the configuration of the newly deployed server and orientation on product usage. To be delivered during standard office ours, standard office days.

NOTE:

For more information, customer/resellers can contact

http://www.hp.com/hps/carepack/services/

UA219E

U4971A

U4971E

U5683A

U5683E

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 25

QuickSpecs

Memory

HP ProLiant BL20p p-Class Server Blade

ProLiant BL20p Server Blade (2P Model) Standard Memory

1024-MB PC133 MHz Registered ECC SDRAM DIMM installed (2 x 512-MB SDRAM DIMM)

Standard Memory Plus Optional Memory

Up to 3072-MB of SDRAM DIMM memory is available with the installation of optional SDRAM DIMM memory expansion kits.

Standard Memory Replaced with Optional Memory

Up to 4096-MB of SDRAM DIMM memory is available with the removal of standard memory and the installation of optional SDRAM DIMM memory expansion kits.

Memory

Standard Optional Maximum

1024 MB 3072 MB 4096 MB

1 2 3 4 512 MB 512 MB 512 MB 512 MB

1024 MB 1024 MB 1024 MB 1024 MB

(not available in NA)

Slot

empty empty

1024 MB 1024 MB

Following are memory options available from HP:

2048-MB PC133MHz Registered ECC SDRAM Memory Kit (2 x 1024 MB

1024-MB PC133MHz Registered ECC SDRAM Memory Kit (2 x 512 MB)

512-MB PC133MHz Registered ECC SDRAM Memory Kit (2 x 256 MB)

256-MB PC133MHz Registered ECC SDRAM Memory Kit (2 x 128 MB)

201695-B21

201694-B21

201693-B21

201692-B21

ProLiant BL20p Server Blade (1P Model) Standard Memory

512-MB PC133 MHz Registered ECC SDRAM DIMM installed (2 x 256-MB SDRAM DIMM)

Standard Memory Plus Optional Memory

Up to 2560-MB of SDRAM DIMM memory is available with the installation of optional SDRAM DIMM memory expansion kits.

Standard Memory Replaced with Optional Memory

Up to 4096-MB of SDRAM DIMM memory is available with the removal of standard memory and the installation of optional SDRAM DIMM memory expansion kits.

Memory

Standard Optional Maximum

512 MB 2560 MB 4096 MB

1 2 3 4 256 MB 256 MB 256 MB 256 MB

1024 MB 1024 MB 1024 MB 1024 MB

Slot

empty empty

1024 MB 1024 MB

Following are memory options available from HP:

2048-MB PC133MHz Registered ECC SDRAM Memory Kit (2 x 1024 MB)

1024-MB PC133MHz Registered ECC SDRAM Memory Kit (2 x 512 MB)

512-MB PC133MHz Registered ECC SDRAM Memory Kit (2 x 256 MB)

256-MB PC133MHz Registered ECC SDRAM Memory Kit (2 x 128 MB)

201695-B21

201694-B21

201693-B21

201692-B21

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 26

QuickSpecs

Technical Specifications

HP ProLiant BL20p p-Class Server Blade

Compaq ProLiant BL pClass Server Blade Enclosure

Dimensions

Input Specifications

Individual server blade bay ratings

Temperature Range

Relative Humidity

(non-condensing)

Wet Bulb Temperature

NOTE:

Operating temperature has an altitude derating of 34° F per 1,000 ft (1° C per 304.8 m).

No direct sunlight. Upper operating limit is 10,000 ft or 70Kpa (3,048 m or 10.1 psia). Upper nonoperating limit is 30,000 ft or 30.3 KPa (9,144 m or 4.4 psia). Storage maximum humidity of 95% is based on a maximum temperature of 113° F (45° C). Altitude maximum for storage is 70 KPa.

Height

Width

Depth

Rated input voltage

Rated input current

Rated input power

Rated input voltage

Rated input current

Rated input power

Operating

Non-operating

Operating

Non-operating

Operating

Non-operating

10.5 in (26.67 cm)

17.60 in (44.70 cm)

28.86 in (73.30 cm)

-43 VDC to -53 VDC

62.5 A at -48 VDC

3000 W

-43 VDC to -53 VDC

6.25 A at -48 VDC

300 W

50° to 95° F (10° to 35° C)

-22° to 140° F (-30° to 60° C)

20% to 80%

5% to 95%

82.4° F (28° C)

101.7° F (38.7° C)

Nominal -48 VDC

Operating Performance Specifications for ProLiant BL20p Server Blade

Dimensions

Weight

Temperature Range

Relative Humidity

(non-condensing)

Maximum Wet Bulb Temperature

NOTE:

(maximum)

Operating temperature has an altitude derating of 34° F per 1,000 ft (1° C per 304.8 m).

Height

Width

Depth

18.0 lb (8.17 kg)

Operating

Shipping

Storage

Operating

Shipping

Storage

82° F (28° C)

1.69 in (4.29 cm)

10.29 in (26.14 cm)

28.00 in (71.12 cm)

50° to 95° F (10° to 35° C)

-40° to 140° F (-40° to 60° C)

-4° to 140° F (-20° to 60° C)

10% to 90%

10% to 95%

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 27

QuickSpecs

Technical Specifications

HP ProLiant BL20p p-Class Server Blade

Operating and Performance Specifications for RJ45 Patch Panel

Dimensions

Capability

Network Transfer Rate

Connector

Cable Support

Power Requirements

Temperature Range

Relative Humidity

(non-condensing)

Wet Bulb Temperature

NOTE:

Operating temperature has an altitude derating of 34° F per 1,000 ft (1° C per 304.8 m).

Height

Width

Depth

IEEE 802.2, 802.3, 802.3u

10 Base-T (half-duplex)

10 Base-T (full-duplex)

100 Base-TX (halfduplex)

100 Base-TX (fullduplex)

1000 Base-TX (fullduplex)

RJ-45

10 Base-TX

100 Base-TX

1000 Base-TX

200 mA at + 5V DC; 500 mA at -48V

Operating

Non-operating

Operating

Non-operating

Operating

Non-operating

10.405 in (26.43 cm)

1.535 in (3.899 cm)

27.697 in (70.35 cm)

10 Mbps

20 Mbps

100 Mbps

200 Mbps

1000 Mbps

Categories 3, 4, or 5 UTP (2 or 4 pair); up to 328 ft (100 m)

Category 5 UTP (2 pair); up to 328 ft (100 m)

Category 5E (4 pair); up to 328 ft (100 m)

50° to 95° F (10° to 35° C)

-22° to 140° F (-30° to 60° C)

20% to 80%

5% to 95%

82.4° F (28° C)

101.7° F (38.7° C)

Operating and Performance Specifications for GbE2 Interconnect Switch

Dimensions

Weight

Performance

Forwarding Mode

MAC Addresses

Forwarding table age time

Memory

Compliance

Height

Width

Depth

12.0 lb/5.4 kg per interconnect switch

24 Gbps External port bandwidth per server blade enclosure (full duplex)

Forwarding rate 1.5 million pps per gigabit port (64-byte packets)

Auto-MDI/MDIX, auto-negotiation and auto-sensing with full-duplex support

Store and forward

2,048 per interconnect switch

Maximum age: 1 to 65535 seconds; default: 300 seconds

128MB Main, 32MB flash and 2MB packet buffer per interconnect switch

IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3z (F-GbE2 only), 802.1D,

802.3ac, 802.3ad (Static), and 802.1Q

10.405 in (26.43 cm)

1.535 in (3.899 cm)

27.697 in (70.35 cm)

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 28

QuickSpecs

Technical Specifications

Network Transfer Rate

Connector

EMI

Safety

Power Requirements

Temperature Range

Relative humidity (non-condensing)

Wet Bulb Temperature

NOTE:

Operating temperature has an altitude derating of 34° F per 1,000 ft (1° C per 304.8 m).

HP ProLiant BL20p p-Class Server Blade

SNMP v1 (RFC 1157), MIB-II (RFC 1213), Bridge MIB (RFC 1493), Interface Group MIB (RFC 2863), Ethernet MIB (RFC 1643), 802.1Q Extended Bridge MIB, Entity MIB (RFC 2037), RADIUS Authentication MIB, 802.3-2002 MIB, SNMP Trap Convention (RFC 1215), Bridge Trap (RFC 1493), Remote Monitoring Traps (RFC 1757) and HP Enterprise Switch MIBs and Environmental Traps

RADIUS (RFC 2138), Telnet (RFC 854), TFTP client (RFC 783), SSH v1.5, SCP v1.5, NTP v2 (RFC 1119), BOOTP client (RFC 2132), and XModem

10 Base-T (half-duplex)

10 Base-T (full-duplex)

100 Base-TX (halfduplex)

100 Base-TX (fullduplex)

1000 Base-TX (half-duplex)

1000 Base-TX (fullduplex)

1000 Base-SX (fullduplex)

12 RJ-45, 2 DB-9 (C-GbE2 Interconnect Kit) 8 LC fiber, 4 RJ-45, 2 DB9 (F-GbE2 Interconnect Kit) 16 LC SFP transceiver slots (GbE2 Storage Connectivity Kit)

FCC Class A

ICES-003 Class A

AS/NZS 3548 Class A

VCCI Class A

UL/CUL Listed Accessory

-48V DC: 2040 mA, 98 W maximum (per interconnect switch without GbE2 Storage Connectivity Kit)

-48V DC: 2355 mA, 113 W maximum (per interconnect switch with GbE2 Storage Connectivity Kit)

Operating

Non-operating

Operating

Non-operating

Operating

Non-operating

10 Mbps

20 Mbps

100 Mbps

200 Mbps

1000 Mbps

2000 Mbps

50° to 95° F (10° to 35° C)

-22° to 140° F (-30° to 60° C)

20% to 80%

5% to 95%

82.4° F (28° C)

101.7° F (38.7° C)

Operating and Performance Specifications for Interconnect GbE Switch

Dimensions

Weight

Performance

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Height

Width

Depth

11.5 lb/5.2 kg per interconnect switch

9.6 Gbps external port bandwidth per server blade enclosure (full

10.405 in (26.43 cm)

1.535 in (3.899 cm)

27.697 in (70.35 cm)

Page 29

QuickSpecs

Technical Specifications

Forwarding Mode

MAC Addresses

Forwarding table age time

Memory

Compliance

Network Transfer Rate

Connector

EMI

Safety

Power Requirements

Temperature Range

Relative humidity (non-condensing)

Wet Bulb Temperature

HP ProLiant BL20p p-Class Server Blade

duplex)

Forwarding rate 0.15 million pps per 10/100 port, 1.5 million pps per gigabit port, (64-byte packets)

Non-blocking, full-wire speed for all connections

Auto-MDI/MDIX, auto-negotiation and auto-sensing with full-duplex support

Store and forward

8,191 per interconnect switch; MAC address based filtering and MAC address packet priority configuring

Maximum age: 1 to 1,000,000 seconds; default: 300 seconds

32MB Main, 6MB flash and 16MB packet buffer per interconnect switch

IIEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3z (F-GbE only), 802.1D,

802.1p, 802.3ac, 802.3ad (Static), and 802.1Q

SNMP v1 (RFC 1157) and RMON v1 (RFC 1757) groups 1, 2, 3, and 9 MIB-II (RFC 1213), Bridge MIB (RFC 1493), Interface Group MIB (RFC

2863), Ethernet MIB (RFC 1643), 802.1Q Extended Bridge MIB (RFC

2674), Entity MIB (RFC 2037), SNMP Trap Convention (RFC 1215), Bridge Trap (RFC 1493), Remote Monitoring Traps (RFC 1757), and HP Enterprise Switch MIBs and Environmental Traps

IGMP v1 (RFC 1112), IGMP v2 (RFC 2236), SNTP (RFC 1361), Telnet (RFC 854), TFTP client (RFC 783), BOOTP client, (RFC 2132), DHCP client, (RFC 2131) and ZModem

10 Base-T (half-duplex)

10 Base-T (full-duplex)

100 Base-TX (halfduplex)

100 Base-TX (fullduplex)

1000 Base-TX (halfduplex)

1000 Base-TX (fullduplex)

1000 Base-SX (fullduplex)

12 RJ-45, 2 DB-9 (C-GbE Interconnect Kit) 4 LC fiber, 8 RJ-45, 2 DB-9 (F-GbE Interconnect Kit)

FCC Class A

ICES-003 Class A

AS/NZS 3548 Class A

VCCI Class A

UL/CUL Listed Accessory

-48V DC: 1050 mA, 50 W maximum (per interconnect switch)

Operating

Non-operating

Operating

Non-operating

Operating

Non-operating

10 Mbps

20 Mbps

100 Mbps

200 Mbps

1000 Mbps

2000 Mbps

50° to 95° F (10° to 35° C)

-22° to 140° F (-30° to 60° C)

20% to 80%

5% to 95%

82.4° F (28° C)

101.7° F (38.7° C)

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 30

QuickSpecs

Technical Specifications

NOTE:

Operating temperature has an altitude derating of 34° F per 1,000 ft (1° C per 304.8 m).

HP ProLiant BL20p p-Class Server Blade

Operating and Performance Specifications for Power Enclosures

(North America/Japan)

Dimensions

Weights

Input requirements

Output voltage specifications

Ambient Temperature Range

Relative Humidity noncondensing (see

Wet Bulb Temperature

NOTE:

(see

NOTE

Operating temperature has an altitude derating of 34° F per 1,000 ft (1° C per 304.8 m).

Height

Width

Depth

No hot-plug power supplies

All hot-plug power supplies

Rated input voltage

Rated input frequency

Rated input current per side

Rated input power per side

Power cord

Rated output voltage

Rated output current

Rated output power

Nominal Power

Operating

)

Shipping

Operating

)

Non-operating

Operating

Non-operating

Single-Phase Model

5.25 in (13.34 cm) 5.25 in (13.34 cm)

17.60 in (44.7 cm) 17.60 in (44.7 cm)

27.15 in (68.96 cm) 27.15 in (68.96 cm)

47.5 lb (21.55 kg) 47.5 lb (21.55 kg)

99.5 lb (45.13 kg)

200 VAC to 240 VAC 200 VAC to 240 VAC

50 Hz to 60 Hz 50 Hz to 60 Hz

24A

5760 W 9976 W

1 IEC 309 3-pin, 32A per side

-48.8 VDC to -54 VDC -48.8 VDC to -54 VDC

99A

4298 W 8310 W

4158 W at 208 VAC 7202 W at 208 VAC

50° to 95° F (10° to 35° C)

-22° to 140° F (-30° to 60° C)

20% to 80% 20% to 80%

5% to 95% 5% to 95%

82.4° F (28° C) 82.4° F (28° C)

101.7° F (38.7° C) 101.7° F (38.7° C)

Three-Phase Model

125.5 lb (56.93 kg)

line to line

24A per phase

1 IEC 309 5-pin, 32A per side

170A

50° to 95° F (10° to 35° C)

-22° to 140° F (-30° to 60° C)

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 31

QuickSpecs

Technical Specifications

HP ProLiant BL20p p-Class Server Blade

Operating and Performance Specifications for Power Enclosures

(International)

Dimensions

Weights

Input requirements

Output Voltage Specifications

Ambient Temperature Range

Relative Humidity

(non-condensing)

Maximum Wet Bulb Temperature

NOTE:

Operating temperature has an altitude derating of 34° F per 1,000 ft (1° C per 304.8 m).

Height

Width

Depth

No hot-plug power supplies

all hot-plug power supplies

Rated input voltage

Rated input Frequency

Rated input current

Rated input power

Powercord

Related output voltage

Related output current

Related output power

Nominal power

Operating

Non-operating

Operating

Non-operating

Operating

Non-operating

5.25 in (13.34 cm) 5.25 in (13.34 cm)

17.60 in (44.7 cm) 17.60 in (44.7 cm)

27.15 in (68.96 cm) 27.15 in (68.96 cm)

47.5 lb (21.55 kg) 47.5 lb (21.55 kg)

99.5 lb (45.13 kg)

200 VAC to 240 VAC

50 Hz to 60 Hz 50 Hz to 60 Hz

24A

5760 W

1 IEC 309 3-pin, 32A per side

-48.8 VDC to -54 VDC -48.8 VDC to -54 VDC

99A

4798 W 8790 W

4598 W at 208 VAC

50° to 95° F (10° to 35° C)

-22° to 140° F (-30° to 60° C)

20% to 80% 20% to 80%

5% to 95% 5% to 95%

82.4° F (28° C) 82.4° F (28° C)

101.7° F (38.7° C) 101.7° F (38.7° C)

125.5 lb (56.93 kg)

6.25 A at -48 VDC 200 VAC to 240 VAC line to neutral

20A per phase

10,552 W

1 IEC 309 5-pin, 32A per side

180A

8790 W at 230 VAC LN

50° to 95° F (10° to 35° C)

-22° to 140° F (-30° to 60° C)

Operating and Performance Specifications for Power Distribution Devices

Power enclosure or facility DC supported (3U each)

Server blade enclosures

Total rack height of supported enclosures

Dimensions

Height

Width

Depth

Weight

Rated operating voltage

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Power Bus Box

1 1 2

1 3 6

5.1 in (12.95 cm)

3.6 in (9.14 cm) each

3.25 in (8.26 cm)

3.62 lb (1.64 kg )

-43.2 VDC to -54 VDC

Mini Bus Bar

19.45 in (49.40 cm)

19.74 in (50.14 cm) 19.74 in (50.14 cm)

2.2 in (5.59 cm) 2.2 in (5.59 cm)

13.2 lb (5.9 kg)

43.2 VDC to -54 VDC

Scalable Bus Bar

21U 36U

48.57 in (123.37 cm)

26 lb (11.79 kg)

-43.2 VDC to -54 VDC

Page 32

QuickSpecs

Technical Specifications

HP ProLiant BL20p p-Class Server Blade

Operating and Performance Specifications for Facility DC

Max total power supported

Total max input current at minimum voltage

Total max input current at nominal voltage

Max current per power feed

Max local ambient temperature

NOTE:

All systems support redundant A & B feeds. Scalable bus bar supports dual A and dual B

feeds.

Voltage

Current

In-rush current

Input over-current

Max Input Current Slew Rate

Max Input Curent Slew Rate

Connection and Cables

NOTE:

*All systems support redundant A and B feeds. Scalable bus bars support dual A and dual B feeds. ** Periodic and random noise (PARD). Maximum allowable peak-to-peak ripple and noise (as

69.44 A at -43.2VDC

62.5 A at -48VDC

Nominalinput voltage

Operating voltage range

Max input voltage slew rate

Redundant feed voltages*

Ripple/Noise

Overshoot

Voltage Transients

Max steady state input current

Max steady state current per feed/total

Must support up to 2X the maximum operating current per server blade enclosure (125 A) for up to 1.0 mS

Customer provided fusing for facility DC feeds that protects the system from catastrophic over-current within 20 uS. Fuse should sustain all inrush and operating currents.

1A/uS

3000W per server blade enclosure

HP provided facility DC cable connection kit:

The power cable assemblies consist of 1/0AWG, color-coded, flexible cable rated at 105° C, terminated with bus mating connectors at one end and unterminated at the other end. The cable length provided enables the customer to route to a fuse panel within or adjacent to the rack.

3000 W 9000 W

208.32 A at -43.2 VDC

187.5 A at -48 VDC 312.5 A at -48 VDC

70A

149° F (65° C) 149° F (65° C)

-48 VDC

-48VDC ± 10% or -43.2 VDC to -52.8 VDC

0.5V/uS

*A and B feeds must differ by no more than 5VDC during steady state operation

480 mV PARD**

Must remain within regulation limits on all feeds during startup or shutdown

Must not exceed -60 VDC

62.5A per server blade enclosure installed at

-48VDC

Power bus boxes

Mini bus bars

Scalable bus bars

The facility DC connection kit supports the connection of up to four

-48VDC, RETURN pairs and ground.

70 A/70A

210 A/210A

210 A/350A or equivalent of 175A per feed*

210A 210A

15,000 W

347.2 A at -43.2 VDC (equivalent of 175A per feed)

(equivalent of 175A per feed)

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 33

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Technical Specifications

measured at the load on any output channel). The ripple and noise is measured over a 20 Hz to 100 MHz frequency band. A resistive load (non-electronic) is used for this measurement. Each output is by-passed to return by a 10uF tantalum capacitor with an ESR less than 100 milli-Ohms in parallel with a 0.47 uF ceramic capacitor, at the point of load. The load cable is 12 feet of twisted wire capable of carrying the current. The printed wiring board assembly is installed in its enclosure for this measurement, or the measurement leads are properly shielded with Earth grounds applied to the insert.

The information contained herein is subject to change without notice.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel Corporation.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 34

Server Technology BL20P User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Overview

Standard Features (Server Blade)

Standard Features (Server Blade Enclosure and Interconnects)

Standard Features (Power System and Rack Information)

Standard Features

Models

Options

Memory

Technical Specifications
