ServersCheck Europe WIRELESSSENSOR Users manual

Wireless Sensor

Model Name: Wireless Sensor

Brand Name: ServersCheck

FCC ID: 2ACGKWIRELESSSENSOR

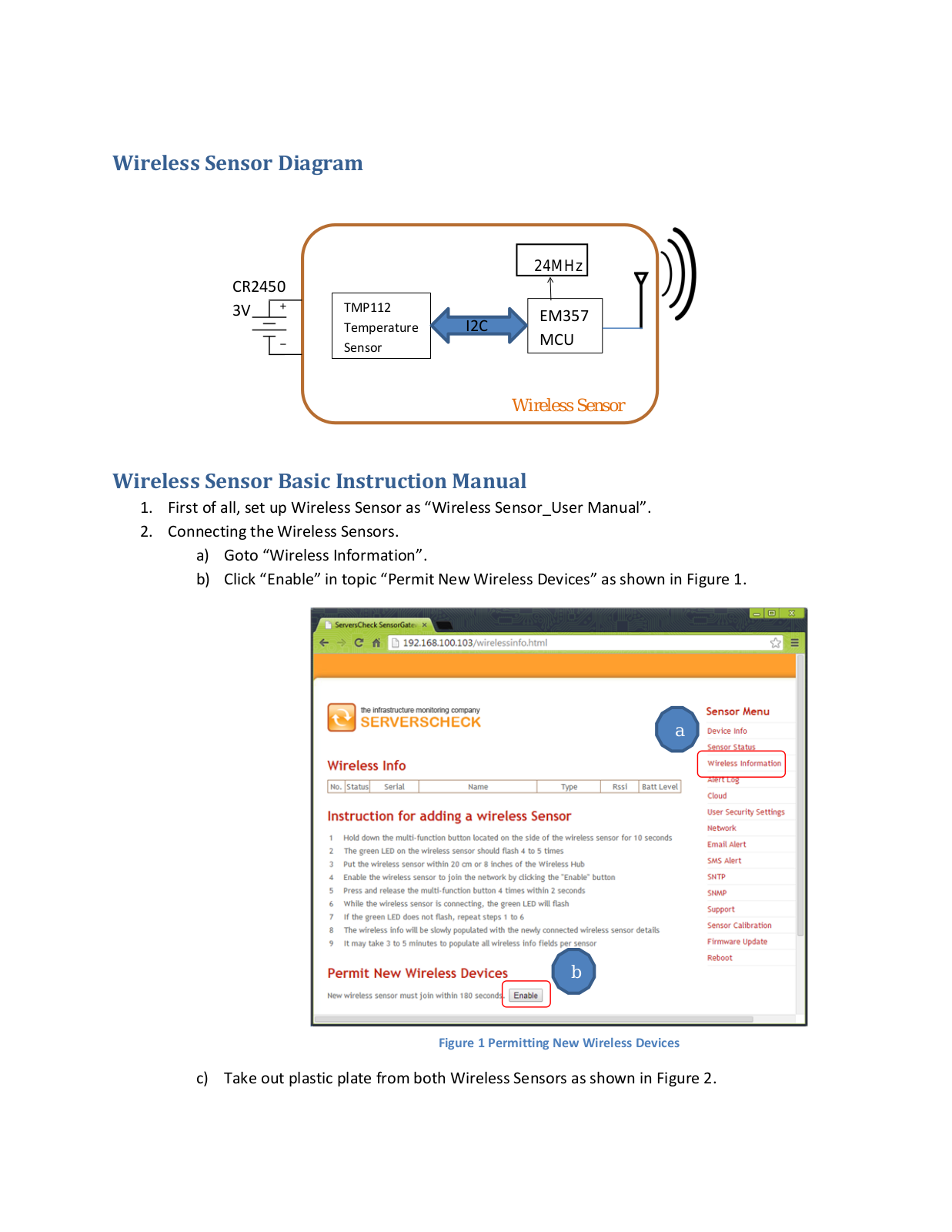

Wireless Sensor Diagram

CR2450
3V

TMP112
Temperature
Sensor

I2C

24MHz

EM357
MCU

Wireless Sensor

Wireless Sensor Basic Instruction Manual

1. First of all, set up Wireless Sensor as “Wireless Sensor_User Manual”.

2. Connecting the Wireless Sensors.
a) Goto “Wireless Information”.
b) Click “Enable” in topic “Permit New Wireless Devices” as shown in Figure 1.

a

b

Figure 1 Permitting New Wireless Devices

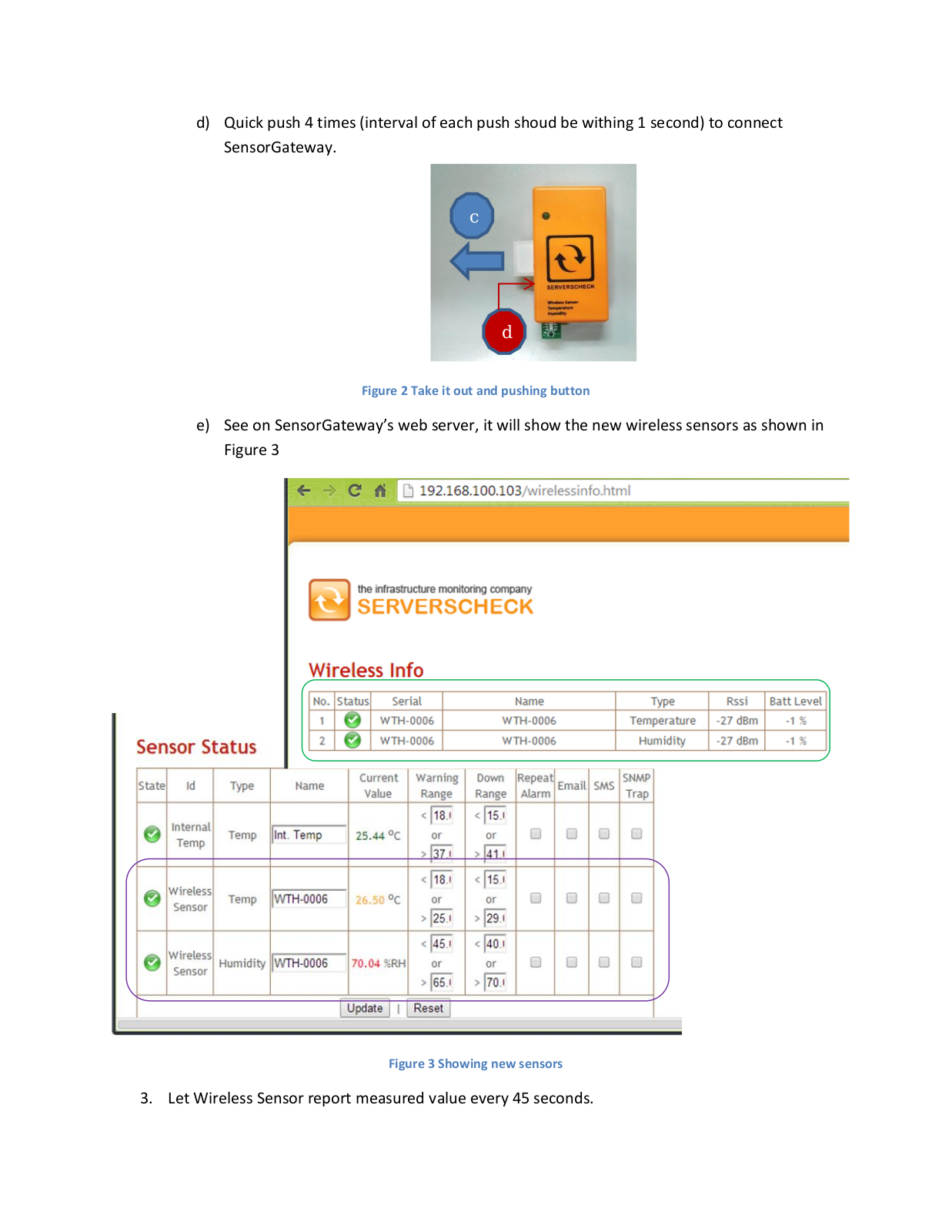

c) Take out plastic plate from both Wireless Sensors as shown in Figure 2.
